基于生态空间胁迫的大都市区增长情景模拟

doi:10.3724/SP.J.1047.2017.00020

摘要/Abstract

摘要：

大都市区增长是当前中国城镇化发展的一种主要模式,如何确定其最佳空间增长形态是新型城镇化关注的重要内容之一。本研究立足于未来“生态城市”建设理念,从自然资源生态敏感性和城市发展适宜性角度构建双重约束条件,利用元胞自动机模型构建了生态空间胁迫下的城市增长过程模拟框架,探讨了边缘性增长、生态性增长与协调性增长3种发展模式,并从建设适宜性、生态安全性与斑块紧凑性等角度构建评价指标对模拟方案进行定量化对比。最后,以长江中游城市群的南昌大都市区进行实例应用,结果表明,协调性空间增长模式能最大程度降低城市建设对生态安全空间的侵蚀,大都市区在制定城市增长边界等空间政策时宜参考此种发展模式,基于生态空间胁迫分析的城市增长过程建模是一种有用的规划决策情景分析工具。

关键词: 生态安全, 精明增长, 元胞自动机, 情景模拟, 南昌大都市区

Abstract:

The formation and growth of urban agglomerations have turned to be one of the main urbanization mode in China. New urbanization strategy issued by central government also gives specific attention to smart urban growth especially in rising urban agglomerations. How to select the optimized spatial pattern of urban growth for urban agglomerations becomes one of the most important parts in new urbanization planning. Cellular automata (CA) have proven to be efficient in modeling urban expansion and they have been widely applied to the simulation of urban growth in many cities. The simulation results derived from CA have also provided scientific references for making land use planning. This study established a modeling framework based on a constrained CA model to simulate the urban expansion with the consideration of ecological stress effect and it is oriented to the concept of building "ecological city in future ". The constraints of both ecological sensitivity and urban development suitability were incorporated into the urban growth modeling. Three main kinds of growth scenarios including the chaotic edge extension, the restrained expansion for ecological-conservation and the coordinated growth pattern were designed and discussed. The visual and quantitative comparison was further carried out to detect a plausible growth pattern for decision-making in land use planning. The three major indices including construction suitability, ecological security and landscape compactness were used to measure the rationality of the three designed scenarios, quantitatively. Meanwhile, urban agglomerations in the middle reach of the Yangtze River have turned to be the fourth growth pole in China, and Nanchang metropolitan area has become one of the most important development nodes of this growth pole. In recent years, Nanchang metropolitan area has experienced rapid urbanization, which has resulted in a series of ecological problems. Selecting an optimized spatial pattern is important and attractive to direct the future smart urban growth of Nanchang metropolitan area. Therefore, this study selected Nanchang metropolitan area as a case study area to analyze the rationality of the growth patterns. The results indicated that the coordinate growth scenario can meet the demands of both urban expansion and ecological conservation in Nanchang metropolitan area. The simulation pattern under this scenario can greatly reduce ecological stress effect from urban growth and also generate the highest total value of the selected three indices in 2049. The coordinate growth scenario can be used as a scientific reference for making spatial planning of Nanchang metropolitan area such as delimiting urban growth boundaries. This study also indicated that urban growth modeling incorporated with ecological stress effect can provide an efficient tool for decision-making in urban land use planning.

Key words: ecological security, smart growth, cellular automata, scenario simulation, Nanchang metropolitan area

马世发, 裴新生, 姚凯, 胡国华. 基于生态空间胁迫的大都市区增长情景模拟[J]. 地球信息科学学报, 2017, 19(1): 20-27.DOI:10.3724/SP.J.1047.2017.00020

MA Shifa,PEI Xinsheng,YAO Kai,HU Guohua. Multi-scenario Simulation of Urban Growth in Metropolitan Area Based on Ecological Stress Effect[J]. Journal of Geo-information Science, 2017, 19(1): 20-27.DOI:10.3724/SP.J.1047.2017.00020

图/表 7

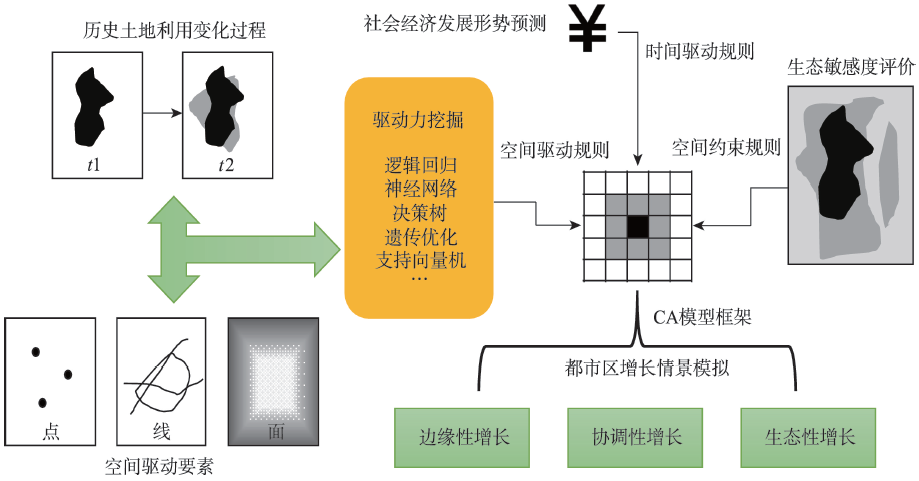

图1

图2

图3

图4

图5

图6

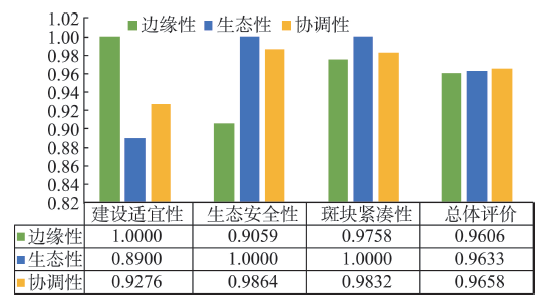

图7

参考文献 26

[1]	方创琳. 改革开放30年来中国的城市化与城镇发展[J].经济地理,2009,29(1):19-25.
	[ Fang C L.The urbanization and urban development in China after the reform and opening-up[J]. Econmic Geography 2009,29(1):19-25. ]
[2]	沈清基. 论基于生态文明的新型城镇化[J].城市规划学刊,2013(1):29-36. doi: 10.3969/j.issn.1000-3363.2013.01.005
	[ Shen Q J.Study on new urbanization based on ecological civilization[J]. Urban Planning Forum, 2013,1:29-36. ] doi: 10.3969/j.issn.1000-3363.2013.01.005
[3]	Geller A.Smart growth: A prescription for livable cities[J]. American Journal of Public Health, 2003,93(9):1410-1415. doi: 10.2105/AJPH.93.9.1410 pmid: 12948954
[4]	唐相龙. “精明增长”研究综述[J].城市问题,2009(8):98-102. doi: 10.3969/j.issn.1006-4311.2010.28.035
	[ Tang X L.Review about Smart Growth[J]. Urban Problems, 2009,8:98-102. ] doi: 10.3969/j.issn.1006-4311.2010.28.035
[5]	Cerreta M, De Toro P.Urbanization suitability maps: A dynamic spatial decision support system for sustainable land use[J]. Earth System Dynamics, 2012,3(2):157-171. doi: 10.5194/esd-3-157-2012
[6]	杨少俊,刘孝富,舒俭民.城市土地生态适宜性评价理论与方法[J].生态环境学报,2009,18(1):380-385. doi: 10.3969/j.issn.1674-5906.2009.01.070
	[ Yang S J, Liu X F, Shu J M.Urban land ecological suitability assessment: theories and methods[J]. Ecology and Envirment Sciences Sinica 2009,18(1):380-385. ] doi: 10.3969/j.issn.1674-5906.2009.01.070
[7]	俞孔坚,李迪华,韩西丽.论“反规划”[J].城市规划,2005,29(9):64-69. doi: 10.3321/j.issn:1002-1329.2005.09.013
	[ Yu K J, Li D H, Han X L.On The "Negative Planning"[J]. City Planning Review, 2005,29(9):64-69. ] doi: 10.3321/j.issn:1002-1329.2005.09.013
[8]	俞孔坚,王思思,李迪华,等.北京市生态安全格局及城市增长预景[J].生态学报,2009,29(3):1189-1204. doi: 10.3321/j.issn:1000-0933.2009.03.015
	[ Yu K J, Wang S S, Li D H, et al.The function of ecological security patterns as an urban growth framework in Beijing[J]. Acta Ecologica Sinica, 2009,29(3):1189-1204. ] doi: 10.3321/j.issn:1000-0933.2009.03.015
[9]	Asgary A, Klosterman R, Razani A.Sustainable urban growth management using What-If?[J]. International Journal of Environmental Research, 2007,1(3):218-230. doi: 10.1080/09603120701254995
[10]	Hossain M S, Das N G.GIS-based multi-criteria evaluation to land suitability modelling for giant prawn (Macrobrachium rosenbergii) farming in Companigonj Upazila of Noakhali, Bangladesh[J]. Computers and Electronics in Agriculture, 2010,70(1):172-186. doi: 10.1016/j.compag.2009.10.003
[11]	黎夏,叶嘉安.约束性单元自动演化CA模型及可持续城市发展形态的模拟[J].地理学报,1999,54(4):3-12. doi: 10.3321/j.issn:0375-5444.1999.04.001
	[ Li X, Ye J A.Constrained cellular automata for modelling sustainable urban forms[J]. Aata Geographica Sinica, 1999,54(4):3-12. ] doi: 10.3321/j.issn:0375-5444.1999.04.001
[12]	Santé I, García A M, Miranda D, et al.Cellular automata models for the simulation of real-world urban processes: A review and analysis[J]. Landscape and Urban Planning, 2010,96:108-122. doi: 10.1016/j.landurbplan.2010.03.001
[13]	龙瀛,韩昊英,毛其智.利用约束性CA制定城市增长边界[J].地理学报,2009,64(8):999-1008. doi: 10.3321/j.issn:0375-5444.2009.08.010
	[ Long Y, Han H Y, Mao Q Z.Establishing urban growth boundaries using constrained CA[J]. Aata Geographica Sinica, 2009,64(8):999-1008. ] doi: 10.3321/j.issn:0375-5444.2009.08.010
[14]	马世发,艾彬,欧金沛.约束性CA在城乡建设用地指标空间化中的应用[J].地理科学,2013,33(10):1245-1251.
	[ Ma S F, Ai B, Ou J P.Spatial allocation of construction land with constrained cellular automata model[J]. Scientia Geographica Sinica, 2013,33(10):1245-1251. ]
[15]	Clarke K C.Loose-coupling a cellular automata model and GIS: Long-term urban growth prediction for San Francisco and Washington/Baltimore[J]. International Journal of Geographical Information Science, 1998,12(7):699-714. doi: 10.1080/136588198241617 pmid: 12294536
[16]	潘影,宇振荣,段增强,等.邻域距离对细胞自动机模型模拟土地利用变化精度的影响[J].农业工程学报,2010,26(3):309-315. doi: 10.3969/j.issn.1002-6819.2010.03.053
	[ Pan Y, Yu Z L, Duan Z Q, et al.Influence of neighborhood distance on simulation accuracy of cellular automata model in land use[J]. Transactions of the CSAE, 2010,26(3):309-315. ] doi: 10.3969/j.issn.1002-6819.2010.03.053
[17]	Batty M, Xie Y C.Self-organized criticality and urban development[J]. Discrete Dynamics in Nature and Society, 1999,3(2):109-124. doi: 10.1016/0920-5632(92)90245-N
[18]	Wu F L.A linguistic cellular automata simulation approach for sustainable land development in a fast growing region[J]. Comput, Environ, and Urban Systems, 1996,20(6):367-387. doi: 10.1016/S0198-9715(97)00003-3
[19]	Li X, Yeh AGO.Neural-network-based cellular automata for simulating multiple land use changes using GIS[J]. International Journal of Geographical Information Science, 2002,16(4):323-343. doi: 10.1080/13658810210137004
[20]	柯新利,边馥苓.基于C5.0决策树算法的元胞自动机土地利用变化模拟模型[J].长江流域资源与环境,2010,19(4):403-408.
	[ Ke X L, Bian F L.Land-use change CA model based on C5.0 decision tree[J]. Resources and Environment in the Yangtze Basin, 2010,19(4):403-408. ]
[21]	Feng Y, Liu Y, Tong X, et al.Modeling dynamic urban growth using cellular automata and particle swarm optimization rules[J]. Landscape and Urban Planning, 2011,102:188-196. doi: 10.1016/j.landurbplan.2011.04.004
[22]	Liu J G, Dietz T, Carpenter S R, et al.Complexity of coupled human and natural systems[J]. Science, 2007,317:1513-1516. doi: 10.1126/science.1144004 pmid: 17872436
[23]	周锐,王新军,苏海龙,等. 基于生态安全格局的城市增长边界划定——以平顶山新区为例[J].城市规划学刊,2014(4):57-63. doi: 10.3969/j.issn.1000-3363.2014.04.010
	[ Zhou R, Wang X J, Su H L, et al.Delimitation of urban growth boundary based on ecological security pattern: A case of Pingdingshan New District[J]. Urban Planning Forum, 2014,4:57-63. ] doi: 10.3969/j.issn.1000-3363.2014.04.010
[24]	俞艳,何建华.基于生态位适宜度的土地生态经济适宜性评价[J].农业工程学报,2008,24(1):124-128.
	[ Yu Y, He J H.Land eco-economical suitability evaluation based on niche fitness[J]. Transactions of the Chunese Society of Agricultural Enginerring, 2008,24(1):124-128. ]
[25]	陈鹏,庄孔造,蔡鹭春.厦门城市空间拓展的生态敏感性评价[J].地球信息科学学报,2013,15(3):389-394. doi: 10.3724/SP.J.1047.2013.00389
	[ Chen P, Zhuang K Z, Cai L C.Ecological sensitivity assessment of bay-type city in Xiamen[J]. Journal of Geo-information Science, 2013,15(3):389-394. ] doi: 10.3724/SP.J.1047.2013.00389
[26]	李广娣,冯长春,曹敏政.基于土地生态敏感性评价的城市空间增长策略研究——以铜陵市为例[J].城市发展研究,2013,20(11):69-74. doi: 10.3969/j.issn.1006-3862.2013.11.011
	[ Li G T, Feng C C, Cao M Z.Study of urban spatial growth strategy based on ecological sensitivity assessment: A case study of Tongling[J]. Urban Studies, 2013,20(11):69-74. ] doi: 10.3969/j.issn.1006-3862.2013.11.011
