地球信息科学学报 ›› 2017, Vol. 19 ›› Issue (2): 273-280.doi: 10.3724/SP.J.1047.2017.00273
收稿日期:
2016-04-14
修回日期:
2016-06-17
出版日期:
2017-02-28
发布日期:
2017-02-17
作者简介:
作者简介:温小乐(1976-),女,博士,副教授,研究方向为环境资源遥感与环境评价。E-mail:
基金资助:
WEN Xiaole1,*(), LI Yang1, LIN Zhengfeng2
Received:
2016-04-14
Revised:
2016-06-17
Online:
2017-02-28
Published:
2017-02-17
Contact:
WEN Xiaole
E-mail:wenxiaole@sina.com
摘要:
海岛生态脆弱、稳定性差,大规模的海岛开发使得原本脆弱的岛上植被生境面临更大的威胁,对海岛开发中的植被覆盖变化开展分析显得尤为重要。本文基于Landsat 5卫星和Landsat 8卫星的2001、2010和2014年的遥感影像,采用Gutmand和Ignatov提出的植被覆盖度计算模型提取福建平潭岛的植被覆盖度,并结合其土地覆盖变化信息,探究平潭综合实验区建设前后植被覆盖度变化特点及其原因。研究结果表明,3个时相的平潭岛植被覆盖度达中度以上的区域面积比例分别为86.00%、58.92%和71.16%,表明研究区整体植被覆盖状况良好。动态变化分析结果显示,2001-2014年研究区植被覆盖度总体呈下降趋势,其中2001-2010年植被覆盖度下降显著,下降区域面积比例高达53.95%;而2010-2014年岛上植被覆盖状况有较大改善,植被覆盖度增加区域面积比例达47.77%,这在一定程度上弥补了之前植被覆盖度大幅下降的影响,分析原因主要得益于平潭综合实验区建立后所采取的科学规划、进一步加大植树造林、逐步完善海岛绿地系统的植被建设与保护措施。
温小乐, 李洋, 林征峰. 海岛建设引发的植被覆盖度变化的遥感分析[J]. 地球信息科学学报, 2017, 19(2): 273-280.DOI:10.3724/SP.J.1047.2017.00273
WEN Xiaole,LI Yang,LIN Zhengfeng. Remote Sensing Analysis of Fractional Vegetation Cover Change Triggered by Island Construction[J]. Journal of Geo-information Science, 2017, 19(2): 273-280.DOI:10.3724/SP.J.1047.2017.00273

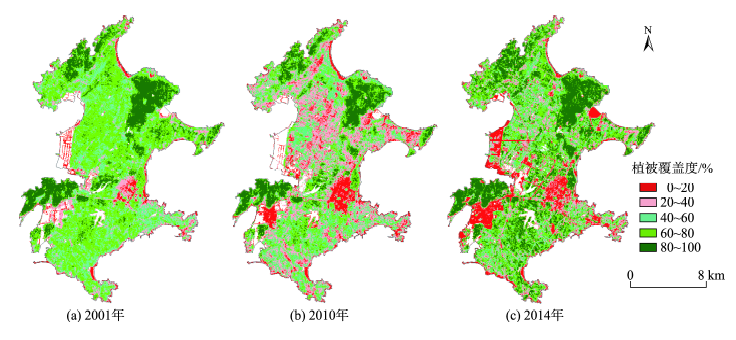

表2
研究区不同时相各等级植被覆盖度统计表"
植被覆盖度 (FVC) | 2001年 | 2010年 | 2014年 | |||||
---|---|---|---|---|---|---|---|---|
面积/km2 | 百分比/% | 面积/km2 | 百分比/% | 面积/km2 | 百分比/% | |||
低度(0%~20%) | 12.14 | 4.67 | 32.54 | 12.57 | 35.11 | 13.19 | ||
中低度(20%~40%) | 24.13 | 9.28 | 73.81 | 28.51 | 41.66 | 15.65 | ||
中度(40%~60%) | 65.04 | 25.01 | 71.60 | 27.65 | 54.28 | 20.39 | ||
中高度(60%~80%) | 116.45 | 44.78 | 49.10 | 18.96 | 70.47 | 26.47 | ||
高度(80%~100%) | 42.31 | 16.27 | 31.88 | 12.31 | 64.69 | 24.30 | ||
均值/% | 61.74 | 47.92 | 56.74 | |||||
标准差/% | 19.97 | 23.80 | 27.11 |

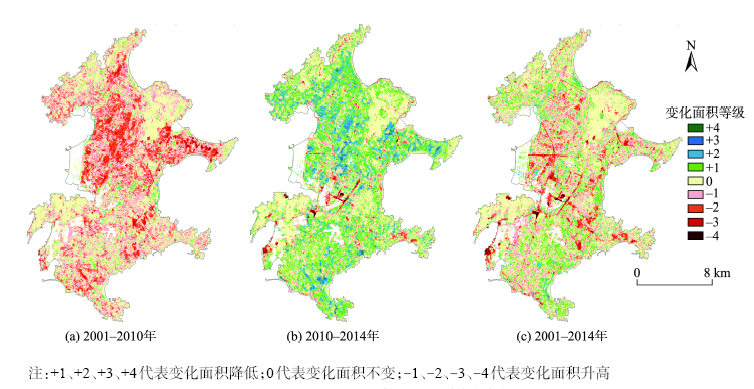

表3
2001-2014年研究区植被覆盖度变化统计表"
变化面积等级 | 2001-2010年 | 2010-2014年 | 2001-2014年 | ||||||
---|---|---|---|---|---|---|---|---|---|
面积比例/% | 升降合计/% | 面积比例/% | 升降合计/% | 面积比例/% | 升降合计/% | ||||
-4 | 0.13 | 53.95 | 0.23 | 11.16 | 0.34 | 31.56 | |||
-3 | 3.10 | 0.77 | 2.22 | ||||||
-2 | 14.98 | 2.22 | 7.01 | ||||||
-1 | 35.74 | 7.94 | 21.99 | ||||||
0 | 40.80 | 40.80 | 41.07 | 41.07 | 47.09 | 47.09 | |||
+1 | 4.91 | 5.24 | 33.67 | 47.77 | 18.68 | 21.36 | |||
+2 | 0.31 | 11.30 | 2.51 | ||||||
+3 | 0.02 | 2.49 | 0.16 | ||||||
+4 | 0.00 | 0.31 | 0.01 |
[1] | 潘耀忠,李晓兵,何春阳.中国土地覆盖综合分类研究——基于NOAA/AVHRR和Holdridge PE[J].第四纪研究,2000,20(3):270-281. |
[ Pan Y Z, Li X B, He C Y.Research on comprehensive land cover classification in China: based on NOAA/AVHRR and Holdridge PE index[J]. Quaternary Sciences, 2000,20(3):270-282. ] | |
[2] |
Baret F, Weiss M, Lacaze R, et al.GEOV1: LAI and FAPAR essential climate variables and FCOVER global time series capitalizing over existing products. Part1: Principles of development and production[J]. Remote Sensing of Environment, 2013,137:299-309.
doi: 10.1016/j.rse.2012.12.027 |
[3] | 陈效逑,王恒.1982-2003年内蒙古植被带和植被覆盖度的时空变化[J].地理学报,2009,64(1):84-94. |
[ Chen X Q, Wang H.Spatial and temporal variations of vegetation belts and vegetation cover degrees in Inner Mongolia from 1982 to 2003[J]. Acta Geographica Sinica, 2009,64(1):84-94. ] | |
[4] |
吴昌广,周志翔,肖文发,等.基于MODIS NDVI 的三峡库区植被覆盖度动态监测[J].林业科学,2012,48(1):22-28.
doi: 10.11707/j.1001-7488.20120105 |
[ Wu C G, Zhou Z X, Xiao W F, et al.Dynamic monitoring of vegetation coverage in three Gorges Reservoir area based on MODIS NDVI[J]. Scientia Silvae Sinicae, 2012,48(1):22-28. ]
doi: 10.11707/j.1001-7488.20120105 |
|
[5] |
张喜旺,吴炳方.基于中高分辨率遥感的植被覆盖度时相变换方法[J].生态学报,2015,35(4):1155-1164.
doi: 10.5846/stxb201305020904 |
[ Zhang X W, Wu B F.A temporal transformation method of fractional vegetation cover derived from high and moderate resolution remote sensing data[J]. Acta Ecologica Sinica, 2015,35(4):1155-1164. ]
doi: 10.5846/stxb201305020904 |
|
[6] |
Xiao J, Moody A.A comparison of methods for estimating fractional green vegetation cover within a desert-to-upland transition zone in central New Mexico, USA[J]. Remote Sensing of Environment, 2005,98(2):237-250.
doi: 10.1016/j.rse.2005.07.011 |
[7] | 马娜,胡云锋,庄大方,等.基于遥感和像元二分模型的内蒙古正蓝旗植被覆盖度格局和动态变化[J].地理科学,2012,32(2):251-256. |
[ Man, Hu Y F, Zhuang D F, et al. Vegetation coverage distribution and its change in Plan Blue Banner based on remote sensing data and dimidiate pixel model[J]. Scientia Geographica Sinica, 2012,32(2):251-256. ] | |
[8] |
徐涵秋,唐菲.新一代Landsat系列卫星:Landsat 8遥感影像新增特征及其生态环境意义[J].生态学报,2013,33(11):3249-3257.
doi: 10.5846/stxb201305030912 |
[ Xu H Q, Tang F.Analysis of new characteristics of the first Landsat 8 image and their eco-environmental significance[J]. Acta Ecologica Sinica, 2013,33(11):3249-3257. ]
doi: 10.5846/stxb201305030912 |
|
[9] |
Chander G, Markham B.Revised Landsat-5 TM radiometric calibration procedures and post calibration dynamic ranges[J]. IEEE Transactions on Geoscience and Remote Sensing, 2003,41(11):2674-2677.
doi: 10.1109/TGRS.2003.818464 |
[10] |
Chander G, Markham B L, Helder D L.Summary of current radiometric calibration coefficients for Landsat MSS, TM, ETM+, and EO-1 ALI sensors[J]. Remote Sensing of Environment, 2009,113(5):893-903.
doi: 10.1016/j.rse.2009.01.007 |
[11] |
Chavez P S Jr. Image-based atmospheric corrections-revisited and improved[J]. Photogrammetric Engineering and Remote Sensing, 1996,62(9):1025-1036.
doi: 10.1016/0031-0182(96)00019-3 |
[12] |
Sellers P J, Tucker C J, Collatz G J, et al.A global 1 by 1 NDVI data set for climate studies. Part2: The generation of global fields of terrestrial biophysical parameters from the NDVI[J]. International Journal of Remote Sensing, 1994,15(17):3519-3545.
doi: 10.1080/01431169408954343 |
[13] | Los S O, Collatz G J, Sellers P J, et al.A global 9-yr biophysical land surface dataset from NOAA AVHRR data[J]. Journal of Hydrometeorology, 2000,1(2):183-199. |
[14] |
Peter R J.North Estimation of f APAR, LAI , and vegetation fractional cover from ATSR-2 imagery[J]. Remote Sensing of Environment, 2002,80(1):114-121.
doi: 10.1016/S0034-4257(01)00292-9 |
[15] |
Gillies R R, Kustas W P, Humes K S.A verification of the triangle method for obtaining surface soil water content and energy fluxes from remote measurements of the Normalized difference vegetation Index (NDVI) and surface[J]. International Journal of Remote Sensing, 1997,18(15):3145-3166.
doi: 10.1080/014311697217026 |
[16] | 杨胜天,刘昌明,杨志峰,等.南水北调西线调水工程区的自然生态环境评价[J].地理学报,2002,57(1):11-18. |
[ Yang S T, Liu C M, Yang Z F, et al.Natural eco-environmental evaluation of West Route Area of Inter-basin Water Transfer Project[J]. Acta Geographic Sinica, 2002,57(1):11-18. ] | |
[17] |
Qi J, Marsett R C, Moran M S, et al.Spatial and temporal dynamics of vegetation in the San Pedro River basin area[J]. Agricultural and Forest Meteorology, 2000,105(1):55-68.
doi: 10.1016/S0168-1923(00)00195-7 |
[18] |
Gutman G, Ignatov A.The derivation of the green vegetation fraction from NOAA/AVHRR data for use in numerical weather prediction models[J]. International Journal of Remote sensing, 1998,19(8):1533-1543.
doi: 10.1080/014311698215333 |
[19] |
Carlson T N, Ripley D A.On the relation between NDVI, fractional vegetation cover, and leaf area index[J]. Remote Sensing of Environment, 1997,62(3):241-252.
doi: 10.1016/S0034-4257(97)00104-1 |
[20] |
Rundquist B C.The influence of canopy green vegetation fraction on spectral measurements over native tall grass prairie[J]. Remote Sensing of Environment, 2002,81(1):129-135.
doi: 10.1016/S0034-4257(01)00339-X |
[21] | 林忠等. 平潭县土地开发整理专项规划(1997-2010年)[R].福建师范大学地理所,平潭县土地管理局,2001. |
[ Lin Z, et al.Special planning of land development and consolidation in Pingtan County(1997-2010)[R]. Geography Institute of Fujian Normal University, Pingtan County Land Administration Bureau, 2001. ] | |
[22] |
郭晓峰,吴耀建,姜尚,等.海岛生态脆弱性驱动机制及对策措施初探——以平潭岛为例[J].海峡科学,2009(3):3-5.
doi: 10.3969/j.issn.1673-8683.2009.03.001 |
[ Guo X F, Wu Y J, Jiang S, et al.The driving mechanism and countermeasures of ecological vulnerability of islands: A case of Pingtan island[J]. Strait Science, 2009,3:3-5. ]
doi: 10.3969/j.issn.1673-8683.2009.03.001 |
|
[23] | 福建省城乡规划设计研究院.平潭综合实验区总体规划(2010-2030)[R]. 2010. |
[ Fujian Urban and rural Planning Design and Research Institute. Master Plan of Pingtan Comprehensive Experimental Zone(2010-2030)[R]. 2010. ] | |
[24] |
陈雪珍. 平潭综合实验区生态防护林体系建设研究[J].环境科学与管理,2014,39(5):152-155.
doi: 10.3969/j.issn.1673-1212.2014.05.045 |
[ Chen X Z.Study on ecological protection forest construction in Pingtan comprehensive experimental zone[J]. Environmental Science and Management, 2014,39(5):152-155. ]
doi: 10.3969/j.issn.1673-1212.2014.05.045 |
|
[25] | 平潭综合实验区森林与园林局.平潭综合实验区森园局2012年工作总结暨2013年工作计划[R].2013. |
[ Bureau of forest and garden of Pingtan comprehensive experimental zone. Bureau of forest and garden of Pingtan comprehensive experimental zone, 2012 work summary and 2013 work plan[R]. 2013. ] |
