基于偏振植被指数的植被-土壤混合像元室内实验研究

doi:10.3724/SP.J.1047.2017.00374

摘要/Abstract

摘要：

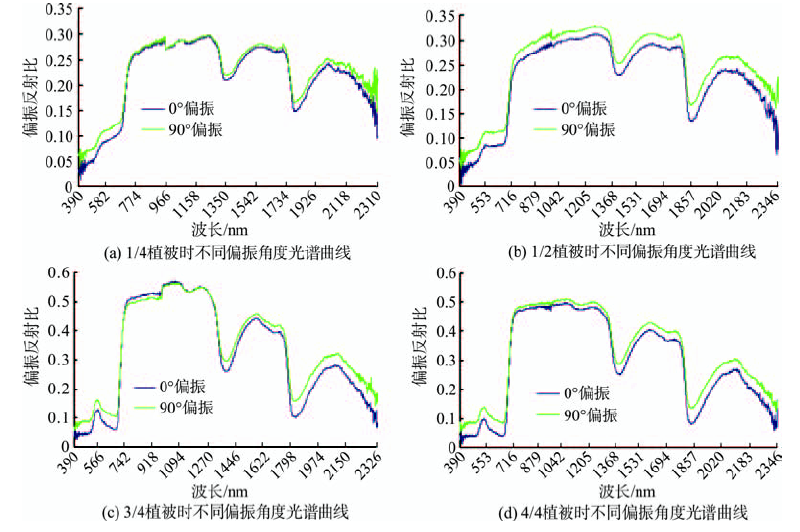

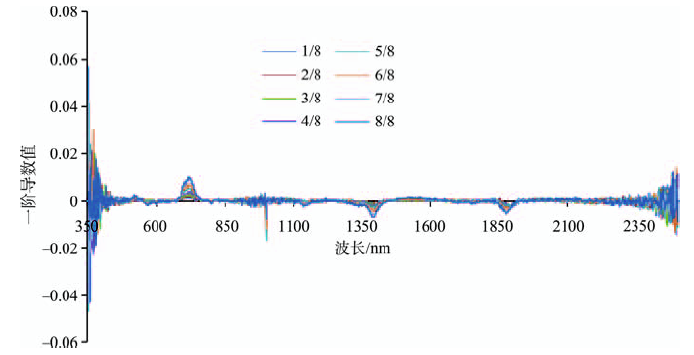

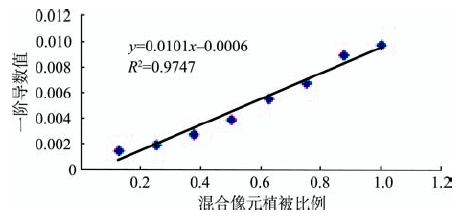

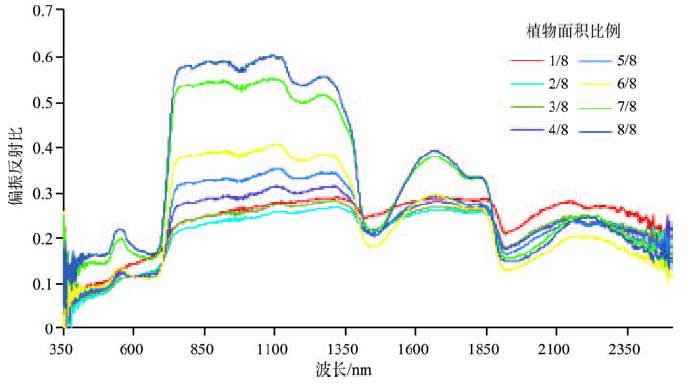

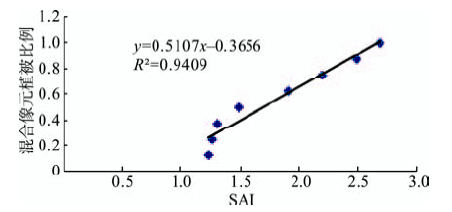

混合像元是遥感影像中普遍存在的一种现象,对其组成和各成分比例的反演一直是遥感研究中的重难点,而国内利用偏振植被指数对混合像元的研究几乎没有涉及。本次研究通过对不同面积比例的植被-土壤混合像元偏振反射高光谱特征进行分析,讨论不同条件下的植被-土壤混合像元偏振高光谱特性,并利用偏振反射比计算了12种0°偏振态下的偏振植被指数,分别构建了植被指数与植被面积比例以及光谱特征参数与植被面积比例的数学模型。结果表明,混合像元中植被面积比例和偏振角均对其偏振高光谱有一定的影响;865 nm的偏振反射比与植被占像元面积比例的相关性最好,采用多项式进行拟合时,其决定系数达到0.99,适合进行植被占像元面积比例的反演;偏振光谱“红边”处的一阶微分值与植被像元比例存在良好的线性相关,R²=0.974;植被面积比例与植被指数和光谱特征参数呈现良好的相关关系,其中P-DVI和光谱吸收指数（SAI）与植被面积比例的拟合效果最好,决定系数分别为0.99以及0.94,适合进行植被-土壤混合像元中植被面积比例的反演。

关键词: 偏振植被指数, 混合像元, 偏振高光谱, SAI, 微分光谱

Abstract:

In remote sensing images, mixed pixel is a common phenomenon. The inversion of component composition and proportion of mixed pixels has been a key and difficult point in remote sensing research. Besides, the study of the mixed pixel using polarization vegetable index has not been conducted in China, yet. This study analyzed the hyperspectral characteristics of polarized reflections of vegetation-soil mixed pixels in different area ratios and discussed the hyperspectral characteristics under different conditions. We used the polarized reflection ratios to calculate the polarization vegetation indices of 12 types of 0 degree polarization and constructed the mathematical model of vegetation area ratio related to spectral characteristic parameters and vegetation index. The results show that vegetation area ratio and polarization angle have certain influence on hyper-spectrum of polarization of mixed pixels. The correlation between polarized reflection ratio of 865nm and the proportion of the vegetation is the best. When the polynomial fitting is applied, the coefficient of determination is up to 0.99. It implies this method is suitable for the inversion of the proportion of vegetation in pixels. With the proportion of vegetation there is a good linear correlation of first order differential of the polarization spectrum on "red edge",R- square = 0.974. Spectral characteristic parameters and vegetation index have good correlations with vegetation area ratio with the P-DVI and spectral absorption index (SAI) showing the best fitting goodness of vegetation area ratio (the coefficients of determination are 0.99 and 0.94, respectively). It implies this method is suitable for the inversion of vegetation area in vegetation-soil mixed pixels.

Key words: polarization vegetation index, mixed pixel, polarization hyper-spectrum, SAI, differential spectrum

陈星任, 韩阳, 王家琪, 卢珍. 基于偏振植被指数的植被-土壤混合像元室内实验研究[J]. 地球信息科学学报, 2017, 19(3): 374-381.DOI:10.3724/SP.J.1047.2017.00374

CHEN Xingren,HAN Yang,WANG Jiaqi,LU Zhen. Indoor Experimental Study on Vegetation-soil Mixed Pixels based on Polarization Vegetation Index[J]. Journal of Geo-information Science, 2017, 19(3): 374-381.DOI:10.3724/SP.J.1047.2017.00374

图/表 14

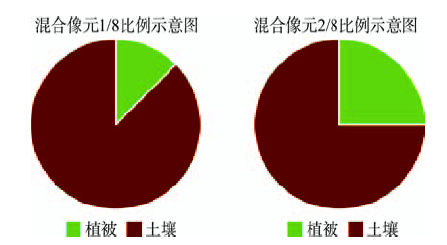

图1

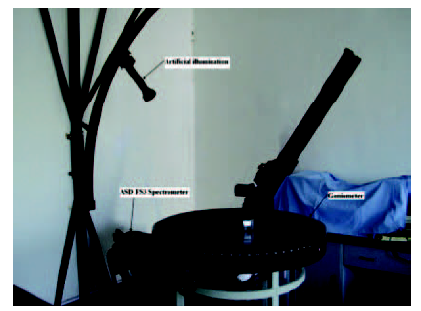

图2

表1

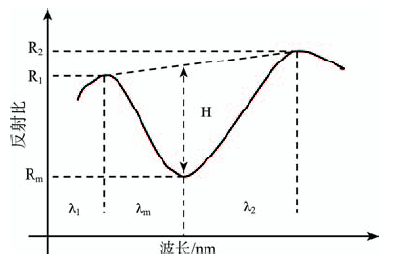

图3

图4

图5

表2

图6

图7

表3

表4

表5

图8

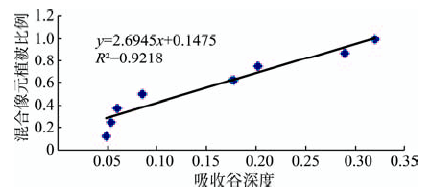

图9

参考文献 25

[1]	谭昌伟,王纪华,黄文江,等.高光谱遥感在植被理化信息提取中的应用动态[J].西北农林科技大学学报(自然科学版),2005,33(5):151-156. doi: 10.3321/j.issn:1671-9387.2005.05.037
	[ Tan C W, Wang J H, et al.A review of hyperspectral remote sensing application to extract biophysical and biochemical information of vegetation[J]. Journal of Northwest Sci-Tech University of Agriculture and Forestry, 2005,33(5):151-156. ] doi: 10.3321/j.issn:1671-9387.2005.05.037
[2]	姚阔,郭旭东,周冬,等.高光谱遥感土地质量指标信息提取研究进展[J].地理与信息科学,2014,30(6):7-12. doi: 10.3969/j.issn.1672-0504.2014.06.002
	[ Yao K, Guo X D, et al.Advances in Researches on Hyperspectral Remote Sensing Information Extraction of Land Quality Indicators[J]. Geography and Geo-Information Science, 2014,30(6):7-12. ] doi: 10.3969/j.issn.1672-0504.2014.06.002
[3]	梁尧钦,曾辉.高光谱遥感在植被特征识别研究中的应用[J].世界林业研究,2009,22(1):41-47.
	[ Liang Y Q, Zeng H.Application of hyperspectral remote sensing in identification of vegetation characteristics[J]. World Forestry Research, 2009,22(1):41-47. ]
[4]	陶秋香,陶华学,张连蓬. 线性混合光谱模型在植被高光谱遥感分类中的应用研究[J]勘探科学技术,2004(1):21-24. doi: 10.3969/j.issn.1001-3946.2004.01.005
	[ Tao Q X, Tao H X, et al.Study on applying linear mixing spectral model in vegetation classification using hyperspectral remoting sensing[J]. Site Investigation Science and Technology, 2004,1:21-24. ] doi: 10.3969/j.issn.1001-3946.2004.01.005
[5]	申广荣,王人潮.植被高光谱遥感的应用研究综述[J].上海交通大学学报(农业科学版),2001,19(4):315-321. doi: 10.3969/j.issn.1671-9964.2001.04.018
	[ Shen G R, Wang R C, et al.Review of the application of vegetation hyperspectral remote sensing[J]. Journal of Shanghai Jiaotong University (Agricultural Science), 2001,19(4):315-321. ] doi: 10.3969/j.issn.1671-9964.2001.04.018
[6]	赵虎,晏磊,赵云升.橄榄岩的多角度偏振反射光谱研究[J].地质与勘探,2004,40(2):51-54. doi: 10.3969/j.issn.0495-5331.2004.02.011
	[ Zhao H, Yan L, Zhao Y S.Multi-angle polarized reflectance spectrum of peridotite[J]. Geology and Prospecting, 2004,40(2):51-54. ] doi: 10.3969/j.issn.0495-5331.2004.02.011
[7]	韩阳,李潜,赵云升,等.三因素及其交互作用对植物多叶片多角度偏振高光谱特征的影响[J].红外与毫米波学报,2010,29(4):316-320.
	[ Han Y, Zhao Y S, et al.Effects of three interactive factors on the multi-angle polarized hyperspectrum of vegetation leaves[J]. Geology and Prospecting, 2010,29(4):316-320. ]
[8]	邹维娜,袁琳,张利权,等.盖度与冠层水深对沉水植物水盾草光谱特性的影响[J].生态学报,2012,32(3):706-714. doi: 10.5846/stxb201107051002
	[ Zou W N, Yuan L, et al.Impacts of coverage and canopy water depth on the spectral characteristics for a submerged plant Cabomba caroliniana[J]. Acta Ecologica Sinica, 2012,32(3):706-714. ] doi: 10.5846/stxb201107051002
[9]	Kuusinen N, Kolari P, Levula J, et al.Seasonal variation in boreal pine forest albedo and effects of canopy snow on forest reflectance[J]. Agricultural &Forest Meteorogy, 2012,164(3):53-60. doi: 10.1016/j.agrformet.2012.05.009
[10]	吕云峰. 基于垂直观测的植被冠层高光谱偏振反射特性研究[J].光谱学与光谱分析,2013,33(4):1028-1031. doi: 10.3964/j.issn.1000-0593(2013)04-1028-04
	[ Lv Y F.Study of hyperspectral polarized reflectance of vegetation canopy at nadir viewing direction[J]. Spectroscopy and Spectral Analysis,2013,33(4):1028-1031. ] doi: 10.3964/j.issn.1000-0593(2013)04-1028-04
[11]	朱文静,毛罕平.温室番茄缺素叶片偏振反射特征分析[J].光谱学与光谱分析,2014,34(1):145-150. doi: 10.3964/j.issn.1000-0593(2014)01-0145-06
	[ Zhu W J, Mao H P.Study on the polarized reflectance characteristics of single greenhouse tomato nutrient deficiency leaves[J]. Spectroscopy and Spectral Analysis, 2014,34(1):145-150. ] doi: 10.3964/j.issn.1000-0593(2014)01-0145-06
[12]	岳喜元,常学礼,刘良旭,等.科尔沁沙地几种固沙植物光谱生物量模型构建与分析[J].中国沙漠,2014,34(6):1496-1502. doi: 10.7522/j.issn.1000-694X.2013.00449
	[ Yue X Y, Chang X L, et al.Spectrum-biomass models of several sand-fixing plant species in the Horqin sandy land[J]. Journal of Desert Research, 2014,34(6):1496-1502. ] doi: 10.7522/j.issn.1000-694X.2013.00449
[13]	江晓东,刘诚,徐家平,等.昼夜不对称增温对冬小麦花后冠层反射光谱特性的影响[J].农业工程学报,2014,30(12):115-122.
	[ Jiang X D, Liu C, Xu J P, et al.Effects of asymmetric warming in daytime and nighttime on canopy spectral reflectance of post-anthesis winter wheat[J]. Transactions of the Chinese Society of Agricultural Engineering, 2014,30(12):115-122. ]
[14]	Norman M, Divakarla M, Goel N S.Algorithms for extracting information from remote thermal-IR observations of the earth's surface[J]. Remote Sensing of Environment, 1995,51(1):157-168. doi: 10.1016/0034-4257(94)00072-U
[15]	覃文汉. 遥感植被双向反射光谱的理论研究与应用展望[J].环境遥感,1992,7(4):290-299. doi: 10.1007/BF02943552
	[ Qin W H.A review on studies of bidirectional reflectance of vegetation canopies[J]. Journal of Remote Sensing, 1992,7(4):290-299. ] doi: 10.1007/BF02943552
[16]	吕云峰. 水中叶绿素二向性与偏振反射光谱特性的对比研究[D].吉林:东北师范大学,2007.
	[ Lv Y F.The comparative study of the spectral characteristics of two direction and polarization belong to chlorophyll in wate[D]. Ji Lin: Northeast Normal University, 2007. ]
[17]	韩阳,徐文茹,金伦.典型盐渍化土壤偏振反射高光谱特征与模型分析[J].红外与毫米波学报,2015,34(5):606-612. doi: 10.11972/j.issn.1001-9014.2015.05.016
	[ Han Y, Xu W R, et al.Study on the polarized reflectance hyperspectral characteristicsand models of typical saline soil[J]. Journal of Infrared and Millimeter Waves, 2015,34(5):606-612. ] doi: 10.11972/j.issn.1001-9014.2015.05.016
[18]	韩阳,秦伟超,王野乔.吉林省西部典型盐渍化土壤偏振反射高光谱特征与模型研究[J].光谱学与光谱分析,2014,34(6):1640-1644. doi: 10.3964/j.issn.1000-0593(2014)06-1640-05
	[ Han Y, Qin W C, et al.Study on the polarized reflectance hyperspectral characteristics and models of typical saline soil in the west of Jilin Province, China[J]. Spectroscopy and Spectral Analysis, 2014,34(6):1640-1644. ] doi: 10.3964/j.issn.1000-0593(2014)06-1640-05
[19]	Chen J M.Evaluation of vegetation indices and a modified simple ratio for boreal applications[J]. Canadian Journal of Re-mote Sensing, 1996,2222(3):229-242.
[20]	Rouse J W, Haas R H, Schell J A, et al.Monitoring the vernal advancement of retrogradation of natural vegetation NASA/GSFC[R]. Type Ⅲ, Final Report, Greenbelt, MD, USA, 1974.
[21]	Pearson R L, Miller L D.Remote mapping of standing crop biomass for estimation of the productivity of the short-grass prairie[C]. Proceedings of the Eighth International Symposiumon Remote Sensing of Environment, Fort Collins, Colorado: Colorado University, 1972.
[22]	Jordan C F.Derivation of Leaf Area Index from Quality of Lighton the Forest Floor[J].Ecology, 1969,5050(4): 663-666. doi: 10.2307/1936256
[23]	李凤秀,张柏,刘殿伟,等.洪河自然保护区乌拉苔草生物量高光谱遥感估算模型[J].湿地科学,2008,66(1):51-59.
	[ Li F X, Zhang B, Liu D W, et al.Hyperspectral remote sensing estimation models for the biomass of carexmeyeriana in Honghe nature reserve[J]. Wetland Science, 2008,66(1):51-59. ]
[24]	徐文茹,韩阳,秦艳,等.盐渍化土壤偏振高光谱信息与土壤线的关系初探[J].光谱学与光谱分析,2015,35(10):2856-2861. doi: 10.3964/j.issn.1000-0593(2015)10-2856-06
	[ Xu W R, Han Y, et al.Study on the relationship between hyperspectral polarized information of soil salinization and soil line[J]. Spectroscopy and Spectral Analysis, 2015,35(10):2856-2861. ] doi: 10.3964/j.issn.1000-0593(2015)10-2856-06
[25]	张莉莉. 利用偏振高光谱反演植被叶绿素含量[D].吉林:东北师范大学,2007.
	[ Zhang L L.Simulation of clove leafs chlorophyll concentration via the polarized light and hyper-spectral[D]. Jilin: Northeast Normal University, 2007. ]

植被指数	名称	公式
P-NDVI	归一化植被指数	(R₈₀₀-R₆₇₅)/(R₈₀₀+R₆₇₅)
P-RVI	比值植被指数	R₈₀₀/R₆₇₅
P-DVI	差值植被指数	R₈₀₀-R₆₇₅
P-MSR	优化比值植被指数	(R₈₀₀/R₆₇₅-1)/(R₈₀₀/R₆₇₅+1)^1/2
P-FNDVI	全波段归一化植被指数	(R₉₃₀-R₅₁₅)/(R₉₃₀+R₅₁₅)
P-FRVI	全波段比值植被指数	R₇₆₅-R₅₈₅
P-FDVI	全波段差值植被指数	R₁₂₃₀-R₁₁₀₀
P-EVI	增强型植被指数	2.5(R₈₀₀-R₆₇₅)/(R₈₀₀+6R₆₇₅-7.5R₄₅₇+1)
P-HJVI	环境植被指数	2(R₈₀₀-R₆₇₅)/(7R₅₅₀-7.5R₄₅₇+0.9)
P-TVI	转换植被指数	((R₈₀₀-R₆₇₅)/(R₈₀₀+R₆₇₅))^1/2+0.5
P-RDVI	再归一化植被指数	((R₈₀₀-R₆₇₅)(R₈₀₀-R₆₇₅)/(R₈₀₀+R₆₇₅))^1/2
P-WDRVI	宽动态植被指数	(0.15R₈₀₀-R₆₇₅)/(0.15R₈₀₀+R₆₇₅)

波段/nm	函数类型Function Type	线性方程Linear Equation	R²
490	线性	Y=0.0759X+0.07243	0.660
	多项式	Y=0.19086X ²-0.13881X+0.11765	0.924
	指数	Y=0.07976e^0.60985^x	0.674
670	线性	Y=0.00952X+0.14264	0.036
	多项式	Y=0.15924X ²-0.16962X+0.17996	0.670
	指数	Y=0.14286e^0.05444^x	0.053
865	线性	Y=0.42943X+0.14957	0.940
	多项式	Y=0.40419X ²-0.02529X+0.2443	0.990
	指数	Y=0.20129e^1.0903^x	0.972

	植被比例
	1/8	2/8	3/8	4/8	5/8	6/8	7/8	9/9
波段位置/nm	718	719	720	723	725	721	722	722

植被指数	线性方程	R²
P-NDVI	Y=0.44855X+0.15725	0.95
P-RVI	Y=2.6253X+1.0798	0.96
P-DVI	Y=0.46314X+0.03518	0.99
P-MSR	Y=0.22428X+0.07863	0.95
P-FNDVI	Y=0.16978X+0.41284	0.79
P-FRVI	Y=1.8486X+1.4331	0.92
P-FDVI	Y=-0.07629X+0.02629	0.92
P-EVI	Y=0.4X+0.0237	0.98
P-HJVI	Y=0.3264X+0.0399	0.98
P-TVI	Y=0.2243X+0.5786	0.96
P-RDVI	Y=4.6949X-0.1587	0.94
P-WDRVI	Y=0.4167X-0.6901	0.96

植被面积比例	吸收谷波长位置/nm	波段范围 /nm	吸收谷宽度 /nm
1/8	1424	1320~1637	317
2/8	1422	1313~1593	280
3/8	1422	1313~1646	331
4/8	1435	1314~1670	356
5/8	1455	1315~1670	355
6/8	1450	1272~1658	386
7/8	1453	1262~1662	400
8/8	1450	1282~1663	381
