高空间分辨率遥感影像分割定量实验评价方法综述

doi:10.3724/SP.J.1047.2017.00818

摘要/Abstract

摘要：

GEOBIA（Geographic Object-Based Image Analysis）技术针对高空间分辨率遥感影像分析的效果和精度远优于基于像元的传统方法。影像分割作为GEOBIA中的关键技术,学者们对此已经做了大量的研究,提出众多分割算法。对分割算法进行评价和分割技术本身同样重要,通过分割评价可以对分割算法的性能进行评价,比较不同分割算法的优劣,为影像选择合适的分割算法并设定合适的分割参数。影像分割的目的是为了实现影像分析操作的自动化,而主观评价法、系统评价法和分析评价法,因其无法给出客观定量指标的特点,难以应用于实时、自动化的高分辨率影像信息提取与分析系统当中。加之近年来针对分割评价方法的研究远远落后于分割算法本身,因此对定量分割评价方法进行综述对于影像分割方法及其应用研究意义重大。本文对现有的评价方法进行系统总结,建立了针对高空间分辨率遥感影像分割评价方法的分类体系。对各种方法,特别是定量的实验评价法进行对比,分析其应用范围和优劣,最后指出了高空间分辨率遥感影像分割评价未来的改进方向和应用前景。

关键词: 高空间分辨率遥感影像, GEOBIA, 分割质量评价, 差异评价, 优度评价

Abstract:

Geographic Object-Based Image Analysis (GEOBIA) is much better than traditional pixel-based method of high spatial resolution remote sensing image analysis. Since image segmentation is the key technique in GEOBIA, scholars and researchers have already conducted extensive research and proposed a number of segmentation algorithms. In order to compare different segmentation methods and evaluate its own performance, segmentation results need to be evaluated. Therefore, the study of segmentation evaluation is equally important to segmentation algorithm. We could choose the applicable segmentation method and set appropriate parameters for specific images and applied the segmentation evaluation. The aim of image segmentation is to enable the automation of image analysis. However, the evaluation methods which cannot provide quantitative indexes are not applicable in automatic real-time image analysis system. Moreover, research in segmentation evaluation is less than segmentation itself. Thus, it will be significant to study segmentation and review the quantitative evaluation method. In this paper, based on summarizing the evaluation methods, the hierarchy of segmentation evaluation method is presented. In spite of describing quantitative empirical methods, we discussed their range of application. Their advantages and shortcomings were also analyzed. Finally, possible future direction and potential application prospect for high spatial remote sensing image segmentation evaluation were proposed.

Key words: high spatial resolution remote sensing images, OBIA, segmentation evaluation, empirical discrepancy method, empirical goodness method

陈扬洋, 明冬萍, 徐录, 赵璐. 高空间分辨率遥感影像分割定量实验评价方法综述[J]. 地球信息科学学报, 2017, 19(6): 818-830.DOI:10.3724/SP.J.1047.2017.00818

CHEN Yangyang,MING Dongping,XU Lu,ZHAO Lu. An Overview of Quantitative Experimental Methods for Segmentation Evaluation of High Spatial Remote Sensing Images[J]. Journal of Geo-information Science, 2017, 19(6): 818-830.DOI:10.3724/SP.J.1047.2017.00818

图/表 5

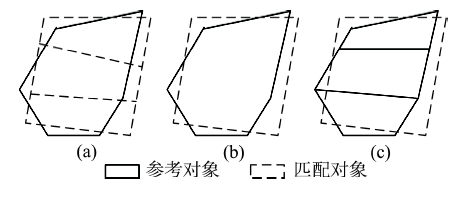

图1

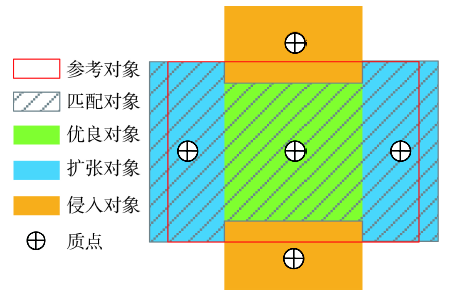

图2

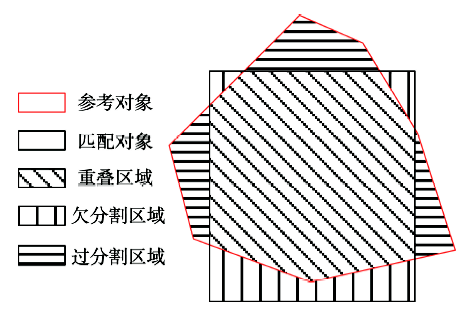

图3

图4

表1

典型监督评价混合指标

指标	公式	组合	文献
ED1	$ED 1 = O S 2 + U S 2 2$	欠分割和过分割指标	Clinton^[48]
ED2	$ED 2 = PS E 2 + NS R 2$	欠分割和数量指标	Liu^[37]
ED3	$ED 3 = ∑ ∑ 1 - area r i ? s j area (r i) 2 + 1 - area r i ? s j area (s j) 2 2 ˉ$	局部欠分割和过分割指标	Yang^[49]
SEI	$SE I lo cal i = 1 - area r i ? s j area r i 2 + 1 - area r i ? s j area s j 2 2, s j ∈ S i * 2 1, s j ? S i * 2$ $SEI = 1 n ∑ i = 1 n SE I lo cal i$	基于双向匹配的局部欠分割和过分割指标	Yang^[38]
M	$M = 1 - R A su b ij 2 + 1 - R A supe r ij 2 + R A su b ij 2 + R P ij 2 4$	区域和距离指标	Moller^[46]
ADI	$ADI = O E 2 + C E 2$	欠分割和过分割指标	Cheng J^[50]

表1

参考文献 69

[44]	[ Chen Q X, Chen S P, Zhou C H.Segmentation approach for remote sensing images based on local homogeneity gradient and its evaluation[J]. Journal of Remote Sensing, 2006,10(3):357-365. ] doi: 10.11834/jrs.20060355
[45]	Zhan Q M, Molenaar M, Tempfli K, et al.Quality assessment for geo-spatial objects derived from remotely sensed data[J]. International Journal of Remote Sensing, 2007,26(14):2953-2974. doi: 10.1080/01431160500057764
[46]	Möller M, Lymburner L, Volk M.The comparison index: A tool for assessing the accuracy of image segmentation[J]. International Journal of Applied Earth Observation & Geoinformation, 2007,9(3):311-321. doi: 10.1016/j.jag.2006.10.002
[47]	Weidner U.Contribution to the assessment of segmentation quality for remote sensing applications[C]. Proceedings of the 21st Congress for the International Society for Photogrametry and Remote sensing, 2008.
[48]	Clinton N, Holt A, Scarborough J, et al.Accuracy assessment measures for object-based image segmentation goodness[J]. Photogrammetric Engineering & Remote Sensing, 2010,76(3):289-299. doi: 10.14358/PERS.76.3.289
[49]	Yang J, Li P, He Y.A multi-band approach to unsupervised scale parameter selection for multi-scale image segmentation[J]. Isprs Journal of Photogrammetry & Remote Sensing, 2014,94(8):13-24. doi: 10.1016/j.isprsjprs.2014.04.008
[50]	Cheng J, Bo Y, Zhu Y, et al.A novel method for assessing the segmentation quality of high-spatial resolution remote-sensing images[J]. International Journal of Remote Sensing, 2014,35(10):3816-3839. doi: 10.1080/01431161.2014.919678
[51]	于欢,张树清,孔博,等.面向对象遥感影像分类的最优分割尺度选择研究[J].中国图象图形学报,2010,15(2):352-360. doi: 10.11834/jig.20100226
	[ Yu H, Zhang S Q, Kong B, et al.Optimal segmentation scale selection for object-oriented remote sensing image classification[J]. Journal of Image and Graphics, 2010,15(2):352-360. ] doi: 10.11834/jig.20100226
[52]	刘大伟,黄磊,李斌兵.一种基于对象相似性的遥感影像最优分割尺度评价方法[J].大地测量与地球动力学,2013,33(6):137-140.
	[ Liu D W, Huang L, Li B B.An assessment method for optimal segmentation scale of remote sensing image based on similarity between objects[J]. Journal of Geodesy and Geodynamics, 2013,33(6):137-140. ]
[53]	Strasters K C, Gerbrands J J.Three-dimensional image segmentation using a split, merge and group approach[J]. Pattern Recognition Letters, 1991,12(5):307-325. doi: 10.1016/0167-8655(91)90414-H
[54]	May R.Suevey image segmentation techniques[J]. Computer Vision Graphics & Image Processing, 1985,29(1):100-132.
[55]	Weszka J S, Rosenfeld A.Threshold evaluation techniques[J]. IEEE Transactions on Systems Man & Cybernetics, 1977,8(8):622-629.
[56]	Zé, Boudj R.Filtrage, seuillage automatique, contraste et contours : du pré-traitement à l'analyse d'image[J]. Bibliogr, 1988.
[57]	Chen H C, Wang S J.The use of visible color difference in the quantitative evaluation of color image segmentation[C]. IEEE International Conference on Acoustics, Speech, and Signal Processing, 2004. Proceedings. IEEE Xplore, 2004.
[58]	Sahoo P K, Soltani S, Wong A K C, et al. A survey of thresholding techniques[J]. Computer Vision Graphics & Image Processing, 1988,41(2):233-260. doi: 10.1016/0734-189X(88)90022-9
[59]	Ohtsu N.A Threshold Selection Method from Gray-Level Histograms[J]. IEEE Transactions on Systems Man & Cybernetics, 1979,9(1):62-66.
[1]	Blaschke T, Strobl J.What’s wrong with pixels? Some recent developments interfacing remote sensing and GIS[J]. 2001,14:12-17.
[2]	Blaschke T, Burnett C, Pekkarinen A.New Contextual Approaches Using Image Segmentation for Object-based Classification[C]//De Jong S, van der Meer F, eds. Remote Sensing Image Analysis: Including the Spatial Domain. Dordrecht: Kluwer Academic Publishers, 2004:211-236.
[60]	Levine M D, Nazif A M.Dynamic measurement of computer generated image segmentations[J]. IEEE Transactions on Pattern Analysis & Machine Intelligence, 1985,7(2):155-64. doi: 10.1109/TPAMI.1985.4767640 pmid: 21869254
[61]	Pal N R, Bhandari D.Image thresholding: some new techniques[J]. Signal Processing, 1993,33(2):139-158. doi: 10.1016/0165-1684(93)90107-L
[62]	Woodcock C E, Strahler A H.The factor of scale in remote sensing[J]. Remote Sensing of Environment, 1987,21(3):311-332. doi: 10.1016/0034-4257(87)90015-0
[63]	王志华, 孟樊, 杨晓梅,等. 高空间分辨率遥感影像分割尺度参数自动选择研究[J].地球信息科学学报,2016,18(5):639-648. doi: 10.3724/SP.J.1047.2016.00639
[3]	Blaschke T, Hay G J, Kelly M, et al.Geographic object-based image analysis-towards a new paradigm[J]. Isprs Journal of Photogrammetry & Remote Sensing, 2014,87(100):180-191. doi: 10.1016/j.isprsjprs.2013.09.014 pmid: 3945831
[4]	Zhang Y J.A survey on evaluation methods for image segmentation[J]. Pattern Recognition, 1996,29(8):1335-1346. doi: 10.1016/0031-3203(95)00169-7
[63]	[ Wang Z H, Meng F, Yang X M, et al.Study on the automatic selection of segmentation scale parameters for high spatial resolution remote sensing images[J]. Journal of Geo-information Science, 2016,18(5):639-648. ] doi: 10.3724/SP.J.1047.2016.00639
[64]	张俊,朱国龙,李妍.面向对象高分辨率影像信息提取中的尺度效应及最优尺度研究[J].测绘科学,2011,36(2):107-109.
[5]	Zhang X, Xiao P, Feng X, et al.Toward evaluating multiscale segmentations of high spatial resolution remote sensing images[J]. IEEE Transactions on Geoscience & Remote Sensing, 2015,53(7):3694-3706. doi: 10.1109/TGRS.2014.2381632
[6]	Benz U C, Hofmann P, Willhauck G, et al.Multi-resolution, object-oriented fuzzy analysis of remote sensing data for GIS-ready information[J]. International Journal of Photogrammetry & Remote Sensing, 2004,58(3-4):239-258. doi: 10.1016/j.isprsjprs.2003.10.002
[64]	[ Zhang J, Zhu G L, Li Y.Scale effect and optimal scale in object-oriented information extraction of high spatial resolution remote sensing image[J]. Science of Surveying and Mapping, 2011,36(2):107-109. ]
[65]	Fotheringham A S, Brunsdon C, Charlton M.Quantitative geography: perspectives on spatial data analysis[J]. Sage Publications, ppXI - XII Isaaks E. and R. Mohan Srivastava, 2000,50(1):143-163. doi: 10.1111/j.1467-9787.2009.00642.x
[7]	明冬萍,骆剑承,周成虎,等.高分辨率遥感影像特征分割及算法评价分析[J].地球信息科学学报,2006,8(1):103-109. doi: 10.3969/j.issn.1560-8999.2006.01.021
	[ Ming D P, Luo J C, Zhou C H, et al.Research on high resolution remote sensing image segmentation methods based on features and evaluation of algorithms[J]. Geo-Information Science, 2006,8(1):103-109. ] doi: 10.3969/j.issn.1560-8999.2006.01.021
[66]	张建廷,张立民,徐涛.遥感图像的异质性测度分割效果评价[J].测绘科学技术学报,2015,32(5):479-482. doi: 10.3969/j.issn.1673-6338.2015.05.009
	[ Zhang J T, Zhang L M, Xu T.Heterogeneity measure based segmentation performance evaluation for remote sensing image[J]. Journal of Geomatics Science and Technology, 2015,32(5):479-482. ] doi: 10.3969/j.issn.1673-6338.2015.05.009
[8]	Lka D, Maier B, Seijmonsbergen A C.Improved Landsat-based forest mapping in steep mountainous terrain using object-based classification[J]. Forest Ecology & Management, 2003,183(1-3):31-46. doi: 10.1016/S0378-1127(03)00113-0
[9]	Zhang H, Fritts J E, Goldman S A.Image segmentation evaluation: A survey of unsupervised methods[J]. Computer Vision & Image Understanding, 2008,110(2):260-280. doi: 10.1016/j.cviu.2007.08.003
[67]	Espindola G M, Camara G, Reis I A, et al.Parameter selection for region-growing image segmentation algorithms using spatial autocorrelation[J]. International Journal of Remote Sensing, 2006,27(14):3035-3040. doi: 10.1080/01431160600617194
[68]	何敏,张文君,王卫红.面向对象的最优分割尺度计算模型[J].大地测量与地球动力学,2009,29(1):106-109.
	[ He M, Zhang W J, Wang W H.Optimal segmentation scale model based on object-oriented analysis method[J]. Journal of Geodesy and Geodynamics, 2009,29(1):106-109. ]
[69]	张仙,明冬萍.面向地学应用的遥感影像分割评价[J].测绘学报,2015(S1):108-116.
[10]	Neubert M, Meinel G.Evaluation of segmentation programs for high resolution remote sensing applications[J]. 2003.
[11]	Neubert M, Herold H.Assessment of remote sensing image segmentation quality[J]. Journal of Remote Sensing, 2008.
[12]	Gelasca E D, Ebrahimi T, Farias M C Q, et al. Towards perceptually driven segmentation evaluation metrics[C]. Conference on Computer Vision and Pattern Recognition Workshop. IEEE Computer Society, 2004:52.
[13]	Paglieroni D W.Design considerations for image segmentation quality assessment measures[J]. Pattern Recognition, 2004,37(8):1607-1617. doi: 10.1016/j.patcog.2004.01.017
[14]	Baatz M, Schäpe A.An optimization approach for high quality multi-scale image segmentation[C]. Beiträge zum AGIT-Symposium, 2000:12-23.
[15]	Hay G J, Castilla G, Wulder M A, et al.An automated object-based approach for the multiscale image segmentation of forest scenes[J]. International Journal of Applied Earth Observation & Geoinformation, 2005,7(4):339-359. doi: 10.1016/j.jag.2005.06.005
[16]	Zhang X, Feng X, Xiao P, et al.Segmentation quality evaluation using region-based precision and recall measures for remote sensing images[J]. Isprs Journal of Photogrammetry & Remote Sensing, 2015,102:73-84. doi: 10.1016/j.isprsjprs.2015.01.009
[17]	Shin M C, Goldgof D B, Bowyer K W.Comparison of edge detector performance through use in an object recognition task[J]. Computer Vision & Image Understanding, 2001,84(1):160-178. doi: 10.1006/cviu.2001.0932
[18]	Li P, Guo J, Song B, et al.A multilevel hierarchical image segmentation method for urban impervious surface mapping using very high resolution imagery[J]. IEEE Journal of Selected Topics in Applied Earth Observations & Remote Sensing, 2011,4(1):103-116. doi: 10.1109/JSTARS.2010.2074186
[19]	Hofmann P, Lettmayer P, Blaschke T, et al.Towards a framework for agent-based image analysis of remote-sensing data[J]. International Journal of Image and Data Fusion, 2015,6(2):115-137. doi: 10.1080/19479832.2015.1015459
[20]	Dronova I, Gong P, Clinton N E, et al.Landscape analysis of wetland plant functional types: The effects of image segmentation scale, vegetation classes and classification methods[J]. Remote Sensing of Environment, 2012,127(140):357-369. doi: 10.1016/j.rse.2012.09.018
[21]	Laliberte A S, Rango A.Texture and scale in Object-Based analysis of subdecimeter resolution unmanned aerial vehicle (UAV) Imagery[J]. IEEE Transactions on Geoscience & Remote Sensing, 2009,47(3):761-770.
[22]	Johnson B, Xie Z.Classifying a high resolution image of an urban area using super-object information[J]. Isprs Journal of Photogrammetry & Remote Sensing, 2013,83(3):40-49. doi: 10.1016/j.isprsjprs.2013.05.008
[23]	章毓晋. 图象分割评价技术分类和比较[J].中国图象图形学报,1996,1(2):151-158. doi: 10.11834/jig.19960238
	[ Zhang Y J.A classification and comparison of evaluation techniques for image segmentation[J]. China Journal of Image and Graphics, 1996,1(2):151-158. ] doi: 10.11834/jig.19960238
[24]	Liedtke C E, Gahm T, Kappei F, et al.Segmentation of microscopic cell scenes[J]. Analytical and quantitative cytology and histology / the International Academy of Cytology and American Society of Cytology, 1987,9(3):197-211. doi: 10.1016/0092-8674(87)90547-2 pmid: 3304327
[25]	Ming D, Wang Q, Luo J, et al.Evaluation of high spatial resolution remote sensing image segmentation algorithms[C]. Image and Signal Processing, 2009. CISP '09. 2nd International Congress on, 2009:1-5.
[26]	Gerbrands J J.Segmentation of noisy images[J]. Thesis Technische Univ, 1988.
[27]	Abdou I E, Pratt W.Quantitative design and evaluation of enhancement/thresholding edge detectors[J]. Proceedings of the IEEE, 1979,67(5):753-763. doi: 10.1109/PROC.1979.11325
[28]	张石,董建威,佘黎煌.医学图像分割算法的评价方法[J].中国图象图形学报,2009,14(9):1872-1880. doi: 10.11834/jig.20090926
	[ Zhang S, Dong J W, She L H.The methodology of evaluating segmentation algorithms on medical image[J]. Journal of Image and Graphics, 2009,14(9):1872-1880. ] doi: 10.11834/jig.20090926
[29]	Zhang Y J.A review of recent evaluation methods for image segmentation[C]. Signal Processing and ITS Applications, Sixth International, Symposium on. IEEE, 2001:148-151.
[30]	Cardoso J S, Corte-Real L.Toward a generic evaluation of image segmentation[J]. IEEE Transactions on Image Processing A Publication of the IEEE Signal Processing Society, 2005,14(11):1773-1782. doi: 10.1109/TIP.2005.854491 pmid: 16279178
[31]	Graaf C N D, Koster A S E, Vincken K L, et al. Validation of the interleaved pyramid for the segmentation of 3D vector images[J]. Pattern Recognition Letters, 1994,15(5):469-475. doi: 10.1016/0167-8655(94)90138-4
[32]	Hoover A, Jean-Baptiste G, Jiang X, et al.An experimental comparison of range image segmentation algorithms[J]. IEEE Transactions on Pattern Analysis & Machine Intelligence, 1996,18(7):673-689. doi: 10.1109/34.506791
[33]	Mccane B.On the Evaluation of Image Segmentation Algorithms[C]. Dicta97 & Ivcnz. 1997:455-459.
[34]	Johnson B, Xie Z.Unsupervised image segmentation evaluation and refinement using a multi-scale approach[J]. Isprs Journal of Photogrammetry & Remote Sensing, 2011,66(4):473-483. doi: 10.1016/j.isprsjprs.2011.02.006
[35]	Lucieer A, Stein A.Existential uncertainty of spatial objects segmented from satellite sensor imagery[J]. IEEE Transactions on Geoscience & Remote Sensing, 2002,40(11):2518-2521. doi: 10.1109/TGRS.2002.805072
[36]	赵磊,陈尔学,李增元,等.基于均值漂移和谱图分割的极化SAR影像分割方法及其评价[J].武汉大学学报·信息科学版,2015,40(8):1061-1068. doi: 10.13203/j.whugis20130681
	[ Zhao L, Chen E X, Li Z Y, et al.Segmentation of PolSAR data based on mean-shift and spectral graph partitioning and its evaluation[J]. Geomatics and Information Science of Wuhan University, 2015,40(8):1061-1068. ] doi: 10.13203/j.whugis20130681
[37]	Liu Y, Bian L, Meng Y, et al.Discrepancy measures for selecting optimal combination of parameter values in object-based image analysis[J]. Isprs Journal of Photogrammetry & Remote Sensing, 2012,68(1):144-156. doi: 10.1016/j.isprsjprs.2012.01.007
[38]	Yang J, He Y, Caspersen J, et al.A discrepancy measure for segmentation evaluation from the perspective of object recognition[J]. Isprs Journal of Photogrammetry & Remote Sensing, 2015,101:186-192. doi: 10.1016/j.isprsjprs.2014.12.015
[39]	E. Schöpfer A, S. Lang A.Object fate analysis - A virtual overlay method for the categorization of object transition and object-based accuracy assessment[J]. International Archives of Photogrammetry Remote Sensing & Spatial Information Sciences, 2012.
[40]	Blaschke T, Lang S, Hay G J.Object-Based Image Analysis: Spatial Concepts for Knowledge-Driven Remote Sensing Applications[M]. Springer Publishing Company, Incorporated, 2008.
[41]	Bowyer K W.Validation of medical image analysis techniques[J]. Handbook of Medical Imaging, 2000.
[42]	Marpu P.R., Neubert M., Herold H., et al. Enhanced evaluation of image segmentation results[J]. Journal of Spatial Science, 2010,55(1):55-68. doi: 10.1080/14498596.2010.487850
[43]	Fram J R, Deutsch E S. On the quantitative evaluation of edge detection schemes and their comparison with human performance[J]. IEEE Transactions on Computers, 1975,C-24(6):616-628. doi: 10.1109/T-C.1975.224274
[44]	陈秋晓,陈述彭,周成虎.基于局域同质性梯度的遥感图像分割方法及其评价[J].遥感学报,2006,10(3):357-365. doi: 10.11834/jrs.20060355
[69]	[ Zhang X, Ming D P.Geo-application oriented evaluations of remote sensing image segmentation[J]. Acta Geodaetica et Cartographica Sinica[J]. 2015(S1):108-116. ]
