电磁地理环境监测数据空间插值方法

doi:10.3724/SP.J.1047.2017.00872

地球信息科学学报 ›› 2017, Vol. 19 ›› Issue (7): 872-879.doi: 10.3724/SP.J.1047.2017.00872

• 地球信息科学理论与方法 • 上一篇下一篇

电磁地理环境监测数据空间插值方法

王梦艺^1,^2,³(), 盛业华^1,^2,^3,^*(), 黄一昀⁴, 吕海洋^1,^2,³, 黄毅^1,^2,³

1. 南京师范大学虚拟地理环境教育部重点实验室,南京 210023
2. 江苏省地理环境演化国家重点实验室培育建设点,南京 210023
3. 江苏省地理信息资源开发与利用协同创新中心,南京 210023
4.江苏省工程勘测研究院有限责任公司,扬州 225100

收稿日期:2016-12-27 修回日期:2017-05-08 出版日期:2017-07-10 发布日期:2017-07-10
通讯作者: 盛业华 E-mail:monniewang@163.com;shengyehua@njnu.edu.cn
作者简介:
作者简介：王梦艺（1993-）,女,硕士生,研究方向为地理环境分析与表达。E-mail:monniewang@163.com
基金资助:
国家自然科学基金项目（41631175、41271383）

Spatial Interpolation Method of Electromagnetic Geographical Environment Monitoring Data

WANG Mengyi^1,^2,³(), SHENG Yehua^1,^2,^3,^*(), HUANG Yiyun⁴, LV Haiyang^1,^2,³, HUANG Yi^1,^2,³

1. Key Laboratory of Virtual Geographic Environment, Nanjing Normal University, Ministry of Education, Nanjing 210023, China
2. State Key Laboratory Cultivation Base of Geographical Environment Evolution (Jiangsu Province), Nanjing 210023, China
3. Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Nanjing 210023, China
4. Jiangsu Province Engineering Investigation and Research Institute CO., LTD, Yangzhou 225100, China;

Received:2016-12-27 Revised:2017-05-08 Online:2017-07-10 Published:2017-07-10
Contact: SHENG Yehua E-mail:monniewang@163.com;shengyehua@njnu.edu.cn

摘要/Abstract

摘要：

电磁地理环境无所不在,电磁环境的“时间、空间、频率”特征进行监测与分析对于评估电磁地理环境对人类的日常生产生活的影响具有十分重要的现实意义。目前电磁辐射数据的获取方法和空间化表达的研究非常有限。电磁现象有着自身的空间传播与衰减特性,传统的空间插值方法并不适用于电磁现象的空间化表达。全频段车载电磁环境监测系统沿道路密集采集获取不同频段电磁辐射强度信息,需要对其进行空间插值才能刻画其二维空间的分布特征,本文根据电磁波空间传播规律,提出并实现了基于电磁辐射传播模型的电磁环境空间插值方法,对车载移动电磁环境监测系统获取的数据进行空间化处理,并将该方法与常用的IDW和Ordinary Kriging空间插值方法进行实验对比分析。实验结果表明,本文方法比其它空间插值方法更适合于电磁地理环境数据的空间化表达。

关键词: 电磁环境, 电磁辐射, 空间插值

Abstract:

Human beings live in a ubiquitous electromagnetic geographical environment. To evaluate how the electromagnetic environment influence human's daily life, it is significant to monitor and analyze the temporal, spatial and frequent characteristics of electromagnetic environment. At present, only a few studies focus on data acquisition methods and spatial representation of electromagnetic radiation. Traditional spatial interpolation methods are effective means for representing spatial distribution patterns of geographical phenomenon and have been widely used in various academic fields. However, these spatial interpolation methods are not suitable for representing electromagnetic phenomenon because of its unique characteristics of spatial propagation and attenuation. Electromagnetic environment monitoring system of full band vehicle can collect dense spatial samples of electromagnetic radiation intensity data when the car is driving along the roads and streets. However, sampling data cannot describe the spatial pattern in the whole region. To describe the spatial distribution pattern at regional scale, it is necessary to interpolate the collected electromagnetic data into the whole research area. According to the electromagnetic radiation propagation law, we proposed and implemented a new spatial interpolation method based on electromagnetic radiation propagation model. Using this interpolation method, sampling data are interpolated in the entire region to implement the spatialization representation of electromagnetic radiation field. Also, the new spatial interpolation method is compared with two traditional spatial interpolation approaches, i.e. IDW and Kriging. Experimental results indicated that the proposed method is more suitable for the reconstruction of electromagnetic radiation field than other spatial interpolation methods.

Key words: electromagnetic environment, electromagnetic radiation, spatial interpolation

王梦艺, 盛业华, 黄一昀, 吕海洋, 黄毅. 电磁地理环境监测数据空间插值方法[J]. 地球信息科学学报, 2017, 19(7): 872-879.DOI:10.3724/SP.J.1047.2017.00872

WANG Mengyi,SHENG Yehua,HUANG Yiyun,LV Haiyang,HUANG Yi. Spatial Interpolation Method of Electromagnetic Geographical Environment Monitoring Data[J]. Journal of Geo-information Science, 2017, 19(7): 872-879.DOI:10.3724/SP.J.1047.2017.00872

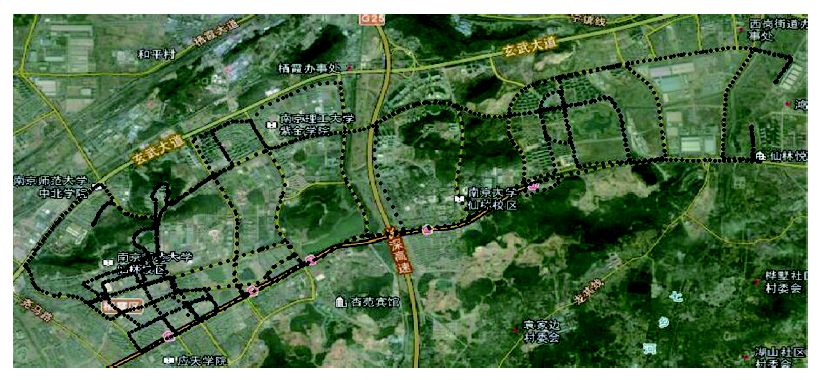

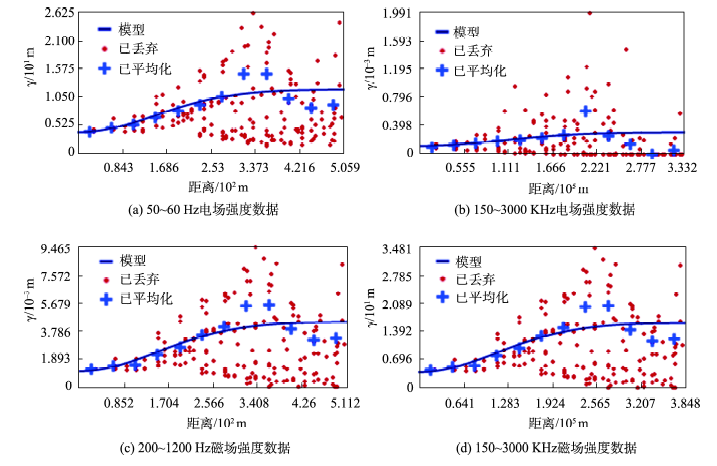

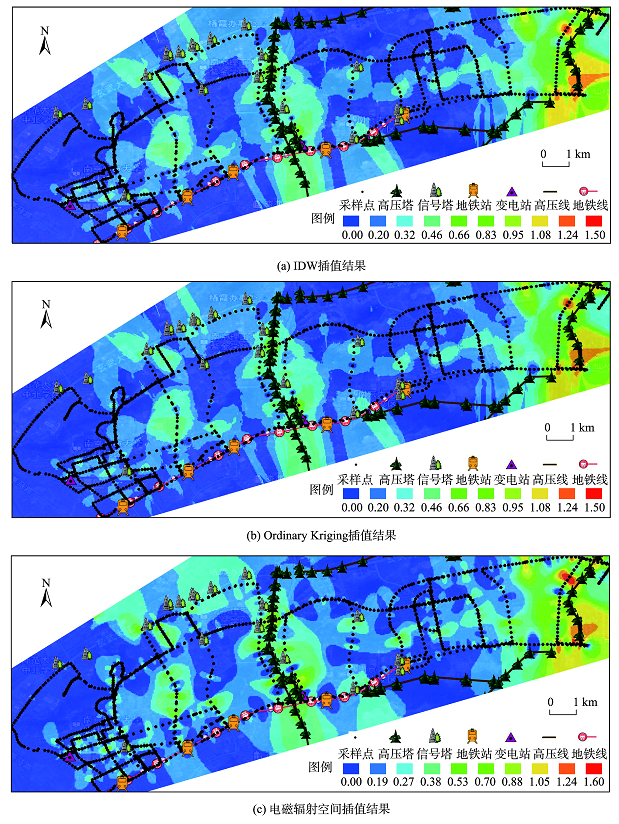

图/表 4

参考文献 29

[1]	谢天成,谢正观.基于GIS的北京市重点地区电磁辐射污染研究[J].河南师范大学学报(自然科学版),2006,34(4):95-98.
	[ Xie T C, Xie Z G.Research on electromagnetic radiation pollution in principal area of Beijing based on GIS[J]. Journal of Henan Normal University(Natural Science Edition), 2006,34(4):95-98. ]
[2]	Can A, Dekoninck L, Botteldooren D.Measurement network for urban noise assessment: Comparison of mobile measurements and spatial interpolation approaches[J]. Applied Acoustics, 2014,83(83):32-39. doi: 10.1016/j.apacoust.2014.03.012
[3]	段平,盛业华,李佳,等.自适应的IDW插值方法及其在气温场中的应用[J].地理研究,2014, 33(8):1417-1426. doi: 10.11821/dlyj201408003
	[Duan P, Sheng Y H, Li J, et al. Adaptive IDW interpolation method and its application in the temperature field[J]. Geographical Research, 2014, 33(8):1417-1426. ] doi: 10.11821/dlyj201408003
[4]	李莉,胡建平.克里金插值算法在等高线绘制中的应用[J].天津城市建设学院学报,2008,14(1):68-71.
	[ Li L, Hu J P.Application of Kriging interpolation in contour creation[J]. Journal of Tianjin Chengjian University, 2008,14(1):68-71. ]
[5]	杜国明,贾良文.薄板样条函数在空间数据插值中的应用[J].计算机工程与应用,2009,45(36):238-240. doi: 10.3778/j.issn.1002-8331.2009.36.068
	[ Du G M, Jia L W.Thin plate splines applied to interpolation of spatial data[J]. Computer Engineering and Applications, 2009,45(36):238-240. ] doi: 10.3778/j.issn.1002-8331.2009.36.068
[6]	乔元阳,吴技莲,冯新龙.MQ径向基函数的理论、方法及应用[J].新疆大学学报(自然科学版),2015,35(4):379-387.
	[ Qiao Y Y, Wu J L, Feng X L.The theory method and application of MQ radial basis function[J]. Journal of Xinjing University(Natural Science Edition), 2015,32(4):379-387. ]
[7]	Chen C F, Yue T X, Dai H L, et al.The smoothness of HASM[J]. International Journal of Geographical Information Science, 2013,27(8):1651-1667. doi: 10.1080/13658816.2013.787146
[8]	Chen C F, Yue T X, Li Y Y.A high speed method of SMTS[J]. Computers &Geosciences, 2012,41(2):64-71. doi: 10.1016/j.cageo.2011.08.012
[9]	Chen C F, Yue T X.A method of DEM construction and related error analysis[J]. Computers & Geosciences, 2010,36(6):717-725. doi: 10.1016/j.cageo.2009.12.001
[10]	Yue T X.Surface modelling: High accuracy and high speed methods[M]. New York: CRC Press, 2011.
[11]	Erdogan S.A comparison of interpolation methods for producing digital elevation models at the field scale. Earth Surface Processes and Landforms, 2009,34(3):366-376.
[12]	金君,彭思岭,刘启亮,等.中国陆地区域气象要素空间插值方法比较研究[J].工程勘察,2010(11):48-51.
	[ Jin J, Peng S, Liu Q, Liu Q L, et al.A comparative study of spatial interpolation methods for meteorological elements in China[J]. Geotechnical Investigation & Surveying, 2010,11:48-51. ]
[13]	颜辉武,祝国瑞,徐智勇,等.基于Kriging水文地质层的三维建模与体视化[J].武汉大学学报·信息科学版,2004,29(7):611-614. doi: 10.3321/j.issn:1671-8860.2004.07.011
	[ Yan H, Zhu G R, Xu Z Y, et al.Volume rendering and 3D modeling of hydrogeologic layer based on Kriging algorithm[J]. Editorial Board of Geomatics and Information Science of Wuhan University, 2004,29(7):611-614. ] doi: 10.3321/j.issn:1671-8860.2004.07.011
[14]	Merwade V M, Maidment D R, Goff J A.Anisotropic considerations while interpolating river channel bathymetry. Journal of Hydrology, 2006,331(3):731-741.
[15]	易湘生,李国胜,尹衍雨,等.土壤厚度的空间插值方法比较——以青海三江源地区为例[J].地理研究,2012,31(10):1793-1805. doi: 10.11821/yj2012100006
	[ Yi X S, Li G S, Yin Y Y, et al.Comparison on soil depth prediction among different spatial interpolation methods: A case study in the Three-River Headwaters Region of Qinghai Province[J]. Geographical Research, 2012,31(10):1793-1805. ] doi: 10.11821/yj2012100006
[16]	史文娇,岳天祥,石晓丽,等.土壤连续属性空间插值方法及其精度的研究进展[J].自然资源学报,2012,27(1):163-175.
	[ Shi W J, Yue T X, Shi X L, et al.Research progress in soil property interpolators and their accuracy[J]. Journal of Natural Resources, 2012,27(1):163-175. ]
[17]	王绍强,朱松丽,周成虎.中国土壤土层厚度的空间变异性特征[J].地理研究,2001,20(2):161-169. doi: 10.3321/j.issn:1000-0585.2001.02.005
	[ Wang S Q, Zhu S L, Zhou C H.Characteristics of spatial variability of soil thickness in China[J]. Geographical Research, 2001,20(2):161-169. ] doi: 10.3321/j.issn:1000-0585.2001.02.005
[18]	吴迎年,张霖,张利芳,等.电磁环境仿真与可视化研究综述[J].系统仿真学报,2009,21(20):6332-6338.
	[ Wu Y N, Zhang L, Zhang L F, et al.Survey on electromagnetic environment simulation and visualization[J]. Journal of System Simulation, 2009,21(20):6332-6338. ]
[19]	Patterson W L.Advanced Refractive Effects Prediction System (AREPS)[C]. Radar Conference. IEEE, 2002:891-895.
[20]	朱求安,张万昌,余钧辉.基于GIS的空间插值方法[J].江西师范大学学报(自然科学版),2004,28(2):183-188. doi: 10.3969/j.issn.1000-5862.2004.02.022
	[Zhu Q A, Zhang W C, Yu J H. The spatial interpolations in GIS[J]. Journal of Jiangxi Normal University (Natural Science Edition), 2004,28(2):183-188. ] doi: 10.3969/j.issn.1000-5862.2004.02.022
[21]	张瑜. 电磁波空间传播[M].西安:西安电子科技大学出版社,2007:28-30.
	[ Zhang Y.Electromagnetic wave propagation in space [M]. XianXiDian University Press, 2007:28-30. ]
[22]	闻映红. 天线与电波传播理论[M].北京:清华大学出版社,北京交通大学出版社,2005:155-165.
	[ Wen Y H.Theory of antenna and radio propagation[M]. Beijing: Tsinghua University Press, Beijing Jiaotong University Press, 2005:155-165. ]
[23]	黄兴泉,康书英,李泓志,等.GIS局部放电超高频电磁波的传播特性研究[J].高电压技术,2006,32(10):32-35.
	[Huang X Q, Kang S Y, Li H Z, et al. Simulation study on the characteristics of ultra-high frequency electromagnetic wave in GIS[J]. High Voltage Engineering, 2006,32(10):32-35. ]
[24]	黄一昀. 电磁地理环境探测数据的分析与表达[D].南京:南京师范大学,2016.
	[ Huang Y Y.Analysis and expression of detection data of electromagnetic geographical environment [D]. Nanjing: Nanjing Normal University, 2016. ]
[25]	Li J, Heap A D.A review of spatial interpolation methods for environmental scientists[M]. Canberra: Geoscience Australia Press, 2008:137.
[26]	CHAPLOT V.Accuracy of interpolation techniques for the derivation of digital elevation models in relation to landform types and data density[J]. Geomorphology, 2006,77(1):126-141. doi: 10.1016/j.geomorph.2005.12.010
[27]	包世泰,廖衍旋,胡月明,等.基于Kriging的地形高程插值[J].地理与地理信息科学,2007,23(3):28-32. doi: 10.3969/j.issn.1672-0504.2007.03.007
	[ Bao S T, Liao Y X, Hu Y M, et al.Terrain interpolation based on Kriging method[J]. Geography and Geo-Information Science, 2007,23(3):28-32. ] doi: 10.3969/j.issn.1672-0504.2007.03.007
[28]	Lecoustre R, Fargette D, Fauquet C, et al.Analysis and mapping of the spatial spread of African cassava mosaic virus using geostatistics and the kriging technique[J]. Phytopathology, 1989,79(9):913-920.
[29]	刘光孟,汪云甲,张海荣,等.空间分析中几种插值方法的比较研究[J].地理信息世界,2011(3):41-45. doi: 10.3969/j.issn.1672-1586.2011.03.008
	[ Liu G M, Wang Y J, Zhang H R, et al.Comparative study of several interpolation methods on spatial analysis[J]. Geomatics World, 2011,3:41-45. ] doi: 10.3969/j.issn.1672-1586.2011.03.008

插值方法		IDW	Ordinary Kriging	电磁辐射空间插值
电场	50~60 Hz	0.2624	0.2230	0.1923
电场	150~3000 KHz	1.9480	2.5082	1.9157
磁场	200~1200 Hz	0.0518	0.0407	0.0274
磁场	150~3000 KHz	0.0915	0.0822	0.0806
