1961-2013年东北与华北气温变化速度空间差异

doi:10.3724/SP.J.1047.2017.00909

地球信息科学学报 ›› 2017, Vol. 19 ›› Issue (7): 909-914.doi: 10.3724/SP.J.1047.2017.00909

• 地理空间分析综合应用 • 上一篇下一篇

1961-2013年东北与华北气温变化速度空间差异

赵建^1,^2,#(), 任周鹏^2,#, 王劲峰^2,^*(), 徐成东², 张前进¹

1. 天津城建大学地质与测绘学院,天津 300384
2. 中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京 100101

收稿日期:2016-11-22 修回日期:2017-02-26 出版日期:2017-07-10 发布日期:2017-07-10
通讯作者: 王劲峰 E-mail:zj@lreis.ac.cn;wangjf@lreis.ac.cn
作者简介:
作者简介：赵建（1990-）,男,山东泰安人,硕士生,主要从事气候变化方面的研究。E-mail:zj@lreis.ac.cn
基金资助:
国家重大科学研究计划项目(“973”计划)(2012CB955503)

Spatial Difference in the Velocity of Temperature Change in Northeast China and North China from 1961 to 2013

ZHAO Jian^1,^2,#(), REN Zhoupeng^2,#, WANG Jinfeng^2,^*(), XU Chengdong², ZHANG Qianjin¹

1. School of Geology and Geomatics, Tianjin Chengjian University, Tianjin 300384, China
2. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China

Received:2016-11-22 Revised:2017-02-26 Online:2017-07-10 Published:2017-07-10
Contact: WANG Jinfeng E-mail:zj@lreis.ac.cn;wangjf@lreis.ac.cn

摘要/Abstract

摘要：

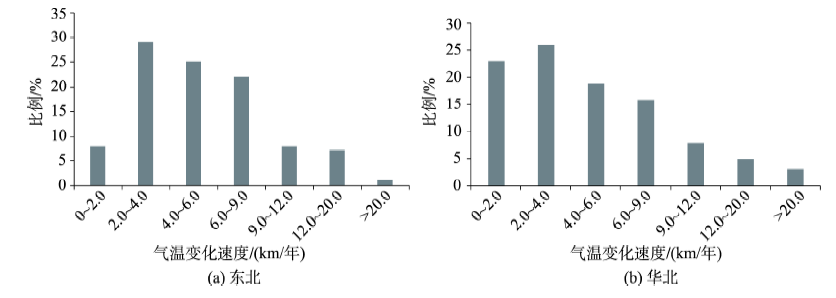

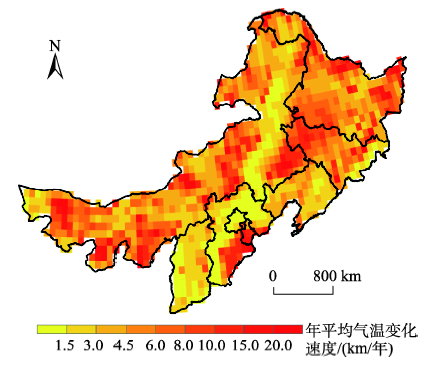

全球气候的不断变化使得生物生境受到极大影响。气温作为最基本的气候要素,其变化迁移会胁迫生物对此做出响应,造成生物群落的迁徙。气温变化速度将气温看作物质的运动,能够直观地表示气温时空变化特征,对研究生物分布地理界限变化具有重要的指导意义。本文利用1961-2013年的全国每月平均温度数据集,分析了过去50多年中国东北与华北地区之间气温变化速度的区域差异。结果表明：东北与华北两地区整体气温变化速度均值为5.60 km/year,速度范围主要集中于0~9 km/year之间,约占总数的90%。东北地区气温变化速度均值大于华北地区。其中,东北速度均值为5.85 km/year,华北为5.41 km/year。从区域内部来看,东北地区气温变化速度整体较高,三省中黑龙江与吉林速度较高,辽宁省速度变化相对较小。华北气温变化速度高值区域主要分布在内蒙古高原与河北、天津的小部分地区,其他地区的气温变化速度则相对较小。

关键词: 气温变化速度, 气温变化趋势系数, 空间梯度, 空间差异

Abstract:

During the last decade, the global temperature has a clear rise. The rising temperature may affect ecosystems, public health and socioeconomic systems. It is important to understand how the temperature change. Velocity of temperature change proposed by Loarie in 2009 is a suitable index to quantify the change in temperature. Based on national monthly mean temperature dataset, spatial difference about velocity of temperature change is analyzed in Northeast China and North China in the past 53 years. Here, we use slope of linear regression for each pixel to calculate linear trends of temperature firstly. Then, spatial gradients is calculated using the average maximum technique from a 3×3 grid cell neighborhood. Finally, we calculate velocity of temperature change as the ratio of the linear trends of temperature to the spatial gradients. The results show that: (1) there is an obvious increasing trend in temperature across all of the study area. The characteristic is that the higher the latitude, the more obvious the increasing trend. (2) Spatial gradients is greatly affected by terrain, which is higher in Da Hinggan Mountains and Taihang Mountain, but relatively lower in Northeast China Plain and Inner Mongolia Plateau. (3) The velocity of temperature change mainly varies between 0 km/year and 9 km/year, and the mean is 5.60 km/year. For spatial difference, the velocity of temperature change in Northeast China (5.85 km/year) is higher than that in North China (5.41 km/year); the velocity of temperature change in Heilongjiang Province and Jilin Province is higher than that in Liaoning Province over Northeast China; velocity in Inner Mongolia Plateau and a small part of Hebei and Tianjin is higher than that in other part of North China.

Key words: velocity of temperature change, linear trends of temperature, spatial gradients, spatial difference

赵建, 任周鹏, 王劲峰, 徐成东, 张前进. 1961-2013年东北与华北气温变化速度空间差异[J]. 地球信息科学学报, 2017, 19(7): 909-914.DOI:10.3724/SP.J.1047.2017.00909

ZHAO Jian,REN Zhoupeng,WANG Jinfeng,XU Chengdong,ZHANG Qianjin. Spatial Difference in the Velocity of Temperature Change in Northeast China and North China from 1961 to 2013[J]. Journal of Geo-information Science, 2017, 19(7): 909-914.DOI:10.3724/SP.J.1047.2017.00909

图/表 4

参考文献 34

[6]	[ Han C H, Hao Z X, Zheng J Y.Regionalization of temperature change in China and characteristics of temperature in different regions during 1951-2010[J]. Progress in Geography, 2013,32(6):887-896. doi: 10.11820/dlkxjz.2013.06.005
[7]	Schloss C A, Nuñez T A, Lawler J J.Dispersal will limit ability of mammals to track climate change in the Western Hemisphere[J]. Proceedings of the National Academy of Sciences, 2012,109(22):8606-8611.
[8]	郑景云,葛全胜,赵会霞.近40年中国植物物候对气候变化的响应研究[J].中国农业气象,2003,(1):28-32. doi: 10.3969/j.issn.1000-6362.2003.01.009
	[ Zheng J Y, Ge Q S, Zhao H X.Changes of plant phonological period and its response to climate change for the last 40 years in China[J]. Chinese Journal of Agrometeorology, 2003,24(1):28-32. ] doi: 10.3969/j.issn.1000-6362.2003.01.009
[9]	王连喜,陈怀亮,李琪,等.植物物候与气候研究进展[J].生态学报,2010,(2):447-454.
	[ Wang L X, Chen H L, Li Q, et al.Research advances in plant phenology and climate[J]. Acta Ecologica Sinica, 2010,30(2):447-454. ]
[10]	潘根兴,高民,胡国华,等.气候变化对中国农业生产的影响[J].农业环境科学学报,2011,30(9):1698-1706. doi: 10.3321/j.issn:0375-5444.2000.05.001
	[ Pan G X, Gao M, Hu G H, et al.Impacts of climate change on Agricultural production of China[J]. Journal of Agro-Environment Science, 2011,30(9):1698-1706. ] doi: 10.3321/j.issn:0375-5444.2000.05.001
[11]	王文涛,刘燕华,于宏源.全球气候变化与能源安全的地缘政治[J].地理学报,2014,69(9):1259-1267. doi: 10.11821/dlxb201409002
	[ Wang W T, Liu Y H, Yu H Y.The Geopolitical pattern of global climate change and energy security issues[J]. Acta Geographica Sinica, 2014,69(9):1259-1267. ] doi: 10.11821/dlxb201409002
[12]	郑景云,葛全胜,郝志新.气候增暖对中国近40年植物物候变化的影响[J].科学通报,2002,47(20):1582-1587.
	[ Zheng J Y, Ge Q S, Hao Z X.Effects of climate warming on plant phonological change in China for 40 years[J].Chinese Science Bulletin, 2002,47(20):1582-1587. ]
[13]	贺伟,布仁仓,熊在平,等.1961-2005年东北地区气温和降水变化趋势[J].生态学报,2013,33(2): 519-531. doi: 10.5846/stxb201111241799
	[ He W, Bu R C, Xiong Z P, et al.Characteristics of temperature and precipitation in Northeastern China from 1961 to 2005[J]. Acta Ecologica Sinica, 2013,33(2):519-531. ] doi: 10.5846/stxb201111241799
[1]	IPCC. Working Group I Contribution to the IPCC Fifth Assessment Report (AR5). Climate change 2013: The Physical Science Basis. Final Draft Underlying Scientific-Technical Assessment[R/OL]. [2013-10-30]. .
[2]	吴绍红,尹云鹤,郑度,等.青藏高原近30年气候变化趋势[J].地理学报,2005,60(1):3-11. doi: 10.3321/j.issn:0375-5444.2005.01.001
[14]	姚俊强,刘志辉,杨青,等.近130年来中亚干旱区典型流域气温变化及其影响因子[J].地理学报,2014,69(3):291-302. doi: 10.11821/dlxb201403001
	[ Yao J Q, Liu Z H, Yang Q, et al.Temperature variability and its possible causes in the typical basins of the arid central asia in recent 130 years[J]. Acta Geographica Sinica, 2014,69(3):291-302. ] doi: 10.11821/dlxb201403001
[2]	[ Wu S H, Yin Y H, Zheng D, et al.Climate change in the Tibetan Plateau during the last three decades[J]. Acta Geographica Sinica, 2005,60(1):3-11. ] doi: 10.3321/j.issn:0375-5444.2005.01.001
[3]	刘起勇. 气候变化对媒介生物性传染病的影响[J].中华卫生杀虫药械,2013,19(1):1-7.
[15]	陈隆勋,周秀骥,李维亮,等.中国近80年来气候变化特征及其形成机制[J].气象学报,2004,62(5):634-646. doi: 10.3321/j.issn:0577-6619.2004.05.010
	[ Chen L X, Zhou X J, Li W L, et al.Characteristics of the climate change and its formation mechanism in China in last 80 years[J]. Acta Meteorologica Sinica, 2004,62(5):634-646. ] doi: 10.3321/j.issn:0577-6619.2004.05.010
[3]	[ Liu Q Y.The impacts of climate change on vector-borne diseases[J]. Chinese Journal of Hygienic Insecticides & Equipments, 2013,19(1):1-7. ]
[4]	李国栋,张俊华,焦耿军,等.气候变化对传染病爆发流行的影响研究进展[J].生态学报,2013,33(21):6762-6773. doi: 10.5846/stxb201306051364
[16]	张晶晶,陈爽,赵昕奕.近50年中国气温变化的区域差异及其与全球气候变化的联系[J].干旱区资源与环境,2006,20(4):1-6.
	[ Zhang J J, Chen S, Zhao X Y.Spatial divergency of temperature change during 1951-2000 in china and its correlation with global climate change[J]. Journal of arid land resources and environment, 2006,20(4):1-6. ]
[4]	[ Li G D, Zhang J H, Jiao G J, et al.Advances in impacts of climate change on infectious diseases outbreak[J].Acta Ecologica Sinica,2013,33(21):6762-6773. ] doi: 10.5846/stxb201306051364
[5]	唐红玉,杨小丹,王希娟,等.三江源地区近50年降水变化分析[J].高原气象,2007,26(1):47-54.
[17]	李双双,延军平,万佳.全球气候变化下秦岭南北气温变化特征[J].地理科学,2012,32(7):853-858.
	[ Li S S, Yan J P, Wan J.The characteristics of temperature change in Qinling Mountains[J]. Scientia geographica sinica, 2012,32(7):853-858. ]
[18]	郑然,李栋梁,蒋元春.全球变暖背景下青藏高原气温变化的新特征[J].高原气象,2015,34(6):1531-1539. doi: 10.7522/j.issn.1000-0534.2014.00123
	[ Zheng R, Li D L, Jiang Y C.New characteristics of temperature change over Qinghai-Xizang Plateau on the background of global warming[J]. Plateau Meteorology, 2015,34(6):1531-1539. ] doi: 10.7522/j.issn.1000-0534.2014.00123
[5]	[ Tang H Y, Yang X D, Wang X J, et al.Analyses of precipitation change in the source regions of three rivers during 1956-2004[J]. Plateau Meteorology, 2007,26(1):47-54. ]
[6]	韩翠华,郝志新,郑景云.1951-2010年中国气温变化分区及其区域特征[J].地理科学进展,2013,32(6):887-896. doi: 10.11820/dlkxjz.2013.06.005
[19]	易湘生,尹衍雨,李国胜,等.青海三江源地区近50年来的气温变化[J].地理学报,2011,66(11):1451-1465. doi: 10.11821/xb201111002
	[ Yi X S, Yin Y Y, Li G S, et al.Temperature variation in recent 50 years in the three-river headwaters region of Qinghai province[J]. Acta Geographica Sinica, 2011,66(11):1451-1465. ] doi: 10.11821/xb201111002
[20]	周宁芳,秦宁生,屠其璞,等.近50年青藏高原地面气温变化的区域特征分析[J].高原气候,2005,24(3):344-349. doi: 10.3321/j.issn:1000-0534.2005.03.010
	[ Zhou N F, Qin N S, Tu Q P, et al.Analyese on regional characteristics of temperature changeover Qinghai Xizang Plateau in recent 50 years[J]. Plateau Meteorology, 2005,24(3):344-349. ] doi: 10.3321/j.issn:1000-0534.2005.03.010
[21]	李林,陈晓光,王振宇,等.青藏高原区域气候变化及其差异性研究[J].气候变化研究进展,2010,6(3):181-186. doi: 10.3788/gzxb20103906.0998
	[ Li L, Chen X G, Wang Z Y, et al.Climate change and its regional differences over the Tibetan Plateau[J]. Advances in Climate Change Research, 2010,6(3):181-186. ] doi: 10.3788/gzxb20103906.0998
[22]	宋辞,裴韬,周成虎.1960年以来青藏高原气温变化研究进展[J].地理科学进展,2012,31(11):1503-1509. doi: 10.11820/dlkxjz.2012.11.011
	[ Song C, Pei T, Zhou C H.Research progresses of surface temperature characteristic change over Tibetan plateau since 1960[J]. Progresses in Geography, 2012,31(11):1503-1509. ] doi: 10.11820/dlkxjz.2012.11.011
[23]	任国玉,徐铭志,初子莹,等.近54年中国地面气温变化[J].气候与环境研究,2005,10(4):717-727. doi: 10.3969/j.issn.1006-9585.2005.04.002
	[ Ren G Y, Xu M Z, Chu Z Y, et al.Changes of surface air temperature in China during 1951-2004[J]. Climate and Environmental Research, 2005,10(4):717-727. ] doi: 10.3969/j.issn.1006-9585.2005.04.002
[24]	范泽孟,岳天祥,陈传法,等.中国气温与降水的时空变化趋势分析[J].地球信息科学学报,2011,13(4):526-533. doi: 10.3724/SP.J.1047.2011.00526
	[ Fan Z M, Yue T X, Chen C F, et al.Spatial change trend of temperature and precipitation in China[J]. Journal of Geo-information Science, 2011,13(4):526-533. ] doi: 10.3724/SP.J.1047.2011.00526
[25]	Loarie S R, Duffy P B, Hamilton H, et al.The velocity of climate change[J]. Nature, 2009,462(7276):1052-1055.
[26]	Serra-Diaz J M, Franklin J, Ninyerola M, et al. Bioclimatic velocity: the pace of species exposure to climate change[J]. Diversity and Distributions, 2014,20(2):169-180. doi: 10.1111/ddi.12131
[27]	Burrows M T, Schoeman D S, Buckley L B, et al.The pace of shifting climate in marine and terrestrial ecosystems[J]. Science, 2011,334(6056):652-655. doi: 10.1126/science.1210288 pmid: 22053045
[28]	Zhu K, Woodall C W, Clark J S.Failure to migrate: lack of tree range expansion in response to climate change[J]. Global Change Biology, 2012,18(3):1042-1052. doi: 10.1111/j.1365-2486.2011.02571.x
[29]	Zhu K, Woodall C W, Ghosh S, et al.Dual impacts of climate change: forest migration and turnover through life history[J]. Global change biology, 2014,20(1):251-264. doi: 10.1111/gcb.12382 pmid: 24014498
[30]	VanDerWal J, Murphy H T, Kutt A S, et al. Focus on poleward shifts in species' distribution underestimates the fingerprint of climate change[J]. Nature Climate Change, 2013,3(3):239-243. doi: 10.1038/NCLIMATE1688
[31]	Burrough, PA. McDonell, R A. Principles of Geographical Information System[M]. New York: Oxford University Press, 1998.
[32]	周秀杰,王凤玲,吴玉影,等.近60年来黑龙江省与东北及全国气温变化特点分析[J].自然灾害学报,2013,22(2):124-129.
	[ Zhou X J, Wang F L, Wu Y Y, et al.Analysis of temperature change characteristics of Heilongjiang Province, Northeast China and whole country in recent 60 years[J]. Journal of Natural Disasters, 2013,22(2):124-129. ]
[33]	杨雨亭,尚松浩,李超.土壤水分空间插值的克里金平滑效应修正方法[J].水科学进展,2010(2):208-213.
	[ Yang Y T, Shang S H, Li C.Correcting the smoothing effect of ordinary kriging estimates in soilmoisture interpolation[J]. Advances in Water Science, 2010,2:208-213. ]
[34]	朱会义,贾绍凤.降雨信息空间插值的不确定性分析[J].地理科学进展,2004(2):34-42.
	[ Zhu H Y, Jia S F.Uncertainty in the spatial interpolation of rainfall data[J]. Progress in Geography, 2004,2:34-42. ]
