三亚热带雨林环境植被和地表能量空间分布特征

doi:10.3724/SP.J.1047.2017.00950

摘要/Abstract

摘要：

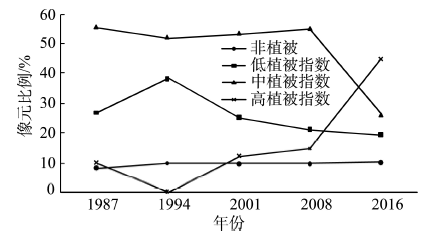

遥感地表能量信息通过空间分布及变化趋势体现生态系统要素的格局、状态、质量,客观反映城市生态系统的状态,是度量区域生态系统要素生态过程的重要内容。本文以三亚市热带雨林植被环境的地表能量综合响应特征和作用、影响关系特征为基础,采用植被指数分级、地表能量分级和植被-能量关系等指标,结合雨林垂直分带和植被分布信息,探讨近30年（1987-2016年）不同时期热带雨林环境的水平地带性、垂直地带性及其时空变化特征。结果表明：①近30年三亚市域植被覆盖比例维持在90%左右,植被指数分级构成以高、中数值分布为主,并呈现整体趋高态势。②各级地表能量分布比例的波动幅度在10%之内,中等地表能量级别范围呈现向低地表能量区域扩展趋势。③随着海拔高度的提升,植被指数高数值的热带雨林分布比例增加,地表能量值降低。④热带雨林的地表能量和植被指数的时空分布稳定性均高于人工植被。本文基于遥感地表能量综合响应特征和作用、影响关系特征建立的指标评价体系,可以为热带雨林生态系统的量化评价提供支持。

关键词: 热带雨林, 遥感, 植被指数, 地表能量, 生态系统

Abstract:

Land surface energy information of remote sensing describes the ecological process of regional ecosystem elements. The distribution and variation trends of land surface energy reflect structure and quality of regional ecosystem element. This study is based on the theory of ecology and aims to provide a scientific basis of preservation and restoration of forests in decision-making, prediction, implementation, verification and other aspects. In this study, we extracted the information about the comprehensive responses and interactive relationship between tropical rain forest and land surface energy in Sanya, using classes of vegetation greenness, land surface energy and the vegetation-energy relationship index to evaluate the quality of forest ecosystem. Vertical and horizontal distributions of tropical rain forest of 30 years (1987-2016) were used to discuss a change of spatial-temporal zonality. The following results are noted: (1) With around 90% of vegetation coverage in the past 30 years, classes of vegetation greenness are mainly composed of high and medium values, and has an increasing trend. (2) The low vegetation greenness and high land surface energy shifts to high vegetation greenness and low land surface energy from coastal area to mountain area. (3) The fluctuation of land surface energy distribution at all levels was less than 10%. Regions with medium energy expanded to low energy areas. (4) Tropical rain forest of high vegetation greenness increases with elevation increasing associated with land surface energy decreasing. (5) The ecological quality of the planted vegetation regions below 200 meters height, declined faster than that of planted vegetation regions above 400 meters height. Compared with planted vegetation regions, tropical rain forest regions have high spatial-temporally stability in both surface energy and vegetation greenness. In general, comprehensive response characteristics of remote sensing and their interactive relationship provide quantitative basis for evaluating the tropical rain forest ecosystems.

Key words: tropical rain forest, remote sensing, NDVI, land surface energy, ecosystems

姚武韬, 关燕宁, 郭杉, 蔡丹路, 肖寒, 张春燕. 三亚热带雨林环境植被和地表能量空间分布特征[J]. 地球信息科学学报, 2017, 19(7): 950-961.DOI:10.3724/SP.J.1047.2017.00950

YAO Wutao,GUAN Yanning,GUO Shan,CAI Danlu,XIAO Han,ZHANG Chunyan. Spatial Distribution of Land Surface Vegetation-Energy Relationship in Sanya Tropical Rain Forest Regions[J]. Journal of Geo-information Science, 2017, 19(7): 950-961.DOI:10.3724/SP.J.1047.2017.00950

图/表 14

图1

表1

图2

表2

图3

图4

图5

图6

图8

图7

图9

表3

图10

表4

参考文献 27

[1]	Bermingham E, Dick C W, Moritz C.Tropical rainforests: past, present, and future[M]. Chicago: University of Chicago Press, 2005.
[2]	Barlow J.Tropical rain forests: An ecological and biogeographical comparison by richard primack and richard corlett[J]. Geographical Journal, 2006,172(1):711-712. doi: 10.1111/j.1467-9493.2006.00255_1.x
[3]	Laurance W F.Forest destruction in tropical asia[J]. Current Science, 2007,93(11):1544-1550. doi: 10.1073/pnas.0710102104
[4]	Wright S J, Muller-Landau H C. The future of tropical forest species[J]. Biotropica, 2006,38(3):287-301. doi: 10.1111/j.1744-7429.2006.00154.x pmid: 20536814
[5]	Nichol J E.An examination of tropical rain-forest microclimate using gis modeling[J]. Global Ecology and Biogeography Letters, 1994,4(3): 69-78. doi: 10.2307/2997781
[6]	Ibanez R, Condit R, Angehr G, et al.An ecosystem report on the panama canal: Monitoring the status of the forest communities and the watershed[J]. Environmental Monitoring and Assessment, 2002,80(1):65-95. doi: 10.1023/A:1020378926399 pmid: 12437064
[7]	颜家安. 海南岛生态环境变迁史研究[D].南京:南京农业大学,2006.
	[ Yan J A.The study in evolutional history of Hainan island's ecological environment--from the point of animal and plant[D]. Nanjing: Nanjing Agricultural University, 2006. ]
[8]	苏金明,朱松.海南三亚生态问题及其生态保护路径研究[J].规划师,2014(5):108-13.
	[ Su J M, Zhu S.Ecological issue in urban development, sanya[J]. Planners, 2014,5:108-113. ]
[9]	陈朝辉. 海南省三亚市的生态环境建设[J].热带地理,2001(3):202-6,22.
	[ Chen C H.The delimitation between the Zhujiang river and the sea[J]. Tropical Geography, 2001,3: 202-6,22. ]
[10]	Zhang J Q, Zhu Y Q, Fan F L.Mapping and evaluation of landscape ecological status using geographic indices extracted from remote sensing imagery of the pearl river delta, china, between 1998 and 2008[J]. Environmental Earth Sciences, 2016,75(4):16. doi: 10.1007/s12665-015-5158-0
[11]	Zhang C, Li Y, Lv S H, et al.Evaluation of urbanized ecological environment quality: A case study on Chaoyang district in Beijing[J]. Environmental Engineering and Management Journal, 2013,12(9):1779-1784. doi: 10.1016/j.agee.2013.05.023
[12]	关燕宁,钱丹,张春燕,等.基于遥感信息的城市地表能量空间分布及特征研究——以国际宜居城市为例[J].地球信息科学学报,2014,16(5):806-14. doi: 10.3724/SP.J.1047.2014.00806
	[ Guan Y N, Qian D, Zhang C Y, et al.Urban surface energy distribution and related characteristics: An remote sensing based research applied to the international livable cities[J]. Journal of Geo-information Science, 2014,16(5):806-814. ] doi: 10.3724/SP.J.1047.2014.00806
[13]	王蕾,关燕宁,郭杉,等.城市地表要素的地表能量响应特征及其关系研究[J].地球信息科学学报,2016,18(12):1684-1697. doi: 10.3724/SP.J.1047.2016.01684
	[ Wang L, Guan Y N, Guo S, et al.Urban surface energy’s responses to land surface element types and interactive relationship[J]. Journal of Geo-information Science, 2016,18(12):1684-1697. ] doi: 10.3724/SP.J.1047.2016.01684
[14]	Ochoa-Gaona S, Kampichler C, de Jong B H J, et al. A multi-criterion index for the evaluation of local tropical forest conditions in mexico[J]. Forest Ecology and Management, 2010,260(5): 618-627. doi: 10.1016/j.foreco.2010.05.018
[15]	徐丽. 森林类自然保护区生态质量评价研究[D].武汉:华中农业大学,2014.
	[ Xu L.Study on ecological quality assessment of forest nature reserve:a case of Dinghushan nature reserve[D]. Wuhan: Huazhong Agricultural University, 2014. ]
[16]	Keddy P A, Drummond C G.Ecological properties for the evaluation, management, and restoration of temperate deciduous forest ecosystems[J]. Ecological Applications, 1996,6(3):748-762. doi: 10.2307/2269480
[17]	吴志丰,李月辉,布仁仓,等.呼中林区森林景观的历史变域模拟及评价[J].生态学报,2013,(15):4799-4807. doi: 10.5846/stxb201205080674
	[ Wu Z F, Li Y H, Bu R C, et al.Evaluation and simulation of historical range of variability of forest landscape pattern in Huzhong area[J]. Acta Ecologica Sinica, 2013,(15): 4799-4807.] doi: 10.5846/stxb201205080674
[18]	中国科学院《中国自然地理》委员会.中国自然地理:地貌[M].北京:科学出版社,1980.
	[ Chinese Academy of Sciences, Chinese natural geography Committee. Physical geography of China: Landforms[M]. Beijing: Science Press, 1980. ]
[19]	黄海智,黄萍.三亚市旅游气候舒适度评价[J].气象研究与应用,2010,31(4):70-73. doi: 10.3969/j.issn.1673-8411.2010.04.019
	[ Huang H Z, Huang P.Evaluation of tourism climate comfort in Sanya city[J]. Journal of Meteorological Research and Application, 2010,31(4):70-73. ] doi: 10.3969/j.issn.1673-8411.2010.04.019
[20]	Cai D, Fraedrich K, Sielmann F, et al.Climate and vegetation: An era-interim and GIMMS NDVI analysis[J]. Journal of Climate, 2014,27(13):5111-5118. doi: 10.1175/JCLI-D-13-00674.1
[21]	Cai D, Fraedrich K, Sielmann F, et al.Vegetation dynamics on the tibetan plateau (1982-2006): An attribution by ecohydrological diagnostics[J]. Journal of Climate, 2015,28(11):4576-4584. doi: 10.1175/JCLI-D-14-00692.1
[22]	赵英时. 遥感应用分析原理与方法[M].北京:科学出版社,2013.
	[ Zhao Y S.Principles and methods of remote sensing application[M]. Beijing: Science Press, 2013. ]
[23]	喻庆国,曹顺伟,邓喜庆,等.云南糯扎渡自然保护区植被垂直分布研究[J].林业科技开发,2006(4):47-50. doi: 10.3969/j.issn.1000-8101.2006.04.014
	[ Yu Q G, Cao S W, Deng X Q, et al.A study on the vertical spatial distribution of vegetation in Nuozhadu nature reserve, Yunnan[J]. China Forestry Science and Technology, 2006,4:47-50. ] doi: 10.3969/j.issn.1000-8101.2006.04.014
[24]	徐诗涛. 海南热带山地沟谷雨林鸟巢蕨附生特性研究[D].海口:海南大学, 2013.
	[ Xu S T.Epiphytic characteristics of asplenium nidus l. (aspleniaceae) complex in tropical montane rain forest, hainan island[D]. Haikou: Hainan University, 2013. ]
[25]	潘树荣. 自然地理学(第二版)[M].北京:高等教育出版社,1985.
	[ Pan S R.Physical geography (second edition)[M]. Beijing: Higher Education Press, 1985. ]
[26]	伍光和,蔡运龙.综合自然地理学——第2版[M].北京:高等教育出版社,2004.
	[ Wu G H, Cai Y L.Integrated physical geography the second edition[M]. Beijing: Higher Education Press, 2004. ]
[27]	喻庆国,曹顺伟,邓喜庆,等.云南糯扎渡自然保护区植被沿坡度空间分异研究[J].安徽农业科学,2007(28):8994-8996. doi: 10.3969/j.issn.0517-6611.2007.28.107
	[ Yu Q G, Cao S W, Deng X Q, et al.Study on the spatial distribution of vegetation along the gradients in Nuozhadu nature reserve of Yunnan Province[J]. China Forestry Science and Technology, 2007,28:8994-8996. doi: 10.3969/j.issn.0517-6611.2007.28.107

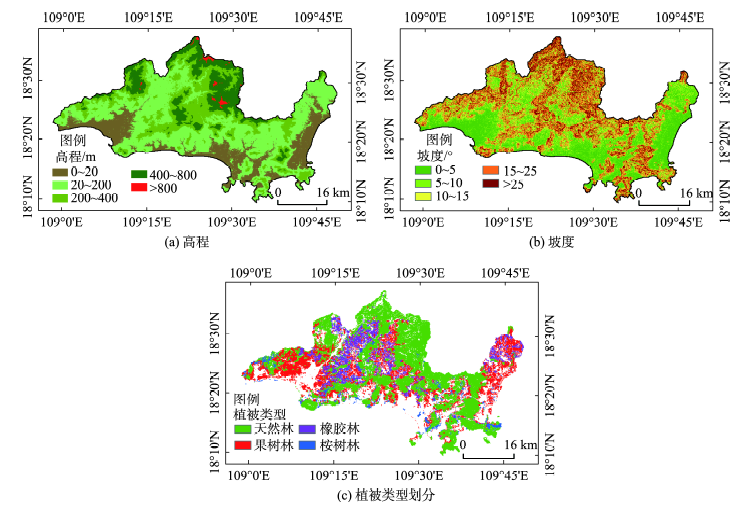

高程/m	类型	描述	面积/km²
<20	山前平原	农田植被、人工林等	337.6
20~200	人工林	人工林、果园等	848.3
200~400	季雨林	热带常绿季雨林、其他类型天然林、人工林等	458.1
400~800	低山雨林	热带低山雨林、其他类型天然林等	289.4
>800	低山与中山雨林	热带低山和中山雨林、其他类型天然林等	14.1

坡度/°	命名
0~5	平坡
5~10	缓坡
10~15	缓斜坡
15~20	斜坡
>25	陡坡

高程/m	1987年			1994年			2001年			2008年			2016年
高程/m	∣r∣	a	b	∣r∣	a	b	∣r∣	a	b	∣r∣	a	b	∣r∣	a	b
<20	0.30	-4.26	293.77	0.32	-4.74	297.90	0.32	-2.97	296.04	0.27	-2.55	296.80	0.12	-1.44	296.16
20~200	0.58	-8.72	294.42	0.52	-6.58	297.81	0.54	-5.97	296.72	0.41	-5.03	296.53	0.40	-3.54	297.05
200~400	0.17	-2.84	290.03	0.03	-0.35	294.17	0.22	-2.74	294.04	0.07	-1.00	292.86	0.26	-2.13	295.30
400~800	0.11	1.90	285.50	0.06	0.88	292.66	0.12	1.88	290.00	0.15	2.53	289.17	0.37	2.93	290.80
>800	0.18	3.14	282.51	0.16	2.20	290.60	0.36	5.32	286.32	0.28	4.65	286.49	0.75	4.85	288.40

坡度/°	1987年			1994年			2001年			2008年			2016年
坡度/°	∣r∣	a	b	∣r∣	a	b	∣r∣	a	b	∣r∣	a	b	∣r∣	a	b
0~5	0.64	-9.35	294.85	0.65	-8.60	298.55	0.56	-5.77	296.69	0.53	-6.60	297.47	0.27	-2.64	296.65
5~10	0.65	-10.80	294.99	0.64	-8.73	298.37	0.61	-7.56	297.13	0.53	-7.83	297.37	0.41	-3.90	297.01
10~15	0.44	-9.14	293.69	0.42	-6.71	297.31	0.50	-7.73	296.90	0.38	-7.12	296.58	0.34	-3.59	296.45
15~20	0.17	-4.01	290.47	0.13	-2.31	295.08	0.26	-4.64	294.93	0.16	-3.43	294.21	0.12	-1.32	294.66
>25	0.16	3.32	285.94	0.21	3.48	292.06	0.18	3.21	290.19	0.21	4.58	289.23	0.29	3.14	291.36
