青藏高原湖泊面积动态监测

doi:10.3724/SP.J.1047.2017.00972

摘要/Abstract

摘要：

高原湖泊的动态变化对区域水循环具有重要影响。受全球气候变化的影响,青藏高原湖泊自20世纪90年代开始呈现剧烈扩张趋势。为揭示近年来青藏高原湖泊面积的时空变化规律,本文提出了一种改进的半自动湖泊提取算法,结合环境减灾卫星（HJ-1A/1B）和Landsat系列卫星影像数据,对青藏高原内流流域中面积大于50 km²的127个湖泊进行了连续6年的动态监测,并分析了该区域2009-2014年湖泊面积时空变化特征。研究结果表明,该区域湖泊整体呈现显著扩张趋势,年均变化速率为231.89 km²yr^-1（0.87 %yr^-1）,6年间湖泊面积扩张速率有所减缓。其中,扩张湖泊有104个,收缩湖泊有23个,变化速率分别为271.08 km²yr^-1（1.02 % yr^-1）和-39.19 km²yr^-1（-0.15 %yr^-1）。不同区域湖泊面积变化具有明显差异,主要表现为东部及北部大部分区域湖泊扩张,南部地区大部分湖泊面积稳定,萎缩湖泊主要分布于研究区四周。最后,本文通过分析冰川融水补给对湖泊面积变化的影响,发现存在冰川融水补给的湖泊面积变化率远大于不存在冰川融水补给的湖泊。由此可见,近年来冰川融水的增加是促进青藏高原内流流域湖泊扩张的主要因素之一。

关键词: 青藏高原, 湖泊, 遥感, 动态制图, 环境减灾卫星

Abstract:

The lakes on the high-altitude plateau play an essential role in the local water cycle. Alpine lakes on the Tibetan Plateau have experienced a rapid expansion since 1990s under the global climate change. In order to understand the changing pattern of alpine lakes on the Tibetan Plateau in recent years, this study monitored 127 lakes larger than 50 square kilometers annually on the endorheic Tibetan basin from 2009 to 2014. Based on a semi-automatic lake extraction method, we combined multi-temporal HJ-1A/1B imagery and Landsat imagery to extract lake boundaries accurately. The results have shown that the surface area of large lakes experienced a significant expansion with an overall rate of 231.89 km² yr^-1 (0.87 %yr^-1) and the trend of lake expansion is slowing down during the study period. 104 lakes expanded at a rate of 271.08 km² yr^-1 (1.02 %yr^-1), while 23 lakes shrunk at a rate of -39.19 km²yr^-1 (-0.15 %yr^-1). The spatial pattern of the lake area dynamics also have shown significant regional difference. The expanded lakes are distributed in the most of the east and north study area, while the stable lakes are mainly distributed in the south basin. Besides, the shrunken lakes are scattered at the border of the study area. Based on the comparison between the changing rates of glacier-fed and non-glacier-fed lakes, glacier-fed lakes have shown a much rapid expansion trend than non-glacier-fed lakes, which indicates that the increase of glacier wastage is one of the main factors that contributed to the expansion of Tibetan lakes.

Key words: Tibetan Plateau, lakes, remote sensing, lake dynamic mapping, HJ-1A/1B

杨珂含, 姚方方, 董迪, 董文, 骆剑承. 青藏高原湖泊面积动态监测[J]. 地球信息科学学报, 2017, 19(7): 972-982.DOI:10.3724/SP.J.1047.2017.00972

YANG Kehan,YAO Fangfang,DONG Di,DONG Wen,LUO Jiancheng. Spatiotemporal Monitoring of Lake Area Dynamics on the Tibetan Plateau[J]. Journal of Geo-information Science, 2017, 19(7): 972-982.DOI:10.3724/SP.J.1047.2017.00972

图/表 9

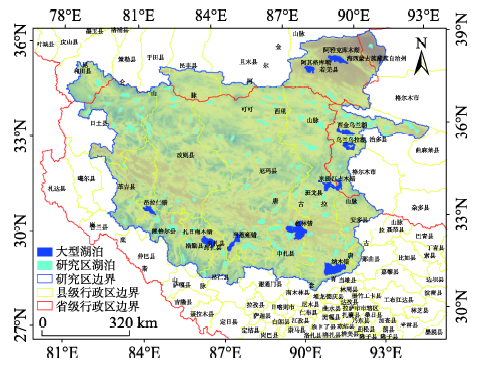

图1

表1

表2

本文所使用的环境减灾卫星以及Landsat卫星影像列表

2009年			2010年			2011年			2012年			2013年					2014年
传感器	轨道号	采集日期	传感器	轨道号	采集日期	传感器	轨道号	采集日期	传感器	轨道号	采集日期	传感器		轨道号		采集日期	传感器		轨道号		采集日期
1A/CCD1	31/72	0927	1A/CCD1	31/72	0901	1A/CCD1	43/72	1012	1A/CCD1	30/72	0913	1A/CCD1	30/72		1010		1A/CCD1	33/76		1031
1A/CCD1	34/80	1013	1A/CCD1	33/76	1026	1A/CCD1	44/73	1028	1A/CCD1	32/76	1002	1A/CCD1	30/76		1010		1A/CCD1	35/72		0918
1A/CCD2	29/80	1108	1A/CCD1	34/80	1030	1A/CCD2	33/79	1014	1A/CCD1	33/68	1021	1A/CCD1	31/80		1010		1A/CCD1	45/72		1005
1A/CCD2	34/74	1024	1A/CCD2	30/80	1029	1A/CCD2	40/76	1011	1A/CCD1	42/80	1022	1A/CCD1	48/72		1016		1A/CCD2	30/78		1111
1A/CCD2	36/71	00927	1A/CCD2	31/73	1029	1A/CCD2	41/80	1023	1A/CCD1	47/72	930	1A/CCD2	34/69		1006		1A/CCD2	38/80		1112
1A/CCD2	39/80	1013	1A/CCD2	35/72	901	1B/CCD1	29/72	1028	1A/CCD2	30/80	1020	1A/CCD2	35/72		1010		1A/CCD2	40/76		0918
1A/CCD2	45/72	1006	1A/CCD2	38/76	1026	1B/CCD1	29/79	1024	1A/CCD2	31/76	0905	1A/CCD2	35/76		1010		1A/CCD2	45/76		1028
1B/CCD1	34/68	1015	1A/CCD2	44/72	1019	1B/CCD1	36/72	1013	1A/CCD2	35/72	0913	1A/CCD2	35/80		1010		1B/CCD1	29/72		1009
1B/CCD1	35/76	1015	1B/CCD1	41/76	1025	1B/CCD1	37/80	1029	1A/CCD2	35/76	0928	1A/CCD2	40/80		1026		1B/CCD1	36/68		1002
1B/CCD1	38/72	926	1B/CCD1	41/80	1025	1B/CCD1	41/72	0920	1A/CCD2	37/80	1002	1A/CCD2	42/72		1007		1B/CCD1	36/72		1006
1B/CCD2	28/76	0928	1B/CCD2	29/72	1019	1B/CCD2	30/76	0914	1A/CCD2	38/80	1021	1B/CCD1	37/72		1009		1B/CCD1	41/80		0917
1B/CCD2	28/79	0928	1B/CCD2	35/69	1008	1B/CCD2	33/72	1012	1B/CCD1	37/72	0912	1B/CCD1	37/76		1009		1B/CCD2	30/76		1113
1B/CCD2	33/72	1022	1B/CCD2	39/76	1015	1B/CCD2	34/68	1028	1B/CCD2	41/72	0927	OLI	138/39		1012		1B/CCD2	31/70		0919
1B/CCD2	39/76	1015	1B/CCD2	45/76	1025	TM	138/35	1108	1B/CCD2	43/76	1001						1B/CCD2	33/80		1005
1B/CCD2	43/72	926	TM	138/39	1020												1B/CCD2	34/76		1013
1B/CCD2	43/76	1031	TM	141/36	1025												1B/CCD2	41/72		1006
TM	138/39	0830^①	TM	143/35	1108												1B/CCD2	41/76		1006
TM	140/35	0929	TM	143/36	1108
			TM	144/36	0928

表2

表3

图2

图3

图4

图5

图6

参考文献 46

[15]	[ Bian D, La B, Wang C Y, et al.The Response of Water Level of Selin Co to Climate Change during 1975-2008[J]. Acta Geographica Sinica, 2010,65(3):313-319. ]
[16]	Huang L, Liu J, Shao Q, et al.Changing inland lakes responding to climate warming in Northeastern Tibetan Plateau[J]. Climatic change, 2011,109(3):479-502. doi: 10.1007/s10584-011-0032-x
[17]	Yao T, Pu J, Lu A, et al.Recent glacial retreat and its impact on hydrological processes on the Tibetan Plateau, China, and surrounding regions[J]. Arctic, Antarctic, and Alpine Research, 2007,39(4):642-650.
[18]	Zhu L, Xie M, Wu Y.Quantitative analysis of lake area variations and the influence factors from 1971 to 2004 in the Nam Co basin of the Tibetan Plateau[J]. Chinese Science Bulletin, 2010,55(13):1294-1303. doi: 10.1007/s11434-010-0015-8
[19]	Lei Y, Yao T, Bird B W, et al.Coherent lake growth on the central Tibetan Plateau since the 1970s: Characterization and attribution[J]. Journal of Hydrology, 2013,483:61-67. doi: 10.1016/j.jhydrol.2013.01.003
[20]	姜永见,李世杰,沈德福,等.青藏高原近 40 年来气候变化特征及湖泊环境响应[J].地理科学,2012,32(12):1503-1512. doi: 10.1007/s11783-011-0280-z
	[ Jiang Y J, Li S J, Shen D F, et al.Climate change and its impact on the lake environment in the Tibetan Plateau in 1971-2008[J]. Scientia Geograohica Sinica, 2012,32(12):1503-1512. ] doi: 10.1007/s11783-011-0280-z
[21]	朱大岗,孟宪刚,郑达兴,等.青藏高原近 25 年来河流,湖泊的变迁及其影响因素[J].地质通报,2007,26(1):22-30. doi: 10.3969/j.issn.1671-2552.2007.01.004
	[ Zhu D G, Meng X G, Zheng D X, et al.Changes of rivers and lakes on the Qinghai-Tibet Plateau in the past 25 years and their influence factors[J]. Geological Bulletin of China, 2007,26(1):22-30. ] doi: 10.3969/j.issn.1671-2552.2007.01.004
[22]	Lehner B, Verdin K, Jarvis A.HydroSHEDS technical documentation, version 1.0[R]. World Wildlife Fund US, Washington, DC. 2006,1-27.
[1]	Rizvi J.Trans-Himalayan Caravans: Merchant Princes and Peasant Traders in Ladakh[M]. Oxford: Oxford University Press, 2001.
[2]	万玮,肖鹏峰,冯学智,等.近 30 年来青藏高原羌塘地区东南部湖泊变化遥感分析[J].湖泊科学,2010,22(6):874-81.
[23]	Yao T, Thompson L, Yang W, Yu W, Gao Y, Guo X, et al.Different glacier status with atmospheric circulations in Tibetan Plateau and surroundings[J]. Nature Climate Change, 2012,2(9):663-667. doi: 10.1038/nclimate1580
[24]	吴绍洪,尹云鹤,郑度,等.青藏高原近 30 年气候变化趋势[J].地理学报,2005,60(1):3-11. doi: 10.3321/j.issn:0375-5444.2005.01.001
[2]	[ Wan W, Xiao P F, Feng X Z, et al, Remote sensing analysis for changes of lakes in the southeast of Qiangtang area, Qing-hai-Tibet Plateau in recent 30 years[J]. Journal of Lake Science, 2010,22(6):874-81. ]
[3]	李均力,盛永伟.1976-2009年青藏高原内陆湖泊变化的时空格局与过程[J].干旱区研究,2013,30(7):571-81.
[24]	[ Wu S H, Yin Y H, Zhen D, et al.Climate changes in the tibetan Plateau during the Last Three Decades[J]. Acta Geographica Sinica, 2005,60(1):3-11. ] doi: 10.3321/j.issn:0375-5444.2005.01.001
[25]	王苏民,窦鸿身.中国湖泊志[M].北京:科学出版社,1998.
[3]	[ Li J L, Sheng Y W.Spatiotemporal pattern and process of inland lake change in the Qinghai-Tibetan plateau during the period of 1976-2009[J]. Arid Zone Research, 2013,30(7):571-81. ]
[4]	Liao J, Shen G, Li Y.Lake variations in response to climate change in the Tibetan Plateau in the past 40 years[J]. International Journal of Digital Earth, 2013,6(6):534-49. doi: 10.1080/17538947.2012.656290
[25]	[ Wang S M, Dou H S.Lakes in China[M]. Beijing:Science Press, 1998. ]
[26]	Guo W, Xu J, Liu S, et al. The second glacier inventory dataset of China (Version 1.0)[R]. Cold and Arid Regions Science Data Center at Lanzhou: Lanzhou, China. 2014.
[5]	闫立娟,郑绵平,魏乐军.近 40 年来青藏高原湖泊变迁及其对气候变化的响应[J].地学前缘,2016,23(4):310-23. doi: 10.13745/j.esf.2016.04.027
	[ Yan L J, Zheng M P, Wei L J.Change of the lakes in Tibetan Plateau and its response to climate in the past forty years[J]. Earth Science Frontiers, 2016, 23(4):310-23. ] doi: 10.13745/j.esf.2016.04.027
[6]	董斯扬,薛娴,尤全刚,等.近 40 年青藏高原湖泊面积变化遥感分析[J].湖泊科学,2014,26(4):535-44. doi: 10.18307/2014.0407
	[ Dong S Y, Xue X, You Q G, et al.Remote Sensing monitoring of the lake area changes in the Qinghai-Tibet Plateau in recent 40 years[J]. Journal of Lake Science, 2014,26(4):535-44. ] doi: 10.18307/2014.0407
[27]	Phan V, Lindenbergh R, Menenti M.Geometric dependency of Tibetan lakes on glacial runoff[J]. Hydrology and Earth System Sciences, 2013,17(10):4061. doi: 10.5194/hessd-10-729-2013
[28]	边金虎,李爱农,雷光斌,等.环境减灾卫星多光谱 CCD 影像自动几何精纠正与正射校正系统[J].生态学报,2014,34(24):7181-91. doi: 10.5846/stxb201310122446
	[ Bian J H, Li A N, Lei G B, et al.Auto-registration and orthorectification system for the HJ-1A/B CCD images[J]. Acta Ecologica Sinica, 2014,34(24):7181-7191. ] doi: 10.5846/stxb201310122446
[29]	Tucker C J, Grant D M, Dykstra J D.NASA’s global orthorectified Landsat data set[J]. Photogrammetric Engineering & Remote Sensing, 2004,70(3):313-22. doi: 10.14358/PERS.70.3.313
[7]	Song C, Huang B, Ke L, et al.Remote sensing of alpine lake water environment changes on the Tibetan Plateau and surroundings: A review[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2014,92:26-37. doi: 10.1016/j.isprsjprs.2014.03.001
[8]	车向红,冯敏,姜浩,等.2000-2013 年青藏高原湖泊面积 MODIS 遥感监测分析[J].地球信息科学学报,2015,17(1):99-107. doi: 10.3724/SP.J.1047.2015.00099
[30]	McFeeters S K. The use of the Normalized Difference Water Index (NDWI) in the delineation of open water features[J]. International Journal of Remote Sensing, 1996,17(7):1425-1432. doi: 10.1080/01431169608948714
[31]	Xu H.Modification of normalised difference water index (NDWI) to enhance open water features in remotely sensed imagery[J]. International Journal of Remote Sensing, 2006,27(14):3025-3033. doi: 10.1080/01431160600589179
[8]	[ Che X H, Feng M, Jiang H, et al.Detection and Analysis of Qinghai-Tibet Plateau Lake Area from 2000-2013[J]. Journal of Geo-information Science, 2015,17(1):99-107. ] doi: 10.3724/SP.J.1047.2015.00099
[9]	姚晓军,刘时银,李龙,等.近 40 年可可西里地区湖泊时空变化特征[J].地理学报,2013,68(7):886-96.
[32]	徐涵秋. 从增强型水体指数分析遥感水体指数的创建[J].地球信息科学学报,2012,10(6):776-80.
	[ Xu H Q.Comment on the Enhanced Water Index(EWI):A Discussion on the Creation of a Water Index[J]. Journal of Geo-Infornation Science, 2012,10(6):776-780. ]
[9]	[ Yao X J, Liu S Y, Li L, et al.Spatial-temporal variations of lake area in Hoh Xil region in the past 40 years[J]. Acta Geographica Sinica, 2013,68(7):886-96. ]
[10]	Li Y, Liao J, Guo H, et al.Patterns and potential drivers of dramatic changes in Tibetan lakes, 1972-2010[J]. PloS one, 2014,9(11): e111890. doi: 10.1371/journal.pone.0111890 pmid: 25372787
[33]	Yao F, Wang C, Dong D, Luo J, Shen Z, Yang K.High-resolution mapping of urban surface water using ZY-3 multi-spectral imagery[J]. Remote Sensing, 2015,7(9):12336-12355. doi: 10.3390/rs70912336
[34]	骆剑承,盛永伟,沈占锋,等.分步迭代的多光谱遥感水体信息高精度自动提取[J].遥感学报,2009,13(4):610-615. doi: 10.11834/jrs.20090405
[11]	李均力,盛永伟,骆剑承,等.青藏高原内陆湖泊变化的遥感制图[J].湖泊科学,2011,23(3):311-20. doi: 10.18307/2011.0301
	[ Li J L, Sheng Y W, Luo J C, et al.Remotely sensed mapping of inland lake area changes in the Tibetan Plateau[J]. Journal of Lake Science, 2011,23(3):311-20. ] doi: 10.18307/2011.0301
[12]	Zhang G, Yao T, Xie H, et al.Lakes’ state and abundance across the Tibetan Plateau[J]. Chinese Science Bulletin, 2014,59(24):3010-3021.
[13]	闫立娟,齐文.青藏高原湖泊遥感信息提取及湖面动态变化趋势研究[J].地球学报,2012,33(1):65-74. doi: 10.3975/cagsb.2012.01.08
[34]	[ Luo J C, Sheng Y W, Shen Z F, et al.Automatic and high-precise extraction for water information from multispectral images with the step-by-step iterative transformation mechanism[J]. Journal of Remote Sensing, 2009,13(4):610-615. ] doi: 10.11834/jrs.20090405
[35]	Wang J, Sheng Y, Tong TSD.Monitoring decadal lake dynamics across the Yangtze Basin downstream of Three Gorges Dam[J]. Remote Sensing of Environment, 2014,152:251-269. doi: 10.1016/j.rse.2014.06.004
[13]	[ Yan L J, Qi W.Lakes in Tibetan Plateau Extraction from Remote Sensing and Their Dynamic Changes[J]. Acta Geosicentica Sinica, 2012,33(1):65-74. ] doi: 10.3975/cagsb.2012.01.08
[14]	张继承,姜琦刚,李远华,等.基于RS/GIS 的西藏地区湖泊变化动态监测及气候背景[J].地球科学与环境学报,2008,30(1):87-93. doi: 10.3969/j.issn.1672-6561.2008.01.016
[36]	Wan W, Long D, Hong Y, et al.A lake data set for the Tibetan Plateau from the 1960s, 2005, and 2014[J]. Scientific Data, 2016,3:160039. doi: 10.1038/sdata.2016.39 pmid: 4915272
[37]	刘宝康,李林,杜玉娥,等.青藏高原可可西里卓乃湖溃堤成因及其影响分析[J].冰川冻土,2016,38(2):305-311. doi: 10.7522/j.issn.1000-0240.2016.0033
[14]	[ Zhang J C, Jiang Q G, Li Y H, et al.Dynamic monitoring and climate background of lake changes in Tibet based on RS/GIS[J]. Journal of Earth Sciences and Environment, 2008,30(1):87-93. ] doi: 10.3969/j.issn.1672-6561.2008.01.016
[15]	边多,拉巴,王彩云,等.1975-2008 年西藏色林错湖面变化对气候变化的响应[J].地理学报,2010,65(3):313-319.
[37]	[ Liu B K, Li L, Du Y E, et al.Causes of the outburst of Zonag Lake in Hoh Xil, Tibetan Plateau, and its impact on surrounding environment[J]. Journal of Glaciology and Geocryology, 2016,38(2):305-311. ] doi: 10.7522/j.issn.1000-0240.2016.0033
[38]	吴艳红,朱立平,叶庆华,等.纳木错流域近 30 年来湖泊—冰川变化对气候的响应[J].地理学报,2007,62(3):301-310. doi: 10.3321/j.issn:0375-5444.2007.03.007
	[ Wu Y H, Zhu L P, Ye Q H, et al.The response of Lake-Glacier area change to climate variations in Namco Basin, Central Tibetan Plateau during the Last Three Decades[J]. Acta Geographica Sinica, 2007,62(3):301-310. ] doi: 10.3321/j.issn:0375-5444.2007.03.007
[39]	马颖钊,易朝路,吴家章,等.1970-2009年纳木错湖泊面积扩张的遥感卫星观测证据及原因之商榷[J].冰川冻土,2012,34(1):81-88.
	[ Ma Y Z, Yi C L, Wu J Z, et al.Lake surface expension of Nam Co during 1970-2009: Evidence of satellite remote sensing and cause analysis[J]. Journal of Glaciology and Geocryology, 2012,34(1):81-88. ]
[40]	拉巴,陈涛,杨秀海.基于多源卫星数据扎日南木错湖面变化和气象成因分析[J].湖泊科学,2014,26(6):963-970.
	[ La B, Chen T, Yang X H.Lake area variation of Thari Namtso and its meteorological causes based on multi-sensor satellite data[J]. Journal of Lake Sciences, 2014,26(6):963-970. ]
[41]	拉巴,边多,陈涛.基于TM 影像的西藏当惹雍错湖面积变化及可能成因[J].气象科技,2012,40(4):685-688. doi: 10.3969/j.issn.1671-6345.2012.04.031
	[ La B, Bian D, Chen T.Possible causes of area change of lake Tangra Yumco, Tibet Based on TM Images[J]. Meteorological Science and Technology, 2012,40(4):685-688. ] doi: 10.3969/j.issn.1671-6345.2012.04.031
[42]	张淑萍,张虎才,陈光杰,等. 1973-2010 年青藏高原西部昂拉仁错流域气候,冰川变化与湖泊响应[J].冰川冻土,2012,34(2):267-276.
	[ Zhang S P, Zhang H C, Chen G J, et al.Climate and glacier changes and lake response in the NganglaRingsto Catchment in Western Tibetan Plateau[J]. Journal of Glaciology and Geocryology, 2012,34(2):267-276. ]
[43]	姜丽光,姚治君,刘兆飞,等. 1976-2012 年可可西里乌兰乌拉湖面积和边界变化及其原因[J].湿地科学,2014,12(2):155-162.
	[ Jiang L G, Yao Z J, Liu Z F, et al.Variation of lake area and boundary of Ulan Ul Lake in Hoh Xil Region during 1976-2012 and Their Reasons[J]. Wetland Science, 2014,12(2):155-162. ]
[44]	闰立娟,郑绵平.我国蒙新地区近 40 年来湖泊动态变化与气候耦合[J].地球学报,2014,35(4):463-472. doi: 10.3975/cagsb.2014.04.08
	[ Run L J, Zhen M P.Dynamic changes of lakes in Inner Mongolia-Xinjiang region and the climate interaction in the past forty years[J]. Acta Geoscientica Sinica, 2014,35(4):463-472. ] doi: 10.3975/cagsb.2014.04.08
[45]	Song C, Huang B, Richards K, et al.Accelerated lake expansion on the Tibetan Plateau in the 2000s: induced by glacial melting or other processes[J]. Water Resources Research, 2014,50(4):3170-3186. doi: 10.1002/2013WR014724
[46]	鲁安新,姚檀栋,王丽红,等.青藏高原典型冰川和湖泊变化遥感研究[J].冰川冻土,2005,27(6):783-92. doi: 10.3969/j.issn.1000-0240.2005.06.001
	[ Lu A X, Yao T D, Wang L H, et al.Study on the fluctuations of typical glaciers and lakes in the Tibetan Plateau using remote sensing[J]. Journal of Glaciology and Geocryology, 2005,27(6):783-792. ] doi: 10.3969/j.issn.1000-0240.2005.06.001

湖泊	湖泊类型	省份	纬度/°N	经度/°E	面积/km^{2 ②}	主要补给方式
色林错^①	微咸水湖	西藏	32.1	89.1	2376	地表径流
纳木错	微咸水湖	西藏	30.7	90.6	2026	地表径流,湖面降水
昂拉仁错	微咸水湖	西藏	31.5	83.1	503	地表径流
扎日南木错	微咸水湖	西藏	30.9	85.6	1006	地表径流,湖面降水
当惹雍错	微咸水湖	西藏	31.1	86.6	846	地表径流
乌兰乌拉湖	微咸水湖	青海	34.8	90.5	634	地表径流,湖面降水
西金乌兰湖	盐湖	青海	35.3	90.2	532	地表径流
米提江占木错^①	咸水湖	青海、西藏	33.4	90.1	1038	冰川融水径流
阿雅克库木湖	盐湖	新疆	37.5	89.4	950	冰雪融水径流
阿其格库勒	盐湖	新疆	37.1	88.4	507	地表径流

湖泊	湖泊面积/km²						年变化率/%yr^-1
湖泊	2009年	2010年	2011年	2012年	2013年	2014年	年变化率/%yr^-1
色林错	2345.04	2346.92	2374.66	2381.37	2403.01	2402.71	0.56*
纳木错	2024.41	2024.58	2026.43	2026.61	2026.79	2027.22	0.03*
扎日南木错	1005.03	1005.00	1006.04	1005.76	1005.23	1006.39	0.02
当惹雍错	844.10	847.78	839.91	853.57	848.94	842.71	0.03
昂拉仁错	502.28	505.06	503.39	503.17	503.72	500.43	-0.08
乌兰乌拉湖	600.04	616.74	640.81	649.84	643.31	655.97	1.66*
西金乌兰湖	498.89	517.15	539.34	547.91	537.90	548.17	1.71*
米提江占木错	1014.70	1022.26	1036.00	1046.66	1054.94	1056.13	0.87*
阿雅克库木湖	871.57	931.37	947.93	975.92	986.22	985.80	2.30*
阿其格库勒	469.14	486.07	497.45	516.51	532.14	542.05	2.94*
