北京市二手房价格时空演变特征

doi:10.3724/SP.J.1047.2017.01049

摘要/Abstract

摘要：

城市住宅价格时空格局及演变特征是衡量城市房地产市场发展均衡性的重要指标。针对海量的互联网实时房产数据,本文构建了一种长时序时空大数据挖掘方法。首先,利用挂牌数据和成交数据,进行了泛在网络地产数据的可用性验证;其次,提出了“混合像元”的多尺度栅格模型,以构建基于栅格系统的房产统计特征描述,形成了多源网络房产数据融合方法;然后分别采用莫兰指数和地理探测器分析房价的空间自相关性和分异性,并基于P-Bshade和邻近栅格时空插值算法解决了稀疏房产数据的融合与插值问题,构建了长时序房地产时空栅格数据库;最后,以北京六环范围内为研究区域,通过栅格区划算法进行了二手房价格时空演变格局的挖掘分析。

关键词: 二手房价格, 泛在网络房地产大数据, 长时序栅格数据库, 时空演变格局

Abstract:

The temporal and spatial pattern of urban housing price and its evolution characteristics are important indicators of measuring the equilibrium of urban real estate market. Based on the large amount of real time data of the Internet, we constructed a spatio-temporal data mining method using long time series. Firstly, a large number of real estate listing information and transaction data existing in different real estate business website had been obtained by web crawler technology. Secondly, the correlation between housing listing price and transaction price was tested using a linear regression model and the usability of ubiquitous online real estate data had been validated. Thirdly, a multi-scale grid model of mixed pixels was proposed, which was based on the description of the statistical characteristics of the real estate, and the problem of multi-source data fusion was solved. Moran’s I and Geo-detector were used to analyze the geographic spatial autocorrelation and non-homogeneity of housing listing price. The spatial raster database of long term real estate was constructed based on the combination of adjacent spatio-temporal interpolation and P-Bshade interpolation. Finally, the inner part of Beijing Six Ring Road was selected as the study area. We analyzed the spatial-temporal evolution characteristics of second-hand housing prices by grid partition algorithm. Overall, we explored the real time dynamic analysis method of real estate. The results showed that: in the first half of 2016, the growth rate of second-hand housing price was larger, and the latter half of the growth was relatively flat. The spatial distribution of second-hand housing price in Beijing was dominated by a single center pattern. At the same time, there are distributions of high island area. Dongcheng and Xicheng district were the core area of high housing prices, and the magnitude of price volatility was not consistent in different direction. The descending velocity of south of central city was the fastest. The diminishing rate of the north and northwest of central city were the slowest. The house price difference was more remarkable in the center of the city than that in the periphery region of the city.

Key words: second-hand housing price, network real estate big data, long sequential raster database, spatio-temporal evolution pattern

周湘, 袁文, 李汉青, 马明清, 袁武. 北京市二手房价格时空演变特征[J]. 地球信息科学学报, 2017, 19(8): 1049-1059.DOI:10.3724/SP.J.1047.2017.01049

ZHOU Xiang,YUAN Wen,LI Hanqing,MA Mingqing,YUAN Wu. Research on the Spatial and Temporal Evolution Characteristics of the Price of Second-hand Housing in Beijing[J]. Journal of Geo-information Science, 2017, 19(8): 1049-1059.DOI:10.3724/SP.J.1047.2017.01049

图/表 8

图1

表1

表2

图2

图3

表3

地理探测器计算结果

L	N	SSW	SST	q	F(L-1, N-L) (α=0.01)	$λ$
20	16967	1185.638	596220.38	0.998	1.9	69.454

表3

图4

图5

参考文献 12

[12]	[ Wang F, Gao X L, Yan B Q.Research on urban spatial structure in Beijing based on housing prices[J]. Progress in Geography, 2014,33(10):1322-1331. ] doi: 10.11820/dlkxjz.2014.10.004
[13]	马敏蕾,吕斌,冯长春.基于GIS基础上的北京住房价格空间格局研究[J].中国国土资源经济,2008,21(12):26-28. doi: 10.3969/j.issn.1672-6995.2008.12.010
	[ Ma M L, Lv B, Feng C C.Study on space pattern of housing price of Beijing be based upon GIS[J]. Natural Resource Economics of China, 2008,21(12):26-28. ] doi: 10.3969/j.issn.1672-6995.2008.12.010
[14]	孟斌,张景秋,王劲峰,等.空间分析方法在房地产市场研究中的应用——以北京市为例[J].地理研究,2005,24(6):956-964. doi: 10.3321/j.issn:1000-0585.2005.06.015
	[ Meng B, Zhang J Q, Wang J F, et al.Application of spatial analysis to the research of real estate: Taking Beijing as a case[J]. Geographical Research, 2005,24(6):956-964. ] doi: 10.3321/j.issn:1000-0585.2005.06.015
[15]	牛俊蜻,吕园,刘科伟.城市规划视角下西安市主城区住宅空间结构演变研究[J].人文地理,2011,26(4):48-53.
	[ Niu J Q, Lv Y, Liu K W.A study on the evolution of the residential spatial structure in Xi'an City from the perspective of urban planning[J]. Human Geography, 2011,26(4):48-53. ]
[16]	张勇奋. 南昌市住宅价格时空分异及其演变规律研究[D].南昌:江西师范大学,2013.
	[ Zhang F Y.Study on the spatial and temporal variation of Nanchang housing prices and their evolution[D]. Nanchang: Jiangxi Normal University, 2013. ]
[17]	李玲,朱道林,胡克林.梯度推移理论和GIS在北京城区住宅地价时空推移规律中的应用[J].武汉大学学报·信息科学版,2012,37(4):482-486.
	[ Li L, Zhu D L, Hu K L.Application of GIS and gradient shift theory of residence remise land price in Beijing[J]. Geomatics and Information Science of Wuhan University, 2012,37(4):482-486. ]
[18]	Li S, Ye X, Lee J, et al.Spatiotemporal analysis of housing prices in China: A big data perspective[J]. Applied Spatial Analysis & Policy, 2016:1-13. doi: 10.1007/s12061-016-9185-3
[19]	胡丹桂,舒红.基于协同克里金空气湿度空间插值研究[J].湖北农业科学,2014(9):2045-2049. doi: 10.3969/j.issn.0439-8114.2014.09.018
	[ Hu D G, Shu H.Air Humidity Based on Co Kriging Interpolation[J]. Hubei Agricultural Sciences, 2014,9:2045-2049. ] doi: 10.3969/j.issn.0439-8114.2014.09.018
[20]	孙倩,洪开荣.基于Cokriging的住房价格空间格局分析——以长沙市为例[J].经济地理,2014,34(12):99-105.
	[ Sun Q, Hong K R.The gouse price spatial distribution pattern analysis based on cokriging: The case of Changsha[J]. Economic Geography 2014,34(12):99-105. ]
[21]	Wu F.Sociospatial differentiation in urban China: Evidence from Shanghai's real estate markets[J]. 2002,34(9):1591-1615. doi: 10.1068/a34196
[22]	汤庆园,徐伟,艾福利.基于地理加权回归的上海市房价空间分异及其影响因子研究[J].经济地理,2012, 32(2):52-58.
	[ Tang Q Y, Xu W, Ai F L.A GWR-based study on spatial pattern and structural determinants of Shanghai's housing price[J]. Economic Geography, 2012, 32(2):52-58. ]
[23]	Xu C D, Wang J F, MG Hu, et al.Interpolation of missing temperature data at meteorological stations using P-BSHADE[J]. Journal of Climate, 2013,26(29):7452-7463. doi: 10.1175/JCLI-D-12-00633.1
[24]	樊子德,龚健雅,刘博,等.顾及时空异质性的缺失数据时空插值方法[J].测绘学报,2016,45(4):458-465. doi: 10.11947/j.AGCS.2016.20150123
	[ Fan Z D, Gong J Y, Liu B, et al.A space-time interpolation method of missing data based on spatio-temporal heterogeneity[J]. ActaGeodaetica et CartographicaSinica, 2016,45(4):458-465. ] doi: 10.11947/j.AGCS.2016.20150123
[1]	何丹,孟斌,张景秋.北京市住宅价格时空分异特征研究[J].资源开发与市场,2014,30(3):281-285.
	[ He D, Meng B, Zhang J Q.Research on spatial and temporal variation of housing prices in Beijing[J]. Resource Development&Market, 2014,30(3):281-285. ]
[25]	Wang J F, Li X H, Christakos G, et al.Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun Region, China[J]. International Journal of Geographical Information Science, 2010,24(1):107-127. doi: 10.1080/13658810802443457
[26]	王劲峰,徐成东.地理探测器:原理与展望[J].地理学报,2017,72(1):116-134. doi: 10.11821/dlxb201701010
[2]	邹利林,杨俊,胡学东.中国城市住宅价格时空演变研究进展与展望[J].地理科学进展,2013,32(10):1479-1489. doi: 10.11820/dlkxjz.2013.10.006
	[ Zou L L, Yang J, Hu X D.Research on temporal-spatial changes of urban residential housing price in China: progress and prospects[J]. Progress in Geography, 2013,32(10):1479-1489. ] doi: 10.11820/dlkxjz.2013.10.006
[26]	[ Wang J F, Xu C D.Geodetector: Principle and prospective[J]. Acta Geographica Sinica, 2017,72(1):116-134. ] doi: 10.11821/dlxb201701010
[27]	Wang J F, Zhang T L, Fu B J.A measure of spatial stratified heterogeneity[J]. Ecological Indicators, 2016,67:250-256. doi: 10.1016/j.ecolind.2016.02.052
[3]	张明明. 武汉市商品住宅价格时空演变及影响因素研究[D].武汉:中南民族大学,2013.
	[ Zhang M M.Research of space and time of city commercial housing price in Wuhan and influential factor[D]. Wuhan: South-central University for Nationalities, 2013. ]
[4]	牛方曲,刘卫东,冯建喜.基于家庭区位需求的城市住房价格模拟分析[J].地理学报,2016,71(10):1731-1740. doi: 10.11821/dlxb201610006
	[ Niu F Q, Liu W D, Feng J X.Modeling urban housing price: The perspective of household activity demand[J]. Acta Geographica Sinica, 2016,71(10):1731-1740. ] doi: 10.11821/dlxb201610006
[5]	余华义.经济基本面还是房地产政策在影响中国的房价[J].财贸经济,2010(3):116-122.6-50.
	[ Yu H Y.Is economic fundamentals or real estate policy affecting China's real estate prices[J]. Finance & Trade Economics, 2010,3:116-122. ]
[6]	任木荣,彭广建.宏观经济对房价影响的实证分析[J].湖南工程学院学报(社会科学版),2012, 22(2):11-14.
	[ Ren M R, Peng G J.Empirical analysis of the macroeconomic influence on house price[J]. Journal of Hunan Institute of Engineering (Social Science Edition), 2012,22(2):11-14. ]
[7]	阮连法,包洪洁,温海珍.重大事件对城市住宅价格的影响——来自杭州市的证据[J].中国土地科学,2012,26(12):41-47.
	[ Ruan L F, Bao H J, Wen H Z.Impacts of social events on urban housing prices: Evidence from Hangzhou city[J]. China Land Sciences, 2012,26(12):41-47. ]
[8]	Wang S Y.State misallocation and housing prices: Theory and evidence from China[J]. American Economic Review, 2010,101(5):2081-2107. doi: 10.1257/aer.101.5.2081
[9]	Chen J, Guo F, Wu Y.One decade of urban housing reform in China: Urban housing price dynamics and the role of migration and urbanization, 1995-2005[J]. Habitat International, 2011,35(1):1-8. doi: 10.1016/j.habitatint.2010.02.003
[10]	许晓晖. 上海市商品住宅价格空间分布特征分析[J].经济地理,1997(1):80-87.
	[ Xu X H.An analysis on the spatial distribution characters of commercial residence price in Shanghai[J]. Economic Geography, 1997,1:80-87. ]
[11]	梅志雄,黎夏.基于ESDA和Kriging方法的东莞市住宅价格空间结构[J].经济地理,2008(5):862-866.
	[ Mei Z Q, Li X.Spatial analysis of houses' price in Dongguan based on ESDA and Kinging techniques[J]. Economic Geography, 2008,5:862-866.]
[12]	王芳,高晓路,颜秉秋.基于住宅价格的北京城市空间结构研究[J].地理科学进展,2014,33(10):1322-1331. doi: 10.11820/dlkxjz.2014.10.004

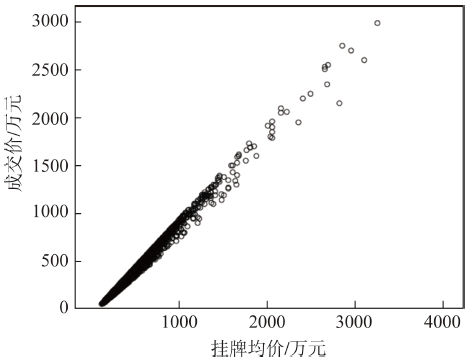

模型		B	标准误差
一元线性回归模型	（常量）	0.843	0.461
一元线性回归模型	挂牌均价	0.938	0.001
