近30年刘家峡以下黄河上游河道湿地演变规律与驱动力分析

doi:10.3724/SP.J.1047.2017.01116

摘要/Abstract

摘要：

河道湿地是流域生态系统中,位于水陆交错地带,关联陆地生态系统和水生生态系统的桥梁和纽带,对蓄水滞洪、净化水质和水土保持,以下维持生物多样性和生态平衡起重要的作用。本文采用1986、1996、2000、2006和2015年5期Landsat遥感影像数据对刘家峡以下黄河上游湿地进行湿地解译提取,并利用空间统计分析法、转移矩阵法和质心位置变化法对刘家峡以下黄河上游河段河道湿地演变规律以及驱动力因素进行研究。结果表明,1986-2015年,黄河上游河道湿地面积从17.3万hm²逐渐减少到12.2万hm²,减少了29.0%。研究区土地利用类型的转移主要发生在河流、裸滩、草本湿地与耕地的相互转化上。过去30年嫩滩湿地的变化幅度远大于老滩湿地,嫩滩湿地面积从1986年的15.46万hm²减少到2015年的10.41万hm²,减少了32.7%,嫩滩湿地演变规律为天生湿地型之间的相互演变,即河流-裸滩-沼泽湿地。而老滩湿地面积基本处在稳定状态,面积范围在1.84~2.28万hm²之间,具有天然湿地-人工湿地与天然湿地-农业用地的演变规律特征。水渠湿地、坑塘湿地和森林湿地质心位置变化较为突出,由单一类型动态度分析可知,研究区自然湿地萎缩、城镇化加速、河流水面面积减少加快。以上分析结果与研究区气温、水利水电工程、灌溉用水、凌汛期冰情以及城镇化程度均有关,与降雨量无明确关系。

关键词: 河道湿地, 黄河上游、湿地系统动态演变, 转移矩阵法, 质心位置变化法

Abstract:

In the river basin ecosystem, channel wetland is located in aquatic terrestrial ecotone. The bridge and the link between terrestrial and aquatic ecosystems play an irreplaceable role in water detention, water purification, soil-water conservation, maintaining biodiversity and ecological balance. In this paper, we used Landsat satellite images of 1986, 1996, 2000, 2006 and 2015 to extract different types of river wetland systems between the Liujiaxia and Togtoh County of inner Mongolia in the last three decades. Then, we used spatial stastics analysis, transfer matrix and centroid position change method to analyze dynamic evolution and driving factors of wetland types. The results shows that, during 1986-2015 years, channel wetland area in the study area gradually decreased from 173×104 ha to 122×104 ha (~29.0%). Wetland transformation of the study area mainly occurs between the river, nude beach, herbal-wetland and farmland. In the last thirty years, the range of active channel wetland changes far greater than non-active channel wetland. The area of active channel wetland decreased from 15.46 ×104 ha in 1986 to 10.41×104 ha in 2015, decreased by 32.7%. The evolution of the active channel wetlands mainly occurs between the natural wetland types, namely, the river-bare Beach-swamp wetland. The non-active wetland area is basically stable, and the area is between 1.84-2.28 ×104 ha. It has characteristics of transformation between the natural wetland -constructed wetland and between natural wetland - agricultural land. The centroid position change of forest wetland, canal wetland and pond wetland are more prominent compared to other wetland types. The results of the single land use dynamics shows that, due to gradually accelerating urbanization pace, antrophy of the natural wetlands, increase the weight of farmland salinity, hydroelectric station system construction caused gradually decrease in the river area. The cropland to forest policy and the grassland to cropland policy result to accelerated dynamic change of forset, pounds, river, farmland, abandonedland and bareland. Through the analysis of channel wetlands, the change of active channel wetland mainly contribute to the wetland change of whole study area. The change of non-active channel wetlands was less affected by channel wetland changes. Our results are related to temperature, water conservancy, hydropower engineering and irrigation water, urbanization degree and ice flood season, but less sensitive to precipitation.

Key words: the upstream of the Yellow River, dynamic change of wetland system, transfer matrix method, centriod position change method, land use dynamics

夏热帕提·阿不来提, 刘高焕, 刘庆生, 黄翀, 管续栋. 近30年刘家峡以下黄河上游河道湿地演变规律与驱动力分析[J]. 地球信息科学学报, 2017, 19(8): 1116-1131.DOI:10.3724/SP.J.1047.2017.01116

Xarapat Ablat,LIU Gaohuan,LIU Qingsheng,HUANG Chong,GUAN Xudong. Channel Wetlands Evolution Analysis From Liujiaxia to Togtoh County of Inner Mongolia in the Last Three Decades[J]. Journal of Geo-information Science, 2017, 19(8): 1116-1131.DOI:10.3724/SP.J.1047.2017.01116

图/表 26

图1

表1

表2

图2

表3

图3

图4

图5

图6

表4

表5

表6

表7

表8

表9

表10

图7

图8

图9

图10

图11

表11

表12

图12

图13

图14

参考文献 24

[24]	[ Chu L, Huang C, Liu G H, et al. Changes in ecological patterns of Maqu alpine wetland in Yellow River Source Area during 2000-2010[J]. . Progress in Geography, 2014,33(3):326-335. ] doi: 10.11820/dlkxjz.2014.03.004
[25]	潘竟虎,王建,王建华.长江、黄河源区高寒湿地动态变化研究[J].湿地科学,2007,5(4):298-304.
	[ Pan J H, Wang J, Wang J H.Dynamic change of Frigid Wetlands in Source Region of the Yangtze and Yellow Rivers[J]. Wetland Science, 2007,5(4): 298-304. ]
[26]	常军,刘高焕,刘庆生.黄河口海岸线演变时空特征及其与黄河来水来沙关系[J].地理研究,2004,23(5):339-346. doi: 10.3321/j.issn:1000-0585.2004.03.007
	[ Chang J, Liu G H, et al.Analysis on spatio-temporal feature of coastline change in the Yellow River Estuary and its relation with runoff and sand-transportation[J]. Geographical Research, 2004,23(5):339-346. ] doi: 10.3321/j.issn:1000-0585.2004.03.007
[27]	上官铁梁,宋伯为,朱军,等.黄河中游湿地资源及可持续利用研究[J].干旱区资源与环境, 2005,19(1):7-13. ] doi: 10.3969/j.issn.1003-7578.2005.01.002
	[ Shang G T L, Song B W, et al. A study on the wetland resources of the Mid -Yellow River and their sustainable utilization[J]. Journal of Arid Land Resources and Environment, 2005,19(1):7-13. ] doi: 10.3969/j.issn.1003-7578.2005.01.002
[28]	周振民. 黄河小浪底工程对下游湿地生态环境影响研究[J].水利学报, 2007(增刊):511-514.
	[ Zhou Z M.The effect of XiaoLangdi projects on eco-environment of wetlands in the lower reaches of the Yellow River[J]. Journal of Hydraulic Engineering, 2007(supplement):511-514. ]
[29]	尹小玲,李贵才,刘堃,等.城市河流形态及稳定性演变研究进展[J].地理科学进展,2012,31(7):837-845. doi: 10.11820/dlkxjz.2012.07.001
	[ Yin X L, Li G C, et al.Progress on urban stream transformation of critical forms and stability relationships[J]. Progress in Geography, 2012,31(7):837-845. ] doi: 10.11820/dlkxjz.2012.07.001
[30]	李胜男,王根绪,邓伟,等.水沙变化对黄河三角洲湿地景观格局演变的影响[J].水科学进展,2009,20(3):325-331.
	[ Li S N, Wang G Z, et al.Effects of runoff and sediment variation on landscape pattern in the Yellow River Delta of China[J]. Advances in Water Science, 2009.20(3):325-331. ]
[31]	丁圣彦,梁国付.近20年来河南沿黄湿地景观格局演化[J].地理学报,2004,59(5):653-661. doi: 10.3321/j.issn:0375-5444.2004.05.002
	[ Ding S Y, Liang G F.Landscape pattern change of regional wetland along the Yellow River in Henan Province in the last two decades[J]. Acta Geographia Sinia, 2004,59(5): 653-661. ] doi: 10.3321/j.issn:0375-5444.2004.05.002
[32]	刘树坤,宋玉山,程晓陶. 黄河滩区及分滞洪区风险分析和减灾对策—黄河治理与水资源开发利用[M].郑州:黄河水利出版社,1999:9-15.
[1]	朱卫红,苗承玉,郑小军,等.基于3S技术的图们江流域湿地生态安全评价与预警研究[J].生态学报,2014,34(6):1379-1390. doi: 10.5846/stxb201211241666
	[ Zhu W H, Miao C Y, Zheng X J, et al.Study on ecological safety evaluation and warning of wetlands in Tumen river watershed based on 3S technology[J]. Acta Ecologica Sinica, 2014,34(6):1379-1390. ] doi: 10.5846/stxb201211241666
[2]	国家林业局.第二次全国湿地资源调查结果报告[R].2014.
	[ China's State Forestry Administration (SFA), Outcomes of the Second National Wetland Resources Survey[R]. 2014. ]
[3]	Gagliano S M, Meyer-Arendt K J, et all. Land loss in the Mississippi River Deltaic plain[J]. Transactions Gulf Coast Association of Geological Societies, 1981,31:295-300.
[4]	Baumann R.H, et al. Direct impacts of outer continental shelf activities on wetland loss in the central gulf of Mexico[J]. Environmental Geology and Water resource, 1990,15:189-198. doi: 10.1007/BF01706410
[5]	Kingsford R T, Thomas R F, et all. Use of satellite image analysis to track wetland loss on the Murrumbidgee River floodplain in arid Australia, 1975-1998[J]. Water Science and Technology, 2002,45(11):45-53. doi: 10.1029/2001WR000769 pmid: 12171365
[6]	李玉凤,刘红玉.湿地分类和湿地景观分类研究进展[J].湿地科学,2004,12(1):102-108.
	[ Li Y F, Liu H Y, et al.Advance in wetland classification and wetland landscape classification researches[J]. Wetland Science, 2004,12(1):102-108. ]
[7]	蒋锦刚,李爱农,边金虎,等.1974-2007年若尔盖县湿地变化研究[J].湿地科学,2012,10(3):318-327.
	[ Jiang M G, Li A N, Bian J H, et al.Change of wetlands in Zoigê County from 1974 to 2007[J]. Wetland Science, 2012,10(3):318-327. ]
[8]	刘晓曼,庄大方,屈冉,等.基于遥感数据的1989-2009年拉鲁湿地变化研究[J].湿地科学,2013(11):1-5. doi: 10.3969/j.issn.1672-5948.2013.04.004
	[ Liu X M, Zhuang D F, Qu R, et al.Change of Lalu wetlands from 1989 to 2009 based on remote sensing data[J]. Wetland Science, 2013,11:1-5.] doi: 10.3969/j.issn.1672-5948.2013.04.004
[9]	刘红玉,李玉凤,曹晓,等.我国湿地景观研究现状、存在的问题与发展方向[J].地理学报,2009,64(11):1394-1401. doi: 10.3321/j.issn:0375-5444.2009.11.010
	[ Liu H Y, Li Y F, Cao X, et al.The current problems and perspectives of landscape research of wetlands in china[J]. Acta Geographia Sinia, 2009,64(11):1394-1401. ] doi: 10.3321/j.issn:0375-5444.2009.11.010
[10]	何春阳,史培军,李景刚,等.中国北方未来土地利用变化情景模拟[J].地理学报,2004,59(4):599-607.
	[ He C Y, Shi P J, Li J G, et al.Scenarios simulation land use change in the northern China by system dynamic model[J]. Acta Geographia Sinia, 2004,59(4):599-607. ]
[11]	欧维新,肖锦成,李文昊.基于BP-CA的海滨湿地利用空间格局优化模拟研究——以大丰海滨湿地为例[J].自然资源学报,2014.29(5):744-756.
	[ Ou W X, Xiao M C, Li W H.Spatial pattern optimization simulation of coastal wetland use based on BP neural network and cellular automata: A case of Dafeng coastal wetland[J]. Journal of National Resources, 2014,29(5):744-756. ]
[12]	李兴钢,梁成华,王延松,等.基于CA_Markov模型的辽河三角洲湿地景观格局预测[J].环境科学与技术, 2013.36(5):188-200.
	[ Li X G, Liang C H, Wang Y S, et al.Predicting landscape patterns of Lianhe Delta Wetland by CA-Markov model[J]. Environmental Science & Technology, 2013,36(5):188-192. ]
[13]	方中祥,李国庆,冯龙,等.胶州湾湿地景观格局变化特征[J].湿地科学,2016,14(2):277-281.
	[ Fang Z X, Li G Q, Feng L, et al.Characteristics of landscape pattern change of wetlands in Jiaozhou Bay[J]. Wetland Science, 2016,14(2): 277-281. ]
[14]	陈龙,周生路,周兵兵,等.基于主导功能的江苏省土地利用转型特征与驱动力[J].经济地理,2015,35(2):155-162. doi: 10.15957/j.cnki.jjdl.2015.02.022
	[ Chen L, Zhou S L, Zhou B B, et al.Characteristics and driving forces of regional land use transition based on the leading function classification: a case study of Jiangsu Province[J]. Economic Geography, 2015,35(2):155-162. ] doi: 10.15957/j.cnki.jjdl.2015.02.022
[15]	邹逸麟. 黄河下游河道变迁及其影响概述[J].复旦学报(社会科学版),1980(1):12-23.
	[ Zou Y L.An overview of river course changes and their impacts in the lower reaches of the Yellow River[J]. Fudan Journal( Social Sciences), 1980,1:12-23. ]
[16]	Su T, Wang S J, et al.Comparison of channel geometry changes in Inner Mongolian reach of the Yellow River before and after joint operation of large upstream reservoirs[J]. Journal of Geographical Sciences, 2015,25(8):930-942. doi: 10.1007/s11442-015-1211-x
[17]	颜明,王随继,闫云霞,等.近三十年黄河上游冲积河段的河道平面形态变化分析[J].干旱区资源与环境,2013,27(3):74-79.
	[ Yan M, Wang S J, Yan Y X, et al.Planar changes of upper alluvial reaches of the Yellow River in recent thirty years[J]. Journal of Arid Land Resources and Environment, 2013,27(3):74-79. ]
[18]	马云,包淑萍,陈丹,等.黄河宁夏河段河道演变分析[J].人民黄河,2014,36(9):38-40.
	[ Ma Y, Bao S P, et al.Analysis of the channel evolution in Ningxia Reach of the Yellow River[J]. Yellow River, 2014,36(9):38-40. ]
[19]	范小黎,王随继,冉立山等.黄河宁夏河段河道演变及其影响因素分析[J].水资源与水工程学报,2010,21(1):5-10.
	[ Fan X L, Wang S J, Ran L S, et al.Analysis of the channel evolution and influence factors in Ningxia Reach of the Yellow River[J]. Journal of Water Resources &Water Engineering, 2010,21(1):5-10. ]
[20]	刘红玉,李兆富.三江平原典型湿地流域水文情势变化过程及其影响因素分析[J].自然资源学报,2005,20(4):494-501.
	[ Liu H Y, Li Z F.Hydrological regime changing process and analysis of its influencing factors in a Typical Wetland Watershed of the Sanjing Plain[J]. Journal of National Resources, 2005,20(4):494-501. ]
[21]	郝伏勤,高传德,黄锦辉,等.黄河下游河道湿地浅析[J].人民黄河,2005,22(4):5-8. doi: 10.3969/j.issn.1000-1379.2005.04.002
	[ Hao F Q, Gao C D, et al.A brief analysis on channel wetlands of Lower Yellow River[J]. Yellow River, 2005,22(4):5-8. ] doi: 10.3969/j.issn.1000-1379.2005.04.002
[22]	张照录,姚云军.遥感和GIS技术在黄河中上游流域湿地信息提取中的应用[J].海洋湖沼通报, 2008(1):39-45.]
	[ Zhang Z L, Tao Y J. The application of wetland information extraction in the upper and middle basin of Yellow River Basin on remote sensing and GIS technique[J]. Trasactions of Oceanology and Limnology, 2008(1):39-45.]
[23]	黄翀,刘高焕,王新功,等.黄河流域湿地格局特征-控制因素与保护[J].地理研究,2012,31(10):1764-1774. doi: 10.11821/yj2012100003
	[ Huang C, Liu G H, Wang X G, et al.Monitoring wetlands pattern in the Yellow River Basin for water resources management using Beijng-1 images[J]. Geographical Research, 2012,31(10):1764-1774. ] doi: 10.11821/yj2012100003
[32]	[ Liu S K, Song Y S, Cheng X T.Risk analysis and Mitigation Countermeasures of the Yellow River floodplain and sub flood detention area - the Yellow River harness and water resources development and utilization[M]. Zheng Zhou: The Yellow River Water Conservancy Press,1999:9-15. ]
[24]	褚琳,黄翀,刘高焕,等.2000-2010年黄河源玛曲高寒湿地生态格局变化[J].地理科学进展, 2014,33(3):326-335. doi: 10.11820/dlkxjz.2014.03.004

一级	二级	三级	说明
湿地	天然湿地	河流	自然水面,流动的

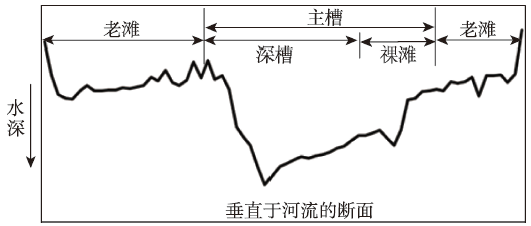

		裸滩	主河槽内部或者两翼的裸地
		草本湿地	覆盖植被以灌木或草本为主,湿土
		森林湿地	覆盖植被以乔木为主,湿土
	人工湿地	坑塘湿地	规则四边形人工集水水面,静态
		水渠湿地	线状规则性人工流动的水面
		水库湿地	无规则形状人工集水水面
非湿地		耕地	指农作物种植地
		林地	以乔木植被覆盖地
		草地	以草本植被为主地,包括天然和人工草地
		建设用地	包括居住地、各级道路、建筑用地
		撂荒地	表层盐碱聚集,生长天然耐盐植物地
		裸地	表层为土质,基本无植被覆盖地

土地利用类型			影像特征
Ⅰ级		Ⅱ级	形态	色调	纹理	影像（432合成）
湿地	河流		具有线状特征	蓝色和深蓝色	无纹理特征,表面平滑
	嫩滩		形状不规则	暗灰色或者暗灰蓝	表面平滑
	草本湿地		呈不规则形状	红色或深红色	具有纹理特征
	森林湿地		形状不规则分布	深红色	具有明显的纹理特征
	水渠湿地		规则性线状分布	深蓝色	无纹理特征
	水库湿地		呈不规则面状特征	深蓝色	无纹理特征
	坑塘湿地		呈规则面状特征	深蓝色	不具有纹理特征
耕地			呈规则形状,方块或矩形	深红色、红色、淡红色	纹理特征显著
林地		形状不规则分布		深红色	具有纹理特征
草地		形状不规则分布		淡红色	无纹理特征
建设用地		呈不规则形状		青铜色、暗灰色	具有强烈的纹理特征
未利用地	撂荒地	呈现花瓣状,不规则形状		亮白色	无纹理特征
	裸地	形状不规则分布		灰色	无纹理特征
	裸滩	形状不规则分布		灰色或者深灰色	无纹理特征

地类		1986年	1996年	2000年	2006年	2015年

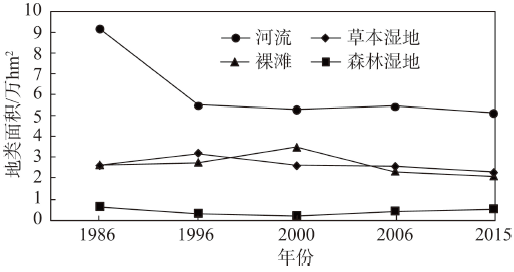

天然湿地	河流	9.18	5.50	5.32	5.47	5.14
	裸滩	2.65	2.78	3.50	2.35	2.11
	草本湿地	3.03	3.65	3.13	2.78	2.40
	森林湿地	0.84	0.53	0.39	0.51	0.71

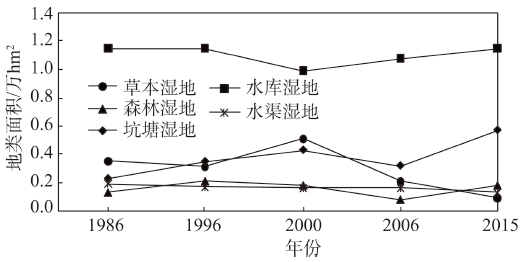

人工湿地	坑塘湿地	0.24	0.35	0.49	0.32	0.57
	水库湿地	1.15	1.15	1.00	1.08	1.15
	水渠湿地	0.17	0.17	0.17	0.17	0.13
草地		0.62	0.46	0.26	0.34	0.25
耕地		16.24	19.94	19.85	21.26	21.45
林地		0.43	0.39	0.50	0.65	0.67

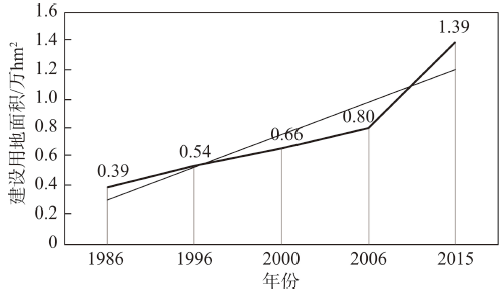

建设用地		0.39	0.54	0.66	0.80	1.39
撂荒地		0.58	0.61	0.95	0.60	0.89
裸地		2.34	1.73	1.62	1.54	0.99

地类		1996年
地类		草本湿地	草地	耕地	河流	建设用地	坑塘湿地	撂荒地	林地	裸地	裸滩	森林湿地	水库湿地	水渠湿地
1986年	草本湿地	12 363.19	299.77	11 542.83	2483.20	75.18	186.03	246.42	350.56	402.20	1902.21	488.54		165.19
	草地	891.84	2347.54	1773.80	596.66	5.62	7.98	10.86	117.34	211.93	150.08	16.53		39.91
	耕地	4542.42	94.03	142 368.78	5240.52	1594.24	929.52	2057.45	749.47	1435.26	3241.95	370.17		372.25
	河流	10 996.46	1009.25	21 367.00	40 106.10	12.47	401.46	313.46	516.54	531.80	16 086.79	286.67		282.51
	建设用地	23.39		1013.16	2.88	2741.90	61.23	4.22	33.47	1.53		32.12		14.31
	坑塘湿地	97.19	42.30	737.56	75.44	2.22	1336.26		28.11	5.80	48.31	0.11		22.34
	撂荒地	337.10	0.89	1934.56	265.34	116.74	4.71	2406.28	11.73	195.53	496.18	1.00		12.97
	林地	103.47	17.29	1737.48	170.55	400.98	16.76	13.13	1603.78	124.77	72.57	50.61		4.64
	裸地	1726.48	324.58	3914.58	884.28	412.42	47.75	700.97	272.84	14 127.74	743.41	101.75		60.65
	裸滩	4229.07	441.09	10 800.16	5053.21	14.05	176.58	356.11	91.32	212.01	4876.39	50.15		153.24
	森林湿地	1184.35	1.26	2292.88	335.50	5.15	287.59	7.39	126.22	64.63	138.20	3905.82		43.70
	水库湿地				1.86								11 532.63
	水渠湿地	120.84		976.65	35.76	25.76	31.21	59.86	43.79	8.05	41.32	27.68		502.27

地类		2000年
地类		草本湿地	草地	耕地	河流	建设用地	坑塘湿地	撂荒地	林地	裸地	裸滩	森林湿地	水库湿地	水渠湿地
1996年	草本湿地	13 515.65	553.56	13807.00	3188.86	5.59	40.57	516.91	397.24	301.75	3485.89	629.98		88.34
	草地	739.77	1396.93	1103.59	161.95	7.40	35.96	129.14	163.82	451.57	205.39	177.46		5.13
	耕地	8875.78	148.63	157 120.92	7294.61	1791.83	2482.24	5357.55	1991.53	970.04	12 483.94	447.09		415.16
	河流	3096.12	218.48	6469.09	33 691.28	77.19	299.39	84.29	143.88	163.33	10 548.15	13.02		147.85
	建设用地		2.58	1129.69	16.81	4042.25	6.46		44.04	141.35	0.02			23.54
	坑塘湿地	271.17	3.61	1162.70	176.29	24.81	1467.78	32.30	84.35	39.16	111.75	65.94		47.45
	撂荒地	363.85	0.09	2533.95	53.37	247.95		2110.57	18.07	548.79	198.09			17.31
	林地	392.16	0.18	1484.96	207.04	32.93	22.74	0.16	1622.93	58.89	66.07	21.76		35.66
	裸地	186.18	225.07	3221.50	221.53	349.30	3.38	1097.56	88.36	11 417.35	368.16	9.10	10.20	123.51
	裸滩	3016.35	76.99	8346.63	7922.22	17.43	132.43	163.82	140.89	383.07	7373.15	0.77		202.75
	森林湿地	659.45	0.37	1392.31	120.12	7.36	325.92	19.74	187.84	30.66	91.06	2434.35		62.01
	水库湿地									1565.69			9961.36
	水渠湿地	184.61		654.94	122.23	8.28	34.47	0.95	78.31	1.10	61.93	48.68		478.48
