时间序列植被覆盖度断点检测方法研究

doi:10.3724/SP.J.1047.2017.01355

摘要/Abstract

摘要：

断点检测技术能够提取时间序列数据中发生变化的信息,对时序变化特征的研究和分析具有重要意义。在植被变化研究中,它有助于发掘时序植被参数数据中潜在的连续变化信息（如火烧、砍伐和病虫害等）,具有较广阔的应用前景。本文以2000-2015年空间分辨率为250 m的福建省长汀县MODIS NDVI遥感时序产品计算的植被覆盖度（Vegetation Fractional Coverage, VFC）为数据源,利用DBEST（Detecting Breakpoints and Estimating Segments in Trend）模型开展植被变化断点检测与分析,并讨论了模型参数对实验结果的影响。经研究发现,使用DBEST推荐的第一、第二水平变化阈值（即θ₁、θ₂分别为0.1和0.2）可较好地界定植被覆盖度的变化级别;变化持续时长φ可根据所用时序数据的类型和当地植被变化特点进行调整,表示断点变化级别的阈值β也可根据研究目标自定义;本文φ取3,β取0.2,实验得到断点位置和断点类型的精确度分别为92%和80%,表明DBEST模型能够很好地提取时间序列VFC数据中的重要变化信息,与当地实际情况比较吻合。

关键词: 断点检测, 时间序列, MODIS NDVI, 植被覆盖度, DBEST模型

Abstract:

Detecting breakpoints plays an important role in plotting and analyzing time series of the changing characteristics such as firing, logging, diseases and insect pests in vegetation. It is a useful technique of extracting the significant information in time series data. We focused on the method of Detecting Breakpoints and Estimating Segments in Trend (DBEST). We studied the detection of vegetation breakpoints by using vegetation fractional coverage (VFC) data which is derived from MODIS NDVI remote sensing images ( 250 m) from 2000 to 2015 in Changting County of Fujian Province. In order to determine if the results of breakpoints detection are reasonable, the primary experiment is to test the applicability of DBEST method by using the VFC data of various changing types in time series. We select several samples of time series data which covered the key water and soil erosion conservation area. The vegetation changes more frequently in this area for conducting the break-points detection experiments. We make an accuracy evaluation of changing time and changing types by using the temporal trajectories and Landsat remote sensing images of every point. We find that DBEST is suitable for VFC time series data of Changting, by using the default first and second level-shift-thresholds (θ₁= 0.1, θ₂= 0.2) which indicated that DBEST could define the changing level of VFC, but the duration-thresholdφ should be adjusted according to the study area and the type of time series data (we setφ=3). Those parameters have weak influences on the accuracy of breakpoints positions, but have more effects on the changing types of breakpoints. On the whole, the excessive intervention is not necessary for detecting vegetation in DBEST. However, through a lot of experiments we believe that the threshold of the changing magnitude can be modified by our own need to gain a satisfying results. Finally, we set β = 0.2 to fit our own research targets. The precision of the changing time is 92%, greater than the changing types (80%), indicating that DBEST method works well in extracting the important changing information for VFC time series. Meanwhile, the experimental results are broadly consistent with the varying conditions of the local vegetation.

Key words: breakpoints detection, time series, MODIS NDVI, vegetation fractional coverage, DBEST

王恩鲁, 汪小钦, 陈芸芝. 时间序列植被覆盖度断点检测方法研究[J]. 地球信息科学学报, 2017, 19(10): 1355-1363.DOI:10.3724/SP.J.1047.2017.01355

WANG Enlu,WANG Xiaoqin,CHEN Yunzhi. The Breakpoints Detection Method Using Time Series of Vegetation Fractional Coverage[J]. Journal of Geo-information Science, 2017, 19(10): 1355-1363.DOI:10.3724/SP.J.1047.2017.01355

图/表 7

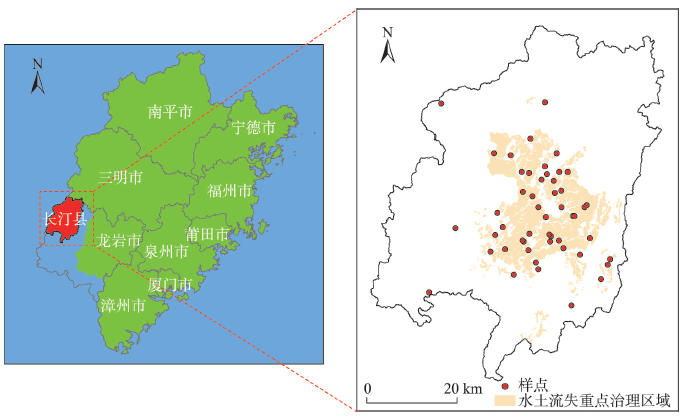

图1

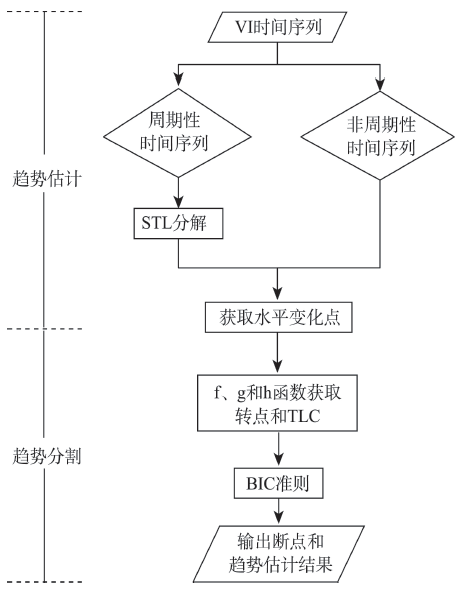

图2

表1

表2

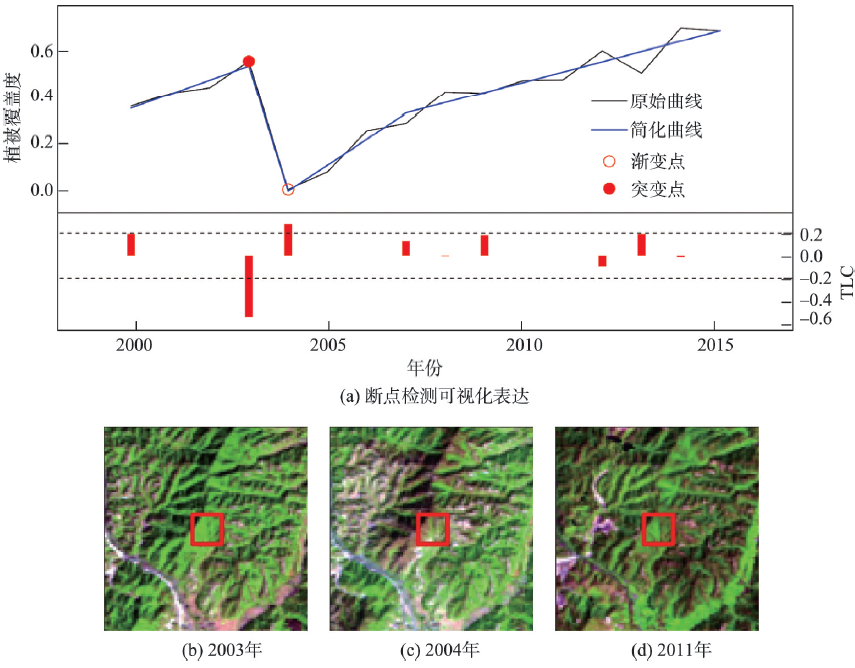

图3

表3

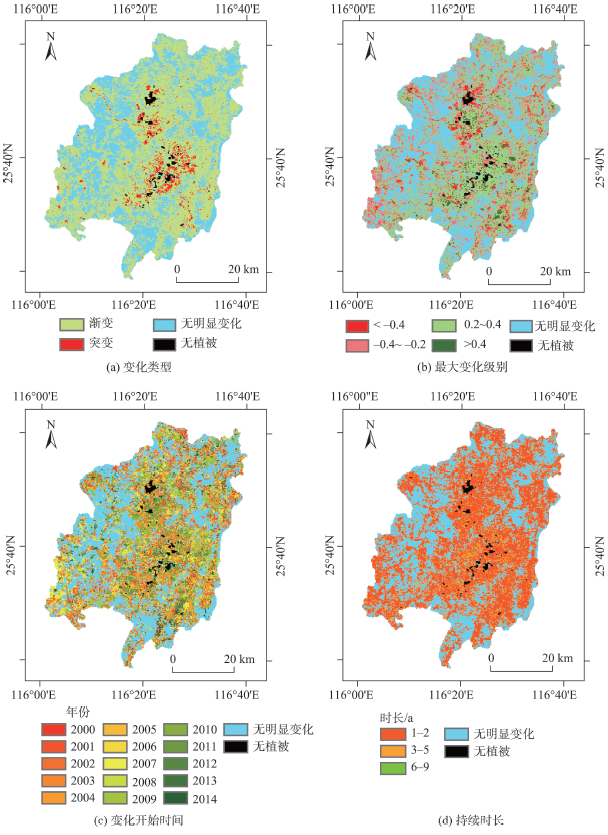

图4

参考文献 9

[10]	Goodwin N R, Coops N C, Wulder M A, et al.Estimation of insect infestation dynamics using a temporal sequence of Landsat data[J]. Remote Sensing of Environment, 2008,112(9):3680-3689. doi: 10.1016/j.rse.2008.05.005
[11]	Gong J, Ma G, Zhou Q.A review of multi-temporal remote sensing data change detection algorithms[J]. Protein Expression & Purification, 2008,82(2):308-316. doi: 10.1016/j.pep.2012.01.018
[12]	周顺武. 近50年拉萨夏季降水趋势和突变分析[J].西藏科技,1999(4):35-39.
	[ Zhou S W.Analysis of climatic trend and jump of summer rainfall in Lhasa during recent 50 years[J]. Tibet Science & Technology, 1999,4:35-39. ]
[13]	Goossens C H, Berger A.Annual and seasonal climatic variations over the northern hemisphere and europe during the last century[J]. Annales Geophysicae, 1986,4(4):385-400. doi: 10.1016/0040-1951(86)90317-3
[14]	孟猛,宗美娟.基于NDVI的气候突变对植被影响研究[J].安徽农业科学,2011,39(24):14942-14944.
	[ Meng M, Zong M J.Study on the influence of climate abrupt variation on the vegetation based on NDVI[J]. Journal of Anhui Agricultural Sciences, 2011,39(24):14942-14944. ]
[15]	王园香,唐世浩,郑照军. 1982-2006年中国5-9月的NDVI变化与人类活动影响分析[J].地球信息科学学报, 2015,17(11):1333-1340. doi: 10.3724/SP.J.1047.2015.01333
	[ Wang Y X, Tang S H, Zheng Z J.Analysis of NDVI and the impact of human activity in China from May to September during 1982 to 2006[J]. Journal of Geo-information Science, 2015,17(11):1333-1340. ] doi: 10.3724/SP.J.1047.2015.01333
[16]	Bleakley K, Vert J P. The group fused Lasso for multiple change-point detection[EB/OL]. (2011-06-21) [2017-06-14]. https://arxiv.org/pdf/1106.4199v1.pdf
[17]	汪丽娜,陈晓宏,李粤安,等.水文时间序列突变点分析的启发式分割方法[J].人民长江,2009,40(9):15-17. doi: 10.3969/j.issn.1001-4179.2009.09.006
	[ Wang L N, Chen X H, Li Y A, et al.Heuristic segmentation method for change-point analysis of hydrological time series[J]. Yangtze River, 2009,40(9):15-17. ] doi: 10.3969/j.issn.1001-4179.2009.09.006
[18]	封国林,龚志强,董文杰,等.基于启发式分割算法的气候突变检测研究[J].物理学报, 2005,54(11):5494-5499. ] doi: 10.7498/aps.54.5494
	[ Feng G L, Gong Z Q, Dong W J, et al. Abrupt climate change detection based on heuristic segmentation algorithm[J]. Acta Physica Sinica, 2005,54(11):5494-5499. ] doi: 10.7498/aps.54.5494
[19]	Zhao X, Chu P S.Bayesian change point analysis for extreme events (typhoons, heavy rainfall, and heat waves): an RJMCMC approach.[J]. Journal of Climate, 2010,23(5):1034. doi: 10.1175/2009JCLI2597.1
[20]	Kennedy R E, Cohen W B, Schroeder T A.Trajectory-based change detection for automated characterization of forest disturbance dynamics[J]. Remote Sensing of Environment, 2007,110:370-386. doi: 10.1016/j.rse.2007.03.010
[1]	Pratt K B, Fink E.Search for Patterns in compressed time series[J]. International Journal of Image and Graphics, 2011,2(1):89-106. doi: 10.1142/S0219467802000482
[2]	廖俊,周中良,寇英信,等.一种基于重要点的时间序列分割方法[J].计算机工程与应用,2011,47(24):166-170.
[21]	Kennedy R E, Yang Z Q, Cohen W B.Detecting trends in forest disturbance and recovery using yearly Landsat time series:1. LandTrendr-Temporal segmentation algorithms[J]. Remote Sensing of Environment, 2010,114:2897-2910. doi: 10.1016/j.rse.2010.07.008
[22]	Cohen W B, Yang Z Q, Kennedy R.Detecting trends in forest disturbance and recovery using yearly Landsat time series:2. TimeSync - Tools for calibration and validation[J]. Remote Sensing of Environment, 2010,114:2911-2924. doi: 10.1016/j.rse.2010.07.010
[2]	[ Liao J, Zhou Z L, Kou Y X, et al.Method for time series segment based on important point[J]. Computer Engineering and Applications, 2011,47(24):166-170. ]
[3]	梁爽,彭书时,林鑫,等. 1982-2010年全国草地生长时空变化[J].北京大学学报(自然科学版),2013,49(2):311-319.
[23]	Verbesselt J, Hyndman R, Newnham G, et al.Detecting trend and seasonal changes in satellite image time series[J]. Remote Sensing of Environment, 2010,114:106-115. doi: 10.1016/j.rse.2009.08.014
[24]	Verbesselt J, Hyndman R, Zeilies A, et al.Phenological change detection while accounting for abrupt and gradual trends in satellite image time series[J]. Remote Sensing of Environment, 2010,114:2970-2980. doi: 10.1016/j.rse.2010.08.003
[3]	[ Liang S, Peng S S, Lin X, et al.NDVI-Based spatial-temporal change in grassland growth of China from 1982 to 2010[J]. Acta Scientiarum Naturalium Universitatis Pekimensis, 2013,49(2):311-319. ]
[4]	丁明军,张镱锂,刘林山. 1982-2009年青藏高原草地覆盖度时空变化特征[J].自然资源学报,2010,25(12):2114-2120. doi: 10.11849/zrzyxb.2010.12.012
[25]	Jamali S, Jonsson P, Eklundh L, et al.Detecting changes in vegetation trends using time series segmentation[J]. Remote Sensing of Environment, 2015,156:182-195. doi: 10.1016/j.rse.2014.09.010
[26]	佟斯琴,包玉海,张巧凤,等.基于像元二分法和强度分析方法的内蒙古植被覆盖度时空变化规律分析[J].生态环境学报,2016,25(5):737-743.
[4]	[ Ding M J, Zhang Y L, Liu L S.Temporal and spatial distribution of grassland coverage change in Tibetan plateau since 1982[J]. Journal of Natural Resources, 2010,25(12):2114-2120. ] doi: 10.11849/zrzyxb.2010.12.012
[5]	孙庆龄,李宝林,许丽丽,等. 2000-2013年三江源植被NDVI变化趋势及影响因素分析[J].地球信息科学学报, 2016,18(12):1707-1716. doi: 10.3724/SP.J.1047.2016.01707
[26]	[ Tong S Q, Bao Y H, Zhang Q F, et al.Spatiotemporal changes of vegetation coverage in inner Mongolia based on the dimidiate pixel model and intensity analysis[J]. Ecology and Environmental Sciences, 2016,25(5):737-743. ]
[27]	D. Stow, S. Daeschner, A. Hope, et al.Variability of the seasonally integrated normalized difference vegetation index across the north slope of Alaska in the 1990s[J]. International Journal of Remote Sensing, 2003,24(5):1111-1117. doi: 10.1080/0143116021000020144
[5]	[ Sun Q L, Li B L, Xu L L, et al.Analysis of NDVI change trend and its impact factors in the three-river headwater region from 2000 to 2013[J]. Journal of Geo-information Science, 2016,18(12):1707-1716. ] doi: 10.3724/SP.J.1047.2016.01707
[6]	Abbes A B, Essid H, Farah I R, et al.Rare events detection in NDVI time-Series using Jarque-Bera Test[J]. Geoscience & Remote Sensing Symposium, 2015:338-341. doi: 10.1109/IGARSS.2015.7325769
[28]	宋怡,马明国.基于Spot Vegetation数据的中国西北植被覆盖变化分析[J].中国沙漠, 2007,27(1):90-92. doi: 10.3321/j.issn:1000-694X.2007.01.021
	[ Song Y, Ma M G.Study on vegetation cover change in northwest China based on SPOT vegetation data[J]. Journal of Desert Research, 2007,27(1):90-92. ] doi: 10.3321/j.issn:1000-694X.2007.01.021
[7]	杨伟,张树文,姜晓丽,等.基于MODIS时序数据的黑龙江流域火烧迹地提取研究[J].生态学报,2015,35(17):1-11.
	[ Yang W, Zhang S W, Jiang X L, et al.The burned area mapping for Heilongjiang basin based on MODIS time series data[J]. Acta Ecologica Sinica, 2015,35(17):1-11. ]
[8]	Cai S, Liu D.Detecting change dates from dense satellite time series using a Sub-Annual change detection algorithm[J]. Remote Sensing, 2015,7:8705-8727. doi: 10.3390/rs70708705
[9]	Yuan Y, Meng Y, Lin L, et al.Continuous change detection and classification using hidden Markov model: A case study for monitoring urban encroachment onto farmland in Beijing[J]. Remote Sensing, 2015,7:15318-15339. doi: 10.3390/rs71115318

阈值	含义
第一水平变化阈值	序列中水平变化点和下一点间最小的差值绝对值
持续时长	相邻水平变化点之间的最小时间步长
第二水平变化阈值	水平变化点前后子序列均值最小的差值绝对值
距离阈值	相邻波峰、波谷之间的连线和相距最远数据点间的最小垂直距离（注：DBEST可估计的默认值）
断点数目	最主要的或最感兴趣的断点数目
变化级别	子序列的最大简化程度或认为发生变化的最小级别
压缩率	对原数据序列进行最大化压缩的比率
显著性水平	用于检验变化的显著性

	变化时间（起、止和持续时长）	变化类型
合理	46	40
一处不合理	3	10
两处及以上不合理	1	0
精度/%	92	80
