2005-2016年北京中心城区热岛时空格局及影响因子多元建模

doi:10.3724/SP.J.1047.2017.01485

摘要/Abstract

摘要：

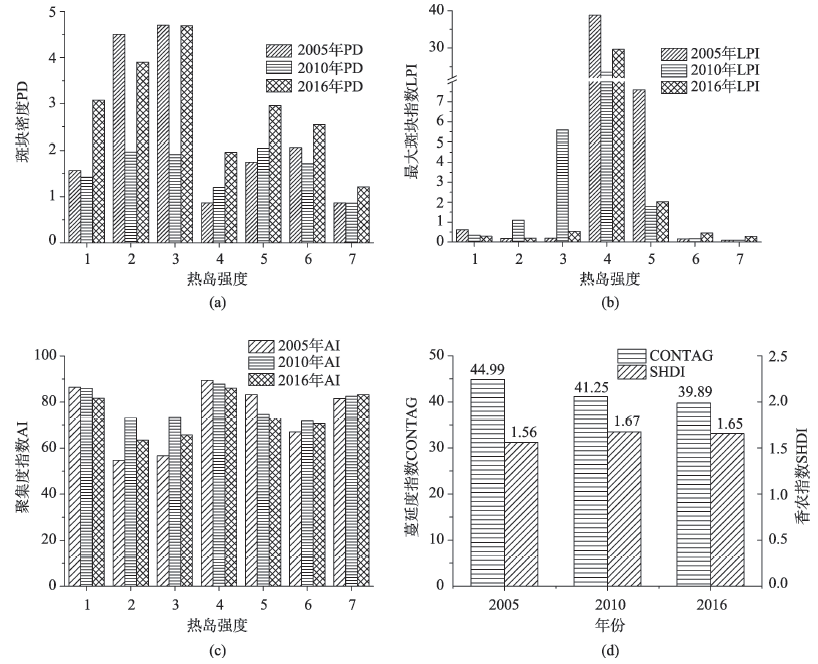

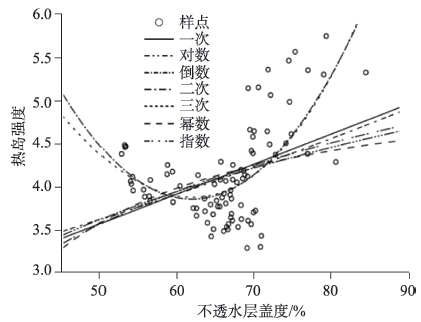

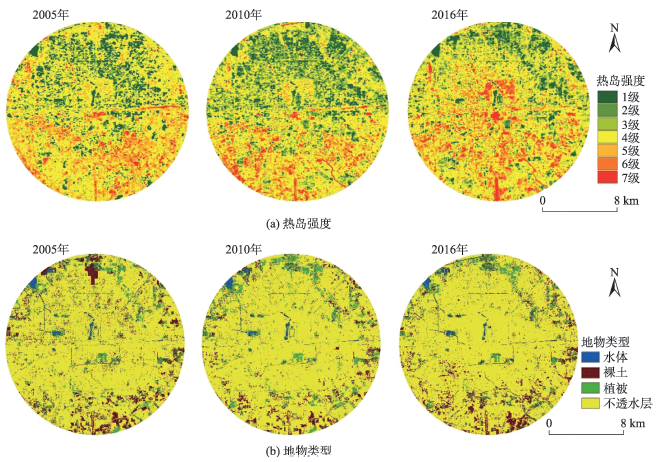

城市热岛效应作为城市范围的一种典型气候特征,在近年来受到了广泛的关注。了解城市热岛时空演变及形成原因对缓解城市热环境和提高人居舒适性有着重要意义。以北京市中心城区为例,首先,基于Landsat卫星2005、2010、2016年的热红外影像数据反演得到地表温度,采用均值标准差方法对地表温度进行划分得到多等级的热岛强度,分析城市热岛的空间格局和随时间的演变规律;其次,提取不透水层、植被、裸土和水体4种典型地物类型,统计不同年份下各热岛强度之间的转移信息并计算相关的热力景观格局指数;接着,依据离市中心的距离将中心城区分为30级缓冲区,统计分析每一级缓冲区内各地物类型的面积比例与热岛强度信息。最后,以各地物类型的统计数据,结合离市中心的距离,建立各影响因子与热岛强度之间的多元关系模型,综合分析地物类型和市中心的距离变化对城市热岛的影响。结果表明：北京中心城区整体热岛强度呈逐年增长的趋势,高等级热岛强度的热力斑块面积逐步扩张,热力景观类型的多样性随时间推移呈下降态势。不透水层对热岛强度的影响较大,具体表现为不透水层盖度越高,热岛强度越大;热岛强度随离市中心距离的增大逐渐降低。

关键词: 热岛强度, 地表温度, 中心城区, 时空格局, 不透水层盖度

Abstract:

Urban heat island effect has been widely concerned as a typical climatic feature of urban area in recent years. Understanding the spatio-temporal evolution and the causes of the formation of urban heat island are of great significance to ease the thermal environment of the city and improve the comfortability for human settlement. Firstly, we retrieved the land surface temperature of Beijing downtown based on Landsat thermal infrared images in 2005, 2010 and 2016. The mean-standard deviation method was used to divide the land surface temperature to obtain multi-grade heat island intensity for analyzing the evolution law and spatial pattern of urban heat island. Secondly, four typical ground feature types, impervious surface, vegetation, bare soil and water body, were extracted. Also, the transfer information of each heat intensity in different years and the relevant thermal landscape pattern indices were calculated. Then, according to the distance from the center of the city, we divided the downtown into 30 ring buffers and analyzed the area ratios of ground feature types and the information of heat island intensity in each ring buffer. Finally, based on the statistical data of each ground feature type and the distance from the downtown, the relationship between the influence factor and the heat island intensity is established. Also, the influence of the ground feature types and the change of the distance on the urban heat island is comprehensively analyzed. The results showed that the overall heat island intensity is increasing every year in Beijing downtown. The high grade of heat island intensity of the thermal patch area gradually expanded. The diversity of the thermal landscape types is decreasing with time. Impervious surface has a great impact on the heat island intensity. The strength of heat island intensity become greater with the percentage growth of impervious surface. The strength of heat island intensity decreases gradually with the increasing distance from the center of the city.

Key words: heat island intensity, land surface temperature, downtown, spatio-temporal pattern, impervious surface percentage

于琛, 胡德勇, 曹诗颂, 陈姗姗. 2005-2016年北京中心城区热岛时空格局及影响因子多元建模[J]. 地球信息科学学报, 2017, 19(11): 1485-1494.DOI:10.3724/SP.J.1047.2017.01485

YU Chen,HU Deyong,CAO Shisong,CHEN Shanshan. Spatio-temporal Pattern of Heat Island and Multivariate Modeling of Impact Factors of Beijing Downtown from 2005 to 2016[J]. Journal of Geo-information Science, 2017, 19(11): 1485-1494.DOI:10.3724/SP.J.1047.2017.01485

图/表 9

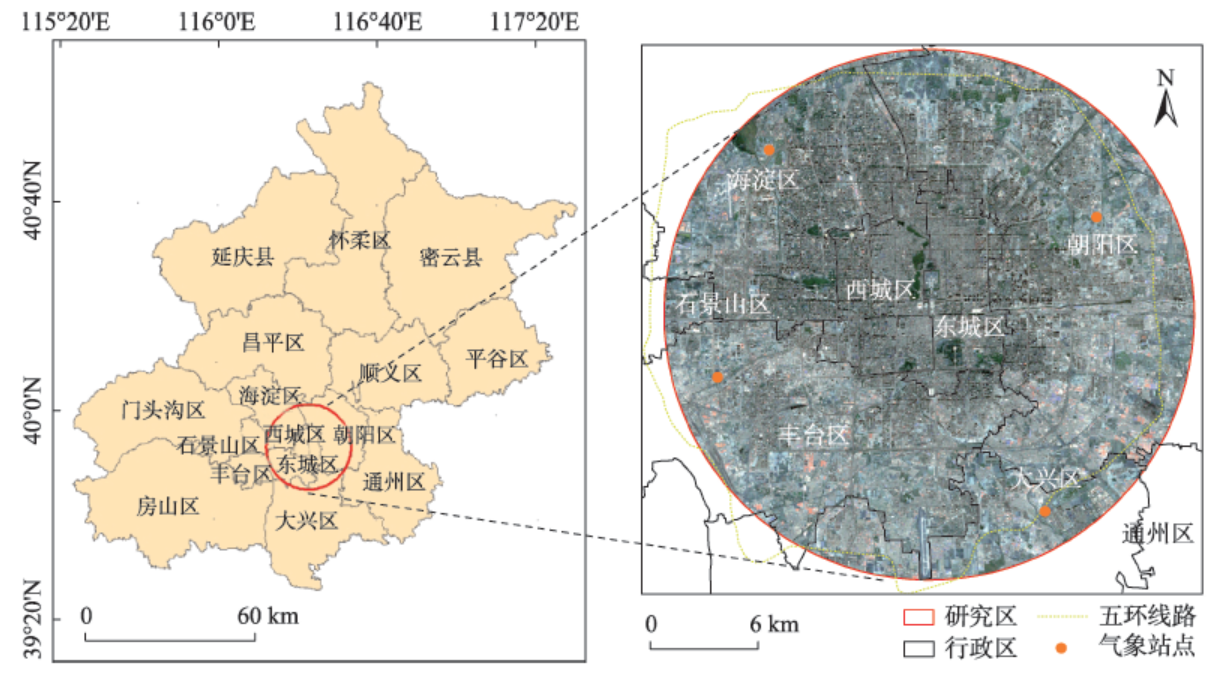

图1

表1

表2

图2

图3

表3

图4

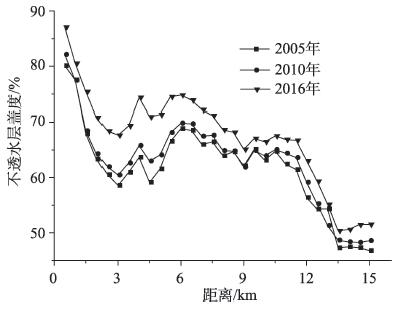

图5

图6

参考文献 28

[1]	Masek J G, Lindsay F E, Goward S N.Dynamics of urban growth in the Washington D C metropolitan area, 1973-1996, from Landsat observations[J]. International Journal of Remote Sensing, 2000,21(18):3473-3486. doi: 10.1080/014311600750037507
[2]	Hove L W A V, Jacobs C M J, Heusinkveld B G, et al. Temporal and spatial variability of urban heat island and thermal comfort within the Rotterdam agglomeration[J]. Building & Environment, 2014,83:91-103. doi: 10.1016/j.buildenv.2014.08.029
[3]	Voogt J A, Oke T R.Thermal remote sensing of urban climates[J]. Remote Sensing of Environment, 2003,86(3):370-384. doi: 10.1016/S0034-4257(03)00079-8
[4]	Radhi H, Fikry F, Sharples S.Impacts of urbanisation on the thermal behaviour of new built up environments: A scoping study of the urban heat island in Bahrain[J]. Landscape & Urban Planning, 2013,113(113): 47-61. doi: 10.1016/j.landurbplan.2013.01.013
[5]	Coulon F, Jones K, Li H, et al.China's soil and groundwater management challenges: Lessons from the U K's experience and opportunities for China[J]. Environment International, 2016,91:196-200. doi: 10.1016/j.envint.2016.02.023 pmid: 26970591
[6]	Qu J, Fan M.The current state of water quality and technology development for water pollution control in China[J]. Critical Reviews in Environmental Science and Technology, 2010,40:519-560. doi: 10.1080/10643380802451953
[7]	Taniguchi M, Burnett W C, Ness G D.Erratum to "Integrated research on subsurface environments in Asian urban areas"[J]. Science of the Total Environment, 2009,407(9):3076-3088. doi: 10.1016/j.scitotenv.2009.02.002
[8]	刘东,李艳,孔繁花.中心城区地表温度空间分布及地物降温效应——以南京市为例[J].国土资源遥感,2013,25(1):117-122. doi: 10.6046/gtzyyg.2013.01.21
	[ Liu D, Li Y, Kong F H.Spatial distribution of land surface temperature in central city proper and the cooling effects of the objects: A case study of Nanjing[J]. Remote Sensing for Land and Resources, 2013,25(1):117-122. ] doi: 10.6046/gtzyyg.2013.01.21
[9]	Kumar D, Shekhar S.Statistical analysis of land surface temperature-vegetation indexes relationship through thermal remote sensing[J]. Ecotoxicology & Environmental Safety, 2015,121:39-44. doi: 10.1016/j.ecoenv.2015.07.004 pmid: 26209299
[10]	Chen X L, Zhao H M, Li P X, et al.Remote sensing image-based analysis of the relationship between urban heat island and land use/cover changes[J]. Remote Sensing of Environment, 2006,104(2):133-146. doi: 10.1016/j.rse.2005.11.016
[11]	Guo G, Zhou X, Wu Z, et al.Characterizing the impact of urban morphology heterogeneity on land surface temperature in Guangzhou[J]. China Environmental Modelling & Software, 2016,84:427-439. doi: 10.1016/j.envsoft.2016.06.021
[12]	Salvati A, Roura H C, Cecere C.Assessing the urban heat island and its energy impact on residential buildings in Mediterranean climate: Barcelona case study[J]. Energy & Buildings, 2017,146:38-54. doi: 10.1016/j.enbuild.2017.04.025
[13]	Bonafoni S, Baldinelli G, Verducci P.Sustainable strategies for smart cities: Analysis of the town development effect on surface urban heat island through remote sensing methodologies[J]. Sustainable Cities & Society, 2017,29:211-218. doi: 10.1016/j.scs.2016.11.005
[14]	张景哲,刘继韩,周一星,等.北京市的城市热岛特征[J].气象科技,1982(3):32-35.
	[ Zhang J Z, Liu J H, Zhou Y X, et al.Characteristics of urban heat island in Beijing[J]. Meteorological Science and Technology, 1982,3:32-35. ]
[15]	王君,严中伟,李珍,等.近30年城市化对北京极端温度的影响[J].科学通报,2013,58(33):3464-3470.
	[ Wang J, Yan Z W, Li Z.Impact of urbanization on changes in temperature extremes in Beijing during 1978-2008[J]. Chinese Science Bulletin, 2013,58(33):4679-4686. ]
[16]	杨萍,肖子牛,刘伟东.北京气温日变化特征的城郊差异及其季节变化分析[J].大气科学,2013,37(1):101-112. doi: 10.3878/j.issn.1006-9895.2012.11229
	[ Yang P, Xiao Z N, Liu W D.Comparison of diurnal variation of air temperature in urban and rural areas of Beijing and its seasonal variation[J]. Chinese Journal of Atmospheric Sciences, 2013,37(1):101-112. ] doi: 10.3878/j.issn.1006-9895.2012.11229
[17]	刘勇洪,徐永明,马京津,等.北京城市热岛的定量监测及规划模拟研究[J].生态环境学报,2014,23(7):1156-1163. doi: 10.3969/j.issn.1674-5906.2014.07.010
	[ Liu Y H, Xu Y M, Ma J J, et al.Quantitative assessment and planning simulation of Beijing urban heat island[J]. Ecology and Environmental Sciences, 2014,23(7):1156-1163. ] doi: 10.3969/j.issn.1674-5906.2014.07.010
[18]	崔耀平,刘纪远,秦耀辰,等.北京城市扩展对热岛效应的影响[J].生态学杂志,2015,34(12):3485-3493.
	[ Cui Y P, Liu J Y, Qin Y C, et al.The impact of urban expansion on heat island intensity in Beijing[J]. Chinese Journal of Ecology, 2015,34(12):3485-3493. ]
[19]	宫阿都,陈云浩,李京,等.北京市城市热岛与土地利用/覆盖变化的关系研究[J].中国图象图形学报,2007,12(8):1476-1482. doi: 10.3969/j.issn.1006-8961.2007.08.028
	[ Gong A D, Chen Y H, Li J, et al.A study on relationship between urban heat island and urban land use and cover changes in Beijing[J]. Journal of Image and Graphics, 2007,12(8):1476-1482. ] doi: 10.3969/j.issn.1006-8961.2007.08.028
[20]	张昌顺,谢高地,鲁春霞,等.北京城市绿地对热岛效应的缓解作用[J].资源科学,2015,37(6):1156-1165.
	[ Zhang C S, Xie G D, Lu C X, et al.The mitigating effects of different urban green lands on the heat island effects in Beijing[J]. Resources Science, 2015,37(6):1156-1165. ]
[21]	Jr C L A, Gibbons C J. Impervious surface: The emergence of a key urban environmental indicator[J]. Journal of the American Planning Association, 1996,62(2):243-258. doi: 10.1080/01944369608975688
[22]	Jiménez-Muñoz J C, Sobrino J A. A generalized single-channel method for retrieving land surface temperature from remote sensing data[J]. Journal of Geophysical Research Atmospheres, 2003,108(D22):2015-2023. doi: 10.1029/2003JD003480
[23]	Van De Griend A A, Owe M. On the relationship between thermal emissivity and the normalized difference vegetation index for nature surfaces[J]. International Journal of Remote Sensing, 1993,14(6):1119-1131. doi: 10.1080/01431169308904400
[24]	Kaufman Y J, Gao B C.Remote sensing of water vapour in the near IR from EOS/MODIS[J]. IEEE Transactions on Geoscience & Remote Sensing, 1992,30(5):871-884. doi: 10.1109/36.175321
[25]	陈松林,王天星.等间距法和均值-标准差法界定城市执热岛的对比研究[J].地球信息科学学报,2009,11(2):145-150. doi: 10.3969/j.issn.1560-8999.2009.02.002
	[ Chen S L, Wang T X.Comparison analysis of equal interval method and mean-standard deviation method used to delimitate urban heat island[J]. Journal of Geo-information science, 2009,11(2):145-150. ] doi: 10.3969/j.issn.1560-8999.2009.02.002
[26]	Brabec E, Schulte S, Richards P L.Impervious surfaces and water quality: A review of current literature and its implications for watershed planning[J]. Journal of Planning Literature, 2002,16(4):499-514. doi: 10.1177/088541202400903563
[27]	朱会义,李秀彬.关于区域土地利用变化指数模型方法的讨论[J].地理学报,2003,58(5):643-650. doi: 10.3321/j.issn:0375-5444.2003.05.001
	[ Zhu H Y, Li X B.Discussion on the index method of regional land use changes[J]. Acta Geographica Sinica, 2003,58(5):643-650. ] doi: 10.3321/j.issn:0375-5444.2003.05.001
[28]	陈爱莲,孙然好,陈利顶.传统景观格局指数在城市热岛效应评价中的适用性[J].应用生态学报,2012,23(8):2077-2086.
	[ Chen A L, Sun R H, Chen L D.Applicability of traditional landscape metrics in evaluating urban heat island effects. Chinese Journal of Applied Ecology[J]. Chinese Journal of Applied Ecology, 2012,23(8):2077-2086. ]

分类数据	参考数据
分类数据	水体	裸土	植被	不透水层	用户精度/%
水体	264	10	4	22	88.00
裸土	6	269	5	20	89.67
植被	7	6	280	7	93.33
不透水层	14	2	1	283	94.33
制图精度/%	90.72	93.73	96.55	85.24
全局精度/%	91.33
全局Kappa	0.8844

站点号	站名	地表温度	气温	差值
54399	海淀	5.9	4.0	1.9
54433	朝阳	4.6	4.2	0.4
54511	北京	5.8	5.2	0.6
54514	丰台	4.2	6.4	-2.2
	平均值	5.1	4.9	0.2

2005-2010/2010-2016	1级	2级	3级	4级	5级	6级	7级
1级	42.5/37.4	12.6/8.2	7.9/4.0	4.1/2.5	2.6/2.5	2.3/2.6	3.0/2.1
2级	34.1/28.5	35.0/15.5	22.6/8.6	8.0/3.4	3.2/2.4	2.5/2.2	1.9/1.4
3级	15.6/22.6	35.0/31.8	38.2/23.7	19.9/8.4	6.3/4.8	4.4/3.9	3.9/3.6
4级	6.6/10.4	15.7/41.8	29.0/52.4	53.0/47.4	43.2/33.2	28.4/28.1	24.7/20.6
5级	0.8/0.6	1.0/2.2	1.6/8.9	10.8/26.3	26.8/26.4	26.5/22.1	21.2/16.4
6级	0.3/0.3	0.4/0.4	0.5/2.2	3.2/10.0	12.8/20.7	22.0/19.8	20.1/14.7
7级	0.3/0.2	0.3/0.1	0.3/0.2	1.0/2.0	5.1/10.1	13.9/21.4	25.2/41.2
