北京城区不透水地表盖度变化及对地表温度的影响

doi:10.3724/SP.J.1047.2017.01504

摘要/Abstract

摘要：

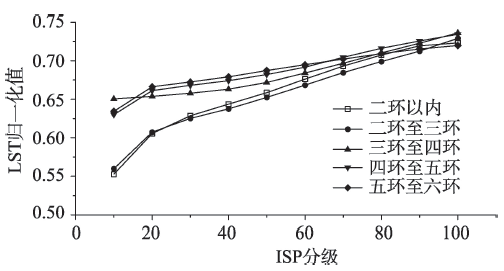

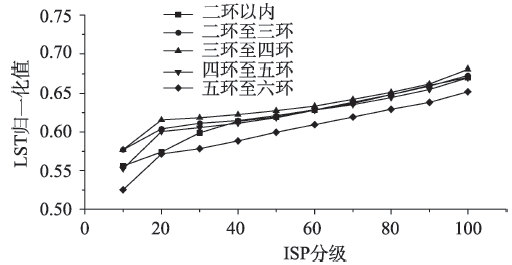

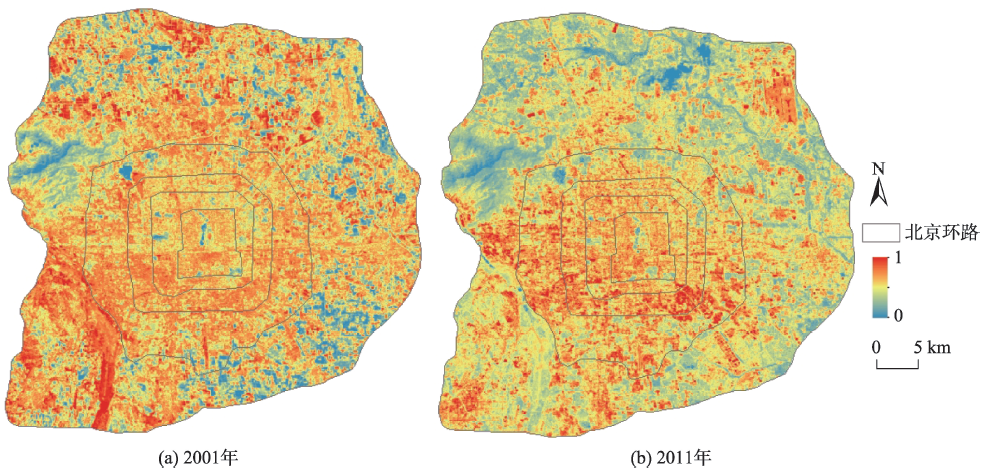

基于QuickBird高分辨率影像、LandsatTM影像及夜间灯光数据,设计了集成CART（Classification and Regression Tree,）算法和多源遥感数据估算亚像元级不透水地表盖度的技术方案,采取适用于典型温带半干旱地区的ISP（Impervious Surface Percentage ）提取方法,提取2001年和2011年北京城区不透水地表盖度,并将不透水地表盖度分为3类,ISP为10%~60%的区域为低密度区,60%~80%的区域为中密度区,大于80%的区域为高密度区。同时采用单窗算法反演2001年和2011年地表温度,对2001-2011年北京六环以内城区不同环路区域ISP发展趋势,以及其与地表温度的相关性进行分析。结果表明：（1）北京城区的不透水地表盖度变化主要集中在低密度区域,与之相比,中密度区域和高密度区域不透水地表盖度变化不大。2001-2011年来北京五环以内区域由于城建区较多,整体不透水地表变化并不明显,主要变化区域集中在五环至六环以内区域,其中低密度区增长明显,中密度区和高密度区主要增长集中在东部,可以看出,近年来五环至六环以内区域发展迅速,城建区范围不断扩大。（2）相较于2001年,2011年北京市中心地表温度明显上升,高温区聚集程度更为明显。其中四环以内地表温度与周边区域地表温度相比,温差明显增大。（3）通过对比2001年和2011年各密度区平均地表温度发现,相较于2001年,2011年北京市六环以内城区各密度区之间的地表温度差异更大,城市热岛效应更为明显。（4）2001年和2011年北京城区各环路区域内不透水地表盖度与地表温度均呈正相关。四环至六环区域,地表温度随不透水地表盖度变化的趋势相近。ISP在10%~20%的区域,地表温度随不透水地表盖度增高而上升的速率明显高于其他区域,ISP大于20%的区域地表温度上升速率下降,且趋于一致。

关键词: 不透水地表盖度, 地表温度, 城市热环境, CART算法, 相关分析

Abstract:

Classification and regression tree (CART) algorithm was used to extract the impervious surface percentage (ISP) of Beijing six ring within the city in 2001 and 2011 based on QuickBird high-resolution images, Landsat TM and night light data. The method is suitable for typical temperate semi-arid climate area. We classified the ISP as three groups. The ISP region for 10%~60% is defined as a low-density region, 60%~80% is defined as a medium-density area and for the rest area which the ISP is more than 80% is high-density area. Meanwhile, based on the Landsat TM, the land surface temperature of 2001 and 2011 were retrieved by using the single window algorithm. The study area has been designated as a region within six rings of Beijing. According to the characteristic of Beijing urban layout, this paper analyzed the development trend of ISP in different ring road and its correlation with land surface temperature from 2001 to 2011. In order to seek an effective way to improve the ecological environment in Beijing and mitigate the urban heat island effect. The results are as follows: (1) The change of ISP in Beijing urban area mainly concentrate in the low-density area. In comparison with the low-density area, the ISP of middle-densitiy area and high-density area does not change so much. Due to the vigorous city construction within the fifth ring road from 2001 to 2011, the whole change of ISP is not obvious. The variation mainly concentrates in the region between the fifth ring road and the sixth ring road, in which the growth of low density area was significant, while the growth in the middle and high density area was mainly in the east part. From the above results, it can be concluded that the development within the fifth ring road and sixth ring road develops rapidly and the range of city construction continued in recent years. (2) Compared with 2001, the land surface temperature of the central areas in Beijing in 2011 increased dramatically, and the aggregation extent of high-temperature region is more evident. The temperature difference increased significantly between the region within the fourth ring road and the surrounding areas. (3) By comparing the average surface temperature of each density area in 2001 and 2011 we find that compared with 2001, the differences in land surface temperature in 2001 also increased between different ISP categories and the urban heat island effect was more and more remarkable. (4) In both 2001 and 2011, there is a positive correlation between the land surface temperature and the ISP in every ring road region of Beijing urban areas. In the regions between the fourth and sixth ring road, the land surface temperature and the ISP shares a similar change trend. In the regions with ISP between 10% and 20%, the rising rate of land surface temperature is obviously higher than other regions. In the regions with ISP higher than 20%, the rising rate of surface temperature decreases, and the change tends is uniform.

Key words: impervious surface percentage, land surface temperature, urban thermal environment, CART algorithm, correlation analysis

张旸, 胡德勇, 陈姗姗. 北京城区不透水地表盖度变化及对地表温度的影响[J]. 地球信息科学学报, 2017, 19(11): 1504-1513.DOI:10.3724/SP.J.1047.2017.01504

ZHANG Yang,HU Deyong,CHEN Shanshan. Influence of Impervious Surface Change on Land Surface Temperature in Beijing[J]. Journal of Geo-information Science, 2017, 19(11): 1504-1513.DOI:10.3724/SP.J.1047.2017.01504

图/表 11

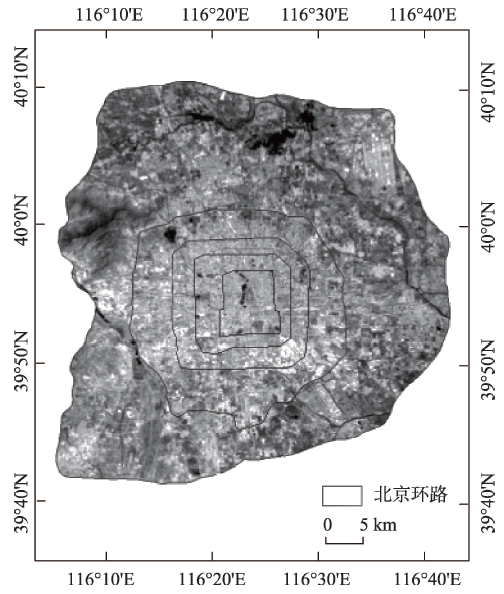

图1

图2

图3

表1

表2

大气平均气温计算公式

地理位置	大气平均温度计算公式
热带平均大气（北纬15°,年平均）	$T a = 17.9769 + 0.91715 T 0$
中纬度夏季平均大气（北纬45°,7月）	$T a = 16.0110 + 0.92621 T 0$
中纬度冬季平均大气（北纬45°,1月）	$T a = 19.2704 + 0.91118 T 0$

表2

表3

图4

表4

表5

图5

图6

参考文献 19

[1]	姚士谋,张平宇,余成,等.中国新型城镇化理论与实践问题[J].地理科学,2014,6(6):641-647.
	[ Yao S M, Zhang P Y, Yu C, et al.The theory and practice of new urbanization in China[J]. Scientia Geographica Sinica, 2014,6(6):641-647. ]
[2]	郑思轶,刘树华.北京城市化发展对温度、相对湿度和降水的影响[J].气候与环境研究, 2008,13(2):123-133.
	[ Zheng S Y, Liu S H. Urbanization effect on climate in Beijing[J]. Climatic and Environmental Research(in Chinese), 2008,13(2):123-133. ]
[3]	肖荣波,欧阳志云,李伟峰,等.城市热岛的生态环境效应[J].生态学报,2005,25(8):2055-2060. doi: 10.3321/j.issn:1000-0933.2005.08.032
	[ Xiao R B, Ouyang Z Y, Li W F, et al.A review of the eco-environmental consequences of urban heat islands[J]. Acta Ecologica Sinica, 2005,25(8):2055-2060. ] doi: 10.3321/j.issn:1000-0933.2005.08.032
[4]	唐菲,徐涵秋.城市不透水面与地表温度定量关系的遥感分析[J].吉林大学学报(地),2013,43(6):1987-1996.
	[ Tang F, Xu H Q.Quantitative relationship between impervious surface and land surface temperature based on remote sensing technology[J]. Journal of Jilin University(Earth Science Edition), 2013,43(6):1987-1996. ]
[5]	杨可明,周玉洁,齐建伟,等.城市不透水面及地表温度的遥感估算[J].国土资源遥感,2014,26(2):134-139. doi: 10.6046/gtzyyg.2014.02.22
	[ Yang K M, Zhou Y J, Qi J W, et al.Remote sensing estimating of urban impervious surface area and land surface temperature[J]. Remote Sensing for Land & Resources, 2014,26(2):134-139. ] doi: 10.6046/gtzyyg.2014.02.22
[6]	徐永明,刘勇洪.基于TM影像的北京市热环境及其与不透水面的关系研究[J].生态环境学报,2013,22(4):639-643. doi: 10.3969/j.issn.1674-5906.2013.04.015
	[ Xu Y M, Liu Y H.Study on the thermal environment and its relationship with impervious surface in Beijing city using TM image[J]. Ecology and Environmental Sciences, 2013,22(4):639-643. ] doi: 10.3969/j.issn.1674-5906.2013.04.015
[7]	Hao P, Niu Z, Zhan Y, et al.Spatiotemporal changes of urban impervious surface area and land surface temperature in Beijing from 1990 to 2014[J]. Giscience & Remote Sensing, 2016,53(1):63-84. doi: 10.1080/15481603.2015.1095471
[8]	丁德平,王春华,李迅,等.北京奥运会期间极端天气的气候统计分析[J].气象,2008,34(7):61-67.
	[ Ding D P, Wang C H, Li X, et al.Climatic and statistical analysis on extreme weather events during Beijing Olympic Games[J]. Meteorological Monthly, 2008,34(7):61-67. ]
[9]	郑祚芳,张秀丽.北京极端天气事件及其与区域气候变化的联系[J].自然灾害学报,2007,16(3):55-59. doi: 10.3969/j.issn.1004-4574.2007.03.010
	[ Zheng Z F, Zhang X L.Extreme synoptic events in Beijing and their relation with regional climate change[J]. Journal of Natural Disaster, 2007,16(3):55-59. ] doi: 10.3969/j.issn.1004-4574.2007.03.010
[10]	李书严,马京津,轩春怡,等.1951-2008年北京极端天气事件分析[J].气候与环境研究,2012,17(2):244-250. doi: 10.3878/j.issn.1006-9585.2011.10086
	[ Li S Y, Ma J J, Xuan C Y, et al.Analysis of extreme weather events in Beijing during 1951-2008[J]. Climatic and Environmental Research (in Chinese), 2012,17(2):244-250. ] doi: 10.3878/j.issn.1006-9585.2011.10086
[11]	Mathew A, Khandelwal S, Kaul N.Spatial and temporal variations of urban heat island effect and the effect of percentage impervious surface area and elevation on land surface temperature: Study of Chandigarh city, India[J]. Sustainable Cities & Society, 2016,26:264-277. doi: 10.1016/j.scs.2016.06.018
[12]	王浩,卢善龙,吴炳方,等.不透水面遥感提取及应用研究进展[J].地球科学进展,2013,28(3):327-336. doi: 10.11867/j.issn.1001-8166.2013.03.0327
	[ Wang H, Lu S L, Wu B F, et al.Advances in remote sensing of impervious surfaces extraction and its applications[J]. Advances in Earth Science, 2013,28(3):327-336. ] doi: 10.11867/j.issn.1001-8166.2013.03.0327
[13]	高志宏,张路,李新延,等.城市土地利用变化的不透水面覆盖度检测方法[J].遥感学报,2010,14(3):593-606. doi: 10.3724/SP.J.1011.2010.01138
	[ Gao Z H, Zhang L, Li X Y, et al.Detection and analysis of urban land use changes through multi-temporal impervious surface mapping[J]. Journal of Remote Sensing, 2010,14(3):593-606. ] doi: 10.3724/SP.J.1011.2010.01138
[14]	廖明生,江利明,林珲,等.基于CART集成学习的城市不透水层百分比遥感估算[J].武汉大学学报·信息科学版,2007,32(12):1099-1102. doi: 10.3969/j.issn.1671-8860.2007.12.003
	[ Liao M S, Jiang L M, Lin H, et al.Estimating urban impervious surface percent using boosting as a Refinement of Cart Analysis[J]. Geomatics and Information Science of Wuhan University, 2007,32(12):1099-1102. ] doi: 10.3969/j.issn.1671-8860.2007.12.003
[15]	李召良,段四波,唐伯惠,等.热红外地表温度遥感反演方法研究进展[J].遥感学报,2016,20(5):899-920. doi: 10.11834/jrs.20166192
	[ Li Z L, Duan S B, Tang B H, et al.Review of methods for land surface temperature derived from thermal infrared remotely sensed data[J]. Journal of Remote Sensing, 2016,20(5):899-920. ] doi: 10.11834/jrs.20166192
[16]	覃志豪,Zhang M H, Arnon Karnieli,等.用陆地卫星TM6数据演算地表温度的单窗算法[J].地理学报,2001,66(4):456-466.
	[ Qin Z H, Zhang M H, Arnon Karnieli, et al.Mono-window algorithm for retrieving land surface temperature from Landsat TM6 data[J]. Acta Geographica Sinica, 2001,66(4):456-466. ]
[17]	孟宪红,吕世华,张堂堂. MODIS近红外水汽产品的检验、改进及初步应用——以黑河流域金塔绿洲为例[J].红外与毫米波学报,2007,26(2):107-111.
	[ Meng X H, Lv S H, Zhang T T.Testing improvement and application of MODIS near infrared water vapor products: Taking Jinta oasis in Heihe river basin as a case study[J]. Journal of infrared and millimeter waves, 2007,26(2):107-111. ]
[18]	Van A A, Griend D E, Owe M.On the relationship between thermal emissivity and the normalized difference vegetation index for natural surfaces[J]. International Journal of Remote Sensing, 1993,14(6):1119-1131. doi: 10.1080/01431169308904400
[19]	覃志豪, LI Wenjuan, Zhang Minghua,等.单窗算法的大气参数估计方法[J].国土资源遥感,2003,15(2):37-43. doi: 10.3969/j.issn.1001-070X.2003.02.010
	[ Qin Z H, Li W J, Zhang M H, et al.Estimating of the essential atmosphere parameters of mono-window algorithm for land surface temperature retrieval from Landsat TM[J]. Remote Sensing for Land & Resources, 2003,15(2):37-43. ] doi: 10.3969/j.issn.1001-070X.2003.02.010

大气剖面	大气水汽含量范围/（g/cm²）	拟合方程	R²	RMSE
高气温	0.4~1.6	-0.08007w+0.974290	0.99611	0.002368
高气温	1.6~3.0	-0.11536w+1.031412	0.99827	0.002539
低气温	0.4~1.6	-0.09611w+0.982007	0.99463	0.003340
低气温	1.6~3.0	-0.14142w+1.053710	0.99899	0.002375

	2001年				2011年
	低密度		中密度	高密度	低密度	中密度	高密度
二环以内	16.975	17.047	22.972		11.709	16.590	22.500
二环至三环	30.707	24.799	34.934		18.971	23.841	34.925
三环至四环	35.698	33.468	62.979		23.943	32.067	63.141
四环至五环	91.784	66.074	117.630		80.158	67.558	121.822
五环至六环	293.963	147.761	173.354		489.362	190.921	208.644
总面积	589.010	328.520	439.610		849.560	382.080	483.770

	低密度区（10%~60%）	差值	中密度区（60%~80%）	差值	高密度区（>80%）
2001不透水地表盖度面积/km²	589.010		328.516		439.612
2001平均温度归一化值	0.682854	0.027	0.7099	0.015	0.725061
2011不透水地表盖度面积/km²	849.558		382.081		483.774
2011平均温度归一化值	0.592001	0.043	0.635965	0.018	0.654276

年份	线性方程	R²	RMSE
2001	y=0.0007x+0.6604	0.8378	0.1035
2011	y=0.0011x+0.5673	0.9834	0.0618
