地球信息科学学报 ›› 2017, Vol. 19 ›› Issue (11): 1522-1529.doi: 10.3724/SP.J.1047.2017.01522
李治1,2,3(), 杨晓梅2,*(
), 孟樊2, 陈曦1, 杨丰硕2,3
收稿日期:
2017-04-30
修回日期:
2017-08-25
出版日期:
2017-11-10
发布日期:
2017-12-08
通讯作者:
杨晓梅
E-mail:lizhi@lreis.ac.cn;yangxm@lreis.ac.cn
作者简介:
作者简介:李 治(1986-),男,博士生,研究方向为多源遥感信息协同提取、城市景观生态分析。E-mail:
基金资助:
Li Zhi1,2,3(), Yang Xiaomei2,*(
), Meng Fan2, Chen Xi1, Yang Fengshuo2,3
Received:
2017-04-30
Revised:
2017-08-25
Online:
2017-11-10
Published:
2017-12-08
Contact:
Yang Xiaomei
E-mail:lizhi@lreis.ac.cn;yangxm@lreis.ac.cn
摘要:

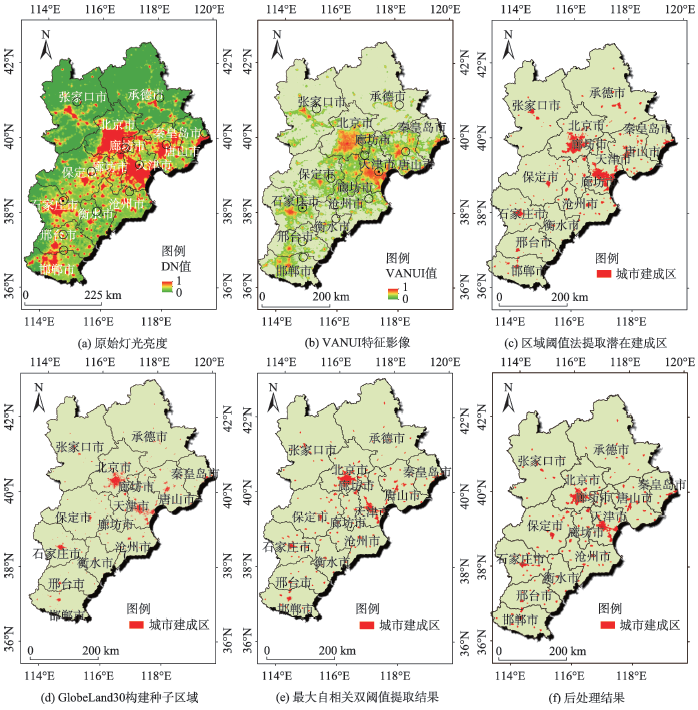

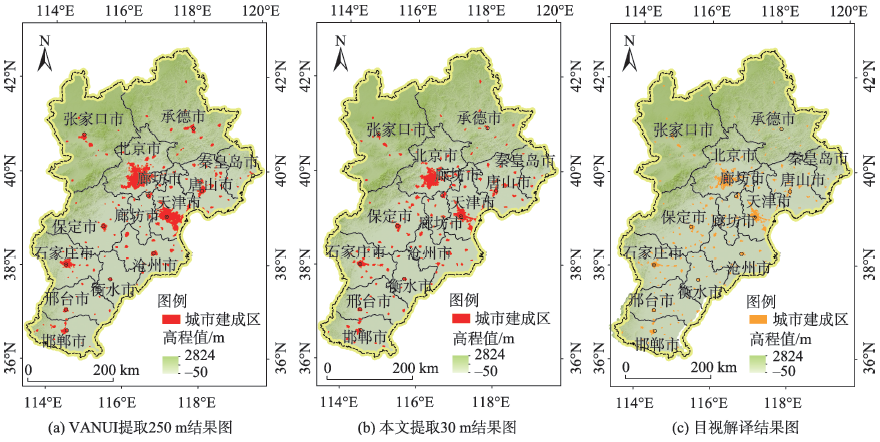

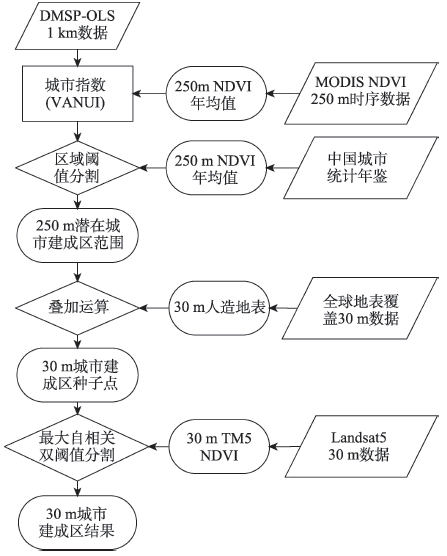

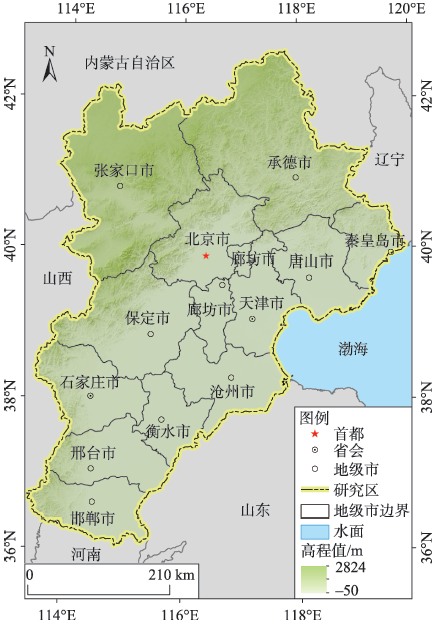

城市建成区边界是城市研究重要的基础信息,也是落实城市功能空间布局、实施界限管控的前提。DMSP/OLS夜间灯光数据已被广泛应用于城市建成区的提取,但由于受饱和、扩散及低分辨率问题的影响,导致仅依靠DMSP/OLS NTL映射城市建成区仍然是一个巨大的挑战。本文以京津冀为例,采用MODIS NDVI和DMSP / OLS夜光数据相结合解决NTL影像的饱和及扩散问题,提取城市建成区潜在范围,并辅以Landsat NDVI数据,采用本文提出的最大自相关双阈值方法进行自适应修正,最后采用目视解译对结果进行验证。实验结果表明,多源遥感协同方法提取城市建成区的总体精度和kappa系数分别为92.9%和0.88,在空间分布和统计数据中均有较高的有效性和可靠性。
李治, 杨晓梅, 孟樊, 陈曦, 杨丰硕. 城市建成区多源遥感协同提取方法研究[J]. 地球信息科学学报, 2017, 19(11): 1522-1529.
Li Zhi,Yang Xiaomei,Meng Fan,Chen Xi,Yang Fengshuo. The Method of Multi-source Remote Sensing Synergy Extraction in Urban Built-up Area[J]. Journal of Geo-information Science, 2017, 19(11): 1522-1529.
表1
数据源信息表"
数据类型 | 数据源名称 | 分辨率及数据类型 | 数据来源 | 遥感分类作用 |
---|---|---|---|---|
分类信息源 | GlobeLand30 | 30 m分辨率栅格数据 | http://www.globeland30.org | 获取人造地表覆盖30 m分辨率一级类数据,获取潜在建成区内种子区域 |
MODIS NDVI | 16天250 m合成栅格数据 | http://modis.gsfc.nasa.gov | 用于修正DMSP/OLS灯光数据的扩散问题 | |
DMSP-OLS | 1 km分辨率栅格数据 | http://ngdc.noaa.gov | 用于获取潜在城市建成区范围 | |
统计年鉴 | 统计数据 | http://www.stats.gov.cn/tjsj/ndsj/ | 自动获取潜在城市建成区阈值 | |
Landsat TM | 30 m分辨率纠正图像 | http://glovis.usgs.gov | 获取30 m精度的城市建成区信息 | |
验证数据 | Google Earth | 高分辨率纠正影像 | http://google-earth.cn.softonic.com | 采用目视解译,作为结果验证 |

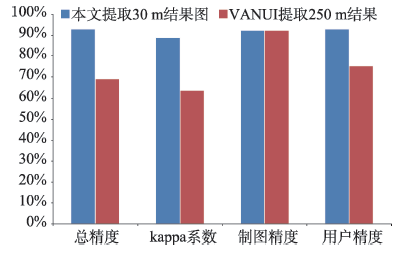

表2
采用统计数据对提取方法进行精度评价"
统计数据/km2 | 250 m阈值法提取结果/km2 | 30 m双阈值提取结果/km2 | 250 m相对误差% | 30 m相对误差% | |
---|---|---|---|---|---|
北京市 | 1306 | 1741.2 | 1439 | -33.32 | -10.01 |
天津市 | 736 | 1054.8 | 665.6 | -43.32 | 9.57 |
保定市 | 144 | 190.9 | 127.9 | -32.57 | 8.40 |
石家庄市 | 217 | 353.5 | 259.2 | -62.90 | -7.47 |
沧州市 | 64 | 390.3 | 79.1 | -181.72 | -7.97 |
承德市 | 114 | 307.2 | 99 | -169.47 | 7.89 |
邯郸市 | 121 | 180.4 | 108 | -49.09 | 9.92 |
衡水市 | 46 | 57.5 | 41.6 | -25.00 | 9.57 |
秦皇岛市 | 97 | 185.7 | 112.7 | -91.44 | -8.97 |
邢台市 | 79 | 113.6 | 76.9 | -43.80 | 2.66 |
张家口市 | 86 | 233.9 | 76.7 | -171.98 | 9.07 |
唐山市 | 249 | 403.3 | 185.5 | -61.97 | -9.04 |
廊坊市 | 65 | 200.6 | 82 | -208.62 | -9.54 |
[21] |
张涛,杨晓梅,童立强,等.基于多尺度图像库的遥感影像分割参数优选方法[J].国土资源遥感,2016,28(4):59-63.
doi: 10.6046/gtzyyg.2016.04.09 |
[ Zhang T, Yang X M, Tong L Q, et al.Selecion of best-fitting scale parameters in image segmentation based on multiscale segmentation image database[J]. Remote Sensing for Land and Resources, 2016,28(4):59-63. ]
doi: 10.6046/gtzyyg.2016.04.09 |
|
[1] | 匡文慧,刘纪远,张增祥,等. 21世纪初中国人工建设不透水地表遥感监测与时空分析[J].科学通报,2013,58(5):465-478. |
[ Kuang W H, Liu J Y, Zhang Z X, et al.Spatiotemporal dynamics of impervious surface areas across China during the early 21st century. Chinese Science Bulletin, 2013,58(5):465-478. ] | |
[2] | 李广东,方创琳,王少剑,等.城乡用地遥感识别与时空变化研究进展[J].自然资源学报,2016,31(4):703-718. |
[ Li G D, Fang C L, Wang S J, et al.Progress in remote sensing recognition and spatio-temporal changes study of urban and rural land use[J]. Journal of Natural Resources, 2016,31(4):703-718. ] | |
[3] |
许泽宁,高晓路.基于电子地图兴趣点的城市建成区边界识别方法[J].地理学报,2016,71(6):928-939.
doi: 10.11821/dlxb201606003 |
[ Xu Z N, Gao X L.A novel method for identifying the boundary of urban built-upareas with POI data[J].Acta Geographica Sinica, 2016,71(6):928-939. ]
doi: 10.11821/dlxb201606003 |
|
[4] |
Huang X, Schneider A, Friedl M A.Mapping sub-pixel urban expansion in China using modis and DMSP/OLS nighttime lights[J]. Remote Sensing of Environment, 2016,175:92-108.
doi: 10.1016/j.rse.2015.12.042 |
[5] |
Li Q, Lu L, Weng Q, et al.Monitoring urban dynamics in the southeast U.S.A. using time-series DMSP/OLS nightlight imagery[J]. Remote Sensing, 2016,8(7):578.
doi: 10.3390/rs8070578 |
[6] |
Ma T, Zhou C H, P T, et al. Quantitative estimation of urbanization dynamics using time series of DMSP/OLS nighttime light data: A comparative case study from China’s cities[J]. Remote Sensing of Environment, 2012,124:99-107.
doi: 10.1016/j.rse.2012.04.018 |
[7] | 唐菲. 基于多源遥感影像数据的不透水面信息提取[D].福州:福州大学,2014. |
[ Tang F.Information extraction of impervious surface based on multi-source remote sensing images[D]. Fujian: Fuzhou University, 2014. ] | |
[8] | 郭伟. 夜间灯光数据和MODIS数据用于大尺度不透水面制图研究[D].武汉:武汉大学,2015. |
[ Guo W.Using nighttime light data and MODIS data for large-scale impervious surface mapping research[D]. Wuhan: Wuhan University, 2015. ] | |
[9] |
Cheng Y, Zhao L, Wan W, et al.Extracting urban areas in china using DMSP/OLS nighttime light data integrated with biophysical composition information[J]. Journal of Geographical Sciences, 2016,26(3):325-338.
doi: 10.1007/s11442-016-1271-6 |
[10] |
Jing W, Yang Y, Yue X, et al.Mapping urban areas with integration of DMSP/OLS nighttime light and modis data using machine learning techniques[J]. Remote Sensing, 2015,7(9):12419-12439.
doi: 10.3390/rs70912419 |
[11] |
Zhang Q, Schaaf C, Seto K C.The vegetation adjusted NTL urban index: A new approach to reduce saturation and increase variation in nighttime luminosity[J]. Remote Sensing of Environment, 2013,129:32-41.
doi: 10.1016/j.rse.2012.10.022 |
[12] |
Liu X, Hu G, Ai B, et al.A Normalized Urban Areas Composite Index (NUACI) based on combination of DMSP-OLS and modis for mapping impervious surface area[J]. Remote Sensing, 2015,7(12):17168-17189.
doi: 10.3390/rs71215863 |
[13] |
Elvidge C D, Baugh K E, Anderson S J, et al.The Night Light Development Index (NLDI): A spatially explicit measure of human development from satellite data[J]. Social Geography, 2012,7(1):23-35.
doi: 10.5194/sg-7-23-2012 |
[14] |
Lu D, Tian H, Zhou G, et al.Regional mapping of human settlements in southeastern China with multisensor remotely sensed data[J]. Remote Sensing of Environment, 2008,112(9):3668-3679.
doi: 10.1016/j.rse.2008.05.009 |
[15] |
邹进贵,陈艳华,丁鸽,等.利用DMSP/OLS灯光影像提取城镇建成区的聚类阈值法[J].武汉大学学报·信息科学版,2016,41(2):196-201.
doi: 10.13203/j.whugis20140079 |
[ Zou J G, Chen Y H, Ding G, et al.A clustered threshold method for extracting urban built-up area using the DMSP/OLS nighttime light images[J]. Geomatics and Information Science of Wuhan University, 2016,41(2):196-201. ]
doi: 10.13203/j.whugis20140079 |
|
[16] | 舒松,余柏蒗,吴健平,等.基于夜间灯光数据的城市建成区提取方法评价与应用[J].遥感技术与应用,2011,26(2):169-176. |
[ Shu S, Yu B L, Wu J P, et al.Methods for deriving urban built-up area using night-light data: Assessment and application[J]. Remote Sensing Technology and Application, 2011,26(2):169-176. ] | |
[17] |
杨洋,何春阳,赵媛媛,等.利用DMSP/OLS稳定夜间灯光数据提取城镇用地信息的分层阈值法研究[J].中国图象图形学报,2011,16(4):666-673.
doi: 10.11834/jig.20110426 |
[ Yang Y, He C Y, Zhao Y Y, et al.Research on the layered threshold method for extracting urban land using the DMSP/OLS stable nighttime light data[J]. Journal of Image and Graphics, 2011,16(4):666-673. ]
doi: 10.11834/jig.20110426 |
|
[18] |
Zhang Q, Li B, Thau D, et al.Building a better urban picture: Combining day and night remote sensing imagery[J]. Remote Sensing, 2015,7(9):11887-11913.
doi: 10.3390/rs70911887 |
[19] |
Small C, Elvidge C D, Balk D, et al.Spatial scaling of stable night lights[J]. Remote Sensing of Environment, 2011,115(2):269-280.
doi: 10.1016/j.rse.2010.08.021 |
[20] |
李治,杨晓梅,孟樊,等.物候特征辅助下的随机森林宏观尺度土地覆盖分类方法研究[J].遥感信息,2013,28(6):48-55.
doi: 10.3969/j.issn.1000-3177.2013.06.008 |
[ Li Z, Yang X M, Meng F, et al.LULC Classification based on random forest with the phenological features[J]. Remote Sensing Information, 2013,28(6):48-55. ]
doi: 10.3969/j.issn.1000-3177.2013.06.008 |
|
[22] |
Xie Y, Weng Q.Updating urban extents with nighttime light imagery by using an object-based thresholding method[J]. Remote Sensing of Environment, 2016,187:1-13.
doi: 10.1016/j.rse.2016.10.002 |
