基于夜晚灯光数据和Google Earth的城市建成区提取分析

doi:10.3724/SP.J.1047.2015.00750

地球信息科学学报 ›› 2015, Vol. 17 ›› Issue (6): 750-756.doi: 10.3724/SP.J.1047.2015.00750

• 遥感科学与应用技术 • 上一篇

基于夜晚灯光数据和Google Earth的城市建成区提取分析

宋金超, 李新虎^*(), 吝涛, 张国钦, 叶红, 何晓燕, 葛汝冰

中国科学院城市环境研究所, 厦门 361021

收稿日期:2014-08-11 修回日期:2014-11-06 出版日期:2015-06-10 发布日期:2015-06-10
通讯作者: 李新虎 E-mail:xhli@iue.ac.cn
作者简介:
作者简介：宋金超（1990-）,女,山东潍坊人,硕士生,研究方向为城市形态、城市功能。E-mail：jcsong@iue.ac.cn
基金资助:
国家自然科学基金项目（41371540、41201155）;宁波市软科学研究计划项目（2013A10096）

A Method of Extracting Urban Built-up Area Based on DMSP/OLS Nighttime Data and Google Earth

SONG Jinchao, LI Xinhu^*(), LIN Tao, ZHANG Guoqin, YE Hong, HE Xiaoyan, GE Rubing

Institute of Urban Environment, Chinese Academy of Sciences, Xiamen 361021, China

Received:2014-08-11 Revised:2014-11-06 Online:2015-06-10 Published:2015-06-10
Contact: LI Xinhu E-mail:xhli@iue.ac.cn
About author:
*The author: SHEN Jingwei, E-mail:jingweigis@163.com

摘要/Abstract

摘要：

夜晚灯光数据已被广泛应用于提取城市建成区的研究,由于灯光具有溢出特性,因此确定最佳灯光阈值成为研究热点。本研究中总结4种常用最佳阈值确定方法的特点,并使用Google Earth影像空间比较法,确定夜晚灯光数据提取城市建成区的最佳阈值。由于地形、交通等因素影响城市形态,城市形态影响夜晚灯光数据提取城市建成区的最佳阈值大小,因此,根据城市形态将阈值结果分为2类,并得到块状城市和带状城市建成区的最佳灯光阈值分别为43和 47。Google Earth影像空间比较法与其他方法相比具有不受统计数据限制,以及简易操作等优势,且从形态上对城市建成区提取结果进行空间比较;其次,根据城市形态对最佳阈值结果分类,使不同类型的城市建成区提取结果更准确。该方法适用于在地形复杂、形态多样的大尺度空间中提取城市建成区。

关键词: 夜晚灯光数据, Google Earth, 城市建成区, 城市形态, 地形坡度

Abstract:

DMSP-OLS nighttime data has been widely used for extracting urban built-up area since the 1970s. It has also been used to estimate the economic level, density of population, changes in spatial patterns of urban landscapes, spatial dynamics of fishery, and the relationships between urbanization, human health and energy consumption. Due to the light’s characteristic of overflowing, the range of city extracted by DMSP-OLS nighttime data surpasses its real boundary in urban area extraction. Therefore, an accurate light threshold determination has become a research hotspot in recent years. In this paper, we sum up the features of four commonly used methods from other dissertations. Then, a spatial comparison method based on Google Earth is adopted to determine the optimum value of light threshold for urban built-up area extraction. Because factors such as terrain and traffic have significant impacts on the urban form, and the urban form influences the value of light threshold, the results of threshold for urban built-up area extraction are divided into two categories according to the urban form. The optimum thresholds for crumb city and strip city are 43 and 47 respectively. Compared to other methods, the spatial comparison method based on Google Earth has two advantages in innovation. Firstly, the classification of threshold result is based on the urban form; meanwhile, it not only breaks the limit of statistical data, but also improves the accuracy of urban built-up area extraction. Secondly, the data sources such as DMSP-OLS nighttime data and Google Earth image used in this method are free and easy to acquire. The method picks a series of sampling points around the whole city on Google Earth as the reference data, which displays not only the results of traditional statistics, but also the spatial differences between the real boundary and the urban area extracted by DMSP-OLS nighttime data. In a word, this method is suitable for extracting urban built-up area in regions with complicated terrains and diverse urban forms.

Key words: DMSP/OLS nighttime data, Google Earth, urban built-up area, urban form, slope

宋金超, 李新虎, 吝涛, 张国钦, 叶红, 何晓燕, 葛汝冰. 基于夜晚灯光数据和Google Earth的城市建成区提取分析[J]. 地球信息科学学报, 2015, 17(6): 750-756.DOI:10.3724/SP.J.1047.2015.00750

SONG Jinchao,LI Xinhu,LIN Tao,ZHANG Guoqin,YE Hong,HE Xiaoyan,GE Rubing. A Method of Extracting Urban Built-up Area Based on DMSP/OLS Nighttime Data and Google Earth[J]. Journal of Geo-information Science, 2015, 17(6): 750-756.DOI:10.3724/SP.J.1047.2015.00750

图/表 7

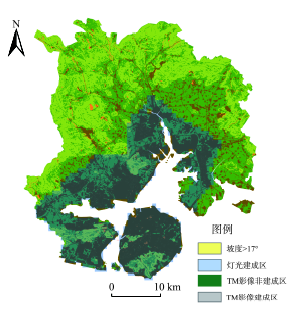

图1

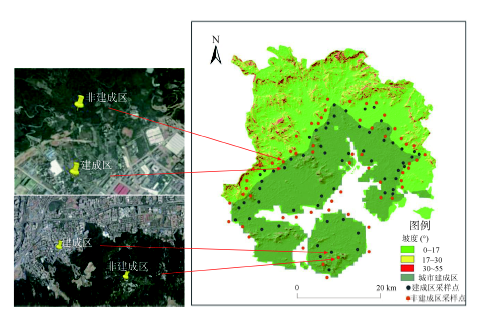

图2

表1

图3

表2

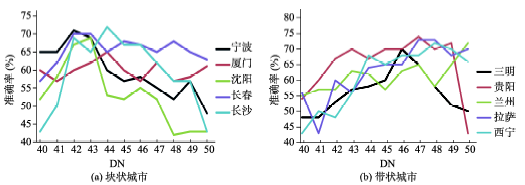

图4

图5

参考文献 24

[1]	Elvidge C D, Baugh K E, Kihn E A, et al.Mapping city lights with night time data from the DMSP operational line scan system[J]. Photogrammetric Engineering and Remote Sensing, 1997,63(6):727-734.
[2]	Elvidge C D, Cinzano P, Pettit D R, et al.The Nightsat mission concept[J]. International Journal of Remote Sensing, 2007,28(12):2645-2670.
[3]	廖兵, 魏康霞, 宋巍巍. DMSP/OLS夜间灯光数据在城镇体系空间格局研究中的应用与评价:以近16年江西省间城镇空间格局为例[J].长江流域资源与环境, 2012,21(11):1295-1300.
[4]	韩向娣, 周艺, 王世新, 等.夜间灯光遥感数据的GDP空间化处理方法[J].地球信息科学学报, 2012,14(1):128-136
[5]	王琪, 袁涛, 郑新奇.基于夜间灯光数据的中国省域GDP总量分析[J].城市发展研究, 2013,20(7):44-48.
[6]	范俊甫, 马廷, 周成虎, 等.1992-2010年基于DMSP-OLS图像的环渤海城市群空间格局变化分析[J].地球信息科学学报, 2013,15(2):280-288.
[7]	Waluda C M, Griffiths H J, Rodhouse P G.Remotely sensed spatial dynamics of the Illex argentinus fishery, Southwest Atlantic[J]. Fisheries Research, 2008,91(2-3):196-202.
[8]	Li X, Wang C, Zhang G, et al.Urbanisation and human health in China: Spatial features and a systemic perspective[J]. Environmental science and pollution research international, 2012,19(5):1375-1384.
[9]	Amaral S, Câmara G, Monteiro A M W, et al. Estimating population and energy consumption in Brazilian Amazonia using DMSP night-time satellite data[J]. Computers, Environment and Urban Systems, 2005,29(2):179-195.
[10]	Cao X, Wang J M, Chen J, et al.Spatialization of electricity consumption of China using saturation-corrected DMSP-OLS data[J]. International Journal of Applied Earth Observation and Geoinformation, 2014,28:193-200.
[11]	何春阳, 史培军, 李景刚, 等.基于DMSP/OLS夜间灯光数据和统计数据的中国大陆20世纪90年代城市化空间过程重建研究[J].科学通报, 2006,51(7):856-861.
[12]	王翠平, 王豪伟, 李春明, 等.基于DMSP/OLS影像的我国主要城市群空间扩张特征分析[J].生态学报, 2012,32(3):942-954.
[13]	Milesi C, Elvidge C D, Nemani R R, et al.Assessing the impact of urban land development on net primary productivity in the southeastern United States[J]. Remote Sensing of Environment, 2003,86(3):401-410.
[14]	舒松, 余柏蒗, 吴健平, 等.基于夜间灯光数据的城市建成区提取方法评价与应用[J].遥感技术与应用, 2011,26(2):169-176.
[15]	游松财, 孙朝阳.中国区域SRTM 90 m数字高程数据空值区域的填补方法比较[J].地理科学进展, 2005,24(6):88-93.
[16]	Haggett P, Cliff A D, Allan E, et al.Locational analysis in human geography[M]. London: Arnold,1977.
[17]	Elvidge C D, Baugh K E, Dietz J B, et al.Radiance calibration of DMSP-OLS low-light imaging data of human settlements[J]. Remote Sensing of Environment, 1999,68(1):77-88.
[18]	Elvidge C D, Ziskin D, Baugh K E, et al.A fifteen year record of global natural gas flaring derived from satellite data[J]. Energies, 2009,2(3):595-622.
[19]	Liu Z, He C, Zhang Q, et al.Extracting the dynamics of urban expansion in China using DMSP-OLS nighttime light data from 1992 to 2008[J]. Landscape and Urban Planning, 2012,106(1):62-72.
[20]	Elvidge C D, Baugh K E, Kihn E A, et al.Relation between satellite observed visible-near infrared emissions, population, economic activity and electric power consumption[J]. International Journal of Remote Sensing, 1997,18(6):1373-1379.
[21]	Sutton P, Roberts D, Elvidge C, et al.A comparison of nighttime satellite imagery and population density for the continental united states[J]. Photogrammetric Engineering and Remote Sensing, 1997,63(11):1303-1313.
[22]	Henderson M, Yeh E T, Gong P, et al.Validation of urban boundaries derived from global night-time satellite imagery[J]. Remote sensing, 2003,24(3):595-609.
[23]	中华人民共和国住房和城乡建设部.城市用地竖向规划规范[S].CJJ83-99, 北京:中国建筑工业出版社, 1999.
[24]	国家统计局城市社会经济调查司.中国城市统计年鉴[M]. 北京:中国统计出版社, 2007-2012.

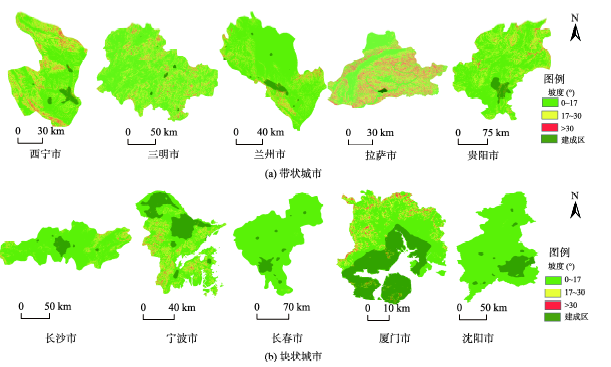

城市分类	周围坡度	形状率
块状城市	<17°	>0.5
带状城市	>17°	<0.5

		统计数据面积（km²）	提取面积（km²）	相对误差（%）
块状城市	宁波	285	293	3
	厦门	246	261	6
	沈阳	430	438	2
	长春	418	445	6
	长沙	306	324	5
带状城市	三明	29	28	-3
	贵阳	162	174	7
	兰州	197	201	2
	拉萨	62	66	6
	西宁	75	71	-5
