地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (11): 2086-2095.doi: 10.12082/dqxxkx.2021.210103
• 遥感科学与应用技术 • 上一篇
陆大进1(), 黎东1,2,*(
), 朱笑笑2, 聂胜2, 周国清3, 张兴忆1, 杨超1
收稿日期:
2021-03-03
修回日期:
2021-05-31
出版日期:
2021-11-25
发布日期:
2022-01-25
通讯作者:
*黎东(1981— ),男,湖北宜昌人,博士,高级工程师,主要从事激光雷达数据处理与应用研究。 E-mail: lidong@aircas.ac.cn作者简介:
陆大进(1997— ),男,云南宣威人,硕士生,主要从事激光雷达数据处理与林业应用。E-mail: 2650571428@qq.com
基金资助:
LU Dajin1(), LI Dong1,2,*(
), ZHU Xiaoxiao2, NIE Sheng2, ZHOU Guoqing3, ZHANG Xingyi1, YANG Chao1
Received:
2021-03-03
Revised:
2021-05-31
Online:
2021-11-25
Published:
2022-01-25
Contact:
*LI Dong, E-mail: lidong@aircas.ac.cnSupported by:
摘要:

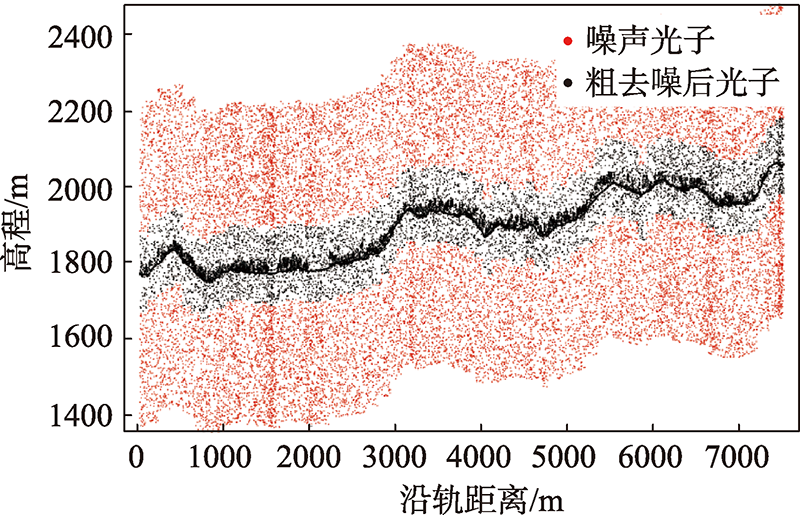

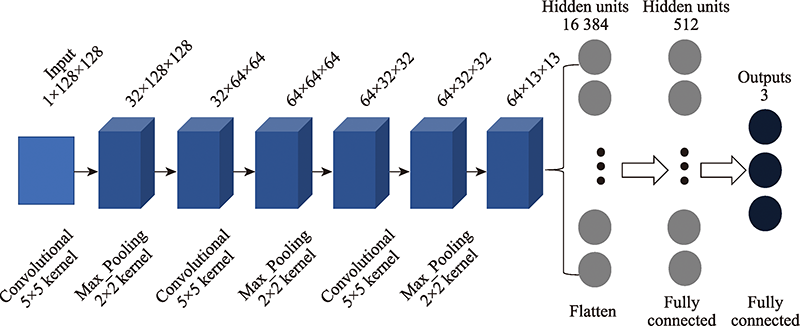

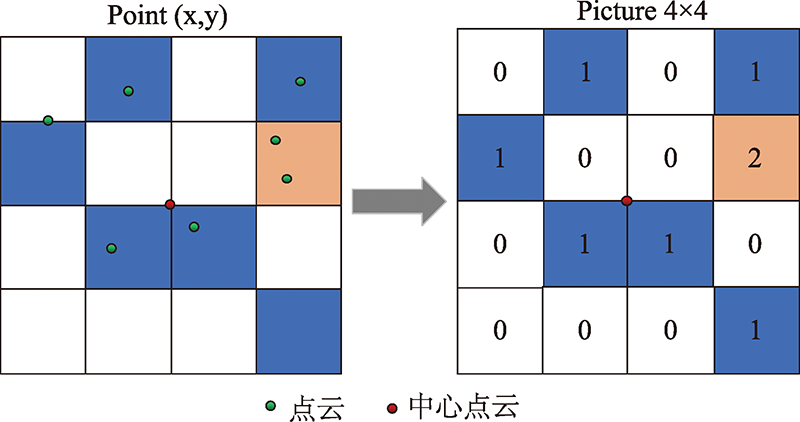

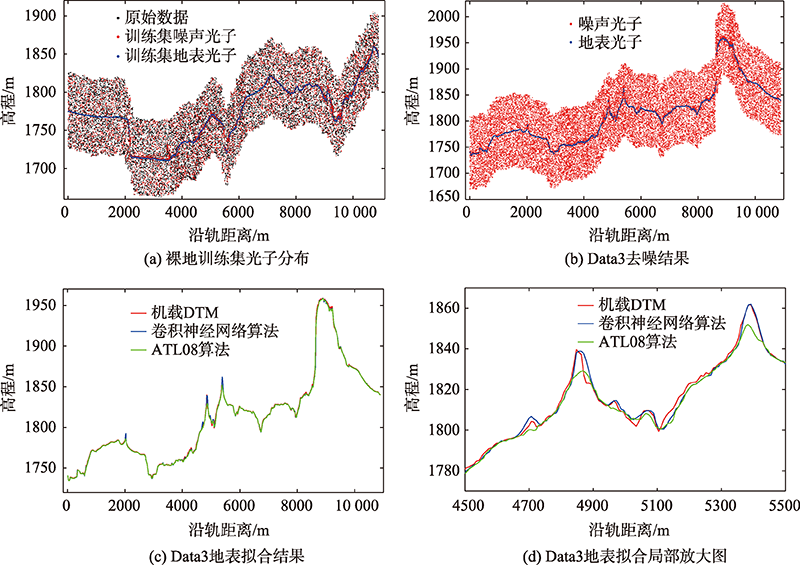

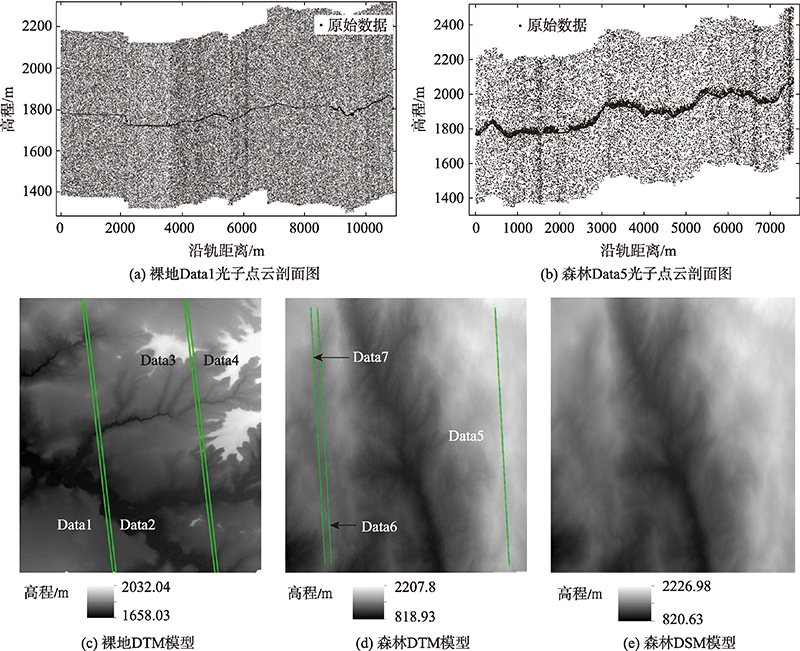

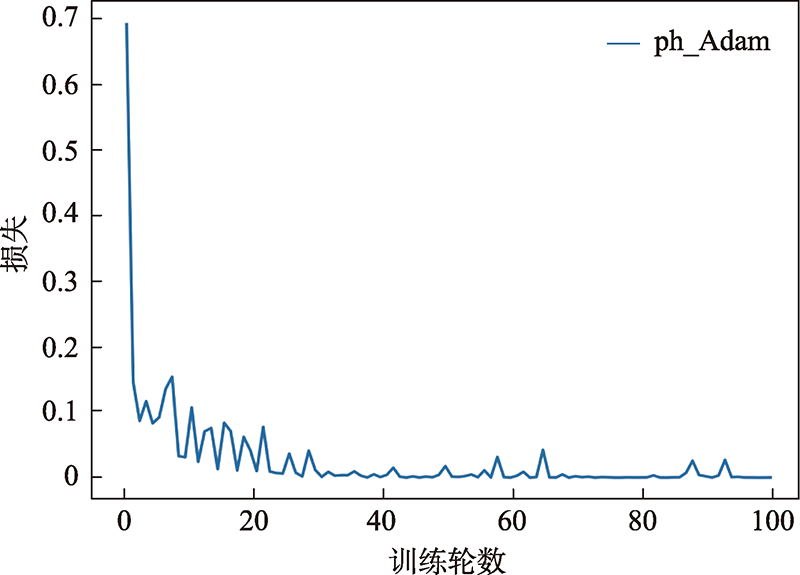

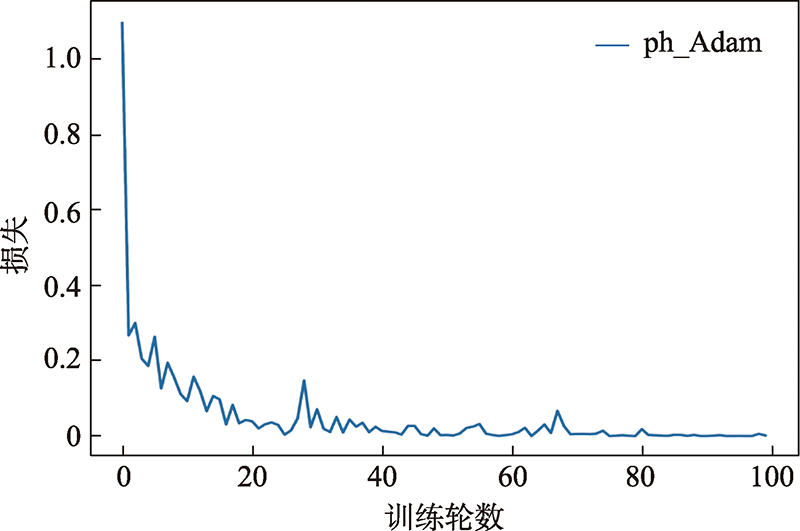

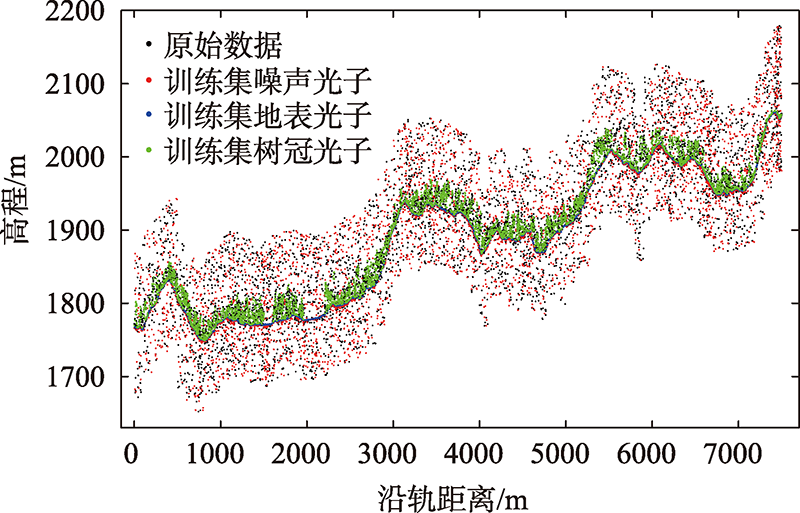

ICESat-2(Ice, Cloud, and land Elevation Satellite-2)是美国NASA(National Aeronautics and Space Administration)在2018年发射的激光测高卫星,其上搭载的激光测高系统ATLAS(Advanced Topographic Laser Altimeter System)采用微脉冲多波束光子计数激光雷达系统,因其低能耗、高探测灵敏度、高重复频率的特性极大改善了沿轨采样密度,但也使获取的数据中包含大量的噪声,如何有效实现光子点云去噪分类成为后续应用的关键,也是当前研究的热点和难点,为此本文提出一种基于卷积神经网络的光子点云去噪和分类算法。首先将光子点云按照沿轨和高程方向划分格网,去除明显的噪声光子,并将每个粗信号光子点栅格化为影像;然后基于少量样本构建的卷积神经网络分类模型实现光子点云精去噪和分类;最后利用机载激光雷达数据进行验证,并与ATL08产品的去噪分类结果进行对比。结果表明,对于裸地和森林区域,卷积神经网络算法均能有效去除噪声光子,特别对于森林区域,可同时实现去噪和分类;其中,裸地区域地表计算的R2和RMSE分别为1.0和0.72 m,森林区域地表和树冠计算的R2分别为1.0和0.70, RMSE分别为1.11 m和4.99 m。本文利用深度学习算法实现光子点云去噪分类,在裸地和森林区域均取得了较好的结果,为后续光子点云数据处理提供了参考。
陆大进, 黎东, 朱笑笑, 聂胜, 周国清, 张兴忆, 杨超. 基于卷积神经网络的ICESat-2光子点云去噪分类[J]. 地球信息科学学报, 2021, 23(11): 2086-2095.DOI:10.12082/dqxxkx.2021.210103
LU Dajin, LI Dong, ZHU Xiaoxiao, NIE Sheng, ZHOU Guoqing, ZHANG Xingyi, YANG Chao. Denoising and Classification of ICESat-2 Photon Point Cloud based on Convolutional Neural Network[J]. Journal of Geo-information Science, 2021, 23(11): 2086-2095.DOI:10.12082/dqxxkx.2021.210103

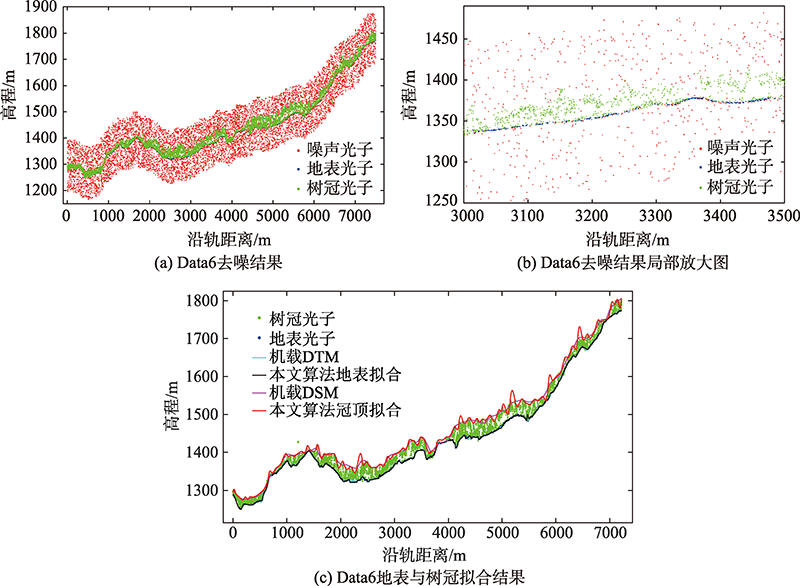

表2
森林去噪分类结果对比
数据集 | 地表 | 树冠 | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
卷积神经网络算法 | ATL08 | 卷积神经网络算法 | ATL08 | ||||||||||
R2 | MAE/m | RMSE/m | R2 | MAE/m | RMSE/m | R2 | MAE/m | RMSE/m | R2 | MAE/m | RMSE/m | ||
Data5 | 0.99 | 0.65 | 0.72 | 0.99 | 0.72 | 0.86 | 0.74 | 4.45 | 4.78 | 0.53 | 5.08 | 5.30 | |
Data6 | 0.99 | 0.94 | 1.22 | 0.99 | 1.05 | 1.35 | 0.65 | 4.89 | 5.21 | 0.43 | 5.87 | 6.31 | |
Data7 | 0.99 | 0.98 | 1.39 | 0.99 | 1.07 | 1.49 | 0.70 | 4.73 | 4.97 | 0.58 | 6.11 | 6.43 |
[1] | 方勇, 曹彬才, 高力, 等. 激光雷达测绘卫星发展及应用[J]. 红外与激光工程, 2020, 49(11):19-27. |
[ Fang Y, Cao B C, Gao L, et al. Development and application of lidar mapping satellite[J]. Infrared and Laser Engineering, 2020, 49(11):19-27. ] | |
[2] | 庞勇, 李增元, 陈博伟, 等. 星载激光雷达森林探测进展及趋势[J]. 上海航天, 2019, 36(3):20-28. |
[ Pang Y, Li Z Y, Chen B W, et al. Status and development of spaceborne lidar applications in forestry[J]. Aerospace Shanghai, 2019, 36(3):20-28. ] | |
[3] | 岳春宇, 郑永超, 邢艳秋, 等. 星载激光遥感林业应用发展研究[J]. 红外与激光工程, 2020, 49(11):97-106. |
[ Yue C Y, Zheng Y C, Xing Y Q, et al. Technical and application development study of space-borne LiDAR in forestry remote sensing[J]. Infrared and Laser Engineering, 2020, 49(11):97-106. ] | |
[4] | 朱笑笑, 王成, 习晓环, 等. ICESat-2星载光子计数激光雷达数据处理与应用研究进展[J]. 红外与激光工程, 2020, 49(11):68-77. |
[ Zhu X X, Wang C, Xi X H, et al. Research progress of ICESat-2/ATLAS data processing and applications[J]. Infrared and Laser Engineering, 2020, 49(11):68-77. ] | |
[5] |
Xing Y Q, Huang J P, Gruen A, et al. Assessing the performance of ICESat-2/ATLAS multi-channel photon data for estimating ground topography in forested terrain[J]. Remote Sensing, 2020, 12(13):2084.
doi: 10.3390/rs12132084 |
[6] | 么嘉棋, 唐新明, 李国元, 等. 激光测高卫星ICESat-2云检测及其相关算法[J]. 激光与光电子学进展, 2020, 57(13):131408. |
[ Yao J Q, Tang X M, Li G Y, et al. Cloud detection of laser altimetry satellite ICESat-2 and the related algorithm[J]. Laser & Optoelectronics Progress, 2020, 57(13):131408. ] | |
[7] |
Narine L L, Popescu S C, Malambo L. Using ICESat-2 to estimate and map forest aboveground biomass: A first example[J]. Remote Sensing, 2020, 12(11):1824.
doi: 10.3390/rs12111824 |
[8] |
Neuenschwander A, Pitts K. The ATL08 land and vegetation product for the ICESat-2 Mission[J]. Remote Sensing of Environment, 2019, 221:247-259.
doi: 10.1016/j.rse.2018.11.005 |
[9] |
Markus T, Neumann T, Martino A, et al. The Ice, Cloud, and land Elevation Satellite-2 (ICESat-2): Science requirements, concept, and implementation[J]. Remote Sensing of Environment, 2017, 190:260-273.
doi: 10.1016/j.rse.2016.12.029 |
[10] | 杨帆, 温家洪. ICESat与ICESat-2应用进展与展望[J]. 极地研究, 2011, 23(2):138-148. |
[ Yang F, Wen J H. Icesat and icesat-2 applications: Progress and prospect[J]. Chinese Journal of Polar Research, 2011, 23(2):138-148. ] | |
[11] |
Parrish C E, Magruder L A, Neuenschwander A L, et al. Validation of ICESat-2 ATLAS bathymetry and analysis of ATLAS's bathymetric mapping performance[J]. Remote Sensing, 2019, 11(14):1634.
doi: 10.3390/rs11141634 |
[12] | 夏少波, 王成, 习晓环, 等. ICESat-2机载试验点云滤波及植被高度反演[J]. 遥感学报, 2014, 18(6):1199-1207. |
[ Xia S B, Wang C, Xi X H, et al. Point cloud filtering and tree height estimation using airborne experiment data of ICESat-2[J]. Journal of Remote Sensing, 2014, 18(6):1199-1207. ] | |
[13] | 曹彬才, 方勇, 江振治, 等. ICESat-2 ATL08去噪算法实现及精度评价[J]. 测绘通报, 2020(5):25-30. |
[ Cao B C, Fang Y, Jiang Z Z, et al. Implementation and accuracy evaluation of ICESat-2 ATL08 denoising algorithms[J]. Bulletin of Surveying and Mapping, 2020(5):25-30. ] | |
[14] |
Zhu X X, Nie S, Wang C, et al. A ground elevation and vegetation height retrieval algorithm using micro-pulse photon-counting lidar data[J]. Remote Sensing, 2018, 10(12):1962.
doi: 10.3390/rs10121962 |
[15] |
陈博伟, 庞勇, 李增元, 等. 基于随机森林的光子计数激光雷达点云滤波[J]. 地球信息科学学报, 2019, 21(6):898-906.
doi: 10.12082/dqxxkx.2019.190013 |
[ Chen B W, Pang Y, Li Z Y, et al. Photon-counting LiDAR point cloud data filtering based on the random forest algorithm[J]. Journal of Geo-information Science, 2019, 21(6):898-906. ] | |
[16] | Awadallah M, Ghannam S, Abbott A L, et al. Active contour models for extracting ground and forest canopy curves from discrete laser altimeter data[C]. Proceedings: 13th International Conference on LiDAR Applications for Assessing Forest Ecosystems, 2013:129-136. |
[17] |
Nie S, Wang C, Xi X H, et al. Estimating the vegetation canopy height using micro-pulse photon-counting LiDAR data[J]. Optics Express, 2018, 26(10):A520-A540.
doi: 10.1364/OE.26.00A520 |
[18] |
Wang X A, Pan Z G, Glennie C. A novel noise filtering model for photon-counting laser altimeter data[J]. IEEE Geoscience and Remote Sensing Letters, 2016, 13(7):947-951.
doi: 10.1109/LGRS.2016.2555308 |
[19] |
Zhang J S, Kerekes J. An adaptive density-based model for extracting surface returns from photon-counting laser altimeter data[J]. IEEE Geoscience and Remote Sensing Letters, 2015, 12(4):726-730.
doi: 10.1109/LGRS.2014.2360367 |
[20] |
Zhu X, Nie S, Wang C, et al. A noise removal algorithm based on OPTICS for photon-counting LiDAR data[J]. IEEE Geoscience and Remote Sensing Letters, 2020, 2:1-5.
doi: 10.1109/LGRS.2004.842399 |
[21] |
Chen B W, Pang Y, Li Z Y, et al. Ground and top of canopy extraction from photon-counting LiDAR data using local outlier factor with ellipse searching area[J]. IEEE Geoscience and Remote Sensing Letters, 2019, 16(9):1447-1451.
doi: 10.1109/LGRS.8859 |
[22] |
Neuenschwander A, Guenther E, White J C, et al. Validation of ICESat-2 terrain and canopy heights in boreal forests[J]. Remote Sensing of Environment, 2020, 251:112110.
doi: 10.1016/j.rse.2020.112110 |
[23] |
Chatterjee A. Soil carbon pools of six ecological regions of the United States[J]. Journal of Forestry Research, 2020, 31(5):1933-1938.
doi: 10.1007/s11676-019-00976-z |
[24] |
Popescu S C, Zhou T, Nelson R, et al. Photon counting LiDAR: An adaptive ground and canopy height retrieval algorithm for ICESat-2 data[J]. Remote Sensing of Environment, 2018, 208:154-170.
doi: 10.1016/j.rse.2018.02.019 |
[25] | 李彦冬, 郝宗波, 雷航. 卷积神经网络研究综述[J]. 计算机应用, 2016, 36(9):2508-2515,2565. |
[ Li Y D, Hao Z B, Lei H. Survey of convolutional neural network[J]. Journal of Computer Applications, 2016, 36(9):2508-2515,2565. ] | |
[26] | 周飞燕, 金林鹏, 董军. 卷积神经网络研究综述[J]. 计算机学报, 2017, 40(6):1229-1251. |
[ Zhou F Y, Jin L P, Dong J. Review of convolutional neural network[J]. Chinese Journal of Computers, 2017, 40(6):1229-1251. ] |
