地球信息科学学报 ›› 2019, Vol. 21 ›› Issue (12): 1911-1822.doi: 10.12082/dqxxkx.2019.190175
收稿日期:
2019-04-16
修回日期:
2019-09-09
出版日期:
2019-12-25
发布日期:
2019-12-25
作者简介:
宫 萌(1995-),女,山东威海人,硕士生,研究方向为海岸带资源开发与规划管理。E-mail: mgong@yic.ac.cn
基金资助:
GONG Meng1,2, WU Xiaoqing1,3,*(), YU Lu4
Received:
2019-04-16
Revised:
2019-09-09
Online:
2019-12-25
Published:
2019-12-25
Contact:
WU Xiaoqing
Supported by:
摘要:

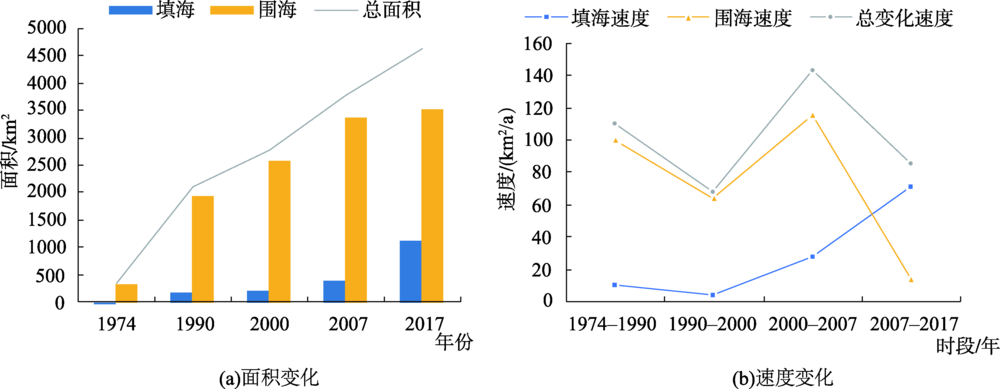

围填海是沿海地区解决土地资源短缺的重要手段,及时准确地监测地区围填海时空动态变化对于合理保护海岸带资源和推进地区社会经济可持续发展具有重要意义。本文基于遥感、GIS技术,结合多种数据源,提取并分析1974-2017年山东省大陆海岸围填海时空动态变化特征。结果表明,43年来山东省大陆海岸围填海面积持续增长,到2017年总面积达到4649.26 km 2,围海为主要利用方式。围海活动多分布于黄河三角洲及莱州湾滩涂海域,填海活动则集中分布于沿海各大港口海域和城市滨海区域。全省围填海呈现出明显的阶段性特征,特别是2000年后,填海造地面积增加迅速,围海利用向填海造地转换现象突出,主要用于港口及临港产业发展和城镇与旅游基础设施建设,受沿海地区发展战略和城镇化、工业化驱动明显,围填海利用向综合化、多元化和集中集约化发展。
宫萌, 吴晓青, 于璐. 1974-2017年山东省大陆海岸围填海动态变化分析[J]. 地球信息科学学报, 2019, 21(12): 1911-1822.DOI:10.12082/dqxxkx.2019.190175
GONG Meng, WU Xiaoqing, YU Lu. Reclamation Dynamics Along the Mainland Coast of Shandong Province during 1974-2017[J]. Journal of Geo-information Science, 2019, 21(12): 1911-1822.DOI:10.12082/dqxxkx.2019.190175
表1
围填海利用类型分类及其内涵
分类 | 说明 |
---|---|
围海养殖 盐业 渔业基础设施 港口建设 临海工业 城镇建设 旅游基础设施 其他类型 已填待利用 已围待利用 | 指筑堤围割海域进行封闭或半封闭式养殖生产的围海 指用于盐业生产的围填海,包括盐田、盐场等 指用于渔船停靠、进行装卸作业和避风,以及用以繁殖重要苗种的围填海 指供船舶停靠、装卸作业、避风和调动等所使用的围填海,如开敞式的货运和客运码头 指用于开展工业生产所使用的围填海,包括船舶工业、电力工业等 指通过筑堤围割海域,填成土地后用于城镇(含工业园区、公园等)建设的围填海 指为满足娱乐活动需要而建设的配套工程设施所使用的围填海 指用于其他用途的围填海,包括海岸防护工程、水库等 指正在建设或已填未开发利用的填海活动 指正在建设或已围未开发利用的围海活动 |
[1] |
Chen W G, Wang D C, Huang Y , et al. Monitoring and analysis of coastal reclamation from 1995-2015 in Tianjin Binhai New Area, China[J]. Scientific Reports, 2017,7(3805):1-12.
doi: 10.1038/s41598-017-04008-w pmid: 28630478 |
[2] | 徐谅慧, 杨磊, 李佳林 , 等. 1990-2010年浙江省围填海空间格局分析[J]. 海洋通报, 2015,34(6):688-694. |
[ Xu L H, Yang L, Li J L , et al. Analysis of the spatial pattern of reclamation in Zhejiang province during 1990-2010[J]. Marine Science Bulletin, 2015,34(6):688-694. ] | |
[3] |
柯丽娜, 曹君, 武红庆 , 等. 基于多源遥感影像的锦州湾附近海域围填海动态演变分析[J]. 资源科学, 2018,40(8):1645-1657.
doi: 10.18402/resci.2018.08.14 |
[ Ke L N, Cao J, Wu H Q , et al. Dynamic evolution analysis of reclamation in Jinzhou Bay based on multi source remote sensing images[J]. Resources Science, 2018,40(8):1645-1657. ]
doi: 10.18402/resci.2018.08.14 |
|
[4] | 雷宁, 胡小颖, 周兴华 . 胶州湾围填海的演进过程及其生态环境影响分析[J]. 海洋环境科学, 2013,32(4):506-509. |
[ Lei N, Hu X Y, Zhou X H . Evolution process and ecological effect analysis of reclamation in Jiaozhou Bay[J]. Marine Environmental Science, 2013,32(4):506-509. ] | |
[5] | 王伟伟, 王鹏, 郑倩 , 等. 辽宁省围填海海洋开发活动对海岸带生态环境的影响[J]. 海洋环境科学, 2010,29(6):927-929. |
[ Wang W W, Wang P, Zheng Q , et al. Effect of reclamation activities on coastal ecologic environment in Liaoning province[J]. Marine Environmental Science, 2010,29(6):927-929. ] | |
[6] | 刘述锡, 马玉艳, 卞正和 . 围填海生态环境效应评价方法研究[J]. 海洋通报, 2010,29(6):707-711. |
[ Liu S X, Ma Y J, Bian Z H . Study on assessment method of the eco-environmental effects of sea reclamation[J]. Marine Science Bulletin, 2010,29(6):707-711. ] | |
[7] | 鞠明明, 汪闽, 张东 , 等. 基于面向对象图像分析技术的围填海用海工程遥感检测[J]. 海洋通报, 2013,32(6):678-684. |
[ Ju M M, Wang M, Zhang D , et al. Study on the remote-sensing-based monitoring of reclamation project area by using the object-oriented image analysis technique[J]. Marine Science Bulletin, 2018,32(6):678-684. ] | |
[8] |
温礼, 吴海平, 姜方方 , 等. 基于高分辨率遥感影像的围填海图斑监测分类体系和解译标志的建立[J]. 国土资源遥感, 2016,28(1):172-177.
doi: 10.6046/gtzyyg.2016.01.25 |
[ Wen L, Wu H P, Jiang F F , et al. Establishment of remote sensing monitoring classification system and interpretation criteria for the reclamation area based on the high- resolution remote sensing image[J]. Remote Sensing for Land & Resources, 2016,28(1):172-177. ]
doi: 10.6046/gtzyyg.2016.01.25 |
|
[9] | 温礼, 吴海平, 姜方方 , 等. 高分遥感影像的围填海变化图斑自动提取方法[J]. 测绘科学, 2015,41(6):42-45,76. |
[ Wen L, Wu H P, Jiang F F , et al. Automatic extraction method of coastal reclamation area using high resolution remote sensing images[J]. Science of Surveying and Mapping, 2015,41(6):42-45,47. ] | |
[10] | 朱丽丽, 邵峰晶, 王常颖 , 等. 基于数据挖掘的遥感影像围填海智能检测方法研究[J]. 青岛大学学报(自然科学版), 2012,25(2):53-57,66. |
[ Zhu L L, Shao F J, Wang C Y , et al. The sea-filling land detect method research using remte sensing images based on data mining[J]. Journal of Qingdao University(Natural Science Edition), 2012,25(2):53-57,66. ] | |
[11] | 李治, 杜云艳, 杨晓梅 , 等. 海岸工程变化的BJ-1遥感监测分析[J]. 地球信息科学报, 2012,14(4):540-547. |
[ Li Z, Du Y Y, Yang X M , et al. The comparative study of the change detection in coastal engineering using BJ-1 small satellite remote sensing data[J]. Journal of Geo-information Science, 2012,14(4):540-547. ] | |
[12] | 陈凤桂, 吴耀建, 陈斯婷 . 福建省围填海发展趋势及驱动机制研究[J]. 中国土地科学, 2012,26(5):23-29. |
[ Chen F G, Wu Y J, Chen S T . Trends of land reclamation from sea and its driving mechanism in Fujian province[J]. China Land Sciences, 2012,26(5):23-29. ] | |
[13] | 黄杰, 索安宁, 孙家文 , 等. 中国大规模围填海造地的驱动机制及需求预测模型[J]. 大连海事大学学报( 社会科学版), 2016,15(2):13-18. |
[ Huang J, Suo A N, Sun J W , et al. Driving mechanism and demand forecasting model of large-scale reclamation in China[J]. Journal of Dalian Maritime University (Social Sciences Edition), 2016,15(2):13-18. ] | |
[14] | 宋红丽, 刘兴土 . 围填海活动对我国河口三角洲湿地的影响[J]. 湿地科学, 2013,11(2):297-304. |
[ Song H L, Sun X T . Effect of reclamation activities on wetlands in Estuarine Delta in China[J]. Wetland Science, 2013,11(2):297-304. ] | |
[15] | 马田田, 梁晨, 李晓文 , 等. 围填海活动对中国滨海湿地影响的定量评估[J]. 湿地科学, 2015,13(6):653-659. |
[ Ma T J, Liang C, Li X W , et al. Quantitative assessment of impacts of reclamation activities on coastal wetlands in China[J]. Wetland Science, 2015,13(6):653-659. ] | |
[16] | 张雨 . 中国沿海围填海管控分区方案研究[D]. 天津:天津师范大学, 2017. |
[ Zhang Y . Study zone on planing on China's coastal reclamation management[D]. Tianjin: Tianjin Normal University, 2017. ] | |
[17] | 陈甫源, 王琪, 曾剑 , 等. 浙江省海岸线分类保护与围填海分类管理[J]. 海洋开发与管理, 2018,35(6):62-65,70. |
[ Chen F Y, Wang Q, Zeng J , et al. Classification protection of coastline and classification management of reclamation in Zhejiang province[J]. Ocean Development and Management, 2018,35(6):62-65,70. ] | |
[18] | 黄发明, 于东升, 王初升 . 海湾围填海强度指数的应用[J]. 亚热带资源与环境学报, 2013,8(3):10-14. |
[ Huang F M, Yu D S, Wang C S . Applications of reclamation intensity index to sea reclamation in Gulf Area[J]. Journal of Subtropical Resources and Environment, 2013,8(3):10-14. ] | |
[19] | 安国强 . 基于多源数据的山东省围填海造地特点及发展趋势研究[J]. 海洋开发与管理, 2018,3(3):15-20. |
[ An G Q . Charactertics, tendency and recommendations of sea reclamation in Shandong province based on multi-resource data[J]. Ocean Development and Management, 2018,3(3):15-20. ] | |
[20] | 靳宇弯, 杨薇, 孙涛 , 等. 围填海活动对黄河三角洲滨海湿地生态系统的影响评估[J]. 湿地科学, 2015,13(6):682-689. |
[ Jin Y W, Yang W, Sun T , et al. Assessment of ecological impact of seashore reclamation activities on coastal wetland ecosystems in the Yellow River Delta[J]. Wetland Science, 2015,13(6):682-689. ] | |
[21] | 田艳, 于定勇, 李云路 . 莱州湾围填海工程对海洋环境的累积影响研究[J]. 中国海洋大学学报, 2018,48(1):117-124. |
[ Tian Y, Yu D Y, Li Y L . Research on the accumulation of marine environment in Laizhou Bay[J]. Periodical of Ocean University of China, 2018,48(1):117-124. ] | |
[22] |
Yang W, Li X X, Jin Y W , et al. The impact of multiple seashore reclamation activities on vegetation cover in the Yellow River Delta, China: Implications based on structural equation modeling[J]. Journal of Coastal Conservation, 2018,22(2):283-292.
doi: 10.1007/s11852-017-0575-8 |
[23] | HY/T 123-2009 海域使用分类[S]. 北京: 标准出版社, 2009. |
[ HY/T 123-2009 Sea area use classification[S]. Beijing: Standards Press of China, 2009. ] | |
[24] | GB/T 21010-2017 土地利用现状分类[S]. 北京: 标准出版社, 2007. |
[ GB/T21010-2017 Current land use condition classification[S]. Beijing: Standards Press of China, 2007. ] | |
[25] |
柯丽娜, 庞琳, 王权明 , 等. 围填海景观格局演变及存量资源分析——以大连长兴岛附近海域为例[J]. 生态学报, 2018,38(15):5498-5508.
doi: 10.5846/stxb201803220567 |
[ Ke L N, Pang L, Wang Q M , et al. Analysis of changes in landscape patterns and stock resources resulting from sea reclamation: A case study of the waters off Changxing Island[J]. Acta Ecologica Sinica, 2018,38(15):5498-5508. ]
doi: 10.5846/stxb201803220567 |
|
[26] | 刘敬财, 周宝同, 赵昆昆 , 等. 基于信息熵的土地利用结构变化影响因素分析——以重庆市丰都县为例[J]. 中国农学通报, 2011,27(32):221-225. |
[ Liu J C, Zhou B T, Zhao K K , et al. The analysis on influence factors of land use structure change based on information entropy: A case study of Fengdu county, Chongqing city[J]. Chinese Agricultural Science Bulletin, 2011,27(32):221-225. ] | |
[27] | 王德智, 邱彭华, 方源敏 , 等. 海口市海岸带土地利用时空格局变化分析[J]. 地球信息科学报, 2014,16(6):933-940. |
[ Wang D Z, Qiu P H, Fang Y M , et al. Research on spatial-temporal changes of land use in Haikou city's coastal zone[J]. Journal of Geo-information Science, 2014,16(6):933-940. ] | |
[28] | 柯丽娜, 董颖娜, 庞琳 , 等. 1995-2015年锦州湾海域围填海空间格局变化分析[J]. 海洋环境科学, 2018,37(3):389-395. |
[ KE L N, DONG Y N, PANG L , et al. Variation of spatial pattern of the reclamation area in Jinzhou Bay from 1995 to 2015[J]. Marine Environmental Science, 2018,37(3):389-395. ] | |
[29] | 黄鹄, 戴志军, 胡自宁 , 等. 广西海岸环境脆弱性研究[M]. 北京: 海洋出版社, 2005. |
[ Huang H, Dai Z J, Hu Z N , et al. Study on the coastal environment vulnerability in Guangxi[M]. Beijing: China Ocean Press, 2005. ] | |
[30] | 张翠萍, 谢健, 娄全胜 , 等. 广东省填海造地的发展经验及对策研究[J]. 海洋环境科学, 2013,32(2):311-315. |
[ Zhang C P, Xie J, Lou S Q , et al. Study on experience and countermeasures of fill up sea and build land in Guangdong[J]. Marine Environmental Science, 2013,32(2):311-315. ] | |
[31] | 谢丽, 王芳, 刘慧 . 广东省围填海历程及其环境影响研究[J]. 江苏科技信息, 2015(24):67-70. |
[ Xie L, Wang F, Liu H . Study on the process of the sea reclamation and its environmental impact in Guangdong province[J]. Jiangsu Science & Technology Information, 2015(24):67-70. ] | |
[32] | 付元宾, 曹可, 王飞 , 等. 围填海强度与潜力定量评价方法初探[J]. 海洋开发与管理, 2010,27(1):27-30. |
[ Fu Y B, Cao K, Wang F , et al. Preliminary study on quantitative evaluation method of reclamation strength and potential[J]. Ocean Development and Management, 2010,27(1):27-30. ] | |
[33] | 马万栋, 吴传庆, 殷守敬 , 等. 辽宁省岸线及围填海变化分析[J]. 环境与可持续发展, 2014,39(6):54-57. |
[ Ma W D, Wu C Q, Yin S J , et al. Analysis on change of coastline and reclamation in Liaoning province[J]. Environment and Sustainable Development, 2014,39(6):54-57. ] |
