地球信息科学学报 ›› 2019, Vol. 21 ›› Issue (10): 1629-1641.doi: 10.12082/dqxxkx.2019.190183
收稿日期:
2019-04-22
修回日期:
2019-07-04
出版日期:
2019-10-25
发布日期:
2019-10-29
作者简介:
边增淦(1995-),男,山东淄博人,硕士生,研究方向为水文遥感。E-mail: zengganbian@163.com
基金资助:
BIAN Zenggan,WANG Wen(),JIANG Yuan
Received:
2019-04-22
Revised:
2019-07-04
Online:
2019-10-25
Published:
2019-10-29
Contact:
WANG Wen
Supported by:
摘要:

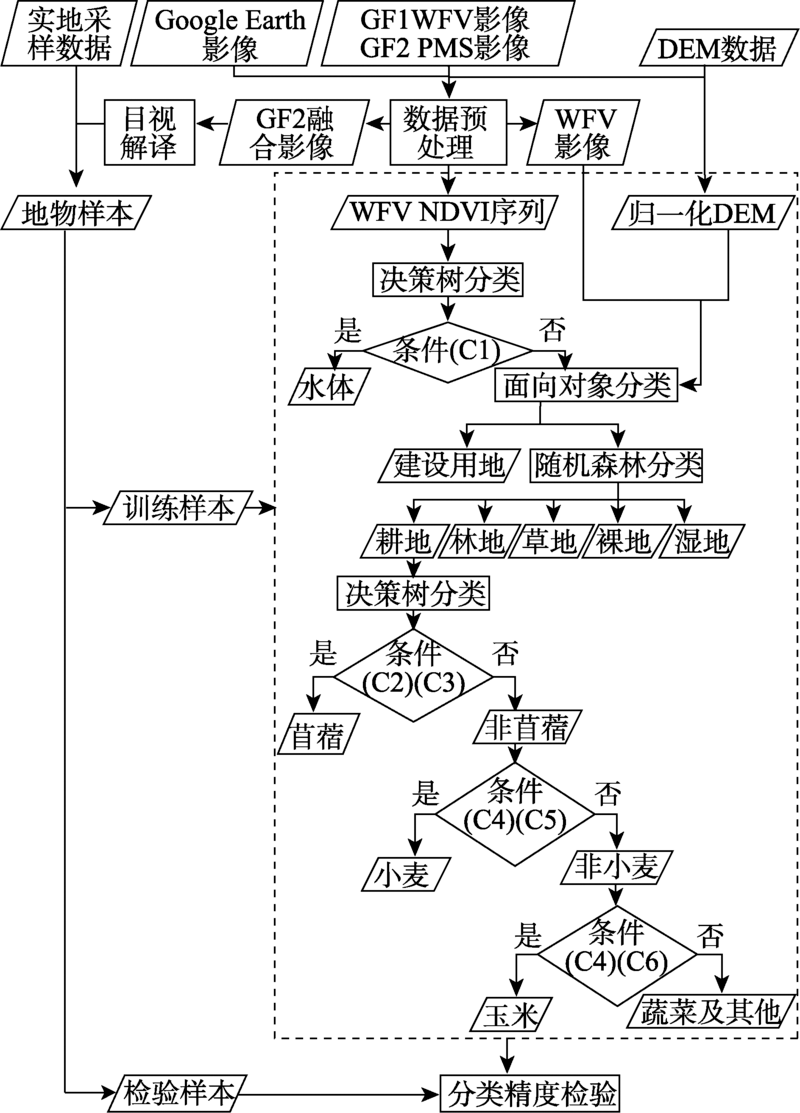

及时、准确地获取农作物种植结构对区域水资源管理与作物产量估测等具有重要意义。随着对通过遥感手段获得作物种植结构的深入研究,如何优选遥感数据和分类器成为需要重点考虑的关键问题。针对黑河流域中游地区的作物分布与种植特点,提出一种基于多时相遥感影像与多分类器组合的作物种植结构提取方法。利用2018年18景16 m分辨率的GF-1 WFV影像,构建NDVI时间序列。根据NDVI时间序列表征的作物季相节律和物候变化规律特点,采用分层的策略,首先解译一级土地覆被类型,再解译二级土地覆被类型。一级土地覆被类型解译中,使用决策树分类方法先将NDVI特殊且易提取的水体进行解译,再使用面向对象分类方法通过分区将需借助NDVI纹理信息提取的建设用地进行解译,最后使用随机森林分类方法解译耕地、林地、草地、裸地和湿地。在对耕地的进一步分类中,使用决策树分类方法首先将具有特殊物候规律且易于区分的苜蓿类别解译出来,再将与其他类别物候差异较大的小麦解译,最后将物候相似的玉米、蔬菜及其他解译。黑河流域中游研究区内一级土地覆被分类总体精度为97.24%,卡帕系数为0.96;作物种植结构解译总体精度为86.58%,卡帕系数为0.80。此外,还分析了影响黑河流域中游研究区解译精度的4个因素:对土地覆被类别的定义、混合像元、影像分割时基础影像的选择以及分类方法的选择。通过对不同分类方法的比较发现,与仅使用最大似然分类方法、支持向量机分类方法或随机森林分类方法相比,本文提出方法的解译结果更好,解译精度更高。
边增淦,王文,江渊. 黑河流域中游地区作物种植结构的遥感提取[J]. 地球信息科学学报, 2019, 21(10): 1629-1641.DOI:10.12082/dqxxkx.2019.190183
BIAN Zenggan,WANG Wen,JIANG Yuan. Remote Sensing of Cropping Structure in the Middle Reaches of the Heihe River Basin[J]. Journal of Geo-information Science, 2019, 21(10): 1629-1641.DOI:10.12082/dqxxkx.2019.190183

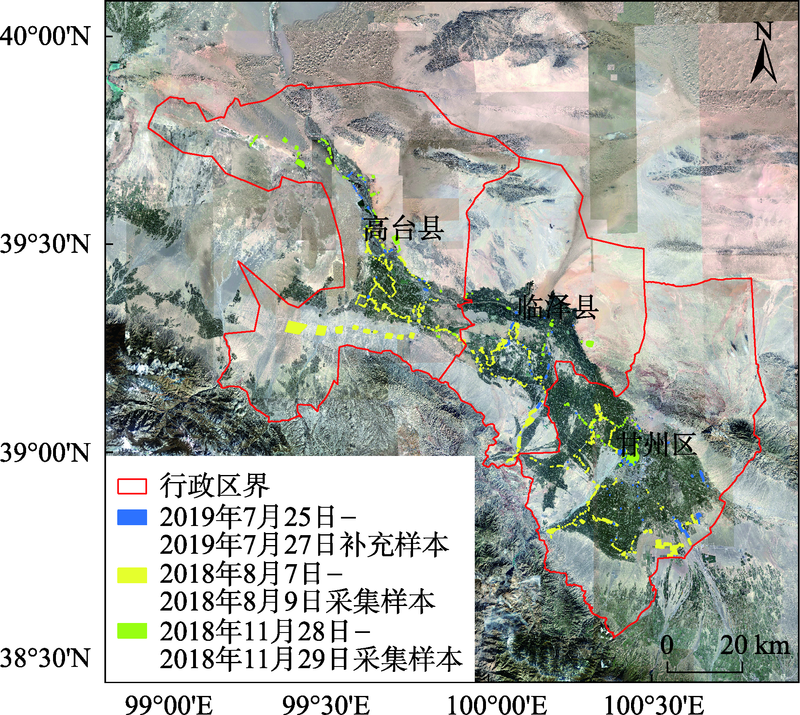

表1
覆盖黑河流域中游研究区的2018年GF-1 WFV影像数据列表
序号 | 采集日期 | 景数 | 传感器 |
---|---|---|---|
1 | 2018-01-08 | 4 | WFV3 WFV3 WFV4 WFV4 |
2 | 2018-02-26 | 2 | WFV3 WFV3 |
3 | 2018-03-06 | 2 | WFV2 WFV3 |
4 | 2018-04-15 | 2 | WFV1 WFV1 |
5 | 2018-05-03 | 2 | WFV4 WFV4 |
6 | 2018-05-14 | 2 | WFV1 WFV1 |
7 | 2018-05-27 | 2 | WFV2 WFV3 |
8 | 2018-06-08 | 2 | WFV1 WFV2 |
9 | 2018-06-21 | 4 | WFV3 WFV3 WFV4 WFV4 |
10 | 2018-07-15 | 1 | WFV2 |
11 | 2018-07-23 | 2 | WFV1 WFV2 |
12 | 2018-08-17 | 2 | WFV2 WFV4 |
13 | 2018-09-07 | 3 | WFV3 WFV3 WFV4 |
14 | 2018-09-19 | 1 | WFV3 |
15 | 2018-09-27 | 2 | WFV2 WFV3 |
16 | 2018-10-22 | 4 | WFV3 WFV3 WFV4 WFV4 |
17 | 2018-11-11 | 1 | WFV2 |
18 | 2018-12-01 | 2 | WFV1 WFV2 |

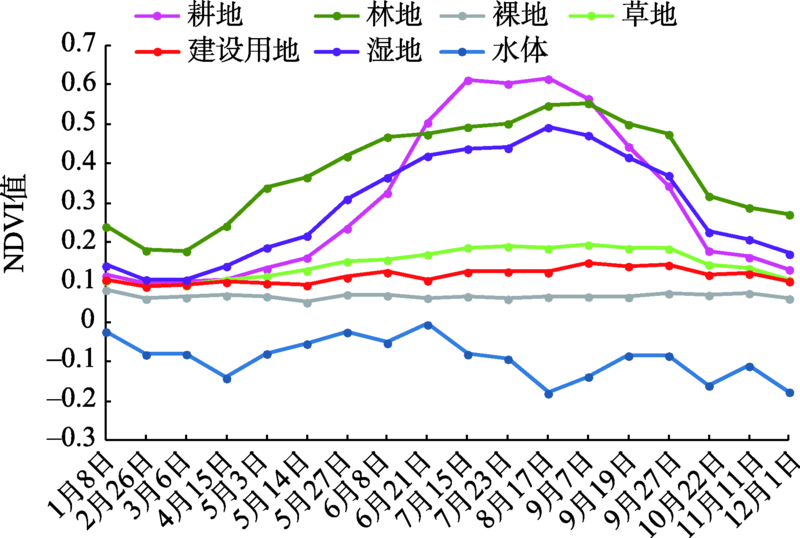

表3
2018年黑河流域中游研究区一级土地覆被分类混淆矩阵
类别 | 验证样本 | 总计 | 用户精度 | ||||||
---|---|---|---|---|---|---|---|---|---|
林地 | 裸地 | 湿地 | 水体 | 建设用地 | 耕地 | 草地 | |||
林地 | 92.49 | 0.00 | 10.15 | 0.90 | 1.01 | 0.83 | 0.50 | 3.54 | 82.84 |
裸地 | 0.00 | 99.97 | 0.14 | 0.11 | 1.75 | 0.00 | 0.00 | 18.19 | 99.41 |
湿地 | 3.06 | 0.00 | 64.85 | 1.15 | 0.15 | 0.08 | 0.49 | 0.95 | 61.29 |
水体 | 0.00 | 0.00 | 0.00 | 96.34 | 0.00 | 0.00 | 0.03 | 2.66 | 99.51 |
建设用地 | 0.43 | 0.03 | 0.76 | 0.90 | 90.82 | 0.75 | 0.20 | 5.67 | 94.10 |
耕地 | 1.56 | 0.00 | 20.10 | 0.25 | 1.48 | 97.07 | 0.61 | 26.58 | 97.81 |
草地 | 2.46 | 0.00 | 4.01 | 0.36 | 4.80 | 1.27 | 98.17 | 42.40 | 98.24 |
总计 | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | - |
制图精度 | 92.49 | 99.97 | 64.85 | 96.34 | 90.82 | 97.07 | 98.17 | - | - |

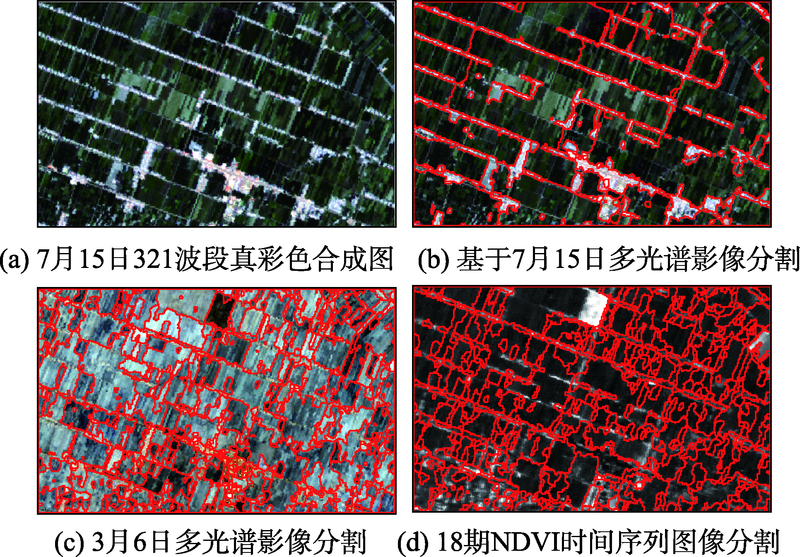

表5
2018年黑河中游研究区一级土地覆被类型面积统计
区县名称 | 耕地 | 林地 | 草地 | 湿地 | 裸地 | 建设用地 | 水体 | 总计 |
---|---|---|---|---|---|---|---|---|
甘州区 | 1184.79 | 124.72 | 2090.94 | 24.03 | 37.76 | 184.31 | 13.51 | 3660.06 |
临泽县 | 520.19 | 103.19 | 1257.14 | 24.14 | 755.25 | 53.42 | 15.39 | 2728.72 |
高台县 | 528.04 | 85.45 | 1719.02 | 43.89 | 1853.67 | 63.82 | 48.89 | 4342.78 |
总计 | 2233.02 | 313.36 | 5067.10 | 92.06 | 2646.68 | 301.55 | 77.79 | 10731.56 |

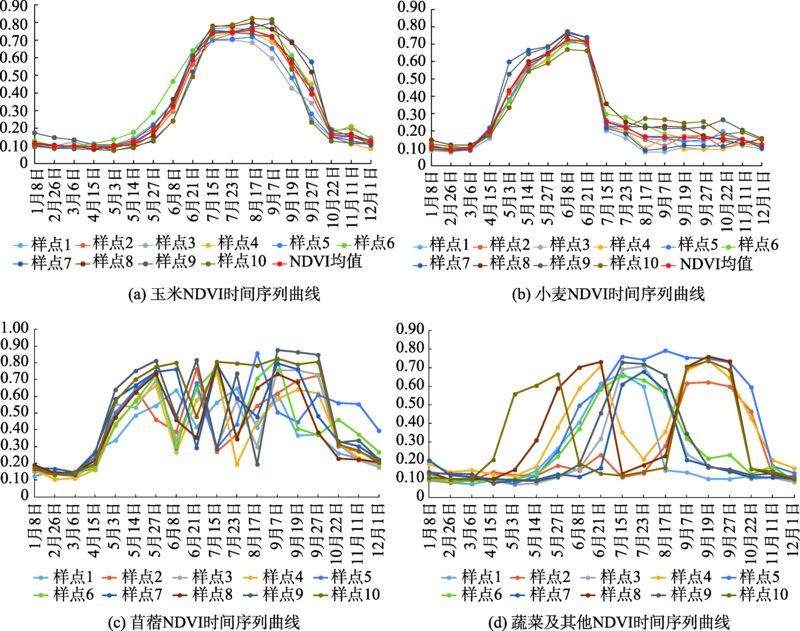

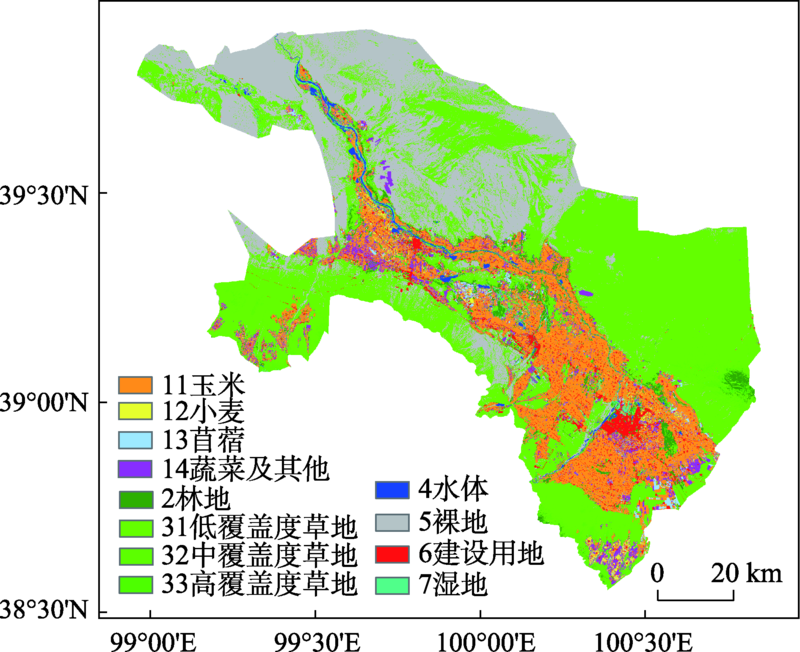

表6
2018年黑河流域中游研究区各区县不同作物类型面积统计面积
区县名称 | 玉米 | 小麦 | 苜蓿 | 蔬菜及其他 | 总计 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
面积/km2 | 比例/% | 面积/km2 | 比例/% | 面积/km2 | 比例/% | 面积/km2 | 比例/% | 面积/km2 | 比例/% | |||||
甘州区 | 932.79 | 78.73 | 41.75 | 3.52 | 41.93 | 3.54 | 168.32 | 14.21 | 1184.79 | 100.00 | ||||
临泽县 | 390.21 | 75.01 | 13.14 | 2.53 | 26.62 | 5.12 | 90.22 | 17.34 | 520.19 | 100.00 | ||||
高台县 | 308.35 | 58.40 | 31.32 | 5.93 | 17.22 | 3.26 | 171.15 | 32.41 | 528.04 | 100.00 | ||||
总计 | 1631.35 | 73.06 | 86.21 | 3.86 | 85.77 | 3.84 | 429.69 | 19.24 | 2233.02 | 100.00 |

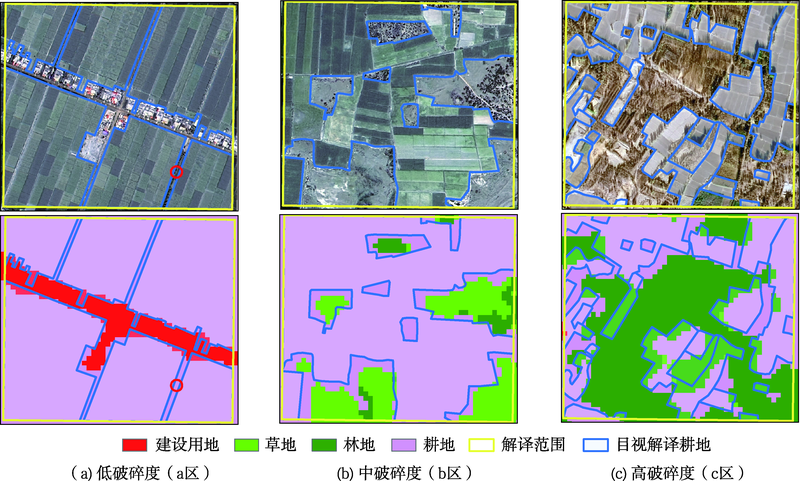

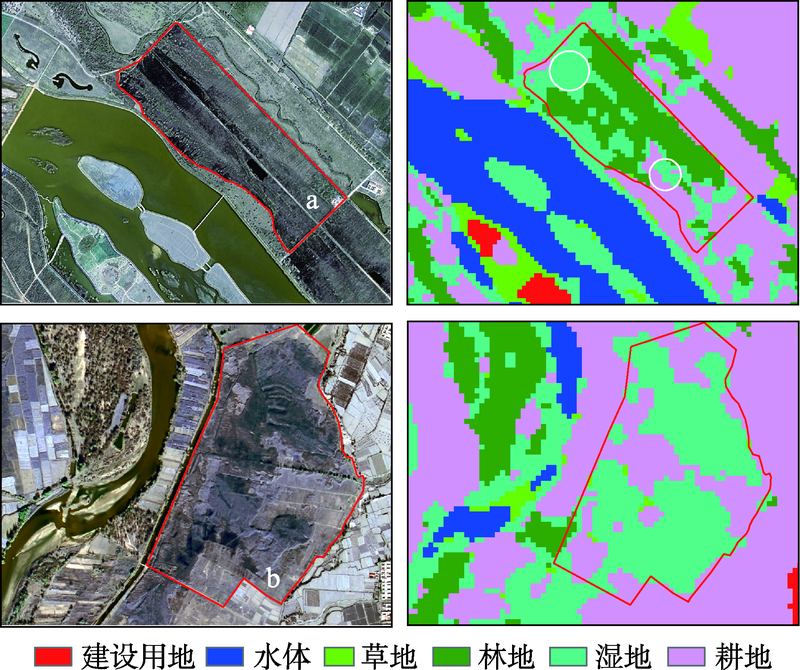

表8

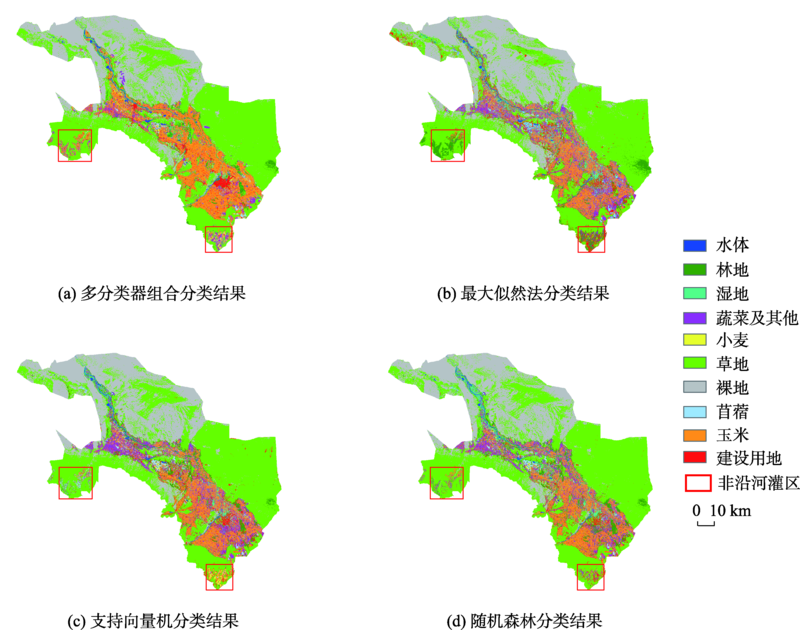

多分类器组合与最大似然算法、支持向量机算法、随机森林算法的分类精度对比
类别 | 多分类器组合 | 最大似然法 | 支持向量机 | 随机森林 | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
用户精度 | 制图精度 | 用户精度 | 制图精度 | 用户精度 | 制图精度 | 用户精度 | 制图精度 | ||||
林地 | 86.16 | 92.49 | 65.73 | 64.59 | 75.40 | 88.24 | 77.87 | 93.90 | |||
草地 | 98.97 | 98.17 | 94.87 | 89.55 | 93.34 | 97.22 | 94.88 | 98.46 | |||
湿地 | 61.29 | 64.85 | 22.29 | 75.14 | 60.11 | 64.31 | 60.83 | 61.49 | |||
裸地 | 99.41 | 99.97 | 90.71 | 97.12 | 97.41 | 99.62 | 98.83 | 99.74 | |||
水体 | 99.51 | 96.34 | 99.00 | 91.16 | 99.27 | 89.05 | 99.75 | 81.50 | |||
建设用地 | 97.20 | 90.82 | 64.76 | 59.57 | 69.82 | 54.09 | 90.92 | 50.26 | |||
玉米 | 84.56 | 89.71 | 94.83 | 69.67 | 89.20 | 78.19 | 95.43 | 77.63 | |||
小麦 | 80.49 | 94.01 | 84.59 | 85.23 | 90.65 | 88.10 | 89.74 | 85.47 | |||
苜蓿 | 94.51 | 87.59 | 90.60 | 86.71 | 90.10 | 84.13 | 94.29 | 83.00 | |||
蔬菜及其他 | 66.85 | 73.59 | 50.72 | 86.77 | 56.03 | 91.10 | 56.20 | 91.86 | |||
总体精度 | 94.19 | 85.97 | 88.25 | 90.44 | |||||||
Kappa系数 | 92 | 82 | 87 | 88 |
[1] |
郑璐倩, 谈明洪 . 黑河中游地区作物用水效率比较及种植结构调整方向研究[J]. 地球信息科学学报, 2016,18(7):977-986.
doi: 10.3724/SP.J.1047.2016.00977 |
[ Zheng L Q, Tan M H . A comparative study of water use efficiency of different crops in the middle reaches of Heihe River and its implicationsfor planting structure adjustment[J]. Journal of Geo-information Science, 2016,18(7):977-986. ]
doi: 10.3724/SP.J.1047.2016.00977 |
|
[2] | Chen Y H, Zhou Y N, Ge Y , et al. Enhancing land cover mapping through integration of pixel-based and object-based classifications from remotely sensed imagery[J]. Remote Sensing, 2018,10(2):77-91. |
[3] | Wei X Q, Gu X F, Yu T , et al. Land-cover classification using multi-temporal GF-1 wide field view data[J]. International Journal of Remote Sensing, 2018,39(20):6914-6930. |
[4] | Vasileios S, Ioannis P, Charalampos K , et al. Scalable parcel-based crop ide.pngication scheme using Sentinel-2 data time-series for the monitoring of the common agricultural policy[J]. Remote Sensing, 2018,10(6):911-931. |
[5] | 杜保佳, 张晶, 王宗明 , 等. 应用Sentinel-2A NDVI时间序列和面向对象决策树方法的农作物分类[J]. 地球信息科学学报, 2019,21(5):740-751. |
[ Du B J, Zhang J, Wang Z M , et al. Crop mapping based on Sentinel-2A NDVI time series using object-oriented classification and decision tree model[J]. Journal of Geo-information Science, 2019,21(5):740-751. ] | |
[6] | 陈睿, 赵超, 刘兴冉 , 等. 基于多源卫星数据的黑河中游绿洲区土地利用分类与作物类型提取及其时空变化分析[J]. 中国生态农业学报, 2018,26(9):1415-1422. |
[ Chen R, Zhao C, Liu X R , et al. Land classification and spatio-temporal changes of wheat and corn in the middle reaches oasis of Heihe using multi-satellite data[J]. Chinese Journal of Eco-agriculture, 2018,26(9):1415-1422. ] | |
[7] | 杨思睿, 薛朝辉, 张玲 , 等. 高光谱与LiDAR数据融合研究——以黑河中游张掖绿洲农业区精细作物分类为例[J]. 国土资源遥感, 2018,30(4):33-40. |
[ Yang S R, Xue Z H, Zhang L , et al. Fusion of hyperspectral and LiDAR data: A case study for refined crop classification in agricultural region of Zhangye Oasis in the middle reaches of Heihe River[J]. Remote Sensing for Land and Resources, 2018,30(4):33-40. ] | |
[8] | Hu X L, Lu L, Li X , et al. Land use/cover change in the middle reaches of the Heihe River basin over 2000-2011 and its implications for sustainable water resource management[J]. Plos One, 2015,10(6):e128960. |
[9] | 王志慧, 刘良云 . 黑河中游绿洲灌溉区土地覆盖与种植结构空间格局遥感监测[J]. 地球科学进展, 2013,28(8):948-956. |
[ Wang Z H, Liu L Y . Monitoring on land cover pattern and crops structure of Oasis irrigation area of middle reaches in Heihe River Basin using remote sensing data[J]. Advances in Earth Science, 2013,28(8):948-956. ] | |
[10] | 程良晓, 江涛, 谈明洪 , 等. 基于NDVI时间序列影像的张掖市农作物种植结构提取[J]. 地理信息世界, 2016,23(4):37-44. |
[ Chen L X, Jiang T, Tan M H , et al. Abstract of planting structure of crops in zhangye city based on NDVI time series image[J]. Geomatics World, 2016,23(4):37-44. ] | |
[11] | 刘亚群 . 基于多时相遥感影像的黑河流域农作物种植结构提取研究[D]. 重庆:重庆交通大学, 2016. |
[ Liu Y Q . Changes in crop planting structure of the Heihe River basin in China based on the multi-temporal NDVI from TM/ETM+/OLI images[D]. Chongqing: Chongqing Jiaotong University, 2016. ] | |
[12] | Zhong B, Yang A X, Nie A H , et al. Finer fesolution land-cover mapping using multiple classifiers and multisource remotely sensed data in the Heihe River basin[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2015,8(10):4973-4992. |
[13] | 熊俊楠, 彭超, 程维明 , 等. 基于MODIS-NDVI的云南省植被覆盖度变化分析[J]. 地球信息科学学报, 2018,20(12):1830-1840. |
[ Xiong J N, Peng C, Cheng W M , et al. Analysis of vegetation coverage change in Yunnan Province based on MODIS-NDVI[J]. Journal of Geo-information Science, 2018,20(12):1830-1840. ] | |
[14] | 何宝忠, 丁建丽, 张喆 , 等. 新疆植被覆盖度趋势演变实验性分析[J]. 地理学报, 2016,71(11):1948-1966. |
[ He B Z, Ding J L, Zhang Z . et al. Experimental analysis of spatial and temporal dynamics of fractional vegetation cover in Xinjiang[J]. Acta Geographica Sinica, 2016,71(11):1948-1966. ] | |
[15] |
游晓黔, 聂爱华, 仲波 . 结合面向对象方法的多层次干旱与半干旱区域城镇提取方法[J]. 遥感技术与应用, 2015,30(1):123-128.
doi: 10.11873/j.issn.1004-0323.2015.1.0123 |
[ You X Q, Nie A H, Zhong B . A multi-layerd urban extraction method combining object-oriented classification for the arid and semi-arid regon[J]. Remote Sensing Technology and Application, 2015,30(1):123-128. ]
doi: 10.11873/j.issn.1004-0323.2015.1.0123 |
|
[16] |
闫利, 江维薇 . 多光谱遥感影像植被覆盖分类研究进展[J]. 国土资源遥感, 2016,28(2):8-13.
doi: 10.6046/gtzyyg.2016.02.02 |
[ Yan L, Jiang W W . Progress in the study of vegetation cover classification of multispectral remote sensing imagery[J]. Remote Sensing for Land and Resources, 2016,28(2):8-13. ]
doi: 10.6046/gtzyyg.2016.02.02 |
|
[17] | Pal M, Mather P M . An assessment of the effectiveness of decision tree methods for land cover classification[J]. Remote Sensing of Environment, 2003,86(4):554-565. |
[18] | Duro D C, Franklin S E, Monique G . Dubé. A comparison of pixel-based and object-based image analysis with selected machine learning algorithms for the classification of agricultural landscapes using SPOT-5 HRG imagery[J]. Remote Sensing of Environment, 2012,118(6):259-272. |
[19] | Darius P, Morgenroth J, Xu C , et al. Effects of pre-processing methods on Landsat OLI-8 land cover classification using OBIA and random forests classifier[J]. International Journal of Applied Earth Observation and Geoinformation, 2018,73:170-178. |
[20] | Zhu X L, Helmer E H, Gao F , et al. A flexible spatiotemporal method for fusing satellite images with different resolutions[J]. Remote Sensing of Environment, 2016,172:165-177. |
[21] | Fu D J, Chen B Z, Wang J , et al. An improved image fusion approach based on enhanced Spatial and temporal the adaptive reflectance fusion model[J]. Remote Sensing, 2013,5(12):6346-6360. |
[22] | Zhu X L, Chen J, Gao F , et al. An enhanced spatial and temporal adaptive reflectance fusion model for complex heterogeneous regions[J]. Remote Sensing of Environment, 2010,114(11):2610-2623. |
[23] | Gao F, Masek J, Schwaller M , et al. On the blending of the Landsat and MODIS surface reflectance: Predicting daily Landsat surface reflectance[J]. IEEE Transactions on Geoscience and Remote Sensing, 2006,44(8):2207-2218. |
