基于DEM小流域复杂网络的黄土高原地貌自动识别研究

doi:10.12082/dqxxkx.2022.210449

地球信息科学学报 ›› 2022, Vol. 24 ›› Issue (4): 657-672.doi: 10.12082/dqxxkx.2022.210449

• 地球信息科学理论与方法 • 上一篇下一篇

基于DEM小流域复杂网络的黄土高原地貌自动识别研究

林偲蔚¹^,²(), 陈楠¹^,²^,^*(), 刘奇祺¹^,², 贺卓文¹^,²

1.福州大学空间数据挖掘与信息共享教育部重点实验室,福州 350108
2.福州大学数字中国研究院（福建）,福州 350108

收稿日期:2021-08-03 修回日期:2021-09-07 出版日期:2022-04-25 发布日期:2022-06-25
通讯作者: ^*陈楠（1975— ）,男,福建厦门人,博士,研究员,主要从事数字地形分析研究。E-mail: chennan@fzu.edu.cn
^*陈楠（1975— ）,男,福建厦门人,博士,研究员,主要从事数字地形分析研究。E-mail: chennan@fzu.edu.cn
作者简介:林偲蔚（1996— ）,男,福建漳州人,硕士生,主要从数字地形分析研究。E-mail: n195520011@fzu.edu.cn
基金资助:
国家自然科学基金项目(41771423)

Geomorphological Automatic Recognition of Loess Plateau based on Complex Network of Small Watershed from DEM

LIN Siwei¹^,²(), CHEN Nan¹^,²^,^*(), LIU Qiqi¹^,², HE Zhuowen¹^,²

1. Key Lab for Spatial Data Mining and Information Sharing of Education Ministry, Fuzhou University, Fuzhou 350108, China
2. The Academy of Digital China, Fuzhou University, Fuzhou 350108, China

Received:2021-08-03 Revised:2021-09-07 Online:2022-04-25 Published:2022-06-25
Contact: CHEN Nan
Supported by:
National Natural Science Foundation of China(41771423)

摘要/Abstract

摘要：

地貌识别,对于人类建设,地质构造研究,环境治理等相关领域都有着重要意义。传统的基于像素单元或面向对象的地貌识别方法存在局限性。由于流域小单元具有表面形态的完整性,在地貌演化中具有明确的地理意义,基于流域小单元的地貌识别成为了该领域的一个新热点。然而,基于传统地形因子的地貌识别方法使用的因子往往较为单一或者在地学描述上存在重复性,目前尚无针对流域小单元进行空间结构描述和拓扑关系特征量化的地貌识别研究。基于此,本文基于DEM进行水文分析并通过坡谱方法解决了小流域稳定面积难以确定的问题,在黄土高原样区提取了181个稳定小流域。根据复杂网络理论和地貌学原理提出了流域加权复杂网络的概念和相应的8个定量指标用于流域空间结构的模拟和量化描述。最后采用了基于决策树的XGBoost机器学习算法进行地貌识别,实验对于黄土高原主要地貌类型的识别显现出较好的效果,Kappa系数为86.00%,总体精度达到了88.33%。对于地貌形态特征明显的地貌,复杂网络方法其顾及空间结构和拓扑特征的特性导致了其较高的识别性能,精度和召回率都在90%~100%之间。通过与前人的研究进行对比,其识别结果亦呈现出较高的精度,这些都验证了流域加权复杂网络是一种基于流域小单元地貌识别的高精度且有效的方法。

关键词: 地貌识别, 流域, 数字地形分析, 黄土高原, 地形特征, DEM

Abstract:

Landform recognition is of great significance to human construction, geological structure research, environmental governance and other related fields. Traditional recognition methodology is mainly based on pixel unit or object-oriented recgnition, which existed limitations. Landform recognition based on the watershed unit has become a new hotspot in this field because of its surface morphology integrity and clear geographical significance. However, the traditional methods of landform recognition based on terrain factors are often simple or repeatable in the geological description, which cannot be used to describe the spatial structure and quantify the topological relationship characteristics of the watershed unit. The slope spectrum method was used to solve the problem that it was difficult to determine the stable area of watershed unit, and 181 small watersheds were extracted through hydrological analysis. Based on the theory of complex network and geomorphology, the concept of watershed weighted complex network and 8 quantitative indexes were put forward to simulate and quantify the spatial structure of the watershed. Finally, XGBoost machine learning algorithm is adopted for landform recognition. XGBoost machine learning algorithm based on decision tree is used for landform recognition. The experiment shows a well performance on the landform recognition of the main landform types on the Loess Plateau, with the Kappa coefficient of 86.00% and the overall accuracy of 88.33%. Compared with the landforms having obvious morphological features, the complex network method considers the characteristics of spatial structure and topological features, resulting in higher recognition accuracy and kappa coefficient of 90%~100%. Compared with previous studies, the recognition results show high accuracy, which verifies that the method based on watershed weighted complex network is an effective method with high accuracy for landform recognition based on watershed.

Key words: landform recognition, watershed, digital terrain analysis, Loess Plateau, terrain feature, DEM

林偲蔚, 陈楠, 刘奇祺, 贺卓文. 基于DEM小流域复杂网络的黄土高原地貌自动识别研究[J]. 地球信息科学学报, 2022, 24(4): 657-672.DOI:10.12082/dqxxkx.2022.210449

LIN Siwei, CHEN Nan, LIU Qiqi, HE Zhuowen. Geomorphological Automatic Recognition of Loess Plateau based on Complex Network of Small Watershed from DEM[J]. Journal of Geo-information Science, 2022, 24(4): 657-672.DOI:10.12082/dqxxkx.2022.210449

图/表 14

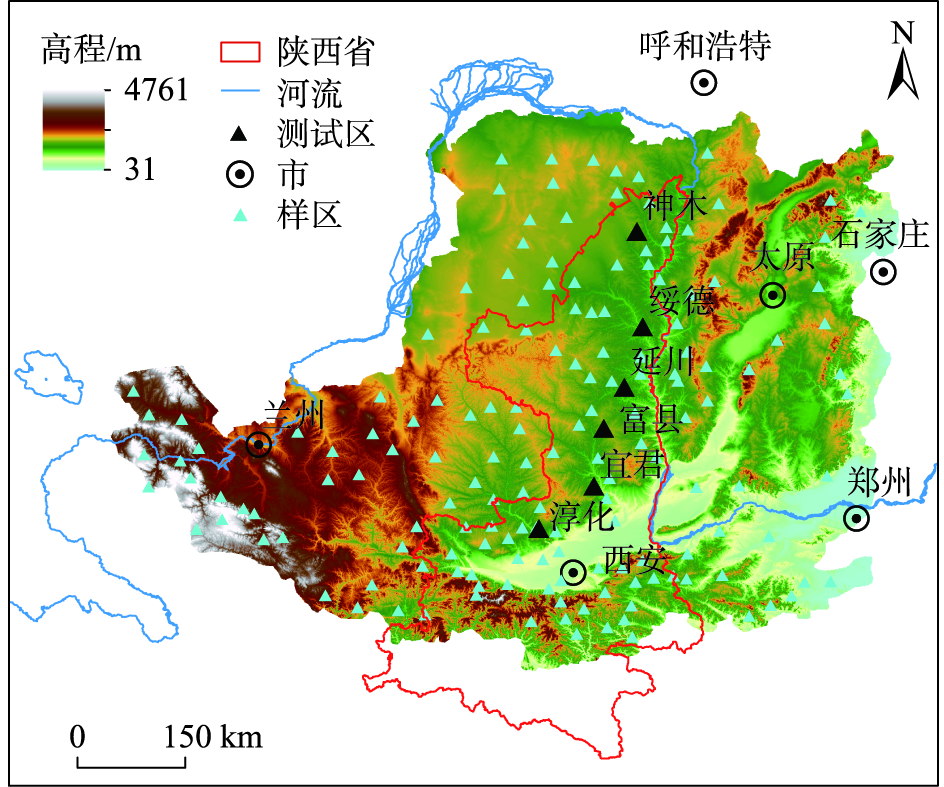

图1

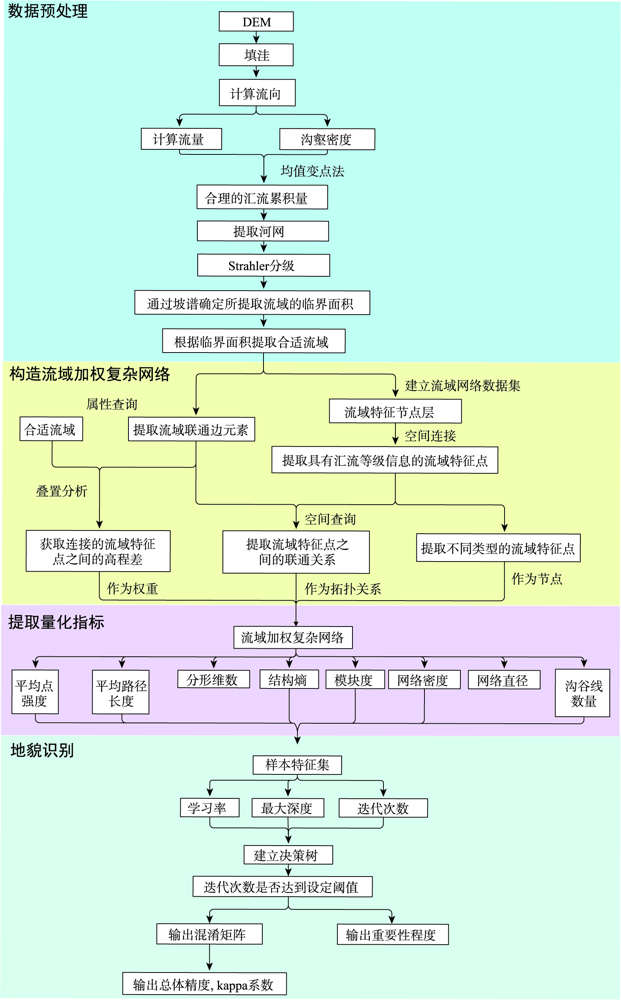

图2

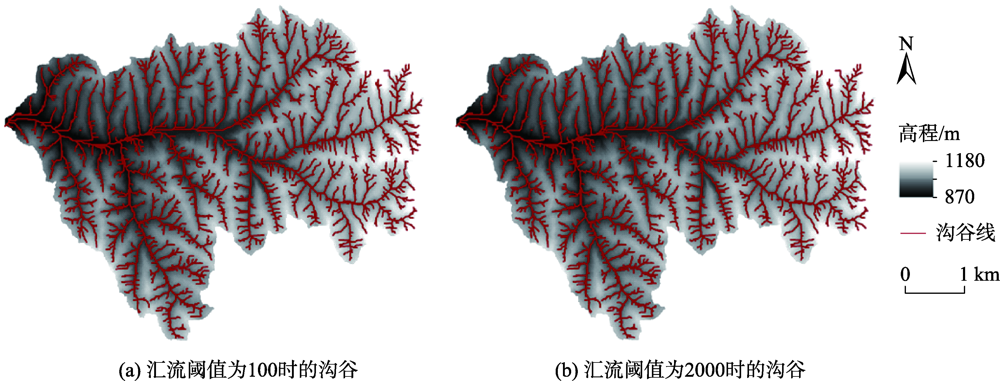

图3

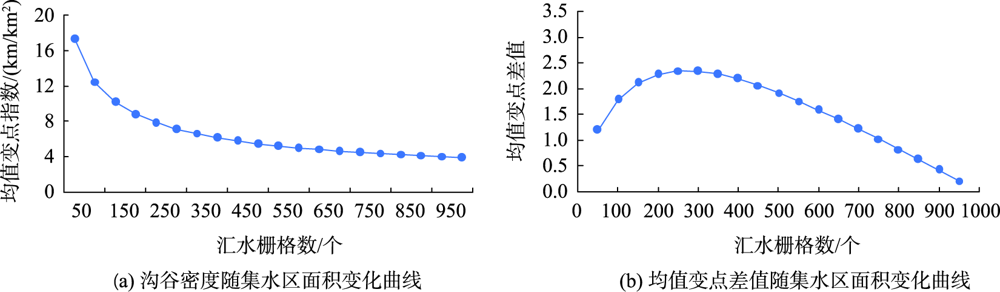

图4

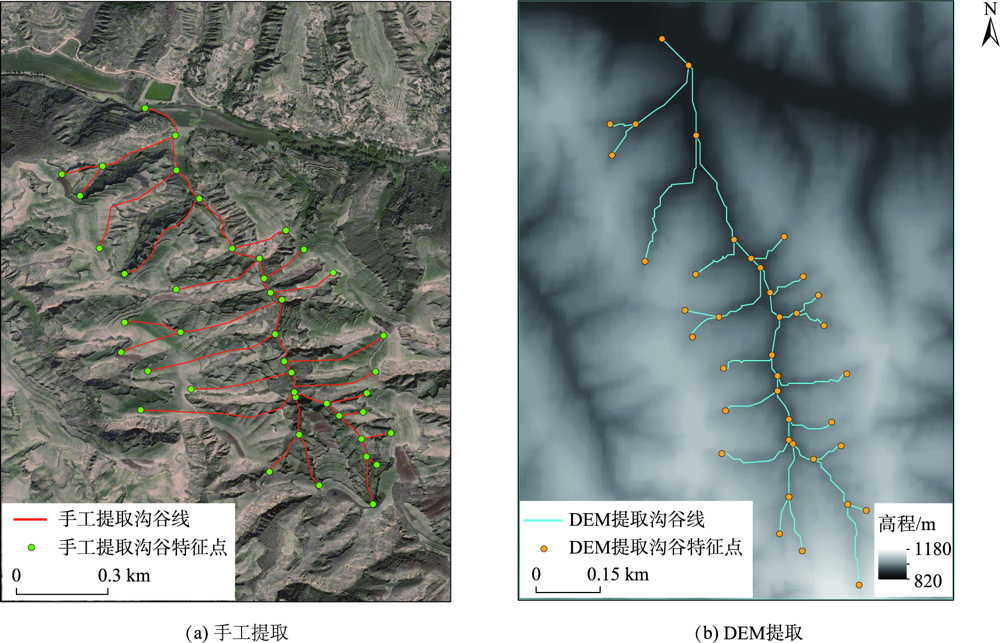

图5

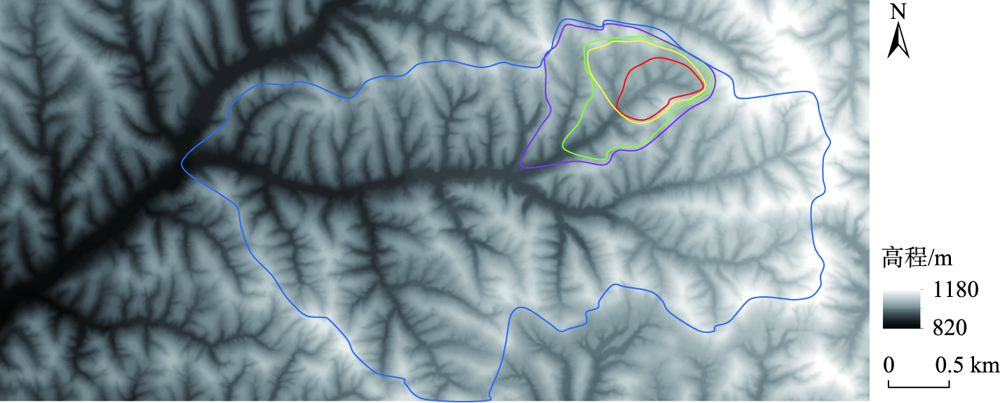

图6

图7

图8

表1

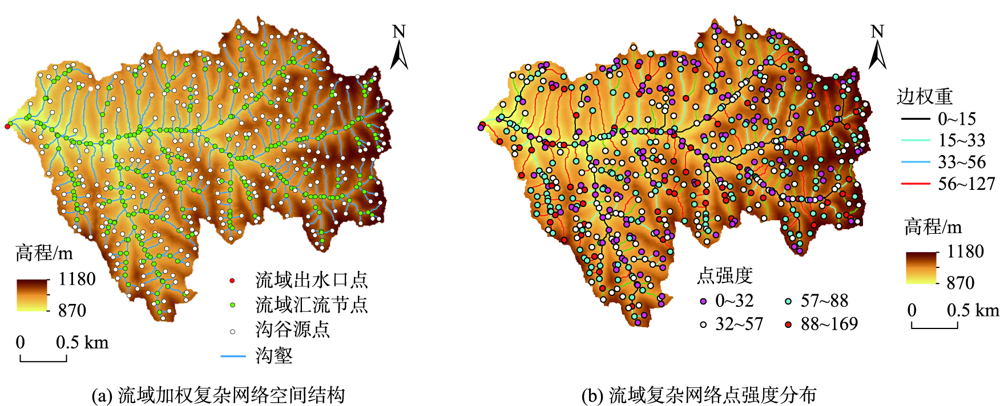

流域加权复杂网络定量指标和相应的计算方法

指标分类	指标名称	公式	说明	公式编号
点及其派生指标	点强度	$N S i = ∑ j ∈ N i a ij w ij$	$N i$ 是节点i的近邻集合; $w ij$ 为节点i和节点j的连边权重,即为节点i和节点j之间的高程差; $a ij$ 为网络邻接矩阵元素; $S i$ 为节点i的点强度	（4）
点及其派生指标	网络密度	$d (G) = 2 m / [n (n - 1)]$	m为网络中实际拥有的连接数;n为网络节点总数	（5）
线及其派生指标	平均路径长度	$AL = 1 12 n (n - 1) ∑ i > j d ij$	$n$ 为网络中包含的节点总数; $d ij$ 为节点i和j之间的距离;即2个节点最短路径的边数	（6）
	沟谷线数目		通过对流域的沟谷进行统计得到
	网络直径	$ND = ∑ i, j max (d ij)$	$d ij$ 为2个节点i和j之间的距离	（7）
网络及其派生指标	结构熵	$SE = - ∑ i = 1 n (d i ∑ i = 1 n d i ln H i)$	$SE 是结构熵; H i$ 表示 $i$ 个节点的重要度; $n$ 为网络节点的总数; $d (i)$ 表示第 $i$ 节点的度	（8）
	计盒维数	$d = - lim ln N r ln r$	对于任意一个沟谷网络,采用边长为r的正方形盒子覆盖时,会出现其中一些盒子是包含图形的,而另一些盒子却是空的,若逐渐增大盒子的尺寸,则包含图形的盒子数目就会越来越少。对不同的盒子边长（r=1,2,3,4,…,M）,求取覆盖沟谷网络所需的非空盒子数N(r)。在适当的范围内,对r选取一系列不同的值,以lnr为横坐标,lnN(r)为纵坐标,利用最小二乘法对其进行线性回归,对其斜率取负即为沟谷网络的计盒维数	（9）
	模块度	$M = 1 2 m ∑ i, j (A ij - k i k j / (2 m) δ (C i, C j)$	$m$ 为网络的总边数; $k i$ 是节点i的权重和; $A ij$ r表示节点i和j之间的边的权值; $δ (a, b)$ 为令a=b时δ=1,否则δ=0的函数; $C i$ 是节点i的社区。当模块度值为0时,表示网络中没有集聚结构	（10）

表1

表2

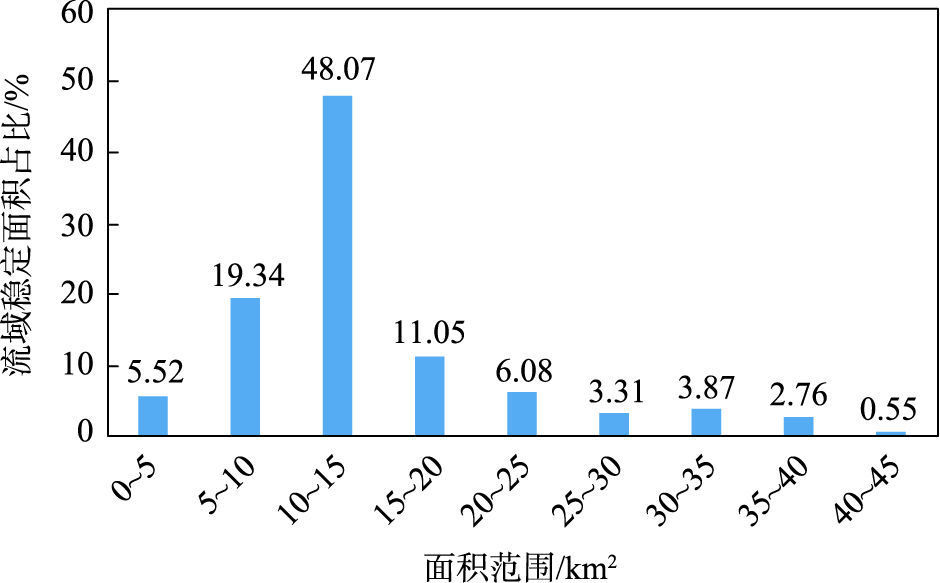

图9

表3

表4

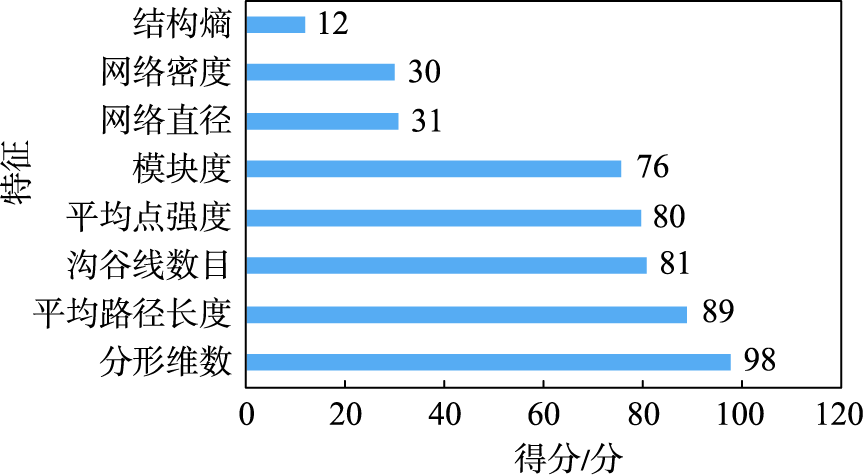

图10

参考文献 68

[1]	王锡魁, 王德. 现代地貌学[M]. 长春: 吉林大学出版社, 2009.
	[ Wang X K, Wang D. Modern geomorphology[M]. Changchun: Jilin University Press, 2009. ]
[2]	Hammond E H. Analysis of properties in land form geography: An application to broad-scale landform mapping[J]. Annals of the Association of American Geographers, 2005,54(1):11-19. DOI: 10.1111/j.1467-8306.1964.tb00470.x doi: 10.1111/j.1467-8306.1964.tb00470.x
[3]	Mokarram M, Sathyamoorthy D. A review of landform classification methods[J]. Spatial Information Research, 2018,26(6):647-660. DOI: 10.1007/s41324-018-0209-8 doi: 10.1007/s41324-018-0209-8
[4]	Tribe A. Automated recognition of valley heads from digital elevation models[J]. Earth Surface Processes and Landforms, 1991,16(1):33-49. DOI: 10.1002/esp.3290160105 doi: 10.1002/esp.3290160105
[5]	曹伟超, 陶和平, 孔博, 等. 青藏高原地貌形态总体特征的GIS识别分析[J]. 水土保持通报, 2011,31(4):163-167,247.
	[ Cao W C, Tao H P, Kong B, et al. Recongnition of general topographic features in qinghai-Tibetan Plateau Based on GIS[J]. Bulletin of Soil and Water Conservation, 2011,31(4):163-167,247. ]
[6]	Argialas D P. Terrain feature recognition through structural pattern recognition, Knowledge-based systems, and Geomorphometric techniques[M]. Springer Berlin Heidelberg: Springer-Verlag 1999.
[7]	刘双琳, 李发源, 蒋如乔, 等. 黄土地貌类型的坡谱自动识别分析[J]. 地球信息科学学报, 2015,17(10):1234-1242. doi: 10.3724/SP.J.1047.2015.01234
	[ Liu S L, Li F Y, Jiang R Q, et al. A Method of loess landform automatic recognition based on slope spectrum[J]. Geo-information Science, 2015,17(10):1234-1242. ] DOI: 10.3724/SP.J.1047.2015.01234 doi: 10.3724/SP.J.1047.2015.01234
[8]	陈楹, 李安波, 姚蒙蒙, 等. 基于空间结构模式匹配的褶皱地貌类型自动识别[J]. 地球信息科学学报, 2016,18(11):1500-1512. doi: 10.3724/SP.J.1047.2016.01500
	[ Chen Y, Li A B, Yao M M, et al. Automatic recognition of fold landform types based on spatial structure pattern matching[J]. Geo-information Science, 2016,18(11):1500-1512. ] DOI: 10.3724/SP.J.1047.2016.01500 doi: 10.3724/SP.J.1047.2016.01500
[9]	Zhao W F, Xiong L Y, Ding H, et al. Automatic recognition of loess landforms using Random Forest method[J]. Journal of Mountain Science, 2017,14(5):885-897. DOI: 10.1007/s11629-016-4320-9 doi: 10.1007/s11629-016-4320-9
[10]	Du L, You X, Li K, et al. Multi-modal deep learning for landform recognition[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2019,158:63-75. DOI: 10.1016/j.isprsjprs.2019.09.018 doi: 10.1016/j.isprsjprs.2019.09.018
[11]	张福浩, 朱月月, 赵习枝, 等. 地理因子支持下的滑坡隐患点空间分布特征及识别研究[J]. 武汉大学学报·信息科学版), 2020,45(8):1233-1244.
	[ Zhang F H, Zhu Y Y, Zhao X Z, et al. Spatial distribution and identification of hidden danger points of landslides based on geographical Factors[J]. Geomatics and Information Science of Wuhan University, 2020,45(8):1233-1244. ] DOI: 10.13203/j.whugis20200126 doi: 10.13203/j.whugis20200126
[12]	曹伟超, 陶和平, 孔博, 等. 利用最佳地形特征空间进行地貌形态自动识别——以西南地区为例[J]. 武汉大学学报·信息科学版, 2011,36(11):1376-1380.
	[ Cao W C, Tao H P, Kong B, et al. Topographic automatic recognition based on optimal topography feature Space-taking southwest china as an example[J]. Geomatics and information science of wuhan university, 2011,36(11):1376-1380. ] DOI: CNKI:SUN:WHCH.0.2011-11-029 doi: CNKI:SUN:WHCH.0.2011-11-029
[13]	Drgu L, Eisank C. Object representations at multiple scales from digital elevation models[J]. Geomorphology, 2011,129(3-4):183-189. DOI: 10.1016/j.geomorph.2011.03.003 doi: 10.1016/j.geomorph.2011.03.003
[14]	王乐, 周毅, 李阳. 面向子流域单元的典型黄土地貌分类研究[J]. 干旱区研究, 2019,36(6):1592-1598.
	[ Wang L, Zhou Y, Li Y. Classification of typical loess landforms in subcatchments[J]. Arid Zone Research, 2019,36(6):1592-1598. ] DOI: 10.13866/j.azr.2019.06.30 doi: 10.13866/j.azr.2019.06.30
[15]	Cao M, Tang G A, Zhang F, et al. A cellular automata model for simulating the evolution of positive-negative terrains in a small loess watershed[J]. International Journal of Geographical Information Science, 2013,27(7):1349-1363. DOI: 10.1080/13658816.2012.756882 doi: 10.1080/13658816.2012.756882
[16]	王彦文, 秦承志. 地貌形态类型的自动分类方法综述[J]. 地理与地理信息科学, 2017,33(4):16-21.
	[ Wang Y W, Qin C Z. Review of methods for landform automatic classification[J]. Geography and Geo-information Science, 2017,33(4):16-21. ] DOI: 10.3969/j.issn.1672-0504.2017.04.003 doi: 10.3969/j.issn.1672-0504.2017.04.003
[17]	Caratti J F, Nesser J A, Maynard C. Watershed classification using canonical correspondence analysis and clustering techniques: A cautionary tale[J]. Jawra Journal of the American Water Resources Association, 2010,40(5):1257-1268. DOI: 10.1111/j.1752-1688.2004.tb01584.x doi: 10.1111/j.1752-1688.2004.tb01584.x
[18]	Huang S L, Ferng J J. Applied land classification for surface water quality management: II. Land process classification[J]. Journal of Environmental Management, 1990,31(2):127-141. DOI: 10.1016/S0301-4797(05)80003-9 doi: 10.1016/S0301-4797(05)80003-9
[19]	Xiong L Y, Zhu A X, Zhang L, et al. Drainage basin object-based method for regional-scale landform classification: A case study of loess area in China[J]. Physical Geography, 2018,39(6):523-541. DOI: 10.1080/02723646.2018.1442062 doi: 10.1080/02723646.2018.1442062
[20]	曹泽涛, 方子东, 姚瑾, 等. 基于随机森林的黄土地貌分类研究[J]. 地球信息科学学报, 2020,22(3):452-463. doi: 10.12082/dqxxkx.2020.190247
	[ Cao Z T, Fang Z D, Yao J, et al. Loess landform classification based on random forest[J]. Journal of Geo-information Science, 2020,22(3):452-463. ] DOI: 10.12082/dqxxkx.2020.190247 doi: 10.12082/dqxxkx.2020.190247
[21]	Strogatz S H. Exploring complex networks[J]. Nature, 2001,410(6825):268-276. DOI: 10.1038/35065725 doi: 10.1038/35065725
[22]	Abe S, Suzuki N. Complex-network description of seismicity[J]. Nonlinear Processes in Geophysics, 2006,13(2):145-150. DOI: 10.5194/npg-13-145-2006 doi: 10.5194/npg-13-145-2006
[23]	Tian Z, Jia L M, Dong H H, et al. Analysis of urban road traffic network based on complex network[J]. Procedia Engineering, 2016,137:537-546. DOI: 10.1016/j.proeng.2016.01.290 doi: 10.1016/j.proeng.2016.01.290
[24]	Wu X F, Yu K, Wang X. On the growth of internet application flows: a complex network perspective[C]. 2011 IEEE INFOCOM Conference, Shanghai, 2011:2096-2104. DOI: 10.1109/INFCOM.2011.5935019 doi: 10.1109/INFCOM.2011.5935019
[25]	Donges J F, Zou Y, Marwan N, et al. Complex networks in climate dynamics[J]. The European Physical Journal Special Topics, 2009,174(1):157-179. DOI: 10.1140/epjst/e2009-01098-2 doi: 10.1140/epjst/e2009-01098-2
[26]	Hofmann S G, Curtiss J, Mcnally R J. A complex network perspective on clinical science[J]. Perspectives on Psychological Science, 2016,11(5):597-605. DOI: 10.1177/1745691616639283 doi: 10.1177/1745691616639283 pmid: 27694457
[27]	Suweis S, Konar M, Dalin C, et al. Structure and controls of the global virtual water trade network[J]. Geophysical Research Letters, 2011,38(10). DOI: 10.1029/2011GL046837 doi: 10.1029/2011GL046837
[28]	Halverson M J, Fleming S W. Complex network theory, streamflow, and hydrometric monitoring system design[J]. Hydrology and Earth System Sciences, 2015,19(7):3301-3318. DOI: 10.5194/hess-19-3301-2015 doi: 10.5194/hess-19-3301-2015
[29]	Rinaldo A, Banavar J R, Maritan A. Trees, networks, and hydrology[J]. Water Resources Research, 2006,42(6). DOI: 10.1029/2005WR004108 doi: 10.1029/2005WR004108
[30]	武鹏飞, 宫辉力, 周德民. 基于复杂网络的官厅水库流域土地利用/覆被变化[J]. 地理学报, 2012,67(1):113-121. doi: 10.11821/xb201201012
	[ Wu P F, Gong H L, Zhou D M. Land use and land cover change in watershed of guanting reservoir based on complex network[J]. Acta geographica sinica, 2012,67(1):113-121. ] DOI: 10.3969/j.issn.1672-0504.2017.04.003 doi: 10.3969/j.issn.1672-0504.2017.04.003
[31]	田剑, 汤国安, 赵明伟. 基于复杂网络模型的黄土模拟流域坡面形态演化[J]. 农业工程学报, 2015,31(13):164-170.
	[ Tian J, Tang G A, Zhao M W. Hillslope morphology evolution in loess watershed model based on complex network[J]. Transactions of the Chinese society of agricultural engineering, 2015,31(13):164-170. ] DOI: CNKI:SUN:NYGU.0.2015-13-023 doi: CNKI:SUN:NYGU.0.2015-13-023
[32]	裴燕如, 孙炎浩, 于强, 等. 黄河流域典型矿区生态空间网络优化——以鄂榆地区为例[J]. 煤炭学报, 2021,46(5):1541-1554.
	[ Pei Yanru, Sun Yanhao, Yu Qiang, et al. Optimization of ecological spatial network in typical mining areas of the yellow river Basin: take ordos and yulin areas of the yellow river basin as examples[J]. Journal of China Coal Society, 2021,46(5):1541-1554. ] DOI: CNKI:SUN:NYGU.0.2015-13-023 doi: CNKI:SUN:NYGU.0.2015-13-023
[33]	吴念鲁, 徐丽丽, 苗海宾. 我国银行同业之间流动性风险传染研究——基于复杂网络理论分析视角[J]. 国际金融研究, 2017(7):34-43.
	[ Wu N L, XU L L, Miao H B. The research on interbank liquidity risk contagion in China based on the perspective of complex network theory[J]. Banking Research, 2017,(7):34-43. ] DOI: CNKI:SUN:GJJR.0.2017-07-004 doi: CNKI:SUN:GJJR.0.2017-07-004
[34]	贺卓文, 陈楠. 复杂网络理论在黄土高原沟谷地貌特征研究中的应用[J]. 地球信息科学学报, 2021,23(7):1196-1207. doi: 10.12082/dqxxkx.2021.200639
	[ He Z W, Chen N. Feature analysis of gully Landforms in the loess plateau based on complex networks[J]. Journal of Geo-information Science, 2021,23(7):1196-1207. ] DOI: 10.12082/dqxxkx.2021.200639 doi: 10.12082/dqxxkx.2021.200639
[35]	田剑, 汤国安, 赵明伟. 流域地形景观系统的复杂网络描述[J]. 地理与地理信息科学, 2014,30(4):22-26.
	[ Tian J, Tang G A. Complex netowork description of terrain landscape system on drainage basin[J]. Geography and Geo-information science, 2014,30(4):22-26. ] DOI: 10.3969/j.issn.1672-0504.2014.04.005 doi: 10.3969/j.issn.1672-0504.2014.04.005
[36]	Lösing M, Ebbing J. Predicting geothermal heat flow in antarctica with a machine learning approach[J]. Journal of Geophysical Research: Solid Earth, 2021,126(6) e2020JB021499. DOI: 10.1029/2020JB021499 doi: 10.1029/2020JB021499
[37]	Xiong L Y, Tang G A, Yang X, et al. Geomorphology-oriented digital terrain analysis: progress and perspectives[J]. Journal of Geographical Sciences, 2021,31(3):456-476. DOI: 10.1007/S11442-021-1853-9 doi: 10.1007/S11442-021-1853-9
[38]	熊礼阳, 汤国安. 黄土高原沟谷地貌发育演化研究进展与展望[J]. 地球信息科学学报, 2020,22(4):816-826. doi: 10.12082/dqxxkx.2020.190519
	[ Xiong L Y, Tang G A. Research progresses and prospects of gully landform formation and evolution in the Loess Plateau of China[J]. Journal of Geo-information science, 2020,22(4):816-826. ] DOI: 10.3969/j.issn.1672-0504.2014.04.005 doi: 10.3969/j.issn.1672-0504.2014.04.005
[39]	周毅. 基于DEM的黄土高原正负地形及空间分异研究[D]. 南京:南京师范大学, 2011.
	[ Zhou Y. Study on positive and negative topography and spatial differentiation of Loess Plateau based on DEM[D]. Nanjing: Nanjing Normal University, 2011. ]
[40]	Zhu H C, Zhao Y P, Xu X Y, et al. Hierarchy structure characteristics analysis for the China Loess watersheds based on gully node calibration[J]. Journal of Mountain Science, 2018,15(12):2637-2650. DOI: 10.1007/s11629-018-5000-8 doi: 10.1007/s11629-018-5000-8
[41]	Li C R, Li F Y, Dai Z Y, et al. Spatial variation of gully development in the loess plateau of China based on the morphological perspective[J]. Earth Science Informatics, 2020,13(4):1103-1117. DOI: 10.1007/s12145-020-00491-4 doi: 10.1007/s12145-020-00491-4
[42]	Tucker G E, Bras R L. Hillslope processes, drainage density, and landscape morphology[J]. Water Resources Research, 1998,34(10):2751-2764. DOI: 10.1029/98WR01474 doi: 10.1029/98WR01474
[43]	赖晗, 芮小平, 梁汉东, 等. 基于均值变点分析的三峡库区河网提取研究[J]. 测绘科学, 2012,37(5):173-175.
	[ Lai H, Rui X P, Liang H D, et al. Extraction of drainage network in Three gorge reservoir area based on mean change point method[J]. Science of surveying and mapping, 2012,37(5):173-175. ]
[44]	Tang G A, Song X D, Li F Y, et al. Slope spectrum critical area and its spatial variation in the Loess Plateau of China[J]. Journal of Geographical Sciences, 2015,25(12):1452-1466. DOI: 10.1007/s11442-015-1245-0 doi: 10.1007/s11442-015-1245-0
[45]	张静静, 朱文博, 赵芳, 等. 山地平原过渡带地形起伏特征及其对景观格局的影响——以太行山淇河流域为例[J]. 中国科学:地球科学, 2018,48(4):476-486.
	[ Zhang J J, Zhu W B, Zhao F, et al. Topography and its effect on landscape pattern in transitional zone of mountainous plain: A case study of Qihe River Basin in Taihang Mountains[J]. Science China earth sciences, 2018,48(4):476-486. ]
[46]	汪凯, 陈楠. 顾及空间特征的地形特征点提取方法[J]. 测绘科学, 2021,46(2):192-202.
	[ Wang K, Chen N. Terrain feature point extraction method considering spatial characteristics[J]. Science of Surveying and Mapping, 201, 46(2):192-202. ] DOI: 10.16251/j.cnki.1009-2307.2021.02.028 doi: 10.16251/j.cnki.1009-2307.2021.02.028
[47]	李炫, 杨本勇, 范建容, 等. 基于流域单元的岷江上游泥石流危险性评价[J]. 水土保持研究, 2015,22(6):335-339.
	[ Li X, Yang B Y, Fan J R, et al. Assessment on the hazard of debris flows in the upper min river based on the watershed catchment-Unit[J]. Research of soil and water conservation, 2015,22(6):335-339. ] DOI: CNKI:SUN:STBY.0.2015-06-060 doi: CNKI:SUN:STBY.0.2015-06-060
[48]	常直杨, 王建, 白世彪, 等. 均值变点分析法在最佳集水面积阈值确定中的应用[J]. 南京师大学报(自然科学版), 2014,37(1):147-150.
	[ Chang Z Y, Wang J, Bai S B, et al. Determination of accumulation area based on the method of applying mean of change-point analysis[J]. Journal of nanjing normal university (natural science edition), 2014,37(1):147-150. ] DOI: 10.3969/j.issn.1001-4616.2014.01.027 doi: 10.3969/j.issn.1001-4616.2014.01.027
[49]	苟娇娇, 罗明良, 王飞. 影响黄土高原集水面积阈值的地形因子主成分分析[J]. 武汉大学学报·信息科学版, 2017,42(5):704-710.
	[ Gou J J, Luo M L, Wang F. Principal component analysis for the terrain factors of flow accumulation threshold in Loess Plateau[J]. Geomatics and information science of wuhan university, 2017,42(5):704-710. ] DOI: 10.13203/j.whugis20140783 doi: 10.13203/j.whugis20140783
[50]	王春, 汤国安, 李发源, 等. 基于DEM提取坡谱信息的不确定性[J]. 地球信息科学, 2008,10(4):539-544.
	[ Wang C, Tang G A, Li F Y, et al. The uncertainty of slope Spectrum derived from grid digital eleavation model[J]. Journal of Geo-information Science, 2008,10(4):539-544. DOI: 10.3969/j.issn.1560-8999.2008.04.019 doi: 10.3969/j.issn.1560-8999.2008.04.019
[51]	汤国安, 赵牡丹, 李天文, 等. DEM提取黄土高原地面坡度的不确定性[J]. 地理学报, 2003,58(6):824-830.
	[ Tang G A, Zhao M D, Li We W, et al. Modeling slope uncertainty derived from DEMs in loess plateau[J]. Acta Geographica Sinica, 2003,58(6):824-830. ] DOI: 10.3321/j.issn:0375-5444.2003.06.004 doi: 10.3321/j.issn:0375-5444.2003.06.004
[52]	王春, 汤国安, 李发源, 等. 坡谱提取与应用的基本地域条件[J]. 地理科学, 2007,(4):587-592.
	[ Wang C, Tang G A, Li F Y, et al. Fundamental conditions of slope spectrum derivation and application[J]. Scientia Geographica Sinica, 2007,(4):587-592. ]
[53]	Tang G A, Li F Y, Liu X Q, et al. Research on the slope spectrum of the Loess Plateau[J]. Science in China Series E: Technological Sciences, 2008,51(S1):175-185. DOI: 10.1007/s11431-008-5002-9 doi: 10.1007/s11431-008-5002-9
[54]	Tang G A, Song X D, Li F Y, et al. Slope spectrum critical area and its spatial variation on the Loess Plateau of China[J]. Journal of Geographical Sciences, 2015,25(12):1452-1466. DOI: 10.1007/s11442-015-1245-0 doi: 10.1007/s11442-015-1245-0
[55]	Li F Y, Tang G A, Wang C, et al. Slope spectrum variation in a simulated loess watershed[J]. Frontiers of Earth Science, 2016,10(2):328-339. DOI: 10.1007/s11707-015-0519-2 doi: 10.1007/s11707-015-0519-2
[56]	赵孜博, 杨勤科, 王春梅. 坡度统计分析的最小面积阈值研究[J]. 测绘科学, 2020,45(2):172-177,192.
	[ Zhao Z B, Yang Q K, Wang C M. Research on minimum area threshold for slope statistical analysis[J]. Science of surveying and mapping, 2020,45(2):172-177,192. ]
[57]	Li F Y, Tang G A, Wang C, et al. Quantitative analysis and spatial distribution of slope spectrum: a case study in the Loess Plateau in north Shaanxi province[J]. 15^th International Conference on Geoinformatics, 2007,6753(1):67531R. DOI: 10.1117/12.761894 doi: 10.1117/12.761894
[58]	Chen N. Scale problem: influence of grid spacing of digital elevation model on computed slope and shielded extra-terrestrial solar radiation[J]. Frontiers of Earth Science, 2020,14(1):171-187. DOI: 10.1007/s11707-019-0770-z doi: 10.1007/s11707-019-0770-z
[59]	王春, 汤国安, 李发源,, 等. 基于DEM提取坡谱信息的不确定性[J]. 地球信息科学, 2008,10(4):539-544.
	[ Wang C, Tang G A, LI F Y, et al. The uncertainity of slope spectrum derived from grid digital elevation model[J]. Geo-information Science, 2008,10(4):539-544. ] DOI: 10.3969/j.issn.1560-8999.2008.04.019 doi: 10.3969/j.issn.1560-8999.2008.04.019
[60]	Zevenbergen L W, Thorne C R. Quantitative analysis of Land Surface Topography[J]. Earth Surface Processes and Landforms, 1987,12(1):47-56. DOI: 10.1002/esp.3290120107 doi: 10.1002/esp.3290120107
[61]	Bollobás B. Modern graph theory[M]. Springer Science & Business Media, 2013.
[62]	汪小帆, 李翔, 陈关荣. 复杂网络理论及其应用[M]. 北京: 清华大学出版社, 2006.
	[ Wang X F, Li X, Chen G R. Complex network theory and its Application[M]. Beijing: Tsinghua University Press, 2006. ]
[63]	Cai J, You Q. Fractal theory and its application in studying the feature of landforms[C]. 2010 International Workshop on Chaos-Fractal Theories and Applications. IEEE, 2010:440-444. DOI: 10.1109/IWCFTA.2010.81 doi: 10.1109/IWCFTA.2010.81
[64]	Song C M, Havlin S, Makse H A. Self-similarity of complex networks[J]. Nature, 2005,433(7024):392-395. DOI: 10.1038/nature03248 doi: 10.1038/nature03248
[65]	张岩, 李英冰, 郑翔, 等. 基于出租车数据的轨迹网络与流动模式研究[J]. 地理空间信息, 2021,19(7):1-6.
	[ Zhang Y, Li Y, Zheng X, et al. Research on trajectory network and flow pattern based on taxi data[J]. Geospatial information, 2021,19(7):1-6. ]
[66]	Chen T Q, Guestrin C. Xgboost: A scalable tree boosting system[C] Proceedings of the 22nd acm sigkdd international conference on knowledge discovery and data, 2016:785-794. DOI: 10.1145/2939672.2939785 doi: 10.1145/2939672.2939785
[67]	Zhou Y, Tang G A, Yang X, et al. Positive and negative terrains on northern Shaanxi Loess Plateau[J]. Journal of Geographical Sciences, 2010,20(1):64-76. DOI: 10.1007/s11442-010-0064-6 doi: 10.1007/s11442-010-0064-6
[68]	Li S J, Xiong L Y, Tang G A, et al. Deep learning-based approach for landform classification from integrated data sources of digital elevation model and imagery[J]. Geomorphology, 2020,354:107045. DOI: 10.1016/j.geomorph.2020.107045 doi: 10.1016/j.geomorph.2020.107045

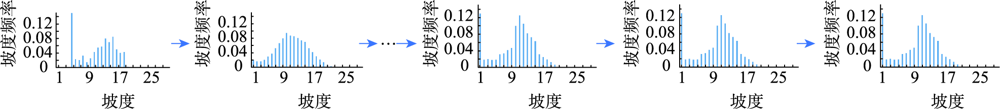

样区	地貌类型	平均坡度/°	稳定面积/km²
神木	风沙-黄土过渡区	9	13.11
绥德	黄土峁状丘陵沟壑区	29	8.60
延川	黄土墚峁状丘陵沟壑区	31	10.13
富县	黄土墚峁状丘陵沟壑区	30	10.25
宜君	黄土残塬区	19	13.65
淳化	黄土塬区	12	34.28

	XGBoost识别结果
	黄土塬	黄土梁	黄土峁	石质山地	风积沙丘	河谷平原	精度/%	召回率/%	F1值
黄土塬	9	0	0	1	0	0	90	90	90
黄土梁	0	9	1	0	0	0	100	90	95
黄土峁	0	0	10	0	0	0	91	100	95.5
石质山地	0	0	0	9	0	1	82	90	86
风积沙丘	0	0	0	0	9	1	81	90	85.5
河谷平原	1	0	0	1	1	7	78	70	74
总体精度/%	88.33
Kappa系数/%	86.00

	XGBoost识别结果
	黄土塬	黄土梁	黄土峁	石质山地	风积沙丘	河谷平原	精度/%	召回率/%	F1值/%
黄土塬	8	0	0	0	1	1	73	80	76.5
黄土梁	0	8	1	1	0	0	80	80	80.0
黄土峁	1	2	7	0	0	0	88	70	79.0
石质山地	0	0	0	8	1	1	80	80	80.0
风沙丘陵	1	0	0	1	7	1	70	70	70.0
河谷平原	1	0	0	0	1	8	73	80	76.5
总体精度/%	76.70
Kappa系数/%	72.04
