基于多源数据的旅游者视觉行为模式与感知评估方法

doi:10.12082/dqxxkx.2022.210840

摘要/Abstract

摘要：

用户生成内容（User Generated Content,UGC）作为感知旅游地物质空间的新型地理大数据,以使用者的视角描绘了旅游地的客观环境,是探索旅游目的地感知的重要途径。然而,传统的旅游研究对旅行摄影照片处理能力有限,深度学习图像语义分割技术的发展,为挖掘旅游者视觉行为模式,探索旅游地环境感知提供了有力支持。本研究提出了整合在线旅行照片大数据与问卷调查小数据的旅游者视觉行为模式与感知评估框架,并将其应用于鼓浪屿案例。首先将744条旅游轨迹,聚类为6类视觉行为模式,并可视化与时空分析;其次基于全卷积网络算法,量化22 507张旅行照片语义,探索不同视觉模式的旅游者关注要素的空间分异;最后通过照片语义与场景感知问卷调查的相关性分析和多重线性回归模型,评估旅游地整体视觉感知满意度,并提出相应的空间优化建议。研究表明：① 鼓浪屿旅游者视觉行为模式聚类为单点游、海岛风光游、环岛游、街巷空间游、遗产建筑游和全岛游6类;② 不同视觉行为模式的旅游者视觉兴趣区存在空间集聚现象,视觉空间转移遵循地理邻近效应;③ 相关性分析与模型结果表明,旅游者偏好空间开敞度较高的区域,感知满意度越低的区域摄影行为越少,是环境提升的重点;④ 出行时间和成本效率最大化、建成环境、心理环境与社会环境是影响旅游者视觉感知的主要因素。本研究延伸了人工智能技术在旅游者视觉感知研究中的应用,为旅游地空间优化提供参考。

关键词: UGC数据, 视觉行为模式, 感知评估, 旅行摄影, 轨迹聚类, 深度学习, 场景语义, 鼓浪屿

Abstract:

User Generated Content (UGC), as a new type of geographic big data for perceiving the physical space of tourism destination, depicts the objective environment of tourism destination from the perspective of users, which is an important way to explore the perception of tourism destination. However, the traditional tourism research has limited ability to deal with travel photos. The development of deep learning image semantic segmentation technology provides strong support for mining tourists' visual behavior patterns and exploring tourism destination environmental perception. This study proposes a framework for tourists' visual behavior model and perception evaluation, which integrates the big data of online travel photos and small data of questionnaire survey, and applies it to the case of Gulangyu Island. Firstly, 744 tourism trajectories are clustered into six types of visual behavior patterns, and visualized and spatiotemporal analysis is carried out; Secondly, based on the full convolution network algorithm, the semantics of 22 507 travel photos are quantified to explore the spatial differentiation of the elements concerned by tourists with different visual modes; Finally, through the correlation analysis of photo semantics and scene perception questionnaire and the multiple linear regression model, the overall visual perception satisfaction of tourism destination is evaluated, and the corresponding spatial optimization suggestions are put forward. The results show that: (1) the visual behavior patterns of tourists on Gulangyu Island are clustered into six categories: single point tour, island scenery tour, around the island tour, street and lane space tour, heritage building tour, and whole island tour; (2) Tourists with different visual behavior patterns have spatial agglomeration in their visual interest areas, and the transfer of visual space follows the geographical proximity effect; (3) The results of correlation analysis and model show that tourists prefer areas with high spatial openness, and the areas with lower perceived satisfaction have less photography behavior, which is the focus of environmental improvement; (4) Maximizing travel time and cost efficiency, built environment, psychological environment, and social environment are the main factors affecting tourists' visual perception. This study extends the application of artificial intelligence technology in the study of tourists' visual perception, and provides a reference for tourism destination spatial optimization.

Key words: UGC data, visual pattern, perception assessment, travel photography, trajectory clustering, deep learning, scene semantics, Gulangyu Island

李渊, 郭晶, 陈一平. 基于多源数据的旅游者视觉行为模式与感知评估方法[J]. 地球信息科学学报, 2022, 24(10): 2004-2020.DOI:10.12082/dqxxkx.2022.210840

LI Yuan, GUO Jing, CHEN Yiping. A New Approach for Tourists' Visual Behavior Patterns and Perception Evaluation based on Multi-source Data[J]. Journal of Geo-information Science, 2022, 24(10): 2004-2020.DOI:10.12082/dqxxkx.2022.210840

图/表 17

图1

图2

图3

图4

表1

表2

图5

表3

图6

图7

图8

图9

图10

图11

图12

表4

图13

参考文献 52

[1]	白凯, 马耀峰, 游旭群. 基于旅游者行为研究的旅游感知和旅游认知概念[J]. 旅游科学, 2008(1):22-28.
	[ Bai K, Ma Y F, You X Q. Reflections on the Concepts of tourism perception and cognition based on Researchs of tourist behaviors[J]. Tourism Science, 2008, 22(1):22-28. ] DOI: 10.3969/j.issn.1006-575X.2008.01.004 doi: 10.3969/j.issn.1006-575X.2008.01.004
[2]	Zhang F, Zhou B, Ratti C, et al. Discovering place-informative scenes and objects using social media photos[J]. Royal Society Open Science, 2019, 6(3):1-15. DOI: 10.10 98/rsos.181375 doi: 10.10 98/rsos.181375
[3]	吴志才, 张凌媛, 郑钟强, 等. 旅游场域中古城旅游社区的空间生产研究——基于列斐伏尔的空间生产理论视角[J]. 旅游学刊, 2019, 34(12):86-97.
	[ Wu Z C, Zhang L Y, Zhang Z Q, et al. The production of space within the field of tourism: A case study of the tourism community of Chaozhou ancient city[J]. Tourism Tribune, 2019, 34(12):86-97. ] DOI: 10.19765/j.cnki.1002-5006.2019.12.011 doi: 10.19765/j.cnki.1002-5006.2019.12.011
[4]	李渊, 杨璐, 高小涵. 鼓浪屿街道空间体验分析与提升策略[J]. 规划师, 2019, 35(14):24-31.
	[ Li Y, Yang L, Gao X H. Preference and spatial improvement strategies of street space of Gulangyu Island[J]. Planners, 2019, 35(14):24-31. ] DOI: CNKI:SUN:GHSI.0.2019-14-005 doi: CNKI:SUN:GHSI.0.2019-14
[5]	张帆, 刘瑜. 街景影像——基于人工智能的方法与应用[J]. 遥感学报, 2021, 25(5):1043-1054.
	[ Zhang F, Liu Y. Street view imagery: Methods and applications based on artificial intelligence[J]. National Remote Sensing Bulletin, 2021, 25(5):1043-1054. ] DOI: 10.11834/jrs.20219341 doi: 10.11834/jrs.20219341
[6]	Chalfen R M. Photograph's role in tourism Some unexplored relationships[J]. Annals of Tourism Research, 1979,6(4):435-447. DOI:10.1016/0160- 7383(79)90006-9
[7]	Urry J. The Tourist Gaze: Leisure and Travel in Contemporary Society[C]. Sites of Memory, Sites of Mourning: the Great War in European Cultural History, 1990.
[8]	周功梅, 宋瑞, 刘倩倩. 旅游摄影:研究述评与展望[J]. 旅游学刊, 2020, 35(11):129-144.
	[ Zhou G M, Song R, Liu Q Q. Tourism photography: A literature review and analysis[J]. Tourism Tribune, 2020, 35(11):129-144. ] DOI: 10.19765/j.cnki.1002-5006.2020.11.014 doi: 10.19765/j.cnki.1002-5006.2020.11.014
[9]	Haywood K M. Visitor-employed photography: An urban visit assessment[J]. Journal of Travel Research, 1990, 29(1): 25-29. doi: 10.1177/004728759002900106
[10]	Cederholm, Andersson E. The use of photo-elicitation in tourism research: Framing the backpacker experience[J]. Scandinavian Journal of Hospitality & Tourism, 2004, 4(3):225-241. DOI: 10.1177/004728759002900106 doi: 10.1177/004728759002900106
[11]	Fairweather J R, Swaffield S R. Visitor experiences of Kaikoura, New Zealand: An interpretative study using photographs of landscapes and Q method[J]. Tourism Management, 2001, 22(3):219-228. DOI: 10.1016/S0261-5177(00)00061-3 doi: 10.1016/S0261-5177(00)00061-3
[12]	Yao Y, Liang Z, Yuan Z, et al. A human-machine adversarial scoring framework for urban perception assessment using street-view images[J]. International Journal of Geographical Information Science, 2019, 33(12):2363-2384. DOI: 10.1080/13658816.2019.1643024 doi: 10.1080/13658816.2019.1643024
[13]	Sheng F, Zhang Y, Shi C, et al. Xi'an tourism destination image analysis via deep learning[J]. Journal of Ambient Intelligence and Humanized Computing, 2020:1-10. DOI: 10.1007/s12652-020-02344-w doi: 10.1007/s12652-020-02344-w
[14]	Miranda A S, Fan Z, Duarte F, et al. Desirable streets: Using deviations in pedestrian trajectories to measure the value of the built environment[J]. Computers Environment and Urban Systems, 2021, 86(3):1-17. DOI: 10.1016/j.compenvurbsys.2020.101563 doi: 10.1016/j.compenvurbsys.2020.101563
[15]	Sohrabi B, Vanani I R, Nasiri N, et al. A predictive model of tourist destinations based on tourists' comments and interests using text analytics[J]. Tourism Management Perspectives, 2020, 35:1-12. DOI: 10.1016/j.tmp.2020.100710 doi: 10.1016/j.tmp.2020.100710
[16]	Zanwar P, Kim J, Kim J, et al. Use of Connected Technologies to Assess Barriers and Stressors for Age and Disability-Friendly Communities[J]. Frontiers in Public Health, 2021, 9:1-9. DOI: 10.3389/fpubh.2021.578832 doi: 10.3389/fpubh.2021.578832
[17]	Ren X, Li Y, Zhao J, et al. Tourism Growth Prediction Based on Deep Learning Approach[J]. Complexity, 2021, 2021: 1-10. DOI: 10.1155/2021/5531754 doi: 10.1155/2021/5531754
[18]	Zhang K, Chen Y, Li C L. Discovering the tourists' behaviors and perceptions in a tourism destination by analyzing photos' visual content with a computer deep learning model: The case of Beijing[J]. Tourism Management, 2019, 75:595-608. DOI: 10.1016/j.tourman.2019.07.002 doi: 10.1016/j.tourman.2019.07.002
[19]	Zhang X, Yang Y, Zhang Y, et al. Designing tourist experiences amidst air pollution: A spatial analytical approach using social media[J]. Annals of Tourism Research, 2020, 84:1-16. DOI: 10.1016/j.annals.2020.102999 doi: 10.1016/j.annals.2020.102999
[20]	Li C, Kwok L, Xie K L, et al. Let photos speak: The effect of user-generated visual content on hotel review helpfulness[J]. Journal of Hospitality & Tourism Research, 2021. DOI: 10.1177/10963480211019113 doi: 10.1177/10963480211019113
[21]	Lin M S, Liang Y, Xue J X, et al. Destination image through social media analytics and survey method[J]. International Journal of Contemporary Hospitality Management, 2021, 33(6):2219-2238. DOI:10.1108/ijchm-08-20 20-0861 doi: 10.1108/IJCHM-08-2020-0861
[22]	Li J, Xu L, Tang L, et al. Big data in tourism research: A literature review[J]. Tourism Management, 2018, 68: 301-323. DOI: 10.1016/j.tourman.2018.03.009 doi: 10.1016/j.tourman.2018.03.009
[23]	Zhang K, Chen Y, Lin Z. Mapping destination images and behavioral patterns from user-generated photos: a computer vision approach[J]. Asia Pacific Journal of Tourism Research, 2020, 25(11):1199-1214. DOI: 10.1080/10941665. 2020.1838586 doi: 10.1080/10941665. 2020.1838586
[24]	He B, Liu K, Xue Z, et al. Spatial and temporal characteristics of urban tourism travel by taxi: A case study of Shenzhen[J]. Isprs International Journal of Geo-information, 2021, 10(7):1-13. DOI: 10.3390/ijgi10070445 doi: 10.3390/ijgi10070445
[25]	Yao Q, Shi Y, Li H, et al. Understanding the tourists' spatio-temporal behavior using Open GPS trajectory data: A case study of Yuanmingyuan Park (Beijing, China)[J]. Sustainability, 2021, 13(1):1-13. DOI: 10.3390/su13010094 doi: 10.3390/su13010094
[26]	Bao H, Ming D, Guo Y, et al. DFCNN-based semantic recognition of urban functional zones by integrating remote sensing data and POI data[J]. Remote Sensing, 2020, 12(7):1-26. DOI: 10.3390/rs12071088 doi: 10.3390/rs12071088
[27]	Kang Y, Cho N, Yoon J, et al. Transfer learning of a deep learning model for exploring tourists' urban image using geotagged photos[J]. Isprs International Journal of Geo-Information, 2021, 10(3):1-20. DOI: 10.3390/ijgi10030137 doi: 10.3390/ijgi10030137
[28]	Chen W, Xu Z, Zheng X, et al. Geo-tagged photo metadata processing method for Beijing inbound tourism flow[J]. Isprs International Journal of Geo-information, 2019, 8(12):1-15. DOI: 10.3390/ijgi8120556 doi: 10.3390/ijgi8120556
[29]	Agusti D P I. Mapping tourist hot spots in African cities based on instagram images[J]. International Journal of Tourism Research, 2020, 22(5):617-626. DOI: 10.1002/jtr. 2360 doi: 10.1002/jtr. 2360
[30]	Huang Y, Fei T, Kwan M-P, et al. GIS-based emotional computing: A review of quantitative approaches to measure the emotion layer of human-environment relationships[J]. Isprs International Journal of Geo-Information, 2020, 9(9):1-15. DOI: 10.3390/ijgi9090551 doi: 10.3390/ijgi9090551
[31]	Zheng Y T, Zha Z J, Chua T S. Mining travel patterns from geotagged photos[J]. Acm Transactions on Intelligent Systems and Technology, 2012, 3(3):1-18. DOI: 10.1 145/2168752.2168770 doi: 10.1 145/2168752.2168770
[32]	Gong Z, Ma Q, Kan C, et al. Classifying street spaces with street view images for a spatial indicator of urban functions[J]. Sustainability, 2019, 11(22):1-17. DOI: 10.33 90/su11226424 doi: 10.33 90/su11226424
[33]	李渊, 刘嘉伟, 严泽幸, 等. 基于卫星定位导航数据的景区旅游者空间行为模式研究——以鼓浪屿为例[J]. 中国园林, 2019, 35(1):73-77.
	[ Li Y, Liu J W, Yan Z X, et al. Spatial behavior patterns of toupprists based on satellite navigation data: A case study of gulangyu[J]. Chinese Landscape Architecture, 2019, 35(1):73-77. ] DOI: 10.3969/j.issn.1000-6664.2019.01.014 doi: 10.3969/j.issn.1000-6664.2019.01.014
[34]	Mou N X, Yuan R Z, Yang T F, et al. Exploring spatio-temporal changes of city inbound tourism flow: The case of Shanghai, China[J]. Tourism Management, 2020, 76: 14. DOI: 10.1016/j.tourman.2019.103955 doi: 10.1016/j.tourman.2019.103955
[35]	Onder I. Classifying multi-destination trips in Austria with big data[J]. Tourism Management Perspectives, 2017, 21:54-58. DOI: 10.1016/j.tmp.2016.11.002 doi: 10.1016/j.tmp.2016.11.002
[36]	Xiao X, Fang C, Lin H. Characterizing tourism destination image using photos' visual content[J]. Isprs International Journal of Geo-information, 2020, 9(12):730. DOI: 10.3390/ijgi9120730 doi: 10.3390/ijgi9120730
[37]	Mikhailov S, Kashevnik A, Smirnov A, et al. tourist vehaviour analysis vased on digital pattern of life[C]. 7th International Conference on Control, Decision and Information Technologies (CoDIT), 2020:622-627. DOI: 10.1109/CoDIT49905.2020.9263945 doi: 10.1109/CoDIT49905.2020.9263945
[38]	Salas-Olmedo M H, Moya-Gomez B, Garcia-Palomares J C, et al. Tourists' digital footprint in cities: Comparing Big Data sources[J]. Tourism Management, 2018, 66:13-25. DOI: 10.1016/j.tourman.2017.11.001 doi: 10.1016/j.tourman.2017.11.001
[39]	李渊, 丁燕杰, 王德. 旅游者时间约束和空间行为特征的景区旅游线路设计方法研究[J]. 旅游学刊, 2016, 31(9):50-60.
	[ Li Y, Ding Y J, Wang D. A new approach for designing tourist routes by considering travel time constraints and spatial behavior characteristics of tourists[J]. Tourism Tribune, 2016, 31(9):50-60. ] DOI: 10.3969/j.iss n.1002-5006.2016.09.016 doi: 10.3969/j.iss n.1002-5006.2016.09.016
[40]	Payntar N D, Hsiao W L, Covey R A, et al. Learning patterns of tourist movement and photography from geotagged photos at archaeological heritage sites in Cuzco, Peru[J]. Tourism Management, 2021, 82. DOI: 10.1016/j.tourman.2020.104165 doi: 10.1016/j.tourman.2020.104165
[41]	Zhang C, Wu T, Zhang Y, et al. Deep semantic-aware network for zero-shot visual urban perception[J]. International Journal of Machine Learning and Cybernetics, 2021:1-15. DOI: 10.1007/s13042-021-01401-w doi: 10.1007/s13042-021-01401-w
[42]	Qiu W, Li W, Liu X, et al. Subjectively measured streetscape perceptions to inform urban design strategies for Shanghai[J]. Isprs International Journal of Geo-information, 2021, 10(8):493. DOI: 10.3390/ijgi10080493 doi: 10.3390/ijgi10080493
[43]	Key S, Gross M D. From architects' terms to computable descriptions of spatial qualities[J]. Spatial Cognition and Computation, 2021, 21(3):173-196. DOI:10.1080/1387 58 68.2020.1862125 doi: 10.1080/13875868.2020.1862125
[44]	Zhang F, Zhou B, Liu L, et al. Measuring human perceptions of a large-scale urban region using machine learning[J]. Landscape and Urban Planning, 2018, 180:148-160. DOI: 10.1016/j.landurbplan.2018.08.020 doi: 10.1016/j.landurbplan.2018.08.020
[45]	Arefieva V, Egger R, Yu J. A machine learning approach to cluster destination image on Instagram[J]. Tourism Management, 2021, 85:1-11. DOI: 10.1016/j.tourman. 2021.104318 doi: 10.1016/j.tourman. 2021.104318
[46]	Paul I Agusti D. The clustering of city images on Instagram: A comparison between projected and perceived images[J]. Journal of Destination Marketing & Management, 2021, 20:1-12. DOI: 10.1016/j.jdmm.2021.100608 doi: 10.1016/j.jdmm.2021.100608
[47]	Huang J, Obracht-Prondzynska H, Kamrowska-Zaluska D, et al. The image of the city on social media: A comparative study using "Big Data" and "Small Data" methods in the Tri-City Region in Poland[J]. Landscape and Urban Planning, 2021, 206:1-19. DOI: 10.1016/j.landurbplan.202 0.103977 doi: 10.1016/j.landurbplan.202 0.103977
[48]	厦门市人民政府. 鼓浪屿历史风貌建筑保护规划修编[R]. 2016:11-20.
	[ Xiamen Municipal People's government. Revision of kulangsu historic building protection plan[R]. 2016:11-20. ]
[49]	李道增. 环境行为学概论[M]. 北京: 清华大学出版社, 1999:10.
	[ Li D Z. Introduction to environmental behavior[M]. Beijing: Tsinghua University Press, 1999:10. ]
[50]	塔娜, 柴彦威. 行为地理学的学科定位与前沿方向[J]. 地理科学进展, 2022, 41(1):1-15. doi: 10.18306/dlkxjz.2022.01.001
	[ Ta N, Chai Y W. Disciplinary position and research frontiers of behavioral geography[J]. Progress in Geography, 2022, 41(1):1-15. ] DOI: 10.18306/dlkxjz.2022.01.001 doi: 10.18306/dlkxjz.2022.01.001
[51]	乐阳, 刘瑜, 陈云松, 等. 空间和地理计算与计算社会学的融合路径[J]. 武汉大学学报·信息科学版, 2022, 47(1):1-18.
	[ Yue Y, Liu Y, Chen Y S, et al. Integration Path of Spatial and Geo-Computing and Computational Social Science[J]. Geomatics and Information Science of Wuhan University, 2022, 47(1):1-18. ] DOI: 10.13203/j.whugis 20 210619 doi: 10.13203/j.whugis 20
[52]	杨敏, 李君轶, 徐雪. ICTs视角下的旅游流和旅游者时空行为研究进展[J]. 陕西师范大学学报(自然科学版), 2020, 48(4):46-55.
	[ Yang M, Li J Y, Xu X. The progress of tourist flow and tourist spatio-temporal behavior based on ICTs[J]. Journal of Shaanxi Normal University(Natural Science Edition), 2020, 48(4):46-55. ] DOI: 10.15983/j.cnki.jsnu.2020.04.020 doi: 10.15983/j.cnki.jsnu.2020.04.020

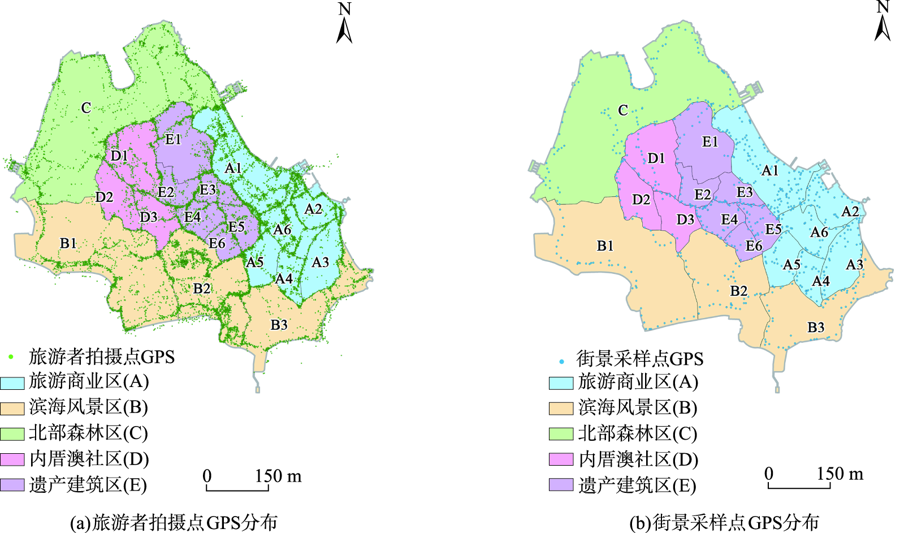

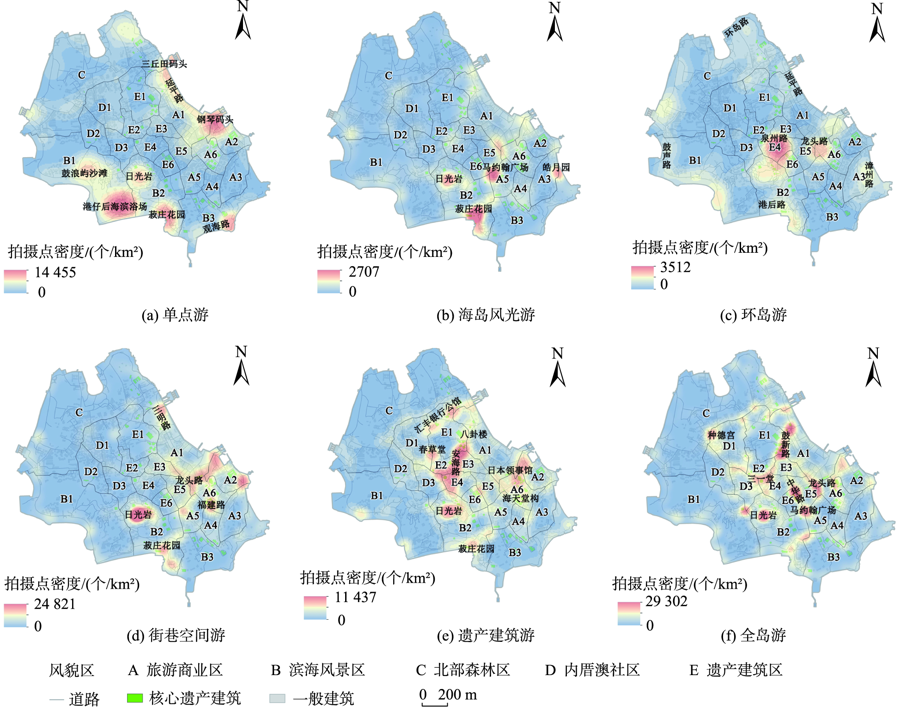

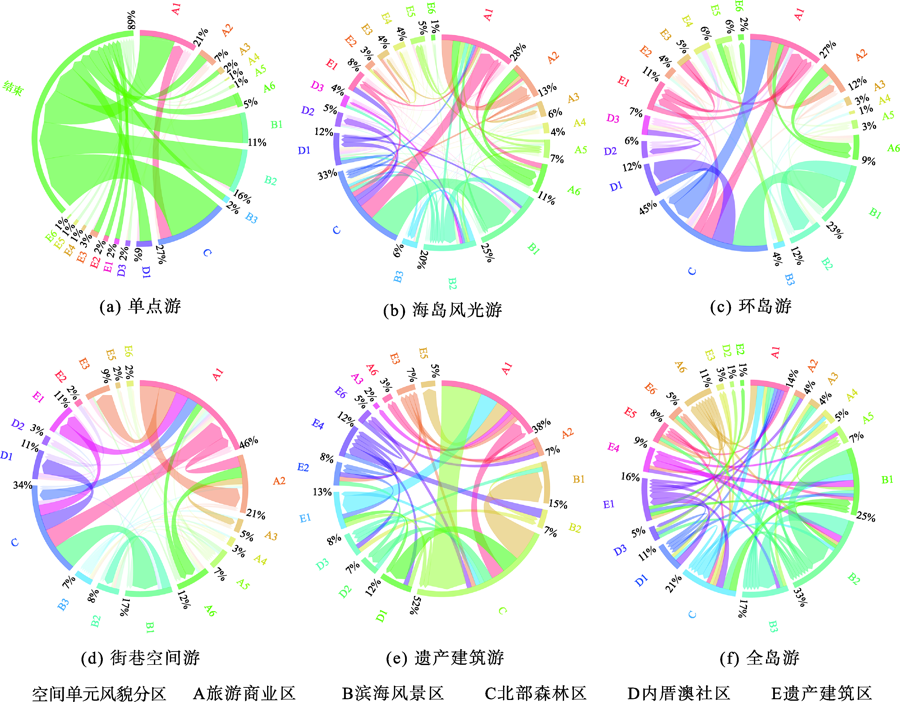

风貌区编号	风貌区	空间单元
A	旅游商业区	A1、A2、A3、A4、A5
B	滨海风景区	B1、B2、B3
C	北部森林区	C
D	内厝澳社区	D1、D2、D3
E	遗产建筑区	E1、E2、E3、E4、E5、E6

数据类型	数据来源	数据格式	初始样本/个	处理后样本/个	有效率/%	数据时间
大数据	两步路、六只脚	照片	26 422	22 507	85.18	2007年11月—2021年9月
大数据	两步路、六只脚	GPS轨迹	984	744	75.61	2007年11月—2021年9月
小数据	街景采样	照片	793	777	97.98	2021年9月
小数据	问卷调查	量表	360	354	98.33	2021年9月

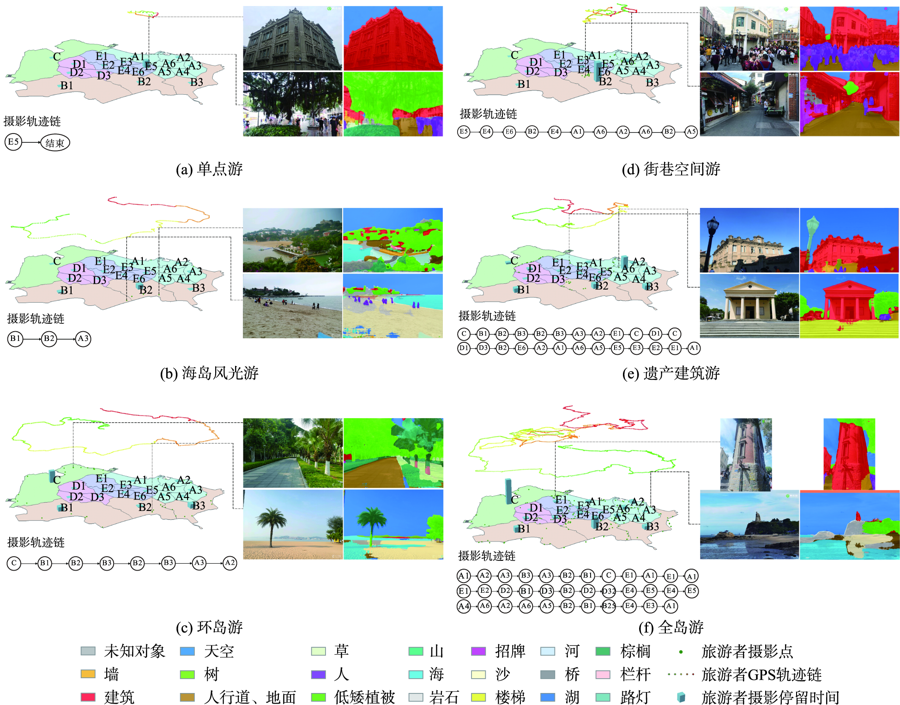

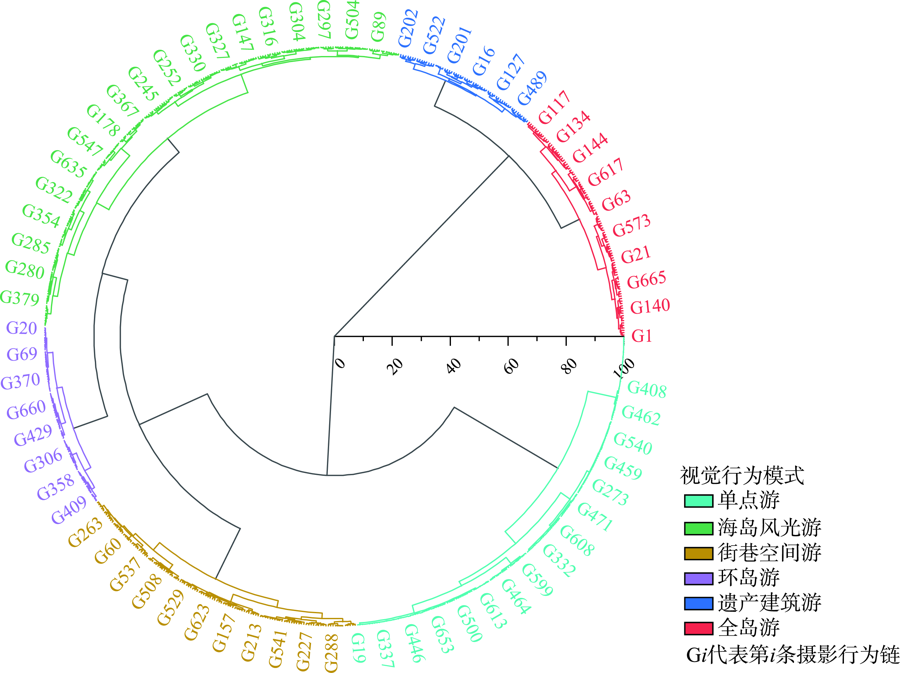

视觉行为模式	摄影轨迹链数量	照片数量	单条轨迹平均照片数量
单点游	177	845	4.77
海岛风光游	209	3116	14.91
环岛游	76	788	10.37
街巷空间游	123	5125	41.67
遗产建筑游	60	2868	47.80
全岛游	99	9657	97.55

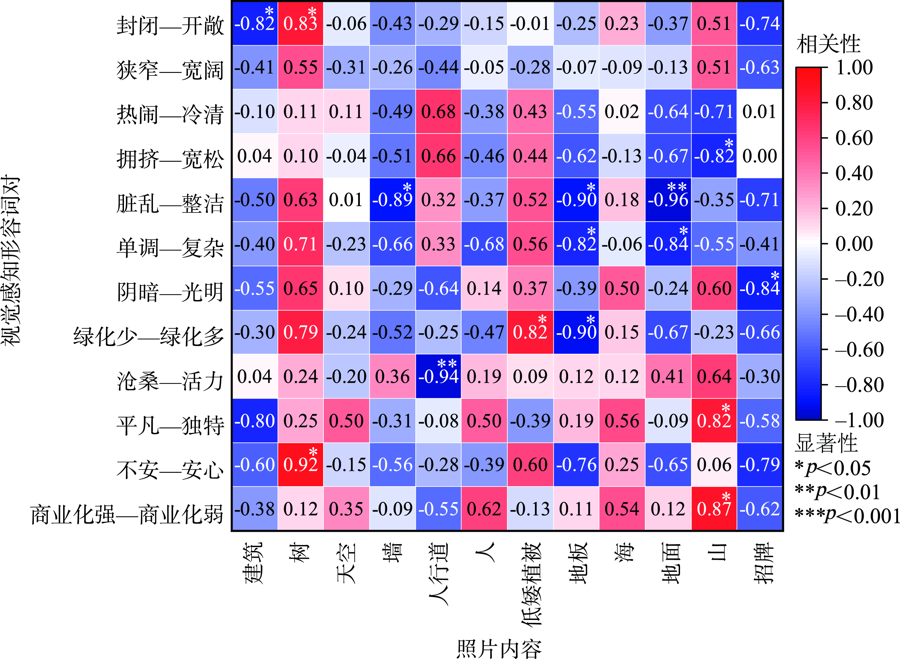

因变量	自变量	标准系数	t	累积R²	方差膨胀因子	容忍度
视觉感知满意度	地板	-0.814	-7.265***	0.731	1.028	0.972
视觉感知满意度	建筑	-0.429	-3.824**	0.939	1.028	0.972
