地球信息科学学报 ›› 2023, Vol. 25 ›› Issue (10): 2000-2011.doi: 10.12082/dqxxkx.2023.220720
岳林峰1,2,3(), 薛存金1,2,*(
), 王振国1,2,3, 牛超然1,2,3
收稿日期:
2022-09-23
修回日期:
2023-02-02
出版日期:
2023-10-25
发布日期:
2023-09-22
通讯作者:
* 薛存金(1979—),男,山东菏泽人,博士,研究员,主要研究方向为海洋地理信息系统、海洋时空分析方法。 E-mail: xuecj@radi.ac.cn作者简介:
岳林峰(1998—),男,河南安阳人,硕士生,研究方向为海洋时空数据挖掘分析。E-mail: yuelinfeng20@mails.ucas.ac.cn
基金资助:
YUE Linfeng1,2,3(), XUE Cunjin1,2,*(
), WANG Zhenguo1,2,3, NIU Chaoran1,2,3
Received:
2022-09-23
Revised:
2023-02-02
Online:
2023-10-25
Published:
2023-09-22
Contact:
* XUE Cunjin, E-mail: Supported by:
摘要:
溶解氧是探究海洋内部各种生物地球化学循环过程以及评估海洋健康的重要参数。目前,基于Argo剖面浮标的观测方式已经成为获取海洋溶解氧信息的主要来源之一,但是这种方式获取到的海洋溶解氧资料在空间上是离散分布的。如何利用空间插值方法将离散的Argo溶解氧剖面观测数据构建成连续的空间网格数据是当前研究关注的热点,本文提出了一种面向Argo溶解氧剖面观测数据的空间-质量特征的迭代插值方法(ASOSQIM)。针对观测样点空间上分布离散、不规则的特点,ASOSQIM首先对溶解氧观测数据进行空间初始化来构建初始背景场,然后对Argo溶解氧剖面观测样点进行空间异质性分区,采用空间-质量定权的方式赋予不同质量标示数据相应的权重系数来解决参与插值的数据量及其精度问题,最后利用迭代插值的思想并集成溶解氧空间分区特征和质量标识,实现了基于Argo剖面浮标观测的溶解氧浓度空间插值。利用交叉验证法和WOA18资料对ASOSQIM进行方法验证和对比分析,结果表明:① ASOSQIM的插值精度相比于其他空间插值方法具有大幅度的提升,与2022年同期Argo浮标溶解氧观测结果进行对比,验证了该方法的优越性和可行性; ② 利用ASOSQIM得到的溶解氧浓度插值结果与WOA18溶解氧资料具有高度一致性,溶解氧浓度绝对误差在20 μmol/kg范围内的区域占比达到85%以上,表明利用该方法得到的插值结果具有可靠性。
岳林峰, 薛存金, 王振国, 牛超然. 基于Argo剖面浮标观测的海洋溶解氧空间-质量迭代插值方法[J]. 地球信息科学学报, 2023, 25(10): 2000-2011.DOI:10.12082/dqxxkx.2023.220720
YUE Linfeng, XUE Cunjin, WANG Zhenguo, NIU Chaoran. An Iterative Space-quality Interpolation Method for Marine Dissolved Oxygen Data Observed by Argo Floats[J]. Journal of Geo-information Science, 2023, 25(10): 2000-2011.DOI:10.12082/dqxxkx.2023.220720
表1
全部观测样点的交叉验证结果
MAE/(μmol/kg) | RMSE/(μmol/kg) | MARE/% | |
---|---|---|---|
ASOSQIM_1 | 2.90 | 5.94 | 1.06 |
ASOIM_1 | 3.26 | 6.18 | 1.06 |
IDW_1 | 4.21 | 7.06 | 1.56 |
KRG_1 | 4.12 | 6.85 | 1.53 |
GPI_1 | 8.20 | 12.64 | 3.18 |
Cressman_1 | 4.05 | 8.23 | 1.66 |
ASOSQIM_7 | 3.47 | 8.40 | 1.44 |
ASOIM_7 | 4.08 | 8.76 | 1.52 |
IDW_7 | 4.94 | 9.43 | 2.01 |
KRG_7 | 4.83 | 9.24 | 1.97 |
GPI_7 | 8.69 | 15.74 | 3.68 |
Cressman_7 | 5.20 | 10.17 | 1.88 |

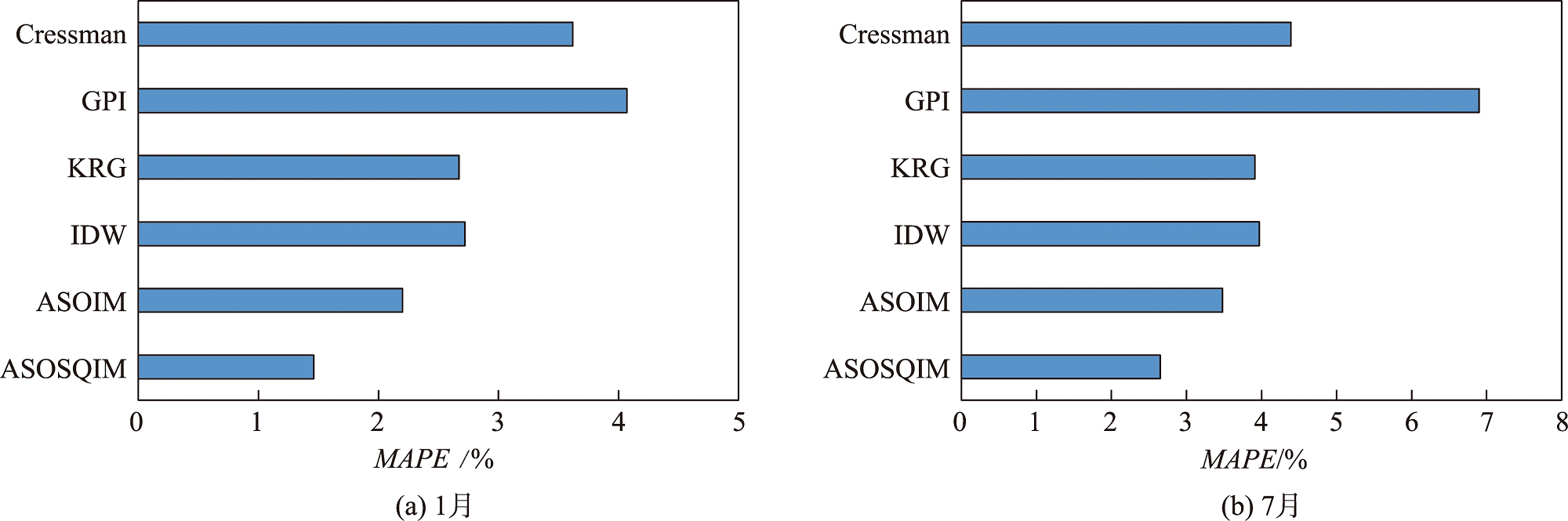

表2
部分观测样点的交叉验证结果
MAE/(μmol/kg) | RMSE/(μmol/kg) | MAPE/% | |
---|---|---|---|
ASOSQIM_1 | 4.38 | 7.67 | 1.46 |
ASOIM_1 | 5.83 | 10.64 | 2.20 |
IDW_1 | 7.27 | 11.42 | 2.72 |
KRG_1 | 7.12 | 11.06 | 2.67 |
GPI_1 | 11.87 | 15.15 | 4.07 |
Cressman_1 | 8.22 | 13.45 | 3.62 |
ASOSQIM_7 | 4.39 | 12.23 | 2.65 |
ASOIM_7 | 6.04 | 13.84 | 3.48 |
IDW_7 | 8.04 | 16.09 | 3.97 |
KRG_7 | 7.98 | 16.00 | 3.91 |
GPI_7 | 13.11 | 24.62 | 6.90 |
Cressman_7 | 9.28 | 15.06 | 4.39 |
表3
ASOSQIM插值结果与实测值比较
编号 | 浮标ID | 周期 | 观测值/(μmol/kg) | 插值结果/(μmol/kg) | 绝对误差/(μmol/kg) | 相对误差/% |
---|---|---|---|---|---|---|
1 | 1902381 | 1 | 210.831 | 211.825 | 0.994 | 0.47 |
2 | 5906035 | 99 | 240.255 | 241.454 | 1.199 | 0.50 |
3 | 5904844 | 183 | 215.156 | 216.732 | 1.576 | 0.73 |
4 | 5905103 | 144 | 325.733 | 327.549 | 1.816 | 0.56 |
5 | 5905138 | 187 | 298.229 | 293.810 | 4.419 | 1.48 |
6 | 5905986 | 174 | 195.506 | 197.730 | 2.224 | 1.14 |
7 | 5905109 | 159 | 223.558 | 221.725 | 1.833 | 0.82 |
8 | 5906208 | 72 | 251.583 | 256.715 | 5.132 | 2.04 |
9 | 5906218 | 67 | 252.084 | 254.358 | 2.274 | 0.90 |
10 | 5906221 | 70 | 313.106 | 318.269 | 5.163 | 1.65 |
11 | 5905974 | 181 | 200.025 | 195.742 | 4.283 | 2.14 |
12 | 5906035 | 98 | 246.273 | 249.353 | 3.080 | 1.25 |
13 | 5906303 | 51 | 194.703 | 195.370 | 0.667 | 0.34 |
14 | 5906310 | 39 | 229.277 | 234.260 | 4.983 | 2.17 |
15 | 5906343 | 30 | 201.162 | 209.158 | 7.996 | 3.97 |
16 | 6902981 | 52 | 294.120 | 295.728 | 1.608 | 0.55 |
17 | 5906475 | 5 | 203.489 | 201.456 | 2.033 | 1.00 |
18 | 5906503 | 3 | 199.267 | 202.761 | 3.494 | 1.75 |
19 | 5906624 | 113 | 320.351 | 326.284 | 5.933 | 1.85 |
20 | 7900566 | 75 | 288.801 | 295.325 | 6.524 | 2.26 |
[1] | Garcia H E, Weathers K W, Paver C R, et al. World Ocean Atlas 2018, Volume 3: Dissolved Oxygen, Apparent Oxygen Utilization, and Dissolved Oxygen Saturation[J]. NOAA Atlas NESDIS, 2019(83):38. |
[2] | Breitburg D, Levin L A, Oschlies A, et al. Declining oxygen in the global ocean and coastal waters[J]. Science, 2018, 359(6371): eaam7240. DOI:10.1126/science.aam7240 |
[3] |
Keeling R F, Garcia H E. The change in oceanic O2 inventory associated with recent global warming[J]. Proceedings of the National Academy of Sciences of the United States of America, 2002, 99(12):7848-7853. DOI:10.1073/pnas.122154899
pmid: 12048249 |
[4] | Matear R J, Hirst A C. Long-term changes in dissolved oxygen concentrations in the ocean caused by protracted global warming[J]. Global Biogeochemical Cycles, 2003, 17(4),1125. DOI:10.1029/2002gb001997 |
[5] |
Stramma L, Johnson G C, Sprintall J, et al. Expanding oxygen-minimum zones in the tropical oceans[J]. Science, 2008, 320(5876):655-658. DOI:10.1126/science.1153847
pmid: 18451300 |
[6] | Garcia H E, Boyer T P, Levitus S, et al. On the variability of dissolved oxygen and apparent oxygen utilization content for the upper world ocean: 1955 to 1998[J]. Geophysical Research Letters, 2005, 32(9):L09604. DOI:10.1029/2004gl022286 |
[7] | Lauvset S K, Key R M, Olsen A, et al. A new global interior ocean mapped climatology: The 1° × 1° GLODAP version 2[J]. Earth System Science Data, 2016, 8(2):325-340. DOI:10.5194/essd-8-325-2016 |
[8] | Schmidtko S, Stramma L, Visbeck M. Decline in global oceanic oxygen content during the past five decades[J]. Nature, 2017, 542(7641):335-339. DOI:10.1038/nature21399 |
[9] | Carpenter J H. The Chesapeake Bay institute technique for the winkler dissolved oxygen method[J]. Limnology and Oceanography, 1965, 10(1):141-143. DOI:10.4319/lo.1965.10.1.0141 |
[10] | Winkler L W. Die bestimmung des im wasser gelösten sauerstoffes[J]. Berichte Der Deutschen Chemischen Gesellschaft, 1888, 21(2):2843-2854. DOI:10.1002/cber.188802102122 |
[11] | 刘烨, 邢小罡. Argo浮标观测溶解氧数据的原理与质量控制[J]. 海洋科学, 2019, 43(1):28-37. |
[Liu Y, Xing X G. Sensor principle and quality control of the dissolved oxygen data observed using Argo floats[J]. Marine Sciences, 2019, 43(1):28-37.] DOI:10.11759/hykx20181102001 | |
[12] | 陈大可, 许建平, 马继瑞, 等. 全球实时海洋观测网(Argo)与上层海洋结构、变异及预测研究[J]. 地球科学进展, 2008, 23(1):1-7. |
[Chen D K, Xu J P, Ma J R, et al. Argo global observation network and studies of upper ocean structure, variability and predictability[J]. Advances in Earth Science, 2008, 23:1-7.] DOI:10.11867/j.issn.1001-8166.2008.01.0001 | |
[13] | Riser S C, Freeland H J, Roemmich D, et al. Fifteen years of ocean observations with the global Argo array[J]. Nature Climate Change, 2016, 6(2):145-153. DOI:10.1038/nclimate2872 |
[14] | Gruber N, Doney S C, Emerson S R, et al. Adding Oxygen to Argo: Developing a Global In Situ Observatory for Ocean Deoxygenation and Biogeochemistry[J]. 2010. DOI:10.5270/OceanObs09.cwp.39 |
[15] | 杨明远. 基于Argo数据的海洋要素场三维网格化技术研究[D]. 郑州: 战略支援部队信息工程大学, 2018. |
[Yang M Y. Research on data griding of three-dimensional oceanic element fields based on Argo data[D]. Zhengzhou: Information Engineering University, 2018.] | |
[16] | 李直龙, 左军成, 纪棋严, 等. 基于Argo剖面和SST以及SLA数据重构三维网格温度场[J]. 海洋预报, 2020, 37(4):66-75. |
[Li Z L, Zuo J C, Ji Q Y, et al. Reconstruction of 3D sea temperature field based on Argo profile, SST and SLA data[J]. Marine Forecasts, 2020, 37(4):66-75.] DOI:10.11737/j.issn.1003-0239.2020.04.008 | |
[17] | Guinehut S, Dhomps A L, Larnicol G, et al. High resolution 3-D temperature and salinity fields derived from in situ and satellite observations[J]. Ocean Science, 2012, 8(5):845-857. DOI:10.5194/os-8-845-2012 |
[18] | 张春玲, 王振峰, 李宏. 基于最优插值法的Argo数据网格化实验[J]. 海洋测绘, 2012, 32(3):29-31. |
[Zhang C L, Wang Z F, Li H. Argo data grid experiment based on optimal interpolation[J]. Hydrographic Surveying and Charting, 2012, 32(3):29-31.] DOI:10.3969/j.issn.1671-3044.2012.03.010 | |
[19] | Gandin L S. Gidrometerologicheskoe izdatelstvo-objective analysis of meteorological fields[J]. Israel Program for Scientific Translations, 1963. DOI:10.1002/qj.49709239320 |
[20] | 李宏, 许建平, 刘增宏, 等. 利用逐步订正法构建Argo网格资料集的研究[J]. 海洋通报, 2012, 31(5):502-514. |
[Li H, Xu J P, Liu Z H, et al. Study on the establishment of gridded Argo data by successive correction[J]. Marine Science Bulletin, 2012, 31(5):502-514.] DOI:10.11840/j.issn.1001-6392.2012.5.004 | |
[21] | 李佳霖, 樊子德, 邓敏. 基于空间异质分区的残差IDW插值方法[J]. 地理与地理信息科学, 2015, 31(5):25-29. |
[Li J L, Fan Z D, Deng M. Residual inverse distance weighting spatial interpolation method based on spatial heterogeneity sub-region[J]. Geography and Geo-Information Science, 2015, 31(5):25-29.] DOI:10.3969/j.issn.1672-0504.2015.05.006 | |
[22] | 杨胜龙, 马军杰, 伍玉梅, 等. 基于Kriging方法Argo数据重构太平洋温度场研究[J]. 海洋渔业, 2008, 30(1):13-18. |
[Yang S L, Ma J J, Wu Y M, et al. Study on the reconstruction of Pacific temperature arena with Argo data based on the Kriging methods[J]. Marine Fisheries, 2008, 30(1):13-18.] DOI:10.3969/j.issn.1004-2490.2008.01.003 | |
[23] | 张韧, 黄志松, 王辉赞, 等. 基于Argo资料的三维盐度场网格化产品重构[J]. 解放军理工大学学报(自然科学版), 2012, 13(3):342-348. |
[Zhang R, Huang Z S, Wang H Z, et al. Reconstruction of three-dimensional gridded salinity product based on Argo data[J]. Journal of PLA University of Science and Technology (Natural Science Edition), 2012, 13(3):342-348.] DOI:10.7666/j.issn.1009-3443.201203020 | |
[24] | 王文娟, 俞胜宾, 杨凡, 等. 基于距平分析的Argo海表温度场重构[J]. 海洋预报, 2014, 31(6):68-73. |
[Wang W J, Yu S B, Yang F, et al. Reconstruction of SST with Argo data based on anomalies analysis[J]. Marine Forecasts, 2014, 31(6):68-73.] DOI:10.11737/j.issn.1003-0239.2014.06.012 | |
[25] |
樊子德, 龚健雅, 刘博, 等. 顾及时空异质性的缺失数据时空插值方法[J]. 测绘学报, 2016, 45(4):458-465.
doi: 10.11947/j.AGCS.2016.20150123 |
[Fan Z D, Gong J Y, Liu B, et al. A space-time interpolation method of missing data based on spatiotemporal heterogeneity[J]. Acta Geodaetica et Cartographica Sinica, 2016, 45(4):458-465.] DOI:10.11947/j.AGCS.2016.20150123 | |
[26] | Chen C F, Li Y Y, Zhao N, et al. Least Squares compactly supported radial basis function for digital terrain model interpolation from airborne lidar point clouds[J]. Remote Sensing, 2018, 10(4):587. DOI:10.3390/rs10040587 |
[27] | 高原, 朱娅男, 陈传法, 等. 高精度DEM建模的加权径向基函数插值方法[J]. 武汉大学学报·信息科学版. https://kns.cnki.net/kcms2/article/abstract?v=3uoqIhG8C45S0n9fL2suRadTyEVl2pW9UrhTDCdPD67Dqpioc424yYx-DW27qisUMliCeNj_am5vsDvhqzxFIpY_OIEUWI2f&uniplatform=NZKPT. |
[Gao Y, Zhu Y N, Chen C F, et al. A weighted radial basis function interpolation method for high accuracy DEM modeling[J]. Geomatics and Information Science of Wuhan University. https://kns.cnki.net/kcms2/article/abstract?v=3uoqIhG8C45S0n9fL2suRadTyEVl2pW9UrhTDCdPD67Dqpioc424yYx-DW27qisUMliCeNj_am5vsDvhqzxFIpY_OIEUWI2f&uniplatform=NZKPT.] DOI:10.13203/j.whugis20210100 | |
[28] |
吕海洋, 盛业华, 段平, 等. 局部最优形态参数的RBF分块地形插值方法与实验[J]. 地球信息科学学报, 2015, 17(3):260-267.
doi: 10.3724/SP.J.1047.2015.00260 |
[Lv H Y, Sheng Y H, Duan P, et al. A hierarchical RBF interpolation method based on local optimal shape parameters[J]. Journal of Geo-Information Science, 2015, 17(3):260-267.] DOI:10.3724/SP.J.1047.2015.00260 | |
[29] | 张海平, 周星星, 代文. 空间插值方法的适用性分析初探[J]. 地理与地理信息科学, 2017, 33(6):14-18,105. |
[Zhang H P, Zhou X X, Dai W. A preliminary on applicability analysis of spatial interpolation method[J]. Geography and Geo-Information Science, 2017, 33(6):14-18,105.] DOI:10.3969/j.issn.1672-0504.2017.06.003 | |
[30] | 朱会义, 刘述林, 贾绍凤. 自然地理要素空间插值的几个问题[J]. 地理研究, 2004, 23(4):425-432. |
[Zhu H Y, Liu S L, Jia S F. Problems of the spatial interpolation of physical geographical elements[J]. Geographical Research, 2004, 23(4):425-432.] DOI:10.3321/j.issn:1000-0585.2004.04.001 | |
[31] | 李新运, 郑新奇, 闫弘文. 坐标与属性一体化的空间聚类方法研究[J]. 地理与地理信息科学, 2004, 20(2):38-40. |
[Li X Y, Zheng X Q, Yan H W. On spatial clustering of combination of coordinate and attribute[J]. Geography and Geo-Information Science, 2004, 20(2):38-40.] DOI:10.3969/j.issn.1672-0504.2004.02.009 | |
[32] | 李亚, 刘丽平, 李柏青, 等. 基于改进K-Means聚类和BP神经网络的台区线损率计算方法[J]. 中国电机工程学报, 2016, 36(17):4543-4552. |
[Li Y, Liu L P, Li B Q, et al. Calculation of line loss rate in transformer district based on improved K-means clustering algorithm and BP neural network[J]. Proceedings of the CSEE, 2016, 36(17):4543-4552.] DOI:10.13334/j.0258-8013.pcsee.160864 | |
[33] | Thierry V, Bittig H, The Argo-Bgc Team. Argo quality control manual for dissolved oxygen concentration[J]. 2021. DOI:10.13155/46542 |
[34] |
段平, 盛业华, 李佳, 等. 自适应的IDW插值方法及其在气温场中的应用[J]. 地理研究, 2014, 33(8):1417-1426.
doi: 10.11821/dlyj201408003 |
[Duan P, Sheng Y H, Li J, et al. Adaptive IDW interpolation method and its application in the temperature field[J]. Geographical Research, 2014, 33(8):1417-1426.] DOI:10.11821/dlyj201408003 | |
[35] | Cressman G P. An operational objective analysis system[J]. Monthly Weather Review, 1959, 87(10):367-374. DOI:10.1175/1520-0493(1959)087<0367:aooas>2.0.co;2 |
[36] | Akima H. A new method of interpolation and smooth curve fitting based on local procedures[J]. Journal of the ACM, 1970, 17(4):589-602. DOI:10.1145/321607.321609 |
[37] | Albert Noël Declercq F. Interpolation methods for scattered sample data: Accuracy, spatial patterns, processing time[J]. Cartography and Geographic Information Systems, 1996, 23(3):128-144. DOI:10.1559/152304096782438882 |
[38] | Boyer T P, Baranova O K, Coleman C, et al. World ocean database 2018[J]. NOAA Atlas NESDIS, 2018(87). |
[39] | Barnes S L. A technique for maximizing details in numerical weather map analysis[J]. Journal of Applied Meteorology, 1964, 3(4):396-409. DOI:10.1175/1520-0450(1964)003<0396:atfmdi>2.0.co;2 |
