SAR卫星影像洪水检测研究进展及展望

doi:10.12082/dqxxkx.2023.230060

地球信息科学学报 ›› 2023, Vol. 25 ›› Issue (10): 1933-1953.doi: 10.12082/dqxxkx.2023.230060

SAR卫星影像洪水检测研究进展及展望

高寒新¹^,²(), 陈波¹^,²^,^*(), 孙洪泉³, 田玉刚⁴

1.北京师范大学环境演变与自然灾害教育部重点实验室，北京师范大学地理科学学部，北京 100875
2.北京师范大学地表过程与资源生态国家重点实验室，北京 100875
3.应急管理部-国家自然灾害防治研究院，北京 100085
4.中国地质大学（武汉）地理与信息工程学院，武汉 430078

收稿日期:2023-02-12 修回日期:2023-05-07 出版日期:2023-10-25 发布日期:2023-09-22
通讯作者: * 陈波（1984—），男，湖北红安人，副教授，主要从事地表水文系统与洪水风险评估方面的研究。 E-mail: bochen@bnu.edu.cn
作者简介:高寒新（1997—），女，山东淄博人，硕士生，主要从事SAR影像洪水检测方面的研究。E-mail: ghx@mail.bnu.edu.cn
基金资助:
国家重点研发计划专项(2021YFB3901203)

Research Progress and Prospect of Flood Detection Based on SAR Satellite Images

GAO Hanxin¹^,²(), CHEN Bo¹^,²^,^*(), SUN Hongquan³, TIAN Yugang⁴

1. Key Laboratory of Environmental Change and Natural Disaster of Ministry of Education, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
2. State Key Laboratory of Earth Surface Processes and Resource Ecology, Beijing Normal University, Beijing 100875, China
3. National Institute of Natural Disaster Prevention and Control, Ministry of Emergency Management, Beijing 100085, China
4. School of Geography and Information Engineering, China University of Geosciences, Wuhan 430078, China

Received:2023-02-12 Revised:2023-05-07 Online:2023-10-25 Published:2023-09-22
Contact: * CHEN Bo, E-mail: bochen@bnu.edu.cn
Supported by:
National Key Research and Development Project(2021YFB3901203)

摘要/Abstract

摘要：

雷达卫星能够穿透云雾，全天时、全天候获取洪涝灾害期间地面的水体信息，被广泛应用于洪水检测。本文从合成孔径雷达（SAR）卫星数据源、洪水检测方法、辅助信息在洪水检测中的应用、精度评价、SAR洪水检测的挑战与发展方向六个方面，总结分析了国内外SAR影像洪水检测领域的研究进展。首先重点梳理了基于阈值分割、分类器和变化检测等洪水检测方法，发现阈值法计算速度快、应用广泛，分类器法可以充分发挥主观性和客观性，变化检测法可有效限制过度检测与影像几何误差。接着分析了光学遥感影像、地形、纹理、水文、土地覆盖/利用等辅助信息在洪水检测中的应用，发现SAR影像结合辅助数据进行洪水检测成为研究热点。然后综合洪水遥感检测的应用需求和SAR水体信息提取技术发展历程，分析了洪水检测在影像数据源、预处理、检测算法及精度验证等方面面临的挑战及原因，总结出目前SAR洪水检测的发展方向：即SAR洪水检测辅助信息的广泛应用、同一SAR影像洪水的差异化识别和基于SAR影像的洪水概率制图等。

关键词: SAR, 洪水检测, 阈值法, 变化检测, 辅助信息, 洪水概率图, 后向散射, 洪水风险

Abstract:

Being able to penetrate clouds and fog, Synthetic Aperture Radar (SAR) imagery has been widely used in flood mapping and flood detection regardless of time and weather condition. Improving the accuracy of flood maps retrieved from SAR images is of both scientific and practical significance. However, errors in SAR-derived flood maps can come from SAR image measuring principles, image acquisition and pre-processing system, water detection algorithms, and the remarkable temporal dynamics of the flooding process. The aim of this paper is to provide an extensive literature review of flood detection using SAR images (about 108 peer reviewed journal papers), including SAR data sources, flood detection methods, application of auxiliary information, accuracy evaluation, and challenges and opportunities for future research. Based on the articles reporting flood detection methods, it is found that the threshold segmentation methods such as the OTSU and KI algorithms are computationally fast and have been most widely used. The classification methods (e.g., the support vector machine and K-means clustering algorithms) have the flexibility to account for both subjectivity and objectivity, and the change detection method using the difference and ratio algorithms can effectively suppress over-detection and image geometric errors. Additionally, combining SAR images with four major types of auxiliary data to increase flood detection accuracy has become a hot topic in the past decades. Specifically, terrain information such as Digital Elevation Model (DEM), Height Above Nearest Drainage (HAND), and topographic slope can effectively reduce the impacts of shadows and exclude non-flooded areas. SAR image textural and multispectral optical information (e.g., Landsat data and aerial photos) can enhance the recognition ability of water features. Land cover/use data facilitate removing non-water features that are similar to water features, and hydrological data can help excluding permanent water bodies from temporary flood areas. From the perspectives of SAR image types, image preprocessing, detection algorithms, and accuracy assessment, major challenges are further discussed including insufficient understanding of the complexity of SAR backscattering information, limited progress in improving the signal-to-noise ratio during image pre-processing, lack of versatile flood detection algorithms, and low availability of high-quality verification data. While opportunities for future SAR-based flood detection research include combination of auxiliary information in detection algorithms, use of multiple rather than single threshold for water detection, and transition from deterministic toward probabilistic flood mapping.

Key words: Synthetic Aperture Radar (SAR), flood detection, threshold method, change detection, auxiliary information, flood probability map, backscatter, flood risk

高寒新, 陈波, 孙洪泉, 田玉刚. SAR卫星影像洪水检测研究进展及展望[J]. 地球信息科学学报, 2023, 25(10): 1933-1953.DOI:10.12082/dqxxkx.2023.230060

GAO Hanxin, CHEN Bo, SUN Hongquan, TIAN Yugang. Research Progress and Prospect of Flood Detection Based on SAR Satellite Images[J]. Journal of Geo-information Science, 2023, 25(10): 1933-1953.DOI:10.12082/dqxxkx.2023.230060

图/表 3

表1

表2

SAR洪水检测方法分类及其特征、优缺点、例子与关键文献

方法	特征		优点	缺点	例子	关键文献
阈值法	参数化	事先对地物类别统计分布做假设，计算统计模型参数	方法简单，计算效率高	过度依赖直方图的双峰分布性，受环境异质性影响大	单峰分布拟合（伽马），多峰分布拟合（高斯）	文献[18]、文献[19]、文献[20]、文献[21]
阈值法	非参数化	不作先验分布假设	方法简单，计算效率高	过度依赖直方图的双峰分布性，受环境异质性影响大	大津算法（OTSU）,水体指数提取法	文献[15⇓⇓⇓⇓⇓⇓]、文献[22]、文献[23]、文献[24]
分类器法	监督分类	需地物相应像素组成的训练集	不需在设计算法前深入了解影像地物的散射特性，控制训练样本的选择	训练集的生成很难自动化，水体内部的方差值越大，样本代表性越差	随机森林分类器，支撑向量机	文献[25]、文献[26]、
	非监督分类	不施加任何的先验知识，算法自学习并进行聚类	不需先验知识，人为误差机会减小	“同物异谱”及“异物同谱”现象使分类集群与地类间不对应	ISODATA，K-means聚类	文献[27]、文献[28]、文献[29]
	半监督分类	已分类与未分类数据一起参与分类器训练	弥补监督学习样本泛化性不足，提高非监督学习模型精度	训练模型过程较复杂，时间成本较大	卷积神经网络（CNN）快速洪水范围制图法	文献[30]、文献[31]、
	面向对象	基于包含重要语义信息在内的对象及其间的相互关系训练分类器	充分利用除辐射信息外的对象信息（例形状），有效解决影像的椒盐噪声问题	模型较复杂，地物分割尺寸影响分类精度	形态语义分割	文献[32]、文献[33]、
变化检测	需洪水前（非淹没）影像，多与阈值分割技术配合使用		有效限制过度检测与影像几何误差	受影像条件限制大，受斑点噪音影响大	比值影像，差值影像	文献[18]、文献[19]、
干涉测量	根据相干性值的高低区分淹没与非淹没区		限制建筑物的双重反射效应对洪水识别的干扰	相干性对时间基线非常敏感，强度信息与相位信息同时计算复杂	CSK强度图与相干图RGB通道组合	文献[34]、文献[35]、
时间序列	基于时间序列数据获取动态淹没图		减弱洪水信息与物候周期有关的植被地物的混淆	数据采样频率不高、存储空间要求高	NDFI和NDFVI的阈值法	文献[36]、文献[37]、

表2

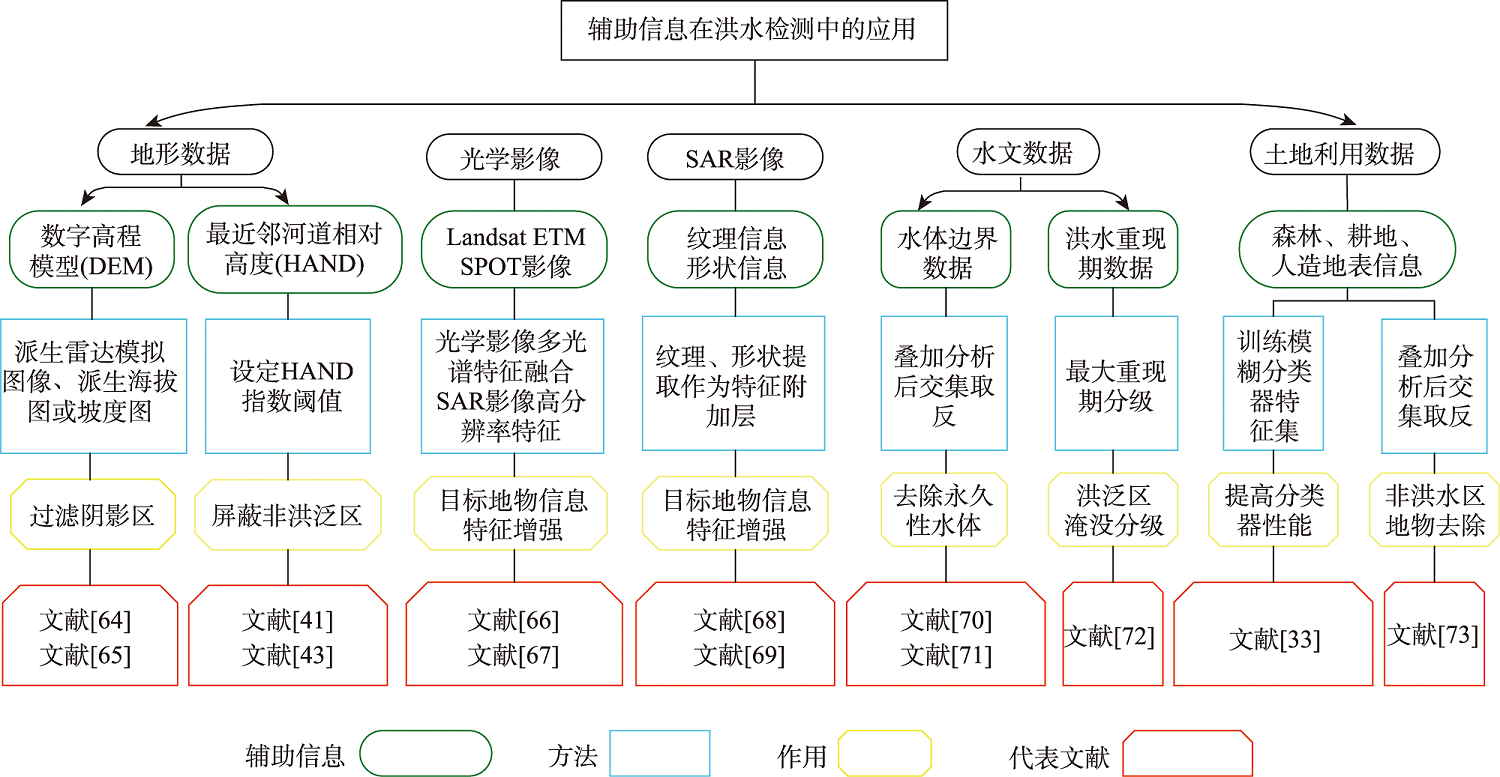

图1

参考文献 108

[1]	Yilmaz K K, Adler R F, Tian Y D, et al. Evaluation of a satellite-based global flood monitoring system[J]. International Journal of Remote Sensing, 2010, 31(14):3763-3782. DOI:10.1080/01431161.2010.483489
[2]	陈玲艳, 刘智, 张红. 基于水体散射特性的SAR图像水体检测[J]. 遥感技术与应用, 2014, 29(6):963-969.
	[Chen L Y, Liu Z, Zhang H. SAR image water extraction based on scattering characteristics[J]. Remote Sensing Technology and Application, 2014, 29(6):963-969.] DOI:10.11873/j.issn.1004-0323.2014.6.0963
[3]	徐涵秋. 利用改进的归一化差异水体指数(MNDWI)提取水体信息的研究[J]. 遥感学报, 2005, 9(5):589-595.
	[Xu H Q. A study on information extraction of water body with the Modified Normalized Difference Water Index (MNDWI)[J]. Journal of Remote Sensing, 2005, 9(5):589-595.] DOI: 10.3321/j.issn:1007-4619.2005.05.012
[4]	都金康, 黄永胜, 冯学智, 等. SPOT卫星影像的水体提取方法及分类研究[J]. 遥感学报, 2001, 5(3):214-219.
	[Du J K, Huang Y S, Feng X Z, et al. Study on water bodies extraction and classification from SPOT image[J]. Journal of Remote Sensing, 2001, 5(3):214-219.] DOI:10.3321/j.issn:1007-4619.2001.03.009
[5]	杨存建, 魏一鸣, 陈德清. 基于星载雷达的洪水灾害淹没范围获取方法探讨[J]. 自然灾害学报, 1998, 7(3):45-50.
	[Yang C J, Wei Y M, Chen D Q. Investigation on extracting the flood inundated area from jers- 1 sar data[J]. Journal of Natural Disasters, 1998, 7(3):45-50.] DOI: 10.3969/j.issn.1004-4574.1998.03.008
[6]	张薇, 杨思全, 王磊, 等. 合成孔径雷达数据减灾应用潜力研究综述[J]. 遥感技术与应用, 2012, 27(6):904-911.
	[Zhang W, Yang S Q, Wang L, et al. Review on disaster reduction application potentiality of synthetic aperture radar[J]. Remote Sensing Technology and Application, 2012, 27(6):904-911.] DOI:10.11873/j.issn.1004-0323.2012.6.904
[7]	Hess L L, Melack J M, Filoso S, et al. Delineation of inundated area and vegetation along the Amazon floodplain with the SIR-C synthetic aperture radar[J]. IEEE Transactions on Geoscience and Remote Sensing, 1995, 33(4):896-904. DOI: 10.1109/36.406675
[8]	Arnesen A S, Silva T S F, Hess L L, et al. Monitoring flood extent in the lower Amazon River floodplain using ALOS/PALSAR ScanSAR images[J]. Remote Sensing of Environment, 2013, 130:51-61. DOI:10.1016/j.rse.2012.10.035
[9]	Kiage L M, Walker N D, Balasubramanian S, et al. Applications of Radarsat-1 synthetic aperture radar imagery to assess hurricane-related flooding of coastal Louisiana[J]. International Journal of Remote Sensing, 2005, 26(24):5359-5380. DOI:10.1080/01431160500442438
[10]	Kuenzer C, Guo H D, Huth J, et al. Flood mapping and flood dynamics of the Mekong delta: ENVISAT-ASAR-WSM based time series analyses[J]. Remote Sensing, 2013, 5(2):687-715. DOI:10.3390/rs5020687
[11]	陈赛楠, 蒋弥. Sentinel-1 SAR在洪水范围提取与极化分析中的应用研究[J]. 地球信息科学学报, 2021, 23(6):1063-1070. doi: 10.12082/dqxxkx.2021.200717
	[Chen S N, Jiang M. Application research of sentinel-1 SAR in flood range extraction and polarization analysis[J]. Journal of Geo-information Science, 2021, 23(6):1063-1070.] DOI:10.12082/dqxxkx.2021.200717
[12]	郭欣, 赵银娣. 基于Sentinel-1A SAR的湖南省宁乡市洪水淹没监测[J]. 遥感技术与应用, 2018, 33(4):646-656.
	[Guo X, Zhao Y D. Floodinundation monitoring in Ningxiang of Hunan Province based on sentinel-1A SAR[J]. Remote Sensing Technology and Application, 2018, 33(4):646-656.] DOI:10.11873/j.issn.1004-0323.2018.4.0646
[13]	李胜阳, 许志辉, 陈子琪, 等. 高分3号卫星影像在黄河洪水监测中的应用[J]. 水利信息化, 2017, 140(5):22-26,72.
	[Li S Y, Xu Z H, Chen Z Q, et al. Application of GF-3 satellite remote sensing image on Yellow River flood monitoring[J]. Water Resources Informatization, 2017(5):22-26,72.] DOI:10.19364/j.1674-9405.2017.05.005
[14]	Lv S N, Meng L S, Edwing D, et al. High-performance segmentation for flood mapping of HISEA-1 SAR remote sensing images[J]. Remote Sensing, 2022, 14(21):5504. DOI:10.3390/rs14215504
[15]	Mason D C, Speck R, Devereux B, et al. Flood detection in urban areas using TerraSAR-X[J]. IEEE Transactions on Geoscience and Remote Sensing, 2010, 48(2):882-894. DOI:10.1109/TGRS.2009.2029236
[16]	Dasgupta A, Grimaldi S, Ramsankaran R, et al. Flood mapping using synthetic aperture radar sensors from local to global scales[M]//Global Flood Hazard. Hoboken, NJ, USA: John Wiley & Sons, Inc., 2018:55-77. DOI:10.1002/9781119217886.ch4
[17]	Hu S S, Qin J X, Ren J C, et al. Automatic extraction of water inundation areas using sentinel-1 data for large plain areas[J]. Remote Sensing, 2020, 12(2):243. DOI: 10.3390/rs12020243
[18]	Matgen P, Hostache R, Schumann G, et al. Towards an automated SAR-based flood monitoring system: Lessons learned from two case studies[J]. Physics and Chemistry of the Earth, Parts A/B/C, 2011, 36(7/8):241-252. DOI: 10.1016/j.pce.2010.12.009
[19]	Chini M, Hostache R, Giustarini L, et al. A hierarchical split-based approach for parametric thresholding of SAR images: Flood inundation as a test case[J]. IEEE Transactions on Geoscience and Remote Sensing, 2017, 55(12):6975-6988. DOI:10.1109/TGRS.2017.2737664
[20]	Kittler J, Illingworth J. Minimum error thresholding[J]. Pattern Recognition, 1986, 19(1):41-47. DOI:10.1016/0031-3203(86)90030-0
[21]	Martinis S, Twele A, Voigt S. Towards operational near real-time flood detection using a split-based automatic thresholding procedure on high resolution TerraSAR-X data[J]. Natural Hazards and Earth System Sciences, 2009, 9(2):303-314. DOI:10.5194/nhess-9-303-2009
[22]	Otsu N. A threshold selection method from gray-level histograms[J]. IEEE Transactions on Systems, Man, and Cybernetics, 1979, 9(1):62-66. DOI:10.1109/TSMC.1979.4310076
[23]	贾诗超, 薛东剑, 李成绕, 等. 基于Sentinel-1数据的水体信息提取方法研究[J]. 人民长江, 2019, 50(2):213-217.
	[Jia S C, Xue D J, Li C R, et al. Study on new method for water area information extraction based on Sentinel-1 data[J]. Yangtze River, 2019, 50(2):213-217.] DOI:10.16232/j.cnki.1001-4179.2019.02.038
[24]	Horritt M S, Mason D C, Luckman A J. Flood boundary delineation from Synthetic Aperture Radar imagery using a statistical active contour model[J]. International Journal of Remote Sensing, 2001, 22(13):2489-2507. DOI:10.1080/01431160116902
[25]	Huang W L, DeVries B, Huang C Q, et al. Automated extraction of inland surface water extent from Sentinel-1 data[C]//2017 IEEE International Geoscience and Remote Sensing Symposium (IGARSS). IEEE, 2017:2259-2262. DOI:10.1109/IGARSS.2017.8127439
[26]	Insom P, Cao C X, Boonsrimuang P, et al. A support vector machine-based particle filter method for improved flooding classification[J]. IEEE Geoscience and Remote Sensing Letters, 2015, 12(9):1943-1947. DOI:10.1109/LGRS.2015.2439575
[27]	孟令奎, 毛旭东, 魏祖帅, 等. 结合先验概率估计的GF-3 影像水体概率估计方法[J]. 测绘学报, 2019, 48(4):439-447. doi: 10.11947/j.AGCS.2019.20170732
	[Meng L K, Mao X D, Wei Z S, et al. Probabilistic water body mapping of GF-3 images based on prior probability estimation[J]. Acta Geodaetica et Cartographica Sinica, 2019, 48(4):439-447.] DOI:10.11947/j.AGCS.2019.20170732
[28]	Liu L Y, Jia Z H, Yang J, et al. SAR image change detection based on mathematical morphology and the K-means clustering algorithm[J]. IEEE Access, 2019, 7:43970-43978. DOI:10.1109/ACCESS.2019.2908282
[29]	王磊, 连增增. 基于Sentinel-1A的2020年鄱阳湖流域洪水灾害遥感监测[J]. 地理空间信息, 2022, 20(6):43-46.
	[Wang L, Lian Z Z. Remote sensing monitoring of Poyang lake flood disaster in 2020 based on Sentinel-1A[J]. Geospatial Information, 2022, 20(6):43-46.] DOI:10.3969/j.issn.1672-4623.2022.06.010
[30]	Luu V H, Dao M S, Nguyen T N T, et al. Semi-supervised convolutional neural networks for flood mapping using multi-modal remote sensing data[C]//2019 6th NAFOSTED Conference on Information and Computer Science (NICS). IEEE, 2020:342-347. DOI:10.1109/NICS48868.2019.9023891
[31]	韩宇韬, 吕琪菲, 周保琢, 等. 基于协同训练半监督学习的遥感影像水体提取方法及系统: CN105279519B[P].2018-09-21.
	[Han Yutao, Lyu Qifei, Zhou Baozhuo, Gu Yongyan, Zhang Zhiyi, Yang Yubin, Song Yong. Remote sensing image water body extraction method and system based on cooperative training semi-supervised learning: CN105279519B[P].2018-09-21.]
[32]	汤玲英, 刘雯, 杨东, 等. 基于面向对象方法的Sentinel-1A SAR在洪水监测中的应用[J]. 地球信息科学学报, 2018, 20(3):377-384. doi: 10.12082/dqxxkx.2018.170599
	[Tang L Y, Liu W, Yang D, et al. Flooding monitoring application based on the object-oriented method and sentinel-1A SAR data[J]. Journal of Geo-information Science, 2018, 20(3):377-384.] DOI:10.12082/dqxxkx.2018.170599
[33]	Pulvirenti L, Pierdicca N, Chini M, et al. An algorithm for operational flood mapping from Synthetic Aperture Radar (SAR) data using fuzzy logic[J]. Natural Hazards and Earth System Sciences, 2011, 11(2):529-540. DOI:10.5194/nhess-11-529-2011
[34]	Chini M, Pelich R, Pulvirenti L, et al. Sentinel-1 InSAR coherence to detect floodwater in urban areas: Houston and hurricane Harvey as A test case[J]. Remote Sensing, 2019, 11(2):107. DOI:10.3390/rs11020107
[35]	Refice A, Capolongo D, Pasquariello G, et al. SAR and InSAR for flood monitoring: Examples with COSMO-SkyMed data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2014, 7(7):2711-2722. DOI:10.1109/JSTARS.2014.2305165
[36]	Cian F, Marconcini M, Ceccato P. Normalized Difference Flood Index for rapid flood mapping: Taking advantage of EO big data[J]. Remote Sensing of Environment, 2018, 209:712-730. DOI: 10.1016/j.rse.2018.03.006
[37]	DeVries B, Huang C Q, Armston J, et al. Rapid and robust monitoring of flood events using Sentinel-1 and Landsat data on the Google Earth Engine[J]. Remote Sensing of Environment, 2020, 240:111664. DOI:10.1016/j.rse.2020.111664
[38]	Bazi Y, Bruzzone L, Melgani F. Image thresholding based on the EM algorithm and the generalized Gaussian distribution[J]. Pattern Recognition, 2007, 40(2):619-634. DOI: 10.1016/j.patcog.2006.05.006
[39]	Giustarini L, Hostache R, Matgen P, et al. A change detection approach to flood mapping in urban areas using TerraSAR-X[J]. IEEE Transactions on Geoscience and Remote Sensing, 2013, 51(4):2417-2430. DOI:10.1109/tgrs.2012.2210901
[40]	Martinis S, Twele A, Voigt S. Unsupervised extraction of flood-induced backscatter changes in SAR data using Markov image modeling on irregular graphs[J]. IEEE Transactions on Geoscience and Remote Sensing, 2011, 49(1):251-263. DOI:10.1109/TGRS.2010.2052816
[41]	Twele A, Cao W X, Plank S, et al. Sentinel-1-based flood mapping: A fully automated processing chain[J]. International Journal of Remote Sensing, 2016, 37(13):2990-3004. DOI:10.1080/01431161.2016.1192304.
[42]	Cao H, Zhang H, Wang C, et al. Operational flood detection using sentinel-1 SAR data over large areas[J]. Water, 2019, 11(4):786. DOI: 10.3390/w11040786
[43]	Bioresita F, Puissant A, Stumpf A, et al. A method for automatic and rapid mapping of water surfaces from sentinel-1 imagery[J]. Remote Sensing, 2018, 10(2):217. DOI: 10.3390/rs10020217
[44]	Demirkaya O, Asyali M H. Determination of image bimodality thresholds for different intensity distributions[J]. Signal Processing: Image Communication, 2004, 19(6):507-516. DOI:10.1016/j.image.2004.04.002
[45]	Schlaffer S, Matgen P, Hollaus M, et al. Flood detection from multi-temporal SAR data using harmonic analysis and change detection[J]. International Journal of Applied Earth Observation and Geoinformation, 2015, 38:15-24. DOI:10.1016/j.jag.2014.12.001
[46]	Lu J, Giustarini L, Xiong B L, et al. Automated flood detection with improved robustness and efficiency using multi-temporal SAR data[J]. Remote Sensing Letters, 2014, 5(3):240-248. DOI:10.1080/2150704X.2014.898190
[47]	Huth J, Gessner U, Klein I, et al. Analyzing water dynamics based on sentinel-1 time series—a study for Dongting Lake wetlands in China[J]. Remote Sensing, 2020, 12(11):1761. DOI:10.3390/rs12111761
[48]	何海清, 杜敬, 陈婷, 等. 结合水体指数与卷积神经网络的遥感水体提取[J]. 遥感信息, 2017, 32(5):82-86.
	[He H Q, Du J, Chen T, et al. Remote sensing image water body extraction combing NDWI with convolutional neural network[J]. Remote Sensing Information, 2017, 32(5):82-86.] DOI:10.3969/j.issn.1000-3177.2017.05.013
[49]	Li Y, Martinis S, Wieland M. Urban flood mapping with an active self-learning convolutional neural network based on TerraSAR-X intensity and interferometric coherence[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2019, 152:178-191. DOI:10.1016/j.isprsjprs.2019.04.014
[50]	Akar Ö, Güngör O. Classification of multispectral images using Random Forest algorithm[J]. Journal of Geodesy and Geoinformation, 2012, 1(2):105-112. DOI:10.9733/jgg.241212.1
[51]	徐庆伶. 基于半监督学习的遥感图像分类研究[D]. 西安: 陕西师范大学, 2011.
	[Xu Q L. Semi-supervised learning to the classification of remote sensing images[D]. Xian: Shaanxi Normal University, 2011.]
[52]	彭海涛, 柯长青. 基于多层分割的面向对象遥感影像分类方法研究[J]. 遥感技术与应用, 2010, 25(1):149-154.
	[Peng H T, Ke C Q. Study on object-oriented remote sensing image classification based on multi-levels segmentation[J], Remote Sensing Technology and Application, 2010, 25(1):149-154.] DOI:10.11873/j.issn.1004-0323.2010.1.149.
[53]	殷亚秋, 李家国, 余涛, 等. 基于高分辨率遥感影像的面向对象水体提取方法研究[J]. 测绘通报, 2015(1):81-85.
	[Yin Y Q, Li J G, Yu T, et al. The study of object-oriented water body extraction method based on high resolution RS image[J]. Bulletin of Surveying and Mapping, 2015(1):81-85.] DOI:10.13474/j.cnki.11-2246.2015.0016
[54]	Hostache R, Matgen P, Wagner W. Change detection approaches for flood extent mapping: How to select the most adequate reference image from online archives?[J]. International Journal of Applied Earth Observation and Geoinformation, 2012, 19:205-213. DOI:10.1016/j.jag.2012.05.003
[55]	Vreugdenhil M, Wagner W, Bauer-Marschallinger B, et al. Sensitivity of sentinel-1 backscatter to vegetation dynamics: An Austrian case study[J]. Remote Sensing, 2018, 10(9):1396. DOI: 10.3390/rs10091396
[56]	Zhao J, Pelich R, Hostache R, et al. A large-scale 2005-2012 flood map record derived from ENVISAT-ASAR data: United Kingdom as a test case[J]. Remote Sensing of Environment, 2021, 256:112338. DOI:10.1016/j.rse.2021.112338
[57]	Li Y, Martinis S, Plank S, et al. An automatic change detection approach for rapid flood mapping in Sentinel-1 SAR data[J]. International Journal of Applied Earth Observation and Geoinformation, 2018, 73:123-135. DOI: 10.1016/j.jag.2018.05.023
[58]	Bazi Y, Bruzzone L, Melgani F. An unsupervised approach based on the generalized Gaussian model to automatic change detection in multitemporal SAR images[J]. IEEE Transactions on Geoscience and Remote Sensing, 2005, 43(4):874-887. DOI:10.1109/TGRS.2004.842441
[59]	Huang S Q, Cai X H, Chen S X, et al. Change detection method based on fractal model and wavelet transform for multitemporal SAR images[J]. International Journal of Applied Earth Observation and Geoinformation, 2011, 13(6):863-872. DOI:10.1016/j.jag.2011.05.018
[60]	Hooper A, Zebker H, Segall P, et al. A new method for measuring deformation on volcanoes and other natural terrains using InSAR persistent scatterers[J]. Geophysical Research Letters, 2004, 31(23):L23611. DOI:10.1029/2004GL021737
[61]	D'Addabbo A, Refice A, Pasquariello G. A Bayesian network approach to perform SAR/InSAR data fusion in a flood detection problem[C]. Image and Signal Processing for Remote Sensing XX. SPIE, 2014, 9244:353-363. DOI: 10.1117/12.2067318
[62]	高伟, 沈秋, 李梦璠, 等. 基于多源遥感数据的洪涝淹没范围时序监测分析[J]. 测绘与空间地理信息, 2018, 41(7):8-10,14.
	[Gao W, Shen Q, Li M F, et al. Analysis of time-serial monitoring of flood extent based on multi-source remote sensing data[J]. Geomatics & Spatial Information Technology, 2018, 41(7):8-10,14.] DOI:10.3969/j.issn.1672-5867.2018.07.003
[63]	Santoro M, Wegmuller U. Multi-temporal SAR metrics applied to map water bodies[C]//2012 IEEE International Geoscience and Remote Sensing Symposium. IEEE, 2012: 5230-5233. DOI:10.1109/igarss.2012.6352430
[64]	杨存建, 魏一鸣, 王思远, 等. 基于DEM的SAR图像洪水水体的提取[J]. 自然灾害学报, 2002, 11(3):121-125.
	[Yang C J, Wei Y M, Wang S Y, et al. Extracting the flood extent from SAR imagery on basis of DEM[J]. Journal of Natural Disasters, 2002, 11(3):121-125.] DOI: 10.3969/j.issn.1004-4574.2002.03.020
[65]	Zhang M M, Chen F, Liang D, et al. Use of sentinel-1 GRD SAR images to delineate flood extent in Pakistan[J]. Sustainability, 2020, 12(14):5784. DOI:10.3390/su12145784
[66]	王志豪, 李刚, 蒋骁. 基于光学和SAR遥感图像融合的洪灾区域检测方法[J]. 雷达学报, 2020, 9(3):539-553.
	[Wang Z H, Li G, Jiang X. Flooded area detection method based on fusion of optical and SAR remote sensing images[J]. Journal of Radars, 2020, 9(3):539-553.] DOI:10.12000/JR19095
[67]	D'Addabbo A, Refice A, Pasquariello G, et al. A Bayesian network for flood detection combining SAR imagery and ancillary data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2016, 54(6):3612-3625. DOI:10.1109/TGRS.2016.2520487
[68]	邓滢, 张红, 王超, 等. 结合纹理与极化分解的面向对象极化SAR水体提取方法[J]. 遥感技术与应用, 2016, 31(4):714-723.
	[Deng Y, Zhang H, Wang C, et al. An object-oriented water extraction method based on texture and polarimetric decomposition feature[J]. Remote Sensing Technology and Application, 2016, 31(4):714-723.] DOI: 10.11873/j.issn.1004-0323.2016.4.0714
[69]	Dasgupta A, Grimaldi S, Ramsankaran R A A J, et al. Towards operational SAR-based flood mapping using neuro-fuzzy texture-based approaches[J]. Remote Sensing of Environment, 2018, 215:313-329. DOI:10.1016/j.rse.2018.06.019
[70]	Grimaldi S, Xu J, Li Y, et al. Flood mapping under vegetation using single SAR acquisitions[J]. Remote Sensing of Environment, 2020, 237:111582. DOI:10.1016/j.rse.2019.111582
[71]	Mueller N, Lewis A, Roberts D, et al. Water observations from space: Mapping surface water from 25 years of Landsat imagery across Australia[J]. Remote Sensing of Environment, 2016, 174:341-352. DOI:10.1016/j.rse.2015.11.003
[72]	Tanguy M, Chokmani K, Bernier M, et al. River flood mapping in urban areas combining Radarsat-2 data and flood return period data[J]. Remote Sensing of Environment, 2017, 198:442-459. DOI:10.1016/j.rse.2017.06.042
[73]	Hall J, Arheimer B, Aronica G T, et al. A European Flood Database: Facilitating comprehensive flood research beyond administrative boundaries[J]. Proceedings of the International Association of Hydrological Sciences, 2015, 370:89-95. DOI:10.5194/piahs-370-89-2015
[74]	Kuntla S K, Manjusree P. Development of an automated tool for delineation of flood footprints from SAR imagery for rapid disaster response: A case study[J]. Journal of the Indian Society of Remote Sensing, 2020, 48(6):935-944. DOI:10.1007/s12524-020-01125-4
[75]	Martinis S, Kersten J, Twele A. A fully automated TerraSAR-X based flood service[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2015, 104:203-212. DOI:10.1016/j.isprsjprs.2014.07.014
[76]	Chen B, Ma C Y, Xiao Y, et al. Retaining relative height information: An enhanced technique for depression treatment in digital elevation models[J]. Water, 2021, 13(23):3347. DOI:10.3390/w13233347
[77]	Nobre A D, Cuartas L A, Momo M R, et al. HAND contour: A new proxy predictor of inundation extent[J]. Hydrological Processes, 2016, 30(2):320-333. DOI:10.1002/hyp.10581
[78]	林婷婷, 史培军, 马春英, 等. 最近邻河道相对高度及其在中国洪水淹没制图中的应用[J]. 北京师范大学学报(自然科学版), 2022, 58(2):300-309.
	[Lin T T, Shi P J, Ma C Y, et al. Height above nearest drainage and application in flood inundation mapping in China[J]. Journal of Beijing Normal University (Natural Science), 2022, 58(2):300-309.] DOI:10.12202/j.0476-0301.2021247
[79]	Clement M A, Kilsby C G, Moore P. Multi-temporal synthetic aperture radar flood mapping using change detection[J]. Journal of Flood Risk Management, 2018, 11(2):152-168. DOI:10.1111/jfr3.12303
[80]	Sghaier M O, Hadzagic M, Patera J. Fusion of SAR and multispectral satellite images using multiscale analysis and dempster-shafer theory for flood extent extraction[C]//2019 22th International Conference on Information Fusion (FUSION). IEEE, 2020:1-8.
[81]	王乐, 牛雪峰, 王明常. 遥感影像融合技术方法研究[J]. 测绘通报, 2011(1):6-8.
	[Wang L, Niu X F, Wang M C. Research on remote sensing imagery data fusion technology and methods[J]. Bulletin of Surveying and Mapping, 2011(1):6-8.]
[82]	雷俊杰, 杨武年, 李红, 等. 哨兵光学及SAR卫星影像协同分类研究[J]. 现代电子技术, 2022, 45(2):135-139.
	[Lei J J, Yang W N, Li H, et al. Research on cooperative classification of sentinel optical and sar satellite images[J]. Modern Electronics Technique, 2022, 45(2):135-139.] DOI: 10.16652/j.issn.1004-373x.2022.02.026
[83]	Sun Y H, Li X J, Gong H L, et al. A study on optical and SAR data fusion for extracting flooded area[C]//2007 IEEE International Geoscience and Remote Sensing Symposium. IEEE, 2008:3086-3089. DOI:10.1109/IGARSS.2007.4423497
[84]	Seydi S T, Saeidi V, Kalantar B, et al. Fusion of the multisource datasets for flood extent mapping based on ensemble Convolutional Neural Network (CNN) model[J]. Journal of Sensors, 2022, 2022:1-20. DOI:10.1155/2022/2887502
[85]	王龙. 图像纹理特征提取及分类研究[D]. 青岛: 中国海洋大学, 2014.
	[Wang L. Study on image texture feature extraction and classification[D]. Qingdao: Ocean University of China, 2014.]
[86]	Ouled Sghaier M, Hammami I, Foucher S, et al. Flood extent mapping from time-series SAR images based on texture analysis and data fusion[J]. Remote Sensing, 2018, 10(2):237. DOI:10.3390/rs10020237
[87]	McGowan H A, Sturman A P. A hydrometeorological approach to the forecasting of inflows to alpine lakes[J]. Physical Geography, 1996, 17(6):513-533. DOI:10.1080/02723646.1996.10642599
[88]	Agnihotri A K, Ohri A, Gaur S, et al. Flood inundation mapping and monitoring using SAR data and its impact on Ramganga River in Ganga Basin[J]. Environmental Monitoring and Assessment, 2019, 191(12):760. DOI: 10.1007/s10661-019-7903-4 pmid: 31745827
[89]	Psomiadis E, Diakakis M, Soulis K X. Combining SAR and optical earth observation with hydraulic simulation for flood mapping and impact assessment[J]. Remote Sensing, 2020, 12(23):3980. DOI:10.3390/rs12233980
[90]	Wilusz D C, Zaitchik B F, Anderson M C, et al. Monthly flooded area classification using low resolution SAR imagery in the Sudd wetland from 2007 to 2011[J]. Remote Sensing of Environment, 2017, 194:205-218. DOI:10.1016/j.rse.2017.03.005
[91]	Liang J Y, Liu D S. A local thresholding approach to flood water delineation using Sentinel-1 SAR imagery[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2020, 159:53-62. DOI:10.1016/j.isprsjprs.2019.10.017
[92]	Shen X Y, Anagnostou E N, Allen G H, et al. Near-real-time non-obstructed flood inundation mapping using synthetic aperture radar[J]. Remote Sensing of Environment, 2019, 221:302-315. DOI:10.1016/j.rse.2018.11.008
[93]	Martinis S, Twele A. A hierarchical spatio-temporal Markov model for improved flood mapping using multi-temporal X-band SAR data[J]. Remote Sensing, 2010, 2(9):2240-2258. DOI:10.3390/rs2092240
[94]	Tsyganskaya V, Martinis S, Marzahn P, et al. SAR-based detection of flooded vegetation - a review of characteristics and approaches[J]. International Journal of Remote Sensing, 2018, 39(8):2255-2293. DOI:10.1080/01431161.2017.1420938
[95]	Mason D C, Davenport I J, Neal J C, et al. Near real-time flood detection in urban and rural areas using high-resolution synthetic aperture radar images[J]. IEEE Transactions on Geoscience and Remote Sensing, 2012, 50(8):3041-3052. DOI:10.1109/TGRS.2011.2178030
[96]	杨雨晴, 王冬梅, 徐佳. 基于局部自适应阈值的GF-3 SAR影像洪涝水体提取[J]. 地理空间信息, 2021, 19(6):54-59,5.
	[Yang Y Q. Flood water extraction from GF-3 SAR images based on local adaptive threshold[J]. Geospatial Information, 2021, 19(6):54-59,5.] DOI:10.3969/j.issn.1672-4623.2021.06.015
[97]	Wdowinski S, Kim S W, Amelung F, et al. Space-based detection of wetlands' surface water level changes from L-band SAR interferometry[J]. Remote Sensing of Environment, 2008, 112(3):681-696. DOI:10.1016/j.rse.2007.06.008
[98]	Schumann G, Hostache R, Puech C, et al. High-resolution 3-D flood information from radar imagery for flood hazard management[J]. IEEE Transactions on Geoscience and Remote Sensing, 2007, 45(6):1715-1725. DOI:10.1109/TGRS.2006.888103
[99]	李玉, 王姝运, 赵泉华. 基于斑点统计特性保持的SAR影像迭代滤波[J]. 电子学报, 2021, 49(9):1809-1817. doi: 10.12263/DZXB.20201281
	[Li Y, Wang S Y, Zhao Q H. Iterative filtering of SAR image based on speckle statistical characteristic preservation[J]. Acta Electronica Sinica, 2021, 49(9):1809-1817.] DOI: 10.12263/DZXB.20201281
[100]	Shen X Y, Wang D C, Mao K B, et al. Inundation extent mapping by synthetic aperture radar: A review[J]. Remote Sensing, 2019, 11(7):879. DOI:10.3390/rs11070879
[101]	Giustarini L, Hostache R, Kavetski D, et al. Probabilistic flood mapping using synthetic aperture radar data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2016, 54(12):6958-6969. DOI:10.1109/TGRS.2016.2592951
[102]	Martinis S, Kuenzer C, Wendleder A, et al. Comparing four operational SAR-based water and flood detection approaches[J]. International Journal of Remote Sensing, 2015, 36(13):3519-3543. DOI:10.1080/01431161.2015.1060647
[103]	Townsend P A. Mapping seasonal flooding in forested wetlands using multi-temporal Radarsat SAR[J]. Photogrammetric Engineering and Remote Sensing, 2001, 67(7):857-864.
[104]	Mason D C, Giustarini L, Garcia-Pintado J, et al. Detection of flooded urban areas in high resolution Synthetic Aperture Radar images using double scattering[J]. International Journal of Applied Earth Observation and Geoinformation, 2014, 28:150-159. DOI:10.1016/j.jag.2013.12.002
[105]	Westerhoff R S, Kleuskens M P H, Winsemius H C, et al. Automated global water mapping based on wide-swath orbital synthetic-aperture radar[J]. Hydrology and Earth System Sciences, 2013, 17(2):651-663. DOI:10.5194/hess-17-651-2013
[106]	Long S, Fatoyinbo T E, Policelli F. Flood extent mapping for Namibia using change detection and thresholding with SAR[J]. Environmental Research Letters, 2014, 9(3):035002. DOI:10.1088/1748-9326/9/3/035002
[107]	Kuntla S K, Manjusree P, Viswanadham M. Sentinel-1 SAR data preparation for extraction of flood footprints- A case study[J]. Disaster Advances, 2019, 12(12):10-20.
[108]	Panahi M, Rahmati O, Kalantari Z, et al. Large-scale dynamic flood monitoring in an arid-zone floodplain using SAR data and hybrid machine-learning models[J]. Journal of Hydrology, 2022, 611:128001. DOI:10.1016/j.jhydrol.2022.128001

工作波段	SAR数据	扫描宽度/km	分辨率/m	重复周期/d	国家/机构	工作年限/年
L	ALOS-PALSAR1	40~350	7~14~100	46	日本	2006—2011
L	ALOS-PALSAR2	25/35/60/70/350	1/3/6/10/100	14	日本	2006—2011
C	ERS-1	100	30	35	欧空局	1991—2000
	ERS-2	100	30	35	欧空局	1995—2010
	ENVISAT-ASAR	100~400	20/70/150	35	欧空局	2002—2012
	RADARSAT-1	45~500	8~100	24	加拿大	1995—2013
	RADARSAT-2	15~500	3~100	24	加拿大	2007—至今
	Sentinel-1	20/80/250/400	5/20/40	12	欧空局	2014—至今
	GF3	10~650	1~500	<3	中国	2016—至今
	HISEA-1	5~100	1	3	中国	2020—至今
X	TerraSAR-X	5~10~30~100	1~3~16	11	德国	2007—至今
X	COSMO-SkyMed	10~30~200	1~3~15	16	意大利	2007—至今
Ku	Qilu-1	500	0.5	-	中国	2021—至今

SAR卫星影像洪水检测研究进展及展望

Research Progress and Prospect of Flood Detection Based on SAR Satellite Images

RichHTML

PDF (PC)

赞

可视化

摘要/Abstract

引用本文

使用本文

图/表 3

参考文献 108

相关文章 15

Metrics

本文评价

推荐阅读 0

[1]	邢子瑶, 董芯蕊, 昝糈莉, 杨帅, 黄梓焓, 刘哲, 张晓东. 融合VGI和遥感等多源数据的洪涝范围提取与模拟方法[J]. 地球信息科学学报, 2023, 25(9): 1869-1881.
[2]	刘文宋, 张仲英, 郑琳, 郭风成. 基于改进HLT与深度学习的双时相PolSAR洪涝灾害监测新方法[J]. 地球信息科学学报, 2023, 25(8): 1730-1745.
[3]	高建文, 管海燕, 彭代锋, 许正森, 康健, 季雅婷, 翟若雪. 基于局部-全局语义特征增强的遥感影像变化检测网络模型[J]. 地球信息科学学报, 2023, 25(3): 625-637.
[4]	刘乐, 盛科荣, 王传阳. 中国科技型初创企业的时空格局及影响因素研究——基于创业生态系统视角[J]. 地球信息科学学报, 2023, 25(2): 340-353.
[5]	陈宇, 陈思, 李杰, 李怀展, 高延东, 王勇, 杜培军. 融合主成分时空分析与时序InSAR的高精度地表形变信息提取——以徐州地区为例[J]. 地球信息科学学报, 2023, 25(12): 2402-2417.
[6]	张建兵, 严泽枭, 马淑芳. 用于遥感影像建筑物变化检测的多尺度交叉对偶注意力网络[J]. 地球信息科学学报, 2023, 25(12): 2487-2500.
[7]	吴小所, 王利玲, 吴朝阳, 郭存鸽, 杨乐, 闫浩文. 基于双时相特征筛选的遥感图像变化检测模型[J]. 地球信息科学学报, 2023, 25(11): 2268-2280.
[8]	谢小曼, 洪梓翔, 李俐, 仇冰琦, 苏怡然. 基于去除土壤散射干扰SAR数据的玉米残茬生物量反演[J]. 地球信息科学学报, 2023, 25(10): 2070-2083.
[9]	魏冠军, 高茂宁. 结合TRIGRS模型的黄土滑坡危险性评价粒子滤波数据同化方法[J]. 地球信息科学学报, 2023, 25(10): 2084-2092.
[10]	李可欣, 郭健, 王宇君, 李宗明, 缪坤, 陈辉. 基于SAR和AIS的角度最近邻数据关联方法[J]. 地球信息科学学报, 2023, 25(1): 131-141.
[11]	张可, 宫辉力, 李小娟, 朱琳, 王彻, 陈蓓蓓, 和继军, 郭琳, 吕明苑, 闫倩蒙, 李江涛. 近场动力学理论在区域地面沉降建模中的应用研究[J]. 地球信息科学学报, 2023, 25(1): 49-62.
[12]	赵祥, 王涛, 张艳, 郑迎辉, 张昆, 王龙辉. 基于改进DeepLabv3+孪生网络的遥感影像变化检测方法[J]. 地球信息科学学报, 2022, 24(8): 1604-1616.
[13]	焦洋洋, 刘平芝, 熊顺, 徐道柱. 基于自然格网索引的多尺度面实体增量级联更新方法[J]. 地球信息科学学报, 2022, 24(5): 851-863.
[14]	邱凤婷, 过志峰, 张宗科, 魏显虎, 景睦馨. 基于改进SVM分类法的SAR图像水体面积提取研究[J]. 地球信息科学学报, 2022, 24(5): 940-948.
[15]	张文璇, 王卷乐. 基于SAR影像后向散射特性的中俄黑龙江流域洪水监测[J]. 地球信息科学学报, 2022, 24(4): 802-813.
