基于众源轨迹的OSM路网转向信息增强

doi:10.12082/dqxxkx.2023.230070

摘要/Abstract

摘要：

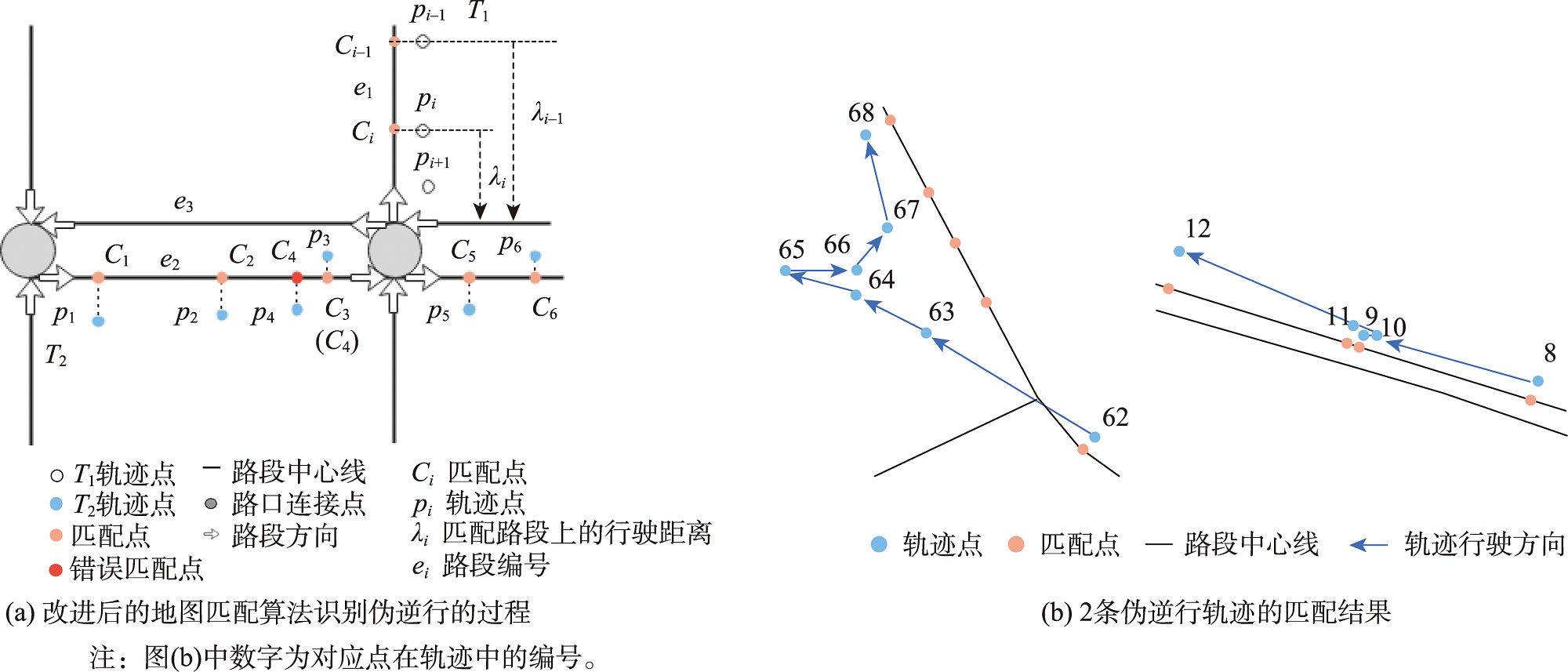

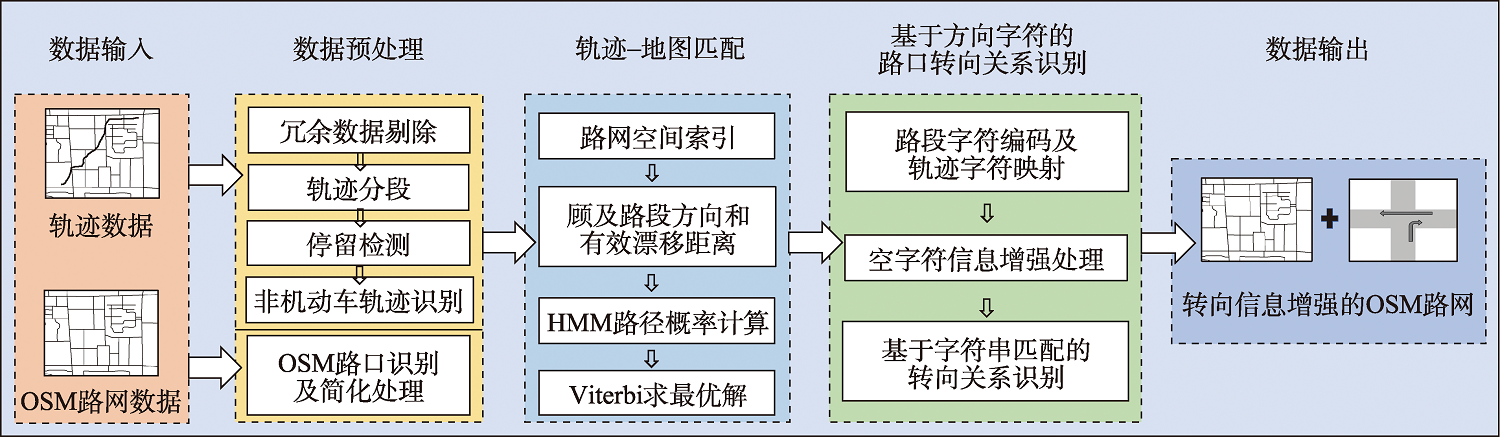

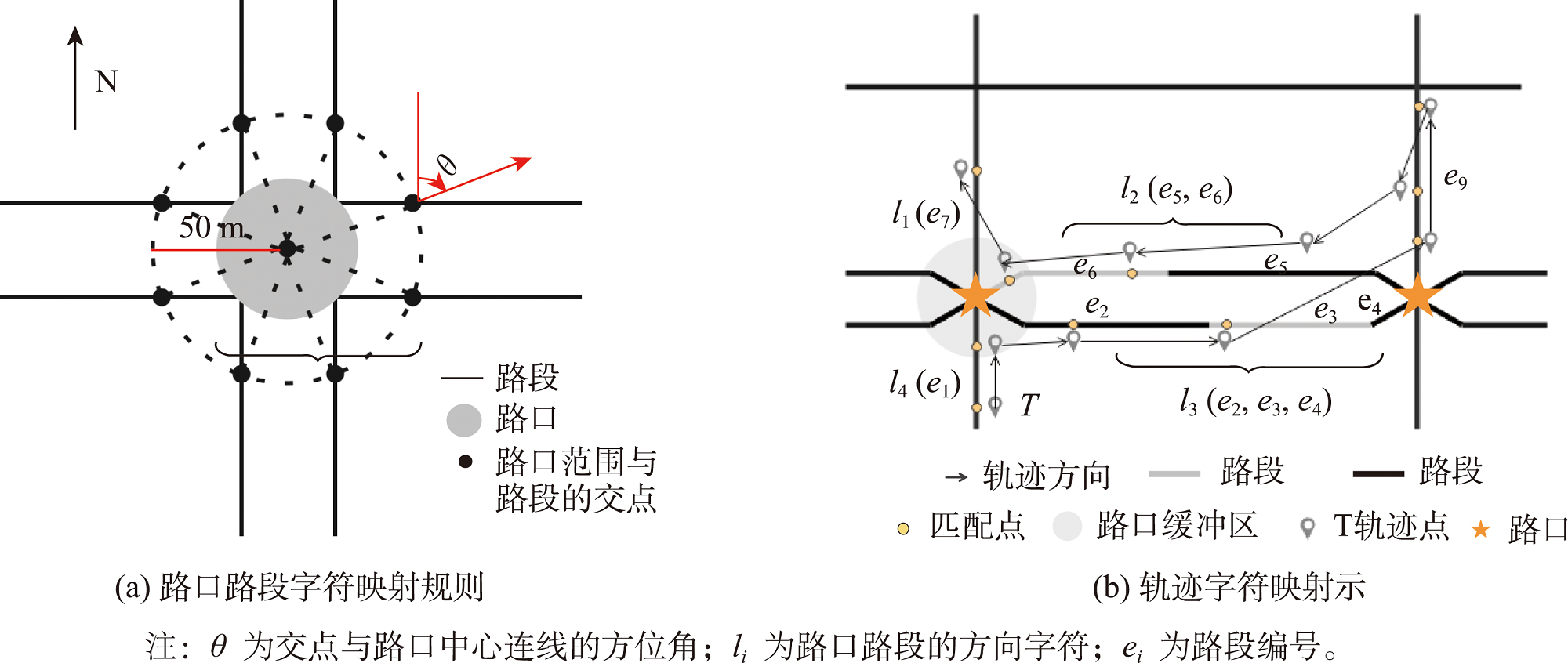

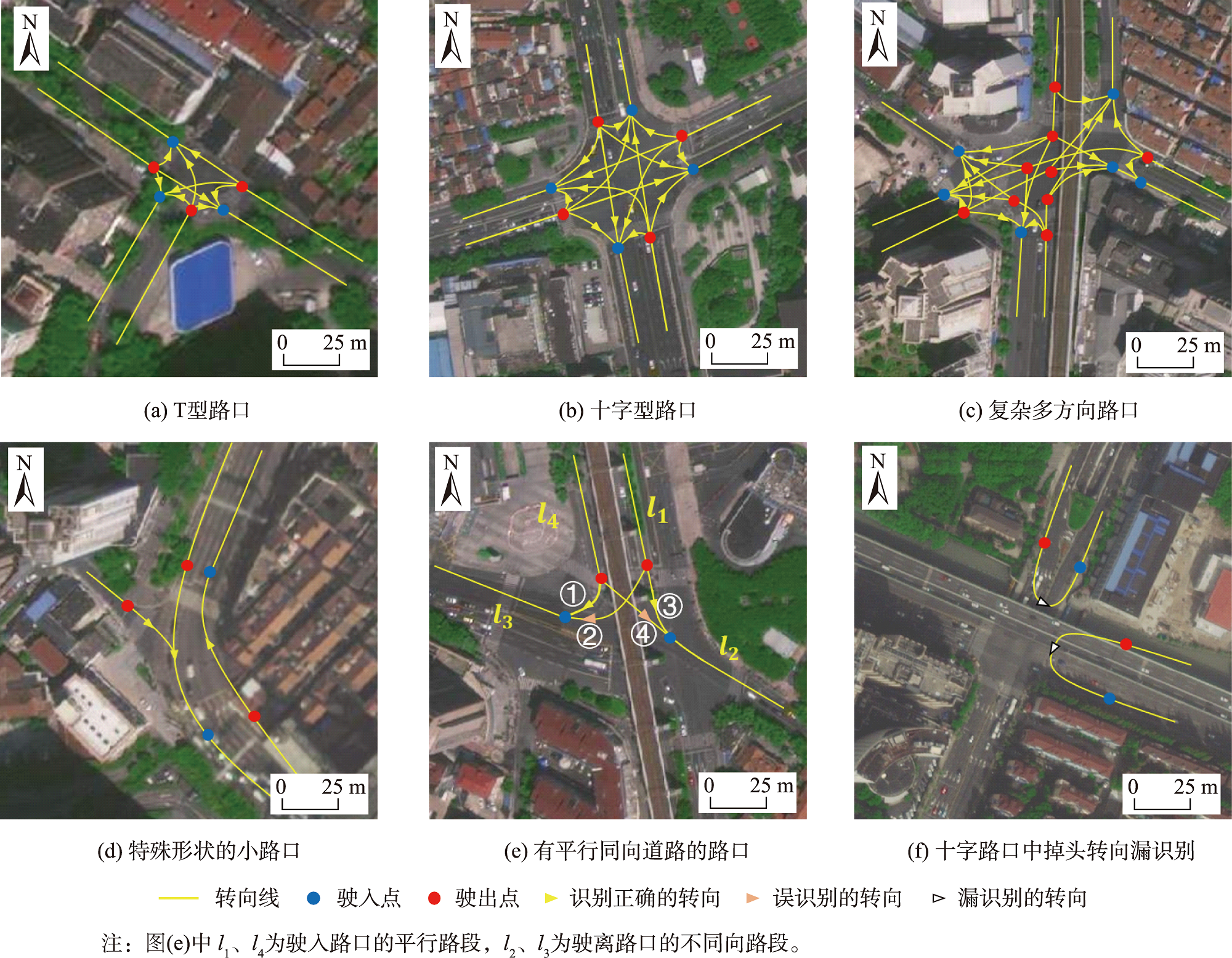

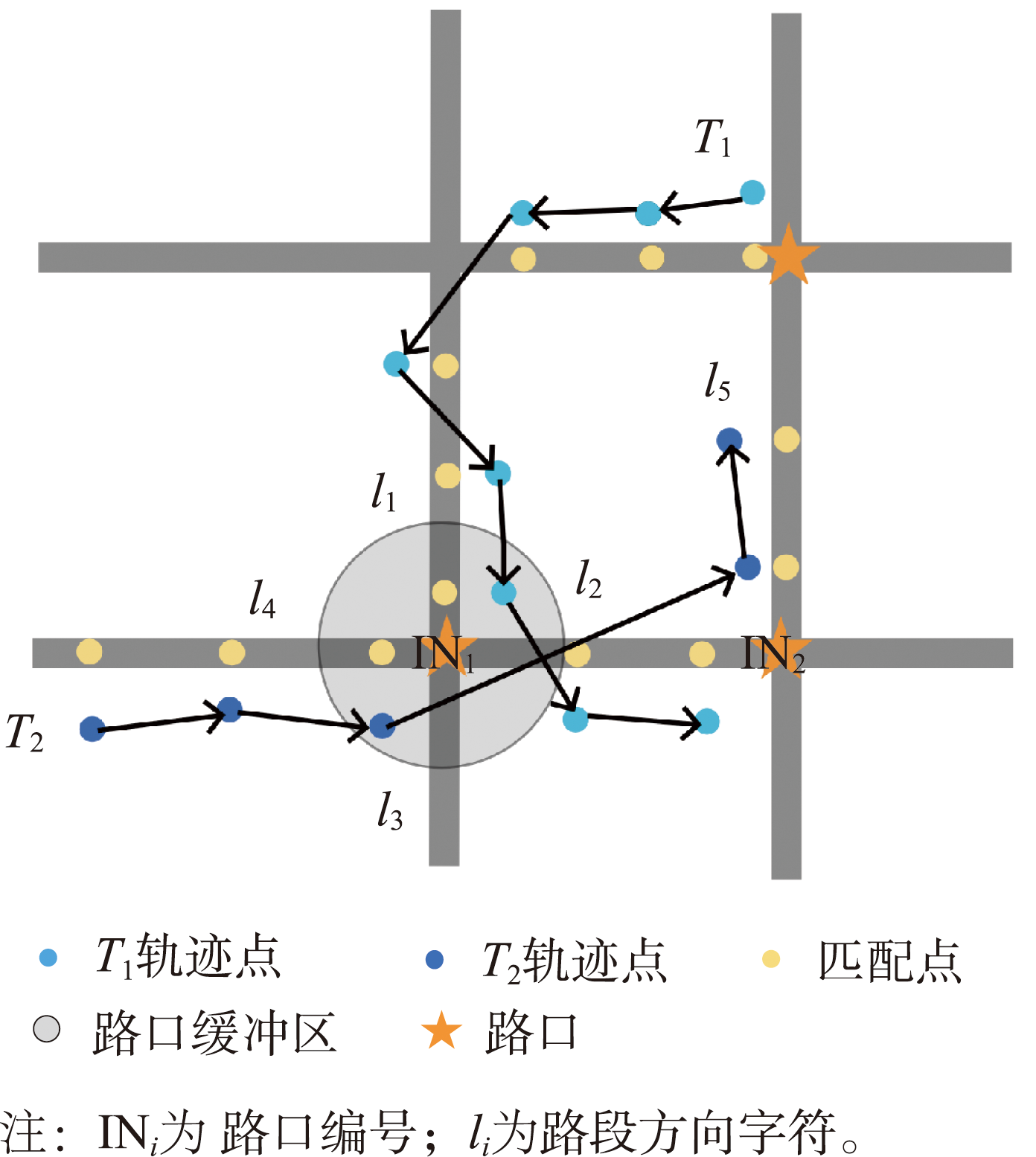

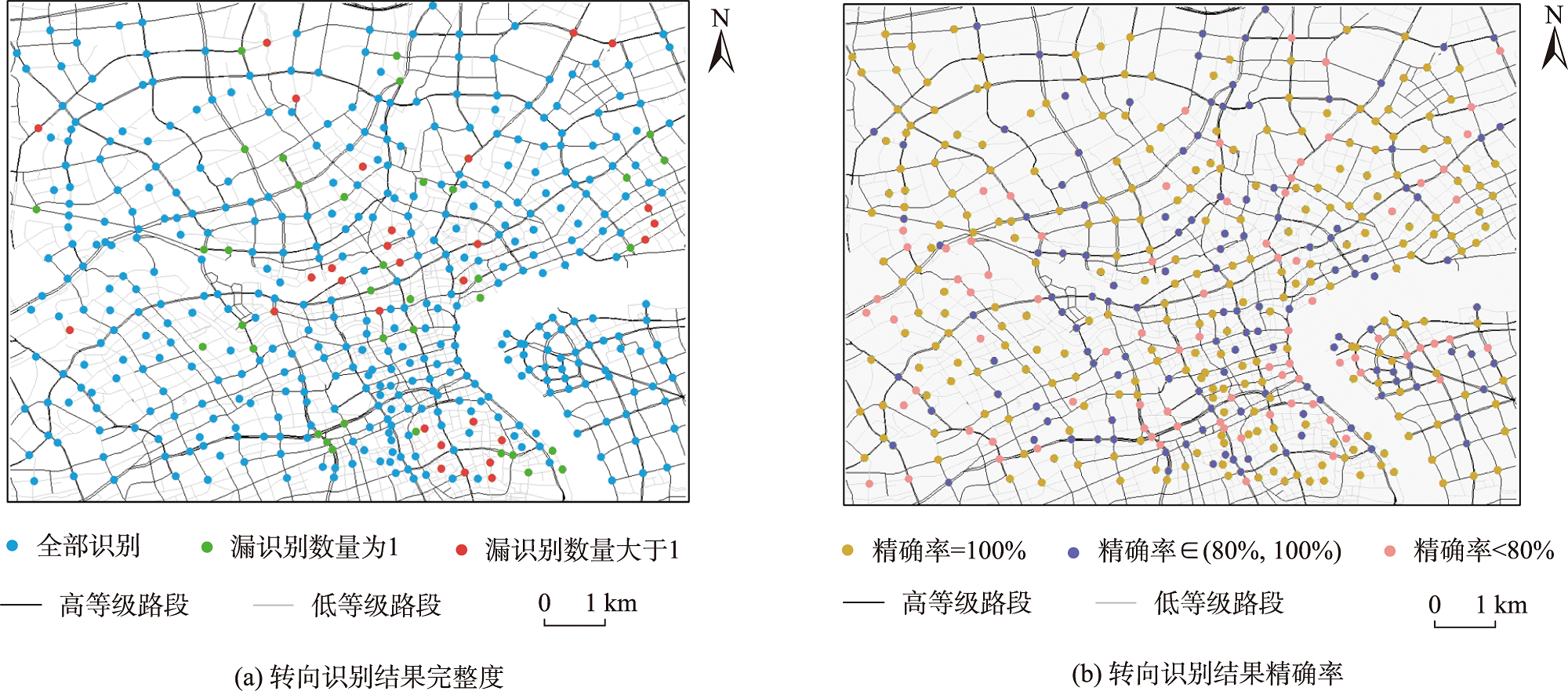

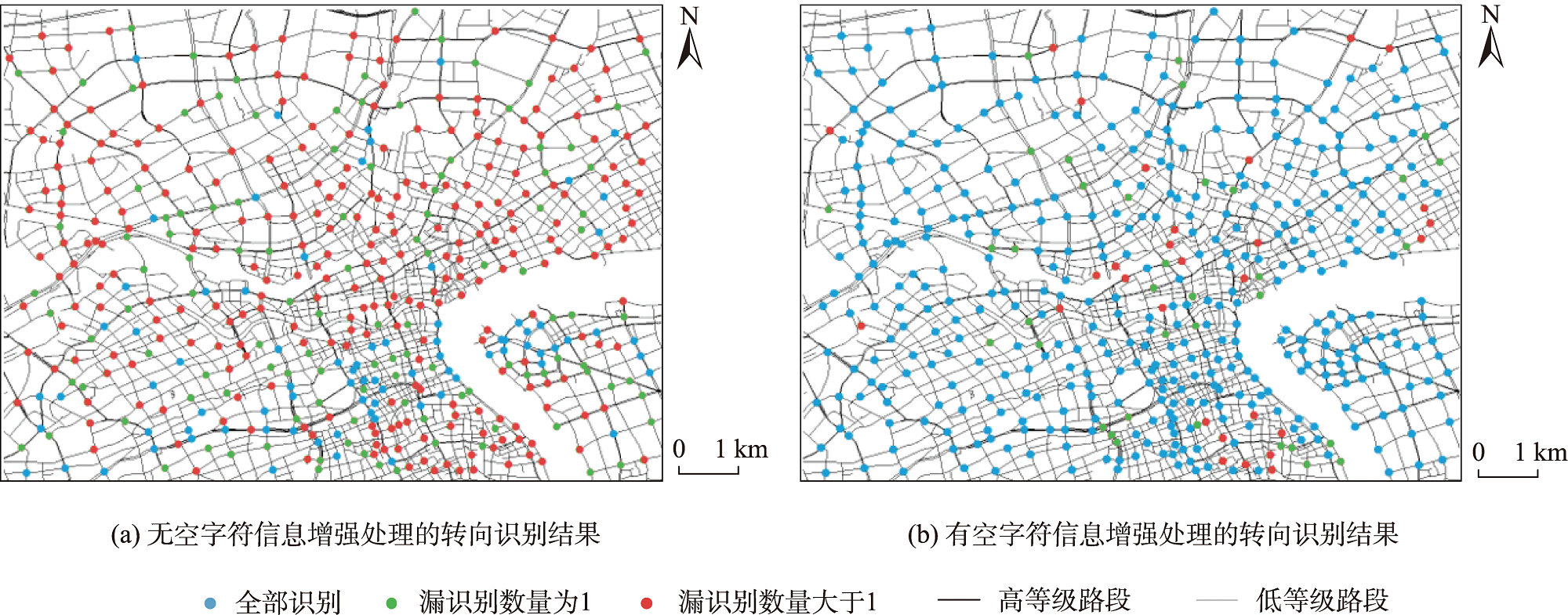

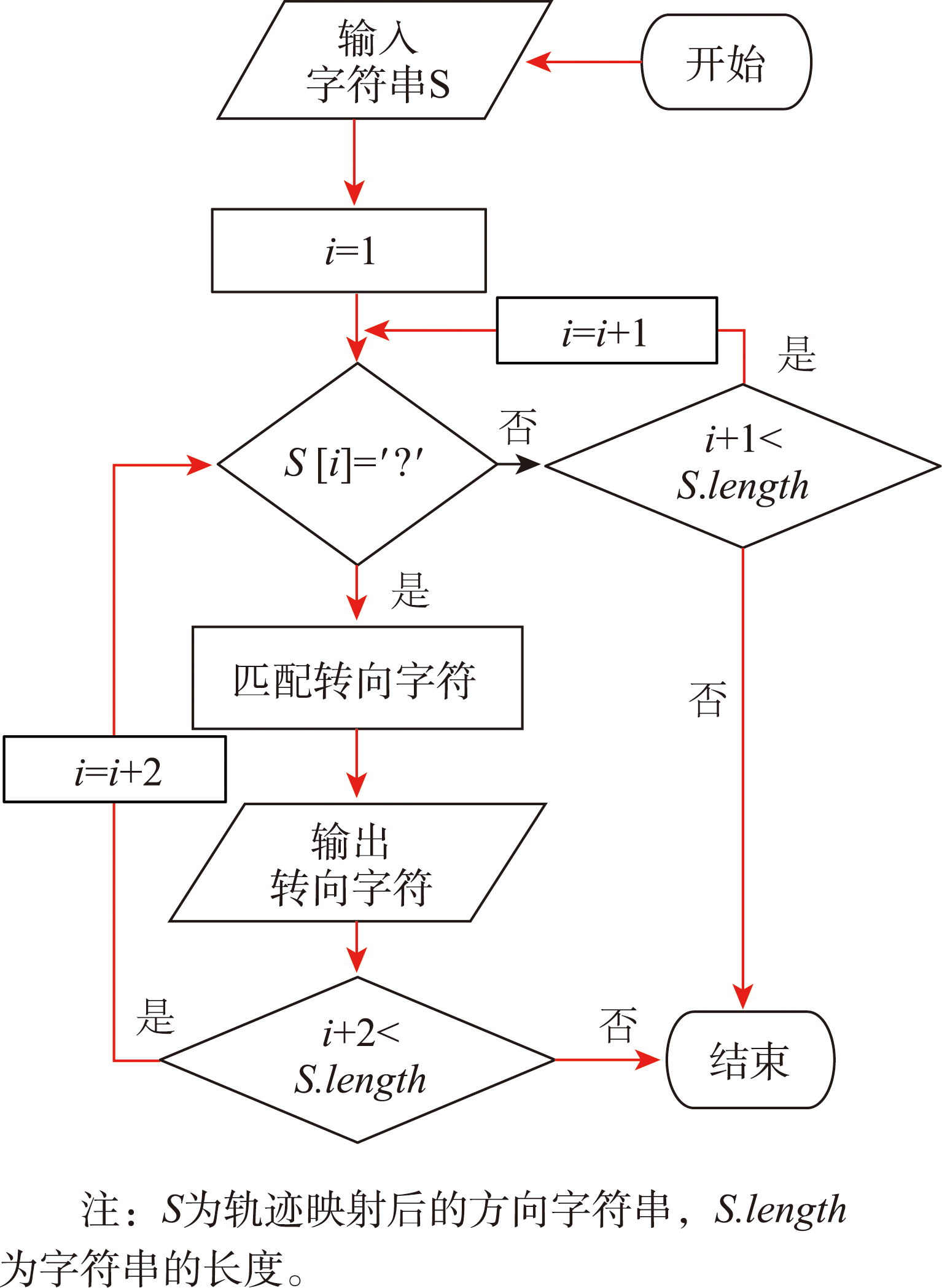

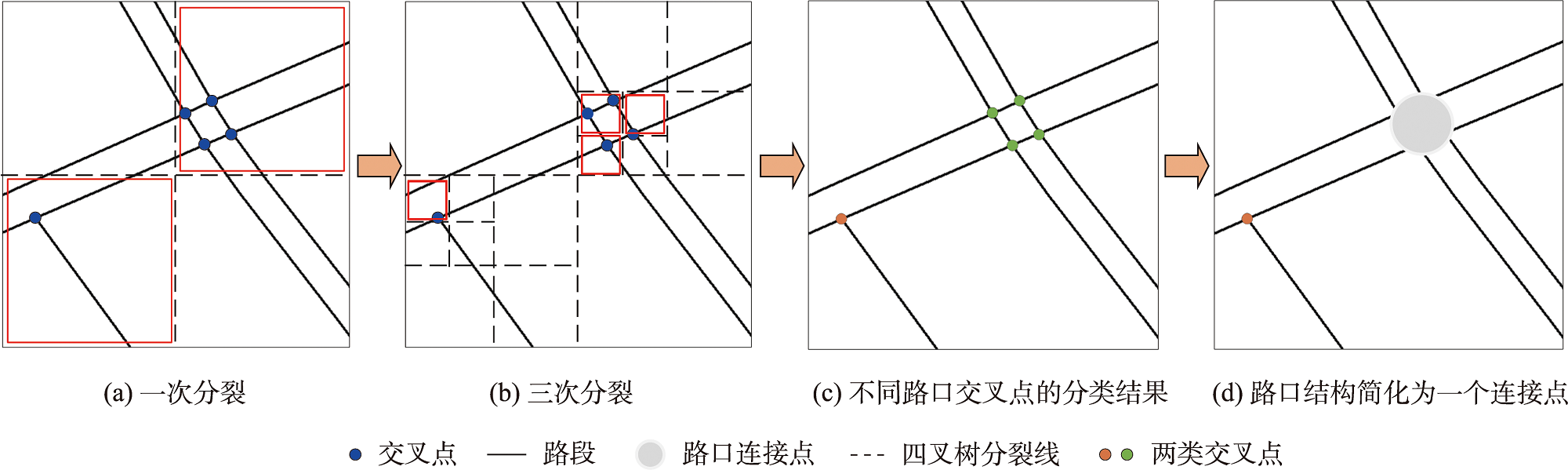

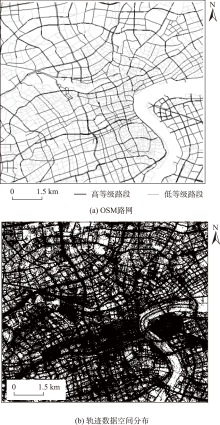

OpenStreetMap（OSM）路网数据是一个开放性的数据集，旨在为全球用户提供免费的数字地图资源，但路口转向信息的缺失，成为制约其进一步服务于车辆导航和路径规划的瓶颈。为此，本文提出一种基于地图匹配和字符串映射的路口转向探测方法，通过挖掘众源GNSS轨迹数据在交通路口的动态连接信息，为OSM路网结构赋予转向关系。首先，基于一种自上而下的四叉树分裂思想，设计了OSM路口结构探测方法，进而将路口结构简化为一个连接点；在此基础上改进HMM地图匹配算法，识别漂移异常的轨迹序列，从而将低频、高噪的众源轨迹投影到OSM路段上；接着，引入面向路口的路段字符编码技术，将路口相关的轨迹映射为转向过程中的方向字符串，进一步借助于最优路径分析思想，设计了空字符的信息增强处理方法还原低频轨迹行驶的路线信息，以有效提高短路段的轨迹支持度；最后，直接针对轨迹方向字符串，通过字符串匹配挖掘轨迹在目标路口的转向类别，实现OSM路网的转向信息增强。本文将复杂的路口转向关系识别转化为简单的字符串匹配，基于上海市数据的试验表明，该方法可以识别结构与大小各异的路口转向关系，其精确率达到90%，召回率超过98%，F1值超94%。

关键词: 转向关系, 地图匹配, 众源轨迹数据, 字符编码, 字符匹配, OSM路网, 路口转向信息增强, 路径分析

Abstract:

OpenStreetMap (OSM) road network is an open-source dataset that is dedicated to providing people with a globe-free digital map resource, and it has been widely used in spatial analysis and applications such as route planning and vehicle navigation services. Meanwhile, in order to regulate traffic order and reduce heavy traffic congestion, the constraints of turning rules are generally implemented at intersections in urban areas. These constraints should be respected in the applications based on OSM road network. However, OSM road network lacks turning relationships at intersections, preventing its services from route planning and vehicle navigation. For this reason, to endow OSM road network structure with turning relationships, this study presents an intersection turning detection method based on map matching and string mapping, which takes advantage of crowdsourcing GNSS trajectory data in terms of its dynamic connection information at traffic intersections. Firstly, a structure detection method for OSM intersections is designed based on a top-down quadtree splitting idea, then the intersections with different sizes and complex and various shapes are reduced to the connection points. On this basis, the improved Hidden Markov Model (HMM) map matching algorithm is introduced to project low-frequency and high-noise trajectories onto OSM road segments. This algorithm considers the direction consistency between roads and trajectories, as well as the effective drift distance between two adjacent trajectory points, can identify trajectory sequences with semantic anomalies during the driving process. Secondly, to simplify turning relationship detection, a character encoding technology facing the intersection-related road segments is presented to map the trajectories crossing through intersections to the directional strings in turning process. The information enhancement method regarding the empty characters based on optimal path analysis is further designed to enhance turning trajectory support for short road segments. This approach helps restore the driving route information for low-frequency trajectories. Finally, the different turn modes of trajectories at the target intersection are mined by directly targeting the trajectory directional strings based on a string matching method, thus this study realizes turning information enhancement for OSM intersections referencing to the "consensus knowledge" of crowdsourcing trajectories. The complicated turning relationship identification for OSM intersections is transformed into the simple string matching. The experiment based on crowdsourcing trajectory data in Shanghai shows that the proposed method can detect turning relationships for OSM intersections with a precision rate of 90%, a recall rate of over 98%, and an F1-score of over 94%.

Key words: turning relationships, map matching, crowdsourcing trajectory, string mapping, string matching, OSM road network, intersection's turning information enhancement, path analysis

陈欣, 向隆刚, 焦凤伟. 基于众源轨迹的OSM路网转向信息增强[J]. 地球信息科学学报, 2023, 25(10): 1954-1967.DOI:10.12082/dqxxkx.2023.230070

CHEN Xin, XIANG Longgang, JIAO Fengwei. Turning Information Enhancement of OpenStreetMap Road Network Based on Crowdsourcing Trajectory Data[J]. Journal of Geo-information Science, 2023, 25(10): 1954-1967.DOI:10.12082/dqxxkx.2023.230070

图/表 18

图1

图2

图3

图4

表1

路口的转向关系

路口	路段字符表示	转向频率	转向属性
$I N$	$l 1, l 2, l 3, l 4, l 5$ , $l 6, l 7, l 8$	( $l 1, l 2$ ):0\|…\|( $l 6, l 7$ ):88\|…	( $l 1, l 2$ )=0\|…\|( $l 6, l 7$ )=1\|…

表1

图5

图6

图7

图8

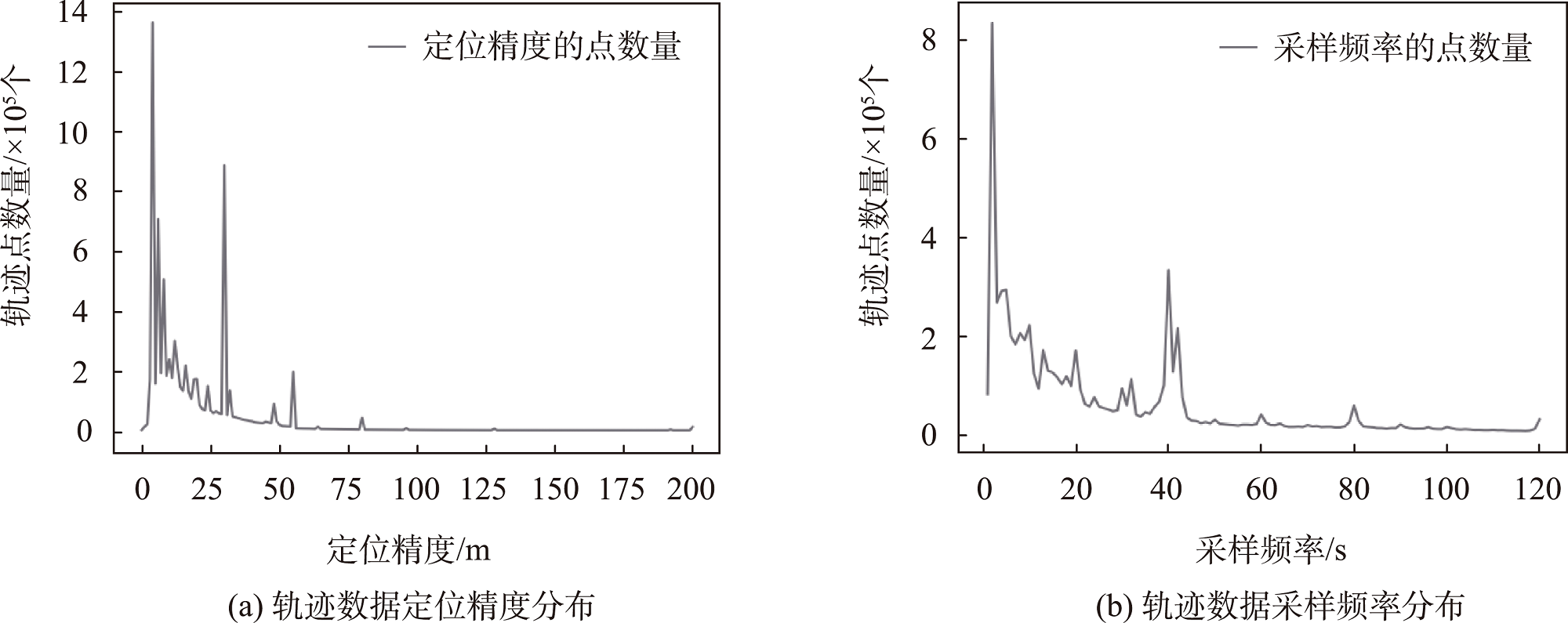

图9

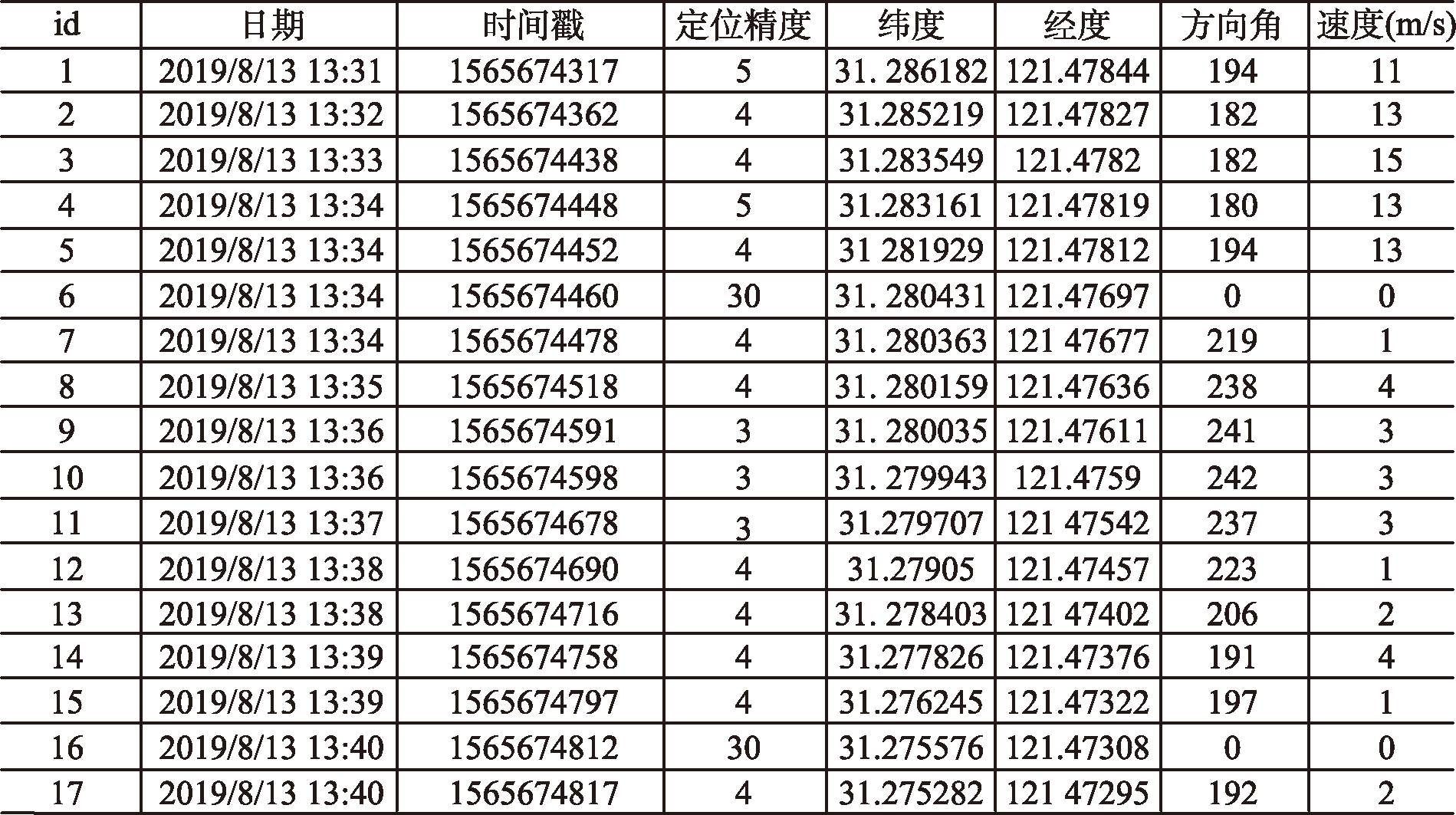

表2

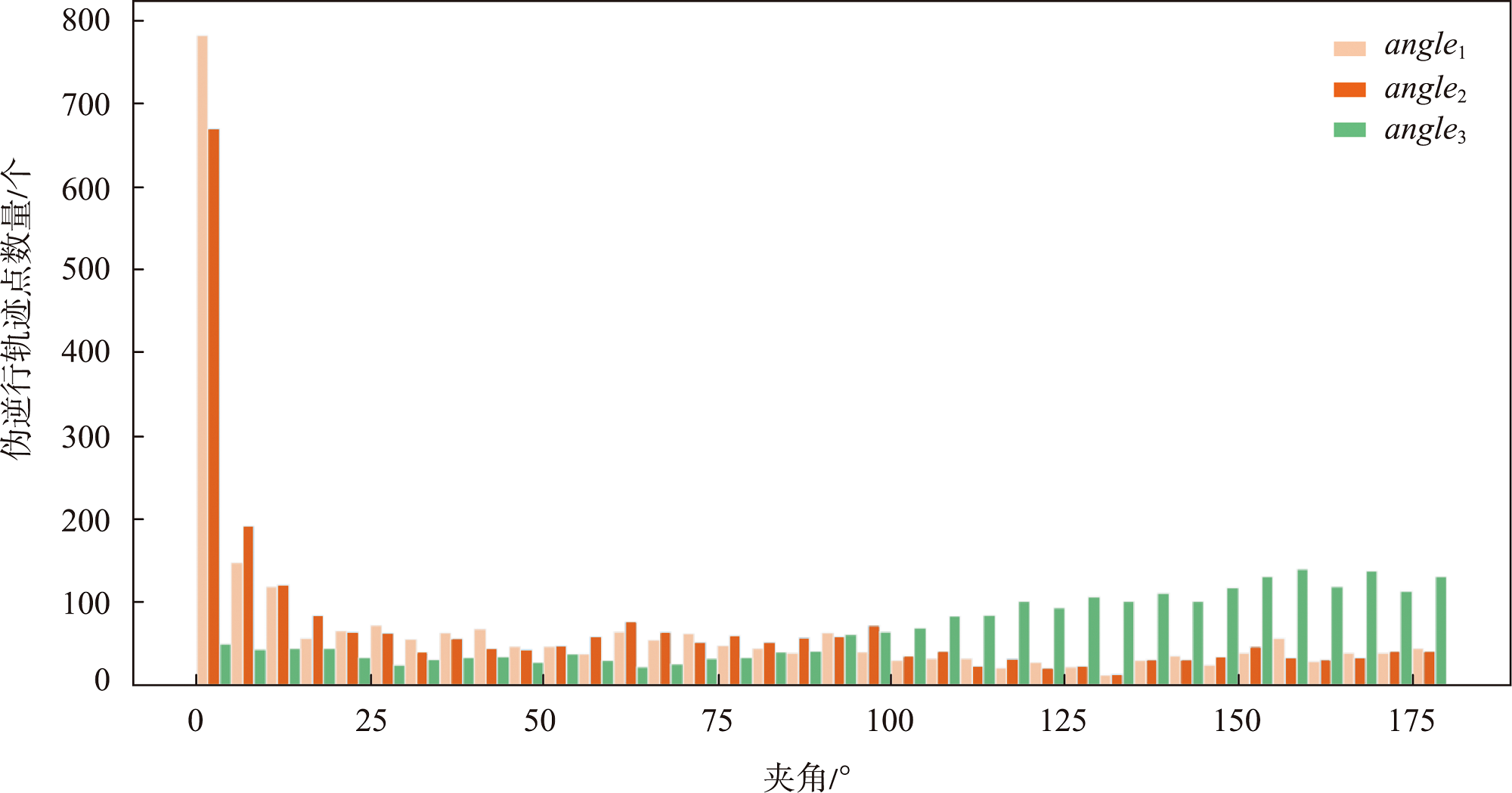

图10

图11

表3

图12

图13

表4

图14

参考文献 30

[1]	Zhang Y J, Li X M, Wang A M, et al. Density and diversity of OpenStreetMap Road networks in China[J]. Journal of Urban Management, 2015, 4(2):135-146. DOI:10.1016/j.jum.2015.10.001
[2]	Botta F, Gutiérrez-Roig M. Modelling urban vibrancy with mobile phone and OpenStreetMap data[J]. PLoS One, 2021, 16(6):e0252015. DOI:10.1371/journal.pone.0252015
[3]	陈舒燕. 基于OpenStreetMap的出行可达性分析与实现[D]. 上海: 上海师范大学, 2010.
	[Chen S Y. A web-based accessibility analysis service using OpenStreetMap data[D]. Shanghai: Shanghai Normal University, 2010.] DOI:10.7666/d.y1667221
[4]	寇培颖, 牛铮, 刘正佳, 等. 基于自发地理信息的“一带一路”区域陆路交通状况分析[J]. 地球信息科学学报, 2018, 20(8):1074-1082. doi: 10.12082/dqxxkx.2018.180090
	[Kou P Y, Niu Z, Liu Z J, et al. Analyzing the Land Transportation Conditions in the Belt and Road Area Based on Volunteered Geographic Information[J]. Journal of Geo-information Science, 2018, 20(8):1074-1082.] DOI:10.12082/dqxxkx.2018.180090
[5]	Mobasheri A, Zipf A, Francis L. OpenStreetMap data quality enrichment through awareness raising and collective action tools—Experiences from a European project[J]. Geo-Spatial Information Science, 2018, 21(3):234-246. DOI:10.1080/10095020.2018.1493817
[6]	张绛丽, 张笑非, 徐丹, 等. 基于OpenStreetMap的智能交通路网数据的构建[J]. 道路交通与安全, 2014, 14(1):41-47.
	[Zhang J L, Zhang X F, Xu D, et al. Road_net data construction for intelligent transportation based on the open street map[J]. Road Traffic & Safety, 2014, 14(1):41-47.] DOI:10.13986/j.cnki.jote.2014.01.005
[7]	庄立坚, 何兆成, 杨文臣, 等. 基于大规模浮动车数据的交叉口转向规则自动提取算法[J]. 武汉理工大学学报(交通科学与工程版), 2013, 37(5):1084-1088.
	[Zhuang L J, He Z C, Yang W C, et al. A large-scale floating car data-based algorithm of turning rule extraction at intersections[J]. Journal of Wuhan University of Technology (Transportation Science & Engineering, 2013, 37(5):1084-1088.] DOI:10.3963/j.issn.2095-3844.2013.05.042
[8]	黄敏, 潘嘉杰, 刘芳. 基于SVM的交叉口连通关系建模[J]. 计算机工程与设计, 2017, 38(5):1319-1323.
	[Huang M, Pan J J, Liu F. Modeling for logical connectivity of intersection based on SVM[J]. Computer Engineering and Design, 2017, 38(5):1319-1323.] DOI:10.16208/j.issn1000-7024.2017.05.037
[9]	段莉琼, 雷大伟. 车辆自导航系统中加入道路转向限制的最短路径算法[J]. 海洋测绘, 2003, 23(5):12-15.
	[Duan L Q, Lei D W. The algorithm of the shortest path for turning restriction in vehicle navigation system[J]. Hydrographic Surveying and Charting, 2003, 23(5):12-15.] DOI:10.3969/j.issn.1671-3044.2003.05.004
[10]	隋东, 任刚, 邵进达. 基于GIS的城市交通网络数据模型研究[J]. 公路交通科技, 2006, 23(9):94-97.
	[Sui D, Ren G, Shao J D. Study on GIS-based data model for urban transport networks[J]. Journal of Highway and Transportation Research and Development, 2006, 23(9):94-97.] DOI:10.3969/j.issn.1002-0268.2006.09.022
[11]	Efentakis A, Grivas N, Pfoser D, et al. Crowdsourcing turning-restrictions from map-matched trajectories[J]. Information Systems, 2017, 64:221-236. DOI:10.1016/j.is.2016.04.004
[12]	Efentakis A, Brakatsoulas S, Grivas N, et al. Crowdsourcing turning restrictions for OpenStreetMap[C]// Proceedings of the EDBT/ICDT Workshops. Athens, Greece, 2014:355-362.
[13]	孙智文. 基于航拍影像的道路附属设施检测技术研究[D]. 西安: 西安电子科技大学, 2018.
	[Sun Z W. Research on detection technology of road accessory facilities based on aerial image[D]. Xi'an: Xidian University, 2018.]
[14]	陈兴华, 万幼川, 王晓华. 基于街景影像的交通标志识别[J]. 地理空间信息, 2014, 12(5):75-77,10.
	[Chen X H, Wan Y C, Wang X H. Traffic sign recognition based on street view image[J]. Geospatial Information, 2014, 12(5):75-77,10.] DOI:10.3969/j.issn.1672-4623.2014.05.027
[15]	Naseer M, Supriadi I, Supangkat S H. Feature detection of curve traffic sign image on the bandung - jakarta highway[J]. Journal of Physics: Conference Series, 2018, 978:012083. DOI:10.1088/1742-6596/978/1/012083
[16]	Fathi A, Krumm J. Detecting road intersections from GPS traces[C]// Proceedings of the 6th International Conference on Geographic Information Science. New York: ACM, 2010:56-69. DOI:10.10.5555/1887961.1887966
[17]	唐炉亮, 牛乐, 杨雪, 等. 利用轨迹大数据进行城市道路交叉口识别及结构提取[J]. 测绘学报, 2017, 46(6):770-779. doi: 10.11947/j.AGCS.2017.20160614
	[Tang L L, Niu L, Yang X, et al. Urban intersection recognition and construction based on big trace data[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(6):770-779.] DOI:10.11947/j.AGCS.2017.20160614
[18]	Wang J, Wang C L, Song X F, et al. Automatic intersection and traffic rule detection by mining motor-vehicle GPS trajectories[J]. Computers, Environment and Urban Systems, 2017, 64:19-29. DOI:10.1016/j.compenvurbsys.2016.12.006
[19]	唐炉亮, 于智伟, 任畅, 等. 基于车载GPS轨迹的立体交叉口空间结构信息获取方法[J]. 交通运输工程学报, 2019, 19(5):170-179.
	[Tang L L, Yu Z W, Ren C, et al. Information acquisition method of three-dimensional intersection spatial structure based on vehicle GPS trajectory[J]. Journal of Traffic and Transportation Engineering, 2019, 19(5):170-179.] DOI:10.19818/j.cnki.1671-1637.2019.05.017
[20]	Brakatsoulas S, Pfoser D, Salas R, et al. On map-matching vehicle tracking data[C]//Proceedings of the 31st International Conference on Very Large Data Bases. New York: ACM, 2005:853-864. DOI:10.5555/1083592.1083691
[21]	Lou Y, Zhang C Y, Zheng Y, et al. Map-matching for low-sampling-rate GPS trajectories[C]//Proceedings of the 17th ACM SIGSPATIAL International Conference on Advances in Geographic Information Systems. New York, NY, USA: ACM, 2009: 10.1145/1653771.1653820. DOI: 10.1145/1653771.1653820.
[22]	He Z C, She X W, Zhuang L J, et al. On-line map-matching framework for floating car data with low sampling rate in urban road networks[J]. IET Intelligent Transport Systems, 2013, 7(4):404-414. DOI:10.1049/iet-its.2011.0226
[23]	向隆刚, 邵晓天. 载体轨迹停留信息提取的核密度法及其可视化[J]. 测绘学报, 2016, 45(9):1122-1131. doi: 10.11947/j.AGCS.2016.20150347
	[Xiang L G, Shao X T. Visualization and extraction of trajectory stops based on kernel-density[J]. Acta Geodaetica et Cartographica Sinica, 2016, 45(9):1122-1131.] DOI:10.11947/j.AGCS.2016.20150347
[24]	徐倩. GB 17761-2018《电动自行车安全技术规范》解读[J]. 中国质量技术监督, 2019(3):61-63.
	[Xu Q. Interpretation of GB 17761-2018 safety technical specification for electric bicycles[J]. China Quality Supervision, 2019(3):61-63.]
[25]	Zhao L S, Mao J L, Pu M, et al. Automatic calibration of road intersection topology using trajectories[C]//2020 IEEE 36th International Conference on Data Engineering (ICDE). IEEE, 2020:1633-1644. DOI:10.1109/ICDE48307.2020.00145.
[26]	张彩丽, 向隆刚, 李雅丽, 等. 基于出租车轨迹的可导航路网构建[J]. 测绘学报, 2021, 50(12):1650-1662. doi: 10.11947/j.AGCS.2021.20200470
	[Zhang C L, Xiang L G, Li Y L, et al. Construction of navigable road network based on taxi trajectories[J]. Acta Geodaetica et Cartographica Sinica, 2021, 50(12):1650-1662.] DOI:10.11947/j.AGCS.2021.20200470
[27]	李航. 统计学习方法[M]. 北京: 清华大学出版社, 2012.
	[Li H. Statistical learning method[M]. Beijing: Tsinghua University Press, 2012.]
[28]	Mattheis S, Al-Zahid K K, Engelmann B, et al. Putting the car on the map: a scalable map matching system for the Open Source Community[C]// Proceedings of the Informatik, 2014:2109-2119.
[29]	Yang C, Gidófalvi G. Fast map matching, an algorithm integrating hidden Markov model with precomputation[J]. International Journal of Geographical Information Science, 2018, 32(3):547-570. DOI:10.1080/13658816.2017.1400548
[30]	李军, 游弋, 邓红平. 城市浮动车数据定位误差分布规律研究[J]. 科学技术与工程, 2016, 16(1):244-249.
	[Li J, You Y, Deng H P. Distribution characteristics of FCD positioning error in urban areas[J]. Science Technology and Engineering, 2016, 16(1):244-249.] DOI:10.3969/j.issn.1671-1815.2016.01.047

方法	Precision	Recall	F1-score
Efentakis	89.75	73.86	81.03
本文方法	90.43	96.22	93.24

转向	Precision	Recall	F1-score
左转	94.12	91.43	92.76
右转	89.74	92.10	90.90
直行	100.00	100.00	100.00
掉头	80.00	77.41	75.73

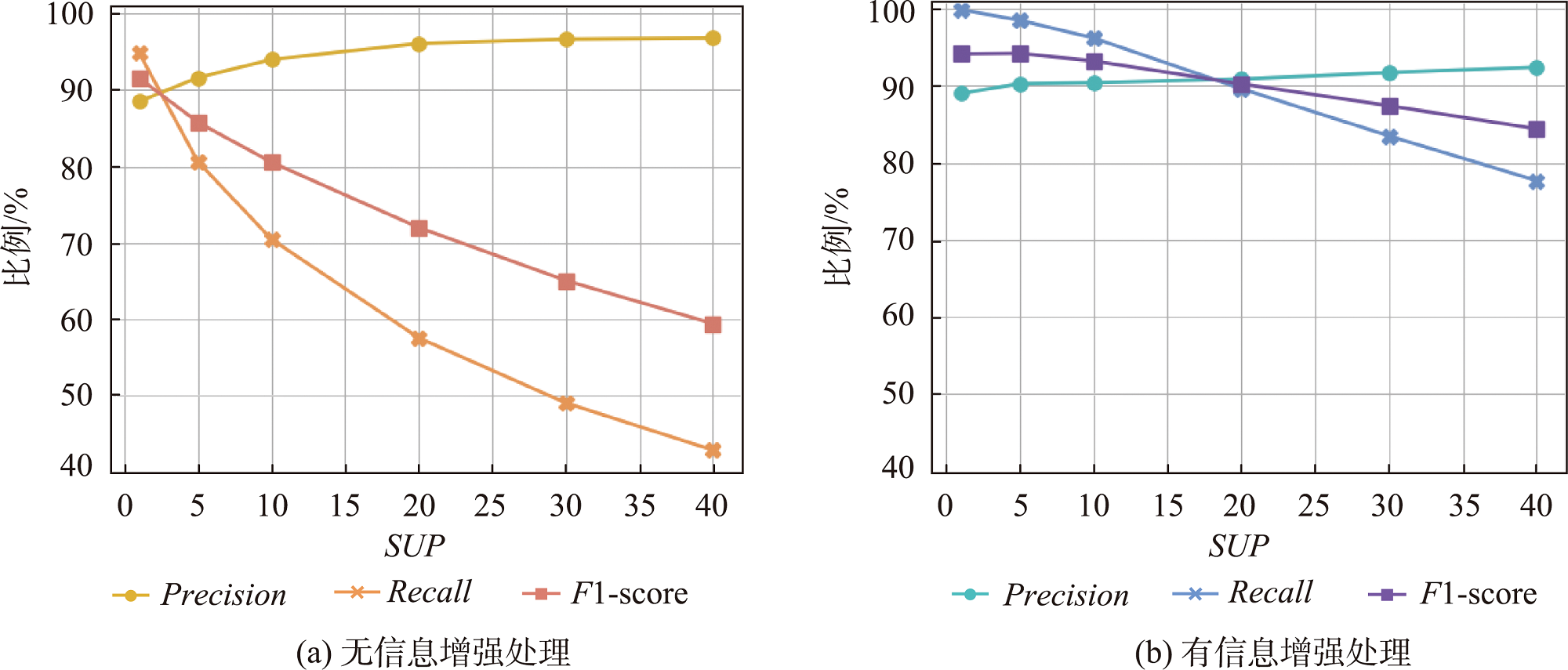

方法	评价指标	支持度阈值SUP
方法	评价指标	1	5	10	20	30	40
无信息增强处理	Precision	88.51	91.64	94.01	96.11	96.68	96.83
	Recall	94.91	80.64	70.48	57.57	49.05	42.86
	F1-score	91.60	85.79	80.56	72.01	65.08	59.42
有信息增强处理	Precision	89.02	90.29	90.43	90.90	91.73	92.43
	Recall	99.91	98.53	96.22	89.64	83.51	77.69
	F1-score	94.15	94.23	93.24	90.27	87.43	84.42
