集成土地利用数据和夜间灯光数据优化人口空间化模型

doi:10.3724/SP.J.1047.2015.01370

摘要/Abstract

摘要：

人口统计数据空间化是解决统计数据与自然要素数据融合分析的有效途径。随着RS和GIS技术的发展,人口统计数据空间化方法推陈出新,其中,土地利用数据、夜间灯光数据是人口空间化研究中普遍利用的数据源,但各有优、缺点：土地利用数据中的城镇用地、农村居民点能准确表示人口分布的空间范围,却不能反映其内部的人口密度差异特征;夜间灯光数据的强度信息能体现人口分布的疏密程度,但其像元溢出问题显著夸大人口分布范围,像元过饱和现象也影响着人口数据空间化结果的精度。本研究以中国大陆沿海区域为例,尝试集成土地利用数据和夜间灯光数据优化人口空间化方法,设计了基于精度阈值和动态样本的渐进回归与分区建模的方法,获得了中国沿海2000、2005、2010年1 km分辨率人口空间化数据。结果表明,优化模型显著提高了研究区整体的精度,尤其适用于人口空间结构内部差异较为显著的区域。

关键词: 夜间灯光数据, 土地利用数据, 人口空间化, 中国大陆沿海区域

Abstract:

Population spatialization could effectively remove the obstacles for data fusion between census data and geographic data. With the rapid development of RS and GIS techniques, the research methods of population spatialization have been updated greatly, and among them, both land use data and DMSP/OLS data are the most widely used data sources for population spatialization. However, both of them have advantages and disadvantages, in specific, the patches of cities and rural settlements in land use data indicate the area of population distribution accurately, but land use data lacks detailed features of population distribution, especially for that existing in the same type of land use; DMSP/OLS data manifests the spatial variations of population density, however it often overestimates the distribution area of population due to its 'overglow' effect, and at the same time, the problem of pixel saturation in DMSP/OLS data also impairs the fitness of this data. In this paper, land use data and DMSP/OLS data are combined together to distinguish the night light data value of populated area, and the methodologies of population spatialization are improved by introducing the precision threshold and dynamic regionalization method. Census data in 2000, 2005 and 2010 for China’s coastal area are taken as examples to test the outcomes of the improved methodologies for population spatialization. The results show that: (1) due to the prominent spatial heterogeneity of population distribution in China’s coastal area, unitary model based on DMSP/OLS data for the whole study area exhibits very poor precision, therefore, land use maps are utilized to distinguish the populated and non-populated area based on DMSP/OLS images. Compared with the threshold method, land use maps more effectively removes the ‘overglow’ effect of DMSP/OLS data; (2) precision threshold of the regression model is adopted to dynamically divide the whole study area into several sub-regions, in specific, only counties that meet the testing accuracy defined by the precision threshold could retain in the regression model, otherwise, they should be regrouped into a new set of samples and be fitted by a new regression model. It is named as ‘dynamic regionalization’ method in this paper. The results show that this method further improves the overall accuracies of population spatialization data.

Key words: DMSP/OLS data, land use data, population spatialization, China’s coastal area

陈晴, 侯西勇. 集成土地利用数据和夜间灯光数据优化人口空间化模型[J]. 地球信息科学学报, 2015, 17(11): 1370-1377.DOI:10.3724/SP.J.1047.2015.01370

CHEN Qing,HOU Xiyong. An Improved Population Spatialization Model by Combining Land Use Data and DMSP/OLS Data[J]. Journal of Geo-information Science, 2015, 17(11): 1370-1377.DOI:10.3724/SP.J.1047.2015.01370

图/表 7

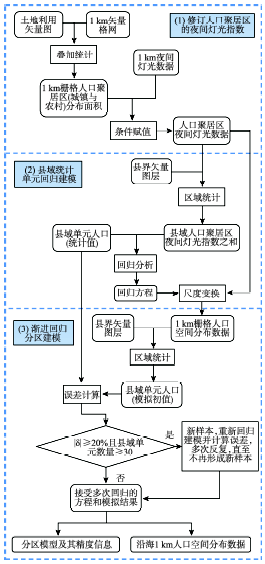

图1

图2

表1

图3

图4

表2

图5

参考文献 29

[1]	林丽洁,林广发,颜小霞,等.人口统计数据空间化模型综述[J].亚热带资源与环境学报,2010,5(4):10-16. doi: 10.3969/j.issn.1673-7105.2010.04.002
[2]	胡云锋,王倩倩,刘越,等.国家尺度社会经济数据格网化原理和方法[J].地球信息科学学报,2011,13(5):573-578. doi: 10.3724/SP.J.1047.2011.00573
[3]	闫庆武,卞正富.基于GIS的社会统计数据空间化处理方法[J].云南地理环境研究,2007,19(2):92-97. doi: 10.3969/j.issn.1001-7852.2007.02.019
[4]	李飞,张树文,杨久春,等.社会经济数据空间化研究进展[J].地理与地理信息科学,2014,30(4):102-107. doi: 10.3969/j.issn.1672-0504.2014.04.021
[5]	丁文秀,赵伟,左德霖,等.基于土地利用分类模型和重力模型耦合的人口分布模拟——以武汉市人口数据为例[J].大地测量与地球动力学,2011,31(增刊):127-131. doi: 10.3969/j.issn.1671-5942.2011.z1.030
[6]	易玲,熊利亚,杨小唤.基于GIS技术的GDP空间化处理方法[J].甘肃科学学报,2006,18(2):54-58. doi: 10.3969/j.issn.1004-0366.2006.02.016
[7]	刘梦鑫,邬群勇,鲁毅敏.加权人口密度连续分布模拟模型[J].地球信息科学学报,2014,16(2):199-206. doi: 10.3724/SP.J.1047.2014.00199
[8]	杨妮,吴良林,郑士科.基于GIS的县域人口统计数据空间化方法[J].地理空间信息,2013,11(5):74-77. doi: 10.11709/j.issn.1672-4623.2013.05.025
[9]	Yang X H, Huang Y H, Dong P L, et al.An updating system for the gridded population database of China based on remote sensing, GIS and spatial database technologies[J]. Sensors (Basel), 2009,9(2):1128-1140. doi: 10.3390/s90201128 pmid: 3280851
[10]	Azar D, Graesser J, Engstrom R, et al.Spatial refinement of census population distribution using remotely sensed estimates of impervious surfaces in Haiti[J]. International Journal of Remote Sensing, 2010,31(21):5635-5655. doi: 10.1080/01431161.2010.496799
[11]	卓莉,陈晋,史培军,等.基于夜间灯光数据的中国人口密度模拟[J].地理学报,2005,60(2):266-276.
[12]	梁友嘉,徐中民.基于夜间灯光辐射数据的张掖市甘州区GDP空间分布建模[J].冰川冻土,2013,35(1):249-254. doi: 10.7522/j.issn.1000-0240.2013.0030
[13]	陈晴,侯西勇,吴莉.基于土地利用数据和夜间灯光数据的人口空间化模型对比分析——以黄河三角洲高效生态经济区为例[J].人文地理,2014,29(5):94-100.
[14]	Zeng C Q, Zhou Y, Wang S X, et al.Population spatialization in China based on night-time imagery and land use data[J]. International Journal of Remote Sensing, 2011,32(24):9599-9620. doi: 10.1080/01431161.2011.569581
[15]	Townsend A C, Bruce D A.The use of night-time lights satellite imagery as a measure of Australia's regional electricity consumption and population distribution[J]. International Journal of Remote Sensing, 2010,31(16):4459-4480. doi: 10.1080/01431160903261005
[16]	张建辰,王艳慧.基于土地利用类型的村级人口空间分布模拟——以湖北鹤峰县为例[J]. 地球信息科学学报,2014,16(3):435-442. doi: 10.3724/SP.J.1047.2014.00435
[17]	梁友嘉,徐中民.基于LUCC和夜间灯光辐射数据的张掖市甘州区人口空间分布建模[J]. 冰川冻土,2012,34(4):999-1006.
[18]	曹丽琴,李平湘,张良培.基于DMSP/OLS夜间灯光数据的城市人口估算——以湖北省各县市为例[J].遥感信息,2009 (1):83-87.
[19]	凡宸,秦建桥,高洋,等.基于GIS数据的县域人口密度空间降尺度模拟——以广东省惠东县为例[J].中国人口·资源与环境,2014,24(3):26-230.
[20]	叶靖,杨小唤,江东.人口数据空间化的格网尺度效应分析[J].地球信息科学学报,2010,12(1):1-8.
[21]	朱晓东,李杨帆,桂峰.我国海岸带灾害成因分析及减灾对策[J].自然灾害学报,2001,10(4):26-29. doi: 10.3969/j.issn.1004-4574.2001.04.005
[22]	高义,王辉,王培涛,等.基于人口普查与多源夜间灯光数据的海岸带人口空间化分析[J].资源科学,2013,35(12):2517-2523.
[23]	牛海燕. 中国沿海台风灾害风险评估研究[D].上海:华东师范大学,2012.
[24]	Di X H, Hou X Y, Wang Y D, et al. Spatial-temporal characteristics of land use intensity of coastal zone in China during 2000-2010[J]. Chinese Geographical Science, doi:10.1007/s11769-014-0707-0. doi: 10.1007/s11769-014-0707-0
[25]	江东,杨小唤,王乃斌,等.基于RS、GIS的人口空间分布研究[J].地理科学进展,2002,17(5):734-738. doi: 10.3321/j.issn:1001-8166.2002.05.016
[26]	Small C, Elvidge C D.Night on Earth: Mapping decadal changes of anthropogenic night light in Asia[J]. International Journal of Applied Earth Observation and Geoinformation, 2013,22: 40-52. doi: 10.1016/j.jag.2012.02.009
[27]	刘彦随,刘玉.中国农村空心化问题研究的进展与展望[J].地理研究,2010,29(1):35-41. doi: 10.11821/yj2010010004
[28]	Harvey J T.Estimating census district populations from satellite imagery: Some approaches and limitations[J]. International Journal of Remote Sensing, 2010,23(10):2071-2095. doi: 10.1080/01431160110075901
[29]	Liu Q, Sutton P C, Elvidge C D.Relationships between nighttime imagery and population density for Hong Kong[J]. Proceedings of the Asia-Pacific Advanced Network, 2011,31:79-90. doi: 10.7125/APAN.31.9

年份	建模区域	确定性系数(R²)	回归系数(k)	模型精度及动态分区情况
年份	建模区域	确定性系数(R²)	回归系数(k)	│δ│< 20%	δ ≤-20%	δ ≥20%
2000	所有县级单元	0.906	97.753	保留结果	A1	C1
	A1	0.920	119.871	保留结果	A2	不存在
	A2	0.914	210.124	保留结果	A3	不存在
	A3	0.916	341.578	保留结果	A4	不存在
	A4	0.932	480.864	保留结果	A5	不存在
	A5	0.934	675.961	保留结果	样本少,保留结果	样本少,保留结果
	C1	0.975	69.462	保留结果	不存在	C2
	C2	0.983	53.194	保留结果	不存在	样本少,保留结果
2005	所有县级单元	0.847	85.079	保留结果	A1	C1
	A1	0.916	120.028	保留结果	A11	A12
	A11	0.910	543.291	保留结果	A13	不存在
	A12	0.953	343.717	保留结果	不存在	不存在
	A13	0.928	771.784	保留结果	A14	不存在
	A14	0.967	1112.758	保留结果	样本少,保留结果	不存在
	C1	0.941	61.178	保留结果	不存在	C2
	C2	0.975	42.487	保留结果	不存在	样本少,保留结果
2010	所有县级单元	0.829	75.130	保留结果	A1	C1
	A1	0.954	107.403	保留结果	A2	不存在
	A2	0.968	145.739	保留结果	A3	不存在
	A3	0.939	195.424	保留结果	A4	不存在
	A4	0.943	265.406	保留结果	样本少,保留结果	不存在
	C1	0.917	50.343	保留结果	不存在	C2
	C2	0.973	37.562	保留结果	不存在	C3
	C3	0.990	33.162	保留结果	不存在	样本少,保留结果

年份	不同\|δ\|分布区间对应的县级行政单元（个数）				\|δ\|的标准差
年份	0-0.1		0.1-0.2	0.2-0.4	> 0.4
2000	160	122	11	8	0.17
2005	165	111	16	9	0.15
2010	156	125	11	9	0.17
