光谱与空间维双重稀疏表达的高光谱影像分类

doi:10.3724/SP.J.1047.2016.00263

摘要/Abstract

摘要：

高光谱遥感影像的稀疏分类是当前遥感信息处理的研究热点。本文提出一种光谱与空间双重稀疏表达的高光谱遥感影像分类方法（WSSRC）。首先利用小波字典对光谱维进行稀疏表示,将光谱维稀疏分类转化到小波域稀疏分类;其次,考虑空间邻域地物光谱的统一性和差异性,对邻域内像元分别进行稀疏编码,并对编码进行累加聚合;然后,利用聚合后的稀疏编码构造线性分类器对高光谱影像进行分类;最后,通过2幅标准的高光谱影像数据验证了本文所提出的方法。实验结果表明,该方法能有效地提高影像的分类精度。

关键词: 小波, 双重稀疏分类, 稀疏编码, 高光谱影像

Abstract:

A novel sparse representation classification model with spectral-spatial sparsity properties is presented to improve the classification accuracy of hyperspectral images. Firstly, this method uses the wavelet dictionary as the core dictionary to extract spectral domain sparse information, and then the spectral dimension sparse representation classification is transformed into the wavelet domain (WSRC) by inverse wavelet transformation. After that, we actually extract the sparse spectral features of the hyperspectral images and increase the recognition of the original dictionary. Secondly, considering the unity and diversity of the spatial adjacent object, we realize the sparse coding of the neighborhood pixels, and then accumulate the sparse codes. At the same time, we classify the hyperspectral images using a linear classifier that is based on the accumulated sparse codes. This method ensures that we extract the main sparse signal of the neighborhood pixels on the basis of the personality features of sparse encoding, and it performs better than the joint sparse representation model (JSRC) which is directly based on the neighborhood pixels. Finally, two commonly used hyperspectral images are utilized to validate the proposed model. The experimental results demonstrate that the proposed algorithm outperforms other models in terms of overall accuracy and kappa coefficient measurements.

Key words: wavelet transform, double sparse representation, sparse code, hyperspectral image

朱勇, 吴波. 光谱与空间维双重稀疏表达的高光谱影像分类[J]. 地球信息科学学报, 2016, 18(2): 263-271.DOI:10.3724/SP.J.1047.2016.00263

ZHU Yong,WU Bo. Classification of Hyperspectral Images with Spectral-Spatial Sparse Representation[J]. Journal of Geo-information Science, 2016, 18(2): 263-271.DOI:10.3724/SP.J.1047.2016.00263

图/表 11

表1

图1

表2

表3

图2

图3

图4

表4

表5

图5

表6

参考文献 24

[1]	Elad M, Aharon M.Image denoising via sparse and redundant representations over learned dictionaries[J]. IEEE Transactions on Image Processing, 2006,15(12):3736-3745. doi: 10.1109/TIP.2006.881969 pmid: 17153947
[2]	Mairal J, Elad M, Sapiro G.Sparse representation for color image restoration[J]. IEEE Transactions on Image Processing, 2008,17(1):53-69.
[3]	Yang J, Wright J, Huang T S, et al.Image super-resolution via sparse representation[J]. IEEE Transactions on Image Processing, 2010,19(11):2861-2873. doi: 10.1109/TIP.2010.2050625. pmid: 20483687
[4]	Huang K, Aviyente S.Sparse representation for signal classification[C]. Advances in Neural Information Processing Systems. MIT: Cambridge, MA, 2006:609-616.
[5]	Wright J, Yang A Y, Ganesh A, et al.Robust face recognition via sparse representation[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2009,31(2):210-227.
[6]	Chen Y, Nasrabadi N M, Tran T D.Hyperspectral image classification using dictionary-based sparse representation[J]. IEEE Transactions on Geoscience and Remote Sensing, 2011,49(10):3973-3985. doi: 10.1109/TGRS.2011.2129595
[7]	Zhang H, Li J, Huang Y, et al.A nonlocal weighted joint sparse representation classification method for hyperspectral imagery[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2014,7(6):2056-2065. doi: 10.1109/JSTARS.2013.2264720
[8]	Chen Y, Nasrabadi N M, Tran T D.Hyperspectral image classification via kernel sparse representation[J]. IEEE Transactions on Geoscience and Remote Sensing, 2013,51(1):217-231. doi: 10.1109/TGRS.2012.2201730
[9]	Liu J, Wu Z, Wei Z, et al.Spatial-spectral kernel sparse representation for hyperspectral image classification[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2013,6(6):2462-2471. doi: 10.1109/JSTARS.2013.2252150 pmid: 24059451
[10]	宋相法,焦李成.基于稀疏表示及光谱信息的高光谱遥感图像分类[J].电子与信息学报,2012,34(2):268-272. doi: 10.3724/SP.J.1146.2011.00540
	[ Song X F, Jiao L C.Classification of hyperspectral remote sensing image based on sparse representation and spectral information[J]. Journal of Electronics & Information Technology, 2012,34(2):268-272. ] doi: 10.3724/SP.J.1146.2011.00540
[11]	孙伟伟,刘春,施蓓琦,等.基于随机矩阵的高光谱影像非负稀疏表达分类[J].同济大学学报(自然科学版),2013,41(8). doi: 10.3969/j.issn.0253-374x.2013.08.026
	[ Sun W W, Liu C, Shi P Y, et al.Random matrix-based nonnegative sparse representation for hyperspectral image classification[J]. Journal of Tongji University (Natural Science), 2013.41(8):1274-1278. ] doi: 10.3969/j.issn.0253-374x.2013.08.026
[12]	刘建军,吴泽彬,韦志辉,等.基于空间相关性约束稀疏表示的高光谱图像分类[J].电子与信息学报,2012,34(11):2666-2671. doi: 10.3724/SP.J.1146.2012.00577
	[ Liu J J, Wu Z B, Wei Z H, et al.Spatial correlation constrained sparse representation for hyperspectral image classification[J]. Journal of Electronics & Information Technology, 2012,34(11):2666-2671. ] doi: 10.3724/SP.J.1146.2012.00577
[13]	Davis G M, Mallat S G, Zhang Z.Adaptive time-frequency decompositions[J]. Optical Engineering, 1994,33(7):2183-2191. doi: 10.1117/12.173207
[14]	Chen S S, Donoho D L, Saunders M A.Atomic decomposition by Basis Pursuit[J]. SIAM Journal on Scientific Computing, 1998,20(1):33-61. doi: 10.1137/S003614450037906X
[15]	Ophir B, Lustig M, Elad M.Multi-scale dictionary learning using wavelets[J]. IEEE Journal of Selected Topics in Signal Processing, 2011,5(5):1014-1024. doi: 10.1109/JSTSP.2011.2155032
[16]	Rubinstein R, Zibulevsky M, Elad M.Double sparsity: Learning sparse dictionaries for sparse signal approximation[J]. IEEE Transactions on Signal Processing, 2010,58(3):1553-1564. doi: 10.1109/TSP.2009.2036477
[17]	梁锐华,成礼智.基于小波域字典学习方法的图像双重稀疏表示[J].国防科技大学学报,2012,34(4):126-131. doi: 10.3969/j.issn.1001-2486.2012.04.025
	[ Liang R H, Cheng L Z.Double sparse image representation via learning dictionaries in wavelet domain[J]. Journal of National University of Defense Technology, 2012,34(4):126-131. ] doi: 10.3969/j.issn.1001-2486.2012.04.025
[18]	吴波,熊助国.基于光谱最佳尺度分割特征的高光谱混合像元分解[J].测绘学报,2012,41(2):205-212.
	[ Wu B, Xiong Z G.Unmixing of hyperspectral mixture pixels based on spectral multi-scale segmented features[J]. Acta Geodaetics et Cartographica Sinica, 2012,41(2):205-212. ]
[19]	吴波,张良培,李平湘.基于光谱维小波特征的混合像元投影迭代分解[J].电子与信息学报,2005,33(11):1933-1936. doi: 10.3321/j.issn:0372-2112.2005.11.004
	[ Wu B, Zhang L P, Li P X.Projective iterative unmixing of hyperspectral image based on spectral domain wavelet feature[J]. Journal of Electronics & Information Technology, 2005,33(11):1933-1936. ] doi: 10.3321/j.issn:0372-2112.2005.11.004
[20]	Yuan H L, Tang Y Y.A novel sparsity-based framework using max pooling operation for hyperspectral image classification[J]. IEEE Journal of Selected Topics in Signal Processing, 2014,7(8):3570-2576. doi: 10.1109/JSTARS.2014.2339298
[21]	Gualtieri J A, Cromp R F.Support vector machines for hyperspectral remote sensing classification[C]. The 27th AIPR Workshop: Advances in Computer-Assisted Recognition. International Society for Optics and Photonics, Springer Netherlands, 1999:221-232.
[22]	辛芳芳,焦李成,王桂婷.非局部均值加权的动态模糊Fisher分类器的遥感图像变化检测[J].测绘学报,2012,41(4):584-590.
	[ Xin F F,Jiao L C,Wang G T.Change detection in multitemporal remote sensing image based on dynamic fuzzy fisher classifier and non local mean weighted method[J]. Acta Geodaetica et Cartographica Sinica, 2012,41(4):584-590. ]
[23]	Yang M, Zhang D, Feng X.Fisher discrimination dictionary learning for sparse representation[C]. IEEE International Conference on Computer Vision (ICCV), 2011:543-550.
[24]	Plaza A, Benediktsson J A, Boardman J W, et al.Recent advances in techniques for hyperspectral image processing[J]. Remote Sensing of Environment, 2009,113:S110-S122. doi: 10.1016/j.rse.2007.07.028

序号	类别	训练	测试
1	苜蓿	5	41
2	玉米I	143	1285
3	玉米II	83	747
4	玉米III	24	213
5	草I	49	343
6	草II	73	657
7	草III	3	25
8	干草梗	48	430
9	燕麦	2	18
10	大豆I	98	874
11	大豆II	246	2209
12	大豆III	60	533
13	小麦	21	184
14	树丛	127	1138
15	建筑物-草-树-路	39	347
16	石-钢顶棚	10	83
总计		1031	9218

小波基层次	DB4			Sym2		Coif 2			Dmey
小波基层次	OA		St		OA	St	OA	St	OA	St
原始层	70.10	0.98		70.10	0.98	70.10	0.98		70.10	0.98
第1层	72.70	1.01		73.29	1.02	72.77	1.01		73.60	1.01
第2层	74.00	1.03		73.71	1.03	74.32	1.03		75.40	1.03
第3层	65.94	1.04		62.95	1.03	67.78	1.03		69.28	1.02

Dmey	类内距离	类间距离	信息损失量	结构指标St
原始层	0.0031	0.0129	0.0000	0.0098
第1层	0.0027	0.0128	0.0022	0.0101
第2层	0.0024	0.0127	0.0039	0.0103
第3层	0.0022	0.0123	0.0102	0.0102
第4层	0.0019	0.0109	0.0305	0.0090

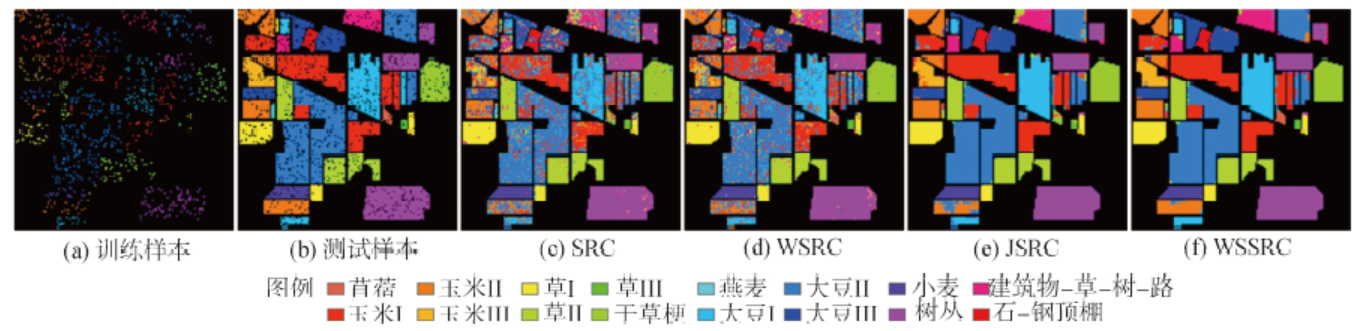

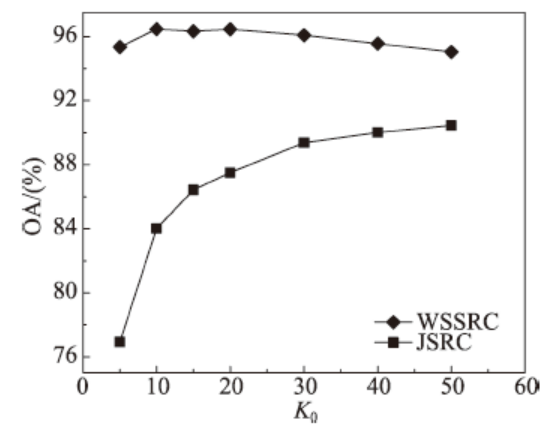

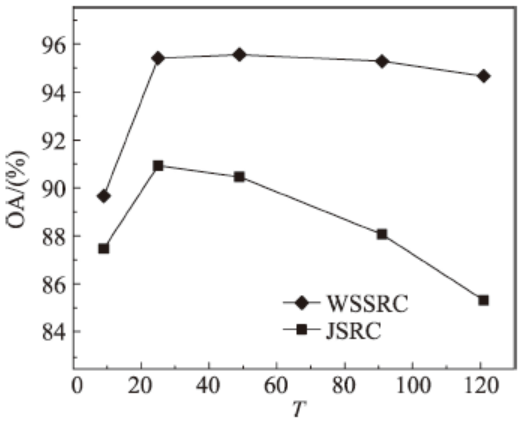

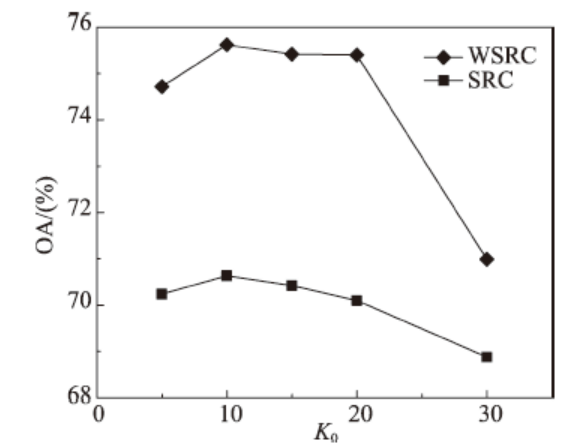

类别	SRC	WSRC	JSRC	WSSRC
苜蓿	39.02	75.61	21.95	92.68
玉米I	60.31	65.45	94.09	96.11
玉米II	52.61	59.30	84.20	91.83
玉米III	32.39	42.25	85.92	95.31
草I	86.64	89.63	94.24	94.70
草II	95.74	95.89	99.70	99.70
草III	64.00	84.00	80.00	96.00
干草梗	95.81	97.44	100.00	100.00
燕麦	55.56	61.11	0.00	0.00
大豆I	56.86	69.11	85.47	91.42
大豆II	69.58	73.38	94.43	98.37
大豆III	49.91	60.41	95.87	97.94
小麦	98.37	98.37	100.00	99.46
树丛	89.89	89.10	98.51	98.86
建筑物-草-树-路	41.21	51.87	85.59	93.95
石-钢顶棚	79.52	80.72	97.59	98.80
OA	69.53	74.46	92.98	96.46
kappa系数	0.651	0.708	0.920	0.960

序号	类别	训练	测试
1	柏油	664	5967
2	草甸	1865	16 784
3	碎石	210	1889
4	树	307	2757
5	金属板	135	1210
6	裸土	503	4526
7	沥青	133	1197
8	砖	369	3313
9	阴影	95	852
总计		4281	38 495
