暴雨内涝危险性情景模拟方法研究——以上海中心城区为例

doi:10.3724/SP.J.1047.2016.00506

摘要/Abstract

摘要：

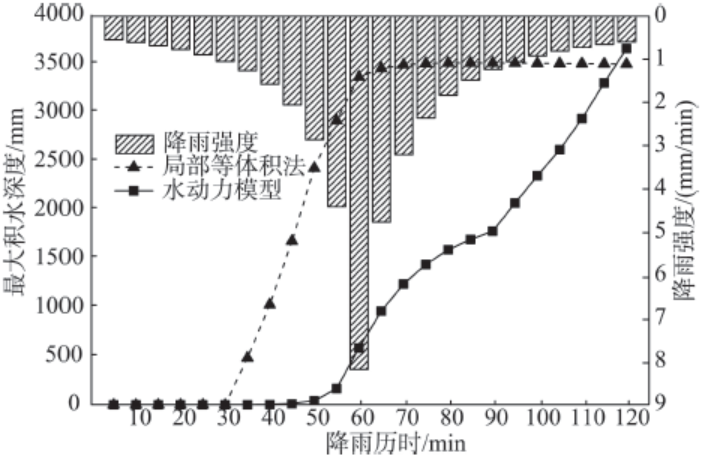

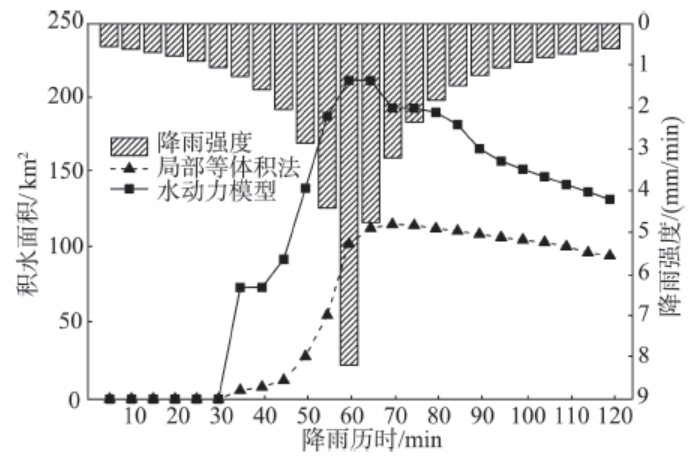

本文采用地理信息系统技术（GIS）与水文/水动力学相结合的方法,使用修正的SCS模型进行产流模拟,利用局部等体积法和水动力模型进行汇流模拟,建立了基于情景的城市暴雨内涝危险性模拟工具,并对相同雨强情景下不同汇流模型的模拟结果与精度进行了对比分析。结果表明：（1）局部等体积法计算简单,对降雨的时程分配较为敏感,峰前历时和雨强对结果影响显著,较适合于雨型确定的城市暴雨内涝危险性快速模拟;水动力模型计算复杂,与整个降雨历时存在明显关系,模拟精度较高。（2）利用台风“麦莎”带来强降雨导致的积水实测数据,对模拟结果进行对比和验证,表明本文建立的水动力模型法模拟结果与实测降雨积水更为接近,更适合上海中心城区暴雨内涝危险性情景模拟。

关键词: 暴雨内涝, 危险性模拟, 局部等体积法, 水动力模型法, 上海中心城区

Abstract:

For the purpose of simulating rainstorm waterlogging scenarios in the urban areas that have specific terrain surface characteristics, a comprehensive methodology derived from the hydrology/hydrodynamic theory and the geographic information system (GIS) is proposed in this paper. Moreover, a modified SCS model is utilized for the runoff producing simulation, while a locality volume equation and a hydrodynamic model are used for runoff converging simulation. Taking the central urban area of Shanghai as an example, rainstorm scenarios with 100-year return period are designed for the simulation. Meanwhile, based on the same runoff producing process, the locality volume equation and hydrodynamic model are used to simulate the waterlogging course respectively. Thereafter, a comparison is made to reveal the distinction of accuracy among the results acquired from these diverse models. The results indicate that: (1) it is easier for the runoff converging calculation to use the locality volume equation, but the results are obviously influenced by the temporal distribution of the rainfall course, especially at the period before the peak, as well as by the intensity, thus this model is more feasible for fast waterlogging simulation if the rainfall pattern is determined in advance. As for the hydrodynamic model, the runoff converging calculation is more complicated, but shows a better performance and higher precision when being used for simulating a longer rainfall process. Furthermore, the results have a closer relationship with the rainfall duration. (2) Specifically, these two models are verified based on the inundation data measured during the typhoon “Matsa”. A comparison between the simulation results and the historical data predicts that, although more or less a deviation is inevitable, the hydrodynamic model performs better in fitting the characteristics of urban rainstorm waterlogging, thus basically it's found more suitable for simulating the waterlogging hazard in the central urban area of Shanghai.

Key words: rainstorm waterlogging, hazard simulation, locality volume equation, hydrodynamic model, central urban area of Shanghai

黄清雨, 董军刚, 李梦雅, 王军. 暴雨内涝危险性情景模拟方法研究——以上海中心城区为例[J]. 地球信息科学学报, 2016, 18(4): 506-513.DOI:10.3724/SP.J.1047.2016.00506

HUANG Qingyu,DONG Jungang,LI Mengya,WANG Jun. Research on the Scenario Simulation Method of Rainstorm Waterlogging Hazard: A Case Study in the Central Urban Area of Shanghai[J]. Journal of Geo-information Science, 2016, 18(4): 506-513.DOI:10.3724/SP.J.1047.2016.00506

图/表 4

参考文献 29

[13]	邹霞,宋星原,张艳军,等.城市地表暴雨产流模型及应用[J].水电能源科学,2014,32(3):10-14.
	[ Zou X, Song X Y, Zhang Y J, et al.Research and application of rainstorm runoff yield model in urban surface[J]. Water Resources and Power, 2014,32(3):10-14. ]
[14]	岑国平,沈晋,范荣生.城市设计暴雨雨型研究[J].水科学进展,1998,9(1):41-46.
	[ Cen G P, Shen J, Fan R S.Research on rainfall pattern of urban design storm[J]. Advances in Water Science, 1998,9(1):41-46. ]
[15]	孙阿丽. 基于情景模拟的城市暴雨内涝风险评估[D].上海:华东师范大学,2011.
	[ Sun A L.Risk assessment of rainstorm waterlogging based on scenario simulation in cities[D]. Shanghai: East China Normal University, 2011. ]
[16]	王白陆. SCS产流模型的改进[J].人民黄河,2005,27(5):24-26. doi: 10.3969/j.issn.1000-1379.2005.05.009
	[ Wang B L.SCS runoff model improvement[J]. Yellow River, 2005,27(5):24-26. ] doi: 10.3969/j.issn.1000-1379.2005.05.009
[17]	贺宝根,陈春根,周乃晟.城市化地区径流系数及其应用[J].上海环境科学,2003,22(7):472-475.
	[ He B G, Chen C G, Zhou N S.Urbanized area runoff coefficient and its application[J]. Shanghai Environment Science, 2003,22(7):472-475. ]
[18]	夏军,王纲胜,吕爱锋,等.分布式时变增益流域水循环模拟[J].地理学报,2003,58(5):789-796. doi: 10.3321/j.issn:0375-5444.2003.05.019
	[ Xia J, Wang G S, Lv A F, et al.A research on distributed time variant gain modeling[J]. Acta Geographica Sinica, 2003,58(5):789-796. ] doi: 10.3321/j.issn:0375-5444.2003.05.019
[19]	景垠娜,尹占娥,殷杰,等.基于GIS的上海浦东新区暴雨内涝灾害危险性分析[J].灾害学, 2010,25(2):58-63. doi: 10.3969/j.issn.1000-811X.2010.02.012
	[Jing Y N, Yin Z E, Yin J, et al. GIS-based analysis on rainstorm waterlogging hazards in Pudong New Area in Shanghai[J]. Journal of Catastrophology, 2010,25(2):58-63. ] doi: 10.3969/j.issn.1000-811X.2010.02.012
[20]	刘敏,权瑞松,许世远.城市暴雨内涝灾害风险评估:理论、方法与实践[M].北京:科学出版社,2012.
	[ Liu M, Quan R S, Xu S Y.Risk assessment of urban rainsotrm waterlogging disaster: Theory, method and practice[M]. Beijing: Science Press, 2012. ]
[1]	陈晓燕,张娜,吴芳芳,等.雨洪管理模型SWMM的原理、参数和应用[J].中国给水排水,2013,29(4):4-7. doi: 10.3969/j.issn.1000-4602.2013.04.002
	[ Chen X Y, Zhang N, Wu F F, et al.Stormwater management model (SWMM): Principles, parameters and applications[J]. China Water and Wastewater, 2013,29(4):4-7. ] doi: 10.3969/j.issn.1000-4602.2013.04.002
[21]	上海市水务局.上海市城镇雨水系统专业规划[R].2002.
	[ Shanghai Water Authority.Specialized planning of urban drainage system in Shanghai[R]. 2002. ]
[2]	朱冬冬,周念清,江思珉.城市雨洪径流模型研究概述[J].水资源与水工程学报,2011,22(3):132-137.
	[ Zhu D D, Zhou N Q, Jiang S M.Research overview of runoff model for urban rainwater[J]. Journal of Water Resources and Water Engineering, 2011,22(3):132-137. ]
[22]	Hunter N M, Horritt M S, Bates P D, et al.An adaptive time step solution for raster-based storage cell modelling of floodplain inundation[J]. Advances in Water Resources, 2005,28(9):975-991. doi: 10.1016/j.advwatres.2005.03.007
[23]	李传奇,侯贵兵.一维二维水动力模型耦合的城市洪水模拟[J].水利水电技术,2010,41(3):83-90. doi: 10.3969/j.issn.1000-0860.2010.03.021
[3]	王林,秦其明,李吉芝,等.基于GIS的城市内涝灾害分析模型研究[J].测绘科学,2004,29(3):48-51. doi: 10.3771/j.issn.1009-2307.2004.03.016
	[ Wang L, Qin Q M, Li J Z, et al.Study on the disaster analysis model of waterlogging in city based on GIS[J]. Science of Surveying and Mapping, 2004,29(3):48-51. ] doi: 10.3771/j.issn.1009-2307.2004.03.016
[23]	[ Li C Q, Hou G B.Simulation on urban flood based on coupling of 1D and 2D hydrodynamic models[J]. Water Resources and Hydropower Engineering, 2010,41(3):83-90. ] doi: 10.3969/j.issn.1000-0860.2010.03.021
[24]	Bates P D, De Roo A P J. A simple raster-based model for flood inundation simulation[J]. Journal of Hydrology, 2000,236(1-2):54-77. doi: 10.1016/S0022-1694(00)00278-X
[25]	吴晓丹. 上海中心城区暴雨积水机理分析——对未来气候波动的响应[D].上海:华东师范大学,2012.
	[ Wu X D.Mechanism analysis of rainstorm waterlogging in the city of Shanghai: The response to future climate change[D]. Shanghai: East China Normal University, 2012. ]
[4]	赵思健,陈志远,熊利亚.利用空间分析建立简化的城市内涝模型[J].自然灾害学报,2004,13(6):8-14. doi: 10.3969/j.issn.1004-4574.2004.06.002
	[ Zhao S J, Chen Z Y, Xiong L Y.Establishment of simplified urban waterlogging model using spatial analysis[J]. Journal of Natural Disasters, 2004,13(6):8-14. ] doi: 10.3969/j.issn.1004-4574.2004.06.002
[5]	尹占娥,许世远,殷杰,等.基于小尺度的城市暴雨内涝灾害情景模拟与风险评估[J].地理学报,2010,65(5):553-562. doi: 10.11821/xb201005005
	[ Yin Z E, Xu S Y, Yin J, et al.Small-scale based scenario modeling and disaster risk assessment of urban rainstorm waterlogging[J]. Acta Geographica Sinica, 2010,65(5):553-562. ] doi: 10.11821/xb201005005
[26]	Yu D, Lane S N.Urban fluvial flood modelling using a two-dimensional diffusion-wave treatment, part 1: Mesh resolution effects[J]. Hydrological Processes, 2006,20(7):1541-1565. doi: 10.1002/hyp.5935
[27]	王纲胜,夏军,牛存稳.分布式水文模拟汇流方法及应用[J].地理研究,2004,23(2):175-182. doi: 10.3321/j.issn:1000-0585.2004.02.005
[6]	Zhou Q, Mikkelsen P S, Halsnæs K, et al. Framework for economic pluvial flood risk assessment considering climate change effects and adaptation benefits[J]. Journal of Hydrology, 2012,414-415:539-549. doi: 10.1016/j.jhydrol.2011.11.031
[7]	Casas A, Lane S N, Yu D, et al.A method for parameterising roughness and topographic sub-grid scale effects in hydraulic modelling from LiDAR data[J]. Hydrology and Earth System Sciences, 2010,14(8):1567-1579. doi: 10.5194/hess-14-1567-2010
[27]	[ Wang G S, Xia J, Niu C W.Flow routing method and its application in distributed hydrological modeling[J]. Geographical Research, 2004,23(2):175-182. ] doi: 10.3321/j.issn:1000-0585.2004.02.005
[28]	Bradbrook K F, Lane S N, Waller S G, et al.Two dimensional diffusion wave modelling of flood inundation using a simplified channel representation[J]. International Journal of River Basin Management, 2004,2(3):211-223. doi: 10.1080/15715124.2004.9635233
[8]	王梦江,张强.“麦莎”台风期间上海市区道路积水原因和对策[J].城市道桥与防洪,2006(1):74-76. doi: 10.3969/j.issn.1009-7716.2006.01.025
	[ Wang M J, Zhang Q.Cause and countermeasure of road waterlogging in Shanghai urban districts during “Maisha” typhoon[J]. Urban Roads Bridges and Flood Control, 2006,1:74-76. ] doi: 10.3969/j.issn.1009-7716.2006.01.025
[9]	陈振楼,王军,刘敏,等.上海市主要自然灾害特点与应对策略[J].华东师范大学学报(自然科学版),2008(5):116-125. doi: 10.3969/j.issn.1000-5641.2008.05.017
	[ Chen Z L, Wang J, Liu M, et al.Characteristics of main natural disasters and coping strategies in Shanghai[J]. Journal of East China Normal University(Natural Science), 2008,5:116-125. ] doi: 10.3969/j.issn.1000-5641.2008.05.017
[10]	Shi Y.Population vulnerability assessment based on scenario simulation of rainstorm-induced waterlogging: A case study of Xuhui District, Shanghai City[J]. Natural Hazards, 2013,66(2):1189-1203. doi: 10.1007/s11069-012-0544-3
[11]	Quan R S.Rainstorm waterlogging risk assessment in central urban area of Shanghai based on multiple scenario simulation[J]. Natural Hazards, 2014,73(3):1569-1585.
[12]	北京市市政工程设计研究总院.给水排水设计手册[M].北京:中国建筑工业出版社,2004.
	[ Beijing General Municipal Engineering Design and Research Institute. Water supply and drainage design manual[M]. Beijing: China Building Industry Press, 2004. ]
[29]	董军刚. 城市暴雨内涝灾害风险评估工具集开发与应用研究——以上海市为例[D].上海:华东师范大学,2014. [ Dong J G. Research on development and application of urban rainstorm waterlogging disaster risk assessment toolset: A case study of Shanghai[D]. Shanghai: East China Normal University, 2014. ]

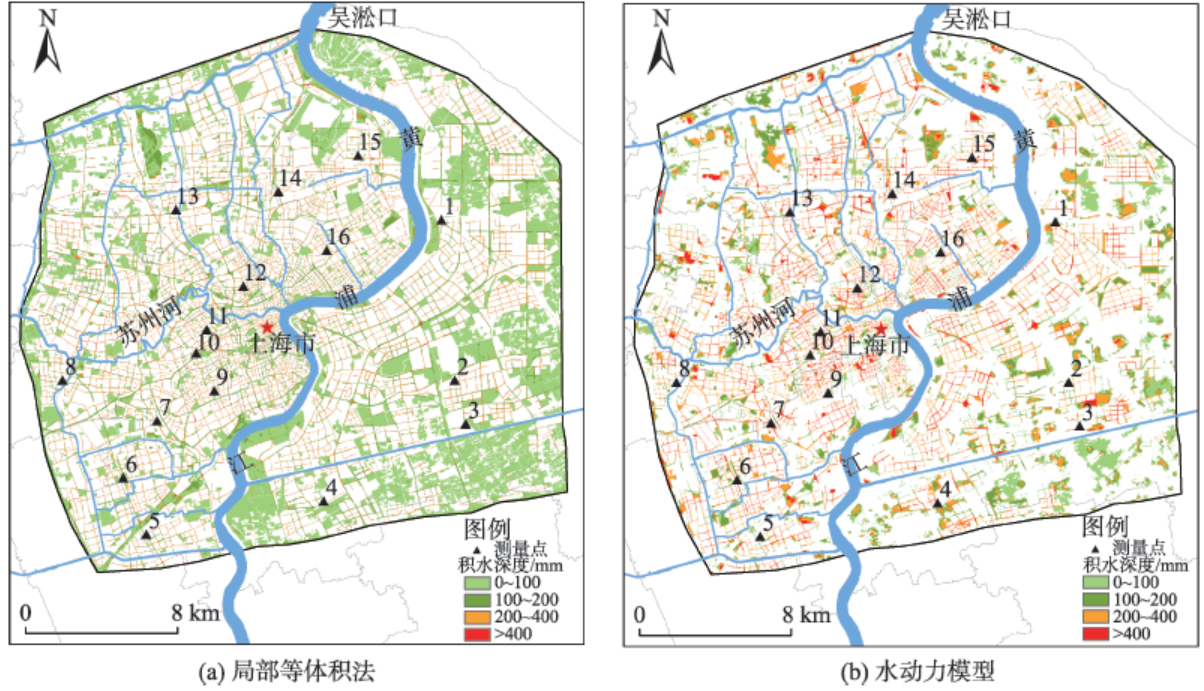

测量点	积水深度/mm
测量点	局部等体积法模拟结果	水动力模型法模拟结果	“麦莎”实测数据
1	286	159	200
2	129	203	275
3	523	204	225
4	377	141	125
5	387	302	275
6	467	143	75
7	793	167	175
8	93	263	325
9	144	272	275
10	173	184	150
11	356	178	175
12	402	166	175
13	323	135	175
14	535	275	300
15	534	197	175
16	205	200	175
平均值	358±181	199±50	205±66
