高分辨率遥感影像阴影与立体像对提取建筑物高度比较研究

doi:10.3724/SP.J.1047.2016.01267

摘要/Abstract

摘要：

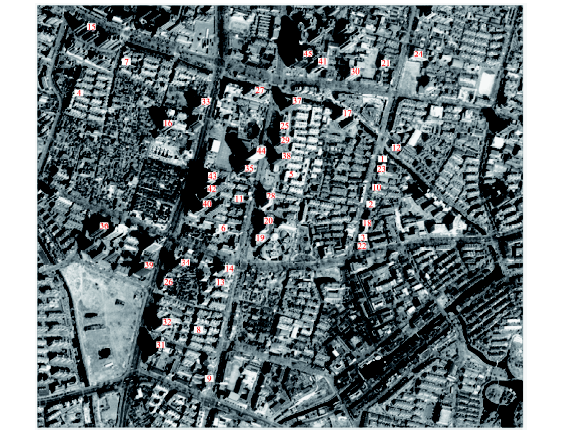

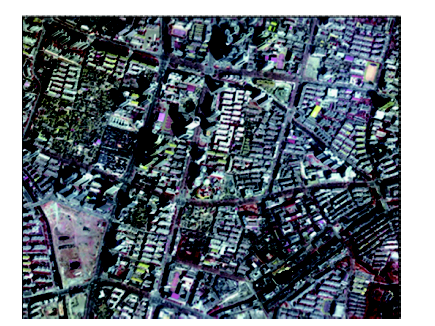

建筑物高度信息的快速准确获取对于城市规划管理、生态环境评价具有重要意义。本文以南京市主城区为研究区,选择2011年Geoeye-1卫星高分辨率遥感影像立体像对数据,结合Google Earth数据及实地建筑物高度测量,分别利用单幅遥感影像和立体像对计算建筑物高度,并以实测建筑物高度数据验证不同方法的提取精度,进而比较这2类方法的优缺点。结果表明：利用立体像对提取建筑物高度的方法更加精确,提取结果误差在2.8 m以内,能够快速地获取大范围建筑物高度,具有实用价值;单幅遥感影像阴影提取建筑物高度适用于建筑物高大、毗邻建筑物间隙大、周围无遮挡的情况,而立体像对提取建筑物高度不受建筑四周环境影响,在建筑物密集分布、高度均一的情况下,其普适性更强。

关键词: 遥感, 高分辨率影像, 图像阴影, 立体像对, 建筑物高度

Abstract:

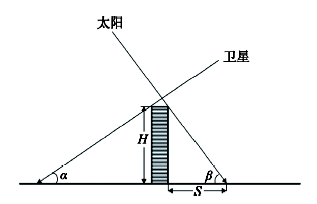

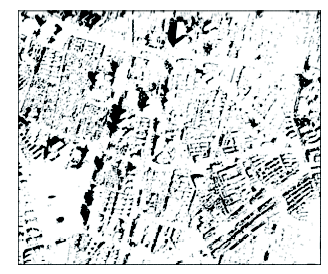

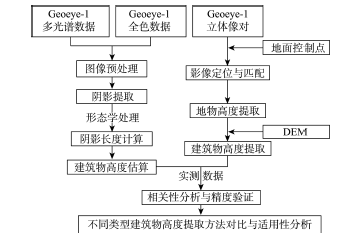

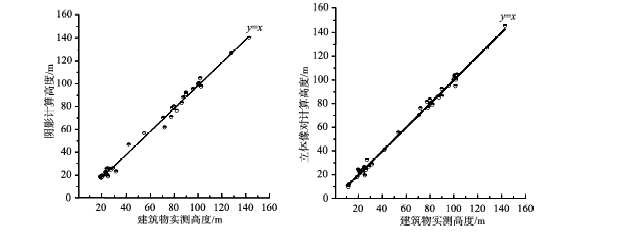

The accurate and quick acquisition of building height information has great significance to urban planning management and ecological environment assessment. In this paper, Geoeye-1 remotely sensed stereo images combined with the Google Earth data are used to estimate the building heights in Nanjing's central urban area by methods of single scene image and stereo images respectively, which are further validated using the field measured building heights. Firstly, after extracting the building shadow information by threshold segmentation and morphological optimization method, the building height can be calculated according to the geometric relationships between the sun, the satellite and the building. Secondly, the rational function model of stereo images is established based on the mathematical relationship between the three dimensional coordinates of the ground points and the coordinates of their corresponding image points in the image plane coordinate system, which can be further optimized using the measured ground control points data. The actual building height is then calculated by subtracting the terrain height from the height got from the rational function model. Finally, the measured building height data is used to validate the precision of the calculated results from two different methods. Furthermore, this paper compares the advantages and disadvantages of these two methods and analyzes their application precisions with respect to different building types. Results show that the method based on the stereo images is more accurate with a root mean square error within 2.8 m. The method of calculating building height through stereo images proves to be more practical because it obtains the building height information more quickly and accurately. The method of extracting building height using the shadow information from single image is suitable for tall buildings without shelter and keeping a long distance from the nearby buildings, while the method from stereo images is not affected by the surrounding buildings and is more capable for the condition of intensive building distribution with uniform heights.

Key words: remote sensing, high resolution images, image shadow, stereo images, building height

陈亭, 祝善友, 张桂欣, 高玚. 高分辨率遥感影像阴影与立体像对提取建筑物高度比较研究[J]. 地球信息科学学报, 2016, 18(9): 1267-1275.DOI:10.3724/SP.J.1047.2016.01267

CHEN Ting,ZHU Shanyou,ZHANG Guixin,GAO Yang. A Comparative Study on Building Height Extraction Based on the Shadow Information in High Resolution Remote Sensing Image and Stereo Images.[J]. Journal of Geo-information Science, 2016, 18(9): 1267-1275.DOI:10.3724/SP.J.1047.2016.01267

图/表 8

图1

图2

图3

图4

图5

图6

表1

图7

参考文献 22

[1]	安洁玉,程朋根,丁斌芬.基于Google Earth二维影像获取建筑物高度的方法[J].地理与地理信息科学,2010,26(6):31-33.
	[ An J Y, Cheng P G, Ding B F.Method for acquiring buildings height from 2D images in Google Earth[J]. Geography and Geo-Information Science, 2010,26(6):31-33. ]
[2]	宋仁波,李文慧,王细元,等.基于双张影像的城市建筑物高度提取方法[J].测绘工程,2014,23(9):66-69. doi: 10.3969/j.issn.1006-7949.2014.09.016
	[ Song R B, Li W H, Wang X Y, et al.A method of extracting urban building heights from double images[J]. Engineering of Surveying and Mapping, 2014,23(9):66-69. ] doi: 10.3969/j.issn.1006-7949.2014.09.016
[3]	Marzorati S, Luzi L, Petrini V, et al.Detection of local site effects through the estimation of building damages[J]. Soil Dynamics & Earthquake Engineering, 2003,23(6):497-511. doi: 10.1016/S0267-7261(03)00049-6
[4]	朱洪亮,万剑华,郭际明,等.城市三维建模的数据获取[J].工程勘察,2002(3):43-46.
	[ Zhu H L, Wan J H, Guo J M, et al.Data acquisition for 3D city model reconstruction[J]. Geotechnical Investigation and Surveying, 2002,3:43-46. ]
[5]	曹治国,陈华. IKONOS卫星图像的快速三维场景重建[J].计算机与数字工程,2006,11(34):9-15. doi: 10.3969/j.issn.1672-9722.2006.11.003
	[ Cao Z G, Chen H.Quick 3D reconstruction of the IKONOS-satellite stereo images[J]. Computer and Digital Engineering, 2006,11(34):9-15. ] doi: 10.3969/j.issn.1672-9722.2006.11.003
[6]	李二森. 基于遥感影像的人工地物高度信息快速提取技术研究[D].郑州:解放军信息工程大学,2008.
	[ Li E S.A study on the fast height information extraction of the man-made feature based on the remote sensing image[D]. Zhengzhou: PLA Information Engineering University, 2008. ]
[7]	王继周,林宗坚,李成名,等.基于UAV遥感影像的建筑物三维重建[J].遥感信息,2004(4):11-15. doi: 10.3969/j.issn.1000-3177.2004.04.004
	[ Wang J Z, Lin Z J, Li C M, et al.3D reconstruction of buildings with single UAV image[J]. Remote Sensing Information, 2004,4:11-15. ] doi: 10.3969/j.issn.1000-3177.2004.04.004
[8]	陈爱军,徐光佑,史元春.基于城市航空立体像对的全自动3维建筑物建模[J].测绘学报,2002,31(l):54-59. doi: 10.3321/j.issn:1001-1595.2002.01.011
	[ Chen A J, Xu G Y, Shi Y C.Automated 3D building modeling based on urban aerial stereopair[J]. Acta Geodaetica et Cartographica Sinica, 2002,31(l):54-59. ] doi: 10.3321/j.issn:1001-1595.2002.01.011
[9]	邵振峰,李德仁,程起敏.基于航空立体影像对的复杂房屋三维拓扑重建[J].武汉大学学报·信息科学版,2004,29(11):999-1003. doi: 10.3321/j.issn:1671-8860.2004.11.014
	[ Shao Z F, Li D R, Cheng Q M.3D topological reconstruction of complicated buildings[J]. Geomatics and Information Science of Wuhan University, 2004,29(11):999-1003. ] doi: 10.3321/j.issn:1671-8860.2004.11.014
[10]	尤红建,刘彤,苏林,等.城市DSM的快速获取及其三维显示的研究[J].遥感学报,2001,5(1):8-12. doi: 10.11834/jrs.20010102
	[ You H J, Liu T, Su L, et al.Fast acquiring urban DSM image and displaying 3D image[J]. Journal of Remote Sensing, 2001,5(1):8-12. ] doi: 10.11834/jrs.20010102
[11]	卓莉,黄信锐,王芳,等.基于高空间分辨率与立体像对遥感数据的建筑物三维信息提取[J].遥感技术与应用,2013,28(6):1062-1068.
	[ Zhuo L, Huang X R, Wang F, et al.A 3D building reconstruction method based on stereo images and high spatial resolution images[J]. Remote Sensing Technology and Application, 2013,28(6):1062-1068. ]
[12]	韩艳丽,陈映鹰.单幅航空影像建筑物三维建模研究[J]. 山东建筑大学学报,2005,20(3):17-22. doi: 10.3969/j.issn.1673-7644.2005.03.005
	[ Han Y L, Chen Y Y.An exploration of 3D reconstruction of house with single image[J]. Journal of Shandong University of Architecture and Engineering, 2005,20(3):17-22. ] doi: 10.3969/j.issn.1673-7644.2005.03.005
[13]	王继周,林宗坚,李成名. GIS信息辅助的单影像立体量测[J].测绘科学,2005,30(2):60-63. doi: 10.3771/j.issn.1009-2307.2005.02.018
	[ Wang J Z, Lin Z J, Li C M.GIS-supported 3D information acquisition of buildings from a single image[J]. Science of Surveying and Mapping, 2005,30(2):60-63. ] doi: 10.3771/j.issn.1009-2307.2005.02.018
[14]	王永刚,刘慧平.利用角点最近距离统计平均法计算建筑物阴影长度[J].国土资源遥感,2008(3):32-36. doi: 10.6046/gtzyyg.2008.03.08
	[ Wang Y G, Liu H P.The calculation of building shadow length using statistical average method based on corner shortest distance[J]. Remote Sensing for Land and Resources, 2008,3:32-36. ] doi: 10.6046/gtzyyg.2008.03.08
[15]	王京卫,郭秋英,郑国强.基于单张遥感影像的城市建筑物高度提取研究[J].测绘通报,2012(4):15-17.
	[ Wang J W, Guo Q Y, Zheng G Q.Research on urban building height extraction from single satellite image[J]. Bulletin of Surveying and Mapping, 2012,4:15-17. ]
[16]	Thiel K H.Delimiting the building heights in a city from the shadow in a panchromatic SPOT-image - Part 1. Test of forty-two buildings[J]. International Journal of Remote Sensing, 1995,16(3):409-415. doi: 10.1080/01431169508954409
[17]	何国金,陈刚,何晓云,等.利用SPOT图像阴影提取城市建筑物高度及其分布信息[J].中国图象图形学报,2001,6A(5):425-428 doi: 10.3969/j.issn.1006-8961.2001.05.002
	[ He G J, Chen G, He X Y, et al.Extracting buildings distribution information of different heights in a city from the shadows in a panchromatic SPOT image[J]. Journal of Image and Graphics, 2001,6A(5):425-428. ] doi: 10.3969/j.issn.1006-8961.2001.05.002
[18]	谢军飞,李延明.利用IKONOS卫星图像阴影提取城市建筑物高度信息[J].国土资源遥感,2004,4(4):4-6. doi: 10.3969/j.issn.1001-070X.2004.04.002
	[ Xie J F, Li Y M.The extraction of building distribution information of different heights in a city from the shadows in a IKONOS image[J]. Remote Sensing for Land and Resources, 2004,4(4):4-6. ] doi: 10.3969/j.issn.1001-070X.2004.04.002
[19]	王菲,蔺启忠.利用阴影提取大范围建筑物高度的研究[C]. International Conference on Remote Sensing, 2010:371-374.
	[ Wang F, Lin Q Z.The study of the extraction of buildings' height on a large scale with shadows[C]. International Conference on Remote Sensing, 2010:371-374. ]
[20]	李淼. 基于二维直方图的图像阈值分割法研究[D].湘潭:湘潭大学,2014.
	[ Li M.Image thresholding segmentation algorithm based on two dimensional histogram[D]. Xiangtan: Xiangtan University, 2014. ]
[21]	黄贝莹,左小清,唐立娜,等.基于数学形态学的IKONOS影像提取建筑物高度方法研究[J].遥感信息,2014,29(2):68-76. doi: 10.3969/j.issn.1000-3177.2014.02.012
	[ Huang B Y, Zuo X Q, Tang L N, et al.A study of extracting building height from IKONOS remote sensing image based on mathematical morphology[J]. Remote Sensing Information, 2014,29(2):68-76. ] doi: 10.3969/j.issn.1000-3177.2014.02.012
[22]	王伟玺. 基于广义立体像对的三维重建方法研究[D].葫芦岛:辽宁工程技术大学,2006.
	[ Wang W X.The 3D reconstruction methods study based on generalized stereopair[D]. Huludao: Liaoning Technical University,2006. ]

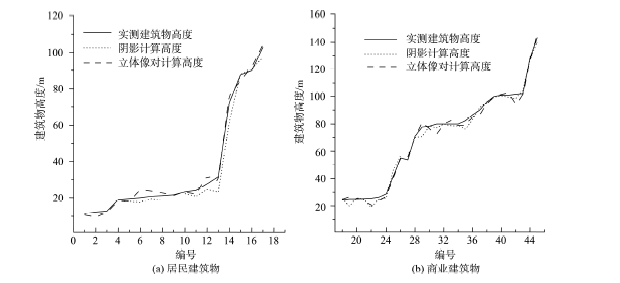

建筑物类型	阴影方法	立体像对方法
居民住宅建筑	4.4	2.5
商业建筑	3.1	2.8
