三江源生态工程实施以来草地恢复态势及现状分析

doi:10.3724/SP.J.1047.2017.00050

地球信息科学学报 ›› 2017, Vol. 19 ›› Issue (1): 50-58.doi: 10.3724/SP.J.1047.2017.00050

• 新时期中国土地利用/覆被变化时空特征与生态环境效应专栏 • 上一篇下一篇

三江源生态工程实施以来草地恢复态势及现状分析

徐新良¹(), 王靓^1,², 李静^3,*^*(), 蔡红艳¹

1. 中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京 100101
2. 中国科学院大学,北京 100049
3. 环境保护部卫星环境应用中心,北京 100094

收稿日期:2016-06-29 修回日期:2016-08-25 出版日期:2017-01-20 发布日期:2017-01-13
作者简介:
作者简介：徐新良（1972-）,男,山东青岛人,博士,研究员,硕士生导师,主要从事土地利用/土地覆被变化与陆地生态系统综合监测与评估研究。E-mail: xuxl@lreis.ac.cn
基金资助:
中国科学院重点部署项目(KJZD-EW-TZ-G10);中国科学院特色研究所培育建设服务项目（TSYJS03）

Analysis of the Grassland Restoration Trend and Degradation Situation in the “Three-River Headwaters” Region since the Implementation of the Ecological Project

XU Xinliang¹(), WANG Liang^1,², LI Jing^3,^*(), CAI Hongyan¹

1. State Key Laboratory of Resources and Environmental Information Systems, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. Satellite Environment Center, Ministry of Environmental Protection, Beijing 100094, China

Received:2016-06-29 Revised:2016-08-25 Online:2017-01-20 Published:2017-01-13
Contact: LI Jing

摘要/Abstract

摘要：

三江源生态保护与建设工程实施以来,区域生态环境发生了明显的改善。为了正确认识该地区草地退化恢复的程度及其空间分布特征,本文通过对比分析2004年和2012年2期遥感影像,利用人工解译的手段获取了工程实施后三江源地区退化草地变化态势数据集,并在此基础上分析了退化草地的恢复态势,以及草地退化现状的空间格局特征。结果表明：① 2004-2012年三江源生态工程实施以后,该地区草地退化呈现不同程度的减缓态势,而且局部地区草地状况明显好转;② 三江源地区各县草地退化趋势基本得到控制,退化草地变化以轻微好转和明显好转为主,退化发生和退化加剧现象仅发生在极少数县;③ 2012年三江源退化草地面积比2004年降低了5.78%,其中中度退化草地的面积减少最显著,下降了5.35%。黄河源和长江源草地退化的形势依然比较严峻,玛多县、曲麻莱县、称多县北部和治多县东南部草地退化最明显。三江源生态工程自实施以来,草地恢复态势及现状分析对归纳总结三江源生态保护与建设一期工程的成功经验和基本教训,以及合理指导二期工程的实施具有重要的科学意义。

关键词: 三江源, 遥感, 草地退化, 生态工程

Abstract:

The implementation of ecological conservation and construction projects in the “Three-River Headwaters” region had a positive impact on its ecological environment. Through comparative analysis of remote sensing images in 2004 and 2012, the dataset of changes in degraded grassland after the implementation of ecological projects was acquired. Based on the dataset, we analyzed the grassland restoration trend and degradation situation in the “Three-River Headwaters” region. The results showed that the grassland presented a meliorated status at various degrees and the grassland situation improved obviously in local areas during 2004-2012 compared to the grassland degradation status in early time period of 1990-2004. The grassland degradation trend in counties of “Three-River Headwaters” region had been controlled during 2004-2012. Slight and obvious improvement dominated in all counties while occurring and intensified degradation took place in few counties. Compared with the degradation grassland area in 2004, the degradation grassland area in 2012 decreased by 5.78%, among which moderate degradation grassland decreased most obviously by 5.35%. There was a severe degradation in the source region of the Yellow River and the Yangtze River, including Maduo, Qumarlêb, southern Chindu, and southwestern Zhidoi. Analysis of the grassland restoration trend and degradation status in the “Three-River Headwaters” region after the implementation of ecological projects can not only summarize successful experience and lessons of the first-stage project, but also provide rational guidance on the implementation of a second-stage ecological project.

Key words: “, Three-River Headwaters”, region, remote sensing, grassland degradation, eco-restoration project

徐新良, 王靓, 李静, 蔡红艳. 三江源生态工程实施以来草地恢复态势及现状分析[J]. 地球信息科学学报, 2017, 19(1): 50-58.DOI:10.3724/SP.J.1047.2017.00050

XU Xinliang,WANG Liang,LI Jing,CAI Hongyan. Analysis of the Grassland Restoration Trend and Degradation Situation in the “Three-River Headwaters” Region since the Implementation of the Ecological Project[J]. Journal of Geo-information Science, 2017, 19(1): 50-58.DOI:10.3724/SP.J.1047.2017.00050

图/表 10

图1

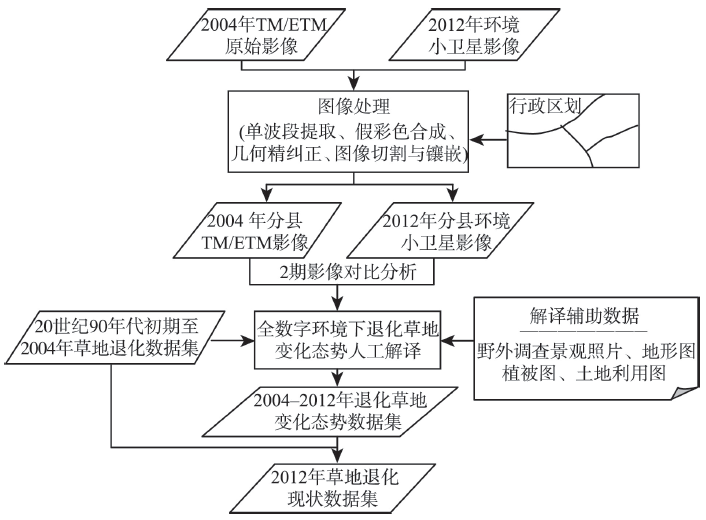

图2

图3

图4

表1

表2

表3

图5

表4

表5

参考文献 19

[1]	刘纪远,邵全琴,樊江文.三江源生态工程的生态成效评估与启示[J].自然杂志,2013,35(1):40-46. doi: 10.3969/j.issn.0253-9608.2013.01.005
	[ Liu J Y, Shao Q Q, Fan J W.Ecological construction achievements assessment and its revelation of ecological project in Three Rivers Headwaters Region[J]. Chinese Journal of Nature, 2013,35(1):40-46. ] doi: 10.3969/j.issn.0253-9608.2013.01.005
[2]	Liu J Y, Xu X L, Shao Q Q.The Spatial and Temporal Characteristics of Grassland Degradation in the Three-River Headwaters Region in Qinghai Province[J]. Acta Geographica Sinica. 2008,63(4):364-376. doi: 10.1007/s10499-007-9164-4
[3]	刘纪远,邵全琴,樊江文.三江源草地生态系统综合评估指标体系[J].地理研究,2009,28(2):273-283. doi: 10.3321/j.issn:1000-0585.2009.02.001
	[ Liu J Y, Shao Q Q, Fan J W.The integrated assessment indicator system of grassland ecosystem in the Three-River Headwaters region[J]. Geogarphical Research, 2009,28(2):273-283. ] doi: 10.3321/j.issn:1000-0585.2009.02.001
[4]	徐新良,刘纪远,邵全琴,等.30年来青海三江源生态系统格局和空间结构动态变化[J].地理研究,2008,27(4):829-839. doi: 10.3321/j.issn:1000-0585.2008.04.011
	[ Xu X L, Liu J Y, Shao Q Q.The dynamic changes of ecosystem spatial pattern and structure in the Three-River Headwaters region in Qinghai Province during recent 30 years[J]. Geographical Research, 2008,27(4):829-839. ] doi: 10.3321/j.issn:1000-0585.2008.04.011
[5]	邵全琴,樊江文,等.三江源区生态系统综合监测与评估[M].北京:科学出版社,2012.
	[ Shao Q Q, Fan J W, et al.The integrated monitoring and assessment of grassland ecosystem in the Three-River Headwaters region[M]. Beijing: Science Press, 2012. ]
[6]	汪诗平. 青海省“三江源”地区植被退化原因及其保护策略[J].草业学报,2003,12(6):1-9. doi: 10.3321/j.issn:1004-5759.2003.06.001
	[ Wang S P.Vegetation degradation and protection strategy in the “Three rivers fountainhead” area in the Qinghai province[J]. Acta Pratacul Turae Sinica, 2003,12(6):1-9. ] doi: 10.3321/j.issn:1004-5759.2003.06.001
[7]	Feng J M, Wang T, Xie C W.Eco-environment degradation in the source region of the Yellow River, Northeast Qinghai-Xizang Plateau[J]. Environmental Monitoring and Assessment, 2006,122:125-143. doi: 10.1007/s10661-005-9169-2 pmid: 16758279
[8]	Huang L, Liu J Y, Shao Q Q, et al.Changing inland lakes responding to climate warming in Northeast Tibetan Plateau[J]. Climate change, 2011,109:479-502. doi: 10.1007/s10584-011-0032-x
[9]	Wang G X, Cheng G D.Eco-environmental changes and causative analysis in the source regions of the Yangtze and Yellow Rivers, China[J]. The Environmentalist, 2000,20:221-232. doi: 10.1023/A:1006703831018
[10]	Yang J, Ding Y, Chen R.Spatial and temporal of variations of alpine vegetation cover in the source regions of the Yangtze and Yellow Rivers of the Tibetan Plateau from 1982 to 2001[J]. Environmental Geology, 2006,50(3):313-322. doi: 10.1007/s00254-006-0210-8
[11]	邵全琴,刘纪远,黄麟,等.2005-2009年三江源自然保护区生态保护和建设工程生态成效综合评估[J].地理研究,2013,32(9):1645-1656. doi: 10.11821/dlyj201309007
	[ Shao Q Q, Liu J Y, Huang L, et al.Integrated assessment on the effectiveness of ecological conservation in Sanjiangyuan National Nature Reserve[J]. Geographical Research, 2013,32(9):1645-1656. ] doi: 10.11821/dlyj201309007
[12]	张良侠,樊江文,邵全琴,等.生态工程前后三江源草地产草量与载畜压力的变化分析[J].草业学报,2014,23(5):116-123. doi: 10.11686/cyxb20140513
	[ Zhang L X, Fan J W, Shao Q Q, et al.Changes in grassland yield and grazing pressure in the Three Rivers headwater region before and after the implementation of the eco-restoration project[J]. Acta Pratacul Turae Sinica, 2014,23(5):116-123. ] doi: 10.11686/cyxb20140513
[13]	赖敏,吴绍洪,戴尔阜,等.生态建设背景下三江源自然保护区生态系统服务价值变化[J].山地学报,2013,31(1):8-17. doi: 10.3969/j.issn.1008-2786.2013.01.002
	[ Lai M, Wu S H, Dai E F, et al.Dynamic Valuation on Ecosystem Services to Ecological Construction in the Three-River Headwaters Nature Reserve, China[J]. Journal of Mountain Science, 2013,31(1):8-17. ] doi: 10.3969/j.issn.1008-2786.2013.01.002
[14]	刘玉杰,邓福英,赵文娟.草地退化遥感评价与监测研究进展[J].云南地理环境研究,2013,25(1):14-18,24. doi: 10.3969/j.issn.1001-7852.2013.01.003
	[ Liu Y J, Deng F Y, Zhao W J.Research progress in remote sensing evaluation and monitoring of grassland degradation[J]. Yunnan Geographic Environment Research, 2013,25(1):14-18,24. ] doi: 10.3969/j.issn.1001-7852.2013.01.003
[15]	刘纪远,徐新良,邵全琴.近30年来青海三江源地区草地退化的时空特征[J].地理学报,2008,63(4):364-376. doi: 10.3321/j.issn:0375-5444.2008.04.006
	[ Liu J Y, Xu X L, Shao Q Q.The spatial and temporal characteristics of grassland degradation in the Three-River Headwaters Region in Qinghai Province[J]. Acta Geographica Sinica, 2008,63(4):364-376. ] doi: 10.3321/j.issn:0375-5444.2008.04.006
[16]	郭佩佩,杨东,王慧,等.1960-2011年三江源地区气候变化及其对气候生产力的影响[J].生态学杂志,2013,32(10):2806-2814.
	[ Guo P P, Yang D, Wang H, et al.Climate change and its effects on climatic productivity in the Three-River Headwater region in 1960-2011[J]. Chinese Journal of Ecology, 2013,32(10):2806-2814. ]
[17]	廉丽姝,束炯,李朝颐.三江源地区草地退化对中国区域气候影响的数值模拟研究[J].气象学报,2009,67(4):580-590. doi: 10.11676/qxxb2009.058
	[ Lian L Z, Shu J, Li C Y.The impacts of grassland degradation on regional climate over the origin area of three rivers in Qinghai-Tibet Plateau, China[J]. Acta Meteorologica Sinica, 2009,67(4):580-590. ] doi: 10.11676/qxxb2009.058
[18]	陈琼,周强,张海峰,等.三江源地区基于植被生长季的NDVI 对气候因子响应的差异性研究[J].生态环境学报,2010,19(6):1284-1289. doi: 10.3969/j.issn.1674-5906.2010.06.004
	[ Chen Q, Zhou Q, Zhang H F, et al.Spatial disparity of NDVI response in vegetation growing season to climate change in the Three-River Headwaters Region[J]. Ecology and Environmental Sciences, 2010,19(6):1284-1289. ] doi: 10.3969/j.issn.1674-5906.2010.06.004
[19]	谢昌卫,齐三红.长江-黄河源寒区径流量波动变化的气候因素分析[J].长江流域资源与环境,2007,16(2):251-255. doi: 10.3969/j.issn.1004-8227.2007.02.024
	[ Xie C W, Qi S H.Analysis of runoff change and its response to weather fluctuation at source regions of the Yangtze and Yellow Rivers[J]. Resources and Environment in the Yangtze Basin, 2007,16(2):251-255. ] doi: 10.3969/j.issn.1004-8227.2007.02.024

流域名称	退化加剧	退化发生	退化状态不变	轻微好转	明显好转
黄河流域	77.65	13.73	16 771.3	6610.18	2535.73
长江流域	206.75	86.34	30 267.5	8763.27	1987.22
澜沧江流域	11.59	0.00	8243.04	1304.94	104.74
合计	295.99	100.07	55 281.84	16 678.39	4627.69

退化区名称	退化发生	退化加剧	退化状态不变	轻微好转	明显好转
1区东部八县草地小范围轻度连续退化区	4.63	40.02	3361.87	2214.78	574.18
2区玛多南部、达日全县草地中等范围中轻度持续退化区	0.24	21.17	3836.46	641.45	141.41
3区玛多北部、称多北部、曲麻莱大部草地大范围中度持续退化沙化区	38.29	30.89	23 142.20	15 858.26	4311.49
4区称多南部、玉树、囊谦、杂多东部草地中等范围中轻度连续退化区	1.25	19.74	8618.43	1256.83	236.34
5区治多中东部、曲麻莱南端较大范围轻中度持续退化区	47.64	56.29	10 667.48	289.37	106.73
6区杂多中西部、唐古拉山乡东部草地中小范围轻度退化局部好转区	0.00	119.82	6513.78	997.01	47.44
7区治多西部、唐古拉山乡中西部草地小范围轻度连续荒漠化区	13.87	9.52	4040.88	558.47	8.14
合计	105.92	297.45	60 181.10	21 816.17	5425.73

县名	退化发生	退化加剧	退化状态不变	轻微好转	明显好转
治多县	59.44	55.63	10 750.96	362.82	106.74
曲麻莱县	0.00	5.65	13 176.11	13 024.88	3273.66
兴海县	0.00	0.00	693.73	179.00	18.14
唐古拉山乡	2.07	9.52	3223.77	784.33	8.83
玛多县	2.34	7.81	9360.88	1226.90	558.67
同德县	0.00	0.00	36.89	10.93	1.87
泽库县	0.00	0.00	357.97	85.11	14.04
玛沁县	0.00	36.73	1361.06	278.03	162.86
称多县	37.20	33.00	4965.95	1956.67	706.73
河南	0.00	0.00	353.92	4.30	7.63
杂多县	0.00	123.68	7511.86	834.93	69.82
甘德县	0.00	0.00	432.45	490.87	76.15
达日县	0.24	20.69	1807.78	403.14	63.34
玉树县	0.00	0.00	2863.39	189.81	19.23
久治县	3.75	3.29	110.03	602.25	218.79
班玛县	0.88	0.00	15.58	564.28	74.70
囊谦县	0.00	1.45	3159.16	818.58	44.54
合计	105.92	297.45	60 181.49	21 816.83	5425.74

退化程度	20世纪90年代初至2004年			2012年退化现状			2004-2012年
退化程度	面积/km²		比例/%		面积/km²	比例/%	面积/km²	比例/%
轻度退化	55 724.05	23.93		54 948.62	23.60		-775.43	-0.33
中度退化	27 347.79	11.74		14 874.46	6.39		-12 473.33	-5.35
重度退化	1030.82	0.44		809.95	0.35		-220.87	-0.09
合计	84 102.66	36.08		70 633.03	30.30		-13 469.63	-5.78

县	20世纪90年代初至2004年			2012年退化现状			2004-2012年变化
县	面积/km²		比例/%		面积/km²	比例/%	面积/km²	比例/%
班玛县	655.37	14.85		6345.58	0.90		5690.21	-13.95
称多县	7503.58	63.58		14 588.30	41.32		7084.72	-22.26
达日县	2201.24	20.45		14 486.73	14.00		12 285.49	-6.45
甘德县	1002.07	19.97		7101.75	7.20		6099.68	-12.77
河南县	359.89	6.85		6687.70	5.30		6327.81	-1.55
久治县	938.28	15.52		8255.90	2.79		7317.62	-12.73
玛多县	10 565.78	55.42		24 450.29	41.70		13 884.51	-13.72
玛沁县	1848.35	23.70		13 471.37	10.78		11 623.02	-12.92
囊谦县	4025.00	44.58		12 072.35	26.63		8047.35	-17.95
曲麻莱县	29 322.30	81.41		46 665.10	43.95		17 342.80	-37.46
唐古拉山乡	3546.84	13.88		47 703.41	6.89		44 156.57	-6.99
同德县	191.06	6.10		4589.61	3.89		4398.55	-2.21
兴海县	890.89	10.60		12 106.10	5.73		11 215.21	-4.87
玉树县	3045.66	27.22		15 316.77	19.03		12 271.11	-8.19
杂多县	6489.90	27.14		35 436.80	21.64		28 946.90	-5.50
泽库县	382.69	7.02		6697.97	5.52		6315.28	-1.50
治多县	11 133.76	27.66		80 670.88	13.55		69 537.12	-14.11
