基于元胞自动机模型的河道汇流过程模拟

doi:10.3724/SP.J.1047.2017.00880

地球信息科学学报 ›› 2017, Vol. 19 ›› Issue (7): 880-885.doi: 10.3724/SP.J.1047.2017.00880

• 地球信息科学理论与方法 • 上一篇下一篇

基于元胞自动机模型的河道汇流过程模拟

张文富¹(), 林广发^1,^2,^3,^*(), 张明锋^1,^2,³, 李清远¹

1. 福建师范大学地理研究所,福州 350007
2. 福建省陆地灾害监测评估工程技术研究中心,福州 350007
3. 海西地理国情动态监测与应急保障研究中心,福州 350007

收稿日期:2016-08-15 修回日期:2017-04-07 出版日期:2017-07-10 发布日期:2017-07-10
作者简介:
作者简介：张文富（1990-）,男,河南沈丘人,硕士生,研究方向为地理信息系统。E-mail:wenfuz@foxmail.com
基金资助:
国家重点研发计划重点专项（2016YFC0502905）;福建省公益类科研院所专项（2015R1034-1）;福建省测绘地理信息局科技基金项目（2017JX03）;研究生科研创新基金立项项目（GY201609）

The Simulation of Channel Flow Process based on Cellular Automation

ZHANG Wenfu¹(), LIN Guangfa^1,^2,^3,^*(), ZHANG Mingfeng^1,^2,³, LI Qingyuan¹

1. Institute of Geography, Fujian Normal University, Fuzhou 350007, China
2. Fujian Provincial Engineering Research Center for Monitoring and Assessing Terrestrial Disasters, Fuzhou 350007, China
3. Research Center for National Geographical Condition Monitoring and Emergency Support in the Economic Zone on the West Side of the Taiwan Strait, Fuzhou 350007, China

Received:2016-08-15 Revised:2017-04-07 Online:2017-07-10 Published:2017-07-10
Contact: LIN Guangfa

摘要/Abstract

摘要：

对河道汇流过程进行模拟可为洪水灾害预警预报提供参考。利用水力水文学方法能很好地模拟河道汇流过程,但需要输入的参数多,运算过程复杂,对数据精度要求高,而且在无资料区流域无法确定河道上断面流量情况下,该方法具有一定局限性。本文将元胞自动机模型与水文模型相结合,构建了河道汇流过程中的元胞自动机模型和产流汇流规则。通过建立河道坡面拓扑关系,利用SCS-CN（Soil Conservation Service-Curve Number）模型逐个计算河道元胞上的坡面入流,并利用曼宁方程模拟河道汇流过程,最后在ArcEngine平台下进行二次开发,实现了河道汇流可视化。本文以厦门市茂林溪流域为研究区,对1997年5月6日至7日的一场降雨进行了模拟。将本文模拟结果与该流域其他学者的研究进行了对比分析,结果表明在输入数据与水文模型参数相同的情况下,本文不仅模拟出每次降雨间隔产生的较小洪峰,并且整场降雨产生的最大洪峰流量精度与时间精度均提高了5倍,可以更准确地模拟河道汇流过程,适用于河道汇流可视化,该模拟可以为洪水灾害预警预报提供一定参考。

关键词: 元胞自动机, 水文模型, 河道汇流, 可视化, 过程模拟

Abstract:

Simulating the channel flow process can provide suggestion to flood disaster forecasting and warning. The hydraulics and hydrology model presently used in simulating channel flow process have many disadvantages, for example, many parameters need to be input and the operation process is complex. What is more, there are high requirements for data precision and it is inapplicable to the ungagged catchments where the condition of river section flow is unknown. In this study, the cellular automata model of the overland runoff and channel confluence rules was constructed by combining the cellular automata model with the hydrological model. Through establishing the river slope topology, we used the SCS-CN (Soil Conservation Service-Curve Number) to calculate the slope inflow of each channel cellular. Then, we used Manning equation to simulate river confluence process. In the end, the process was visualized using ArcEngine. The basin of Maolin Creek in Xiamen was taken as a study case, in which the rainfall-runoff process during May 6-7 in 1997 was simulated to conform this model. Compared with other scholars’ study results, our results can not only simulate the small flood peak in each rain interval but also increase 5 times in the maximum peak flow precision and 5 times in the time precision under the same condition of the input data and hydrologic model parameters. Using the cellular automation can get higher accuracy and it is suitable for channel flow visualization, which can provide reference to flood disaster forecastingand warning.

Key words: cellular automation, hydrological model, channel flow concentration, visualization, process simulation

张文富, 林广发, 张明锋, 李清远. 基于元胞自动机模型的河道汇流过程模拟[J]. 地球信息科学学报, 2017, 19(7): 880-885.DOI:10.3724/SP.J.1047.2017.00880

ZHANG Wenfu,LIN Guangfa,ZHANG Mingfeng,LI Qingyuan. The Simulation of Channel Flow Process based on Cellular Automation[J]. Journal of Geo-information Science, 2017, 19(7): 880-885.DOI:10.3724/SP.J.1047.2017.00880

图/表 8

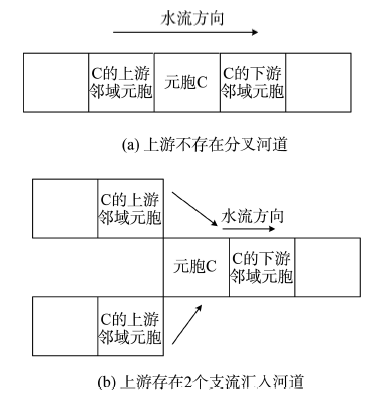

图1

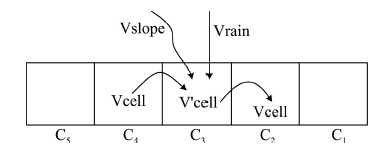

图2

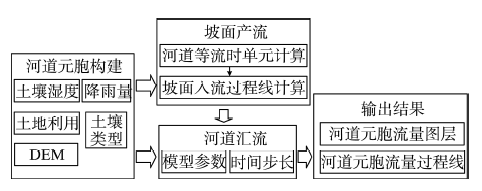

图3

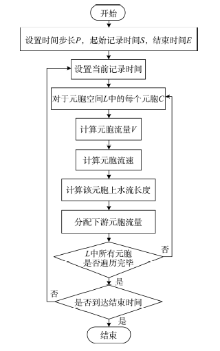

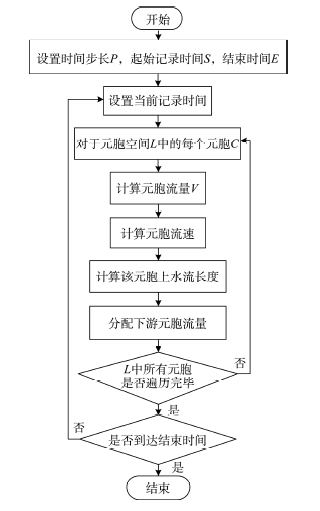

图4

图5

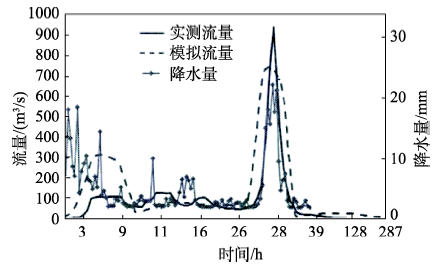

图6

表1

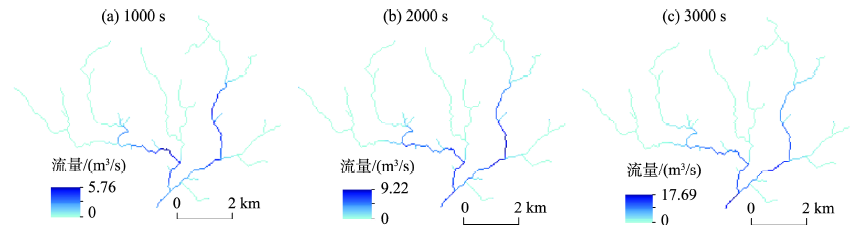

图7

参考文献 19

[1]	范世香. 水文学原理[M].北京:中国水利水电出版社,2014.
	[ Fan S X.Principles of hydrology[M]. Beijing: Chinese Water & Power Press, 2014. ]
[2]	周成虎. 地理元胞自动机研究[M].北京:科学出版社,1999.
	[ Zhou C H, Sun Z L, Xie Y C.Research of geographical cellular automata[M]. Beijing: Science Press, 1999. ]
[3]	汤富平,李满春,秦奋,等.基于CA的小流域分布式降雨径流模拟[J].水科学进展,2010,21(2):173-178.
	[ Tang F P, Li M C, Qin F, et al.Distributed rainfall-runoff simulating based on cellular automata for small watersheds[J]. Advances in Water Science, 2010,21(2):173-178. ]
[4]	Shao Q, Weatherley D, Huang L, et al.RunCA: A cellular automata model for simulating surface runoff at different scales[J]. Journal of Hydrology, 2015,529:816-829. doi: 10.1016/j.jhydrol.2015.09.003
[5]	Mendicino G, Pedace J, Senatore A.Stability of an overland flow scheme in the framework of a fully coupled eco-hydrological model based on the macroscopic cellular automata approach[J]. Communications in Nonlinear Science and Numerical Simulation, 2015,21(1):128-146. doi: 10.1016/j.cnsns.2014.08.021
[6]	李宗花,叶正伟.基于元胞自动机的洪泽湖洪水蔓延模型研究[J].计算机应用,2007,27(3):718-720.
	[ Li Z H, Ye Z W.Study on flood spreading model of Hong ze Lake based on cellular automata[J]. Journal of Computer Applications, 2007,27(3):718-720. ]
[7]	蔡新,李益,吴威,等.基于体积法思想的洪水淹没元胞自动机模型[J].水力发电学报,2013,32(5):30-34.
	[ Cai X, Li Y, Wu W, et al.Cellular automaton model of flood submergence based on bulk method[J]. Journal of Hydroelectric Engineering, 2013,32(5):30-34. ]
[8]	钟燃,朱军,李毅,等.基于层次分析法的泄洪区选址及模拟分析研究[J].自然灾害学报,2013,22(4):82-91.
	[ Zhong R, Zhu J, Li Y, et al.AHP-based site selection of flood discharge zones and simulation analysis[J]. Journal of Natural Disasters, 2013,22(4):82-91. ]
[9]	Ghimire B, Chen A S, Guidolin M, et al.Formulation of a fast 2D urban pluvial flood model using a cellular automata approach[J]. Journal of Hydroinformatics, 2013,15(3):676-686. doi: 10.2166/hydro.2012.245
[10]	Liu L, Liu Y, Wang X, et al.Developing an effective 2-D urban flood inundation model for city emergency management based on cellular automata[J]. Natural Hazards & Earth System Sciences, 2014,2(3):6173-6199. doi: 10.5194/nhessd-2-6173-2014
[11]	赖泽辉,包世泰,陈顺清,等.基于元胞自动机的城市地表积水模拟研究[J].水土保持通报,2015,35(6):182-186.
	[Lai Z H, Bao S T, Chen S Q, et al. An urban surface flooding modeling based on cellular automata[J]. Bulletin of Soil and Water Conservation, 2015,35(6):182-186. ]
[12]	刘星飞,原立峰,吴淑芳,等.不同空间尺度下的土壤侵蚀元胞自动机建模评述[J].中国水土保持科学,2012,10(4):113-120.
	[ Liu X F, Yuan L F, Wu S F, et al.Review of soil erosion modeling using Cellular Automata in different spatial scales[J]. Science of Soil and Water Conservation, 2012,10(4):113-120. ]
[13]	曹敏,汤国安,张芳,等.基于元胞自动机的黄土小流域地形演变模拟[J].农业工程学报,2012,28(22):149-155. doi: 10.3969/j.issn.1002-6819.2012.22.022
	[ Cao M, Tang G A, Zhang F, et al. Simulation of terrain evolution in small loess watershed based on cellular automata[J]. Transactions of the Chinese Society of Agricultural Engineering, 2012,28(22):149-155. ] doi: 10.3969/j.issn.1002-6819.2012.22.022
[14]	Heung B, Bakker L, Schmidt M G, et al.Modeling the dynamics of soil redistribution induced by sheet erosion using the Universal Soil Loss Equation and cellular automata[J]. Geoderma, 2013,202:112-125. doi: 10.1016/j.geoderma.2013.03.019
[15]	王伟,李欣,陈能成,等.利用元胞自动机计算河道槽蓄量[J].武汉大学学报·信息科学版,2013,38(2):235-239.
	[ Wang W, Li X, Chen N C, et al.Computing river storage based on cellular automata[J]. Geomatics and Information Science of Wuhan University, 2013,38(2):235-239. ]
[16]	周成虎,欧阳,马廷,等.地理系统模拟的CA模型理论探讨[J].地理科学进展,2009,28(6):833-838. doi: 10.11820/dlkxjz.2009.06.001
	[ Zhou C H, Ou Y, Ma T, et al, Theoretical perspectives of CA-based geographical system modeling[J]. Progress in Geography, 2009,28(6):833-838. ] doi: 10.11820/dlkxjz.2009.06.001
[17]	刘家福,蒋卫国,占文凤,等.SCS模型及其研究进展[J].水土保持研究,2010,17(2):120-124.
	[ Liu J F, Jiang W G, Zhan W F, et al.Processes of SCS model for hydrological simulation : A review[J]. Research of Soil and Water Conservation, 2010,17(2):120-124. ]
[18]	Melesse A M, Graham W D.Storm runoff prediction based on a spatially distributed travel time method utilizing remote sensing and GIS[J]. Journal of the American Water Resources Association, 2004,40(4):863-879. doi: 10.1111/j.1752-1688.2004.tb01051.x
[19]	陈俊明. 基于情景模拟的小山洪灾害预警方法研究与系统实现[D].福州:福建师范大学,2012.
	[ Chen J M, A flash flood disaster warning system based on scenarios simulation[D]. Fuzhou: Fujian Normal University, 2012. ]

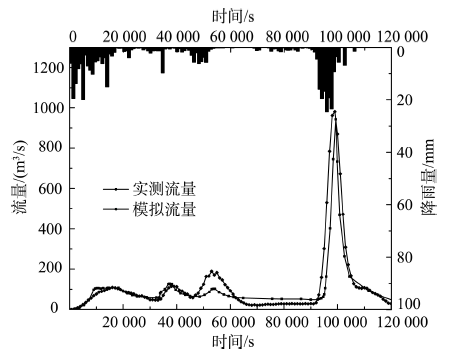

洪峰序号	实测洪峰/(m³/s)	计算洪峰/(m³/s)	洪峰相对误差/%	峰现时差/s
1	107	109	2	600
2	127	114	10	800
3	102	188	84	700
4	943	980	4	360
