山东半岛城市群交通网络载流能力评估与优化研究

doi:10.3724/SP.J.1047.2017.00808

摘要/Abstract

摘要：

在总结城市群交通网络运输方式多元化、交通节点等级化、结构运行高效化等基本特征的基础上,本文基于GIS空间分析平台构建了城市群交通网络载流模型（Traffic Network Flow-carrying Model, TNFM）,以山东半岛城市群为研究案例区,综合评价和对比了交通网络及各类型交通线路的理论与实际载流能力,得出各行政单元交通线路的缺口指数,并据此提出城市群交通网络的优化与提升方案。研究结果表明：TNFM模型可以有效地评价城市群交通网络的载流能力并得出各行政单元和道路类型的缺口里程,为城市群交通体系规划提供科学依据;山东半岛城市群国道、省道和铁路建设不足,部分城市主干道分流不畅,60%的县市存在各级道路短缺,但高铁和县乡道可以满足载流需求;未来应重点加强上述4类交通线路的建设,完善交通线路间的接口系统,充分发挥高铁和县道的分流作用。

关键词: 城市群, 交通网络, 交通优化, 国土系数模型, 山东半岛, TNFM

Abstract:

Based on the summary of the diversified modes, multi-level traffic nodes, efficient operation and structure, the evaluation model of the flow-carrying capacity of the urban agglomeration traffic network is constructed with GIS platform. Take Shandong Peninsula urban agglomeration （SPUA） as a case, this study aims to evaluate and optimize the comprehensive transportation network in urban agglomerations with traffic network flow-carrying model （TNFM）. First, the contrast analytical matrix was constructed, in which the practical flow-carrying values for traffic lines can be compared with their theoretical values. Second, using the spatial analysis tool of GIS, the performances of comprehensive traffic network as well as every type of traffic lines were evaluated. The national road, provincial road and railway of the urban agglomeration is inadequate. Diversion of some urban trunk road is poor. 60% of the administrative units at all levels have shortage of road. High-speed rail and county road can meet the current carrying requirements. In the future, SPUA should focus on strengthening the construction of the above four types of traffic lines, improve the traffic interface system, and give full diversion to the role of high-speed rail and county road.

Key words: urban agglomeration, traffic network, traffic optimization, territory coefficient model, Shandong peninsula, Traffic Network Flow-carring Model

王振波, 杨励雅, 梁龙武, 张蔷. 山东半岛城市群交通网络载流能力评估与优化研究[J]. 地球信息科学学报, 2017, 19(6): 808-817.DOI:10.3724/SP.J.1047.2017.00808

WANG Zhenbo,YANG Liya,LIANG Longwu,ZHANG Qiang. Study on Carrying Capacity Evaluation and Optimization of Traffic Network in Shandong Peninsula Urban Agglomeration[J]. Journal of Geo-information Science, 2017, 19(6): 808-817.DOI:10.3724/SP.J.1047.2017.00808

图/表 7

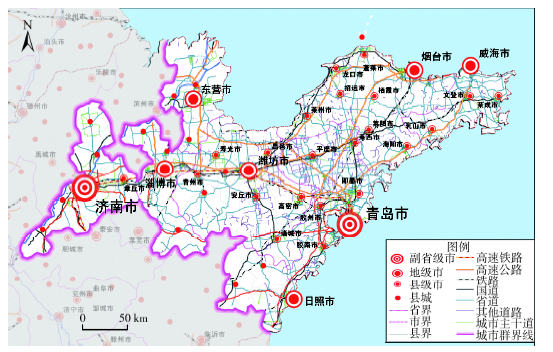

图1

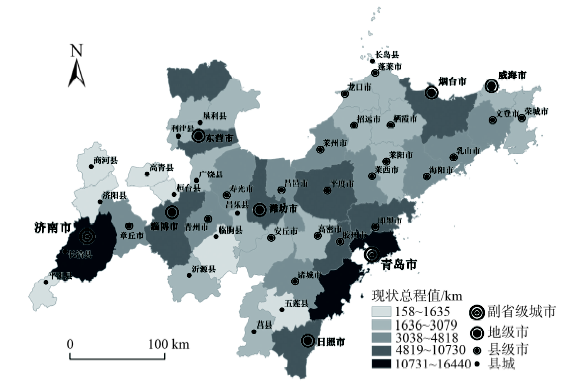

图2

表1

2013年山东半岛城市群单类交通线路合理载流权重与实际载流权重对比表

县市区	高速铁路			高速公路		一般铁路			国道		省道			城市主干道			其他道路
县市区	Q₁		P₁		Q₂	P₂		Q₃		P₃	Q₄	P₄	Q₅	P₅	Q₆	P₆	Q₇	P₇
济南市区	15	15		10	10	8	15		5	12	3	10		4	17		1	0.6
平阴县	15	15		10	10	8	18		5	11	3	22		4	30		1	0.5
济阳县	15	15		10	10	8	9		5	6	3	7		4	18		1	0.4
商河县	15	15		10	10	8	8		5	5	3	3		4	6		1	0.2
章丘市	15	15		10	11	8	13		5	10	3	7		4	20		1	0.4
青岛市区	15	15		10	10	8	12		5	8	3	6		4	13		1	0.4
胶州市	15	15		10	11	8	16		5	14	3	10		4	29		1	0.6
即墨市	15	15		10	10	8	14		5	10	3	7		4	25		1	0.6
平度市	15	15		10	10	8	20		5	13	3	9		4	29		1	0.6
莱西市	15	15		10	10	8	13		5	9	3	7		4	18		1	0.7
淄博市区	15	15		10	11	8	11		5	10	3	7		4	17		1	0.4
桓台县	15	15		10	10	8	13		5	10	3	6		4	21		1	0.4
高青县	15	15		10	10	8	15		5	9	3	5		4	21		1	0.4
沂源县	15	15		10	10	8	21		5	13	3	8		4	73		1	0.4
东营市区	15	15		10	10	8	11		5	7	3	5		4	8		1	0.5
垦利县	15	15		10	10	8	10		5	7	3	4		4	11		1	0.2
利津县	15	15		10	10	8	17		5	11	3	7		4	21		1	0.4
广饶县	15	15		10	10	8	17		5	10	3	6		4	21		1	0.3
烟台市区	15	15		10	10	8	13		5	9	3	6		4	15		1	0.6
长岛县	15	15		10	10	8	8		5	5	3	3		4	7		1	0.3
龙口市	15	15		10	10	8	11		5	8	3	7		4	15		1	0.3
莱阳市	15	15		10	10	8	11		5	9	3	9		4	22		1	0.4
莱州市	15	15		10	10	8	12		5	10	3	8		4	36		1	0.5
蓬莱市	15	15		10	10	8	12		5	8	3	7		4	15		1	0.4
招远市	15	15		10	10	8	12		5	8	3	6		4	16		1	0.3
栖霞市	15	15		10	10	8	15		5	12	3	9		4	50		1	0.6
海阳市	15	15		10	10	8	13		5	10	3	7		4	20		1	0.5
潍坊市区	15	15		10	11	8	12		5	9	3	7		4	13		1	0.7
临朐县	15	15		10	10	8	8		5	6	3	3		4	21		1	0.2
昌乐县	15	15		10	11	8	11		5	8	3	8		4	24		1	0.5
青州市	15	15		10	12	8	13		5	12	3	9		4	46		1	0.6
诸城市	15	15		10	10	8	13		5	10	3	7		4	20		1	0.4
寿光市	15	15		10	10	8	12		5	10	3	6		4	14		1	0.5
安丘市	15	15		10	10	8	8		5	5	3	4		4	8		1	0.3
高密市	15	15		10	12	8	13		5	13	3	8		4	15		1	0.4
昌邑市	15	15		10	11	8	15		5	13	3	11		4	23		1	0.6
威海市区	15	15		10	10	8	9		5	6	3	4		4	11		1	0.8
荣成市	15	15		10	10	8	8		5	5	3	3		4	13		1	0.3
文登市	15	15		10	10	8	11		5	8	3	6		4	30		1	0.4
乳山市	15	15		10	10	8	12		5	10	3	9		4	40		1	0.5
日照市区	15	15		10	10	8	13		5	10	3	7		4	13		1	0.5
五莲县	15	15		10	10	8	8		5	7	3	5		4	20		1	0.2
莒县	15	15		10	10	8	13		5	10	3	11		4	21		1	0.3

表1

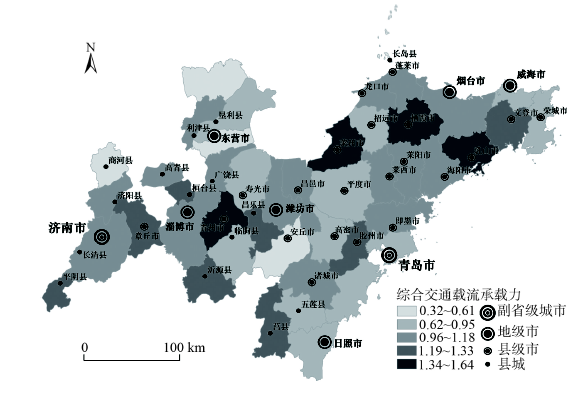

图3

表2

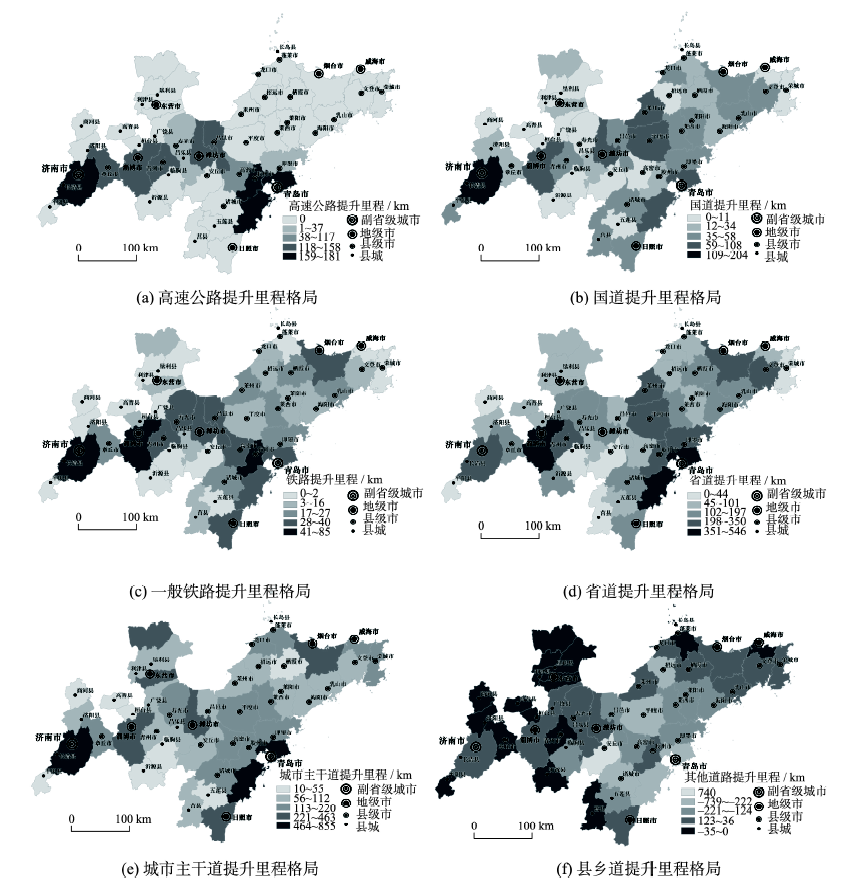

图4

表3

参考文献 27

[1]	王振波,罗奎,宋洁,等. 2000年以来长江经济带城市职能结构演变特征及战略思考[J].地理科学进展,2015,34(11):1409-1418. doi: 10.18306/dlkxjz.2015.11.008
	[ Wang Z B, Luo K, Song J, et al.2015. Characteristics of change and strategic considerations of the structure of urban functional divisions in the Yangtze River Economic Belt since 2000[J]. Progress in Geography, 2015,34(11):1409-1418. ] doi: 10.18306/dlkxjz.2015.11.008
[2]	方创琳,关兴良.中国城市群投入产出效率的综合测度与空间分异[J].地理学报,2011,66(8):1011-1022. doi: 10.11821/xb201108001
	[ Fang C L, Guan X L.Comprehensive measurement and apatial distinction of input-output efficiency of urban agglomerations in China[J]. Acta Geographica Sinica, 2011,66(8):1011-1022. ] doi: 10.11821/xb201108001
[3]	杨丽华,孙桂平.京津冀城市群交通网络综合分析[J].地理与地理信息科学,2014,30(2):77-81. doi: 10.7702/dlydlxxkx20140216
	[ Yang L H, Sun G P.Comprehensive Analysis of the Beijing-Tian-Hebei City cluster transportation network[J].Geography and Geo-Information Science, 2014,30(2):77-81. ] doi: 10.7702/dlydlxxkx20140216
[4]	劳昕,王彦博,沈体雁.基于交通网络和经济网络的中国城市体系空间结构对比研究[J].经济体制改革,2015(3):49-55.
	[ Lao X, Wang Y B, Shen T Y.A comparative research on the spatial structure of China's urban system between the transportation network and the economic network[J]. Reform of Economic System, 2015,3:49-55. ]
[5]	潘竟虎,胡艳兴.中国城市群“四化”协调发展效率测度[J].中国人口资源与环境,2015,25(9):100-107. doi: 10.3969/j.issn.1002-2104.2015.09.013
	[ Pan J H, Hu Y X.Measurement of the efficiency of coordinated development of the four modernizations for urban agglomerations in China[J]. China Population,Resources and Environment, 2015,25(9):100-107. ] doi: 10.3969/j.issn.1002-2104.2015.09.013
[6]	杨丽华,孙桂平.京津冀城市群交通网络综合分析[J].地理与地理信息科学,2014,30(2):77-81.
	[ Yang L H, Sun G P.Comprehensive analysis of the Beijing-Tianjin-Hebei city cluster transportation network[J]. Geography and Geo-Information Science, 2014,30(2):77-81. ]
[7]	肖京格,周廷刚,姚林虎,等.重庆市交通网络的可达性时空特征及其演化规律[J].地球信息科学学报,2015,17(1):54-61. doi: 10.3724/SP.J.1047.2015.00054
	[ Xiao J G, Zhou Y G, Yao L H, et, al. Spatial-temporal characteristics of Chongqing transport network accessibility and its Evolution Pattern[J]. Journal of Geo-Information Science, 2015,17(1):54-61. ] doi: 10.3724/SP.J.1047.2015.00054
[8]	董治,吴兵,王艳丽,等.中国城市群交通系统发展特征研究[J].中国公路学报,2011,24(2):83-88.
	[ Dong Z,Wu B, Wang Y L, et al.Research on development characteristic of transportation system of China urban agglomeration[J]. China Journal of Highway and Transport, 2011,24(2): 83-88. ]
[9]	陆化普. 城市交通供给策略与交通需求管理对策研究[J].城市交通,2012,10(3):1-6.
	[ Lu H P.Strategies of supply of urban transport infrastructure and travel demand management[J]. Urban Transport of China, 2012,10(3):1-6. ]
[10]	Gajjar R H.Application of time series techniques for forecasting truck traffic attracted by the Bombay metropolitan region[J]. Journal of Advanced Transportation, 1993,27(3):227-249. doi: 10.1002/atr.5670270303
[11]	Kamarianakis Y, Shen W, Wynter L.Real-time roas traffic forecasting using regime-switching space-time models and adaptive LASSO[J]. Applied Stochastic Models in Business and Industry, 2012,28(4):297-315. doi: 10.1002/asmb.1937
[12]	Stathopoulos A, Dimitriou L, Tsekeris T, Loukas. Fuzzy modeling approach for combined forecasting of urban traffic flow in metropolitan area[J]. Computer-aided civil and infrastructure engineering, 2008,23(3):521-535.
[13]	Knudson P T.Coalition formation and metropolitan contention: An analysis of the politics of light-rail transit in the twin cities of Minnesota[J]. City & Community, 2009,8(2):177-195. doi: 10.1111/j.1540-6040.2009.01279.x
[14]	Sherer D, Aviram H.Incorporating agglomeration economies in transport cost-benefit analysis: The case of the proposed light-rail transit in the Tel-Aviv metropolitan area[J]. Regional Science, 2005,84(3):487-508. doi: 10.1111/j.1435-5957.2005.00048.x
[15]	吕韬,姚士谋,曹有挥,等.中国城市群区域城际轨道交通布局模式[J].地理科学进展,2010,29(2):249-256. doi: 10.11820/dlkxjz.2010.02.017
	[ Lv T, Yao S M, Cao Y H, et al.Layout patterns of the intercity rail transit of urban agglomerations in China[J]. Progress in Geography, 2010,29(2):249-256. ] doi: 10.11820/dlkxjz.2010.02.017
[16]	王振波,徐建刚,朱传耿,等.中国县域可达性区域划分及其与人口分布的关系[J].地理学报,2010,65(4):416-426. doi: 10.11821/xb201004004
	[ Wang Z B, Xu J G, Zhu C G, et al.The county accessibility divisions in China and its correlation with population distribution[J]. Acta Geographica Sinica, 2010,65(4):416-426. ] doi: 10.11821/xb201004004
[17]	方大春,杨义武.高铁时代长三角城市群交能网络空间结构分形特征研究[J].地域研究与开发,2013,32(2):52-56. doi: 10.3969/j.issn.1003-2363.2013.02.011
	[ Fang D C, Yang Y W.Study on transportation spatial structure fractal characteristics of Yangtze River Delta city group in High-speed Rail Era[J]. Areal Research and Development, 2013,32(2):52-56. ] doi: 10.3969/j.issn.1003-2363.2013.02.011
[18]	林雄斌,杨家文,孙东波.都市区跨市公共交通规划与空间协同发展:理论、案例与反思[J].经济地理,2015(9):40-48. doi: 10.15957/j.cnki.jjdl.2015.09.006
	[ Lin X B, Yang J W, Sun D B.Metropolitan inter-jurisdictional public transportation and spatial coordinated development: Theory, cases and reflections[J]. Economic Geography, 2015,9:40-48. ] doi: 10.15957/j.cnki.jjdl.2015.09.006
[19]	何甜,朱翔,郑亮.基于运输通道场理论的长株潭城市群经济聚散效应分析[J].经济地理,2016(2):27-35.
	[ He T, Zhu X, Zheng L.Economic accumulation and diffusion effect analysis of Changsha-Zhuzhou-Xiangtan urban agglomeration based on the transportation corridor field theory[J]. Economic Geography, 2016,2:27-35. ]
[20]	周恺,刘冲.可视化交通可达性时空压缩格局的新方法——以京津冀城市群为例[J].经济地理,2016(7):62-69. doi: 10.15957/j.cnki.jjdl.2016.07.008
	[ Zhou K, Liu C.A New method to visualise the time-space compression effect in road network: A case study of Beijing-Tianjing-Hebei Region[J]. Economic Geography, 2016,7: 62-69. ] doi: 10.15957/j.cnki.jjdl.2016.07.008
[21]	焦利民,唐欣,刘小平.城市群视角下空间联系与城市扩张的关联分析[J].地理科学进展,2016,35(10):1177-1185. doi: 10.18306/dlkxjz.2016.10.001
	[ Jiao L M, Tang X, Liu X P.Spatial linkage and urban expansion: An urban agglomeration perspective[J]. Progress in Geography, 2016,35(10):1177-1185. ] doi: 10.18306/dlkxjz.2016.10.001
[22]	黄超,刘苏,吕颖.基于网络演化方法的城市群城际铁路线网规划模型研究[J].交通运输系统工程与信息,2016,16(2):123-128.
	[ Huang C, Liu S, Lv Y.Network evolution-based planning model for intercity railway network within urban agglomeration[J]. Journal of Transportation Systems Engineering and Information Technology, 2016,16(2):123-128. ]
[23]	李婷婷,宋瑞,何世伟,等.基于分层布局的城市群综合客运枢纽优化模型[J].中国公路学报,2016,29(2):116-122.
	[Li T T, Song R, He S W, et al.Optimization model of comprehensive passenger Hub in urban agglomeration based on Hierarchical layout[J]. China Journal of Highway and Transport, 2016,29(2):116-122. ]
[24]	Magnanti T L, Wong R T.Network design and transportation planning: Models and algorithms[J]. Transportation Science,1984,18(1):1-55. doi: 10.1287/trsc.18.1.1
[25]	郭晓峰. 国土系数法在公路网总里程预测中的应用[J].公路,2005(2):77-80. doi: 10.3969/j.issn.0451-0712.2005.02.017
	[ Guo X F.Application of land coefficient method in the prediction of total mileage of highway network[J]. Highway, 2005,2:77-80. ] doi: 10.3969/j.issn.0451-0712.2005.02.017
[26]	乔家君,龚如阁.区域交通网络空间优化及实证研究[J].地理与地理信息科学,2006,22(2):64-68.
	[ Qiao J J, Gong Ruge.Optimization of regional traffic network structure and empirical case[J]. Geography and Geo-Information Science, 2006,22(2):64-68. ]
[27]	梁国华,张景峰,雷剑,等.公路网均衡规模确定方法[J].交通运输工程学报,2013,13(6):83-89,106. doi: 10.3969/j.issn.1671-1637.2013.06.012
	[ Liang G H, Zhang J F, Lei J, et al.Determination method of equilibrium scale for highway network[J]. Journal of Traffic and Transportation Engineering, 2013,13(6):83-89,106. ] doi: 10.3969/j.issn.1671-1637.2013.06.012

类型	高速铁路	高速公路	铁路	国道	省道	城市主干道	其他道路
缺口里程/km	0	138	752	1495	6101	6769	-4102
实际里程/km	321	5848	2119	3362	12 049	9429	3642
载流能力缺口指数T	0.00	0.02	0.35	0.44	0.51	0.72	-1.13
