地球信息科学学报 >

2015 , Vol. 17 >Issue 11: 1313 - 1322

DOI: https://doi.org/10.3724/SP.J.1047.2015.01313

全球卫星气候遥感数据

基于背景知识的全球长时间序列反照率反演

  • 商荣 1, 2 ,
  • 刘荣高 , 1, * ,
  • 刘洋 1
展开
  • 1. 中国科学院地理科学与资源研究所 资源与环境信息系统国家重点实验室,北京 100101
  • 2. 中国科学院大学,北京 100049
*通讯作者：刘荣高（1970-）,研究员,博士,研究方向为定量遥感。E-mail:

作者简介：商 荣(1990-),男,湖北武汉人,博士生,研究方向为定量遥感。E-mail:

收稿日期: 2015-03-06

  要求修回日期: 2015-05-27

  网络出版日期: 2015-11-10

基金资助

气象行业科研专项(GYHY201106014)

中国科学院战略性先导科技专项(XDA05090303)

国家自然科学基金项目(41171285、41301354)

收起

Generation of Global Long-term Albedo Product Based on the Background Knowledge

  • SHANG Rong 1, 2 ,
  • LIU Ronggao , 1, * ,
  • LIU Yang 1
Expand
  • 1. State key Laboratory of Resources and Envionmental Information system, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
  • 2. University of Chinese Academy of Sciences, Beijing 100049, China
*Corresponding author: LIU Ronggao, E-mail:

Received date: 2015-03-06

  Request revised date: 2015-05-27

  Online published: 2015-11-10

Copyright

《地球信息科学学报》编辑部 所有
Fold

摘要

全球范围时空连续的长时间序列地表反照率,对气候模拟与陆面过程研究具有重要意义。针对现有地表反照率产品普遍存在大量的数据缺失、有效反演比例低和时间序列短的问题,本文以多年MODIS和AVHRR数据,通过构建背景知识库进行高时间分辨率的AVHRR和MODIS数据的BRDF参数反演,实现MODIS与AVHRR数据在像元尺度上的定量融合,生成了全球时空连续长时间序列的地表反照率产品。首先,通过假设不同年份同一时期的地表状态不变,利用多年同一时期的MODIS和AVHRR观测数据构造多角度方向反射率,基于BRDF模型反演得到窄波段反照率;然后,通过宽波-窄波转换,得到MODIS的宽波段反照率;最后,结合AVHRR长时间序列优势及MODIS数据多光谱的特点,对二者进行定量融合,生成具有高度一致性长时间序列地表反照率产品。验证结果表明,本文地表反照率产品在地表异质性较小时与SURFRAD地面实测反照率之间具有非常好的一致性,在无积雪覆盖时与MODIS反照率产品之间吻合良好。本文的地表反照率产品无时空缺失,且时间覆盖率得到了极大的提高,能支持气候模式模拟与陆面过程模型进行近30 a来的地气系统模拟研究。

关键词： 地表反照率; BRDF; MODIS; AVHRR; 长时间序列

本文引用格式

商荣 , 刘荣高 , 刘洋 . 基于背景知识的全球长时间序列反照率反演[J]. 地球信息科学学报, 2015 , 17(11) : 1313 -1322 . DOI: 10.3724/SP.J.1047.2015.01313

Abstract

Global continuous long-term surface albedo products are of great importance to land surface process and climate modeling research. Problems such as severe data missing and low effective retrieval percentage in the current albedo products made them difficult to meet the requirements of climate modeling perfectly. To solve those problems, this paper made two improvements on MODIS albedo product algorithm. One improvement was to modify the way of composing and selecting enough directional reflectance, which were used for the generation of background BRDF parameters. We assumed that the surface would change little in the same time period during different years. Therefore, all directional reflectance of multi-years for each time period could be used for the composition and selection, in which at least 7 valid directional reflectance for each pixel were used to conduct the BRDF retrieval. Another improvement was the quantitative data fusion between MODIS and AVHRR data, which helped to expand the temporal coverage of albedo products to 30 years. Validation results showed that this new albedo product kept great consistency with the relatively homogeneous SURFRAD site albedos and was almost the same with MODIS snow-free albedo product. These were no spatial or temporal data missing in this new albedo product and the temporal coverage had been greatly improved. Therefore, this new albedo product would be more suitable for the applications of land surface process and climate modeling research.

Key words： surface albedo; BRDF; MODIS; AVHRR; long time series

1 引言

地表反照率（Surface Albedo）为地表反射的太阳辐射与入射太阳辐射的比值,可量化陆地表面与大气之间的辐射测量关系,定义了大气辐射传输的下边界[1],是制约陆面辐射能量收支平衡[2]和气候变化研究[3]的关键因子,对气候模拟与陆面过程研究都有着重要的意义。它常被用来分析城市的热岛效应[4],估算当地的大气温度[5],识别植被的结构类型[6],以及计算土壤湿度[7-8]。
气候模拟与陆面过程研究,不仅需要全球尺度的地表反照率产品,还需保证产品的可靠性及时间和空间覆盖度的完整性。利用遥感可获取全球长时间序列的地表反照率,目前已经生产了多个地表反照率产品：历史反照率产品（如AVHRR[9-11]和ERBE[12]）、星载反照率产品（如MODIS[13]、MISR[14]、POLDER[15-16]、Meteosat[17]）、长时间序列反照率产品（如GLASS[18]等）。这些产品大都基于双向反射分布函数模型（BRDF）反演得到,这类反演算法的关键是假设方向反射率的分布符合某种BRDF模型,利用多角度的方向观测数据,反演得到BRDF模型参数,进而通过积分得到地表反照率。因此,反演得到的BRDF模型参数,决定了反照率产品的可用性和可靠性。
不同遥感产品根据其传感器的特点,选定某种角度分布模型,构造有效方向反射率用来反演BRDF模型参数。MODIS反照率产品假设16 d周期内的地表状态不变,根据16 d周期内Terra和Aqua不同时刻离散的方向观测获得多角度观测数据,有效方向观测数目至少为7,根据RossThick-LiSparse-R模型[19-22],利用最小二乘拟合法进行完全反演得到模型参数[13];在3-7个之间则利用辅助BRDF数据[10]进行部分反演;少于3个则不进行反演,从而造成数据缺失。对于MISR和POLDER等多角度传感器,利用其多角度方向观测数据,MISR和POLDER反照率产品分别基于半经验RPV模 型[23-24]和RossThick-LiSparse-R模型,通过最小二乘法拟合得到模型参数。但是,由于受到云等噪音的影响,大部分产品无法获得足够的有效方向反射率,导致反照率产品存在时间和空间不同程度的数据缺失。例如,分幅为H11V04的2005年MODIS反照率产品数据缺失的比例最高达64.57%,2005年4月第1天的MISR每日反照率产品存在74.27%的数据缺失等。时间和空间的数据缺失使得这些反照率产品的应用受到极大的限制。
本文基于AVHRR和MODIS的多年观测,通过构建背景知识库提出了一种新的地表反照率反演算法,解决了反照率产品有效反演比例低的问题。算法假设多年同一时段内地表状态不变,利用多年同一时期的MODIS和AVHRR观测数据约束构造多角度方向反射率,在像元尺度上确保BRDF模型反演所必须的至少7个方向反射率,从而实现了反照率产品的时空无缺失。另外,通过结合AVHRR长时间序列优势及MODIS数据多光谱的特点,实现了二者的定量融合,最终反演得到时空完整的全球长时间序列地表反照率产品。

2 研究数据与方法

2.1 数据源

本文采用AVHRR和MODIS地表反射率数据反演地表反照率。MOD09提供了2000年以来每日的地表方向反射率,空间分辨率为500 m,采用正弦投影（Sinusoidal Projection）。中国气象局提供了1982年以来AVHRR每天、1 km分辨率的地表反射率数据,为了与MODIS保持一致,本文利用最邻近像元法将AVHRR反射率数据采样到500 m,然后转换为正弦投影。
验证数据采用了SURFRAD地面观测数据和MODIS反照率产品MCD43。SURFRAD网站提供了10个地面站点的辐射数据,本文选用了2000年以前有观测数据的长时间覆盖站点：Bondville站点（40.05°N, 88.37°W,简写为BON）、Goodwin Creek站点（34.25°N,89.87°W,简写为GWN）、Fort Peck（48.31°N,105.10°W,简写为FPK）和Penn State站点（40.72°N,77.93°W,简写为PSU）,便于同时验证AVHRR和MODIS数据反演的结果。根据地面观测的上行辐射通量和下行辐射通量,计算观测站点的地表反照率。MCD43B3产品提供了7个窄波段和3个宽波段的白空反照率和黑空反照率。真实地表反照率根据漫射比率,对白空和黑空反照率进行线性插值得到。采用MCD43B2质量控制数据统计有效反演比例,以及判断是否有积雪覆盖。

2.2 反演方法

基于MODIS和AVHRR地表反射率数据,本文通过4个步骤反演1982-2011年的长时间序列反照率产品（图1）,算法的创新之处在于有效方向反射的构造与约束,以及AVHRR和MODIS数据的定量融合2个方面。

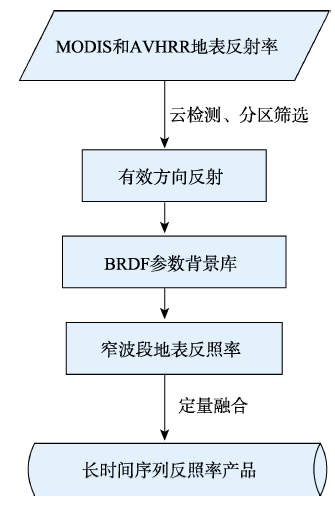

Fig. 1 Flow chart of long time series albedo retrieval

图1 长时间序列地表反照率产品反演流程图

（1）有效方向反射的构造与约束
MODIS地表反照率产品MCD43采用的完全反演算法需7个有效方向反射率,是由16 d周期内的地表反射率构成。由于受到云等噪音的影响,往往无法获得足够的方向观测数据进行完全反演。针对这个问题,本文提出了新的有效方向反射率的构造方式,以确保算法所必需的7个有效方向反射率。假设多年同一时段内地表状态不变,分别利用1982-2003年AVHRR和2000-2011年MODIS的多年观测,构造BRDF参数反演所必需的至少7次方向观测数据。对于AVHRR数据,22年间每个8 d时段内最多有176（22×8）个AVHRR方向观测;对于MODIS数据,2000年以来的Terra和2002年以来的Aqua卫星在每个8 d时段内最多可提供176（12×8+10×8）个MODIS方向观测。这种构造方式可保证每一个像元都有足够多的有效观测进行BRDF参数反演,从而保证了最终地表反照率数据的无缺失。为了提高BRDF参数反演的精度,本文对方向反射率进行2层约束：通过云检测算法[25]进行筛选;对方向进行分区筛选。BRDF参数反演需以有限的离散方向拟合整个半球空间,方向反射率越分散,拟合效果越好。为了确保构造的方向反射率具有足够的分散性,本文以10°为单位对太阳天顶角、观测天顶角和相对方位角进行分区,根据各个方向的分布区间对同时段内的方向观测数据进行筛选,分布集中的区间保留1~2个最佳方向,分布最为分散的区间由于个数少则全部保留。
（2）BRDF参数背景库的建立
本文采用半经验核驱动RossThick-LiSparse-R模型描述地表的二向反射特征（式（1））。对每个像元基于AVHRR和MODIS多年观测得到的有效方向观测,采用最小二乘法拟合不同波段的BRDF模型参数,分别建立AVHRR和MODIS BRDF模型参数背景库。
ρ ( θ , ϑ , ϕ ) = f iso + f vol K vol ( θ , ϑ , ϕ ) + f geo K geo ( θ , ϑ , ϕ ) （1）
式中, θ 、 ϑ 和 ϕ 分别是太阳天顶角、观测天顶角和相对方位角; ρ ( θ , ϑ , ϕ ) 是角度为 θ 、 ϑ 和 ϕ 的地表方向反射率; f iso 、 f vol 和 f geo 是BRDF模型参数; K vol ( θ , ϑ , ϕ ) 和 K g eo ( θ , ϑ , ϕ ) 分别是辐射传输核[20]和几何光学核[22]。
（3）窄波段地表反照率的反演
对于任意时段角度为 θ 、 ϑ 、 ϕ 的MODIS和AVHRR观测方向反射率 ρ obs ( θ , ϑ , ϕ ) ,基于BRDF模型参数背景库反演该角度的参考方向反射率,通过观测方向反射率与参考方向反射率的比值,将窄波段参考反照率 α ref 校正为该时段的窄波段反照率 α （式（2））。窄波段参考反照率根据漫射比例 r_d 对白空反照率 α ws 和黑空反照率 α bs 进行线性组合得到（式（3））。漫射比例采用经验公式根据太阳天顶角的余弦值 μ 0 计算（式（4））。白空反照率和黑空反照率由BRDF模型背景参数通过角度积分计算[13]。
α = ρ obs ( θ , ϑ , ϕ ) f iso + f vol K vol ( θ , ϑ , ϕ ) + f geo K geo ( θ , ϑ , ϕ ) × α ref （2）
α ref = ( 1 - rd ) × α bs + rd × α ws （3）
r_d = 0.122 + 0.85 exp ( - 4.8 μ 0 ) （4）
（4）AVHRR和MODIS数据的定量融合
基于窄波段反照率线性组合的方法计算2000年以来的MODIS宽波段反照率,利用MODIS红、近红外和绿波段反照率转换得到可见光波段反照率,利用红、近红、蓝、绿和短波红外波段反照率转换得到近红外波段反照率,并采用红、近红、蓝、绿、短波红外波段反照率转换得到短波波段反照率[26]。
利用2000-2003年2个传感器的重复观测建立AVHRR红波段和近红外波段窄波段反照率（ α AVHRR , Re d 和 α AVHRR , NIR ）与MODIS宽波段反照率 A MODIS , Λ 像元级的关系：
A MODIS , Λ = p 0 , Λ α AVHRR , Red + p 1 , Λ α AVHRR , NIR + p 2 , Λ （5）
式中, Λ 为红波段、近红外和短波红外宽波段; p 0 , Λ 、 p 1 , Λ 和 p 2 , Λ 为拟合关系系数。对于红波段、近红外和短波红外波段,分别拟合每个像元的3个 参数。在此基础上,利用1982-1999年AVHRR红波段和近红外窄波段反照率,由式（5）得到1982-1999年的AVHRR宽波段反照率,最终获得AVHRR 和MODIS高一致性的长时间序列地表宽波段反 照率。

3 全球长时间序列反照率反演结果分析

3.1 反演的结果

本文以AVHRR数据反演得到1982-1999年地表反照率,以MODIS数据反演得到2000-2011年地表反照率（图2）。图2（a）和图2（c）是以MODIS数据生产的2008年177 d、305 d地表反照率;图2（b）和图2（d）是以AVHRR数据反演的1982年177 d、305 d地表反照率。177 d和305 d分别是北半球夏季和冬季,南半球正好相反。对于夏季,地表反照率具有明显地理分布规律,全球大部分区域地表反照率在0.26以下,较高的反照率分布在非洲、亚洲和大洋洲的沙漠区域,最大的地表反照率出现在终年积雪区域（如高山积雪区和高纬度积雪区）。夏季太阳天顶角接近最低时,MCD43等地表反照率产品在时间和空间上的缺失主要由云造成,而本文反照率产品没有出现较高的异常值及数据缺失,对云的影响具有很好的鲁棒性。基于AVHRR数据反演的夏季地表反照率与MODIS数据反演的夏季地表反照率具有很好的时空连续性。对于冬季,北半球高纬度非终年积雪覆盖区域出现积雪覆盖,地表反照率明显高于夏季;无积雪覆盖的区域地表反照率低于0.26,整体与夏季地表反照率保持一致。AVHRR数据反演的冬季地表反照率与基于MODIS数据反演的冬季地表反照率,在无积雪覆盖时具有很好的时空连续性。

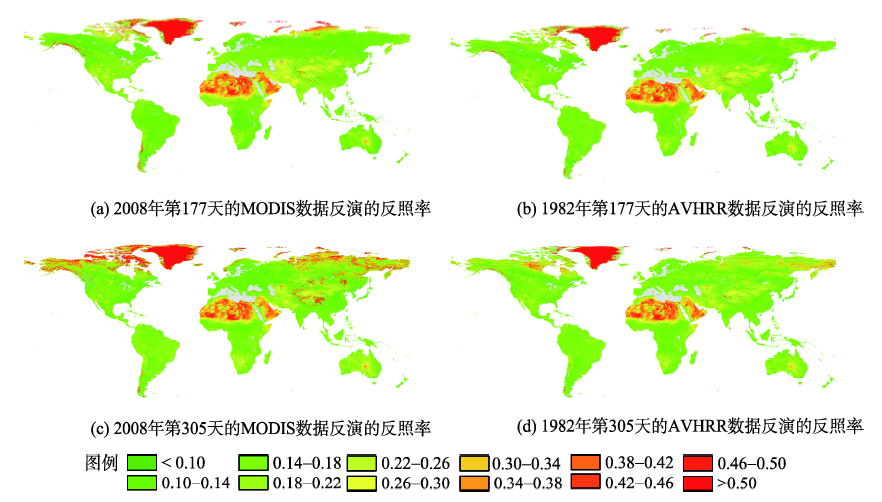

Fig. 2 Results of the surface albedo products in this paper

图2 本文地表反照率产品反演结果图

3.2 反演比例

表1描述了分幅为H11V04的MODIS反照率产品（MCD43）2005年的完全反演比例、部分反演比例和缺失比例。完全反演是指有效方向反射率至少有7个时,基于BRDF模型进行的反演。部分反演指当有效方向反射率在3-7个之间时,根据辅助BRDF数据[10]进行的反演。从表1可看出,MCD43反照率2005年全年完全反演比例的平均值为49.81%,并且随着时间推移,完全反演比例表现出先升高后降低的趋势,夏季和秋季的完全反演比例高,春季和冬季的完全反演比例低,最低的时候仅有0.18%。本文算法采用了与MODIS反照率反演算法相同的BRDF模型,但是由于改善了有效方向反射的构造方式,在像元尺度上确保BRDF模型反演所必须的至少7次方向反射,实现了所有像元的完全反演,因而有效反演比例远远高于MODIS地表反照率产品。
Tab. 1 Inversion ratios of MODIS albedo products in 2005

表1 2005年MODIS反照率产品的反演比例

时间 完全反演（%） 部分反演（%） 缺失（%） 时间 完全反演（%） 部分反演（%） 缺失（%）
第1天 1.66 59.58 38.75 第185天 77.58 22.38 0.04
第9天 1.36 68.75 29.89 第193天 75.45 24.51 0.05
第17天 2.03 72.93 25.04 第201天 85.09 14.88 0.03
第25天 9.93 72.48 17.60 第209天 84.42 15.57 0.00
第33天 12.98 68.39 18.63 第217天 77.54 22.43 0.03
第41天 11.93 58.61 29.47 第225天 79.96 20.03 0.00
第49天 17.13 61.50 21.37 第233天 87.88 12.12 0.00
第57天 21.55 63.42 15.03 第241天 87.98 12.02 0.00
第65天 18.18 55.87 25.96 第249天 90.40 9.59 0.01
第73天 14.27 70.03 15.70 第257天 91.00 9.00 0.00
第81天 52.30 46.50 1.20 第265天 86.41 13.57 0.03
第89天 84.07 15.87 0.06 第273天 85.99 13.86 0.15
第97天 88.45 11.55 0.00 第281天 81.60 18.30 0.11
第105天 73.00 26.95 0.05 第289天 81.30 18.57 0.13
第113天 75.12 24.76 0.13 第297天 67.19 32.33 0.48
第121天 68.88 31.00 0.12 第305天 38.36 55.59 6.05
第129天 39.78 53.07 7.15 第313天 30.35 57.30 12.35
第137天 55.06 42.15 2.79 第321天 9.45 51.44 39.11
第145天 36.85 57.79 5.37 第329天 0.20 47.21 52.59
第153天 46.80 52.70 0.49 第337天 1.00 58.88 40.12
第161天 78.14 21.78 0.08 第345天 2.21 65.21 32.58
第169天 84.46 15.53 0.01 第353天 0.40 48.89 50.71
第177天 75.24 24.76 0.00 第361天 0.18 35.25 64.57

3.3 算法适用性分析

针对地表反照率反演算法中不同年份同一时期地表状态不变的假设,本文做了全球适用性分析。图3为基于1982-1999年AVHRR数据、2000-2011年MODIS数据反演的时间序列反照率均方根误差分布图,分别采用第177-184天和第305-312天的2个8 d代表夏季和冬季的状况。均方根误差越小,地表状态的变化越小,则本文的假设越可信。图3表明夏季反照率在多年内较稳定,均方根误差多在0.02以下,说明算法假设适用性良好。变化较大的区域主要分布在北纬高纬度地区和南美、亚洲高山区。与夏季相比,冬季地表状况不变假设的不适用区域增多,北纬中高纬度地区都出现了较大的均方根误差（图3（b）、（d））。这些区域在冬季会出现积雪覆盖与非积雪覆盖共存的情况,导致算法的假设不适用。南半球冬季（图3（a）、（c））误差较大的区域相对夏季也增多,但均方根误差多在0.05以内。本文还对图3的均方根误差分南北半球进行了统计（图4）,并计算了南北半球的平均值。对于AVHRR数据反演的地表反照率,夏季全球有98.74%区域的均方根误差小于0.05,冬季全球有92.74%区域的均方根误差小于0.05;对于MODIS数据反演的地表反照率,夏季全球有95.98%区域的均方根误差小于0.05,冬季全球有82.34%区域的均方根误差小于0.05。上述统计表明,本文算法的假设在夏季时几乎全球适用,在冬季对北半球中低纬度地区及南半球适用,不适用的区域主要分布在北半球中高纬度季节性积雪区,以及高山季节性积雪区。

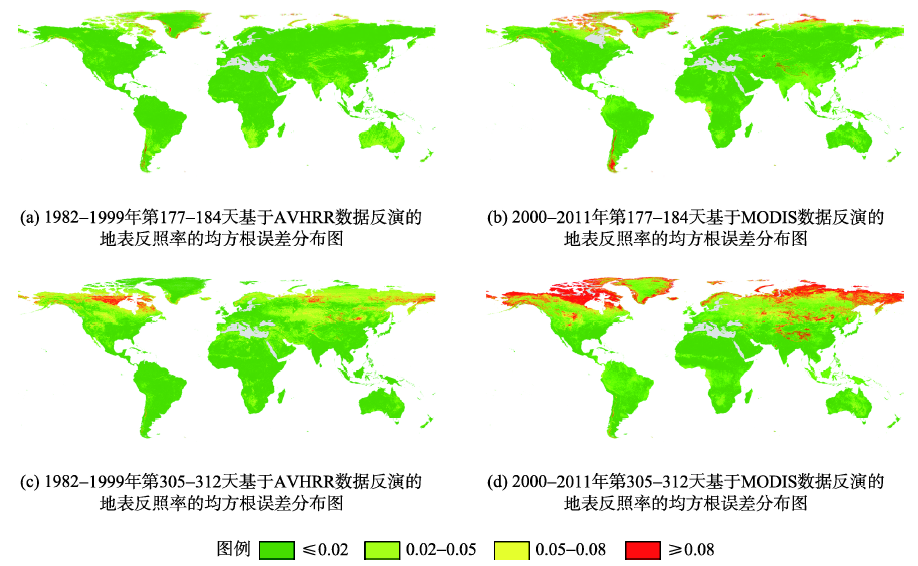

Fig. 3 Global applicability analysis of the surface albedo products in this paper

图3 本文地表反照率算法适用性分析全球分布图

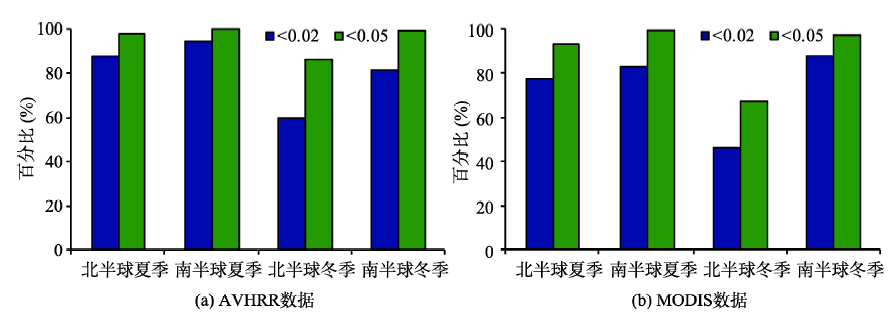

Fig. 4 Statistics of the RMSE based on time series surface albedo

图4 时间序列反照率均方根误差的统计图

3.4 结果验证与评价

本文采用独立的野外观测数据,对AVHRR数据和MODIS数据的反演结果进行验证,并通过与MODIS地表反照率标准产品对比,对反演结果进行评价。
3.4.1 与地面观测数据对比
本文采用SURFRAD野外观测数据进行地面验证,利用1998年和1999年的站点数据评价AVHRR数据反演的反照率,利用2011年的站点数据评价MODIS数据反演的反照率。地面观测数据一般与遥感卫星数据之间存在较大的尺度差距,对于异质性较小的地面,可用一个站点观测值来代表整个区域,和遥感产品的比较也更加合理。本文采用半方差[27]及其球型模拟公式[28],对地表异质性进行描述,式中较小的C值（sill value）代表着较小的地表异质性[28]。根据Landsat数据计算了BON、GWN、FPK和PSU的4个季节的C值,4个站点所选年份总共32个C值均不超过0.005,表明所选站点的地表异质性较小,地面观测反照率可直接与本文地表反照率进行对比验证。
图5、6分别展示了本文基于AVHRR数据反演的反照率及MODIS数据反演的地表反照率与SURFRAD地面观测反照率之间的对比结果。在无积雪覆盖的情况下,本文反照率产品与SURFRAD地面反照率之间具有很好的一致性,特别是夏季的地表反照率。对于BON站点,与SURFRAD反照率相比,本文反照率产品在春季偏低,无积雪覆盖时基于AVHRR数据反演的反照率偏差为-0.029,基于MODIS数据反演的反照率偏差为-0.020。BON站点地表覆盖类型是耕地,春季播种阶段土地性质近似于裸土,反照率偏低可能是由裸土反照率与植被反照率之间的差异所引起;随着植被生长,地表植被覆盖度增大,异质性减小,本文反照率产品与地面观测反照率之间的差异也逐渐减小。对于GWN站点,所选年份均无积雪覆盖,本文反照率与地面观测反照率之间具有很好的一致性,基于AVHRR数据和MODIS数据反演的反照率偏差均较小（表2）。对于FPK站点和PSU站点,无积雪覆盖时基于AVHRR数据和MODIS数据反演的反照率偏差均较小（表2）,冬季积雪覆盖时出现较大的差异。这些差异主要是：（1）积雪反照率与非积雪反照率之间的差异,本文反照率反演算法在部分时段积雪覆盖条件下,会排除积雪覆盖的观测数据,所以描述的是非积雪反照率,而SURFRAD描述的是积雪反照率,从而导致了SURFRAD反照率远大于本文反照率的现象;（2）积雪反照率与积雪反照率之间的差异,如FPK站点2011年041-065 d,雪的粒子直径、密度、含水量和所含杂质等物理属性都会影响地表反照率。本文算法检测的是8 d时段内的反照率,SURFRAD检测的是当日反照率,会出现新雪与旧雪、降雪与融雪等差异,所以,会表现出较大的差异与不确定性。

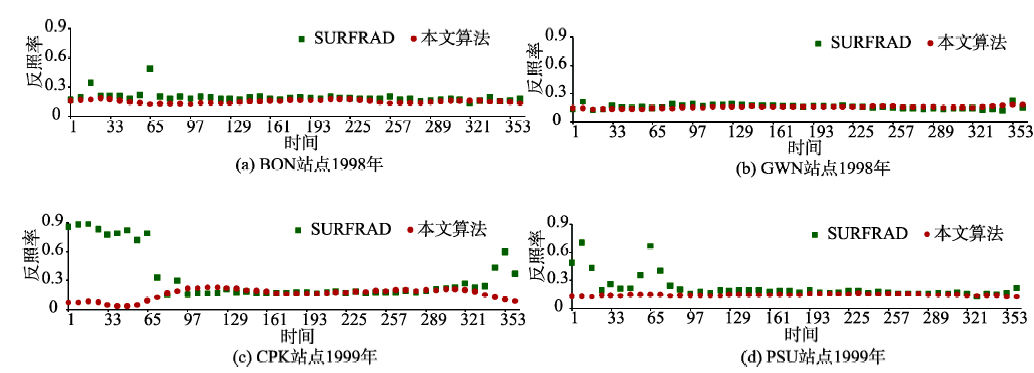

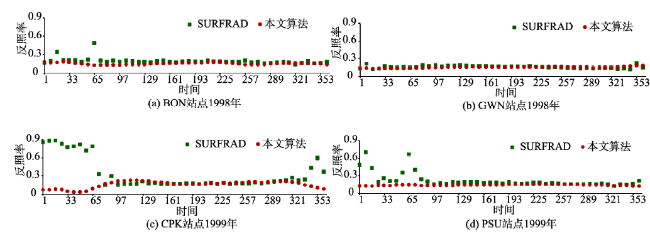

Fig. 5 Comparison of the time series of SURFRAD site albedo and surface albedo based on AVHRR data

图5 基于AVHRR数据反演的反照率与SURFRAD地面观测反照率的时间序列对比图

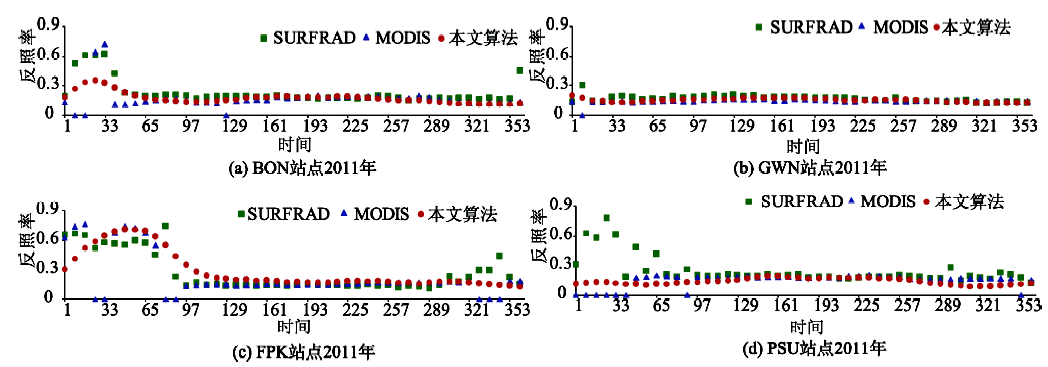

Fig.6 Comparison of the time series of SURFRAD site albedo, MCD43 surface albedo and surface albedo based on MODIS data

图6 基于MODIS数据反演的反照率、MCD43地表反照率与SURFRAD地面观测反照率的时间序列对比图

表2描述了利用SURFRAD站点反照率验证本文基于AVHRR数据和MODIS数据反演的反照率的精度结果,统计中去掉了部分积雪覆盖的情况,以及MODIS反照率产品数据缺失的情况。4个站点所选年份的均方根误差都在0.05以内,满足气候模式对反照率精度±0.05的要求[29]。4个站点基于AVHRR数据反演的反照率与MODIS数据反演的反照率的均方根误差十分接近,表明本文基于AVHRR数据和MODIS数据反演的反照率之间,具有很好的连续性。
Tab. 2 Validation accuracies based on SURFRAD site albedo

表2 地表反照率地面验证精度

反照率 BON站点 GWN站点 FPK站点 PSU站点
BIAS RMSE BIAS RMSE BIAS RMSE BIAS RMSE
基于AVHRR的反照率 -0.029 0.036 -0.006 0.025 0.002 0.032 -0.032 0.042
基于MODIS的反照率 -0.020 0.032 -0.012 0.024 0.018 0.039 -0.033 0.049
MCD43地表反照率 -0.020 0.038 -0.016 0.027 0.006 0.020 -0.012 0.031
3.4.2 与MODIS产品的初步比较
基于SURFRAD 4个站点,本文将MODIS地表反照率（MCD43）与MODIS数据反演的地表反照率进行了比较（图6）。MCD43地表反照率在4个站点均存在数据缺失的情况,缺失的数据在图6中以0值表示。无积雪覆盖时,本文反照率产品与MCD43反照率产品整体上表现出非常好的一致性。表2描述了利用SURFRAD地面站点反照率验证MCD43地表反照率,以及基于MODIS数据所反演的反照率的对比结果。验证精度统计中去掉了MCD43地表反照率数据缺失的情况。对于BON站点与GWN站点,本文反照率的偏差与均方根误差均小于MCD43反照率;对于FPK站点和PSU站点,本文地表反照率的偏差与均方根误差大于MCD43地表反照率,与图6时间序列的描述结果一致。
为了更客观地对比MODIS数据反演的地表反照率与MCD43反照率,本文选用了2005年第177天分幅为H11V04和H26V04的2景数据来进行像元尺度上的对比。图7描述的是本文反照率产品与MCD43反照率产品的散点图,分幅分别为H11V04和H26V04,时间均为2005年第177天;图8是与图7对应的差值图,MCD43反照率产品中的缺失数据在图8中以深蓝色表示。图7和图8表明本文反照率与MCD43反照率产品之间具有非常好的一致性,差值几乎全部保持在±0.05的范围内,超出±0.05的像元所占比例小于1%,超出±0.1的像元所占比例小于0.1%。从图8可看出,MCD43反照率产品存在着较多的数据缺失,本文算法由于改善了有效方向反射率的构造方式,在像元尺度上确保BRDF模型反演所必须的至少7个方向反射率,实现了像元尺度上的完全反演,因而不存在数据缺失的情况。

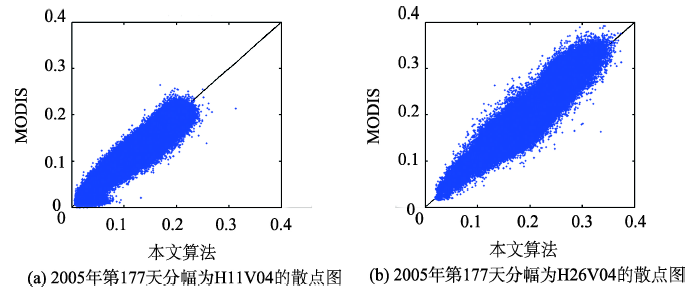

Fig. 7 Scatterplots between algorithm-based albedo and MODIS albedo (MCD43)

图7 本文反照率产品与MODIS反照率产品（MCD43）的散点图

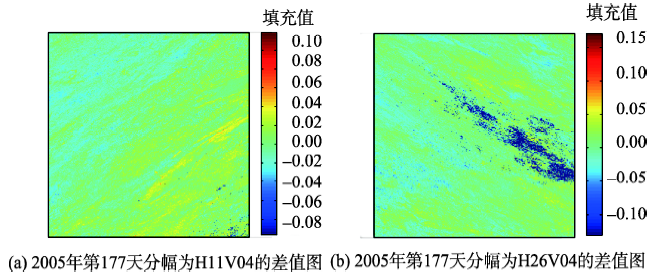

Fig. 8 Difference images between algorithm-based albedo and MODIS albedo (MCD43)

图8 本文反照率产品与MODIS反照率产品（MCD43）的差值图

4 讨论

本文通过改善有效方向反射的构造和约束方式,在像元尺度上确保BRDF模型反演所必需的至少7个方向反射率,从而实现了反照率产品的时空无缺失;通过与AVHRR数据的定量融合,将反照率的时间覆盖度扩展到30 a。但是,本文算法还存在一些不确定性与不足：
（1）部分积雪覆盖带来的不确定性。积雪覆盖与非积雪覆盖之间,地表反照率的差异特别大,如果该时段内不全是积雪覆盖,利用非积雪覆盖反照率代表该时段的反照率会导致较大的不确定性。这种部分积雪覆盖的情况主要分布在北半球中高纬度季节性积雪区及高山季节性积雪区。本文算法在部分积雪覆盖时反演获得的是非积雪地表反照率,在质量控制数据(QC)中,对部分积雪覆盖情况下反演的地表反照率进行了标记。用户在使用本数据集时需要考虑这些标记。
（2）不同年份同一时期地表状态不变的假设带来的不确定性。算法的全球适用性分析表明,该假设在夏季时几乎全球适用,在冬季对北半球中低纬度地区及南半球适用,不适用的区域主要分布在北半球中高纬度季节性积雪区及高山季节性积雪区。除了部分积雪造成的较大的地表差异外,其他不适用的区域很少。
（3）AVHRR和MODIS传感器之间的差异所带来的不确定性。相比于MODIS传感器,AVHRR在波段数目、定标精度上都存在着一定局限性,制约了其地表反照率的反演质量。本文通过数据融合技术,根据MODIS数据反演的地表反照率来矫正AVHRR数据地表反演的反照率,从而缩小了传感器之间的差异。结果分析表明,AVHRR数据反演的夏季反照率与MODIS数据反演的夏季反照率具有很好的一致性,冬季无积雪覆盖时,2种数据反演的反照率之间也具有很好的一致性。

5 结语

针对MODIS反照率产品中存在大量数据缺失、有效反演比例低的问题,本文以MODIS和AVHRR多年观测数据,通过构建背景知识库进行高时间分辨率的AVHRR和MODIS数据的BRDF参数反演,实现2个传感器数据在像元尺度上的定量融合,生成了1982-2011年全球时空连续的长时间序列地表反照率产品。通过假设不同年份同一时期的地表状态不变,利用多年同一时期的MODIS和AVHRR观测数据约束构造多角度方向反射率,基于BRDF模型反演得到窄波段反照率;然后,通过宽波-窄波转换,得到MODIS的宽波段反照率。通过结合AVHRR长时间序列优势及MODIS数据多光谱的特点,对二两者进行定量融合,生成具有高度一致性的长时间序列反照率产品。
本文生成的反照率产品优势主要体现在无时空缺失;另外,通过与AVHRR数据进行融合,完成了高时间分辨率历史反照率的反演,产品覆盖了有完整的全球连续观测以来的时间序列。验证结果表明,无积雪覆盖时本文反照率产品与SURFRAD地面反照率、MODIS反照率产品之间具有非常好的一致性。本文所生成的无积雪覆盖反照率及完全积雪覆盖反照率,可用于气候模式的模拟与陆面过程的研究,特别是长时间序列产品有助于气候变化的地表响应分析。将来的工作需对部分积雪覆盖情况下反照率的反演进行更细致地描述,通过提高反照率产品时间分辨率,或者提出专门的部分积雪覆盖情况下反照率反演算法来解决这个问题,从而使反照率产品更满足气候模式模拟与陆面过程研究的要求。

The authors have declared that no competing interests exist.
