基岩露头采样密度对黄土古地形重建的影响

  • 段家朕 ,
  • 熊礼阳 , * ,
  • 汤国安
展开
  • 1. 南京师范大学 虚拟地理环境教育部重点实验室,南京 210023
  • 2. 江苏省地理环境演化国家重点实验室培育建设点,南京 210023
  • 3. 江苏省地理信息资源开发与利用协同创新中心,南京 210023
*通讯作者：熊礼阳（1989-）,男,江西南昌人,博士生,主要从事黄土继承性、DEM数字地形分析研究。E-mail: xiongliyang@163.com

作者简介：段家朕（1990-）,男,山东临沂人,硕士生,主要从事DEM数字地形分析研究。E-mail:

收稿日期: 2015-03-11

  要求修回日期: 2015-03-29

  网络出版日期: 2016-04-19

基金资助

国家自然科学基金项目（41171299、41271438、41471316）

江苏省高校自然科学研究重大项目（13KJA170001）

江苏高校优势学科建设工程资助项目

收起

Effect of Outcrop Sampling Density on the Underlying Terrain Reconstruction

  • DUAN Jiazhen ,
  • XIONG Liyang , * ,
  • TANG Guoan
Expand
  • 1. Key Laboratory of Virtual Geographic Environment, Ministry of Education, Nanjing Normal University Nanjing, 210023, China
  • 2. State Key Laboratory Cultivation Base of Geographical Environment Evolution, Nanjing, 210023, China
  • 3. Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Nanjing, 210023, China
*Corresponding author: XIONG Liyang, E-mail:

Received date: 2015-03-11

  Request revised date: 2015-03-29

  Online published: 2016-04-19

Copyright

《地球信息科学学报》编辑部 所有
Fold

摘要

下伏古地形对黄土地貌的形成、演化与发育具有重要的控制作用。基于下伏地层露头的采样数据,通过空间插值方法进行古地形数字模型(DEM)重建是研究黄土地貌的重要方法。其中,采样点密度是下伏地形DEM重建精度的主要影响因子。本文以1:20万绥德幅地质图所涉及区域为实验样区,研究采样点密度及样条函数方法对下伏古地形重建精度的影响。实验结果表明,在高密度样本条件下,采用规则样条插值方法进行古地形重建时,插值结果呈现显著的“龙格现象”,即多项式插值结果出现剧烈波动现象,且随着样本密度增加,样条插值结果的误差呈逐步趋缓的降低趋势,并逐步趋于稳定。同时,基于古地形DEM提取的特征点,其局部最高点和局部最低点的数目呈直线上升趋势,说明在一定程度上基于有限数据采用样条函数进行地下三维建模并不一定能获得平滑曲面。研究结果对如何选择合理的空间采样密度进行古地形DEM重建具有重要的指导意义。

关键词： DEM; 黄土地貌; 下伏古地形; 采样点密度; 样条空间插值

本文引用格式

段家朕 , 熊礼阳 , 汤国安 . 基岩露头采样密度对黄土古地形重建的影响[J]. 地球信息科学学报, 2016 , 18(4) : 461 -468 . DOI: 10.3724/SP.J.1047.2016.00461

Abstract

The Pre-Quaternary underlying terrain profoundly controls the evolution and formation of loess landform. Obvious relationships, i.e. the geomorphological inheritance, could be found between the underlying terrain and the modern terrain. As a consequence, the Pre-Quaternary underlying terrain in the Loess Plateau should be regarded as the key factor for the understanding of the loess landform evolution. Among numerous numerical calculation methods, spatial interpolation has been regarded as an important method to reconstruct the DEM of underlying terrain by using the sampled bedrock outcrop points selected from a geological map. However, the sampling density has a great impact on the accuracy of the reconstructed underlying terrain. In this paper, the Suide geological map area (1:200 000) was selected as the study area, and then the influence of sampling density on the accuracy of the reconstructed underlying terrain was investigated using spline method. By adopting cross-validation method to evaluate reconstructed underlying terrain, the result shows that, different interpolation methods cause uncertainties to different degrees during the reconstruction of underlying terrain, particularly the spline method. On a basis of high density outcrop points and spline function interpolation process, the morphology of underlying terrain exhibits a typical “Runge phenomenon”. This phenomenon was always resulted from a polynomial interpolation process. With an increased sampling density, the error in underlying terrain appears a slowly decrease tendency firstly, and then it keeps stable. Meanwhile, the number of the extracted features has a linear upward trend. The result also shows that the sampling density of 1.7-2.0 points per square kilometer could achieve a good balance between the accuracy and underlying terrain feature reservation. The aforementioned results adjust our previous understandings that spline function could smooth the interpolated surface to some extent. And the result also provides guidance for the selection of a reasonable spatial sampling density.

Key words： DEM; Loess underlying terrain; sampling density; spline interpolation

1 引言

黄土高原下伏古地形的形态特征,在一定程度上控制着黄土地貌的形成过程与空间分布。刘东生认为现代黄土“塬、墚、峁”的地貌形态和下伏古地貌关系密切,存在显著的继承性特征[1],之后诸多学者也研究了黄土古地形特征,用于分析黄土地貌发育过程的继承性特征[2-5]。可见,黄土高原的古地形是科学认识黄土地貌发育与演化的关键因素。受限于测量数据和实验方法,上述对黄土古地形的研究仍处于定性描述和半定量分析的阶段。在黄土古地形重建过程中,古地形被黄土覆盖,仅有少数基岩在沟谷中露头,区域性下伏地层高程数据难以准确探测。随着数字地形分析方法的发展,采用多源信息采集下伏地层的高程信息,并运用空间插值方法获得区域性的古地形模拟表面成为可能。
空间插值作为一种根据已知采样点的高程值估计未知点高程值的数学方法[6],是在有限数据条件下进行曲面建模的最佳方案之一。插值方法的选择是构建DEM的关键环节。合理的插值方法能得出相对“最佳”的结果,从而提高DEM的插值精度。国内外众多学者对不同插值方法进行了大量的研究[7-14]。在黄土地形曲面建模研究中,付永恒和张锦明通过对比实验认为,在地形较为复杂的地区样条插值是较好的选择[15]。熊礼阳等通过对比不同插值方法,认为如果采用低阶多项式样条函数,样条插值可获得较小误差的插值结果,在低密度下对古地形的模拟重建结果相对较好[16]。王春等采用高程数值误差场和局地坡面形态误差场等分析技术,认为样条插值有很好的地面形态重构 精度[17]。
Fernando认为在插值过程中,样点密度对插值结果的影响大于插值方法[18]。通常情况下,随着样本密度的增加,插值精度会相应地提高[18]。但在高密度样本条件下,采用规则样条函数进行古地形模拟,结果往往出现明显的局部地形剧烈波动现象（图1）,即多项式插值结果出现“龙格现象”,结果导致地形模拟产生较为明显的区域失真问题[19],这既不符合插值函数对插值结果的预判,也与实际的地形特征存在差距。显然,这一现象与插值样点密度、插值函数类型密切相关。因此,探究插值样本密度、插值精度以及插值结果剧烈波动现象之间的关系,寻找样本点密度与插值结果精度之间的平衡点,从而选择合理的空间采样密度是保证黄土古地形重建精度的关键。

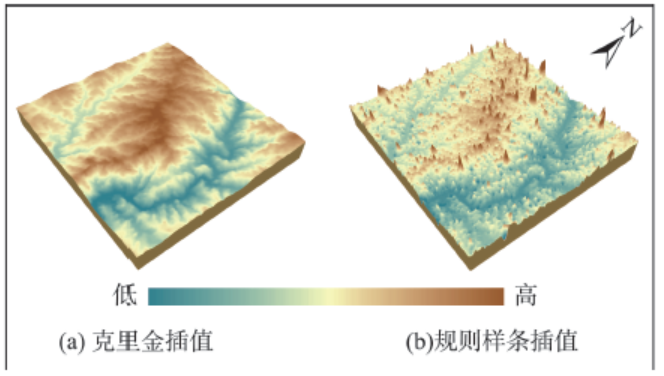

Fig. 1 Interpolation results of by Kriging function and regular spline function under high sampling density

图1 高密度样点条件下普通克里金函数与规则样条函数插值结果对比

2 数据与方法

2.1 实验样区与实验数据

实验样区为1:20万绥德幅J-49-(21)地质图所覆盖区域,面积达7300 km2。该地区属黄土丘陵沟壑区第一幅区[20],为典型的峁梁状黄土丘陵沟壑区。区域沟壑密度平均为5~6 km/km2,地面裂度为42%[21]。该千沟万壑的地形特征使得下伏地层在沟谷中露头众多,为下伏古地形重建提供了插值样本数据基础。实验数据包括：
(1) 地质图：采用1﹕20万绥德幅地质图,作为古地形基岩出露点位判读的数据源。
(2) DEM：采用与地质图区域相对应的25 m分辨率数据作为基本的高程信息源。
(3) 遥感影像：采用高清Google Earth影像图 （5 m分辨率）对地质图出露基岩点位进行位置校正。

2.2 实验方法

2.2.1 实验流程
实验流程设计如图2所示。

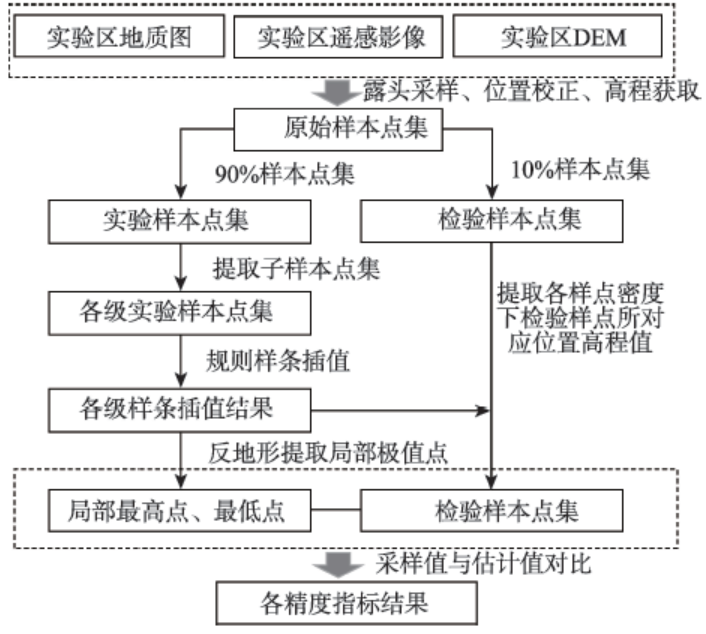

Fig. 2 Flow chart of this research

图2 实验流程图

2.2.2 基岩出露点数据采样
采集地质图中标注的不同地质年代及岩石类型的出露基岩点坐标位置及海拔高度[16]（图3）。采样步骤如下：（1）在地质图中找出基岩出露点;（2）通过遥感影像得到基岩点位,进行位置精校正;（3）基于DEM数据获取基岩露头点高程值。

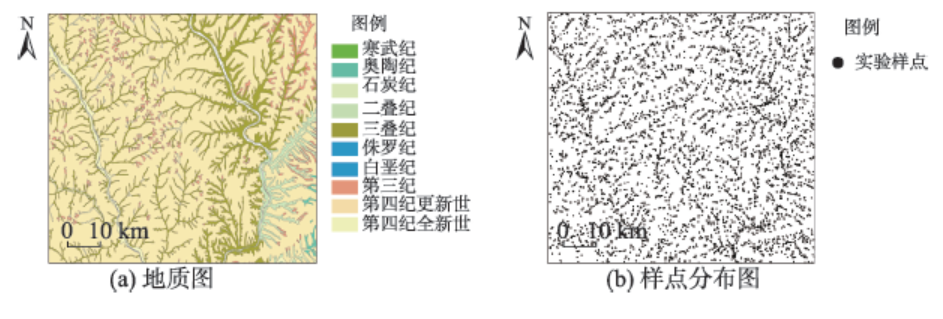

Fig. 3 Geological map of the study area and the distribution of samplings

图3 实验样区地质图及样本点分布图

2.2.3 不同密度插值点与检验点分类
实验首先利用ArcGIS地统计分析模块中的创建子集方法提取检验样点（占原始样本点数据10%）和实验样点（占原始样本点数据90%）;其次,在实验样点中,以10%为增量提取不同密度下的样本点,得到原实验样本点数据量10%~100%的10个子样本点数据集（表1）;然后,以各样本点数据为基础,采用ArcGIS空间分析模块中的样条插值方法进行插值（搜索样点数为12,格网尺寸为25 m,权重取0.1）;最后,得到10个不同样点密度下的插值结果。
Tab. 1 Numbers of samplings and their equivalent density in each dataset

表1 各样本点集样本点数及等效密度表

样本集 n1 n2 n3 n4 n5 n6 n7 n8 n9 n10
点数 2531 5061 7592 10 122 12 653 15 183 17 714 20 244 22 775 25 305
等效密度/（个/km2） 0.346 0.693 1.040 1.386 1.733 2.080 2.427 2.773 3.120 3.466

3 实验结果与分析

3.1 古地形重建结果

在各样点密度下采用规则样条插值方法得到的古地形重建结果如图4所示。由图4可看出,随着样本点数量的增加,插值结果出现越来越剧烈的波动现象,“山峰”和“山谷”数量明显增加。

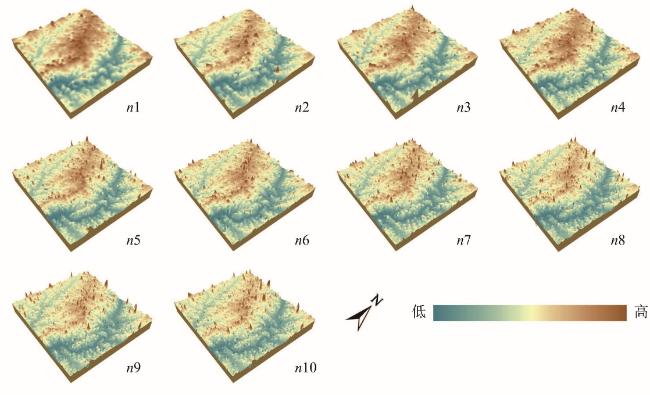

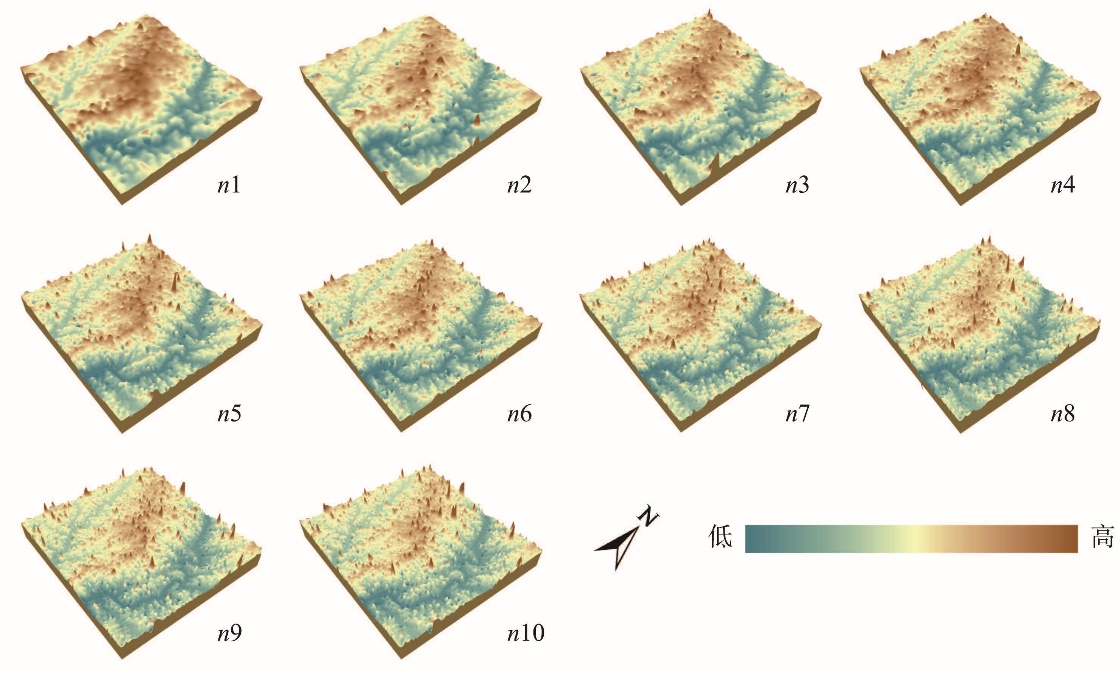

Fig. 4 Reconstructed results of the underlying terrain under different sampling density

图4 各样点密度古地形重建结果

3.2 结果分析

3.2.1 XY散点图分析
为揭示检验样点实测值与估计值的相关性以及插值结果的准确性,对检验样点的实测值与估计值做XY散点图,如图5所示。其中,X代表检验点样条插值结果高程,Y代表检验点基岩露头高程,按Y=aX+b计算得到线性关系和相关系数R²;参数a反映了实测值与估计值的相似性,当X、Y完全一致时,a=1;相关系数R2反映了实测值与估计值之间的整体精度。由数据可看出,随着样本点数据量的增加,相关性呈现增长趋缓的态势。当样本点数增加到总数的50%~60%左右(1.7~2.0个/km2)时,相关性指数增长趋势逐步趋于稳定（图6）。

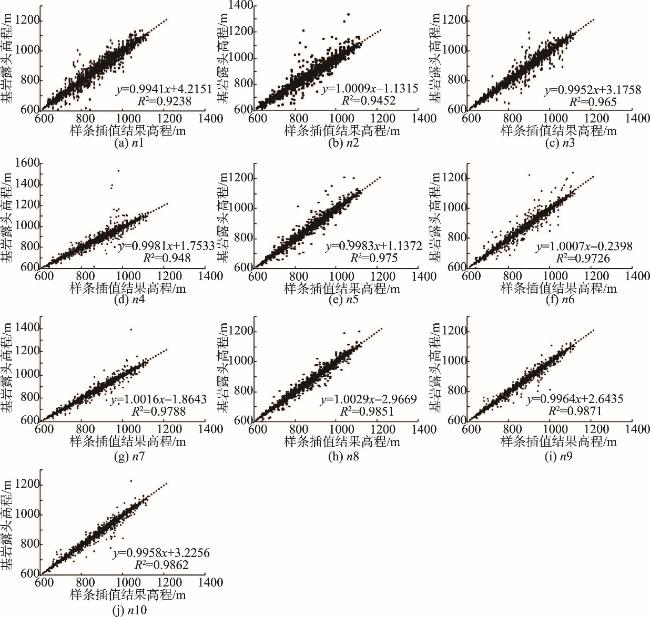

Fig. 5 XY scatter diagram for the measured value and estimated value under different sampling density

图5 不同样本集下检验样点的实测值与估计值XY散点图

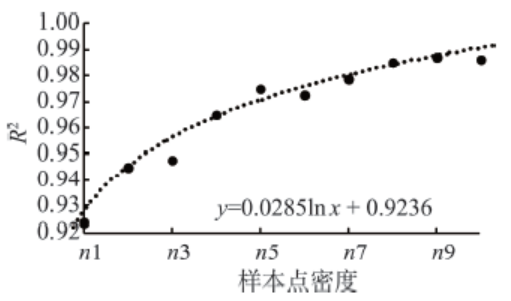

Fig. 6 Correlation coefficient for the measured value and the estimated value of the test samples

图6 检验样点的实测值与估计值相关系数

3.2.2 误差分析
本文采用交叉验证方法验证样条插值的效果,即通过计算检验样点的实测值与计算值的误差来评判插值结果的优劣[22-23]。实验采用平均绝对误差（Mean Absolute Error,MAE）、平均相对误差（Mean Relative Error, MRE）、均方根误差（Root Mean Square Error, RMSE）作为衡量样条插值精度评价指标。其中,MAE反映估计值的误差范围,MRE反映计算值对于实测值的准确度,RMSE反映计算值的灵敏度和极值情况[22]。其表达式如式(1)-(3)所示。
MAE = ∑ i = 1 n ABS ( Z a , i - Z e , i ) n （1）
MRE = 1 n ∑ i = 1 n | ABS ( Z a , i - Z e , i ) Z a , i | （2）
RMSE = 1 n - 1 ∑ i = 1 n ( Z a , i - Z e , i ) 2 （3）
式中： Z a , i 、 Z e , i 分别为第i个样点的实际测量值和插值的预测值;n为验证样点的点数。
利用检验样点分别计算各样点密度下插值结果的MAE、MRE、RMSE、局部最高点和局部最低点个数等统计值。结果如表2、图3和图7所示。
Tab. 2 Error statistics under different sampling density

表2 各样点密度下插值结果精度误差统计表

样本集 n1 n2 n3 n4 n5 n6 n7 n8 n9 n10
MAE 16.132 13.325 11.295 10.912 9.032 9.032 8.004 7.343 6.718 6.587
RMSE 31.647 26.701 21.030 25.904 17.708 18.607 16.358 13.654 12.612 13.060
MRE 0.018 0.015 0.013 0.012 0.010 0.010 0.009 0.008 0.007 0.007

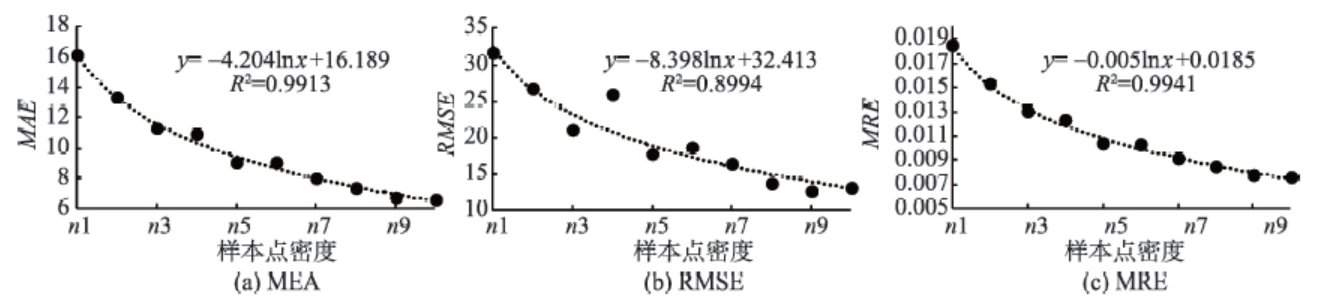

Fig. 7 Error statistic under different sampling density

图7 各样点密度下精度误差

结果表明,随着样本点数据量的增加,各误差度量指标均呈现趋缓的下降趋势,即随着样本点密度增加,插值结果逐步逼近实际地形,但在样点密度达到一定程度后,插值结果误差趋于稳定,所构建的地形质量无明显上升。就本文而言,当样本点密度增加到2个/km2时,古地形插值质量已达到 稳定。
3.2.3 地形特征分析
为量化局部地形起伏现象,对不同样点密度下样条插值重建的下伏古地形提取局部最高点（Local Highest Point,LHP）和局部最低点（Local Lowest Point,LLP）数目[24],将其作为衡量插值结果局部起伏状态的指标。具体操作流程如图8所示。

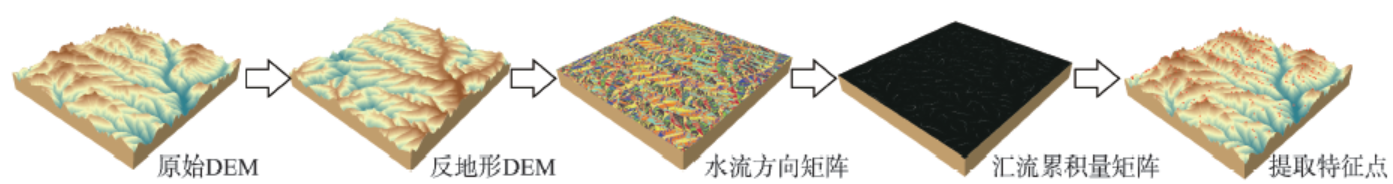

Fig. 8 Flow chart of LHP extraction method based on reverse DEM

图8 反地形DEM局部最高点提取流程图

由图8可见,局部最低点和最高点直接采用原始DEM提取。同时,为降低边缘点不确定性造成的结果偏差,在提取局部最低点和最高点时,对边缘点进行删除,不计入最终结果。不同样点密度下样条插值结果的局部最低点和最高点个数统计如表3和图9所示。
Tab. 3 Number of LHPs and LLPs number with different sampling density

表3 各样点密度下局部最高点和最低点统计表

样本集 n1 n2 n3 n4 n5 n6 n7 n8 n9 n10
LHP 300 589 895 1234 1515 1853 2158 2457 2762 3097
LLP 370 761 1105 1493 1895 2308 2650 2968 3279 3641

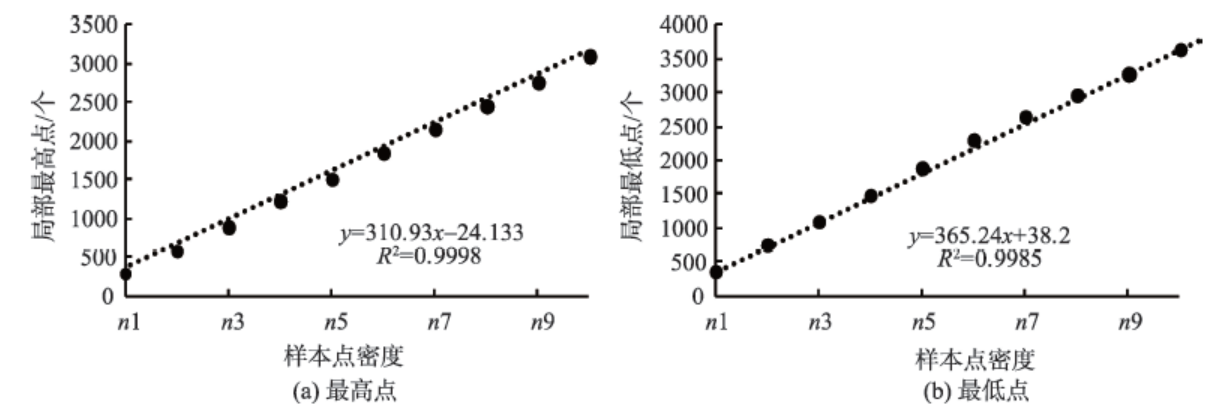

Fig. 9 Number of LHPs and LLPs with different sampling density

图9 各样点密度下局部最高点与局部最低点

局部最高点和局部最低点数目呈现出1﹕1的比例关系,且随着样本点数量的增加（图9）,局部最高点和局部最低点呈明显的线性增长关系。即随着样本点密度的增加,插值结果反映的地形出现更多的局部“山地和谷地”。
为对比插值精度与地形起伏变化之间的关系,对MAE、MRE、RMSE等指数分别与局部最高点和局部最低点数据做相关分析,如图10所示。由于局部最高点和局部最低点随样点密度的增加呈1﹕1比例关系,此处对二者取平均值作各精度指标与局部极值点相关图中的Y值,X值为各误差指数值。
如图10所示,随着样点密度的增加,各项误差指数与局部极值点平均数成指数增长关系,即随着样点密度的增加,样条插值精度提高速率远远低于局部地形起伏态势的增加趋势。而结合各样点密度下最大值、最小值、平均值与标准差等统计值,局部地形起伏态势为在数量上的增加,而在垂直方向（即高差）上没有明显的变化。
为更直观地对上述指标相关性进行对比分析,对各项指标进行归一化处理,结果如图11所示。

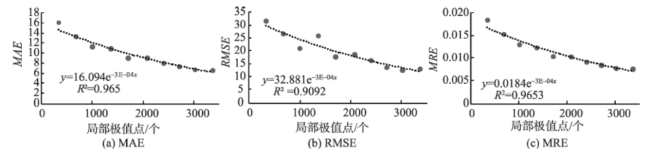

Fig. 10 Relation between local extreme value and each precision index

图10 各精度指标与局部极值点相关图

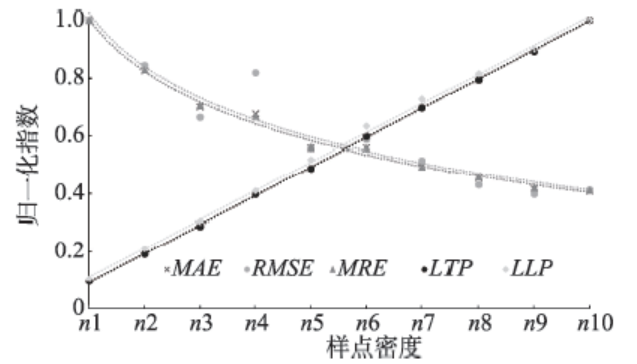

Fig. 11 Each precision result normalization with different sampling density

图11 不同样点密度下各精度结果归一化图

由图11可见,就整体实验数据而言,随着样本点数据量的增加,样条插值结果精度提高,且效率逐步趋缓,但局部范围内地形起伏现象却呈增加趋势,且与样本点数目成线性关系,即随着样本点密度的增加,样条插值结果虽然在整体趋势上较好地反映了古地形,但是在局部地形中存在剧烈波动现象呈线性增加态势。结合前人的结论[16],黄土高原下伏古地形作为地形基础,对黄土地貌发育起到重要控制作用,对比现今绥德地区地貌,这种局部地形剧烈波动现象是插值结果表现出的不稳定现象。进一步分析可知,当样本点数目控制在50%~60%（1.7~2.0个/km2）时,可得到精度较高的插值精度结果,同时可较好地控制局部地形起伏现象。

4 结论与展望

基于基岩露头信息与空间插值方法的黄土高原下伏古地形重建,是揭示宏观尺度黄土下伏古地形特征的重要方法。本文基于不同密度的下伏地层露头样点,采用样条插值方法重建了黄土下伏古地形,主要结论如下：
（1）不同插值方法在黄土古地形重建中具有不确定因素。尤其在高密度样本条件下,使用样条插值方法,其插值结果呈现显著的剧烈波动现象,即“龙格现象”。 该现象说明在一定程度上,基于有限数据采用样条函数进行地下三维建模并不一定能获得平滑曲面。
（2）对于本研究实验样区的古地形重建,当样本点密度增加,样条插值的多项式“龙格现象”效应更加突出,在一定程度上影响插值结果的稳定性。随着样本点密度的增加,误差呈现逐步降低的特征,降低速率表现为先快速,后缓慢,最终趋于平缓;而地形特征的局部最高点和局部最低点的数目呈现直线上升趋势;且误差与地形特征点数量呈一定的指数关系。
（3）当布设样本点密度为1.7~2.0个/km2时,样条插值结果精度和局部起伏现象达到平衡,既能够相对最优地减少插值误差,也能够最大化地保留原始地形特征。该结果为相关研究中如何合理选择空间采样密度提供一定参考。

The authors have declared that no competing interests exist.
