地球信息科学学报 >

2016 , Vol. 18 >Issue 7: 894 - 901

DOI: https://doi.org/10.3724/SP.J.1047.2016.00894

地球信息科学理论与方法

面向数据传输的地理栅格数据快速压缩方法

  • 江岭 , * ,
  • 王春 ,
  • 赵明伟 ,
  • 杨灿灿
展开
  • 滁州学院安徽地理信息集成应用协同创新中心,滁州 239000

作者简介：江岭(1987-),男,安徽六安人,博士,讲师,研究方向为数字地形建模及高性能地学计算。E-mail:

收稿日期: 2015-04-05

  要求修回日期: 2016-05-26

  网络出版日期: 2016-07-15

基金资助

国家自然科学基金项目(41501445)

安徽省高等学校自然科学研究项目(KJ2015A171)

测绘遥感信息工程国家重点实验室开放基金项目(14I02)

滁州学院科研启动基金项目(2014qd028)

收起

A Fast Compression Approach of Geo-raster Data for Network Transmission

  • JIANG Ling , * ,
  • WANG Chun ,
  • ZHAO Mingwei ,
  • YANG Cancan
Expand
  • Anhui Center for Collaborative Innovation in Geographical Information Integration and Application, Chuzhou University, Chuzhou 239000, China
*Corresponding author: JIANG Ling, E-mail:

Received date: 2015-04-05

  Request revised date: 2016-05-26

  Online published: 2016-07-15

Copyright

《地球信息科学学报》编辑部 所有
Fold

摘要

随着对地观测技术的高速发展,高分辨率地理栅格数据已被广泛应用于地貌、环境、水文等领域,传输与存储海量数据亟需通过数据压缩来解决有限信道容量的制约。本文分析了地理栅格数据特征,并基于数据保真性和压缩即时性原则,提出了融合转换压缩和编码压缩的地理栅格数据两阶段压缩方法,并从精度和效率2个视角构建了两阶段压缩方法的评价方法。利用不同大小的规则格网DEM数据,在集群系统上对两阶段压缩方法的数据保真性和压缩性能进行了测试。实验结果表明,本文构建的两阶段压缩方法在数值和地表形态上均有较好的精度,数据保真性高。同时,其压缩率一般在50%以上,解/压速率达到实时层次,能够显著地减少数据传输时间消耗,提高网络传输效率。两阶段压缩方法具有较好的普适性,可为高性能地学并行计算等领域提供技术支撑。

关键词： 数据压缩; 两阶段压缩; 栅格数据; DEM; 并行计算

本文引用格式

江岭 , 王春 , 赵明伟 , 杨灿灿 . 面向数据传输的地理栅格数据快速压缩方法[J]. 地球信息科学学报, 2016 , 18(7) : 894 -901 . DOI: 10.3724/SP.J.1047.2016.00894

Abstract

As the main form of representing the geographical information, geo-raster data contains abundant geographical knowledge. With the rapid development of earth observation technology, high-resolution geo-raster data has been widely applied to many research fields, such as landform, soil, environment and hydrology. With respect to this context, the contradiction between the saving and transferring of massive geo-raster data and a limited channel capacity has become increasingly prominent with regard to the intensive increase of data size. Data compression techniques provide the possibility to solve this problem. This paper studies the compression method of geo-raster data based on gridded DEMs for the purpose of realizing massive data’s online transmission. By analyzing the characteristics of geo-grid data, this paper proposes a new compression method named as the two-phase compression method, which combines the conversion compression and the coding compression based on the data fidelity and the real-time compression principle. Meanwhile, this paper establishes an assessment method of two-phase compression method from the perspectives of accuracy and efficiency. In order to test and verify the data fidelity and the compression performance of the two-phase compression method, this paper conducted several experiments on a 10-node server cluster under the Linux operating system by using different sizes of gridded DEMs. The experiment results showed that the proposed two-phase compression method has provided good data fidelity. It keeps the data accuracy on both of the numerical and the representation structure. At the same time, the compression ratio is generally above 50%, and the almost real-time decompression/compression efficiency also indicates that it has a good performance. The two-phase compression method can significantly reduce the time consumption of data transmission through network, and improve the efficiency of network transmission. In all, this two-phase compression method of geo-raster data presents a good universality, and it can provide a technical support to the application of geo-raster data, such as the high-performance geo-computation.

Key words： data compression; two-phase compression; geo-raster data; DEM; parallel computation

1 引言

地理栅格数据作为地理空间数据表达的主要形式,已广泛应用于地貌、环境、水文等领域[1-3]。随着对地观测技术的高速发展,地理栅格数据的分辨率不断提高,为微观尺度上获取和分析地表细节信息提供了有效途径[4]。在为高分辨率、短周期、多来源的地理栅格数据提供丰富地学信息的同时,也给海量化的数据存储,特别是快速网络传输带来了诸多难题。数据压缩技术通过一定的算法对给定数据进行重新组织以减少数据的信息冗余,可节省数据存储空间和提高数据传输效率,为解决存储和传输海量地理栅格数据与有限的信道容量之间日益突出的矛盾提供了有效途径。
对于地理栅格数据的压缩主要是通过建立预测模型以识别和剔除数据隐藏的信息冗余,并在此基础上进行编码[5]。近年来,国内外众多学者对地理栅格数据压缩方法开展了研究工作,主要体现在采用标准图像的压缩[6-7]、基于小波变换的压缩[8-10]、基于人工神经网络的压缩[11-12]、利用数据的空间相关性进行压缩[13-14]等方面。上述研究取得了较好的成果,然而它们主要侧重于压缩率,忽略了压缩实时效率,同时部分压缩方法在数据解码恢复精度上存在不可逆,不能满足地学并行计算等领域数据网络通信精度和即时需求。为提高压缩实时性,部分学者从并行计算的视角开展了相关研究,主要集中在基于GPU的并行压缩计算。他们将待处理的地理栅格数据分为多个部分,并映射到不同GPU像素着色器上进行解压缩运算[15-17]。这部分并行压缩方法提高了压缩计算效率,但其增加了压缩算法的复杂性,同时对计算设备有一定的依赖性,不具有普适性。为此,本文面向海量地理栅格数据的网络传输需求,从数据保真性和压缩即时性双重视角出发,开展地理栅格数据快速压缩方法研究,为地学数据共享、高性能地学计算等领域提供方法支撑。

2 两阶段压缩方法

地理栅格数据基于不同的数据组织方式,存在众多数据格式,如GeoTIFF、ESRI Grid、ERDAS IMAGINE等。从表达地理信息及参与地理计算的角度出发,可以抽象得到地理栅格数据的共性,这为研究具有普适性的地理栅格数据压缩方法提供了可能性。以规则格网DEM为例,地理栅格数据可抽象为2部分：（1）数据头,包含定义DEM参考起点坐标、无值区标识、格网分辨率、行数及列数;（2）数据体,按行列顺序记录高程数值阵列,其中数据类型为整型、浮点型或者双精度型。对地理栅格数据进行压缩的实质就是对其数据体的压缩。为此,本文提出了一种融合转换压缩和编码压缩的两阶段压缩方法,即对地理栅格数据先进行转换压缩,然后进行编码压缩,解压过程相反。

2.1 转换压缩

由上述分析可知,地理栅格数据的像元值数据类型通常有整型（INT）、浮点型（FLOAT）及双精度型（DOUBLE）3种,其中前2种数据类型较为常见,且浮点型最为广泛。在目前32位计算机系统中,整型和浮点型数据均为32位表示（即4个字节）,双精度型为64位表示（即8个字节）。然而,无符号短整型（UNSIGNED SHORT）数据是16位表示（即2个字节）,值域范围为[0,65 535]。这便给我们一个启示,能否在保证地理栅格数据满足分析和应用精度的情况下,将像元值通过数据变换而采用无符号短整型进行表示,进而达到数据压缩的目的。本文将地理栅格数据的像元值由高位数据类型转换为低位数据类型表示的过程,称为转换压缩。事实上,转换压缩思想已在矢量数据压缩中得到了较好的应用效果[18-19],然而其在地理栅格数据压缩、乃至与编码压缩相结合等方面的研究较为鲜见,这也进一步促进了本文利用转换压缩进行地理栅格数据压缩的思考。转换压缩的关键在于核函数设计,因为不同的核函数使得转换压缩的效果差异较大。在数值分析方法中,归一化是将数据映射到[0,1]区间,以达到无量纲表达。借鉴归一化方法,本文设计了地理栅格数据转换压缩的核函数：先将像元值进行数据变换到[0,0.6],然后利用无符号短整型数据将变换后的有效数位进行表达,从而实现像元值从高位数据类型映射到低位数据类型表示。转换压缩映射公式如式（1）所示。
US E i = 0.6 × e i - e min e max - e min + ε × 10 p （1）
式中： US E i 为像元 i 转换压缩后的无符号短整型数据; e i 为像元 i 的数值; e min 、 e max 分别为地理栅格数据的最小和最大值; ε 为精度舍入系数, ε = 0.5 × 10 - p ; p 为有效位数指数。本文为确保最小程度丢失数据精度, p 取值5,即地理栅格数据像元值最终转换到[0,60 000]值域间。解压为压缩的逆过程,公式如式（2）所示。
e i = US E i × ( e max - e min ) 0.6 × 10 p + e min （2）

2.2 编码压缩

对于地理栅格数据而言,像元数据在空间位置上会存在一定的数据冗余,这种冗余通过一定的数据编码方法可进行有效消除,从而数据得以压缩。经转换压缩后,地理栅格数据由原来的整型等数据矩阵变换为无符号短整型数据矩阵。此时,数据矩阵中的冗余存在2个方面：（1）地理栅格数据矩阵中的原生冗余传递到转换后的数据矩阵中;（2）转换压缩也会派生出一定的数据冗余。为消除或减弱这部分数据冗余,利用数据编码方法对数据矩阵（高程矩阵）进行重组织,本文将该过程称为编码压缩。
通常,地理栅格数据的数据结构编码方法均以像元值重复为编码基础[20]。实际上由地理学第一定律可知,地理栅格数据像元值在一定邻近区域常常表现为相近,而非重复。如图1所示,经转换压缩后相邻像元A、B的值变换为22 092、22 064,其值虽不相等,但从它们在内存中表示的二进制码来看,仍存在一定的冗余（第一个字节重复）,这种冗余是像元值在内存中字节冗余。由于字符类型（CHAR）数据为8位表示（即1个字节）,因此本文从字符压缩的角度考虑,将转换压缩后的像元值看作字符（即1个像元值变为2个字符）,并利用字符编码压缩方法对上述字节冗余进行最大程度消除。待数据传输完成后,将解压后字符集两两组合为无符号短整型数值,即可完成编码解压。

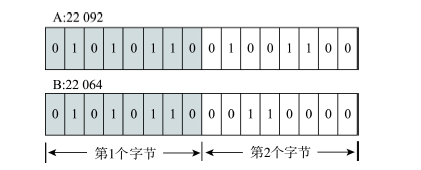

Fig.1 Diagram of byte redundancy

图1 字节冗余示例

鉴于地理栅格数据传输具有时效性和保真性的要求,且转换压缩已隶属于有损压缩,因此,字符编码算法的选取应以压缩速度优先、压缩率兼顾且无损压缩为原则。目前,字符无损压缩方法从压缩模型上,大致可分为基于字典模式和基于统计模式的压缩方法[21]。基于字典模式的压缩方法采用类似查字典的方式进行编码,即以较长的字符串或重复出现的字符组合构成字典中的词条集,并采用统一的记号来表示。字典压缩算法主要包括LZ77系列算法（如LZO、QUICKLZ、LZ4、LZFX、SNAPPY、FASTLZ等）及LZ88系列算法（如LZW等）,其中LZ77系列算法常常致力于压缩和解压速度,有时甚至牺牲压缩率。基于统计模式压缩方法的实质是通过统计字符的出现频率对原生字符进行重新编码,与原始字符出现频率有关而与其排列次序无关,主要的压缩算法有游程编码（RLE）、哈夫曼编码（HUFFMAN）、香农-范诺编码（SHANNO-FNAO,SFANO）等。本文将通过系列实验对上述字符无损压缩算法进行对比综合分析,然后选择最优字符压缩算法作为编码压缩阶段的方法。

3 实验结果与分析

3.1 实验环境及数据

本文利用具有跨平台特性的C++编程语言开发实现了两阶段压缩方法。为评价两阶段压缩方法的压缩性能,在一个配置Linux操作系统的集群上进行了测试实验。同时,基于MPI消息传递接口对应用两阶段压缩方法进行数据压缩传输的效率进行了测试。测试的环境为：10个计算节点,每个节点配置2个2.67 GHz六核Intel（R）Xeon（R）X5650处理器和24 GB内存,并通过1000 Mbps的快速交换式以太网互联。
本文选取了位于黄土高原丘陵沟壑区的陕北绥德县韭园沟部分地区为实验样区。区内丘陵起伏,沟壑纵横,地形相对较为复杂。基础数据为按照国家DEM生产规程生成的 1:1万（浮点型、5 m分辨率、1821行×2134列）DEM数据。以上述数据为基础,通过顺时针旋转5°、30°,分别获取了无值区域覆盖不同的数据（2001行×2285列、2645行×2759列）,如图2所示。以上3组数据和其对应通过取整生成的整型DEM数据,依次简称为数据组1、数据组2和数据组3。同时,以数据组3中浮点型DEM为基础,通过双线性内插重采样方法,也分别获取了1 m分辨率（13 225行×13 795列,约700 MB,为采样数据1）和0.4 m分辨率（33 063行×34 488列,约4 GB,为采样数据2）大数据量DEM数据,用于压缩传输实验。

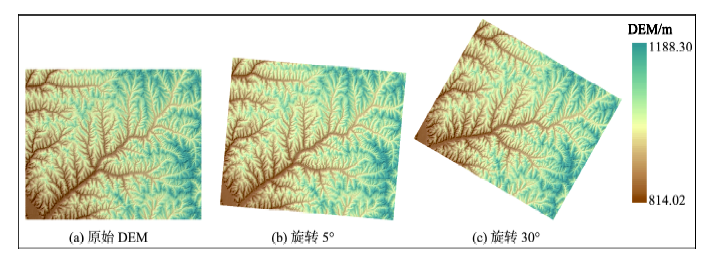

Fig.2 DEMs of the study area

图2 实验数据

3.2 评价方法

（1）精度评价
由于两阶段压缩方法中转换压缩为有损压缩,地理栅格数据压缩后会产生精度丢失。为评价两阶段压缩方法的数据保真性,本文从数值精度、等值线分析以及水文结构分析等方面,对转换压缩前后的数据进行精度分析。
对于数值精度,将待评定地理栅格数据（或由原始地理栅格数据通过地理计算派生出的结果）与转换压缩解压后数据相减可得到逐像元的数值残差,残差的整体统计指标包括最小值、最大值、均值及标准差。
等值线分析是诊断地理栅格数据误差及其对地理对象表达（如地形结构等）的有效工具,即以原始地理栅格数据提取的等值线（称为基准等值线）为基准,套合叠加转换压缩解压后数据所提取等间距的等值线（称为转换等值线）进行分析。在二维平面里,转换等值线到同值邻近基准等值线的距离,定义为等值线逼近度。等值线逼近度在形态上反映了转换等值线与基准等值线的一致程度,其数值上等于转换等值线结点到基准等值线的最近距离。本文以等值线逼近度为等值线分析定量评价因子,整体统计指标有最小值、最大值、均值及标准差。
水文结构分析针对DEM这一类地理栅格数据而设计,实质为以原始DEM数据提取的河流网络为基准,叠加对比分析转换压缩解压后DEM数据所提取等量河流网络。在河流网络中,径流节点为各级河流与上级河流交汇点,其空间分布可反映河流网络的基本骨架。本文定义径流节点完整度为转换径流节点与基准一致的数量所占基准径流节点数量的百分比,其中转换前后径流节点一致的约束条件为二者的距离小于DEM格网大小的四分之一。
（2）效率评价
对于一个压缩算法而言,压缩时间、解压时间及压缩率（式（3））是3个量化压缩算法性能的常用指标。为综合评定压缩算法的性能,本文定义净综合速率为单位时间内完成处理压缩率数据的大小,计算方法如式（4）所示。
CE = D V pre - D V com D V pre × 100 % （3）
UCV = CE × D V pre CT + UCT （4）
式中： CE 为压缩率; D V pre 和 D V pre 分别为压缩前后地理栅格数据大小; UCV 是净综合速率; CT 和 UCT 则是压缩时间及解压时间。
当面向数据传输需求时,压缩算法是否运用有效的准则为直接传输时间消耗是否大于压缩传输所需时间。为量化表征运用压缩算法进行传输地理栅格数据的性能,本文定义了压缩传输比,即直接传输地理栅格数据与压缩传输所消耗时间的比率,公式如式（5）所示。
CS = DT CT + UCT + TT （5）
式中： CS 为压缩传输比; DT 和 TT 分别为传输压缩前后地理栅格数据消耗时间。

3.3 精度分析与算法选取

以数据组1中浮点型DEM为基础,对两阶段压缩方法的精度保真进行了分析,结果如图3和表1所示。从高程和坡度2个角度,评价了数值精度（图3（a）-（b））。由于转换压缩时进行了有效数位截留,从而造成高程残差偏离正态分布,可看作“系统误差”。高程最大误差为0.003 m,精度区间近似为±0.002 m,可看出转换压缩虽是有损压缩,但对高程精度丢失影响甚小。坡度由高程派生得到,其误差近似服从正态分布,说明高程中的“系统误差”对分析结果误差不起主控作用。坡度最大误差为0.034°,精度区间为±0.007°,转换压缩前后坡度精度丢失非常小。为分析压缩前后地表形态精度,从等高线及河网套合2个方面进行了评价（图3（c）-（d））。通过目视等高线套合结果可看出,压缩前后等高线几乎无差异。等值线逼近度平均值为0.05 m,标准差为0.03 m,且最大值也仅为0.45 m,不足DEM分辨率的十分之一,进一步验证了目视结果。在河网套合分析中,径流节点完整度达到98.55%,说明转换前后地形结构几乎无变化。对于径流节点存在变化的地方均为谷底平坦区域,而这些区域DEM本身就存在表达不确定性。综合数值精度和形态精度实验结果可看出,两阶段压缩方法的数据保真性好,解压后的数据无论对于地理对象表达还是分析应用,均可得到可靠的结果。
Tab.1 Performance of different lossless compression algorithms

表1 不同无损压缩算法压缩性能

数据组1（1821行×2134列） 数据组2（2001行×2285列） 数据组3（2645行×2759列）
CE/(%) CT/10-2 s UCT10-2 s CE/(%) CT/10-2 s UCT/10-2 s CE/(%) CT/10-2 s UCT/10-2 s
LZO -0.36(39.03) 0.35( 2.93) 0.27( 2.31) 13.87(46.11) 0.47( 3.10) 0.36( 2.35) 45.49(62.75) 0.58( 3.45) 0.51( 2.58)
QUICKLZ 0.00(48.68) 1.66( 3.50) 0.24( 2.97) 0.00(53.93) 2.24( 3.65) 0.33( 3.14) 40.35(67.43) 3.49( 4.20) 4.27( 3.71)
LZ4 0.08(38.91) 0.70( 3.64) 0.28( 1.05) 14.90(45.63) 0.92( 3.79) 0.34( 1.14) 46.49(61.80) 1.07( 4.10) 0.51( 1.31)
LZFX -1.96(39.62) 6.42( 5.45) 0.61( 3.76) 13.08(46.04) 6.74( 5.79) 0.85( 3.86) 45.26(62.16) 7.14( 6.69) 1.91( 4.03)
SNAPPY 0.29(38.02) 0.44( 5.46) 0.30( 1.39) 14.33(44.36) 0.75( 5.53) 0.35( 1.49) 44.53(59.85) 0.80( 5.54) 0.61( 1.83)
FASTLZ -1.66(32.40) 5.02( 5.69) 0.67( 3.10) 13.40(40.43) 5.22( 6.04) 0.73( 3.14) 45.73(59.44) 5.32( 6.96) 0.86( 3.31)
LZW -39.79(34.14) 36.13(25.50) 7.55( 8.35) -19.11(16.00) 37.52(30.91) 8.50( 8.80) 24.85(46.12) 36.92(37.56) 9.65(11.25)
RLE -0.19( 0.08) 2.14( 2.28) 1.19( 1.36) 14.76( 0.07) 2.68( 2.67) 1.53( 1.55) 46.59( 0.05) 4.18( 4.01) 1.94( 2.26)
HUFFMAN 1.68( 7.58) 30.72(29.35) 32.30(29.17) 8.82(12.40) 33.60(33.15) 34.17(32.86) 35.28(33.00) 34.83(39.22) 35.69(31.96)
SFANO 1.22( 7.05) 31.26(28.56) 24.71(23.74) 8.50(12.02) 31.78(29.19) 25.69(26.54) 30.99(28.47) 36.99(37.34) 31.50(31.57)

注：括号内数字为对应整型数据组实验结果

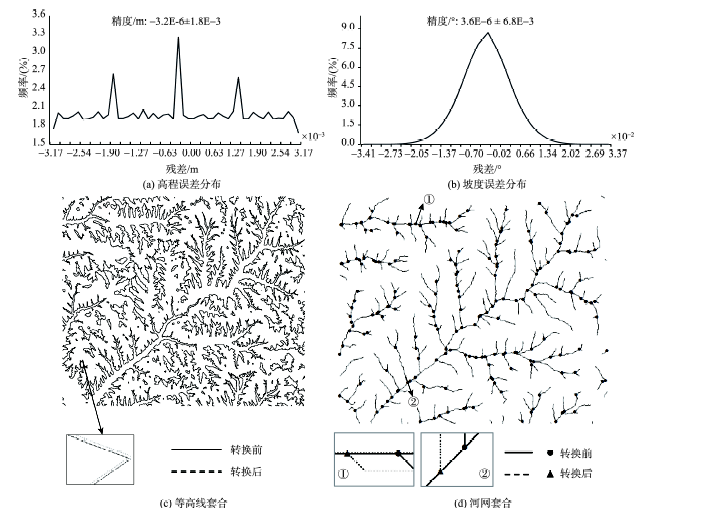

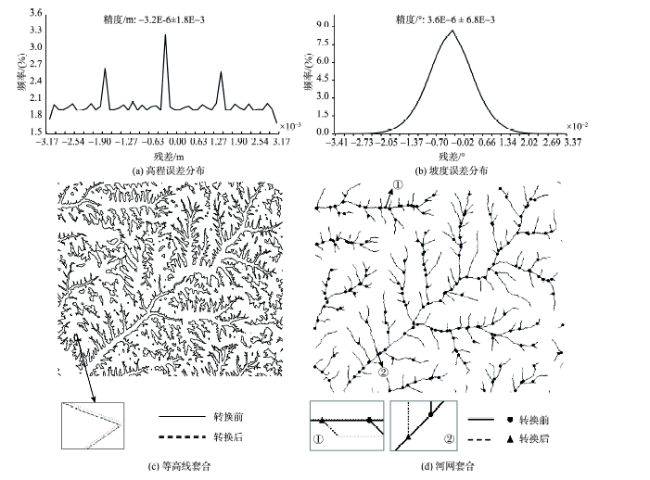

Fig.3 Error analysis of DEMs before and after the conversion compression

图3 DEM数据转换压缩前后误差分析

表1和表2是字符无损压缩算法性能实验结果。随着数据无值区覆盖面积增大（即数据冗余量增大）,各个压缩算法的压缩率均大幅增大,且压缩及解压时间也随之增加,这为面向大数据量进行压缩传输提供了可能。相比浮点型数据,各个压缩算法在处理整型数据时表现更为优越,这与整型和浮点型数据在内存中不同的表示结构有关,同时这也间接表明了转换压缩在两阶段压缩方法中的重要作用。在处理地理栅格数据方面,基于字典模式的压缩算法比基于统计模式的压缩算法表现出更好的性能,特别是基于字典模式的LZ77系列算法更为突出,且随着数据冗余量增加,优势也更加凸显。从净综合速率可知,LZO、LZ4、SNAPPY 3个压缩算法具有较好地即时性特征。在实验数据组里,最大净综合速率为LZO处理浮点型数据时的576.93 MB/s,及LZ4处理整型数据的158.93 MB/s,这表明LZO较为适合处理浮点型数据,而LZ4适合处理整型数据。从表2也可看出,最大净综合速率与数据冗余程度成正比,变化幅度显著。
Tab.2 Net execution speeds of different lossless compression algorithms

表2 不同无损压缩算法的净综合速率

数据组1（1821行×2134列） 数据组2（2001行×2285列） 数据组3（2645行×2759列）
浮点型NCV/(MB/s) 整型NCV/(MB/s) 浮点型NCV/(MB/s) 整型NCV/(MB/s) 浮点型NCV/(MB/s) 整型NCV/(MB/s)
LZO -4.26 55.18 147.37 73.79 576.93 145.00
QUICKLZ 0.00 55.75 0.00 69.28 72.36 118.64
LZ4 0.62 61.48 103.15 80.80 409.46 158.93
LZFX -2.06 31.90 15.02 41.63 69.61 80.76
SNAPPY 2.89 41.15 114.11 55.08 438.75 112.94
FASTLZ -2.16 27.34 19.64 38.42 103.00 80.50
LZW -6.75 7.47 -3.62 3.51 7.43 13.15
RLE -0.42 0.17 30.54 0.14 105.92 0.10
HUFFMAN 0.20 0.96 1.14 1.64 6.96 6.45
SFANO 0.16 1.00 1.29 1.88 6.30 5.75
当进行地理栅格数据传输时,压缩处理过程通常在内存中,字符压缩算法的选择必须有尽可能快的压缩和解压速度,同时要兼顾不能消耗过多CPU资源。针对不同数据特征（大小情况、重复情况等）,LZO分为多种压缩方法,如LZO1A,LZO1B,LZO1F,LZO1X等,其中LZO1X对于大部分情况下均具有较好的压缩效果。在速度优先的前提下,为达到不同的压缩率,LZO1X压缩级别分为1-9,99及999几个级别。压缩级别越高,表明压缩率越高;同时,相对的压缩速度会减慢,而且压缩所需内存增加。一般而言,当压缩级别为1时,仅需64 KB的内存（本文实验过程正是采用了该级别）。因此,本文选择LZO1X-1字符压缩算法作为编码压缩阶段方法。

3.4 压缩方法效率分析

由表3的两阶段压缩方法性能可看出,无论地理栅格数据是否存在信息冗余,两阶段压缩方法均至少可达近50%的压缩率。两阶段压缩方法压缩和解压速度也会随着数据冗余量的增大而增大,对于实验数据,其压缩速度最大达到1294.79 MB/s、解压速度最大到达766.89 MB/s。综合压缩率和压缩/解压速率看,两阶段压缩方法优于表1中所列的单一字符压缩方法。上述数字充分体现了两阶段压缩方法在高压缩率及即时性2个方面均具有显著的优势。
Tab.3 Performance of two-phase compression method

表3 两阶段压缩方法性能

CE/(%) CT/10-2 s UCT/10-2 s
数据组1
（1821行×2134列）		 49.82
(69.51)		 1.59
(3.85)		 3.05
(4.65)
数据组2
（2001行×2285列）		 56.93
(73.05)		 1.56
(4.16)		 2.83
(5.11)
数据组3
（2645行×2759列）		 72.75
(81.38)		 2.15
(5.21)		 3.63
(6.92)

注：括号内数字为对应整型数据组实验结果

基于两阶段压缩方法,利用采样数据1和采样数据2,进行了压缩传输和直接传输对比分析,如图4和表4所示。压缩传输过程为：主进程（主计算节点）利用两阶段压缩方法将数据进行压缩后发送给从进程（从计算节点）;从进程接收来自主进程的压缩数据后,再利用两阶段压缩方法进行解压。实验过程中,依据从进程数量,地理栅格数据被按行平均分配为多个子数据块,且主机只设置一个进程,进行数据读取并发送给从机（主节点自身不分配数据）。从图4中可看出,在不同进程数下,压缩传输消耗时间均小于直接传输,且减少传输时间均在50%以上。同时,在压缩传输过程中,压缩和解压时间占压缩传输总消耗的比例随着进程数的增加而逐渐降低,当进程数为64时,比重仅为16.27%左右。对于采样数据2而言,在进程数为2时,直接传输由于超过了MPI通信消息长度大小的限制（最大MPI消息长度为231-1）而导致传输失败。此时通过两阶段压缩方法进行数据压缩,消息长度得到缩短,传输成功。从表4可知,压缩传输比可达2.5以上,且当数据量增加,其有增大的趋势,说明了两阶段压缩方法在多计算节点间进行网络传输应用具有较好的稳定性。以上实验结果均表明,两阶段压缩方法可显著减少传输时间,提高网络传输效率,是解决有限信道容量制约的有效手段。

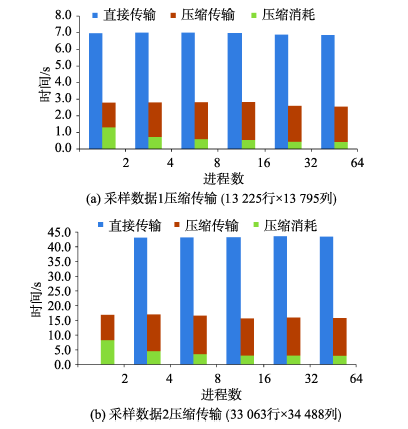

Fig.4 Data transmission efficient based on the two-phase compression method

图4 基于两阶段压缩方法数据传输效率

Tab.4 Com-transmission rate via the two-phase compression method

表4 基于两阶段压缩方法的压缩传输比

进程数
2 4 8 16 32 64
采样数据1
（13 225行×13 795列）		 2.50 2.49 2.49 2.47 2.64 2.69
采样数据2
（33 063行×34 488列）		 - 2.54 2.60 2.76 2.73 2.75

4 结语

目前,在高分辨率地理栅格数据广泛应用的背景下,传输与存储海量数据的需求与有限的信道容量之间矛盾日益突出。为此,本文面向网络传输海量地理栅格数据的需求,从数据压缩的视角,基于数据保真性和压缩即时性原则,提出了融合转换压缩和编码压缩的地理栅格数据两阶段压缩方法。实验和实例应用结果表明,本文构建的两阶段压缩方法在数值和表达结构（地表形态）上均有较好的精度,数据保真性高。同时,其压缩率一般均在50%以上,解/压速率达到实时层次,能够显著地减少数据传输时间消耗,提高网络传输效率。本文提出的两阶段压缩方法对地理栅格数据具有较好地普适性,可为海量地理栅格数据存储及高性能地学并行计算等领域提供技术支撑。然而,如何将其与其他压缩方法进行优势互补,并无缝结合到地理栅格数据应用的各个领域还需要进一步研究。
