Research on Ocean Wave Simulation Based on the Method of Combining Smoothed Particle Hydrodynamics with Marching Cubes Algorithm

• LI Ting , 1 ,
• JI Min , 1, * ,
• JIN Fengxiang 2 ,
• ZHANG Jing 1 ,
• SUN Yong 1
Expand
• 1. Geomatics College, Shandong University of Science and Technology, Qingdao 266590, China
• 2. Shandong Jianzhu University, Jinan 250101, China
*Corresponding author: JI Min, E-mail:

Request revised date: 2016-08-09

Online published: 2017-02-17

《地球信息科学学报》编辑部 所有

### Abstract

Traditional algorithms for modeling sea waves have some problems such as poor ocean surface realistic simulation and complicated calculation procedures. In order to solve these problems, this study presented a new sea wave simulation method which combines the Smoothed Particle Hydrodynamics (SPH) algorithm with the Marching Cubes (MC) algorithm. Based on space lattices, particles were allotted into different cubes and we established one way list structure for particle swarms storing and realized fast searching for particles within the smooth core radius in the calculation procedures of wave particle physics such as velocity, accelerator, position and so on. The force of the wave particle is generally composed of three parts: gravity, pressure gradient force and viscous force. Pressure gradient force is generated by the pressure difference between the fluid. Viscous force is caused by the velocity difference between the particles. According to this analysis of particle force, this study gave the Lagrange fluid control equation used for the accelerator calculation of ocean particles. In order to simulate the collision between particles and coastal barriers, we modeled the barrier surface as TIN (Triangular Irregular Network) and simplified the collision detection as whether the particle path passed through the triangle interface within a certain time. Assuming the particle as ideal rigid body, this study introduced an acceleration variation coefficient to calculate the particle's velocity after bouncing and improved the Euler equation by using the average velocity to calculate the particle's new position. In order to enhance the realistic simulation of the ocean wave fluid at the particle allotting time in the machine cube, this study calculated the density for each cube node dynamically. Through setting the threshold of sea surface density, we also extracted the wave surface dynamically by using linear interpolation method to generate triangular irregular network and realized the ocean waves 3D surface modeling and dynamic simulation. Through simulating, it verified the effectiveness and feasibility of this algorithm and could provide certain reference for ocean environmental modeling and virtual visualization.

### 2 SPH及MC算法原理

#### 2.1 SPH算法原理

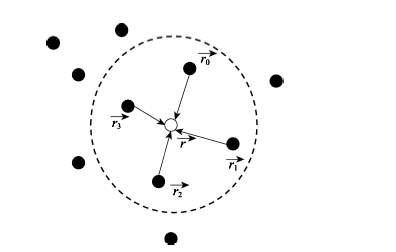

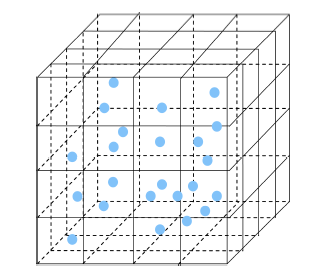

SPH方法的基本原理是将连续的流体散化为相互作用的粒子质点[14],各个粒子质点上承载质量、速度、密度等物理量,通过求解质点组的动力学方程和跟踪每个粒子的运动轨迹,求得整个系统的力学行为。该方法是一种基于物理的拉格朗日算法,通过一系列粒子质点的“核函数估值”将流体力学基本方程组转换成数值计算用的公式[15-18]。其核心是插值,通过对研究粒子一定的光滑长度范围内其他临近粒子质点连续物理量影响程度的权函数插值得到。如图1所示,所有的粒子都使用统一的光滑核半径,而且都具有质量、密度、速度、加速度、位置等属性,这些物理量的计算如式（1）所示。
$A s ( r → ) = ∑ A j m j p j W ( r → - r j → , h )$ （1）

#### 2.2 MC算法原理

MC算法最早由W.E Lorenson等提出,其本质是将三维数据场中具有某阈值的物质提取出来,然后以某种拓扑形式连接成多边形,属于体素单元内抽取等值面的技术之一[19-20]。其基本原理是将整个三维数据空间进行网格化,形成独立的三维立方体单元,每个体元的8个顶点均具有对应的属性值,根据选定的等值面属性阈值,分别插值计算体元12条边界与等值面的交点,按照指定的规则连接相应的交点构建体元内部的多变形面片,从而实现体元的分隔,将所有体元分隔的多边形面片连接在一起,即可实现等值面的抽取。

### 3 基于SPH与MC耦合算法的海浪场建模

SPH算法通过求解流体动力学方程,在微观尺度下,用一组粒子代替流体来模拟海浪运动,为了同时满足海浪表面的平滑建模,结合改进的MC算法,以水面密度值为阈值进行海浪表面提取与渲染,具体算法过程包括：海浪粒子初始化、粒子受力分析、粒子碰撞检测、水密度等值面提取、海浪表面渲染等。

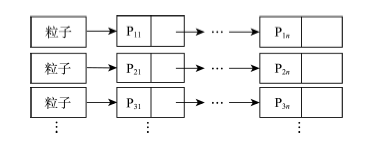

#### 3.2 海浪粒子受力分析及状态计算

$F → = ρ a →$ （2）

$ρ d u → d t → = ρ g → - ∇ p + μ ∇ 2 u →$ （3）

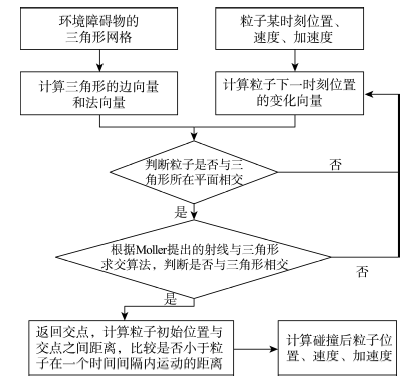

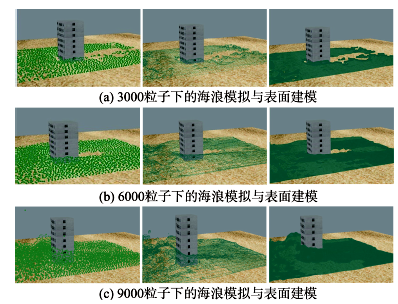

### 5 结论
