地球信息科学学报 >

2017 , Vol. 19 >Issue 2: 273 - 280

DOI: https://doi.org/10.3724/SP.J.1047.2017.00273

遥感科学与应用技术

海岛建设引发的植被覆盖度变化的遥感分析

  • 温小乐 , 1, * ,
  • 李洋 1 ,
  • 林征峰 2
展开
  • 1. 福州大学环境与资源学院,福建省水土流失遥感监测评估与灾难防治重点实验室,福州 350108
  • 2. 福建省环境保护设计院,福州 350003

作者简介：温小乐（1976-）,女,博士,副教授,研究方向为环境资源遥感与环境评价。E-mail:

收稿日期: 2016-04-14

  要求修回日期: 2016-06-17

  网络出版日期: 2017-02-17

基金资助

福建省教育厅科技项目（JA15044）

福建省自然科学基金项目（2014J01156）

福州大学科技发展基金项目（2014-XQ-12）

收起

Remote Sensing Analysis of Fractional Vegetation Cover Change Triggered by Island Construction

  • WEN Xiaole , 1, * ,
  • LI Yang 1 ,
  • LIN Zhengfeng 2
Expand
  • 1. College of Environment and Resources, Fujian Provincial Key Laboratory of Remote Sensing ofSoil Erosion and Disaster Protection, Fuzhou University, Fuzhou 350108, China
  • 2. Fujian Environmental Protection Institute, Fuzhou 350003, China
*Corresponding author: WEN Xiaole, E-mail:

Received date: 2016-04-14

  Request revised date: 2016-06-17

  Online published: 2017-02-17

Copyright

《地球信息科学学报》编辑部 所有
Fold

摘要

海岛生态脆弱、稳定性差,大规模的海岛开发使得原本脆弱的岛上植被生境面临更大的威胁,对海岛开发中的植被覆盖变化开展分析显得尤为重要。本文基于Landsat 5卫星和Landsat 8卫星的2001、2010和2014年的遥感影像,采用Gutmand和Ignatov提出的植被覆盖度计算模型提取福建平潭岛的植被覆盖度,并结合其土地覆盖变化信息,探究平潭综合实验区建设前后植被覆盖度变化特点及其原因。研究结果表明,3个时相的平潭岛植被覆盖度达中度以上的区域面积比例分别为86.00%、58.92%和71.16%,表明研究区整体植被覆盖状况良好。动态变化分析结果显示,2001-2014年研究区植被覆盖度总体呈下降趋势,其中2001-2010年植被覆盖度下降显著,下降区域面积比例高达53.95%;而2010-2014年岛上植被覆盖状况有较大改善,植被覆盖度增加区域面积比例达47.77%,这在一定程度上弥补了之前植被覆盖度大幅下降的影响,分析原因主要得益于平潭综合实验区建立后所采取的科学规划、进一步加大植树造林、逐步完善海岛绿地系统的植被建设与保护措施。

关键词： 海岛建设; 植被覆盖度; 遥感监测; 平潭综合实验区

本文引用格式

温小乐 , 李洋 , 林征峰 . 海岛建设引发的植被覆盖度变化的遥感分析[J]. 地球信息科学学报, 2017 , 19(2) : 273 -280 . DOI: 10.3724/SP.J.1047.2017.00273

Abstract

The original ecological environment of island is fragile and lack of stability. Large-scale development and construction activities of island expose the vulnerable vegetation to a greater danger, which makes the detection and assessment of vegetation cover change especially necessary. Based on the remote sensing images of Landsat 5 and Landsat 8 in 2001, 2010 and 2014, the fractional vegetation cover (FVC) of Pingtan Island in Fujian Province was computed using the FVC calculation model proposed by Gutmand and Ignatov. Combining the FVC data with land cover change information, this study analyzed the variation in FVC of integrated experimental zone on Pingtan Island and explored its reason. The results showed that in 2001, 2010 and 2014, the middle and upper level of FVC in Pingtan Island accounted for 86.00%, 58.92%, 71.16%, respectively, which indicate that the overall vegetation in the study area is in good condition. The analysis of dynamic change showed that there is a declining trend in FVC from 2001 to 2014. The FVC decreased greatly by 53.95% from 2001 to 2010. On the contrast, the FVC rose by 47.77% from 2010 to 2014, which improved overall FVC condition substantially and offset the previously significant decrease of FVC. The comprehensive experimentation area was established in Pingtan Island. Greening projects and reasonable planning gradually improved the vegetation construction and protection of the island green land system. These reasons led to the increase of vegetation.

Key words： island construction; fractional vegetation cover; remote sensing monitoring; Pingtan comprehensive experimental zone

1 引言

海岛是典型的生态脆弱系统,随着中国沿海经济的快速发展和陆域自然资源的日益紧缺,沿海地区掀起了海岛开发的热潮。由于现阶段中国对海岛的开发利用普遍缺少规划,随意性较大,在开发利用海岛资源的同时,不重视海岛的生态保护,破坏岛上植被、滥捕滥采动植物资源等问题突出,人类开发活动对海岛生态造成的冲击影响正日益凸显,海岛生态保护已成为社会普遍关注的焦点。
平潭岛位于福建省东部海域,岛上风沙灾害严重、植被生境脆弱,虽然自20世纪60年代以来,平潭岛逐步建立了木麻黄防风固沙林体系来控制风沙,但随着滨海土地的开发,大量人为的毁林取沙以及防护林树龄老化等问题,使岛上的防护林带日益减少,平潭岛的植被状况备受关注。2010年福建省正式批准在平潭岛成立平潭综合实验区,大规模的海岛开发建设使岛上原本脆弱的植被生境面临更大的威胁。
植被是生态系统极其重要的生态因子,通常用植被覆盖度(Fractional Vegetation Cover,FVC)来表征,植被覆盖度及其变化是反映生态系统变化的重要指标。通过建立植被覆盖度计算模型来获取地表植被覆盖及其变化信息,对于揭示研究区的植被空间变化规律,探究生态系统的变化趋势具有重要的现实意义[1]。遥感技术具有观测面积广、周期性短、时效性强等特点,为大范围植被覆盖信息的快速获取提供了便利,同时利用大量连续遥感数据的综合比较,可以观测到一些依靠地面观测很难发现或需经过长期大面积调查才能发现的宏观规律,已成为对大范围植被覆盖状况进行监测的有效手段。
本研究拟基于多时相遥感影像,对平潭岛2001-2014年的植被覆盖变化及其原因进行分析,为平潭综合实验区在下一步建设中的生态保护提供科学依据。

2 研究区与研究数据

2.1 研究区概况

平潭岛地处福建省东部海域,由126个岛屿组成,其主岛为海坛岛,又名平潭岛（25°15´~25°45′ N、119°32′~120°10′ E）,面积267 km2,是福建省第一大海岛,中国第六大岛。本研究将该主岛作为研究区,当地地貌以丘陵和海积平原为主,属亚热带半湿润海洋性季风气候,降水少、风力大、蒸发强。岛上原始植被已极为罕见,现有林地多为造林绿化后的人工林,主要为木麻黄林、黑松林、台湾相思树林等,局部荒山荒坡还分布有耐旱灌丛和草本植被。

2.2 数据源及预处理

目前,在提取植被覆盖信息的各类遥感数据源中,多光谱数据应用最为广泛,由于其具有较宽的覆盖范围、较高的时间分辨率且适于进行大区域连续观测等优点,使植被覆盖度的研究多基于NOAA/AVHRR[2-3]、MODIS NDVI[4-5]及Landsat系列[6-7]等中低空间分辨率影像,但目前基于Landsat 8卫星影像的研究相对较少。相对于以往的Landsat系列卫星,Landsat 8卫星的优势在于波段数量的增加 （11个波段）和全色波段分辨率的提高（15 m）,这些变化对于植被覆盖度信息的提取更为有利[8]。
为确保遥感卫星数据源的一致性,本研究选用来自USGS网站的Landsat系列遥感影像为数据源,选取的影像为：2001-05-24和2010-05-01的Landsat 5 TM影像,以及2014-09-01的Landsat 8 OLI影像。遥感影像预处理包括几何配准和辐射校正。配准采用二次多项式和最邻近像元法,均方根误差小于0.5个像元。辐射校正则根据Chander[9-10]等和Chavez[11]的模型将影像中每个像元的DN值转换为传感器处反射率。对于2013年发射的Landsat 8卫星,依据美国USGS（http://glovis.usgs.gov/）提供的定标公式将影像的DN值转换为表观反射率。

3 研究方法

3.1 植被覆盖度反演模型的确定

目前,在植被覆盖度的遥感反演研究方法中,较常采用的是混合像元分解法,其直接利用原始数据经正规化处理后得到的植被指数来反演植被覆盖度,人为因素干扰较少,故相对于其它方法[12-14]更具有普遍意义,经过验证后的模型还可以应用到大范围地区,形成通用的植被覆盖度计算方法[15-17]。其中Gutmand和Ignatov提出的模型（简称A模型）[18]和Carlson和Ripley提出的模型（简称B模型）[19]最为常用,其表达式分别为：
F A = ( NDVI - NDV I soil ) ( NDV I veg - NDV I soil ) （1）
F B = [ ( NDVI - NDV I soil ) ( NDV I veg - NDV I soil ) ] 2 （2）
式中：NDVIsoil为完全是裸土或无植被覆盖区域的NDVI值;NDVIveg则代表完全被植被所覆盖的像元的NDVI值,即纯植被像元的NDVI值。
对比式（1）和式（2）发现,二者的最大区别在于是否求平方。Carlson和Ripley通过与叶面积指数的对比研究发现,基于NDVI估算的植被覆盖度在中低植被覆盖区域明显高于其真实数值,因此必须对其求平方[19],但显然这样会在高植被覆盖区出现低估现象。因此,模型的选择主要取决于研究区植被覆盖的实际特点,即研究高植被覆盖区时应选择A模型以避免高植被区域的低估,反之应选择B模型以避免低植被区域的高估。
为比较2种模型的可靠性,选择亚像元对比法对研究区2010-05-01的TM影像和2014-09-01的OLI影像进行精度验证。在近期的Google earth高分辨影像（2.15 m）上根据不同植被覆盖度等级选用分层随机抽样法选择100个样点,在每个TM像元点所对应的195个亚像元中,用人工识别的方法直接判读并计算出实际植被覆盖度,并与模型反演的植被覆盖度进行回归分析,获得系统误差(SE)来判断不同模型的可靠性。SE的计算公式为：
SE = 1 n ∑ i = 1 n FV C ′ i - FV C i （3）
式中：FVC′为模型求出的植被覆盖度值;FVC为实际的植被覆盖度值;n为样本数。
精度验证结果（图1）表明,虽然A、B模型的反演值与真实值相比都存在一定程度的偏差,但相比较而言,A模型的反演值与真实值之间的差异更小,且与实际植被覆盖度的吻合度(R2)也高于B模型,因此,本研究采用A模型来反演平潭岛的植被覆盖度。

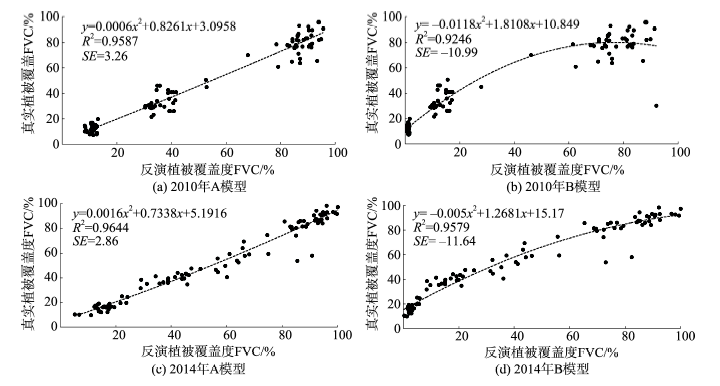

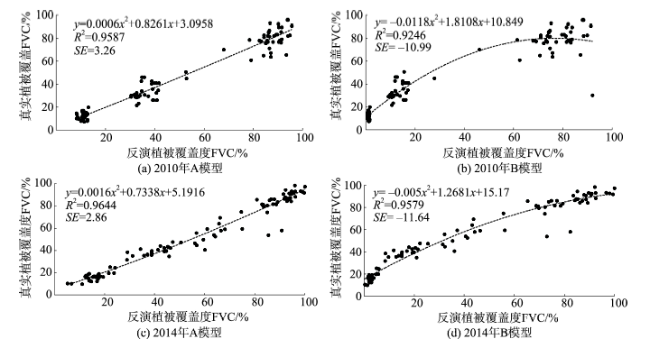

Fig. 1 Accuracy comparison between A and B models

图1 A模型和B模型的精度比较

3.2 模型参数的取值

植被覆盖度反演模型中参数NDVIsoil与NDVIveg的取值在不同年份不同地区是不一样的。对于大部分裸地,NDVIsoil值理论上应该接近于0;植被达到全覆盖状态时,NDVIveg值接近于1。但由于不同时间、地域等各种自然条件差异的影响[19-20],这2项参数的取值是不确定的,因此,采用一个固定的NDVIsoil值和NDVIveg值是不准确的。在此,本研究采用近似替代的方法来确定不同影像的NDVIsoil和NDVIveg值,通过分析Landsat影像的NDVI数据,结合平潭岛的现实状况和NDVI值的累积概率分布表,确定置信度为0.5%来计算植被覆盖度。即每幅时相选取累积频率为0.5%的NDVI值为NDVIsoil,99.5%的NDVI值为NDVIveg。若小于NDVIsoil则将其NDVI赋值为0,若大于NDVIveg,则将其NDVI赋值为1。由此得到2001、2010和2014年研究区遥感影像中NDVIsoil和NDVIveg的值,如表1所示。
Tab. 1 The value of NDVIsoil and NDVIveg

表1 NDVIsoil和NDVIveg的取值

2001年 2010年 2014年
NDVIsoil 0.1112 0.1259 0.0921
NDVIveg 0.8526 0.6941 0.8415

4 平潭岛植被覆盖度的空间分布及 变化特征

4.1 不同时相平潭岛植被覆盖度的提取及其分布 特点

运用式（1）和表1中的参数取值,提取出不同时相平潭岛的植被覆盖度,并采用密度分割法将其分为5级（图2）,从低到高分别表征为低植被覆盖度、中低植被覆盖度、中植被覆盖度、中高植被覆盖度和高植被覆盖度。在此基础上,对各等级的面积进行统计（表2）。
Tab. 2 Area and percentage of each fractional vegetation cover level in 2001, 2010 and 2014

表2 研究区不同时相各等级植被覆盖度统计表

植被覆盖度
（FVC）		 2001年 2010年 2014年
面积/km2 百分比/% 面积/km2 百分比/% 面积/km2 百分比/%
低度(0%~20%) 12.14 4.67 32.54 12.57 35.11 13.19
中低度(20%~40%) 24.13 9.28 73.81 28.51 41.66 15.65
中度(40%~60%) 65.04 25.01 71.60 27.65 54.28 20.39
中高度(60%~80%) 116.45 44.78 49.10 18.96 70.47 26.47
高度(80%~100%) 42.31 16.27 31.88 12.31 64.69 24.30
均值/% 61.74 47.92 56.74
标准差/% 19.97 23.80 27.11
图2显示,研究区植被覆盖度在2001-2014年变化显著,总体上看,低植被覆盖度区域（红色斑块）明显增多,中高植被覆盖度区域（浅绿斑块）大幅度减少,高植被覆盖度区域（深绿斑块）略微增加。表2统计结果表明,3个时相中植被覆盖度达中度以上的区域面积分别占总面积的86.00%、58.92%和71.16%。可见,平潭岛有一半以上区域的植被覆盖度都在中度以上,整体植被覆盖状况良好。研究期内,平潭岛的植被覆盖度变化主要表现在：低植被覆盖度和高植被覆盖度的区域都有所扩大,其中低植被覆盖度区域变化显著,13年间面积增加了65.42%,高植被覆盖度区域面积也增加了34.60%;而中高植被覆盖度区域则出现下降趋势,13年间面积减少了39.48%。

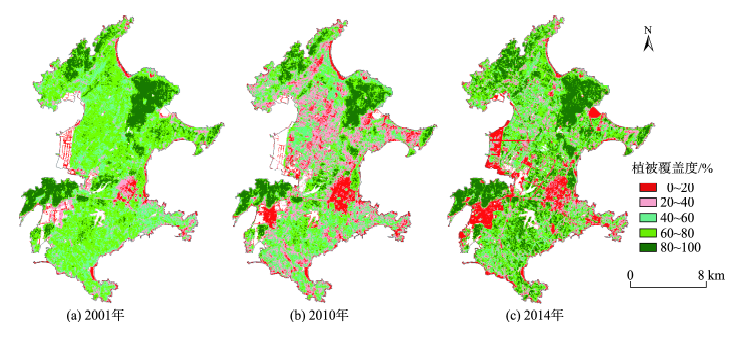

Fig. 2 The classification of fraction vegetation cover in 2001, 2010 and 2014

图2 研究区2001-2014年植被覆盖度分级图

此外,通过表2数据分析可以看出,2001-2014年研究区植被覆盖度均值由61.74%下降至56.74%,标准差也由19.97%上升到27.11%,说明在研究期内平潭岛植被覆盖度减少的同时,植被差异性增加,即植被覆盖种类趋于多样化。

4.2 平潭岛植被覆盖度动态变化的分布特征

为揭示平潭岛植被覆盖度的变化特征,进一步采用差值影像算法提取出2001-2014年平潭岛植被覆盖度变化影像（图3）,并对各等级的变化面积进行统计（表3）。蓝绿色调表征植被覆盖度增加,红色调表征植被覆盖度降低,黄色表征植被覆盖度未发生变化。
Tab. 3 Area and percentage changes of fraction vegetation cover between 2001 and 2014

表3 2001-2014年研究区植被覆盖度变化统计表

变化面积等级 2001-2010年 2010-2014年 2001-2014年
面积比例/% 升降合计/% 面积比例/% 升降合计/% 面积比例/% 升降合计/%
-4 0.13 53.95 0.23 11.16 0.34 31.56
-3 3.10 0.77 2.22
-2 14.98 2.22 7.01
-1 35.74 7.94 21.99
0 40.80 40.80 41.07 41.07 47.09 47.09
+1 4.91 5.24 33.67 47.77 18.68 21.36
+2 0.31 11.30 2.51
+3 0.02 2.49 0.16
+4 0.00 0.31 0.01
2010年福建省根据国务院关于加快建设海峡西岸经济区的指示精神正式批准成立了平潭综合实验区,由此在平潭岛展开了一系列的海岛开发建设活动。因此,本文以2010年为时间分界点,分别从2001-2010年、2010-2014年及2001-2014年这3个时间段进行变化分析。

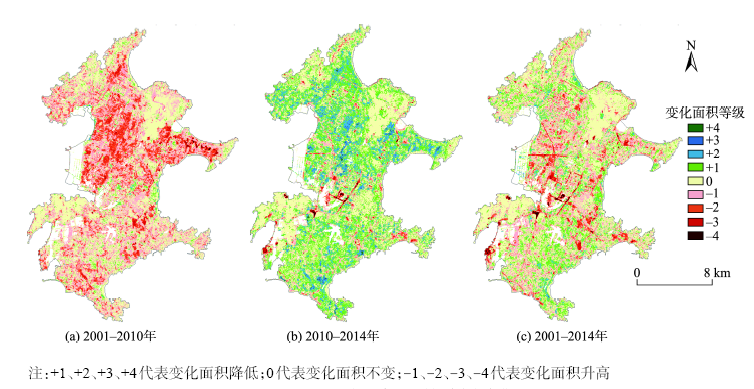

Fig. 3 Maps of fraction vegetation cover change in the study area between 2001 and 2014

图3 2001-2014年研究区植被覆盖度变化图

由图3（a）可知,2001-2010年研究区植被覆盖度的总体变化特征为下降,变化图主要呈现红、黄色调,即植被覆盖度下降和不变的区域分布较多,特别在中部地区,其植被覆盖度下降显著,红色斑块密集。结合表3的统计数据可知,该时间段内,植被覆盖度下降的区域面积比例高达53.95%,不变的面积比例占40.80%,而升高的面积比例仅为5.24%,数据统计结果与变化图的色调变化相吻合,分析结果说明在平潭综合实验区创建之前,研究区的植被覆盖度主要以下降为主,植被覆盖退化现象较为 突出。
由图3（b）可知,2010-2014年研究区植被覆盖度的总体变化特征为增加,变化图主要呈现黄、绿色调,绿色斑块分布区域广泛,表明绝大部分地区植被覆盖度都有所增加。表3显示,该时间段内植被覆盖度增加的区域面积比例高达47.77%,而降低的面积比例只占11.16%,说明在平潭综合实验区开发建设的初期阶段,岛上的植被覆盖度有明显增加趋势,植被覆盖状况得到一定程度的改善。
综合整个研究期的变化来看,2001-2014年研究区接近一半的区域植被覆盖度能保持稳定没有变化,但植被覆盖度下降区域的面积比例（31.56%）仍高于植被覆盖度增加的面积比例（21.36%）。可见,在整个研究时段内平潭岛的植被覆盖度总体上是下降的,主要原因是前一时间段内（2001-2010年）的植被覆盖度下降过于严重,植被退化或破坏的区域面积比重较大,即使在后一时间段内（2010-2014年）植被覆盖度有所增加,但仍未能完全消除前期的下降影响。总体上,研究区大部分区域的植被覆盖度下降等级以-1级为主（21.99%）,属轻微下降,只有小范围区域变化等级达-2、-3级,表明在局部区域植被覆盖下降较为严重。

5 平潭岛植被覆盖度的变化分析

为探究研究区植被覆盖度变化的原因,进一步对研究区进行土地覆盖类型分类,并将其与植被覆盖变化图进行叠加分析。

5.1 研究区土地覆盖类型变化分析

基于遥感影像自身的光谱特征,采用决策树分类方法分别对2001、2010和2014年的影像进行土地覆盖类型分类。将平潭岛的土地覆盖类型划分为5类,即林地、耕地、水体、建筑用地、未利用地。以同期或近期的Google Earth高分辨率影像作为精度验证数据,采用随机抽样法,分别采集330个样点对2001、2010和2014年的分类结果进行精度验证。结果表明,分类精度分别为80.7%、87.6%和90.3%,Kappa系数分别为0.56、0.78和0.86,均满足应用需要。通过使用ENVI软件进行分类后变化检测分析,得到面积转移矩阵表（表4）。
Tab. 4 The area transition matrix of different landcovers in the study area from 2001 to 2014

表4 2001-2014年研究区土地覆盖类型面积转移矩阵

类型/km2 水体 未利用地 建筑用地 林地 耕地
水体 5.95 1.39 0.14 0.30 1.98
未利用地 7.94 8.56 1.11 2.43 4.40
建筑用地 3.73 2.79 26.16 3.51 20.11
林地 1.91 2.45 1.88 54.89 30.24
耕地 0.66 1.84 0.21 6.87 82.33
表4结果表明,2001-2014年研究区分别有3.51 km2的林地和20.11 km2的耕地转化为建筑用地,极大地缩减了植被覆盖区域,同时其他地类转为林地或耕地的面积却非常少,因此总体上土地覆盖类型的变化是导致研究区植被覆盖面积大量减少、植被覆盖度下降的直接原因。

5.2 植被覆盖度变化的具体原因分析

植被覆盖度变化结果显示,2001-2010年植被覆盖度下降最明显的为研究区的中部片区（图3(a)）,这里是平潭县多个乡镇所在地,人口较为集中,在2001-2010年该片区进行了大面积的土地整理[21],大片有林地等高植被覆盖区域面积锐减,转为建筑用地、耕地等低植被覆盖类型,区域植被覆盖度下降显著;此外,由于城镇发展导致的用地需求矛盾日益突出,导致不断向东扩张,占用了大片的东部沿海防护林地,因此也造成了该片区植被覆盖度的大幅下降。在此期间,研究区南部局部片区也出现了一定程度的植被覆盖度下降趋势,这主要是由于当地之前营造的防护林树种单一且老化严重,长期受人类活动干扰和恶劣自然条件的影响,树种退化严重,被砍伐后,造林成活率低,二代幼林矮化,导致局部片区植被覆盖度有所降低[22]。
2010-2014年整个研究区总体上植被覆盖度呈上升趋势,变化图显示大部分区域都出现了植被覆盖状况有所改善的现象（图3(b)）。自2010年平潭综合实验区建立后,在海岛开发伊始就遵循规划先行的原则,制定了科学合理的建设规划,按照其总体规划的近期（2010-2015）建设目标[23],要在确保原有2000 hm2基本农田保护面积的基础上,增划 714 hm2优质耕地与基本农田共同构成基本农田保护区,因此在此后的海岛开发中不断扩增的基本农田保护区在一定程度上改善了区域的植被覆盖度。另外,平潭岛在开发建设中积极执行《平潭综合实验区2010年大绿化工程实施方案》,开发初期就划定了多个生态保护区（南寨山、将军山、君山自然保护区）,并加大力度植树造林,进一步完善了长江澳、燕下埔等5个风口的防护林带建设[24],通过推广生态农业、村镇绿化建设、构建生态廊道及环岛防护绿带等建设措施,以点带面形成日趋完善的海岛绿地系统,为生态海岛构建了重要的绿色屏障。根据《平潭综合实验区森园局2012年工作总结曁2013年工作计划》：2010-2012年连续3年在长江澳风口沿岸前沿造林80 hm2;流东流西风口共完成造林绿化200.01 hm2;在三十六脚湖周边造林绿化240.01 hm2;环岛路、坛西大道等交通干道造林66.67 hm2;2013年在对原有林区进行保护和修复的基础上再造林500.03 hm2[25]。截止2015年,长江澳风口沿岸造林已达133.34 hm2,平潭岛全区共完成造林绿化总面积9527.14 hm2,区域植被覆盖度大幅度上升,海岛的植被覆盖状况得到了较大的改善。但在平潭综合实验区的建设过程中,许多片区的土地覆盖类型也发生了较大的变化,成片的新开发用地占用了大量的农田耕地,纵横交错的道路建设使大片的林地消失,围海造地形成的大量未开发用地,这些都导致局部片区的植被覆盖度又有所下降。
纵观2001-2014年植被覆盖变化,主要是由于之前的海岛开发缺乏科学规划,岛上植被的开发利用不合理,再加上人为破坏,导致植被面积锐减,植被覆盖度严重下降。自平潭综合实验建立以来,得益于所采取的科学规划、大力度植树造林以及日益完善的海岛绿地系统建设等措施,使研究区的植被覆盖度有了快速的提升,整体植被覆盖状况得到了较大的改善,极大地弥补了之前植被覆盖度大幅下降的不利影响。因此,在平潭岛的后续开发建设中,要强化规划意识,继续坚持规划先行,科学制定开发目标,大力推行造林绿化,不断提升平潭岛的植被覆盖度,使平潭综合实验区的开发建设更具有生态可持续性。
