上海市精细时空尺度人口分布估计与特征分析
作者简介:李明晓(1991-),男,吉林长春人,博士生,研究方向为时空大数据挖掘。E-mail: limx@lreis.ac.cn
收稿日期: 2016-08-01
要求修回日期: 2016-10-20
网络出版日期: 2017-06-20
基金资助
国家自然科学基金面上项目(41571431、41401460、41271408)
国家自然科学基金重点项目(41231171)
Fine-grained Population Estimation and Distribution Characteristics in Shanghai
Received date: 2016-08-01
Request revised date: 2016-10-20
Online published: 2017-06-20
Copyright
城市人口实时分布与动态变化特征是城市规划与综合治理的重要依据。受数据获取手段的局限性,准确地获取城市人口的实时分布状况一直是技术瓶颈,而移动通讯技术的迅速普及为这一问题的解决提供了技术途径。本文基于移动通讯信令的连续轨迹数据,实现了城市精细尺度人口分布时空估算的方法流程,并以上海市为研究区,对城市人口分布特征及时空移动过程进行了量化分析。研究表明:① 在数据方面,基于移动通讯信令数据估算城市人口分布的方式样本覆盖广、时空精度高、时效性较强且支持时空尺度灵活多变的应用研究需求,能够定量地描述城市人口分布时空动态特征且能推算城市真实人口规模;② 在人口分布时空特征方面,上海市在全市尺度上,各时段人口空间分布较为稳定且差异较小,而在中心城区日间人口较夜间人口呈现更为显著的空间集聚特征;③ 在人口移动时空特征方面,城市功能承载区与其它区域之间人口移动很少,早晚高峰期各城市功能承载区之间人口移动均体现为中心城区与其它新城之间的移动,且2个方向移动人数较为平衡;各城市功能承载区内均有超过半数的人口全天仅在其所在城区内部活动。本文的研究成果可为上海城市规划、应急管理、交通出行等提供更精准的科学依据。
李明晓 , 陈洁 , 张恒才 , 仇培元 , 刘康 , 陆锋 . 上海市精细时空尺度人口分布估计与特征分析[J]. 地球信息科学学报, 2017 , 19(6) : 800 -807 . DOI: 10.3724/SP.J.1047.2017.00800
Urban population distribution and its dynamic changes have been playing a key role in urban planning and management. Currently, the wide use of information communication technology (ICT) provides an opportunity to support fine-scale studies by acquiring accurate individual positioning data. By extracting regular individual trajectories from a mobile communication signaling dataset, this study established an estimation procedure of urban population distribution and quantitatively analyzed spatiotemporal characteristics of population distribution and migration in Shanghai. The results indicated that, firstly, mobile communication signaling data had the ability to describe the dynamic characteristics of urban population and to estimate the real population size of a city in a quantitative and relatively an authentic way by taking its advantages of wide sample coverage, high spatial resolution, good timeliness and multiple spatiotemporal scales. Secondly, population distribution of Shanghai on the whole is stable all day long. Comparatively, population at the daytime showed a more remarkable spatial agglomeration phenomenon than population at night. Thirdly, the population migration between urban functional areas and other areas is rare. During the rush hour in the morning and evening, the population migration was mainly depicted as a relatively equally both-way movements between central urban area and other new urban functional areas. Within each functional area, more than half of its population is not moving out. In conclusion, this study can be useful for urban planning, emergency management and public traveling information services.

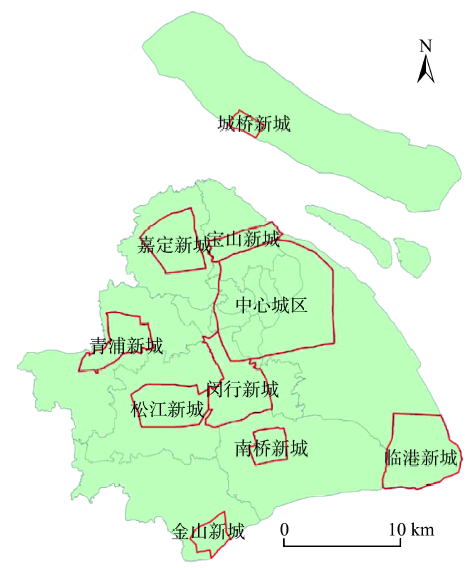

Fig.1 Urban functional areas in Shanghai图1 上海城市功能承载区示意图 |

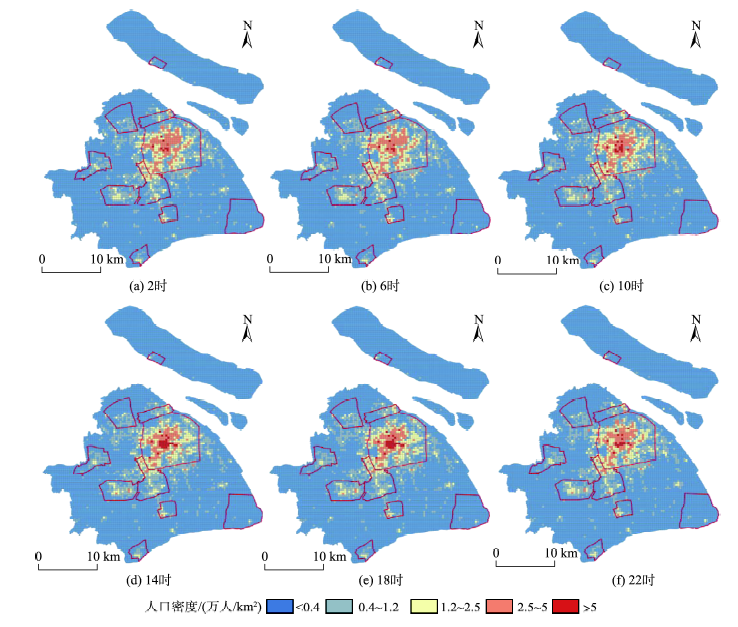

Fig. 2 Spatio-temporal mapping of population density in Shanghai (one weekday)图2 上海市人口密度一日时空图谱(某工作日) |
Tab.1 The day and night population size of central urban area and new urban areas in Shanghai表1 上海市中心城区及各新城昼夜人口规模 |
区域 | 白天人口/万人 | 夜间人口/万人 | 昼夜人口比/% |
---|---|---|---|
中心城区 | 1109.30 | 1061.71 | 104.48 |
南桥新城 | 28.30 | 28.09 | 100.75 |
松江新城 | 92.87 | 89.67 | 103.57 |
闵行新城 | 145.16 | 152.73 | 95.04 |
嘉定新城 | 39.44 | 35.11 | 112.33 |
青浦新城 | 45.00 | 42.31 | 106.36 |
宝山新城 | 38.25 | 40.36 | 94.77 |
城桥新城 | 5.75 | 5.72 | 100.52 |
金山新城 | 18.94 | 19.54 | 96.93 |
临港新城 | 21.05 | 20.52 | 102.58 |

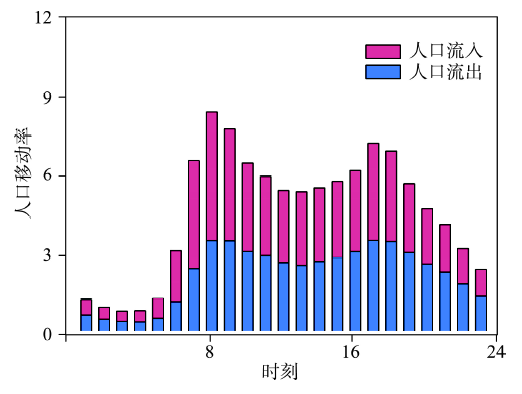

Fig. 3 The ratios of inflow and outflow population between urban functional areas in Shanghai图3 上海市城市功能承载区内外的人口移动率 |

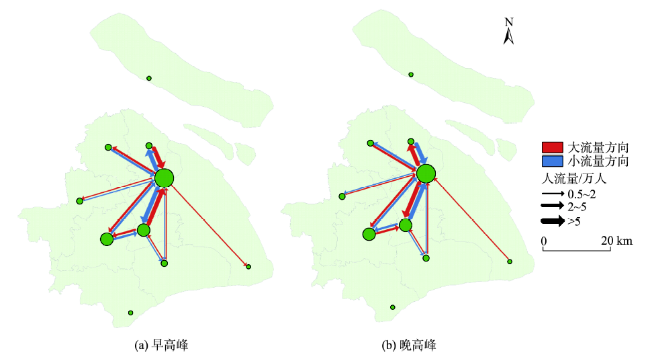

Fig. 4 The population movement within urban functional areas in Shanghai图4 上海市城市功能承载区内部人口移动 |
Tab.2 The unbalanced factor of the main channels of population movement in Shanghai表2 上海市人口移动主要通道不平衡系数 |
主要通道 | 不平衡系数(早高峰) | 不平衡系数(晚高峰) |
---|---|---|
中心城区-闵行新城 | 1.352 | 1.389 |
中心城区-宝山新城 | 1.269 | 1.166 |
中心城区-松江新城 | 1.181 | 1.144 |
中心城区-嘉定新城 | 1.582 | 1.518 |
中心城区-青浦新城 | 1.366 | 1.378 |
中心城区-南桥新城 | 1.022 | 1.071 |
中心城区-临港新城 | 2.115 | 2.174 |
闵行新城-南桥新城 | 1.111 | 1.049 |
闵行新城-松江新城 | 1.236 | 1.172 |
The authors have declared that no competing interests exist.
