秦巴山区植被覆盖与土壤湿度时空变化特征及其相互关系
作者简介:翟雅倩(1993-),女,博士生,主要从事地理空间分析应用研究。E-mail: zhaiyaqian2009@163.com
收稿日期: 2017-12-11
要求修回日期: 2018-03-08
网络出版日期: 2018-07-13
基金资助
陕西省社会科学基金项目(2016G013);宝鸡文理学院校级重点项目(ZK16064);陕西省自然科学基础研究计划项目(2018JQ4039)
Spatio-temporal Variation and Interrelationship of Vegetation Cover and Soil Moisture in Qinling-Daba Mountains
Received date: 2017-12-11
Request revised date: 2018-03-08
Online published: 2018-07-13
Supported by
Shannxi Social Sciences Fund Project, No.2016G013;Key Project of Baoji University of Arts and Sciences, No.ZK16064;The Natural Science Basic Research Plan of Shaanxi Province under Grant, No.2018JQ4039
Copyright
基于2001-2014年MODIS-NDVI和MODIS-LST数据,利用温度植被干旱指数对土壤湿度进行遥感反演,分析了秦巴山区植被覆盖与土壤湿度时空变化特征及其相互关系。研究发现:① 秦巴山区植被覆盖与土壤湿度均呈增加趋势;② 植被覆盖整体水平较高且表现出“四周低,中间高”的空间分布特征,土壤湿度整体表现出“北低南高”的空间分布特征,大体上二者呈现出空间分布正相关性;③ 植被改善趋势表现明显,显著改善区分布分散,无明显集中区域,退化区域主要集中于北部渭河沿岸及东部边缘少量地区;土壤湿度增长态势明显,增大区分布于除西北边缘及东北边缘外的几乎整个研究区中,减小区域面积小且大部分表现不显著;④ 秦巴山区植被覆盖与土壤湿度时空变化上呈现出明显的正相关性,其中69.71%的区域表现出土壤湿度增大-植被覆盖改善的特征,分布于研究区除四周边缘地带外的大部分地区。
翟雅倩 , 张翀 , 周旗 , 常宵移 . 秦巴山区植被覆盖与土壤湿度时空变化特征及其相互关系[J]. 地球信息科学学报, 2018 , 20(7) : 967 -977 . DOI: 10.12082/dqxxkx.2018.170597
Qinling-Daba Mountains, as the geographical dividing line in central China, is the main water source area of the middle line project of transferring water from south to north, and also a sensitive area of the regional response to the global climate change. The spatio-temporal variation of vegetation, as a main component of terrestrial ecology system, represents the comprehensive response to climate change and human activities. Based on the MODIS data during 2001-2014, this study estimated the soil moisture using temperature vegetation dryness index, dynamically monitored the distribution characters and spatiotemporal variations of vegetation cover and soil moisture, analyzed its change trend, forecasted its future trend, and explored the interrelationship between vegetation cover and soil moisture in Qinling-Daba Mountains. The main conclusions are as follows: (1) Vegetation showed an increasing trend in Qinling-Daba Mountains during 2001-2014 years, as well as soil moisture, which respectively represented the best in 2010 and 2011, then both showed declining trends. (2) Vegetation distribution had a feature of “higher overall and lower in the middle”, while soil moisture with “lower in the north and higher in the south”, which showed a positive spatial correlation. (3) Vegetation had an obvious improving trend, and the significantly improved areas are dispersionally distributed, with no obvious concentration areas, and degraded areas were mainly concentrated in the north of Weihe River and a few areas along the eastern edge. Soil moisture increased significantly, and the increased areas distributed almost over the entire area except the northwest and northeast edge, and the reduced areas were small and not noticeable. The reverse variation of vegetation cover was stronger than continuous change, but soil moisture was just the opposite. In predicted future, in 44.36% of the study area, dispersed in entire area, the vegetation cover will undergo a process from increase to reduction, while soil moisture will continue to grow in 43.98% of the study area, including Qinling mountain in Shaanxi Province, Daba mountain in Sichuan province, and some parts of Jialing River basin and Han River. (4) The correlation between vegetation cover and soil moisture is positive. Nearly 69.71% of the study area showed an increasing tendency in both vegetation cover and soil moisture content, which was distributed in almost all parts of the study area except for the edges.

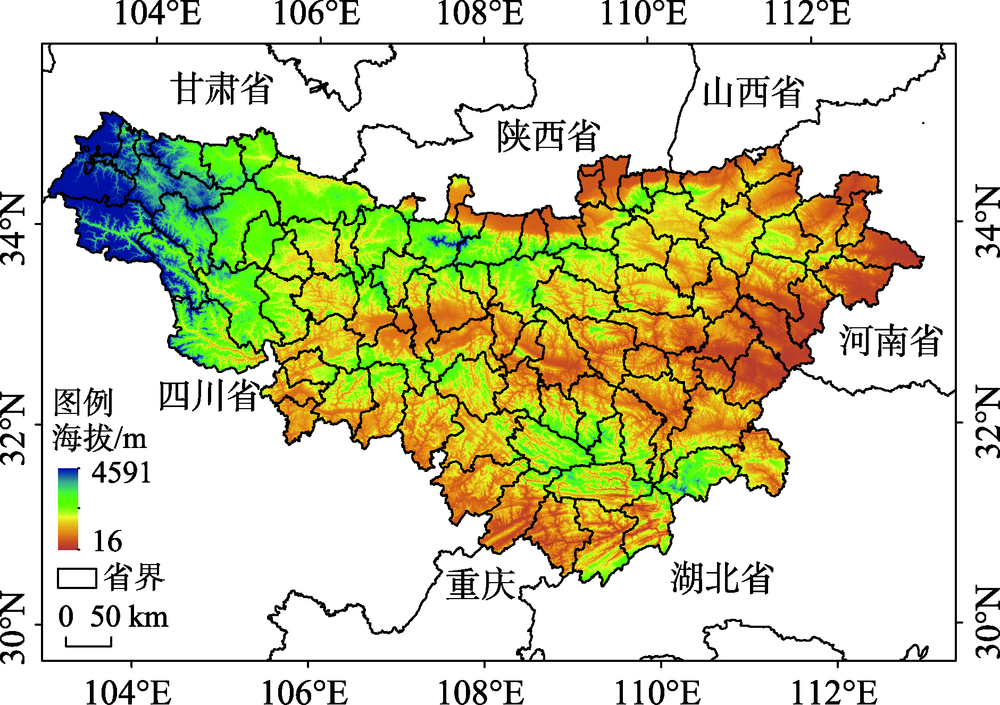

Fig. 1 Study area图1 研究区概况 |

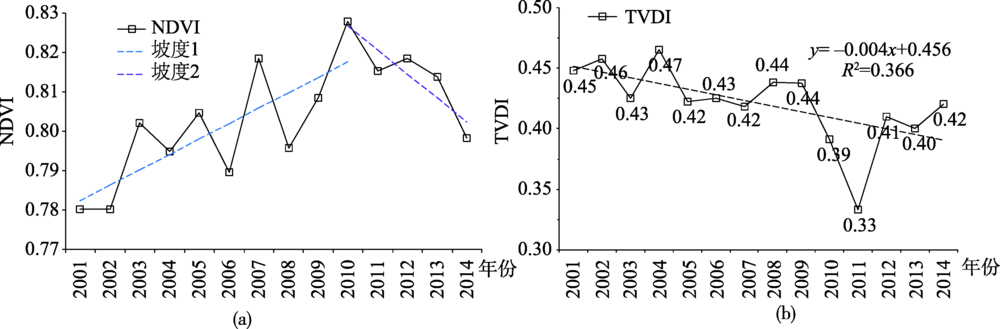

Fig. 2 Temporal variation of NDVI and TVDI in Qinling-Daba Mountains图2 秦巴山区NDVI与TVDI年际变化趋势 |

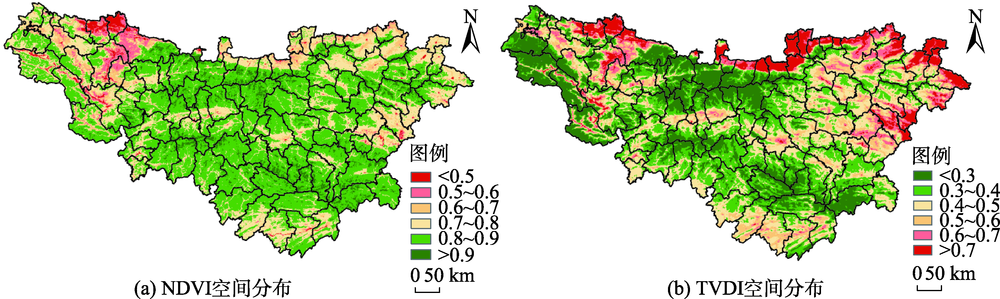

Fig. 3 Spatial characteristics of NDVI and TVDI in Qinling-Daba Mountains图3 秦巴山区NDVI与TVDI空间分布特征 |
Tab. 1 Proportion of NDVI change types in Qinling-Daba Mountains表1 2001-2014年秦巴山区NDVI变化类型统计表 |
变化类型 | 所占面积/km2 | 面积百分比/% | 累计百分比/% |
---|---|---|---|
极显著退化 | 3 080 | 1.20 | 1.20 |
显著退化 | 3 873 | 1.51 | 2.72 |
弱显著退化 | 3 258 | 1.27 | 3.99 |
不显著退化 | 43 992 | 17.19 | 21.18 |
极显著改善 | 35 440 | 13.85 | 35.03 |
显著改善 | 34 625 | 13.53 | 48.57 |
弱显著改善 | 22 191 | 8.67 | 57.24 |
不显著改善 | 109 413 | 42.76 | 100.00 |

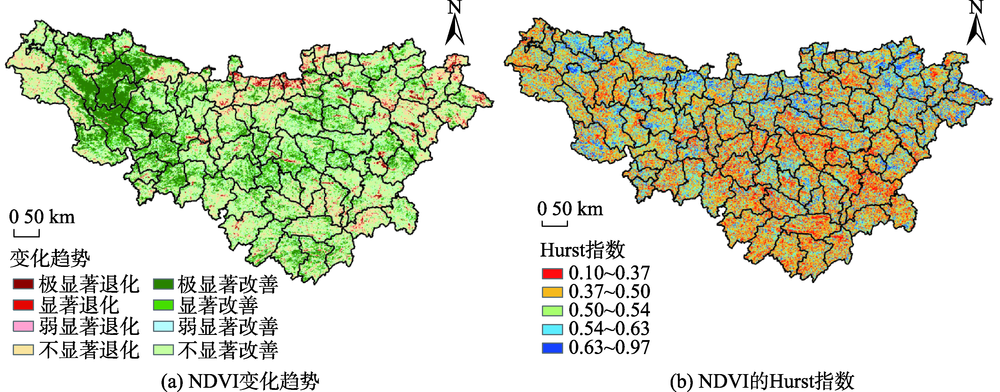

Fig. 4 Spatial distribution of NDVI trend and Hurst in Qinling-Daba Mountains图4 秦巴山区NDVI变化趋势及Hurst指数分布 |

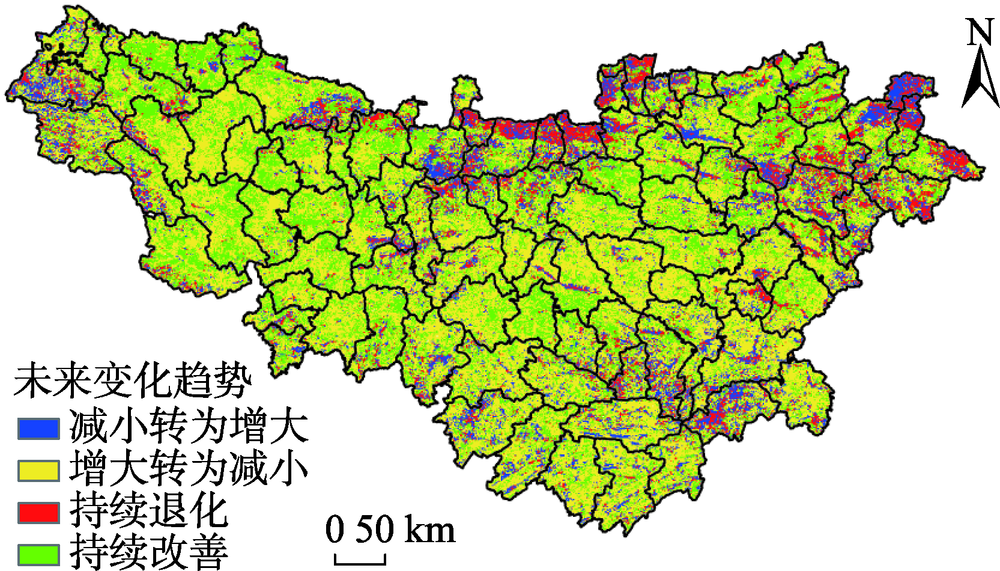

Fig. 5 Future trend of NDVI in Qinling-Daba Mountains图5 秦巴山区NDVI的未来变化特征 |
Tab. 2 Proportion of the types of TVDI change in Qinling-Daba Mountains表2 2001-2014年秦巴山区TVDI变化类型统计表 |
变化类型 | 所占面积/km2 | 面积百分比/% | 累计百分比/% |
---|---|---|---|
极显著减小 | 22 904 | 8.95 | 8.95 |
显著减小 | 32 895 | 12.86 | 21.81 |
弱显著减小 | 23 077 | 9.02 | 30.83 |
不显著减小 | 132 290 | 51.70 | 82.53 |
极显著增大 | 234 | 0.09 | 82.62 |
显著增大 | 1039 | 0.41 | 83.02 |
弱显著增大 | 1385 | 0.54 | 83.57 |
不显著增大 | 42 051 | 16.43 | 100.00 |

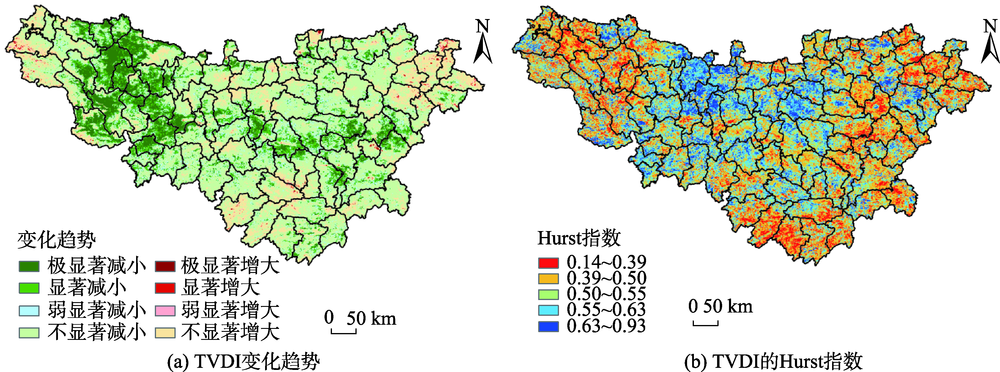

Fig. 6 Spatial distribution of TVDI trend and Hurst index in Qinling-Daba Mountains图6 秦巴山区TVDI变化趋势及Hurst指数分布 |

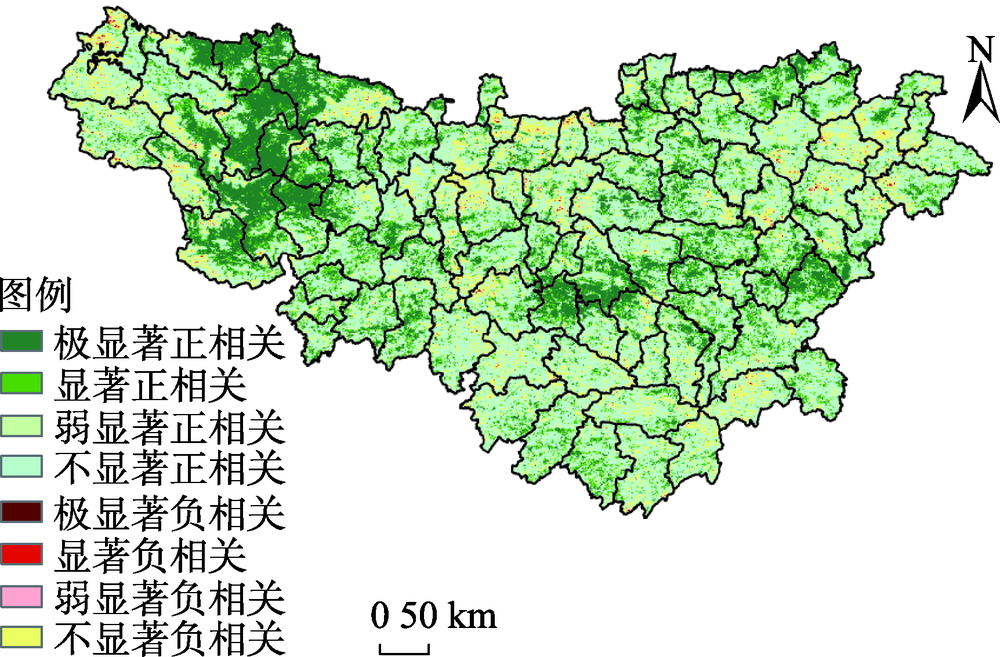

Fig. 8 The correlation between soil moisture and vegetation cover in Qinling-Daba Mountains图8 秦巴山区植被覆盖与土壤湿度相关分析 |

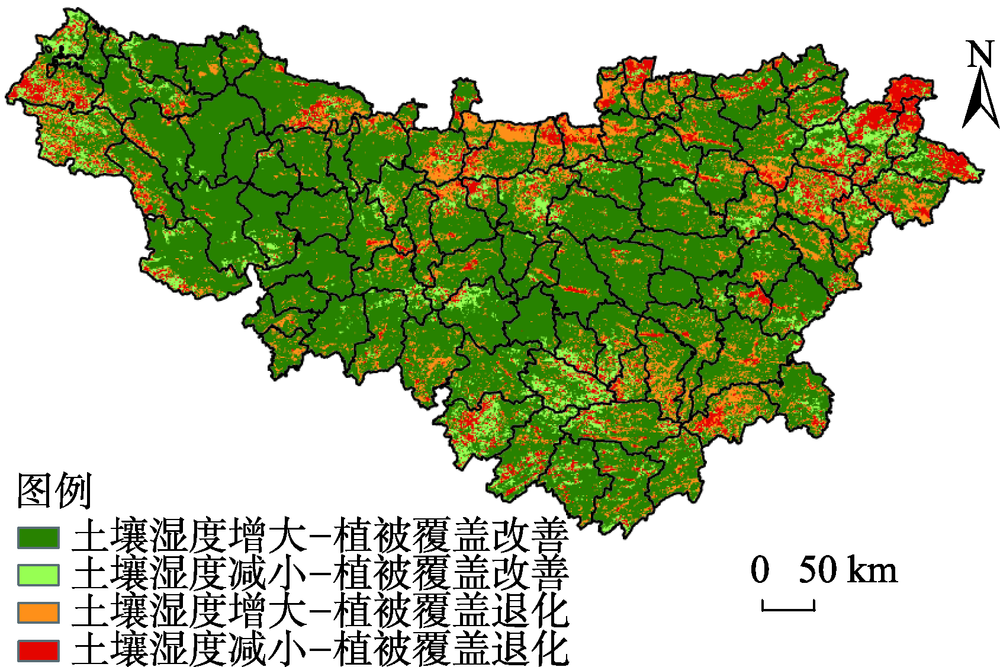

Fig. 9 Variation trend of vegetation cover under soil moisture change in Qinling-Daba Mountains图9 土壤湿度变化与植被覆盖变化的对应关系 |
