基于低频出租车轨迹的城市路网交叉口提取研究
李思宇(1996-),女,湖南衡阳人,硕士生,主要研究方向为轨迹数据处理分析。E-mail: lsrain@whu.edu.cn |
收稿日期: 2019-04-24
要求修回日期: 2019-09-15
网络出版日期: 2019-12-25
基金资助
国家自然科学基金项目(41771474)
国家自然科学基金项目(41471374)
版权
Extraction of Urban Road Network Intersections based on Low-Frequency Taxi Trajectory Data
Received date: 2019-04-24
Request revised date: 2019-09-15
Online published: 2019-12-25
Supported by
National Natural Science Foundation of China(41771474)
National Natural Science Foundation of China(41471374)
Copyright
出租车GPS轨迹数据获取成本低、周期短,且覆盖面广,具有实时性及大规模性,同时其包含大量的行车记录信息,对提取数字道路信息具有巨大贡献,适用于大范围城市交通路网信息的获取和快速更新。基于GPS轨迹数据进行交叉口提取是目前的研究热点,但现有研究方法大多适用于高频GPS数据,不能很好地提取稀疏区域的交叉口,难以适应出租车轨迹点采样频率低、定位精度低、噪声点多、数据分布不均匀的特性。因此,本文聚焦于城市路网的交叉口识别,为尽可能准确、全面地提取道路交叉口信息,兼顾密集与稀疏区域,提出了一种集成识别策略,分别在矢量空间和栅格空间,采用密度峰值聚类和数学形态学处理方法提取交叉口,并设计了一种融合机制探测交叉口,最后结合主成分分析法判断交叉口的真伪性,识别真实交叉口,并去除伪交叉口,从而得到基于低频出租车轨迹的城市道路交叉口。与已有的研究方法相比,本方法提取了更多的交叉口,并与遥感图像显示一致。本文提取结果准确率为92.23%、召回率为77.26%、F值为84.08%,很好地保证了交叉口的完整性和准确性,在智能交通系统中具有一定的应用价值。
李思宇 , 向隆刚 , 张彩丽 , 龚健雅 . 基于低频出租车轨迹的城市路网交叉口提取研究[J]. 地球信息科学学报, 2019 , 21(12) : 1845 -1854 . DOI: 10.12082/dqxxkx.2019.190187
Taxi GPS trajectory data are of low acquisition cost, short cycle, large coverage, large-scale, and real-time. Moreover, taxi trajectory data contain a large amount of driving record information for extracting digital road information. Thus, taxi GPS trajectory data are suitable for obtaining and rapidly updating the information of large-scale urban traffic road networks. The extraction of urban road network intersections based on GPS trajectory data is currently a research hotspot. However, most of existing methods, which are applicable to the high-frequency GPS data, are difficult to adapt to taxi trajectories with low sampling frequency, low positioning accuracy, many noise points, and uneven data distribution. Therefore, existing methods are not readily applied to extract the intersections of suburb areas where taxi trajectory data are sparse or low-frequency. To extract road intersection information as accurately and comprehensively as possible, this paper proposed an integrated methodology to identify the intersections of urban road networks based on dense and sparse trajectory data. In this paper, the density peak clustering method was adopted in the vector space. Meanwhile, the mathematical morphology processing method was adopted in the grid space, where multiple resolution images were generated in the trajectory data rasterization stage. The extraction results were finally fused to achieve the purpose of extracting the road intersections of suburb areas with low traffic (i.e., sparse sampled data). Further, a fusion mechanism was designed to detect these intersections by fusing multiple results in both spaces. Finally, this paper used principal component analysis to determine the authenticity of the intersections, which was used to identify real intersections and remove pseudo intersections that were incorrectly extracted. In so doing, we obtained the urban road intersections based on the low-frequency taxi trajectory. Compared with existing methods, this method extracted more intersections and showed considerable consistency with remote sensing imagery. Besides, the accuracy evaluation shows that the extraction accuracy was 92.23%, the recall rate was 77.26% and the F-value was 84.08%. Our findings suggest that the proposed methodology can ensure the integrity and accuracy of urban road network intersections and be applied in intelligent transportation systems.

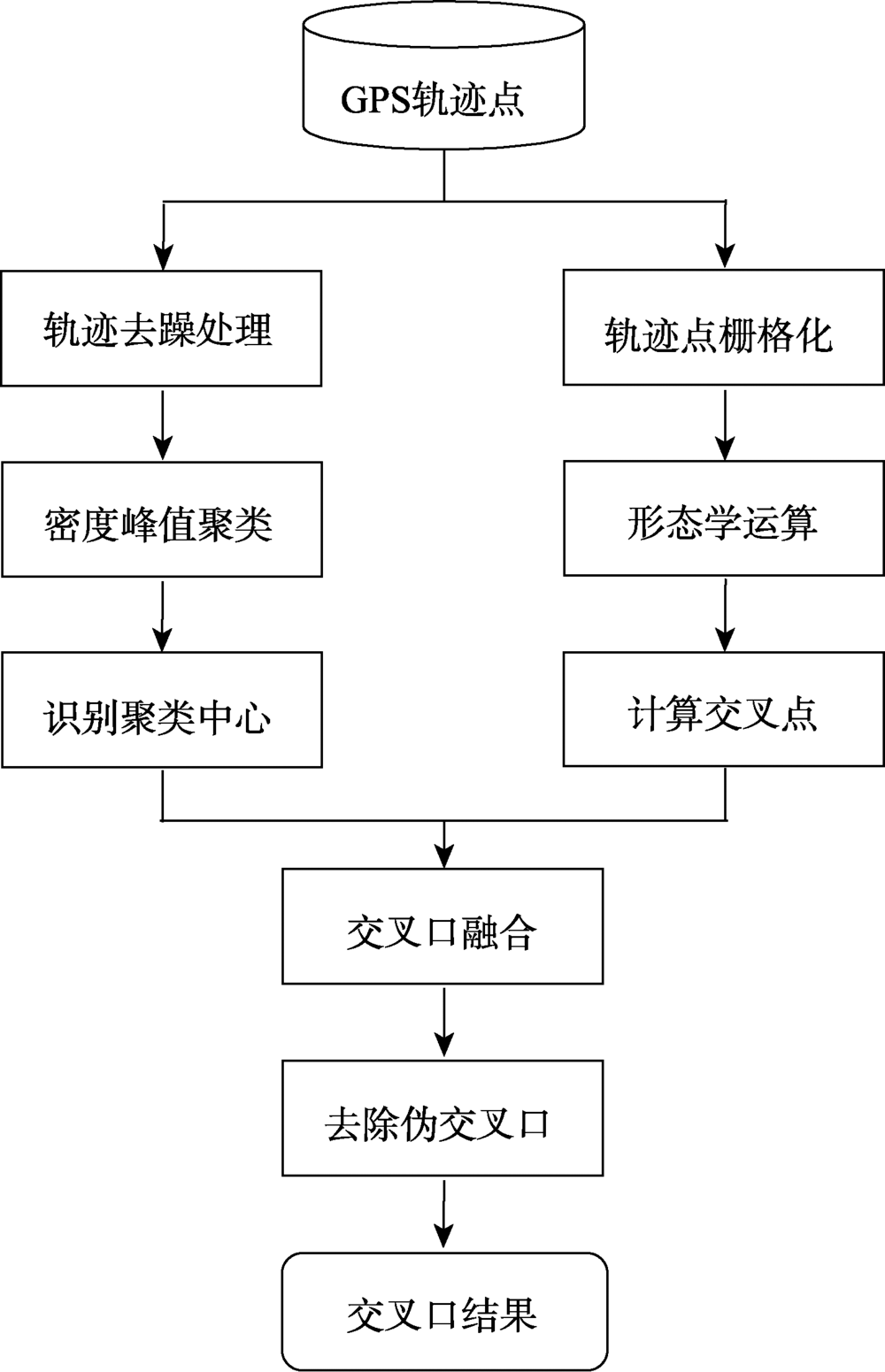

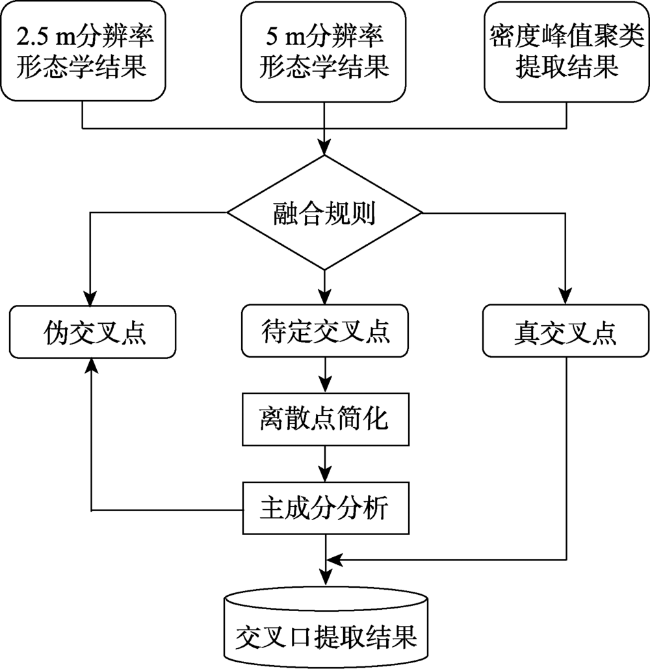

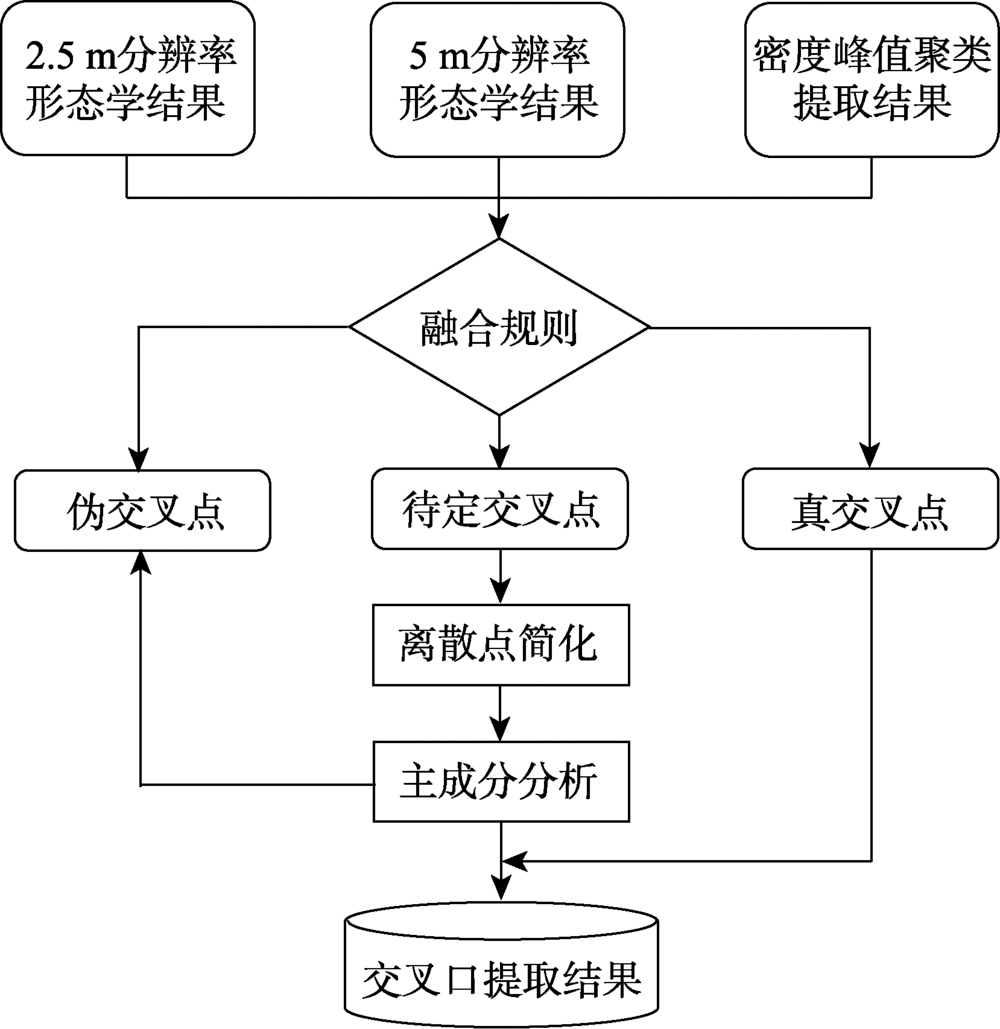

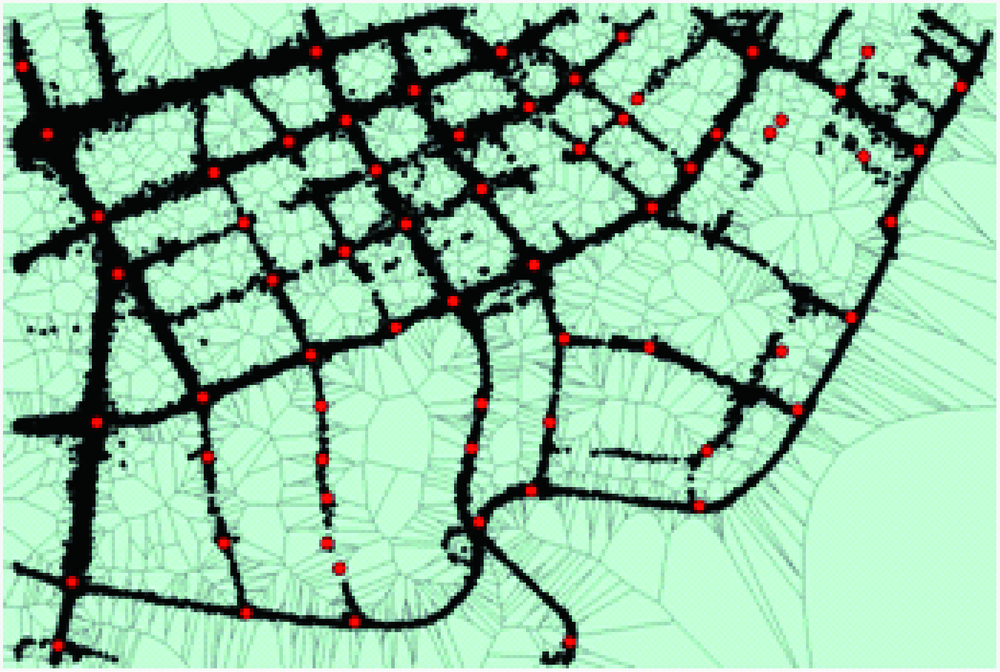

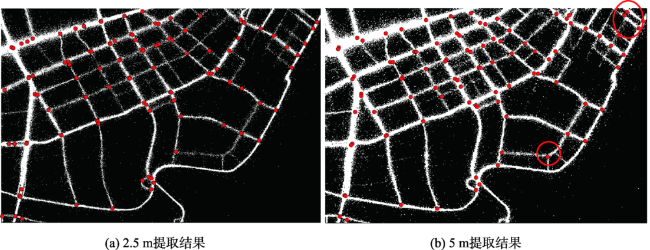

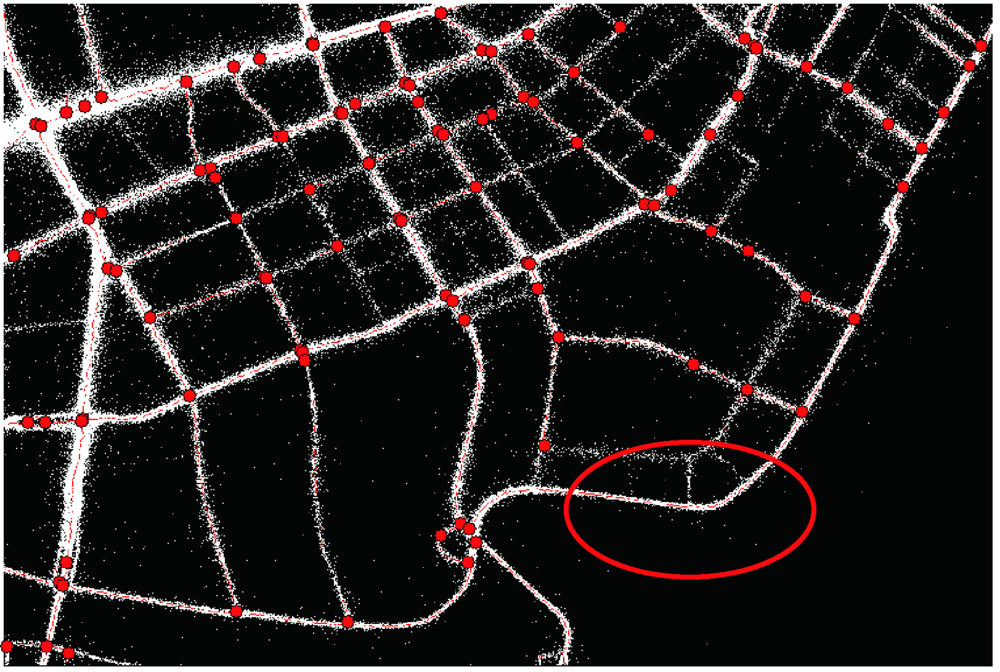

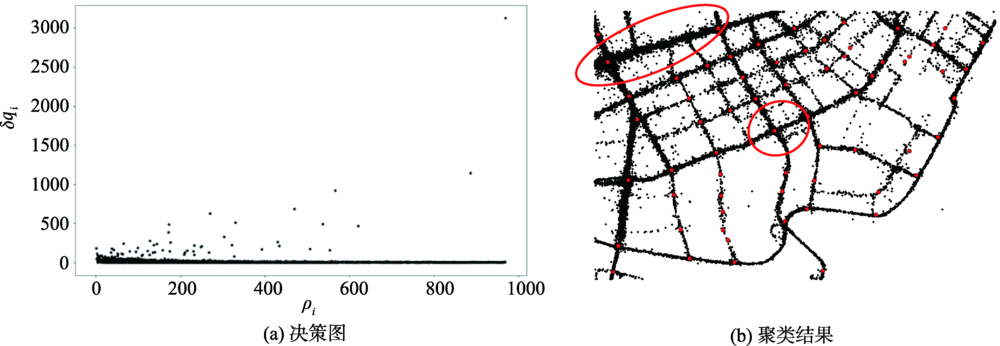

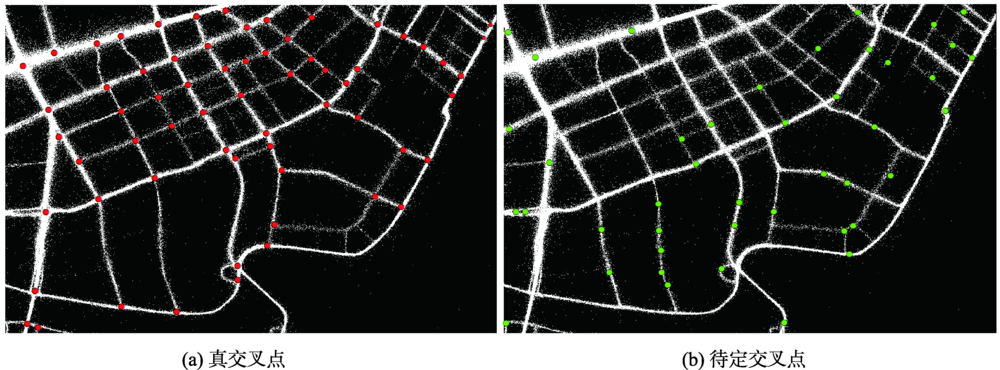

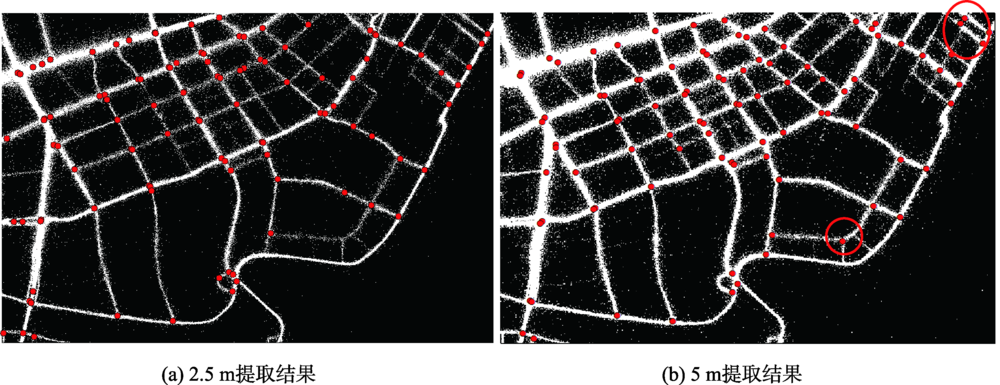

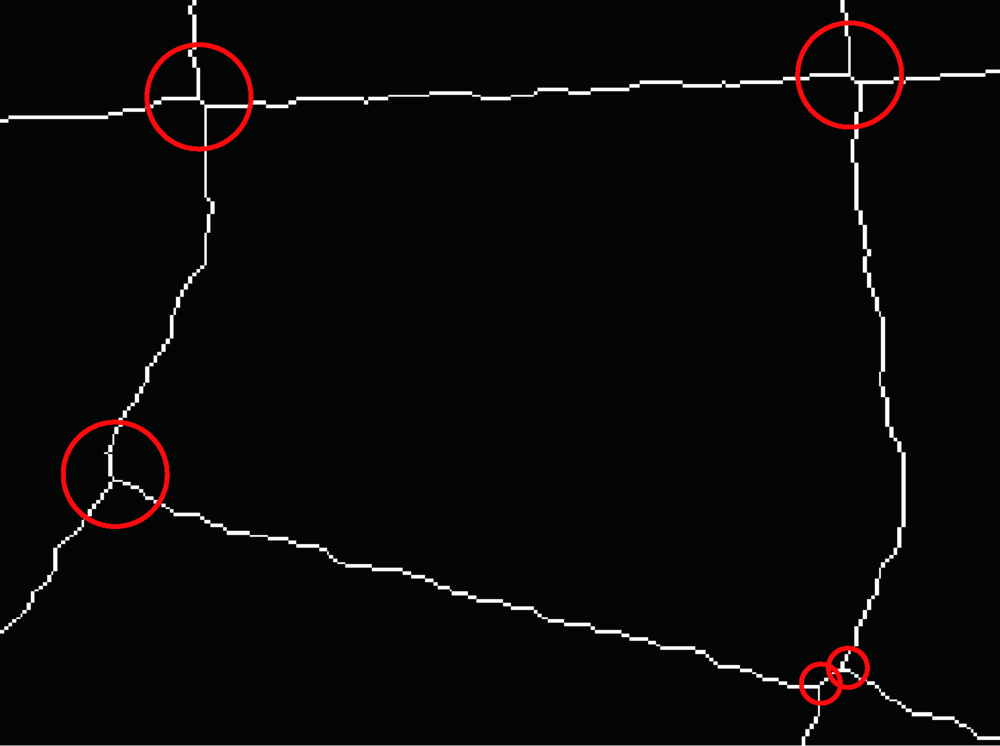

表1 多种提取结果的融合原则Tab. 1 Rule for data fusion of multiple extraction results |
2.5 m提取结果 | 5 m提取 结果 | 密度峰值聚类 提取结果 | 判断 结果 |
---|---|---|---|
√ | √ | √ | 真 |
√ | √ | 真 | |
√ | √ | 真 | |
√ | √ | 真 | |
√ | 待定 | ||
√ | 待定 | ||
√ | 待定 |
注:表中“√”表示提取出有交叉点,“空白”表示未提取出交叉点。 |

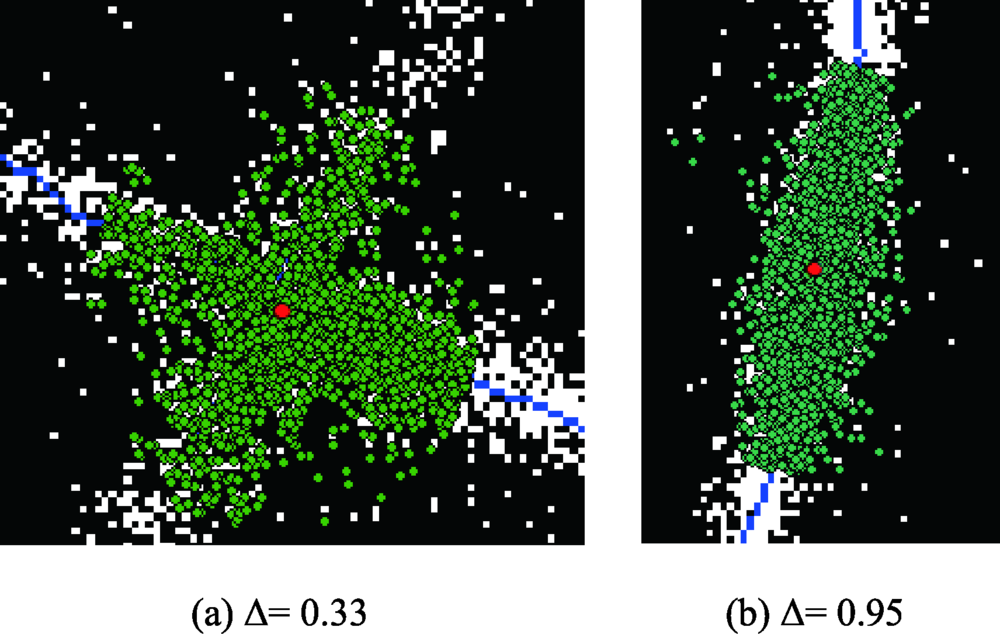

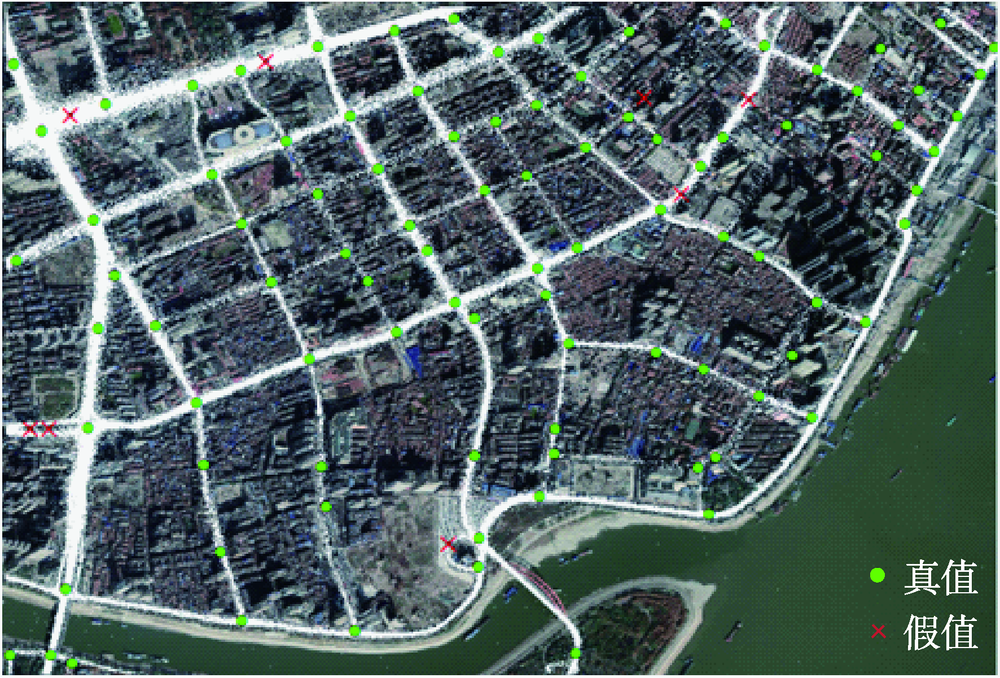

表2 道路交叉口提取结果的精度评价与比较Tab. 2 Accuracy evaluation and comparison of road intersection extraction results (%) |
方法 | 准确率 | 召回率 | F-值 |
---|---|---|---|
本文方法 | 92.23 | 77.26 | 84.08 |
Ahmed方法 | 74.00 | 30.08 | 42.77 |
Davies方法 | 85.19 | 56.10 | 67.65 |
