气候变化情景下淮河上游流域氮排放预测研究
侯 玥(1994— ),女,河北保定人,硕士,主要从事流域污染模拟研究。E-mail: houy@lreis.ac.cn |
收稿日期: 2021-09-10
修回日期: 2021-11-23
网络出版日期: 2022-10-25
基金资助
国家自然科学基金项目(42071375)
国家自然科学基金项目(41971357)
国家自然科学基金项目(41531179)
国家重点研发计划项目(2016YFC1302504)
国家重点研发计划项目(2020YFC-1807404)
国家社会科学基金重大项目(21&ZD186)
Prediction of Nitrogen Emission in the Upper Reaches of the Huai River Basin Under Climate Change Scenarios
Received date: 2021-09-10
Revised date: 2021-11-23
Online published: 2022-10-25
Supported by
National Natural Science Foundation of China(42071375)
National Natural Science Foundation of China(41971357)
National Natural Science Foundation of China(41531179)
National Key Research and Development Program of China(2016YFC1302504)
National Key Research and Development Program of China(2020YFC-1807404)
Key Project of National Social Science Foundation of China(21&ZD186)

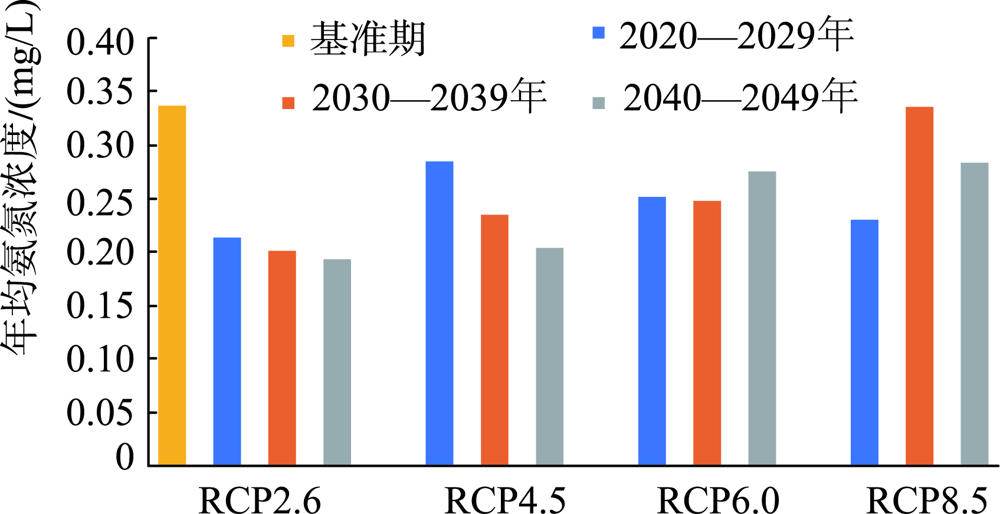

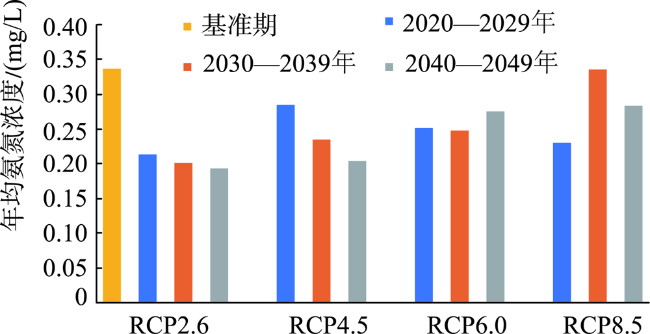

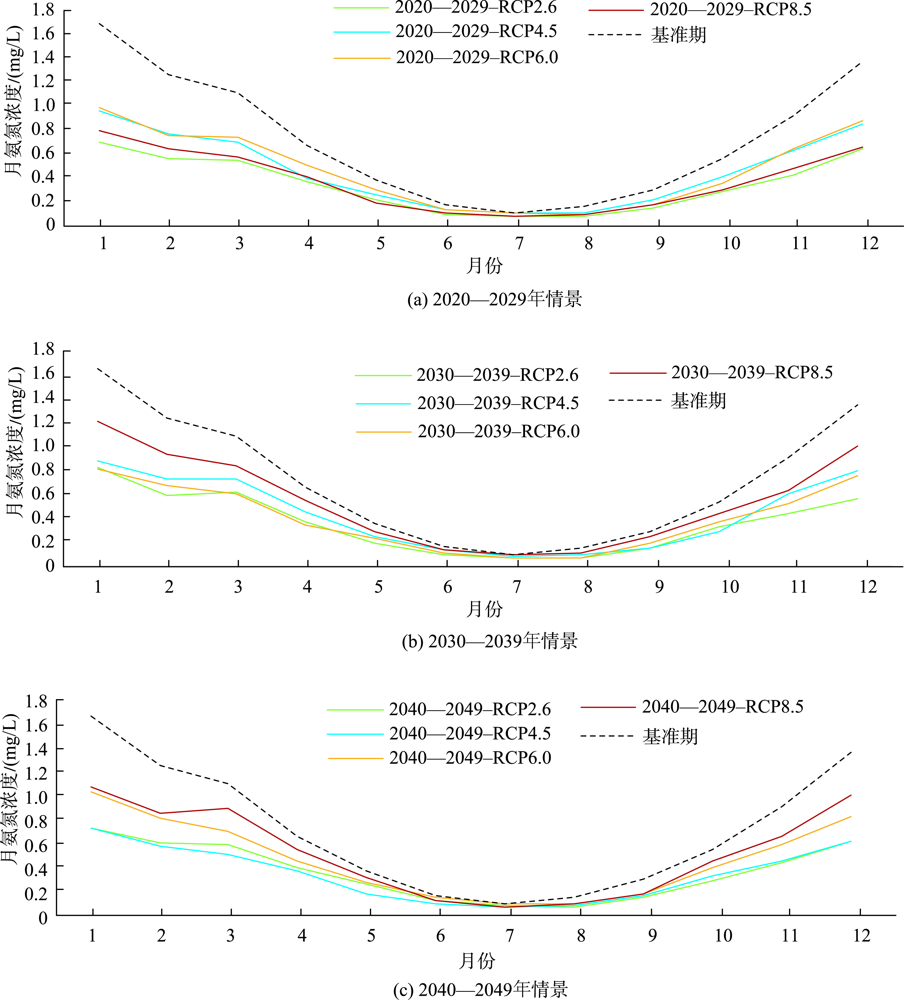

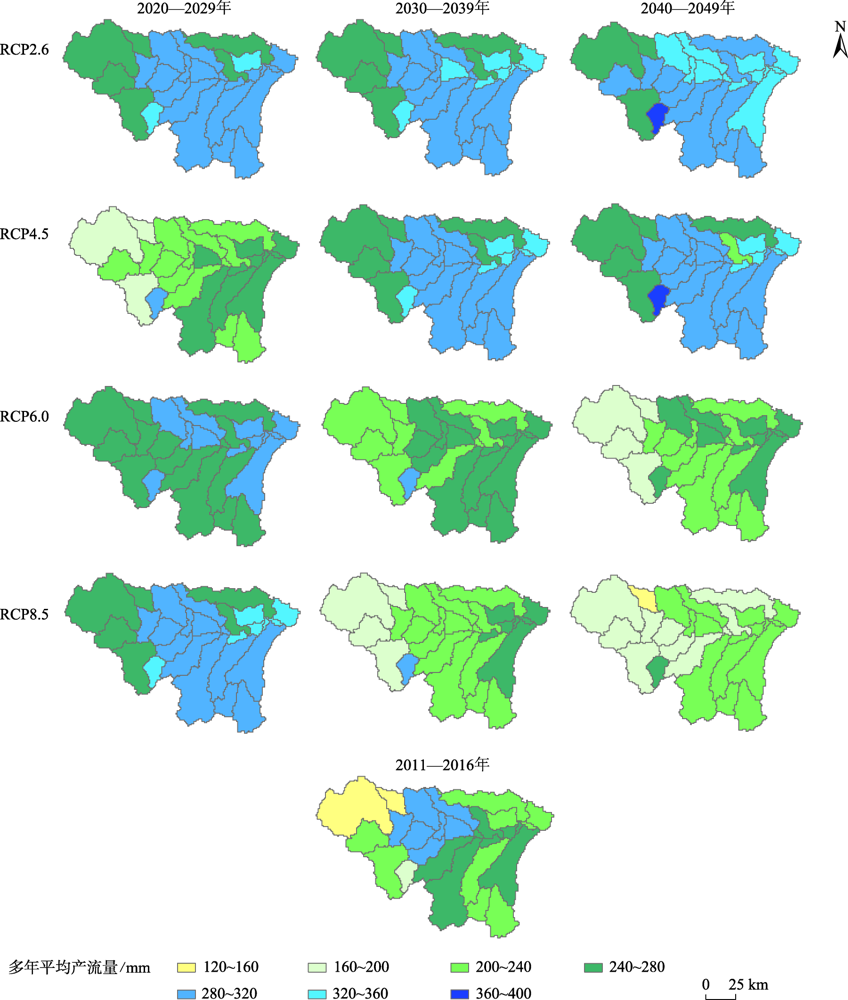

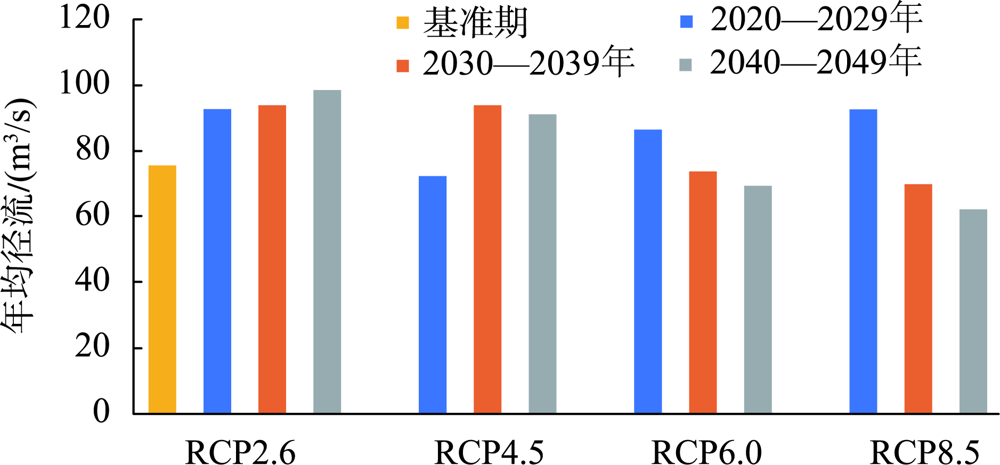

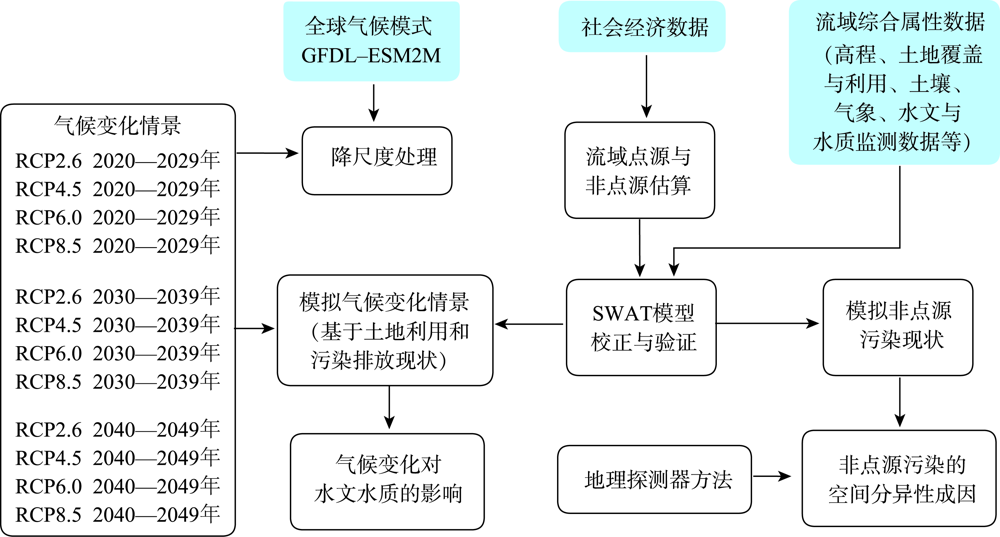

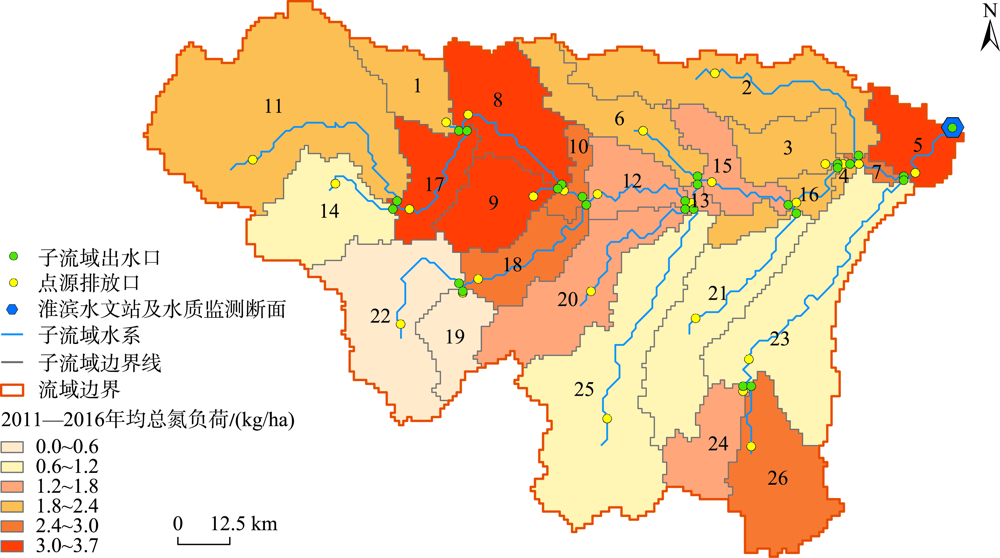

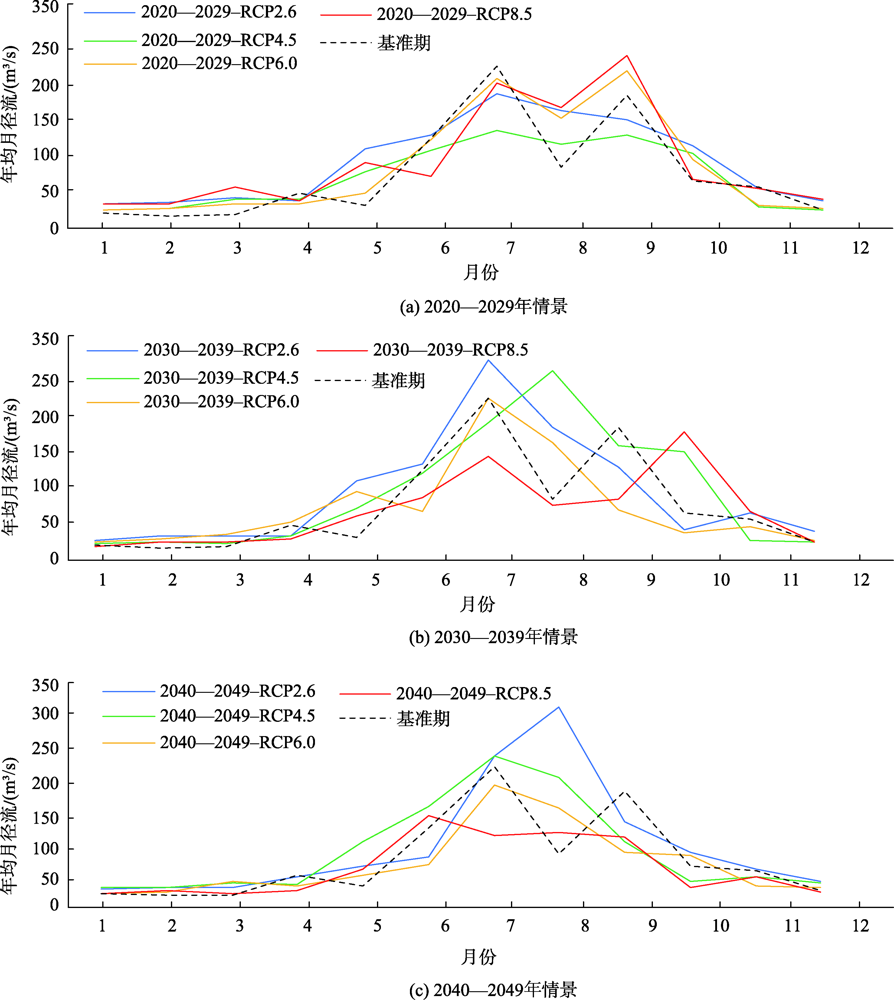

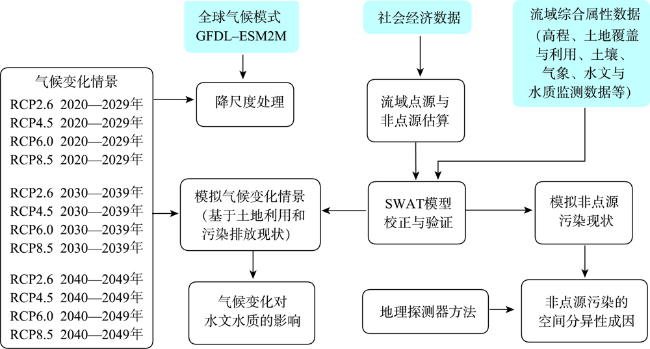

淮河流域是水体遭受营养盐污染较严重的地区,本研究选择淮河上游的淮滨流域(淮滨站以上,流域面积1.6万km2)为研究对象,首先构建了淮滨流域SWAT水文水质模型,然后利用2011—2017年淮滨站实测的月径流和月氨氮浓度对SWAT模型进行了校正与验证,最后基于全球气候模型(GCM)气象数据,预测了未来30年(2020—2029年、2030—2039年、2040—2049年)不同气候变化情境(RCP2.6、RCP4.5、RCP6.0、RCP8.5)下的径流、氨氮浓度和非点源总氮负荷。结果发现,径流在校正期和验证期的Nash-Suttcliffe系数均为0.79,氨氮在校正期和验证期的Nash-Suttcliffe系数均高于0.5,表明模型的适用性良好。研究发现本研究区施肥量与土地利用类型是非点源氮负荷空间分异的主导因素。2020—2049年,不同气候变化情景下,本研究区的降水量和气温均为增长趋势。假如保持基准期(2011—2016年)污染排放强度,仅考虑气候变化影响,流域内非点源污染总氮负荷将比基准期最多增加31.8%,流域出水口淮滨站的年均氨氮浓度将最多减小42.6%。本研究可以为气候变化下淮滨流域的水文水质管理提供科学支撑。
侯玥 , 徐成东 , 刘伟 , 殷倩 . 气候变化情景下淮河上游流域氮排放预测研究[J]. 地球信息科学学报, 2022 , 24(8) : 1558 -1574 . DOI: 10.12082/dqxxkx.2022.210546
The Huai River Basin is an area where water bodies are seriously polluted by nutrients. Using data from the Huaibin Basin in the upper reaches of the Huai River as the study area, we created the SWAT model for the study area firstly. And then calibrated and validated the SWAT model against the monthly runoff and ammonia nitrogen concentration measured at Huaibin hydrological station from 2011 to 2017. At last, the potential impact of climate change on the runoff, ammonia nitrogen concentration and non-point source total nitrogen load under different climate change scenarios (RCP2.6, RCP4.5, RCP6.0, RCP8.5) in the 30 years (2020—2029, 2030—2039, 2040—2049) were predicted based on the climate data from Global Climate Model as the model input. The study found that the Nash-Suttcliffe coefficient of the runoff during the calibration period and the validation period were both 0.79, and the Nash-Suttcliffe coefficients of the ammonia nitrogen during the calibration period and the validation period were both higher than 0.5, so the applicability of the model was generally good. The main factors affecting the spatial stratified heterogeneity of nitrogen load were the amount of fertilization and the type of land use. The prediction of the Huaibin Basin indicated that before 2049 precipitation and temperature will increase under different climate change scenarios. If the current status of pollution emissions unchanged, the total nitrogen load from non-point source in the basin will increase by up to 31.8%, while the annual average ammonia nitrogen concentration at the outlet of the basin located at the Huaibin hydrological station will decrease by up to 42.6%. The study can provide scientific support for making basin management policies under the pressing challenges from climate change in the future.
表1 SWAT模型输入数据Tab. 1 SWAT model input data |
数据名称 | 精度 | 时间 | 内容 | 来源 |
---|---|---|---|---|
数字高程DEM | 1 km×1 km | 2012年 | 高程、坡度 | 中国科学院资源环境科学数据中心 |
土地覆盖与利用类型 | 1 km×1 km | 2015年 | 土地覆盖与利用类型 | 中国科学院资源环境科学数据中心 |
世界土壤数据库HWSD | 1 km×1 km | 2012年 | 土壤类型与属性 | 联合国粮食及农业组织 |
气象站观测数据 | 逐日 | 2008—2016年 | 降水、最高最低气温、太阳辐射、相对湿度、风速 | 中国气象数据网 |
水文监测断面 | 逐月 | 2011—2016年 | 平均径流 | 《水文年鉴》 |
水质监测断面 | 逐周 | 2011—2016年 | 平均氨氮浓度 | 环境监测总站的水质周报 |
社会经济环境统计数据 | 县区级行政单位 | 2011—2016年 | 城镇生活污水与工业废水排放量、农用氮肥施用量等 | 《信阳统计年鉴》[27]、《南阳统计年鉴》[28]、《驻马店统计年鉴》[29] |
表2 淮滨流域行政区划Tab. 2 Administrative division of Huaibin basin |
地级行政区名称 | 区县数量 | 县级行政区名称 |
---|---|---|
信阳市 | 2区6县 | 信阳市市辖区(包括浉河区、平桥区)、息县、罗山县、潢川县、光山县、新县、淮滨县 |
驻马店市 | 1县 | 正阳县 |
南阳市 | 1县 | 桐柏县 |
表3 模拟径流的敏感参数与参数的调整结果Tab. 3 Sensitive parameters of simulated runoff and adjustment results of parameters |
参数调整对象 | 含义 | 调整范围 | 调整结果 |
---|---|---|---|
r_CN2.mgt | 土壤水分/湿润条件为2时的SCS径流曲线数 | [-1, 1] | 0.06 |
v_TRNSRCH.bsn | 进入深层含水层的损失量占渗透损失量的分数 | [0, 1] | 0.08 |
v_ALPHA_BNK.rte | 河岸水流的退水常数或比例常数 | [0, 1] | 0.76 |
表4 模拟月氨氮累计的敏感参数与调整结果Tab. 4 Sensitive parameters and adjustment results of simulated monthly ammonia nitrogen accumulation |
参数调整对象 | 定义 | 调整范围 | 调整结果 |
---|---|---|---|
r_CN2.mgt | 土壤水分/湿润条件为2时的SCS径流曲线数 | [-1, 1] | 0.06 |
v_TRNSRCH.bsn | 进入深层含水层的损失量占渗透损失量的分数 | [0, 1] | 0.08 |
v_ALPHA_BNK.rte | 河岸水流的退水常数或比例常数 | [0, 1] | 0.76 |
v_CH_N2.rte | 主河道的曼宁系数n值 | [-0.01, 0.3] | 0.05 |
v_CH_K2.rte | 含水层渗透系数 | [-0.01, 500] | 108.62 |
r_SOL_K().sol | 土壤饱和渗透系数/(mm/h) | [-1, 1] | -0.90 |
r_SOL_BD().sol | 土壤容重/(Mg/m³) | [-1, 1] | 0.16 |
v_NPERCO.bsn | 硝酸盐的渗流系数 | [0, 1] | 0.27 |
表5 流域尺度模型的月模拟评价标准Tab. 5 Monthly simulation evaluation criteria for watershed-scale models |
Nash-Suttcliffe系数(Ens) | 优秀 | 良好 | 满意 | 不满意 |
---|---|---|---|---|
径流 | (0.80, 1.00] | (0.70, 0.80] | (0.50, 0.70] | (- , 0.50] |
氨氮 | (0.65, 1.00] | (0.50, 0.65] | (0.35, 0.50] | (- , 0.35] |

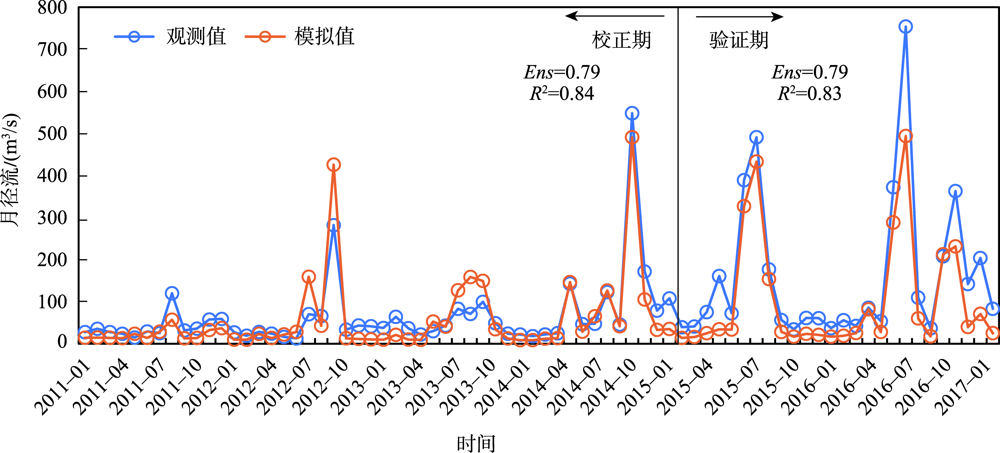

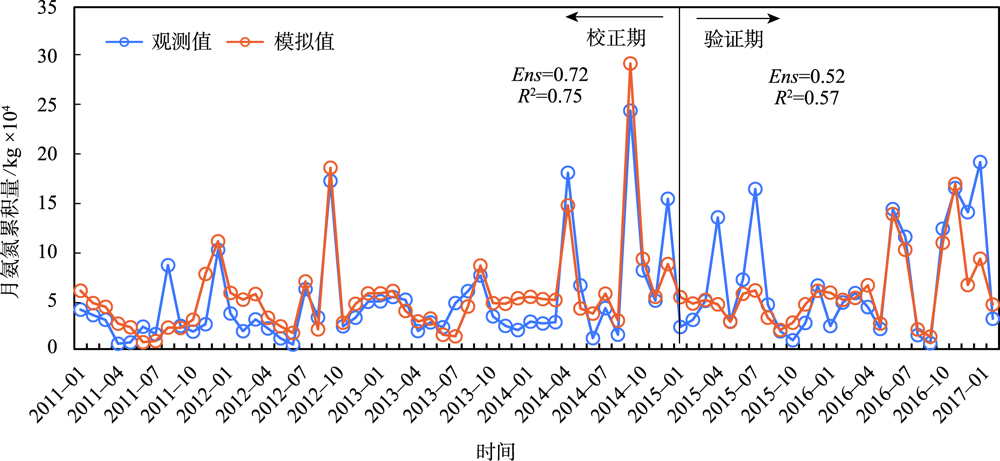

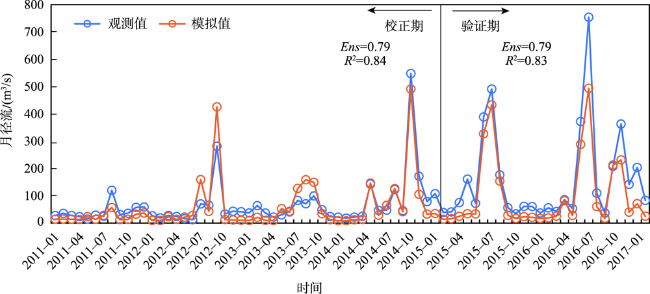

表6 径流与氨氮累计在校正期与验证期的模拟精度Tab. 6 The simulation accuracy of runoff and ammonia nitrogen accumulation in the calibration period and validation period |
时期 | Nash-Suttcliffe系数(Ens) | R2 | |
---|---|---|---|
月径流 | 校正期(2011—2014年) | 0.79 | 0.84 |
验证期(2015—2017年) | 0.79 | 0.83 | |
月氨氮累积量 | 校正期(2011—2014年) | 0.72 | 0.75 |
验证期(2015—2017年) | 0.52 | 0.57 |
表7 不同影响因素对总氮负荷的影响力Tab. 7 The influence of different influencing factors on total nitrogen load |
解释变量 | q统计量 | p值 |
---|---|---|
施肥量 | 0.52 | 0.00 |
土地利用类型 | 0.49 | 0.00 |
土壤类型 | 0.26 | 0.00 |
产流量 | 0.22 | 0.00 |
降水量 | 0.03 | 0.17 |
坡度 | 0.02 | 0.11 |
表8 淮滨流域在不同气候变化情景下的平均气温与降水量变化Tab. 8 Changes in average temperature and precipitation in the Huaibin Basin under different climate change scenarios |
情景 | 流域多年平均年降水 | 流域多年平均气温 | ||||
---|---|---|---|---|---|---|
数值/mm | 变幅/% | 数值/℃ | 变幅/℃ | |||
2011—2016年 | 基准期 | 903 | 0 | 15.8 | 0 | |
2020—2029年 | RCP2.6 | 1093 | 21.0 | 16.5 | 0.7 | |
2020—2029年 | RCP4.5 | 1016 | 12.5 | 16.7 | 0.9 | |
2020—2029年 | RCP6.0 | 1015 | 12.4 | 16.5 | 0.7 | |
2020—2029年 | RCP8.5 | 950 | 5.2 | 16.8 | 1.0 | |
2030—2039年 | RCP2.6 | 1016 | 12.5 | 17.0 | 1.1 | |
2030—2039年 | RCP6.0 | 1017 | 12.6 | 16.8 | 0.8 | |
2030—2039年 | RCP8.5 | 1064 | 17.8 | 16.8 | 1.0 | |
2040—2049年 | RCP2.6 | 1053 | 16.7 | 17.1 | 1.0 | |
2040—2049年 | RCP4.5 | 1033 | 14.4 | 17.1 | 1.2 | |
2040—2049年 | RCP6.0 | 946 | 4.8 | 16.7 | 1.3 | |
2040—2049年 | RCP8.5 | 966 | 7.0 | 17.4 | 0.9 |
:感谢中国科学院地理科学与资源研究所邹磊老师提供的修改帮助。
