基于本体的金矿知识图谱构建方法
张春菊(1984— ),女,安徽宿州人,博士,副教授,主要从事地理信息智能处理与服务研究。E-mail: zcjtwz@sina.com |
收稿日期: 2021-12-02
修回日期: 2022-03-08
网络出版日期: 2023-06-30
基金资助
国家自然科学基金项目(42171453)
国家自然科学基金项目(41971337)
国家重点研发计划项目(2021YFB3900903)
Knowledge Graph Construction Method of Gold Mine based on Ontology
Received date: 2021-12-02
Revised date: 2022-03-08
Online published: 2023-06-30
Supported by
National Natural Science Foundation of China(42171453)
National Natural Science Foundation of China(41971337)
National Key Research and Development Program(2021YFB3900903)

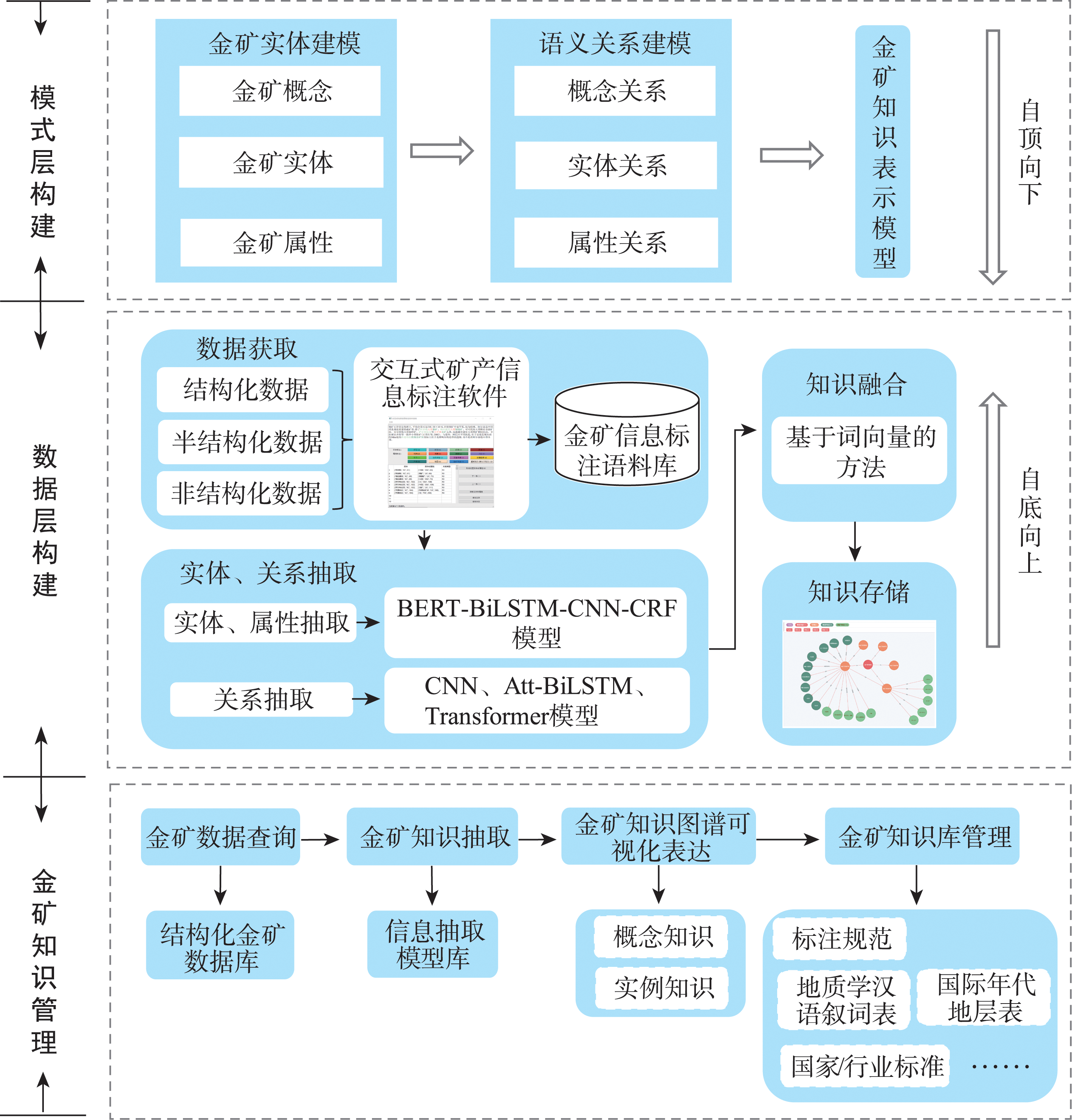

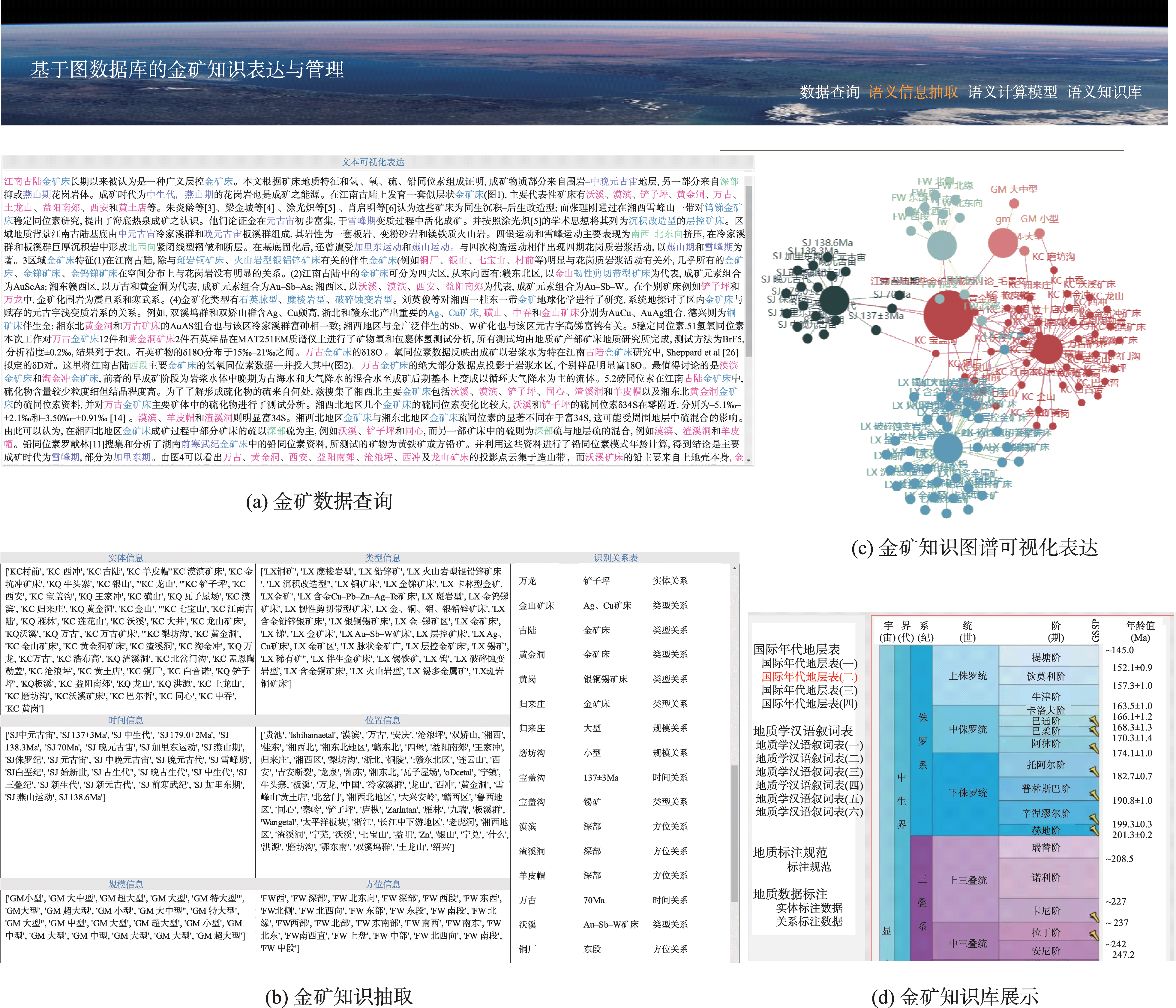

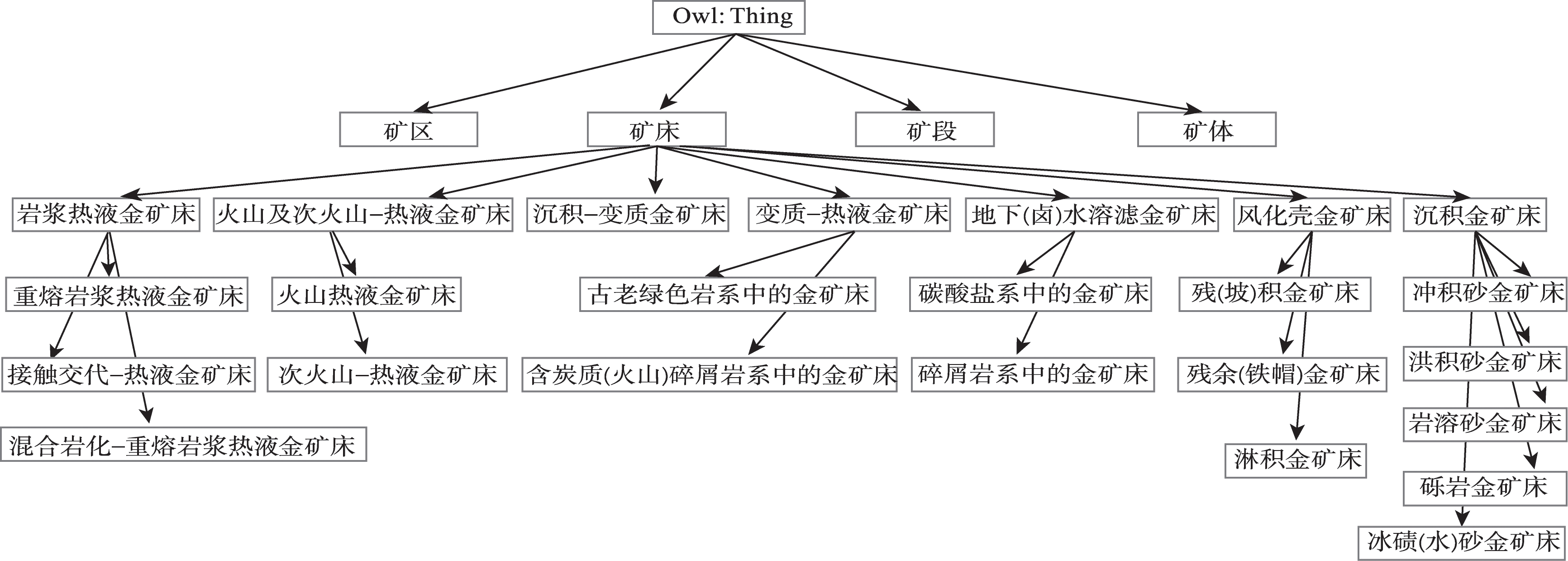

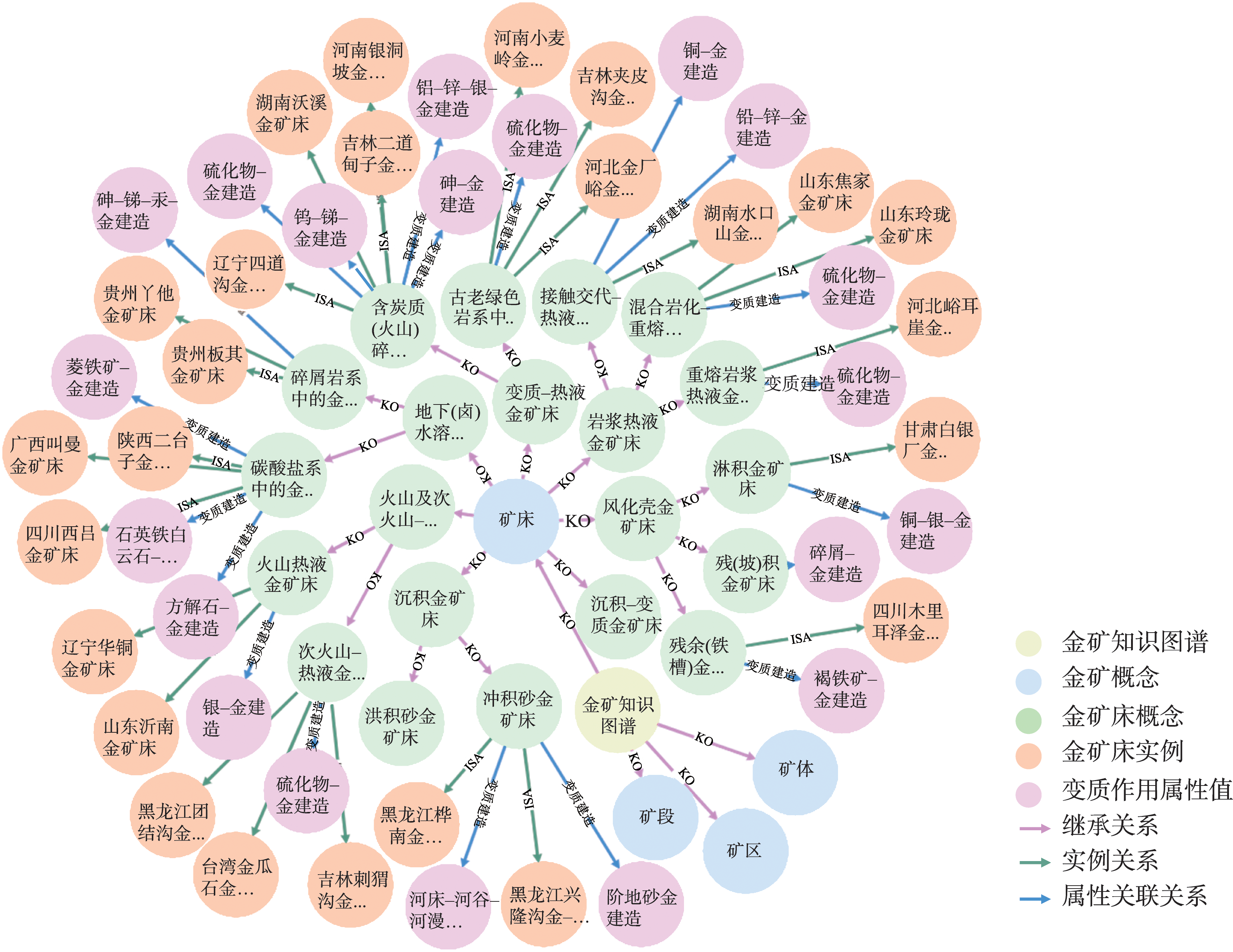

“地、物、化、遥”等地质矿产勘查和科研工作建立了海量的矿产调查数据,蕴含丰富的成矿构造背景、产出地质环境、矿床地质特征、矿床成因模式等与成矿和分布相关的知识。海量矿产资源相关数据向有效成矿规律知识的转换,已逐渐成为提升地质找矿精度的突破口。本文引入知识工程中本体知识表示技术,开展金矿知识图谱构建方法研究。首先,梳理了金矿成矿模式,确定了金矿概念、金矿实体以及地质特征、成矿特征等属性,运用自顶向下的领域本体知识表示方法构建金矿知识图谱的模式层;其次,基于结构化、半结构化和非结构化的多源异构地质数据源,采用深度学习模型实现金矿信息提取和语义解析,丰富金矿知识图谱的数据层,采用自底向上的方式构建金矿知识图谱;最后,基于图数据库开发了金矿知识管理系统,实现金矿数据管理、知识获取、金矿知识可视化表达、知识库管理、金矿找矿知识查询等功能。本文研究成果可形成“数据-知识”联合驱动的金矿找矿方法,为地质勘查工作中识别、控制和管理矿产资源、提升找矿精度提供参考。
张春菊 , 刘文聪 , 张雪英 , 叶鹏 , 汪陈 , 朱少楠 , 张达玉 . 基于本体的金矿知识图谱构建方法[J]. 地球信息科学学报, 2023 , 25(7) : 1269 -1281 . DOI: 10.12082/dqxxkx.2023.210772
Geological and mineral resource survey and scientific research in "geology, geophysics, geochemistry, and remote sensing " have established a large amount of geological and mineral survey data, which contain rich knowledge related to mineralization and distribution of gold mine, such as the metallogenic and tectonic setting, geological environment of occurrence, geological characteristics of mineral mine, genesis and metallogenic model of mine, and so on. The transformation from massive mineral related data to effective metallogenic knowledge has become one of the most important breakthroughs to improve the accuracy of geological prospecting. To solve this problem, through the in-depth analysis of knowledge representation, information extraction, and knowledge fusion in knowledge engineering, this paper explores the knowledge graph construction method of gold mine based on ontology. Firstly, referring to industry norms, gold mine knowledge base, and reference material of geological and mineral resource exploration, the metallogenic model of gold mine is sorted out, and the gold mine concept, gold mine entity, gold mine relationship, gold mine geological attribute, and gold mine metallogenic attribute are determined. In addition, the schema layer of gold mine knowledge graph is constructed by using the top-down ontology knowledge representation method, which represents the conceptual model and logical basis of gold mine knowledge graph. Secondly, based on structured, semi-structured, and unstructured multi-source heterogeneous geological data, the deep learning model is used to realize gold mine knowledge extraction, semantic analysis, and knowledge fusion, which enriches the data layer of gold mine knowledge graph and provides data support for gold mine knowledge graph. The gold mine knowledge graph is constructed in a bottom-up way, and the gold mine knowledge triplet is stored by Neo4j graph database, in which nodes represent gold mine concept, gold mine entity, and gold mine attribute value, while edges represent relation and attribute. Finally, the gold mine knowledge management system is developed based on the graph database. It can be applied to the management of gold mine data, acquisition of knowledge, visualization representation of gold mine knowledge graph, inquiry of knowledge, management and presentation of knowledge base, and other functions well, so as to lay a foundation for the intelligent analysis and mining of geological big data. This study develops a geological prospecting method driven by data and knowledge, and provides a reference for identifying, controlling, and managing mineral resources, which can improve the prospecting accuracy in geological exploration.

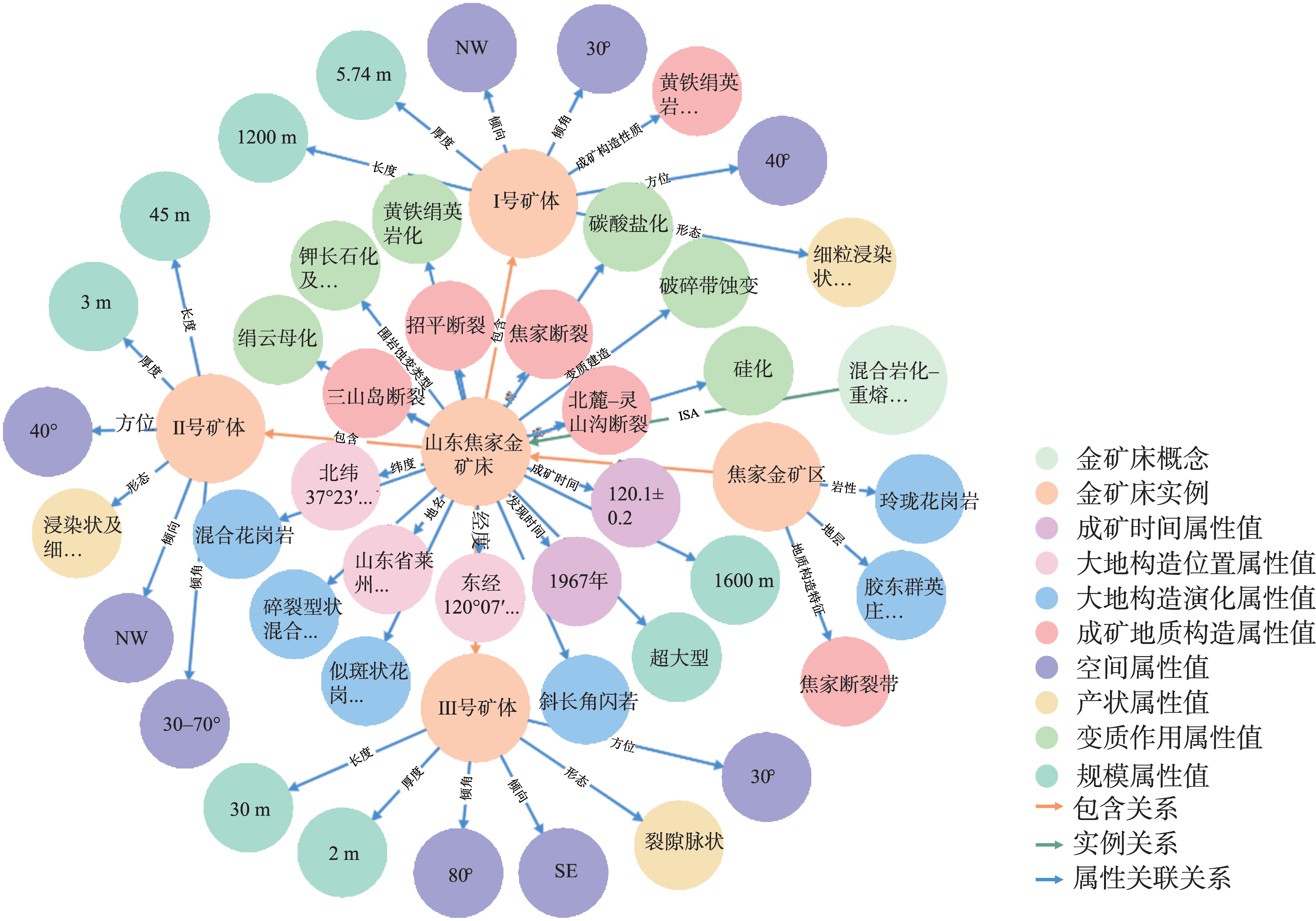

表1 金矿实体知识体系分类表Tab. 1 Classification of entity knowledge system of gold mine |
一级 | 二级 | 三级 | 解释说明 |
---|---|---|---|
金矿实体的成矿地质特征 | 成矿时间 | 发现时间 | 矿产地首次发现的时间 |
成矿时代 | 矿产形成的时间 | ||
大地构造位置 | 地名 | 矿产所在地理位置的描述名称 | |
经度 | 金矿实体中心位置的地理坐标的经度 | ||
纬度 | 金矿实体中心位置的地理坐标的纬度 | ||
大地构造演化 | 地层 | 含矿地层单位名 | |
岩性 | 含矿地层中岩体主要岩性组成的名称 | ||
成矿地质构造 | 地质构造特征 | 主要褶皱及断裂的类型和性质 | |
成矿构造性质 | 矿区内主要成矿构造的性质 | ||
空间 | 方位 | 金矿实体在空间上的展布方向 | |
形态 | 金矿实体在空间上的展布形状 | ||
产状 | 倾向 | 金矿实体的倾斜方向 | |
倾角 | 金矿实体的倾斜角度 | ||
变质作用 | 围岩蚀变类型 | 与成矿有关的围岩蚀变类型 | |
变质建造 | 变质建造中富含有用矿物或元素的含矿变质建造 | ||
规模 | 规模等级 | 按探求的储量数确定金矿实体的规模等级 | |
延深 | 金矿实体的延深长度 | ||
长度 | 金矿实体的长度 | ||
厚度 | 金矿实体的厚度 |
表2 金矿实体与属性信息抽取结果Tab. 2 Extraction results of gold mine entity and attribute information (%) |
模型 | 实体 | 属性 | 总体 | ||||
---|---|---|---|---|---|---|---|
P | R | F1值 | P | R | F1值 | 均值 | |
CRF | 84.51 | 76.71 | 80.42 | 86.05 | 79.94 | 82.88 | 82.43 |
word2vec-BiLSTM-CRF | 85.63 | 85.11 | 85.34 | 83.20 | 82.62 | 82.86 | 83.20 |
BERT-BiLSTM-CRF | 89.76 | 93.50 | 91.60 | 82.86 | 91.02 | 86.70 | 87.53 |
BERT-BiLSTM-CNN-CRF | 91.41 | 94.23 | 92.79 | 85.52 | 91.07 | 88.17 | 89.10 |
表3 金矿语义关系抽取结果Tab. 3 Extraction results of semantic relationship of gold mine (%) |
模型 | 实体关系 | 属性关联关系 | |
---|---|---|---|
CNN | P | 88.89 | 90.55 |
R | 92.86 | 85.82 | |
F1 | 90.83 | 88.12 | |
Attention-BiLSTM | P | 89.72 | 88.34 |
R | 85.71 | 83.89 | |
F1 | 87.67 | 86.06 | |
Transformer | P | 88.05 | 81.91 |
R | 84.41 | 81.84 | |
F1 | 84.73 | 81.87 |
