加入混合池化和标签信息优化的油田地物提取模型
高辰(2000— ),女,安徽淮南人,硕士生,研究方向为遥感影像信息提取。E-mail: 552044319@qq.com |
Copy editor: 蒋树芳
收稿日期: 2023-08-22
修回日期: 2023-10-25
网络出版日期: 2024-03-31
基金资助
中国石化胜利油田分公司研究项目(YKJ2210)
Integration of Mixed Pooling and Label Information Optimization for Oilfield Land Cover Extraction Model
Received date: 2023-08-22
Revised date: 2023-10-25
Online published: 2024-03-31
Supported by
Sinopec Shengli Oilfield Branch Research Project(YKJ2210)

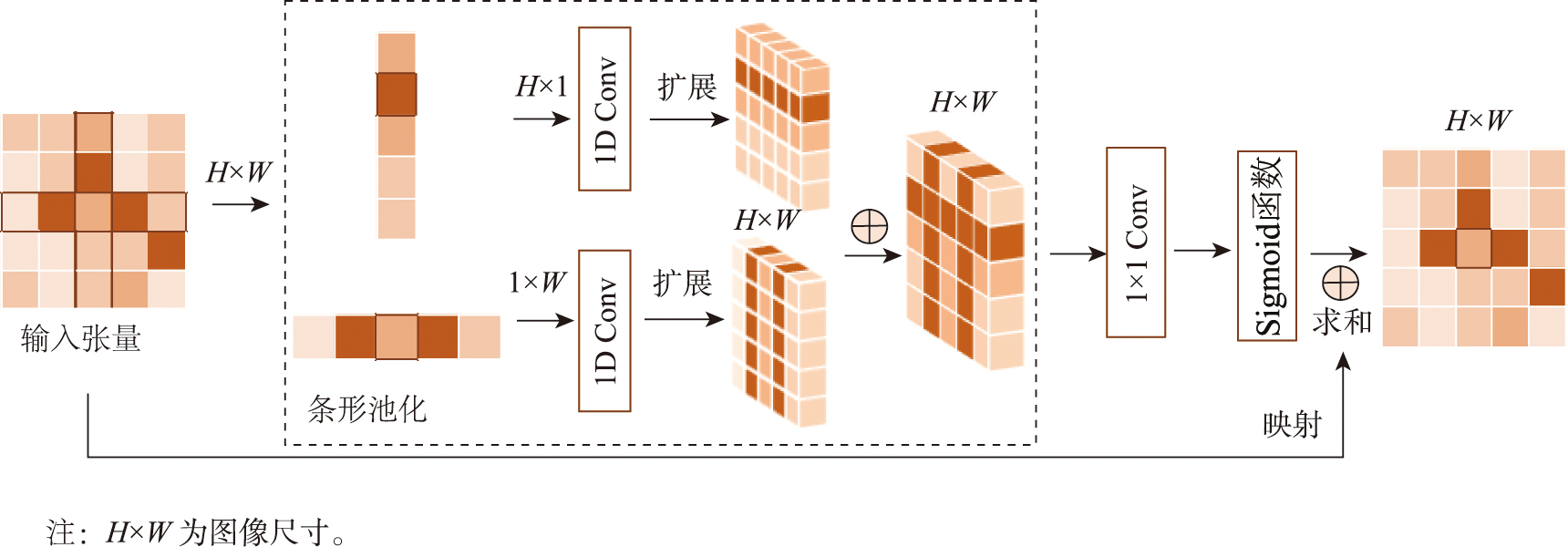

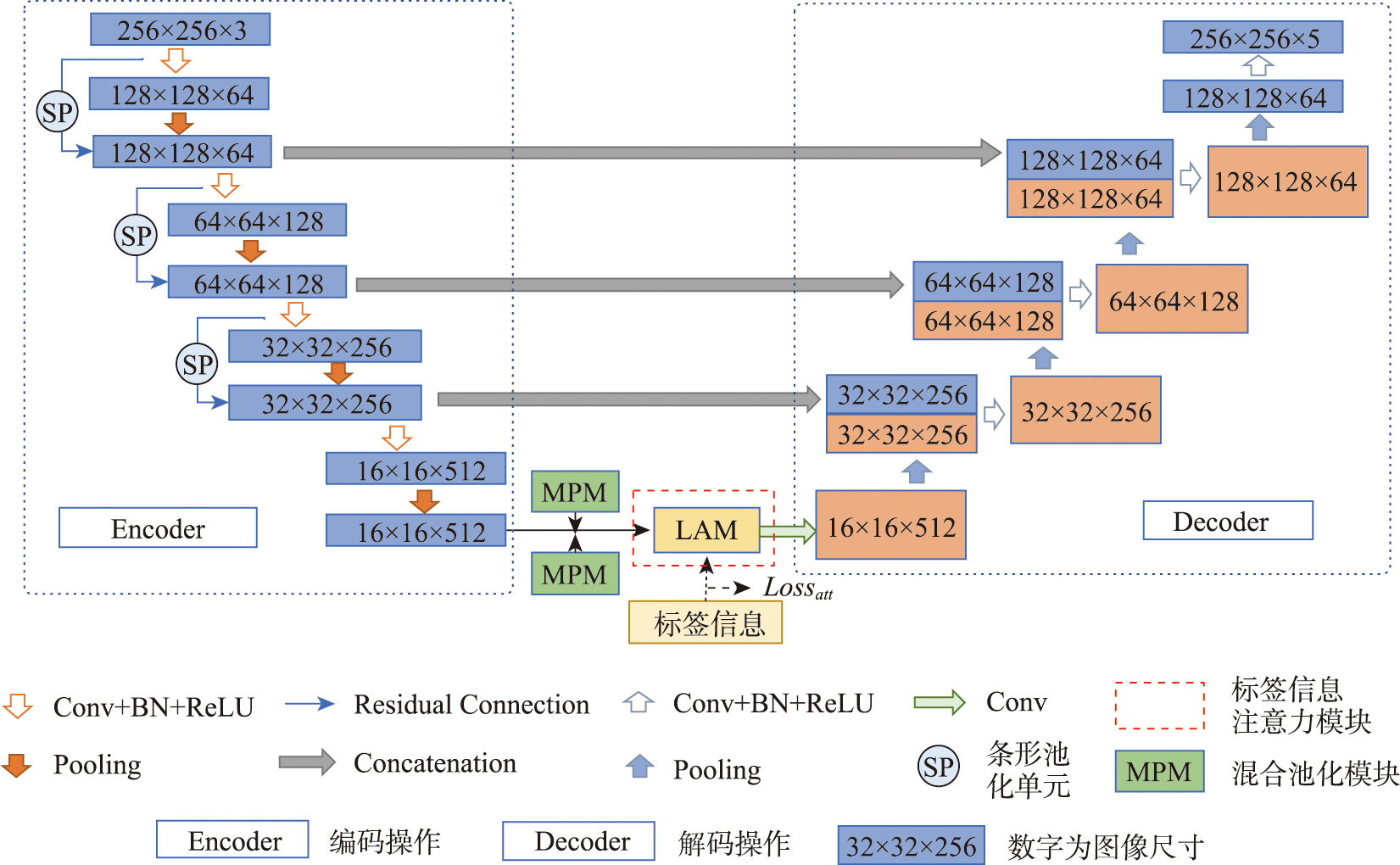

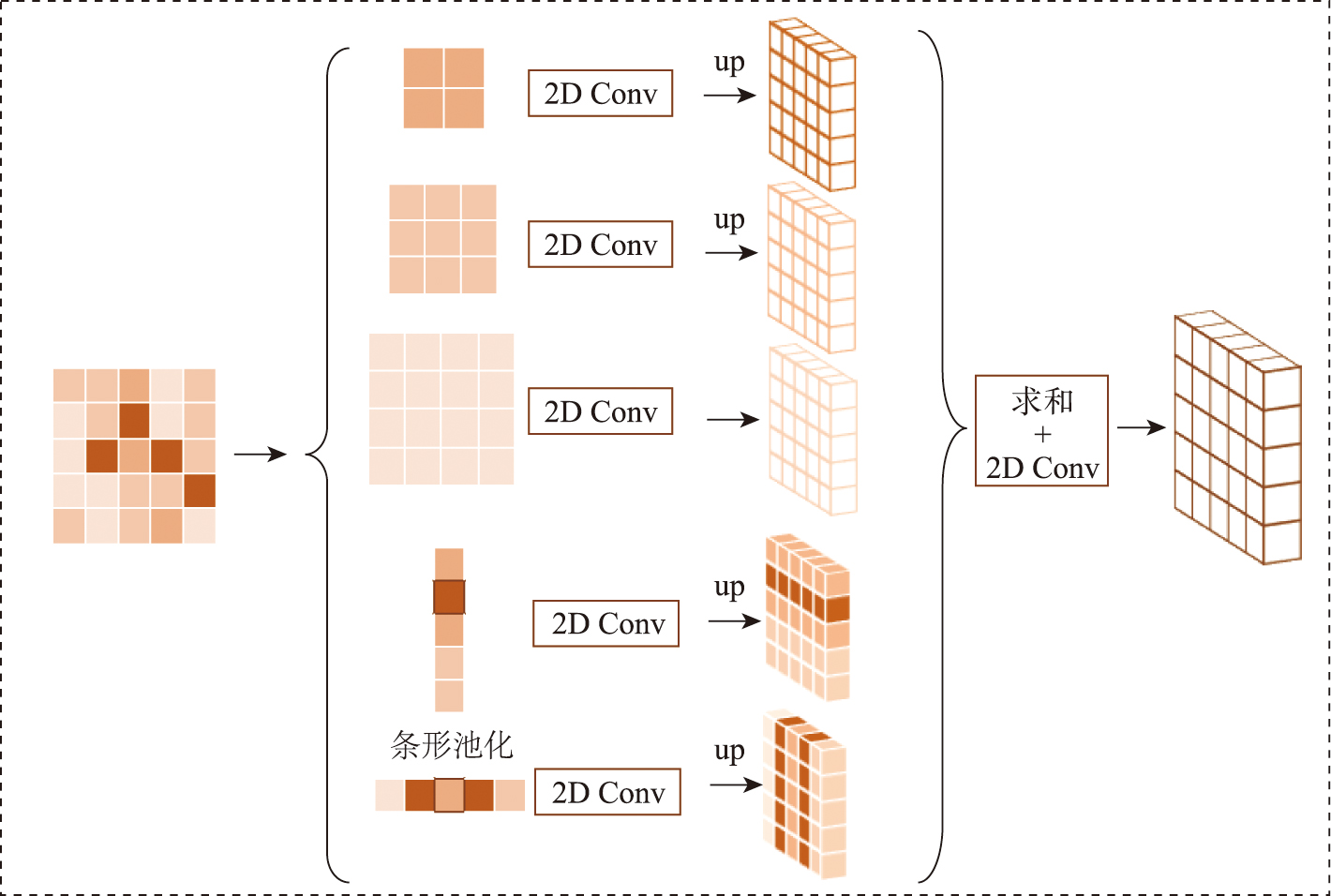

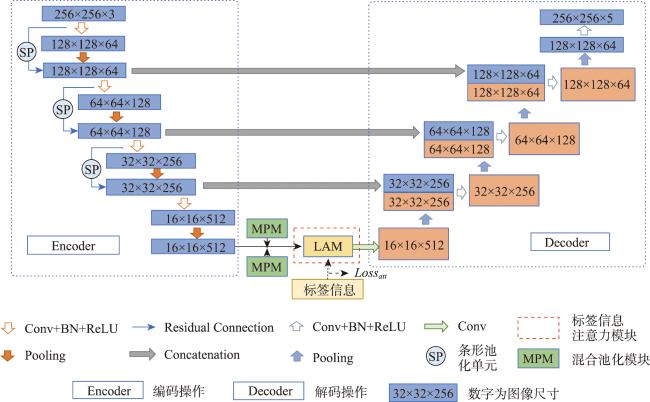

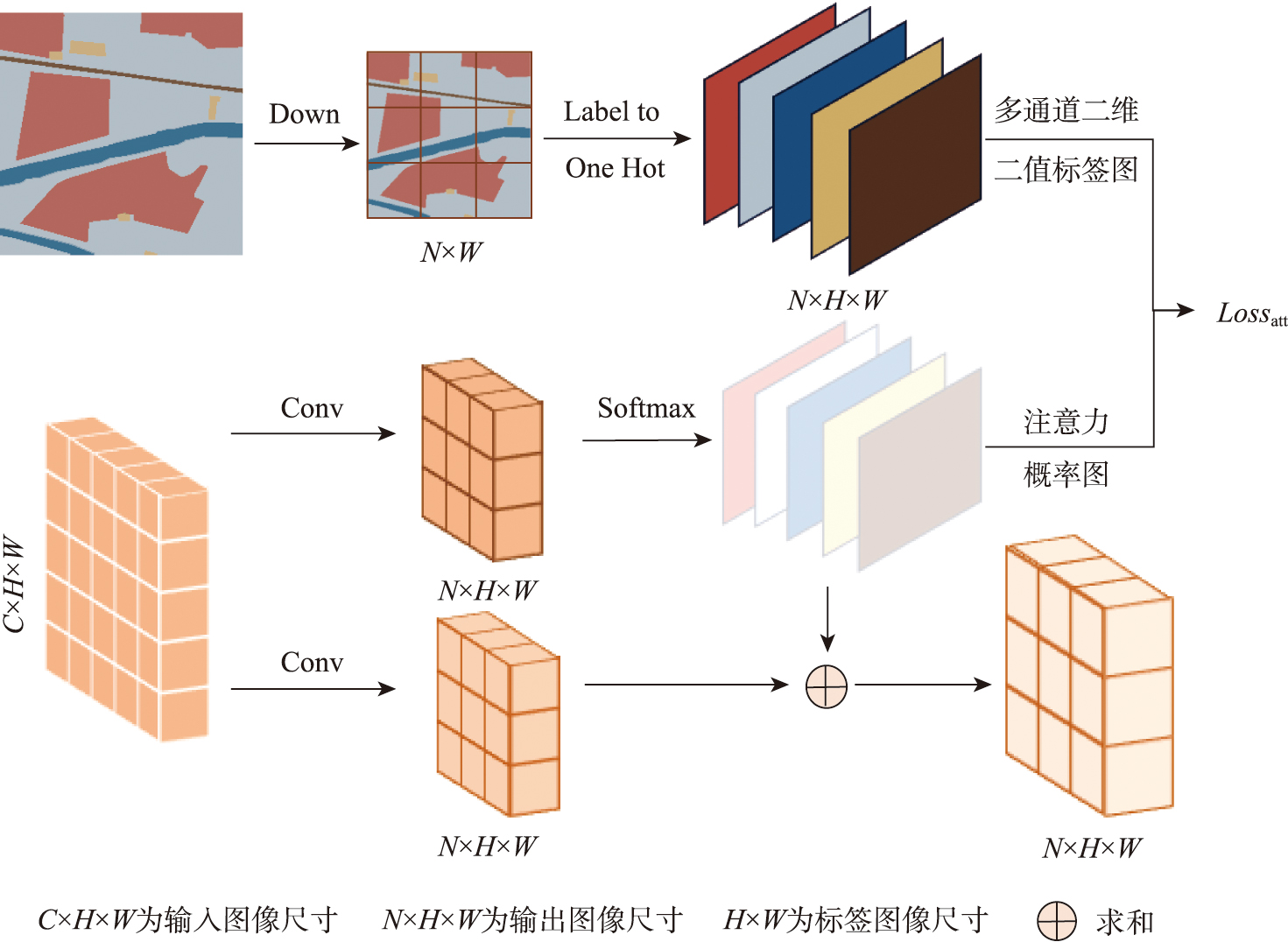

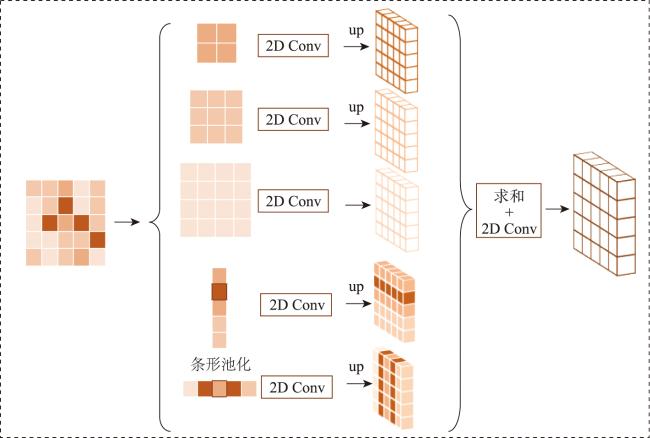

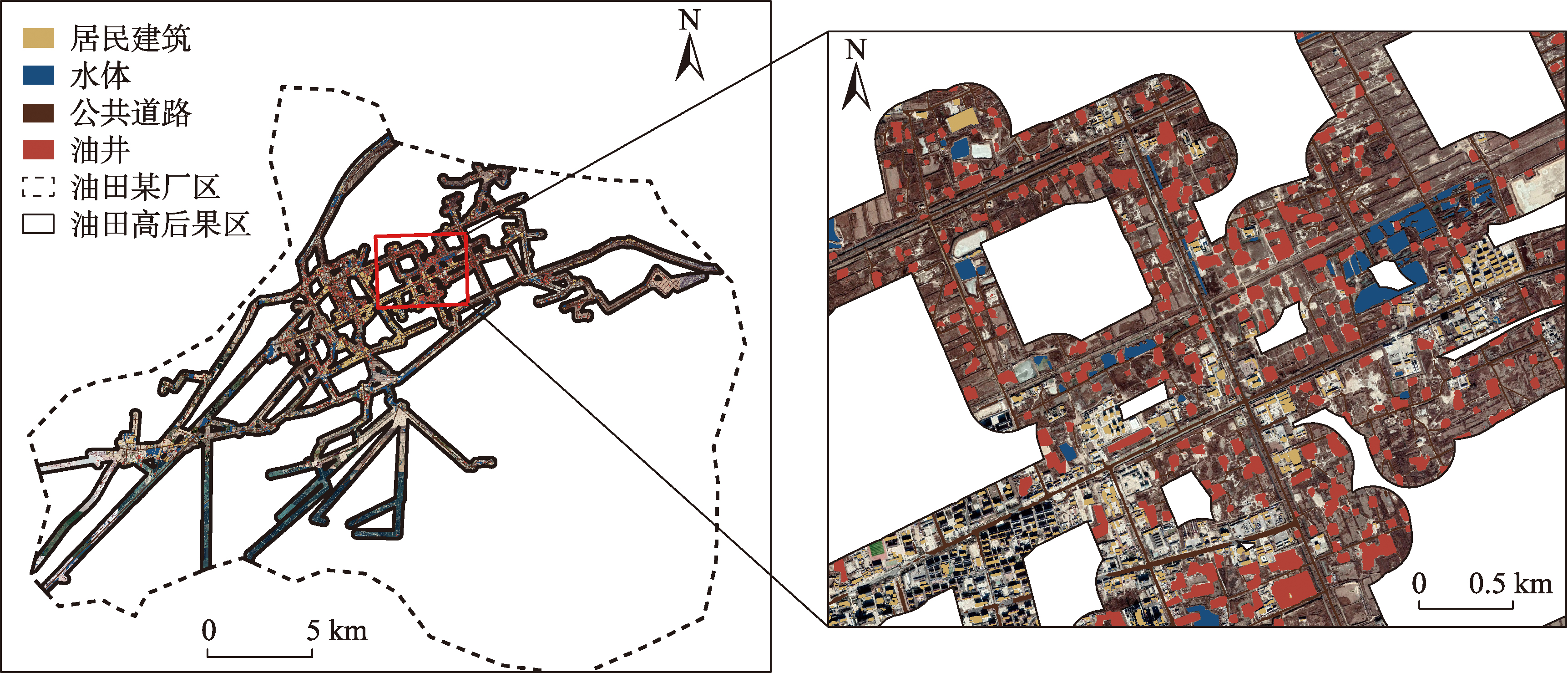

油田高后果区是石油输送管道安全管理的关键区域,准确获取油田高后果区地表信息至关重要。针对油田高后果区内提取任务面临地物形状多样、光谱差异小、类型复杂等挑战,提取结果出现错提、漏提、道路不连续的问题,基于ResUnet模型提出了一种适用于油田高后果区地物提取SML_ResUnet模型,该模型在池化阶段引入条形池化单元,在编解码之间加入混合池化模块和标签信息注意力模块。条形池化单元能实现对长条形孤立信息的捕获,混合池化模块兼顾标准池化和条形池化优点,最大程度保留不同位置区域的特征信息,标签注意力模块引入标签信息来优化注意力模块中生成的注意力概率图,从而进一步提高模型提取结果。在油田高后果区高分辨率数据集上的消融实验结果表明,SML_ResUnet网络提取结果最优,其中OA 、MIoU、 F1-score 分别达到了97.24%、84.23%、91.26%,相较于经典模型ResUnet各评价指标均有提升,其中OA 、 MIoU、 F1-score 分别提升了0.48%、2.49%、1.55%。在山东省某油田高后果区提取任务中,提取结果的总体精度平均为97.66%,适用于具有多种复杂地物类型的大范围油田高后果区内提取任务。
高辰 , 陈芸芝 , 董琰 , 刘磊 , 郭俊 . 加入混合池化和标签信息优化的油田地物提取模型[J]. 地球信息科学学报, 2024 , 26(3) : 753 -763 . DOI: 10.12082/dqxxkx.2024.230491
High consequence areas within oilfields are critical zones for the safety management of petroleum transport pipelines. Accurately and efficiently capturing the spatial distribution of key features in high-consequence areas of oilfields is essential for the smooth operation of petroleum safety production and the scientific management of oilfield regions. However, there are still challenges in extraction tasks of the high-consequence areas of oilfields, such as diverse ground object shapes, small spectral differences, and complex types, and the extraction results often include misclassification, omissions, and road discontinuities. To address these challenges, we propose an SML_ResUnet model for land cover extraction in high-consequence areas of oil fields based on ResUnet architecture. This model integrates Strip Pooling (SP) units in the pooling stages and incorporates Mixed Pooling Modules (MPM) and Label Attention Modules (LAM) between the encoding and decoding processes. The SP units are designed to capture elongated and isolated features, excluding information from other irrelevant areas, while the MPM combines the advantages of standard pooling and strip pooling, effectively preserving feature information across different spatial positions. The label attention module introduces label information to optimize the attention probability maps generated within the attention module, further enhancing the extraction results. We applied the proposed model on a high-resolution dataset of a high-consequence area of an oilfield. The results of the ablation experiments indicated that the proposed SML_ResUnet network achieved the optimal extraction results. The metrics of Overall Accuracy (OA), Mean Intersection over Union (MIoU), and F1-score reached 97.24%, 84.23%, and 91.26%, respectively. Compared to the classical ResUnet model, improvements are observed in all evaluation metrics of the proposed model, with OA, MIoU, and F1-score increasing by 0.48%, 2.49%, and 1.55%, respectively. For a land cover extraction task within a high consequence area of an oilfield in Shandong Province, the OA of the extraction results averaged at 97.66%. We then extended the model in other high-consequence areas of oilfields in Shandong Province and achieved an Overall Accuracy (OA) of 95.63%. Our results meet the accuracy requirements for rapid acquisition of surface information in large-scale high-consequence areas of oilfields and demonstrate that the SML_ResUnet model is particularly suitable for large-scale land cover extraction tasks within oilfields characterized by diverse and complex terrain types.

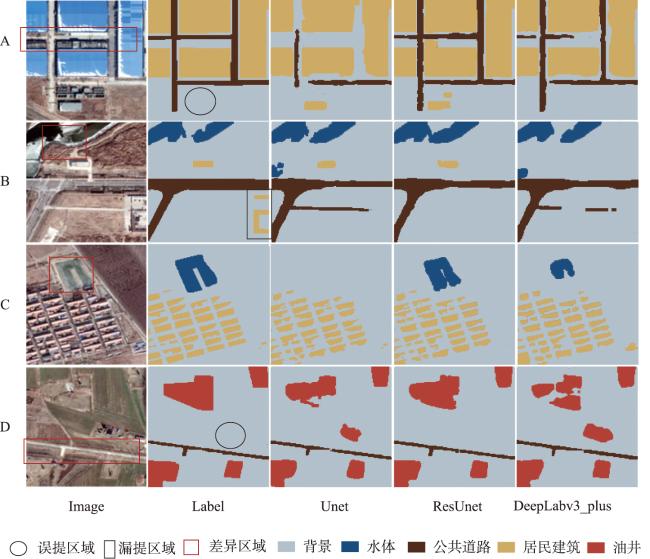

表1 基底模型选取实验的精度对比Tab. 1 Accuracy comparison of baseline model selection experiments (%) |
模型 | OA | MIou | Recall | Precision | F1-Score |
---|---|---|---|---|---|

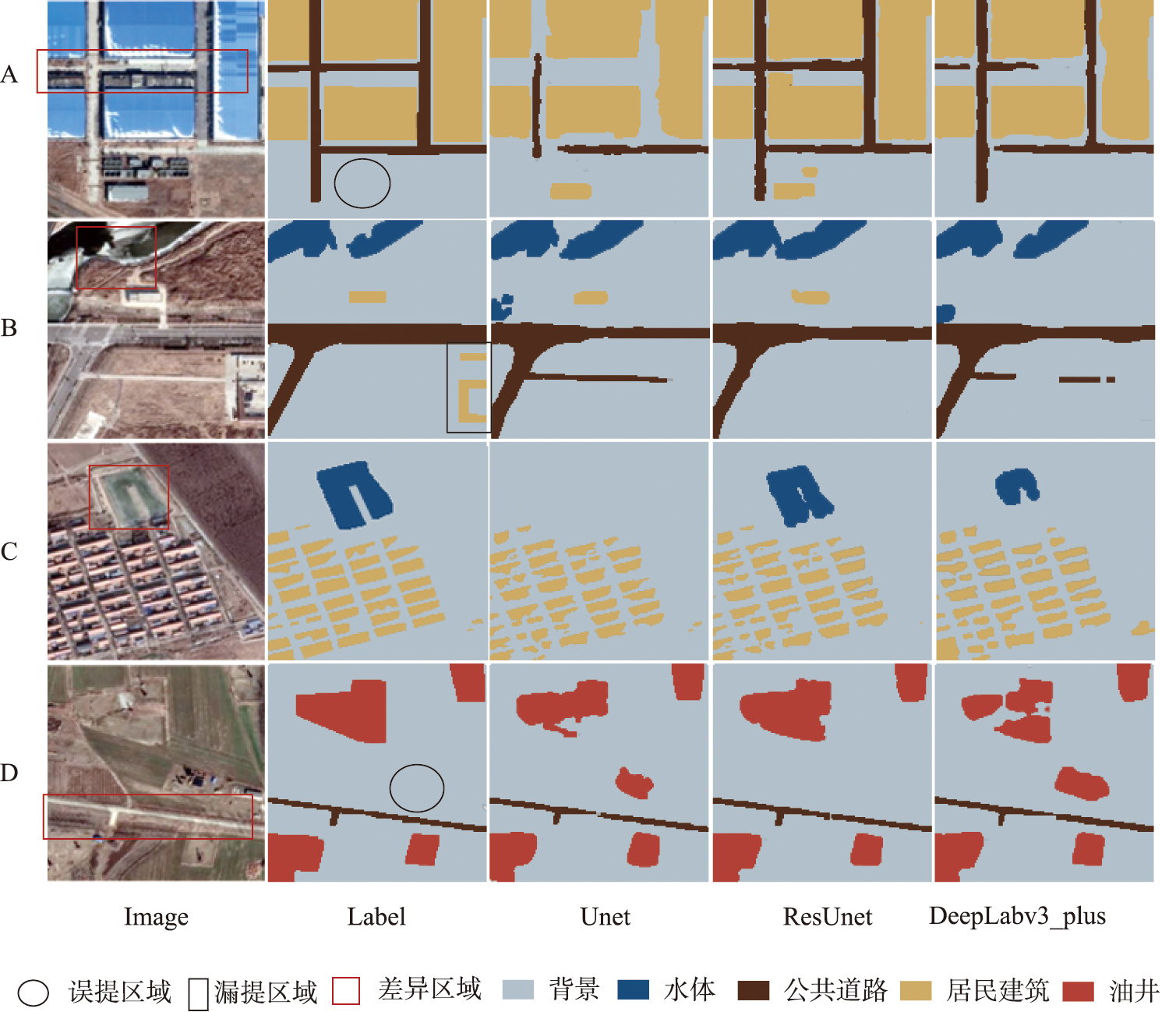

Unet | 95.70 | 76.36 | 83.69 | 88.92 | 86.16 |
DeepLabv3_plus | 96.18 | 78.86 | 86.30 | 89.45 | 87.81 |
ResUnet | 96.72 | 81.74 | 88.37 | 91.14 | 89.71 |

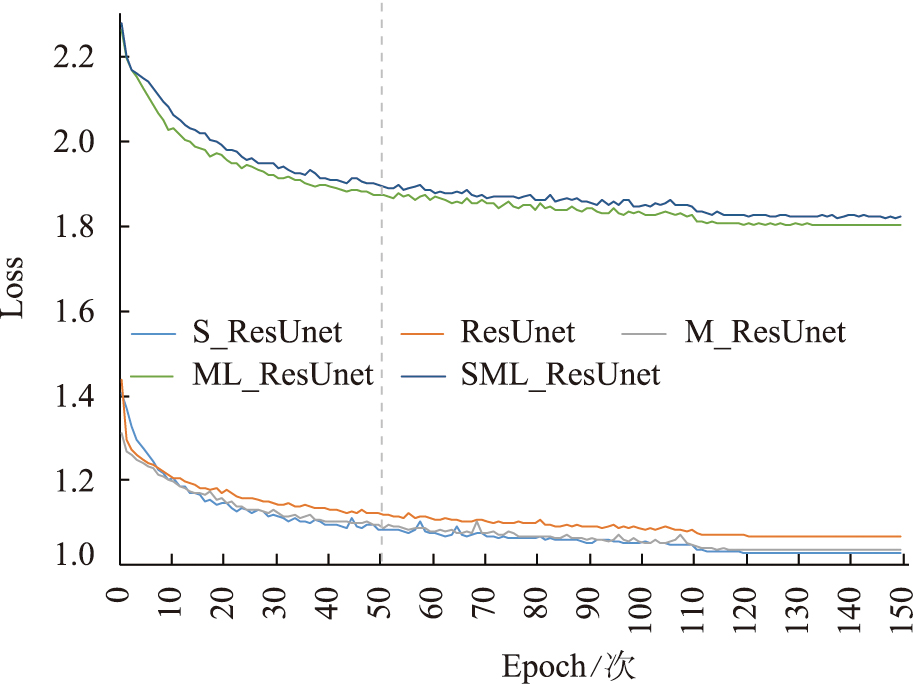

表2 各模块在基底模型为ResUnet精度对比Tab. 2 Accuracy comparison of different modules on baseline model ResUnet (%) |
模型 | OA | MIou | Recall | Precision | F1-Score |
---|---|---|---|---|---|
ResUnet | 96.72 | 81.74 | 88.37 | 91.14 | 89.71 |
S_ResUnet | 96.18 | 76.08 | 88.55 | 84.80 | 87.81 |
M_ResUnet | 96.74 | 81.57 | 87.85 | 91.49 | 89.59 |

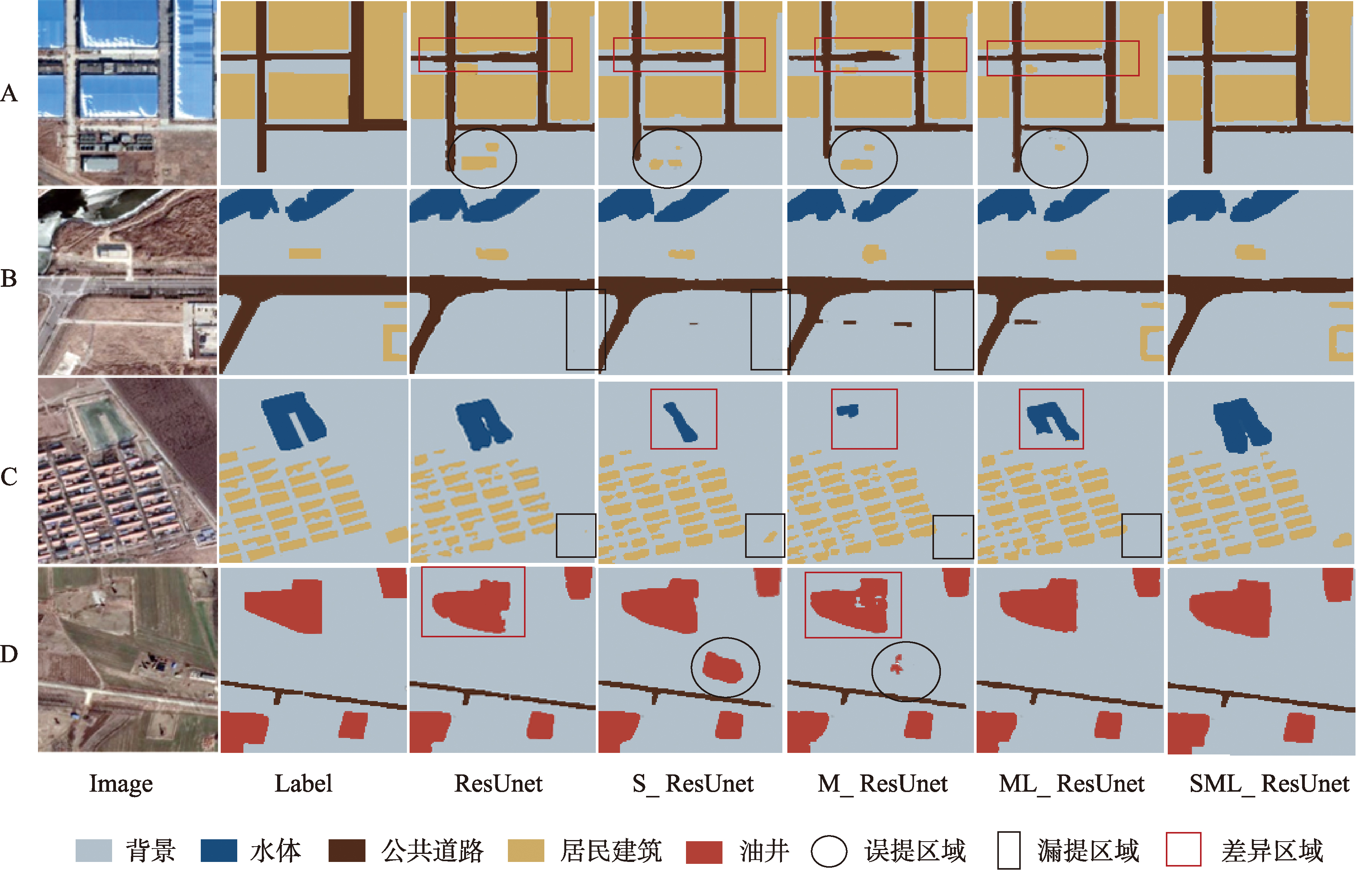

ML_ResUnet | 97.19 | 84.06 | 89.98 | 92.39 | 91.15 |
SML_ResUnet | 97.24 | 84.23 | 90.16 | 92.43 | 91.26 |
注:表中加粗数值表示最高精度。 |
表3 各类地物的提取结果精度对比Tab. 3 Accuracy comparison of land cover extraction results for different categories (%) |
模型 | 各地物F1-Score | 平均 F1-Score | |||
---|---|---|---|---|---|
居民建筑 | 水体 | 公共道路 | 油井 | ||
ResUnet | 85.69 | 93.05 | 84.53 | 87.16 | 89.71 |
S_ResUnet | 83.70 | 92.38 | 81.07 | 84.13 | 87.81 |
M_ResUnet | 86.21 | 93.32 | 84.13 | 86.17 | 89.59 |
ML_ResUnet | 87.43 | 94.45 | 87.01 | 88.44 | 91.15 |
SML_ResUnet | 88.20 | 94.12 | 87.60 | 87.99 | 91.26 |
注:表中加粗数值表示最高精度。 |

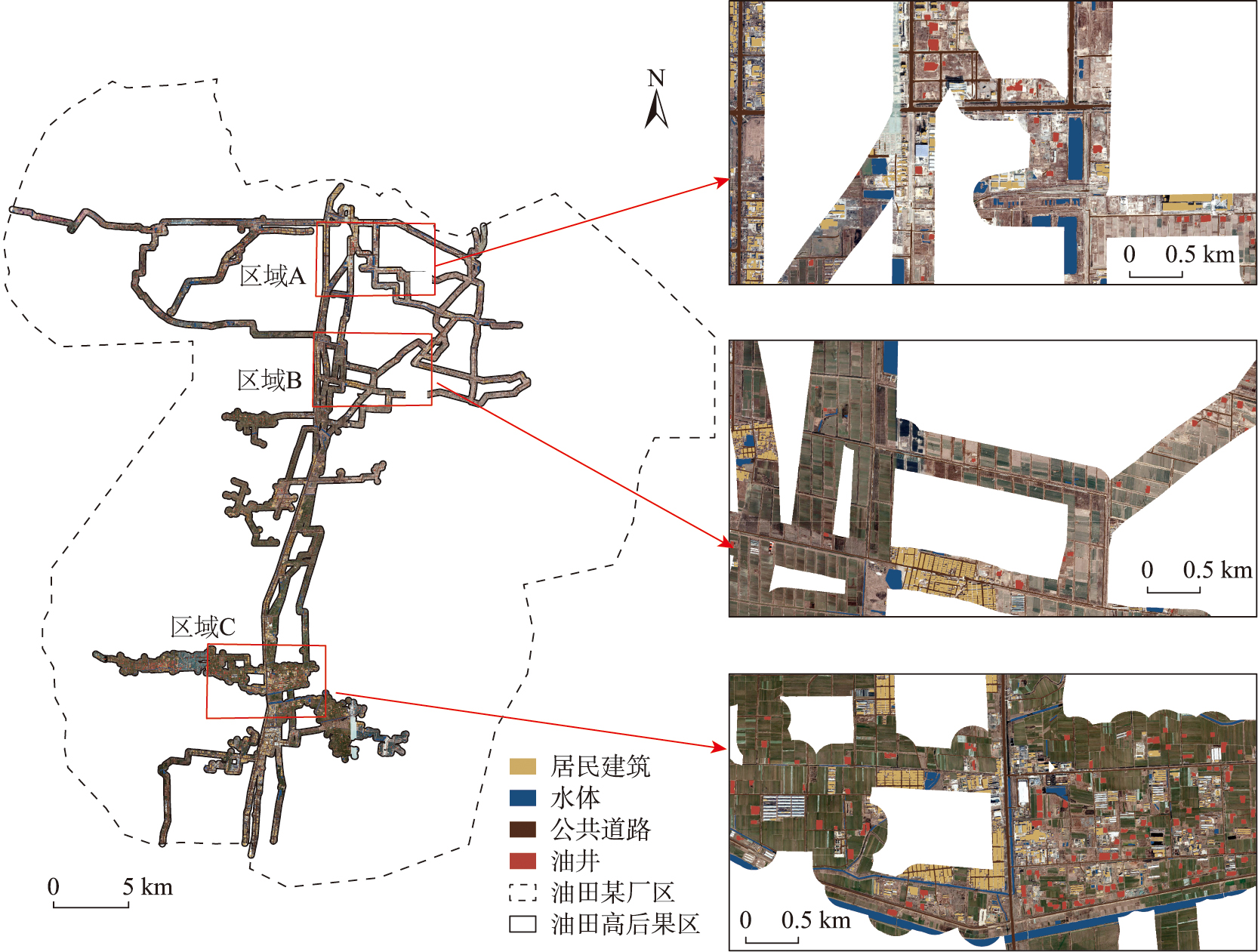

表4 不同区域的精度指标Tab. 4 Accuracy metrics for different regions (%) |
区域 | OA | MIou | Recall | Precision | F1-Score |
---|---|---|---|---|---|
A | 96.91 | 86.27 | 94.92 | 90.18 | 92.46 |
B | 98.15 | 85.49 | 94.50 | 89.73 | 91.92 |
C | 97.93 | 88.05 | 97.59 | 89.88 | 93.44 |
