基于信息熵的GlobeLand 30和WorldCover耕地破碎区一致性分析

doi:10.12082/dqxxkx.2023.220595

Abstract

Abstract:

There are various reasons for the inconsistency among land cover products, such as the difficulty in determining pixel into categories at different image resolutions. The inconsistency caused by image resolution is determined by the attributes of the image itself and cannot be changed by increasing the number of samples, improving classification methods, and other measures. Especially in mountainous and hilly areas with high ground fragmentation, the resolution has a greater impact on the quality of land cover products. Therefore, taking the cultivated land of GlobeLand 30 and WorldCover products as an example, this paper introduces information entropy to analyze the consistency of multi-source land cover products. Firstly, the information entropy of different bands of the original images in the cultivated land is calculated to reflect the overall uncertainty of the cultivated land category. Secondly, the local information entropy is constructed to describe the local uncertainty of the images. Finally, the uncertainty of the two products is overlapped and the consistency is analyzed. The results show that: (1) The information entropy can reflect the uncertainty changes with more details in the cultivated land based on the spatial distribution of products, and the regional distribution of categories that are difficult to determine can also be easily detected; (2) The overall uncertainty of GlobeLand30 cultivated land with 30m resolution is greater than that of WorldCover cultivated land with 10 m resolution. The large uncertainty of the two products mainly exists in the transitional areas between cultivated land and other ground features, where there are more mixed pixels and fuzzy ground feature categories; (3) Based on the overlapped uncertainty of the two products, the uncertainty of cultivated land is relatively low in products with higher resolution and relatively high in products with lower resolution. The difference of cultivated land uncertainty caused by resolution difference are that 34.54% in blue band, 51.13% in green band, 46.03% in red band, and 61.48% in near-infrared band; (4) For areas where the spatial distribution of the two products is inconsistent, the uncertainty of GlobeLand30 product is greater, which means it is greatly affected by the resolution, while the uncertainty of WorldCover product is smaller, which means it is less affected by resolution.

Key words: land cover, information entropy, consistency analysis, cultivated land, uncertainty, GlobeLand 30, WorldCover, Landsat 8, Sentinel-2

DUAN Yanhui, ZHAO Xuesheng, PENG Shu. Consistency Analysis of GlobeLand30 and WorldCover Cultivated Land Fragmentation Area based on Information Entropy[J].Journal of Geo-information Science, 2023, 25(5): 1027-1036.DOI:10.12082/dqxxkx.2023.220595

Figures/Tables 11

Fig. 1

Tab. 1

Tab. 2

Fig. 2

Fig. 3

Tab. 3

Tab. 4

Fig. 4

Fig. 5

Tab. 5

Fig. 6

References 19

[1]	陈军, 陈晋, 宫鹏, 等. 全球地表覆盖高分辨率遥感制图[J]. 地理信息世界, 2011, 9(2):12-14.
	[ Chen J, Chen J, Gong P, et al. Higher resolution global land cover mapping[J]. Geomatics World, 2011, 9(2):12-14. ]
[2]	熊曦柳, 胡月明, 文宁, 等. 耕地遥感识别研究进展与展望[J]. 农业资源与环境学报, 2020, 37(6):856-865.
	[ Xiong X L, Hu Y M, Wen N, et al. Progress and prospect of cultivated land extraction research using remote sensing[J]. Journal of Agricultural Resources and Environment, 2020, 37(6):856-865. ] DOI:10.13254/j.jare.2020.0457 doi: 10.13254/j.jare.2020.0457
[3]	舒弥, 杜世宏. 国土调查遥感40年进展与挑战[J]. 地球信息科学学报, 2022, 24(4):597-616. doi: 10.12082/dqxxkx.2022.210512
	[ Shu M, Du S H. Forty years' progress and challenges of remote sensing in national land survey[J]. Journal of Geo-information Science, 2022, 24(4):597-616. ] DOI:10.12082/dqxxkx.2022.210512 doi: 10.12082/dqxxkx.2022.210512
[4]	杨永可, 肖鹏峰, 冯学智, 等. 大尺度土地覆盖数据集在中国及周边区域的精度评价[J]. 遥感学报, 2014, 18(2):453-475.
	[ Yang Y K, Xiao P F, Feng X Z, et al. Comparison and assessment of large-scale land cover datasets in China and adjacent regions[J]. Journal of Remote Sensing, 2014, 18(2):453-475. ]
[5]	陆苗, 吴文斌, 张莉, 等. 不同耕地数据集在中国区域的对比研究[J]. 中国科学:地球科学, 2016, 46(11):1459-1471.
	Wu W B, Zhang L, et al. A comparative analysis of five global cropland datasets in China[J]. Scientia Sinica (Terrae), 2016, 46(11):1459-1471. ]
[6]	Zhang C P, Ye Y, Fang X Q, et al. Coincidence analysis of the cropland distribution of multi-sets of global land cover products[J]. International Journal of Environmental Research and Public Health, 2020, 17(3):707. DOI:10.3390/ijerph17030707 doi: 10.3390/ijerph17030707
[7]	侯婉, 侯西勇. 全球海岸带多源土地利用/覆盖遥感分类产品一致性分析[J]. 地球信息科学学报, 2019, 21(7):1061-1073. doi: 10.12082/dqxxkx.2019.180441
	[ Hou W, Hou X Y. Consistency of the multiple remote sensing-based land use and land cover classification products in the global coastal zones[J]. Journal of Geo-information Science, 2019, 21(7):1061-1073. ] DOI: 10.12082/dqxxkx.2019.180441 doi: 10.12082/dqxxkx.2019.180441
[8]	戴昭鑫, 胡云锋, 张千力. 多源卫星遥感土地覆被产品在南美洲的一致性分析[J]. 遥感信息, 2017, 32(2):137-148.
	[ Dai Z X, Hu Y F, Zhang Q L. Agreement analysis of multi-source land cover products derived from remote sensing in south America[J]. Remote Sensing Information, 2017, 32(2):137-148. ]
[9]	邵明超, 宋宏利, 尚明, 等. 多源土地覆被数据类别一致性及景观格局差异性——以京津冀区域为例[J]. 生态学杂志, 2020, 39(11):3881-3889.
	[ Shao M C, Song H L, Shang M, et al. Multisource land-cover data category accuracy evaluation and the difference of landscape patterns: A case study of Beijing-Tianjin-Hebei region[J]. Chinese Journal of Ecology, 2020, 39(11):3881-3889. ] DOI:10.13292/j.1000-4890.202011.020 doi: 10.13292/j.1000-4890.202011.020
[10]	Wang J, Yang X M, Wang Z H, et al. Consistency analysis and accuracy assessment of three global ten-meter land cover products in rocky desertification region: A case study of southwest China[J]. ISPRS International Journal of Geo-Information, 2022, 11(3):202. DOI:10.3390/ijgi11030202 doi: 10.3390/ijgi11030202
[11]	Wei Y B, Lu M, Wu W B, et al. Multiple factors influence the consistency of cropland datasets in Africa[J]. International Journal of Applied Earth Observation and Geoinformation, 2020, 89:102087. DOI:10.1016/j.jag.2020.102087 doi: 10.1016/j.jag.2020.102087
[12]	韩鹏, 龚健雅, 李志林, 等. 遥感影像分类中的空间尺度选择方法研究[J]. 遥感学报, 2010, 14(3):507-518.
	[ Han P, Gong J Y, Li Z L, et al. Selection of optimal scale in remotely sensed image classification[J]. Journal of Remote Sensing, 2010, 14(3):507-518. ]
[13]	Xie L, Li G Y, Xiao M, et al. Novel classification method for remote sensing images based on information entropy discretization algorithm and vector space model[J]. Computers & Geosciences, 2016, 89:252-259. DOI:10.1016/j.cageo.2015.12.015 doi: 10.1016/j.cageo.2015.12.015
[14]	陈平. 遥感影像地类特征提取的空间尺度效应研究[D]. 成都: 成都理工大学, 2016.
	[ Chen P. The study of spatial scale effects in typical objects' feature extracted from remote sensing image[D]. Chengdu: Chengdu University of Technology, 2016. ]
[15]	张恒, 冯德俊, 朱军, 等. 遥感影像信息量与空间分辨率的关系研究[J]. 应用光学, 2014, 35(3):409-413.
	[ Zhang H, Feng D J, Zhu J, et al. Relationship between information content and spatial resolution of remote sensing images[J]. Journal of Applied Optics, 2014, 35(3):409-413. ]
[16]	魏曼. 基于信息论和粗糙集的遥感影像分类不确定性多尺度评价研究[D]. 西安: 西安科技大学, 2013.
	[ Wei M. Multi-scale assessment for uncertainty of classification of remote sensing image based on information theory and rough set[D]. Xi'an: Xi'an University of Science and Technology, 2013. ]
[17]	韩鹏, 龚健雅, 李志林. 基于信息熵的遥感分类最优空间尺度选择方法[J]. 武汉大学学报·信息科学版, 2008, 33(7):676-679.
	[ Han P, Gong J Y, Li Z L. A new approach for choice of optimal spatial scale in image classification based on entropy[J]. Geomatics and Information Science of Wuhan University, 2008, 33(7):676-679. ]
[18]	徐慧, 张鹏林. 遥感影像像元不确定性对SVM分类结果可靠性影响研究[J]. 测绘地理信息, 2021, 46(5):57-61.
	Zhang P L. Influence of remote sensing image pixel uncertainty on SVM classification reliability[J]. Journal of Geomatics, 2021, 46(5):57-61. ] DOI:10.14188/j.2095-6045.2019458 doi: 10.14188/j.2095-6045.2019458
[19]	Shannon C E. A mathematical theory of communication[J]. The Bell System Technical Journal, 1948, 27(3):379-423. DOI:10.1002/j.1538-7305.1948.tb01338.x doi: 10.1002/j.1538-7305.1948.tb01338.x

产品名称	分辨率/m	时间	生产机构	主要数据源	官方精度/%	下载地址
GlobeLand30	30	2020	中国自然资源部	Landsat	85.72	http://globeland30.org/
WorldCover	10	2020	欧洲航天局	Sentinel	74.40	https://esa-worldcover.org/

	蓝波段	绿波段	红波段	近红外波段

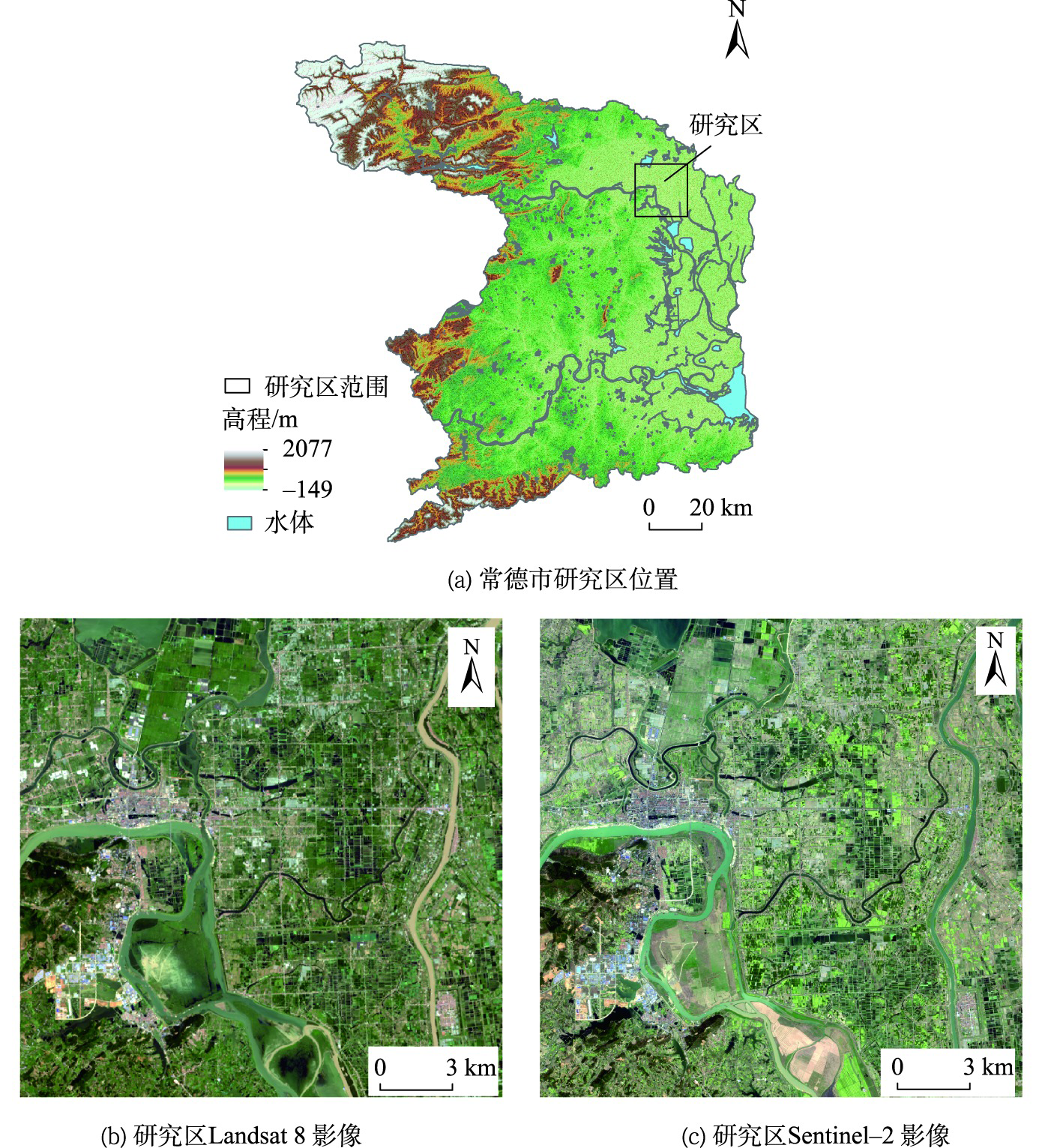

图2(a)	7.7316	8.2925	8.1700	8.5770
图2(b)	8.2663	8.4063	8.4301	8.6239

产品不确定性叠加结果	表示区域
1、2、3	非重叠区(GlobeLand30)
4、8、12	非重叠区(WorldCover)
0、5、10、15	GlobeLand30等级等于WorldCover 区
6、7、11	GlobeLand30等级大于WorldCover 区
9、13、14	GlobeLand30等级小于WorldCover 区

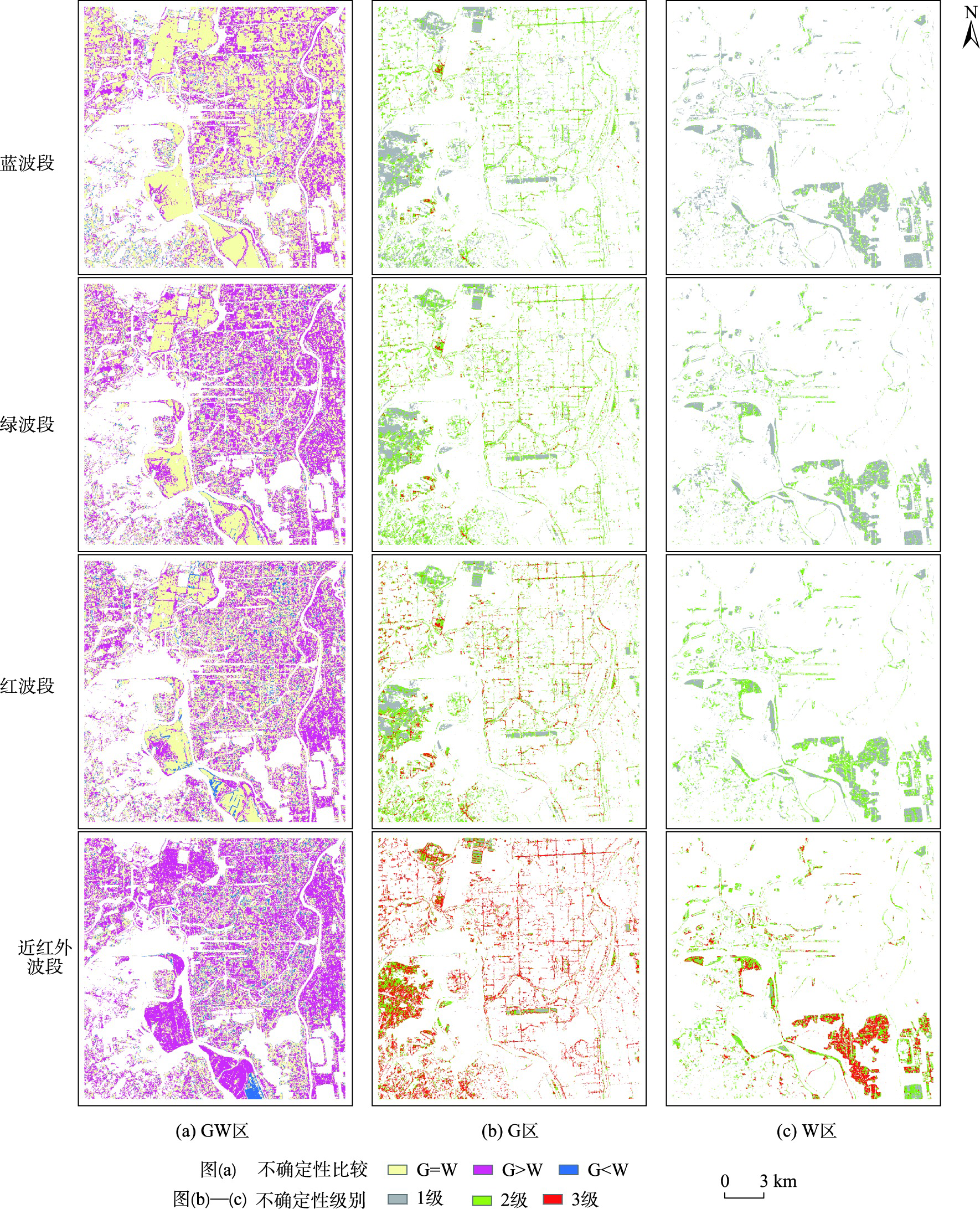

区域		蓝波段	绿波段	红波段	近红外波段
GW区	G=W	65.46	49.87	53.96	38.42
	G>W	31.04	46.06	39.59	55.03
	G<W	3.50	4.07	6.45	6.55
G区	1级	49.06	30.29	23.03	3.47
	2级	47.23	62.66	57.26	28.22
	3级	3.71	7.05	19.71	68.31
	总体不确定性	较高	较高	极高	极高
W区	1级	84.31	70.50	50.23	10.08
	2级	15.69	29.50	49.73	52.77
	3级	0	0	0.04	37.16
	总体不确定性	较低	较低	较高	极高

Consistency Analysis of GlobeLand30 and WorldCover Cultivated Land Fragmentation Area based on Information Entropy

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 11

References 19

Related Articles 15

Metrics

Comments

Recommended 0

[1]	YUAN Hao, JI Cuicui, YANG Xuemei, CHEN Maolin, PAN Jianping, CAO Yiming. Construction of Sparse Non-Photosynthetic Vegetation Index Combining Sentinel-2 Data and Spectral Features [J]. Journal of Geo-information Science, 2023, 25(9): 1894-1907.
[2]	YANG Yuying, ZHAO Xuesheng, LIU Huiyuan, PENG Shu, LV Yuanxin. Building a Knowledge Graph for Wetlands based on Landcover Data [J]. Journal of Geo-information Science, 2023, 25(6): 1240-1251.
[3]	HENG Xuebiao, XU Hanwei, TANG Lu, TANG Heng, XU Yilei. Research on Land Cover Classification Method based on Improved Fully Convolutional Neural Network Model [J]. Journal of Geo-information Science, 2023, 25(3): 495-509.
[4]	YU Fangyuan, CAO Jiawei, LI Fayuan, LI Sijin. Ground Photovoltaic Power Station Extraction Considering Object Characteristics and Carbon Reduction Benefit Evaluation [J]. Journal of Geo-information Science, 2023, 25(3): 529-545.
[5]	JIAO Huaijin, CHEN Chongcheng, HUANG Hongyu. Elevation Accuracy Evaluation and Correction of ASTER GDEM in China Southeast Hilly Region by Combining ICESat-2 and GEDI data [J]. Journal of Geo-information Science, 2023, 25(2): 409-420.
[6]	WANG Linlin, FAN Xiaomei. Analysis of the Degradation Evolution and Driving Factors of Cultivated Land in the Yellow River Delta Based on the BFAST Algorithm and Multi-source Data [J]. Journal of Geo-information Science, 2023, 25(11): 2218-2231.
[7]	TAN Min, LIN Huijing, HAO Ming. Prior Knowledge Guided Deep Learning for Monitoring Buildings and Greenhouses within Cultivated Land [J]. Journal of Geo-information Science, 2023, 25(11): 2293-2302.
[8]	YIN Xiong, CHEN Bangqian, GU Xiaowei, YUN Ting, WU Zhixiang, CHEN Yue, LAI Hongyan, KOU Weili. Rapid Monitoring of Tropical Forest Disturbance in Hainan Island Based on GEE Platform and LandTrendr Algorithm [J]. Journal of Geo-information Science, 2023, 25(10): 2093-2106.
[9]	WU Yanan, GUO Chang'en, YU Dongping, DUAN Aimin, Liu Yu, DONG Shiwei, SHAN Dongfang, WU Naiming, LI Xican. Spatial Stratification and Evaluation Method of Remote Sensing Classification based on Uncertainty Analysis [J]. Journal of Geo-information Science, 2022, 24(9): 1803-1816.
[10]	NIE Xiangqin, CHEN Hanyue, NIU Zheng, ZHANG Liming, LIU Wei, XING Shihe, FAN Xieyu, LI JiaGuo. Digital SOC Mapping in Croplands Using Agricultural Activity Factors Derived from Time-Series Data in Western Fujian [J]. Journal of Geo-information Science, 2022, 24(9): 1835-1852.
[11]	XU Xiao, LI Yating, FAN Hui. Accuracy Assessment Strategy based on Pseudo-pure Pixels and its Application [J]. Journal of Geo-information Science, 2022, 24(8): 1617-1630.
[12]	GUO Yifei, WU Tianjun, LUO Jiancheng, SHI Hanning, GAO Lijing. Remote Sensing Mapping of Mountain Vegetation Via Uncertainty-based Iterative Optimization [J]. Journal of Geo-information Science, 2022, 24(7): 1406-1419.
[13]	CHEN Diandian, CHEN Yunzhi, FENG Xianfeng, WU Shuang. Retrieving Suspended Matter Concentration in Rivers based on Hyperparameter Optimized CatBoost Algorithm [J]. Journal of Geo-information Science, 2022, 24(4): 780-791.
[14]	XUE Shouye, XU Haiyan, GAN Zipeng, LIANG Bingyan, CHONG Biying, WANG Li, ZHANG Bo, LI Xiaoming, LI Lisha, MAO Nan, LIU Guimin, WU Xiaodong. Vegetation Data and Classification in Pan-Arctic Terrestrial Regions: Retrospective and Perspective [J]. Journal of Geo-information Science, 2022, 24(3): 421-436.
[15]	ZHANG Min, WU Wenting, WANG Xiaoqin, SUN Yu. Topographic Retrieval of the Tidal Flats in the Yangtze Estuary based on the Dynamic Tidal Submergence [J]. Journal of Geo-information Science, 2022, 24(3): 583-596.

产品	不确定性等级	对应数值
GlobeLand30	0	0
	1	1
	2	2
	3	3
WorldCover	0	0
	1	4
	2	8
	3	12
