基于时序超图模型的战场环境多层次知识建模方法

doi:10.12082/dqxxkx.2023.220967

Abstract

Abstract:

The new combat style places new requirements for battlefield environment service support. The intelligent service of battlefield environment urgently needs to improve knowledge based on the global multidimensional battlefield environment data. In view of the knowledge modeling problem of intelligent cognition of battlefield environment, this paper puts forward the classification method of battlefield environment knowledge and considers the battlefield environment knowledge graph as a new form of battlefield environment knowledge representation under the context of big data and artificial intelligence. To solve the fragmentation problem of triplet knowledge representation, a temporal hypergraph representation model of battlefield environment is constructed, a multi-level unified graph model combining entity knowledge, event knowledge, influence process knowledge, and service decision-making knowledge is realized, and all kinds of knowledge are represented as a unified knowledge hypergraph network with spatiotemporal and scene characteristics. Finally, the experimental verification is carried out based on the data of map, event, impact process, and combat impact effectiveness. The hypergraph network realizes the correlation of various battlefield environment knowledge from the semantic level, which can provide support for the further realization of intelligent reasoning and service decision-making based on hypergraph.

Key words: knowledge representation, battlefield environment knowledge graph, knowledge hypergraph, knowledge hyperedge, multi-level temporal knowledge hypergraph model

JIANG Bingchuan, HUANG Zihang, REN Yan, SUN Yong, FAN Aimin. Multi-level Knowledge Modeling Method of Battlefield Environment based on Temporal Knowledge Hypergraph Model[J].Journal of Geo-information Science, 2023, 25(6): 1148-1163.DOI:10.12082/dqxxkx.2023.220967

Figures/Tables 20

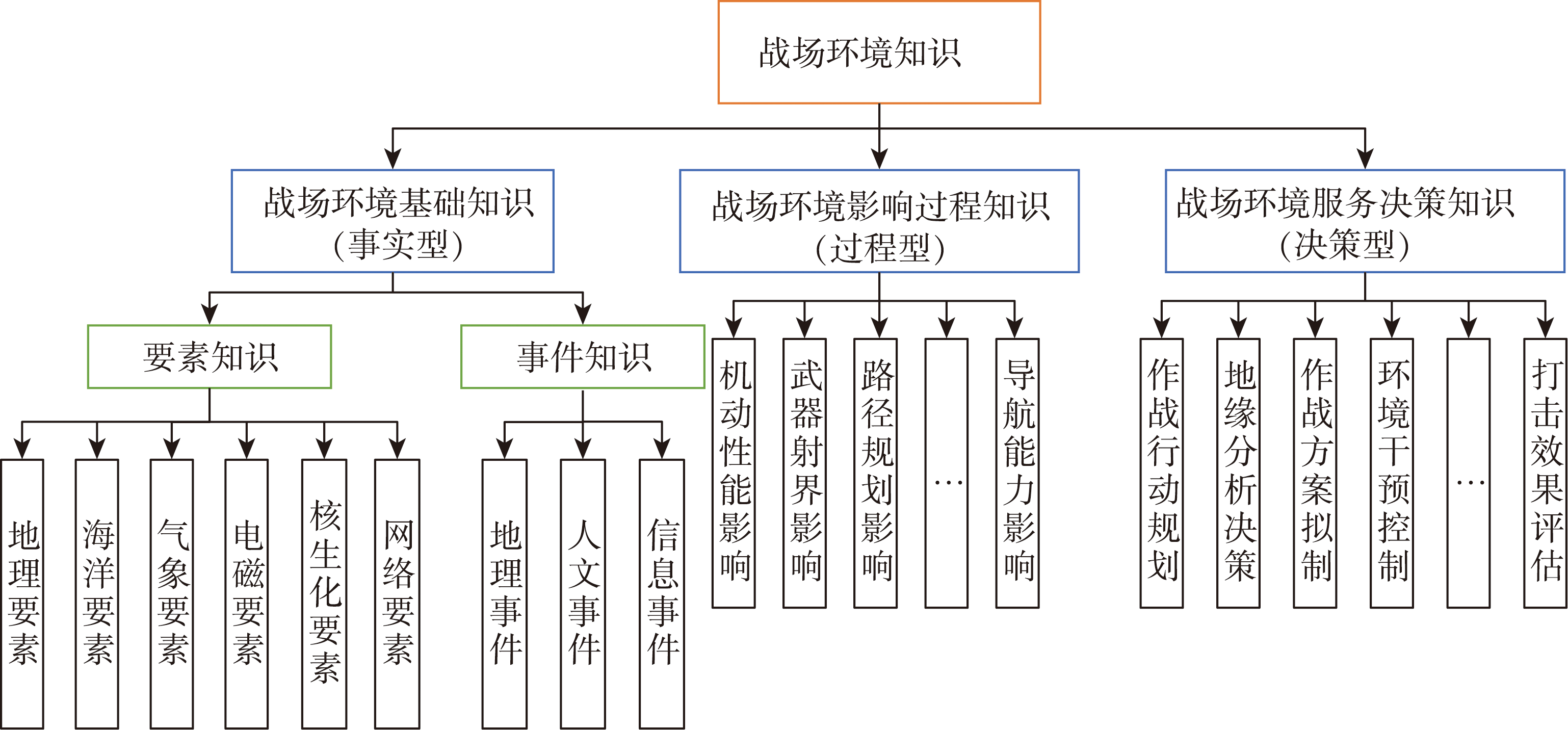

Fig.1

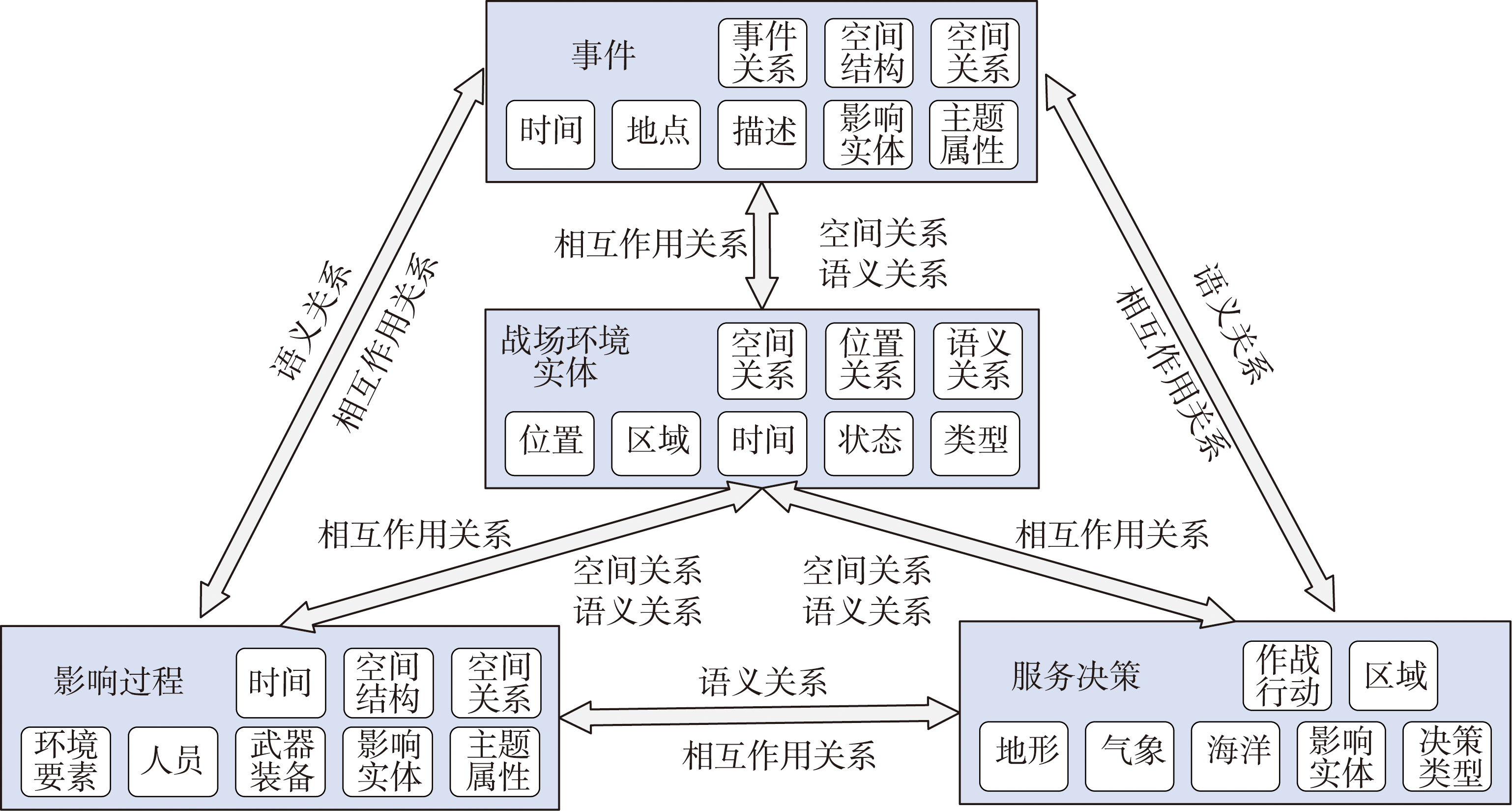

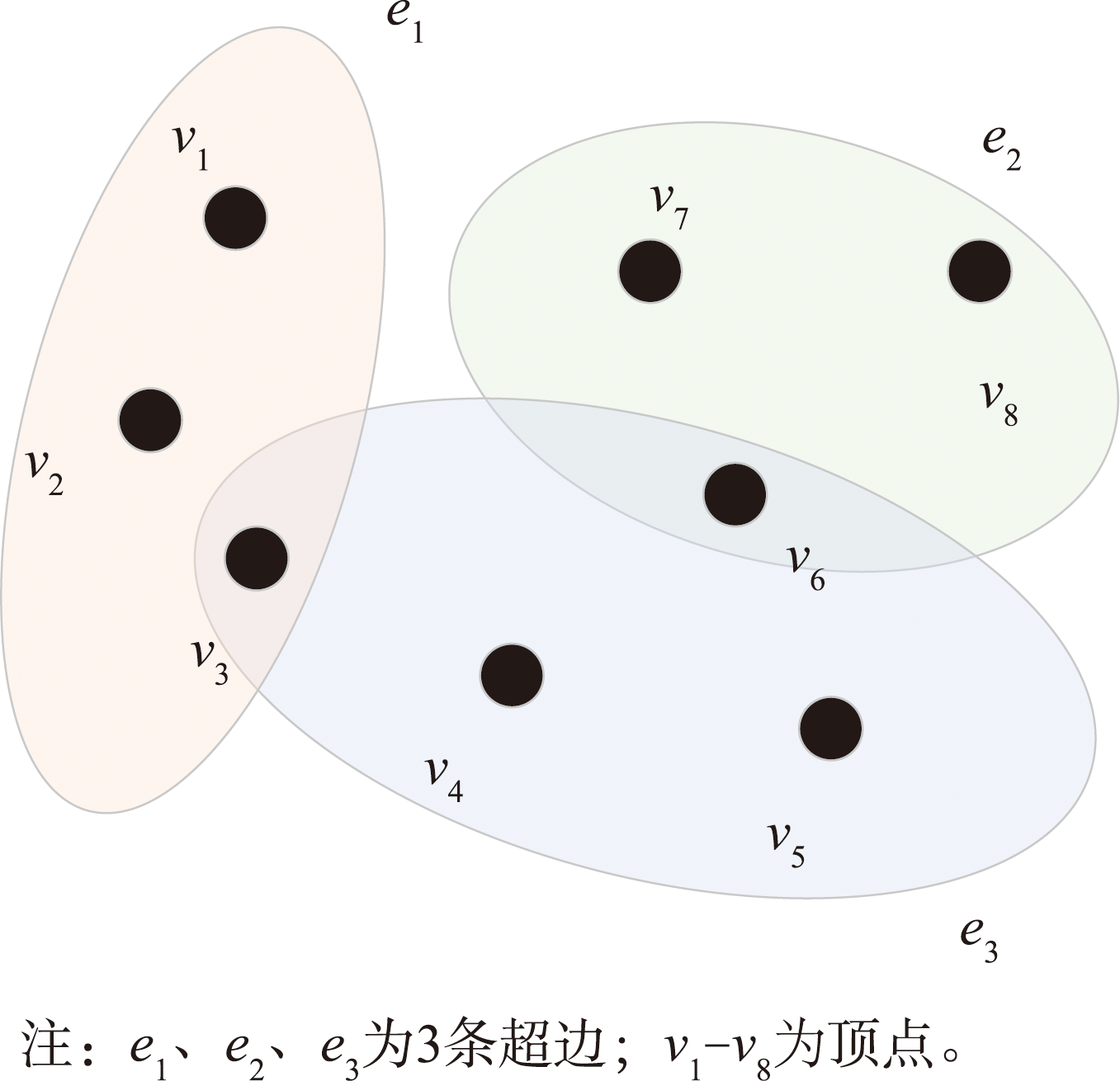

Fig.2

Tab. 1

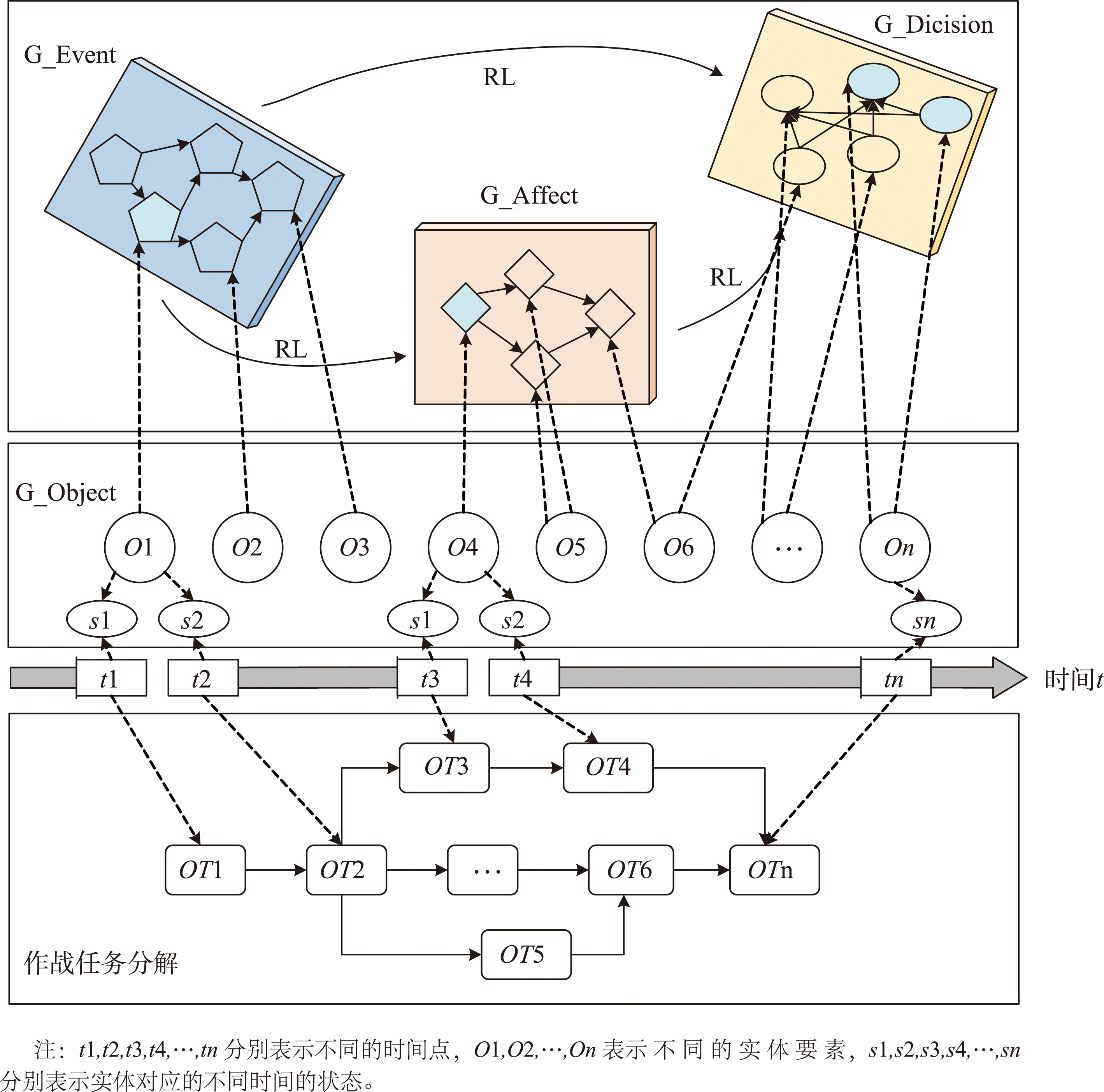

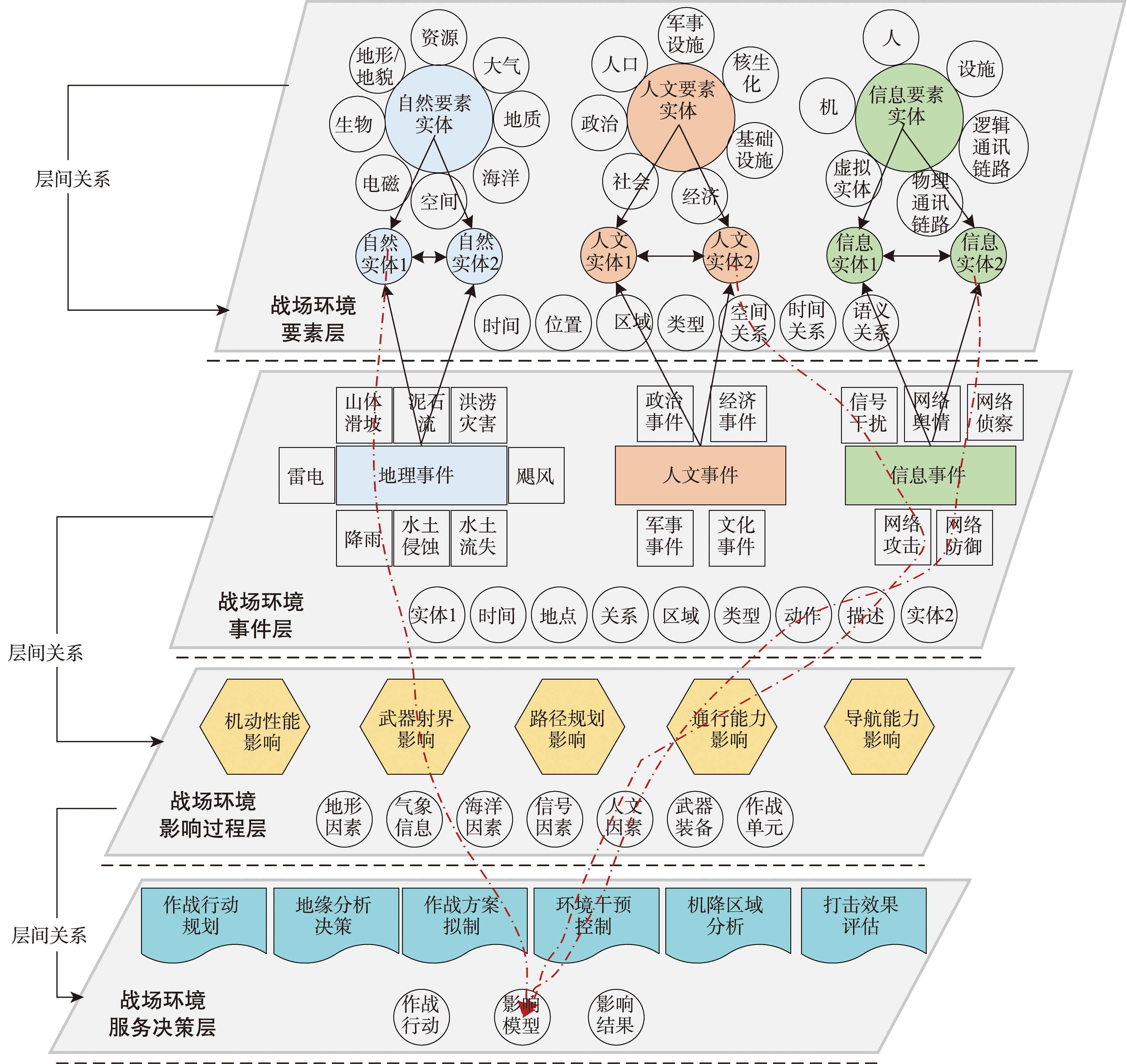

Fig. 3

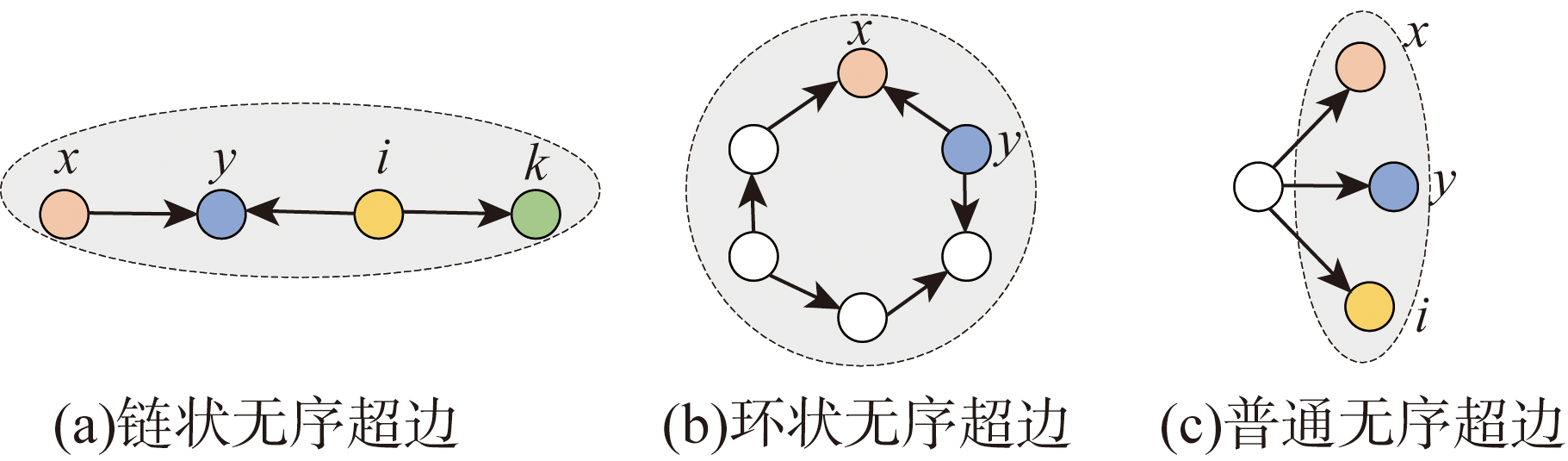

Fig.4

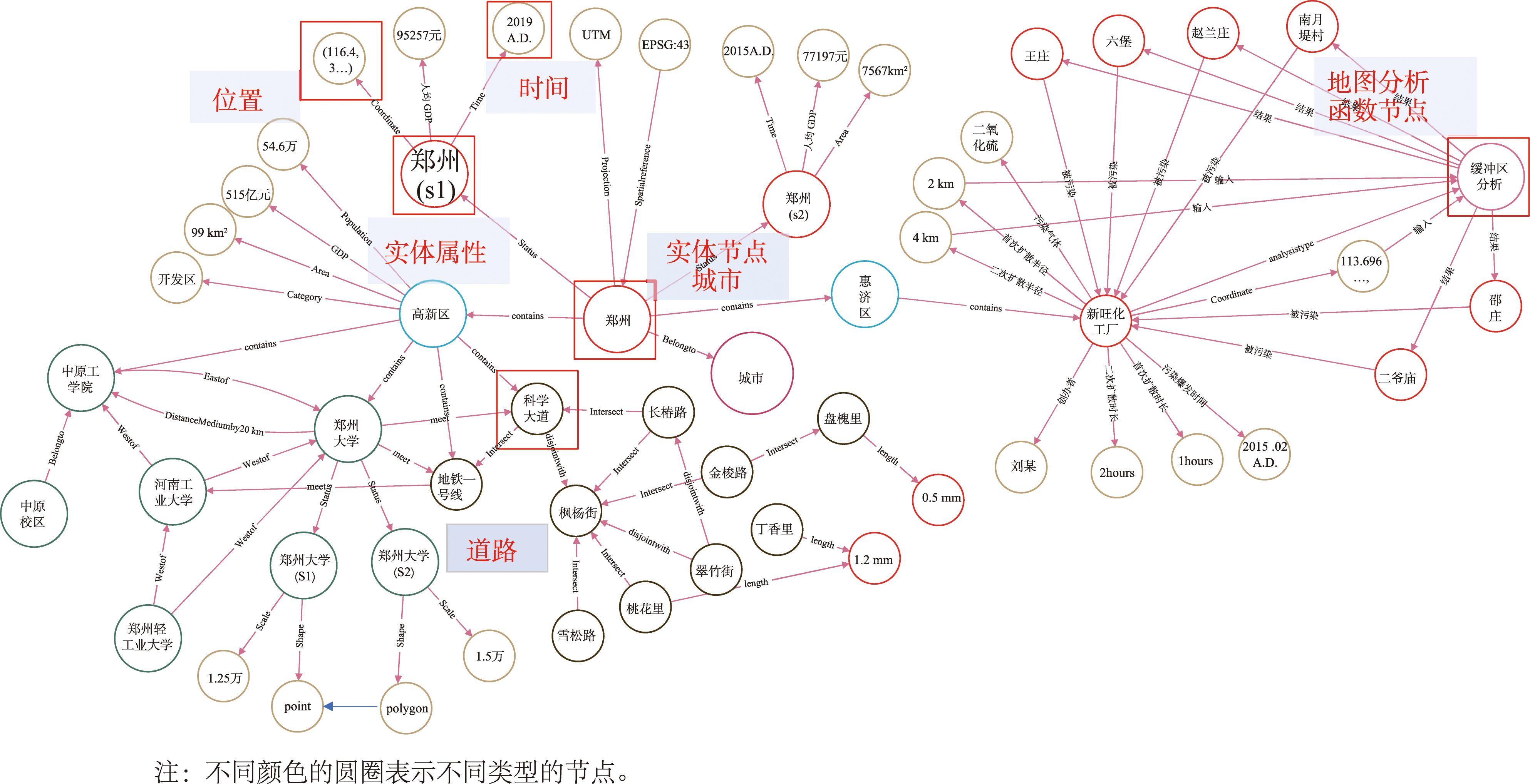

Fig.5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Tab. 2

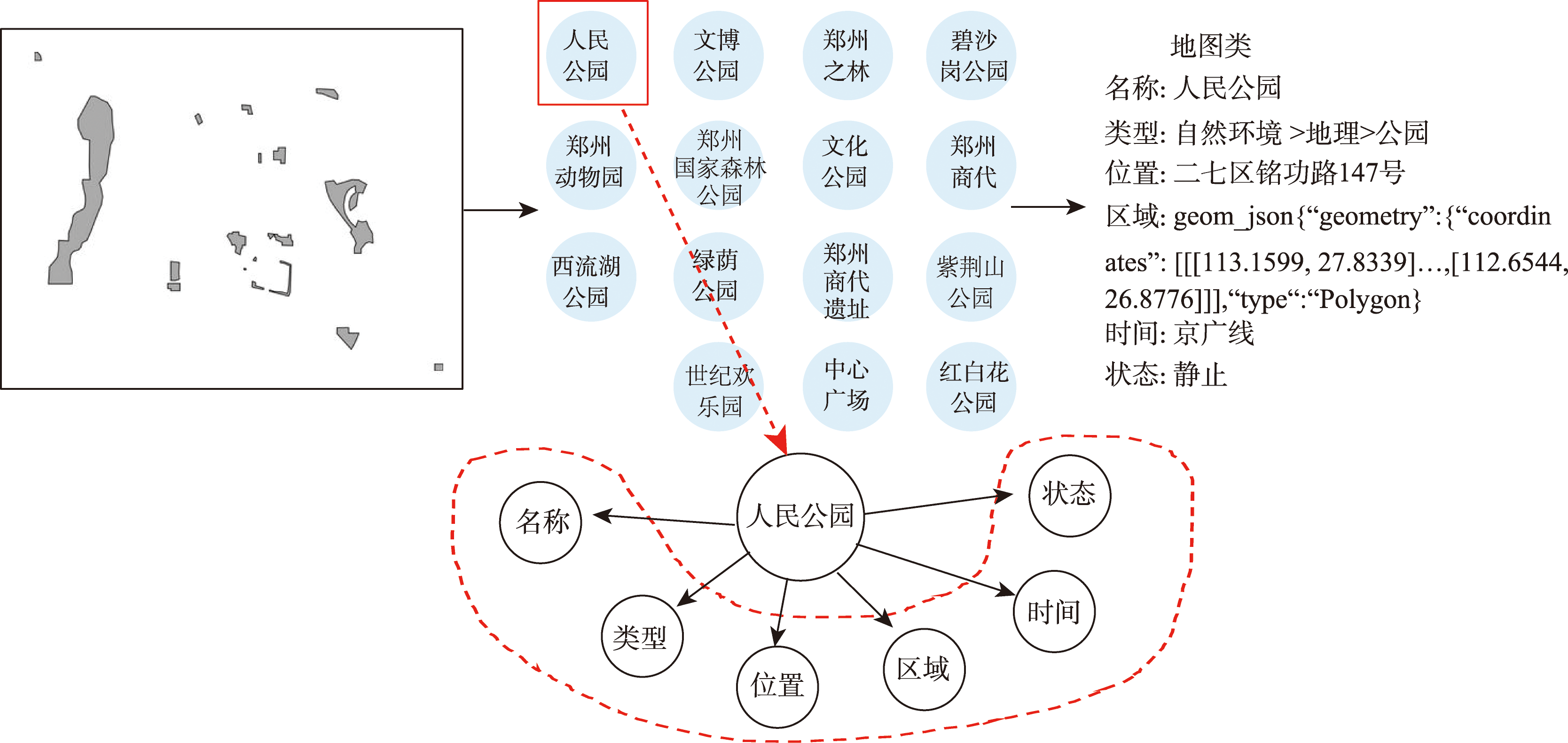

Fig. 11

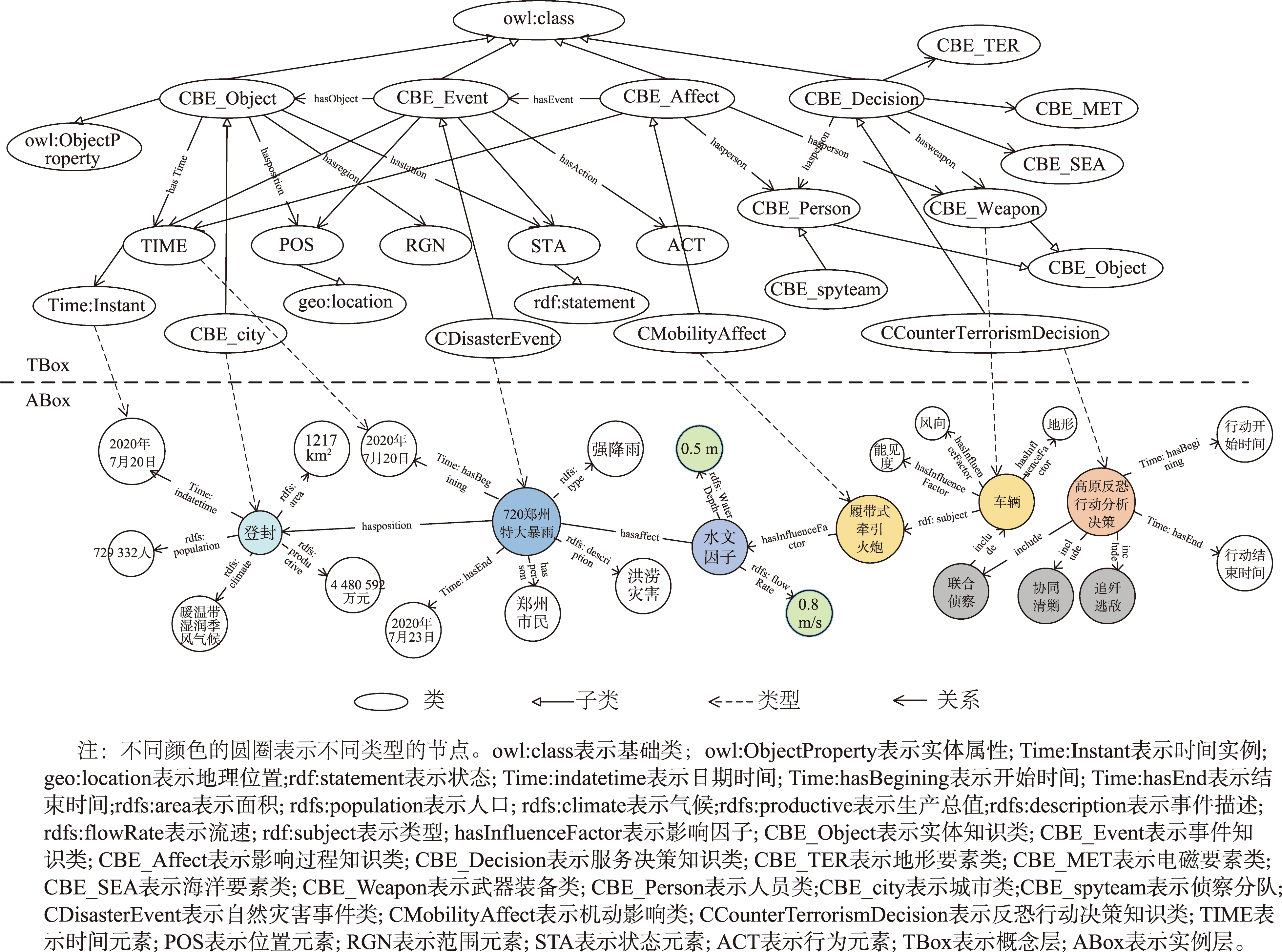

Fig. 12

Tab. 3

Tab. 4

Tab. 5

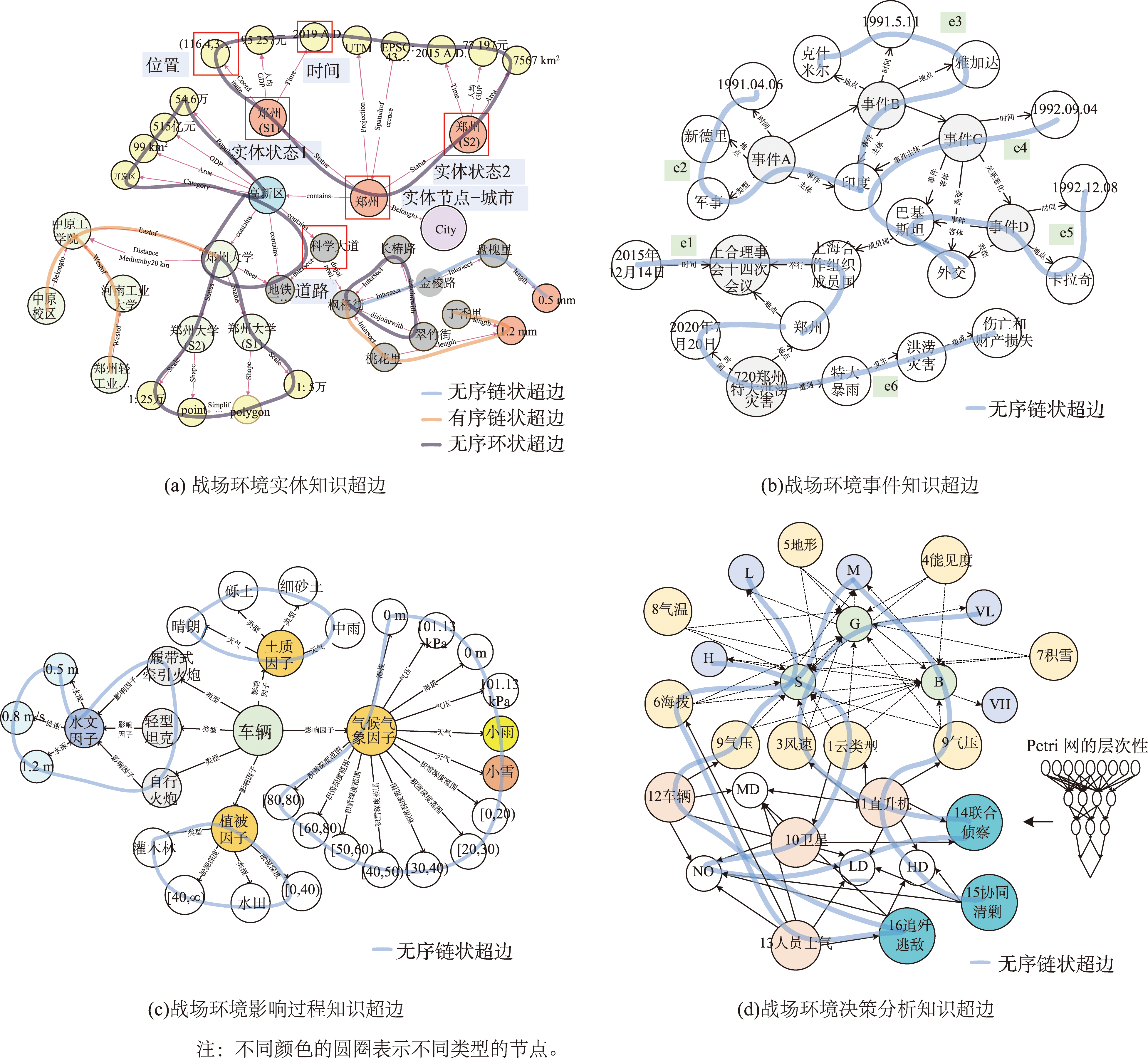

Fig. 13

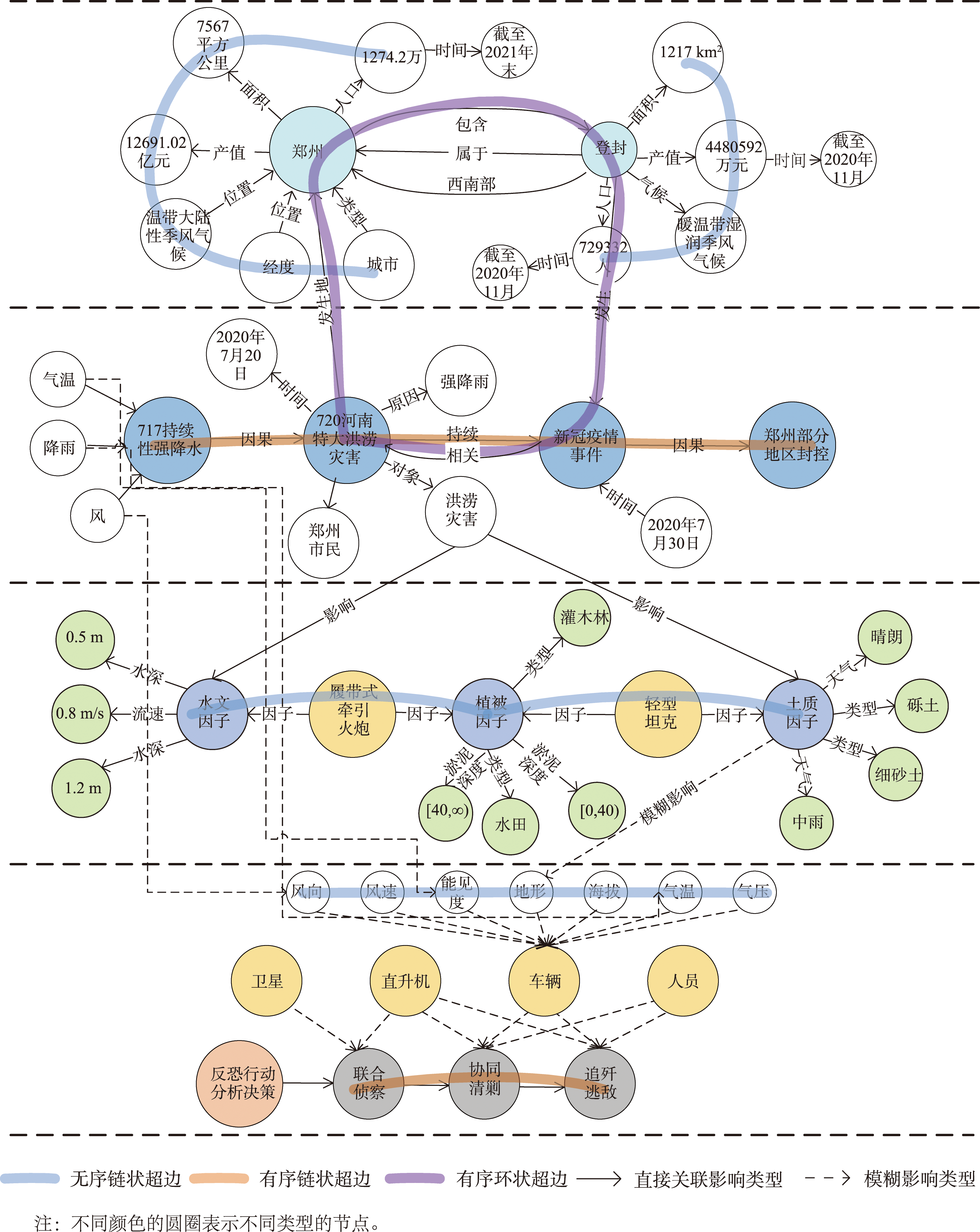

Fig. 14

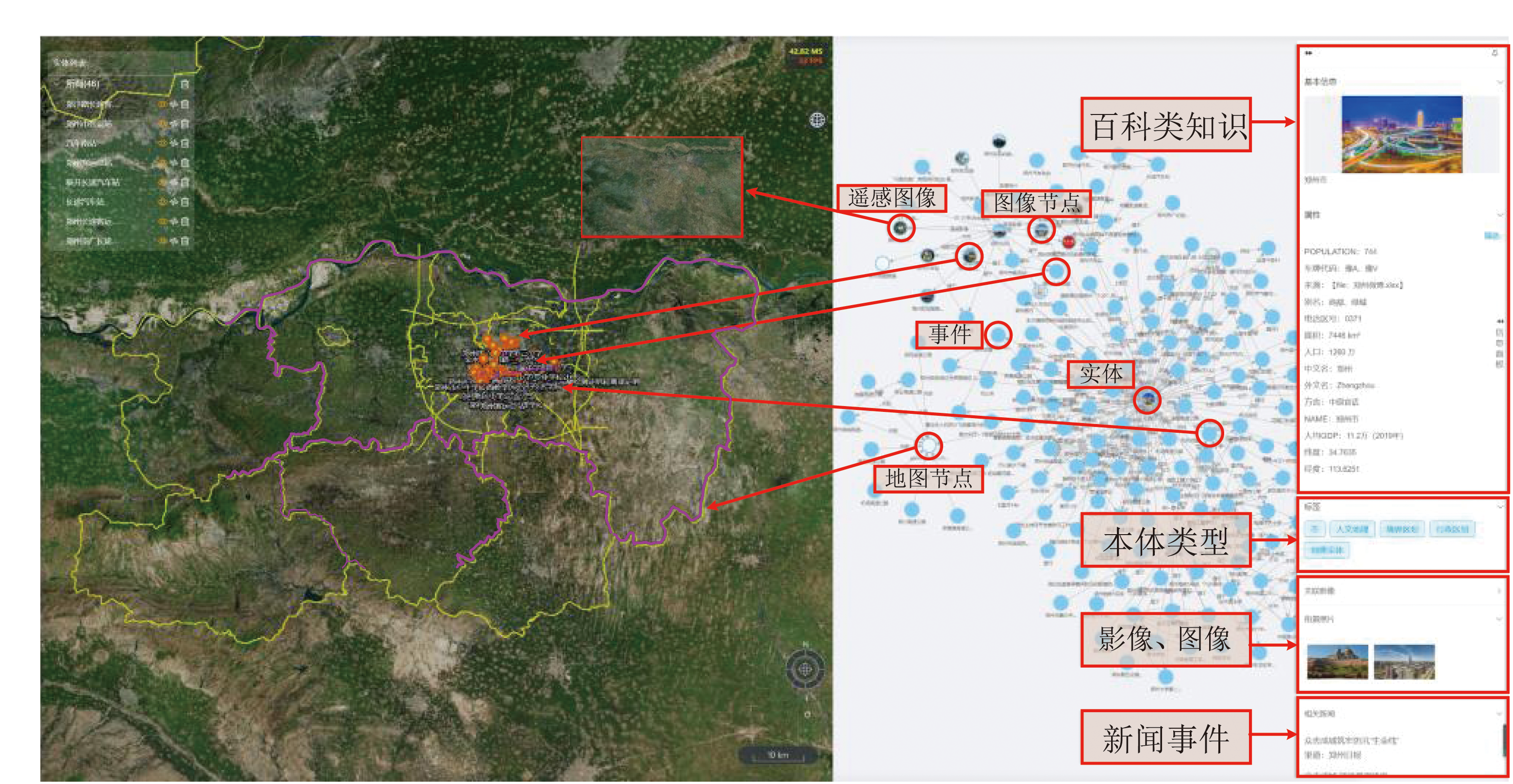

Fig. 15

References 26

[1]	游雄. 基于虚拟现实技术的战场环境仿真[J]. 测绘学报, 2002, 31(1):7-11.
	[ You X. The battlefield environment simulation based on VR[J]. Acta Geodaetica et Cartographic Sinica, 2002, 31(1):7-11. ]
[2]	游雄, 田江鹏. 面向无人自主平台的战场地理环境模型研究[J]. 系统仿真学报, 2020, 32(9):1645-1653. doi: 10.16182/j.issn1004731x.joss.20-0564
	[ You X, Tian J P. Research on geographical battlefield environment model facing autonomous platform[J]. Journal of System Simulation, 2020, 32(9):1645-1653. ] DOI:10.16182/j.issn1004731x.joss.20-0564 doi: 10.16182/j.issn1004731x.joss.20-0564
[3]	车金立, 唐力伟, 邓士杰, 等. 基于百科知识的军事装备知识图谱构建与应用[J]. 兵器装备工程学报, 2019, 40(1):148-153.
	[ Che J L, Tang L W, Deng S J, et al. Construction and application of military equipment knowledge graph based on encyclopedia knowledge[J]. Journal of Ordnance Equipment Engineering, 2019, 40(1):148-153. ] DOI:10.11809/bqzbgcxb2019.01.031 doi: 10.11809/bqzbgcxb2019.01.031
[4]	赵瑜, 陈志坤, 杨春. 基于开源数据的军事领域知识图谱构建方法[J]. 指挥信息系统与技术, 2019, 10(3):64-69.
	[ Zhao Y, Chen Z K, Yang C. Knowledge graph construction method for military field based on open source data[J]. Command Information System and Technology, 2019, 10(3):64-69. ] DOI:10.15908/j.cnki.cist.2019.03.012 doi: 10.15908/j.cnki.cist.2019.03.012
[5]	杨婷婷, 刘忠, 朱先强, 等. 面向知识图谱的作战体系运行机制研究[J]. 指挥控制与仿真, 2018, 40(2):15-21. doi: 10.3969/j.issn.1673-3819.2018.02.003
	[ Yang T T, Liu Z, Zhu X Q, et al. Combat system operation mechanism description method[J]. Command Control & Simulation, 2018, 40(2):15-21. ] DOI:10.3969/j.issn.1673-3819.2018.02.003 doi: 10.3969/j.issn.1673-3819.2018.02.003
[6]	左毅, 张桂林, 吴蔚, 等. 面向战场海空目标识别的知识图谱应用[J]. 指挥信息系统与技术, 2019, 10(3):1-5,24.
	[ Zuo Y, Zhang G L, Wu W, et al. Knowledge graph application for battlefield airborne/maritime target intelligent recognition[J]. Command Information System and Technology, 2019, 10(3):1-5,24. ] DOI:10.15908/j.cnki.cist.2019.03.001 doi: 10.15908/j.cnki.cist.2019.03.001
[7]	陆锋, 余丽, 仇培元. 论地理知识图谱[J]. 地球信息科学学报, 2017, 19(6):723-734. doi: 10.3724/SP.J.1047.2017.00723
	[ Lu F, Yu L, Qiu P Y. On geographic knowledge graph[J]. Journal of Geo-Information Science, 2017, 19(6):723-734. ]
[8]	蒋秉川, 万刚, 许剑, 等. 多源异构数据的大规模地理知识图谱构建[J]. 测绘学报, 2018, 47(8):1051-1061.
	[ Jiang B C, Wan G, Xu J, et al. Geographic knowledge graph building extracted from multi-sourced heterogeneous data[J]. Acta Geodaetica et Cartographica Sinica, 2018, 47(8):1051-1061. ]
[9]	Jiang B C, Tan L H, Ren Y, et al. Intelligent interaction with virtual geographical environments based on geographic knowledge graph[J]. ISPRS International Journal of Geo-information, 2019, 8(10): 428. DOI:10.3390/ijgi8100428 doi: 10.3390/ijgi8100428
[10]	Davies C. Reading geography between the lines: Extracting local place knowledge from text[M]. Spatial Information Theory. Cham: Springer International Publishing, 2013:320-337. DOI:10.1007/978-3-319-01790-7_18 doi: 10.1007/978-3-319-01790-7_18
[11]	余丽, 陆锋, 刘希亮. 开放式地理实体关系抽取的Bootstrapping方法[J]. 测绘学报, 2016, 45(5):616-622.
	[ Yu L, Lu F, Liu X L. A bootstrapping based approach for open geo-entity relation extraction[J]. Acta Geodaetica et Cartographica Sinica, 2016, 45(5):616-622. ]
[12]	Kyzirakos K, Karpathiotakis M, Koubarakis M. Strabon: A semantic geospatial DBMS[M]. The Semantic Web - ISWC 2012. Berlin, Heidelberg: Springer Berlin Heidelberg, 2012:295-311. DOI: 10.1007/978-3-642-35176-1_19 doi: 10.1007/978-3-642-35176-1_19
[13]	Stadler C, Lehmann J, Höffner K, et al. LinkedGeoData: A core for a web of spatial open data[J]. Semantic Web, 2012, 3(4):333-354. doi: 10.3233/SW-2011-0052
[14]	Ballatore A, Bertolotto M, Wilson D C. Geographic knowledge extraction and semantic similarity in OpenStreetMap[J]. Knowledge and Information Systems, 2013, 37(1):61-81. DOI:10.1007/s10115-012-0571-0 doi: 10.1007/s10115-012-0571-0
[15]	焦麟, 邢帅, 王丹菂, 等. 面向生物危害应急响应的地理本体模型设计与构建[J]. 武汉大学学报·信息科学版, 2021, 46(4):586-594.
	[ Jiao L, Xing S, Wang D D, et al. A biohazard emergency response geo-ontology model[J]. Geomatics and Information Science of Wuhan University, 2021, 46(4):586-594. ] DOI:10.13203/j.whugis20190189 doi: 10.13203/j.whugis20190189
[16]	王东旭, 诸云强, 潘鹏, 等. 地理数据空间本体构建及其在数据检索中的应用[J]. 地球信息科学学报, 2016, 18(4):443-452. doi: 10.3724/SP.J.1047.2016.00443
	[ Wang D X, Zhu Y Q, Pan P, et al. Construction of geodata spatial ontology and its application in data retrieval[J]. Journal of Geo-information Science, 2016, 18(4):443-452. ] DOI:10.3724/SP.J.1047.2016.00443 doi: 10.3724/SP.J.1047.2016.00443
[17]	Naing M M, Lim E P, Hoe-Lian D G. Ontology-based web annotation framework for hyperlink structures[C]. Proceedings of the Third International Conference on Web Information Systems Engineering (Workshops). IEEE, 2003:184-193. DOI:10.1109/WISEW.2002.1177862 doi: 10.1109/WISEW.2002.1177862
[18]	张雪英, 张春菊, 吴明光, 等. 顾及时空特征的地理知识图谱构建方法[J]. 中国科学:信息科学, 2020, 50(7):1019-1032.
	[ Zhang X Y, Zhang C J, Wu M G, et al. Spatiotemporal features based geographical knowledge graph construction[J]. Scientia Sinica (Informationis), 2020, 50(7):1019-1032. ]
[19]	Fatemi B, Taslakian P, Vazquez D, et al. Knowledge hypergraphs: prediction beyond binary relations[C]. Proceedings of the Twenty-Ninth International Joint Conference on Artificial Intelligence. California: International Joint Conferences on Artificial Intelligence Organization, 2020:2191-2197. DOI:10.24963/ijcai.2020/303 doi: 10.24963/ijcai.2020/303
[20]	田玲, 张谨川, 张晋豪, 等. 知识图谱综述——表示、构建、推理与知识超图理论[J]. 计算机应用, 2021, 41(8):2161-2186. doi: 10.11772/j.issn.1001-9081.2021040662
	[ Tian L, Zhang J C, Zhang J H, et al. Knowledge graph survey: Representation, construction, reasoning and knowledge hypergraph theory[J]. Journal of Computer Applications, 2021, 41(8):2161-2186. ] DOI:10.11772/j.issn.1001-9081.2021040662 doi: 10.11772/j.issn.1001-9081.2021040662
[21]	Berge C. Graphs and hypergraphs[M]. [Rev. ed. ]. Amsterdam: North-Holland Pub. Co., 1973
[22]	庞俊, 徐浩, 秦宏超, 等. 联合注意力与卷积网络的知识超图链接预测[J/OL]. 计算机科学与探索:1-10[2022-12-20].
	[ Pang Jun, Xu Hao, Qin Hongchao, et al. Link prediction in knowledge hypergraph combining attention and convolution network[J/OL]. Journal of Frontiers of Computer Science and Technology:1-10[2022-12-20]. ]
[23]	高峰, 郑丽丽, 顾进广. 面向多元时序关系的金融知识图谱表示与构建[J]. 山西大学学报(自然科学版), 2022, 45(4):873-883.
	[ Gao F, Zheng L L, Gu J G. Hypergraph based knowledge representation and construction for polynary and temporal relations in financial domain[J]. Journal of Shanxi University (Natural Science Edition), 2022, 45(4):873-883. ] DOI:10.13451/j.sxu.ns.2021122 doi: 10.13451/j.sxu.ns.2021122
[24]	黄鲁峰. 基于GIS的战场自然环境因子综合分析研究——以地形通行性能分析为例[D]. 郑州: 解放军信息工程大学, 2008.
	[ Huang L F. A study of the comprehensive analysis of natural environmental factors in battlefield based on GIS: A case of terrain through performance analysis[D]. Zhengzhou: PLA Information Engineering University, 2008. ]
[25]	单继城. 动态战场环境对军事行动影响分析关键技术研究[D]. 长沙: 国防科技大学, 2019.
	[ Shan J C. Research on key technologies of dynamic battlefield environment impact analysis on military action[D]. Changsha: National University of Defense Technology, 2019. ]
[26]	王静, 刘成山, 秦春秀. 一种基于模糊Petri网的知识元语义集成方法[J]. 情报理论与实践, 2017, 40(9):140-144.
	[ Liu C S, Qin C X. Semantic integration method of knowledge element based on fuzzy petri net[J]. Information Studies: Theory & Application, 2017, 40(9):140-144. ] DOI:10.16353/j.cnki.1000-7490.2017.09.026 doi: 10.16353/j.cnki.1000-7490.2017.09.026

	知识类型	知识表示内容	知识表示模型	人认知	机器认知
文字表示	基础知识、影响知识和决策知识	基本要素属性、定性分析结果	文字、图表	难	难
地图表示	基础知识	基本要素属性、位置及空间关系、物理、空间属性	地图投影、符号变量、矢量栅格存储模型等	较难	难
专题图表示	基础知识、环境影响知识	环境基本要素知识、环境影响人员、装备性能知识、能力评估	专题符号表示、作战规则符号表示、作战行动规则表示等	一般	难
虚拟战场环境表示	基础知识、环境影响知识、决策支持知识	知识表示方法	作战规则符号表示、作战行动规则表示、CGF、推演规则等	容易	一般
战场环境知识图谱表示	基础知识、环境影响知识、决策支持知识	环境基本要素知识、环境影响知识、作战行动辅助决策知识	知识图谱、规则知识建模等	一般	容易

数据类型	数据（模型）描述	格式描述	来源
地图数据	郑州地区OSM地图数据	shp点、线、面地图数据	osm官网下载
事件数据	郑州地区720洪水灾害事件及地缘事件类数据	新闻文本数据	互联网新闻爬取，触发词分词结构化
影响过程模型数据	装甲车机动影响模型	影响因子指标体系、规则描述	专家经验、研究论文
场环境服务决策数据	反恐作战行动战场环境影响分析决策	模糊影响图矩阵	专家知识、研究论文

事件文字描述	类型	主体	时间	地点	动作	描述
2021年7月20日，河南省郑州市遭遇历史罕见特大暴雨，发生严重洪涝灾害，造成重大人员伤亡和财产损失	洪涝灾害事件	河南省郑州市	2021年7月20日	河南省郑州市	遭遇、发生	720郑州特大洪涝灾害
2015年12月14日，上海合作组织成员国政府首脑（总理）理事会第十四次会议在郑州举行	政治事件	上海合作组织成员国、郑州	2015年12月14日	郑州	举行	上合理事会十四次会议
2022年2月24日，今日俄罗斯电视台媒体网站受到分布式拒绝服务(DDoS)攻击，导致服务器瘫痪	网络攻击事件	今日俄罗斯电视台媒体网站	2022年2月24日	今日俄罗斯电视台	攻击	俄媒体网站受到网络攻击

影响因子	性能影响举例	逻辑规则表示
水文因子	履带式牵引火炮，流速小于1 m/s，最大涉水深度为1.00 m	Crawlertowedgun(?x)^Flowvelocity(?v)^hasFlowvelocity(?x,?v)^Depth(?d)^hasDepth(?x,?d)swrlb:lessThan(?v,1)^swrlb:lessThanOrEqual(?d,1)→hasTrafficeStatus(?x,true)
气象因子	海拔高度0 m，大气压101.13 kPa，车辆速度效率100%	Vehicle(?x)^Altitude(?h)^Pressure(?p)^Speedefficiency(?v)^hasAltitude(?x,?h)^hasPressure(?x,?p)^swrlb:equal(?h,0)^swrlb:equal(?p,101.13)→hasSpeedefficiency (?x,100%)
土质因子	土质砾土，天气晴朗，车辆难通行	Vehicle(?x)^Soil(?s)^Weather(?w)^[“砾土”](?s)^[“晴朗”](?w)→hasTrafficeStatus(?x,hard)
植被因子	植被类型水田，淤泥深度<40 cm，车辆难通行，淤泥深度>40 cm，车辆不能通行	Vehicle(?x)^Vegetation (?ve)^[“水田”](?ve)^Muddepth(?m)^swrlb:greaterThan(?m,40)→hasTrafficeStatus(?x,prohibit)

节点	频率	状态	非独立节点	非独立节点状态
1云类型	M	G	11直升机	LD
1云类型	H	S	10卫星	NO
3风速	VL	G	11直升机	MD
9气压	H	B	11直升机	HD
