城市扩张与生态空间非线性动态耦合关系梯度分析模型

doi:10.12082/dqxxkx.2023.230178

Abstract

Abstract:

Exploring the coupling between urban development and ecological protection plays a key role in promoting the new urbanization strategy. The existing studies have largely focused on the coupling of urban system elements, structures, and functions, and the ecological environment at the macro scale, while their nonlinear dynamic relationships have been rarely explored across the spatial gradient. Here, we established a multi-criteria indicator system to quantify the urban-ecological composite system and proposed an integrated analytical framework to assess the dynamic coupling of this composite system. Taking Wuhan city as an example, we investigated the dynamic coupling between the urban expansion processes and the ecological space changes at different spatial domains (i.e., the area within the third-ring road, the area around the high-speed ring road, and the urban center) during the period of 1985-2020. The results show that the area of construction land experienced a continuous growth from 1985 to 2020 with an increasing rate from the urban center to rural areas, while the area of ecological land decreased rapidly. The urban center had a more significant decline in ecological land than other areas. With the rapid urban expansion, the coupling of the urban expansion process and ecological degradation presented a S-shaped change in the urban center area and the area around the high-speed ring road in Wuhan city, which was less obvious before 2010 and afterwards became significant. In the area of the high-speed ring road, the coupling level showed an overall increase with fluctuations, e.g., it fluctuated between the phase of highspeed development and the phase of spiral rise after 2005. For the area between the high-speed ring road and the urban center, the coupling level exhibited an approximate S shape, with a transition from a slow coordination state to the spiral-up state before 2010 and then a decline to the high-speed development state. In the urban center area, the coupling level was already at the stage of the high-speed development during the period of 2000-2005, and then fluctuated around high values. There were significant differences in the changes of coupling of urban-ecological system across spatial gradients of a city, which indicated that future urban space management and green infrastructure planning should be adapted to local conditions.

Key words: urban expansion, ecological space evolution, urban ecological systems, dynamic coupling relationship, nonlinear analysis, spatial gradient, urban space controlling, Wuhan city

MA Lisha, LIU Dianfeng, LIU Yaolin. Modelling Gradient Changes of Non-linear Dynamic Coupling Relationships between Urban Expansion and Ecological Land[J].Journal of Geo-information Science, 2023, 25(10): 1968-1985.DOI:10.12082/dqxxkx.2023.230178

Figures/Tables 10

Fig. 1

Tab. 1

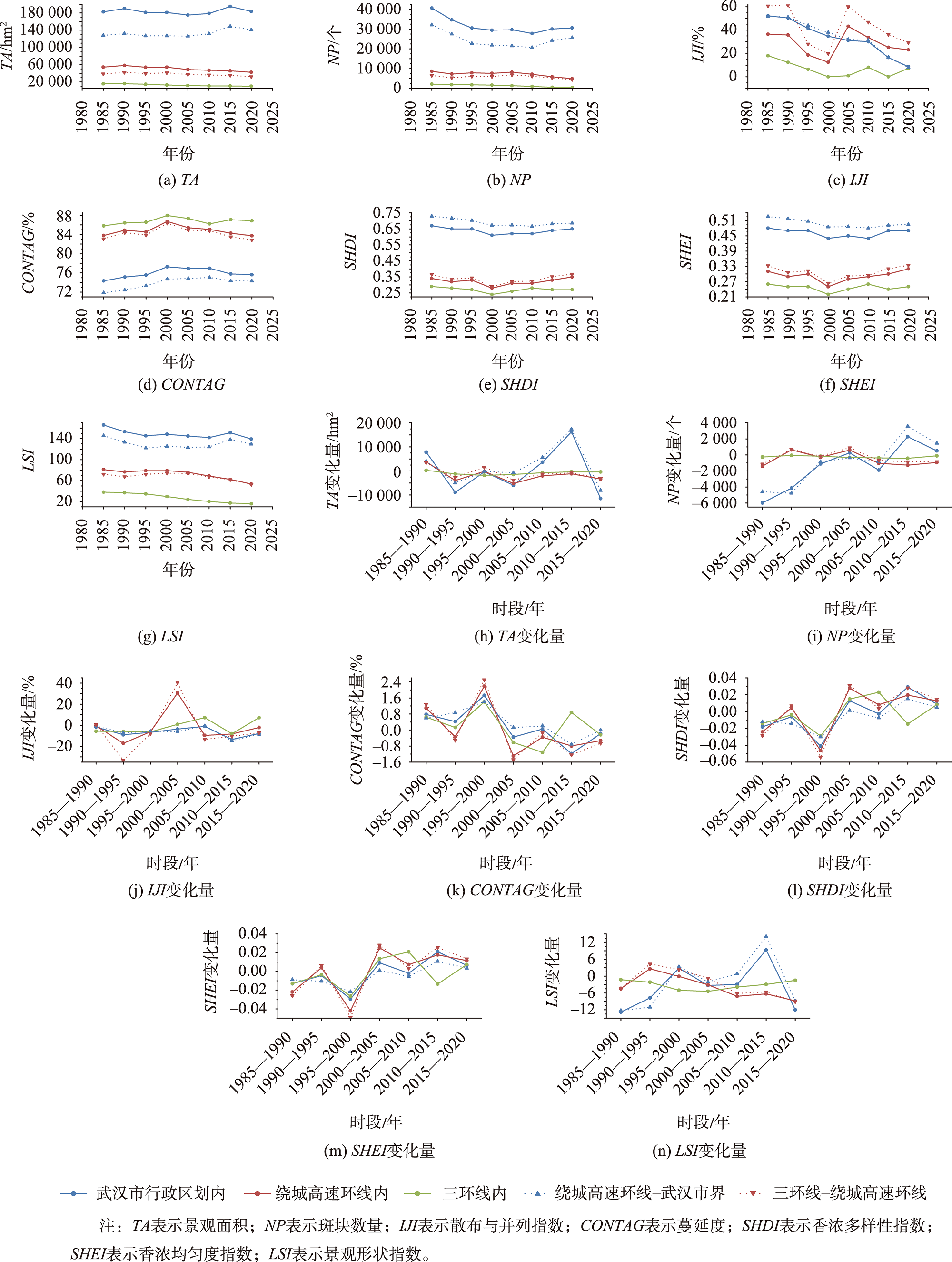

An overview of the selected landscape indices

指标名称	计算公式	变量	含义	公式编号
景观面积	TA= $∑ j = 1 n a i j$ TA>0	$a i j$ 为类型 $i$ 斑块 $j$ 的面积，n为斑块数量	描述景观规模大小，揭示景观完整性	（4）
斑块数量	NP=N NP≥1	N为景观中的斑块数量	景观中斑块的总数，描述景观被分割的程度。值的大小与景观的破碎度有很好的正相关性	（5）
散布与并列指数	IJI= $- ∑ i = 1 m ∑ k = i + 1 m (e i k E) · l n e i k E l n 0.5 · (m - 1) × 100$ 0<IJI≤100	$e i k$ 为位于斑块i和k之间的边缘总长度，E为整个景观中的边缘总长度（不包括背景部分），m为景观中斑块类型的数量	景观隔离和斑块混合的量度，指标越大，不同斑块交替出现的规律越明显，景观斑块分散度越高	（6）
蔓延度	CONTAG= $100 × 1 + ∑ i = 1 m ∑ k = 1 m P i g i k ∑ k = 1 m g i k · l n P i g i k ∑ k = 1 m g i k 2 l n (m)$ 0<CONTAG≤100	$g i k$ 是基于双倍法的斑块类型i和斑块k之间的节点数，m是斑块类型数	描述景观里不同斑块类型的团聚程度或延展趋势。值较小时，表明景观中存在许多小斑块；值越高，景观中连通度极高的优势斑块类型存在的可能性越大	（7）
香浓多样性指数	SHDI $= - ∑ i = 1 m [P i l n (P i)]$ SHDI≥0	$P i$ 为斑块类型 $i$ 的面积比重，m为斑块类型的数量	描述景观异质性，值越大，各斑块类型在景观中呈均衡化趋势分布	（8）
香浓均匀度指数	SHEI= $- ∑ i = 1 m [P i l n (P i)] l n m$ 0≤ $S H E I$ ≤1	$P i$ 为斑块类型 $i$ 的面积比重，m为斑块类型的数目	描述景观各组分的分配均匀程度	（9）
景观形状指数	LSI= $0.25 E / A$ $L S I$ ≥1	E是斑块周长，A是斑块面积	景观形状越不规则或越偏离正方形时，值越大	（10）

Tab. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Tab. 2

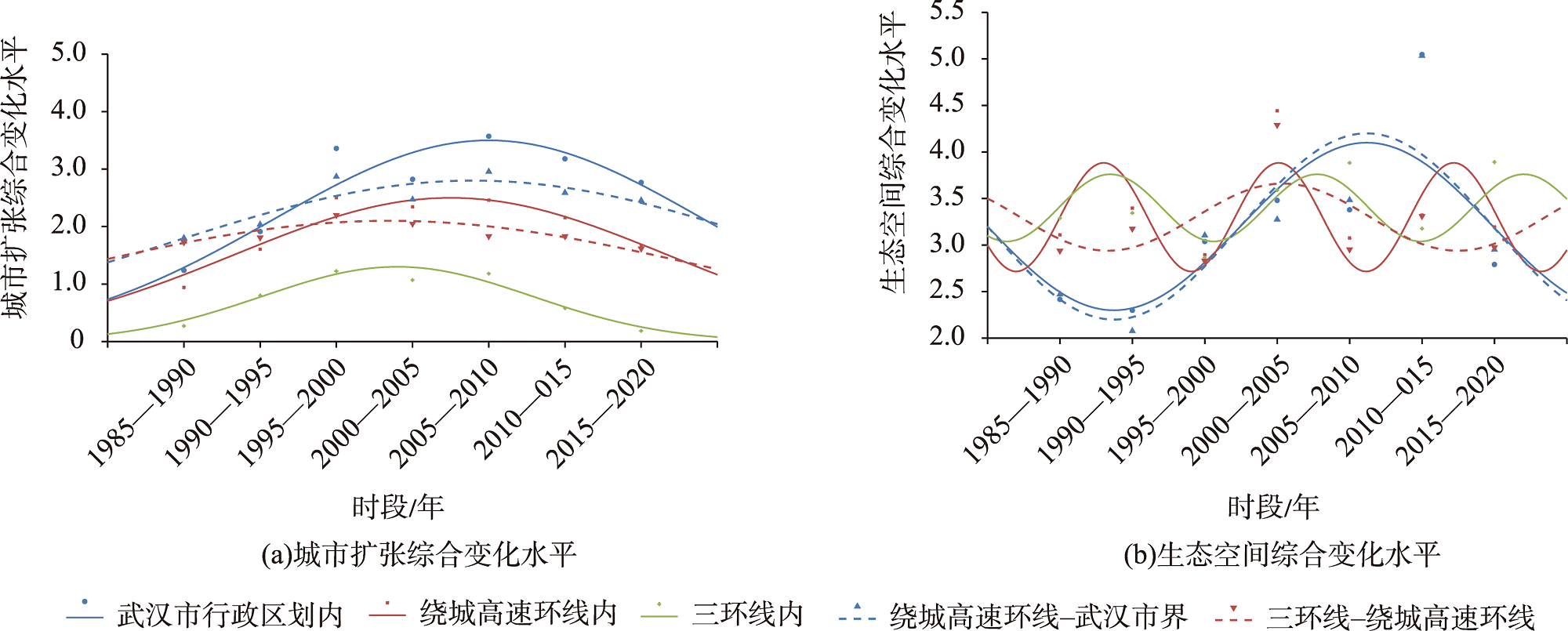

Fitting curves for spatial evolution of urban and ecological subsystems in Wuhan from 1985 to 2020

研究范围	城市空间扩张变化趋势拟合曲线	Adjust- R²	公式编号	生态空间变化趋势拟合曲线	Adjust- R²	公式编号
	$a e - t - b c 2$		（19）	$a 0 + a 1 c o s t w + b 1 s i n t w$		（25）
武汉市行政区划内	$y U = 3.5 e - (t - 5 4) 2$	0.868 2	（20）	$y E = 3.2 - 0.9 s i n 0.9 t$	0.659 5	（26）
绕城高速环线内	$y U = 2.5 e - (t - 4.5 4) 2$	0.921 7	（21）	$y E = 3.3 - 0.3 c o s 2.6 t - 0.5 s i n 2.6 t$	0.698 5	（27）
三环线内	$y U = 1.3 e - (t - 3.8 2.5) 2$	0.928 9	（22）	$y E = 3.4 - 0.3 c o s 2.2 t - 0.2 s i n 2.2 t$	0.658 0	（28）
绕城高速环线-武汉市界	$y U = 2.8 e - (t - 4.8 5.7) 2$	0.795 6	（23）	$y E = 3.2 - s i n 0.9 t$	0.688 4	（29）
三环线-绕城高速环线	$y U = 2.1 e - (t - 3.7 6) 2$	0.743 9	（24）	$y E = 3.3 + 0.2 c o s 1.3 t - 0.3 s i n 1.3 t$	0.403 4	（30）

Tab. 2

Fig. 7

Tab. 3

References 70

[1]	高吉喜, 徐德琳, 乔青, 等. 自然生态空间格局构建与规划理论研究[J]. 生态学报, 2020, 40(3):749-755.
	[Gao J X, Xu D L, Qiao Q, et al. Pattern construction of natural ecological space and planning theory exploration[J]. Acta Ecologica Sinica, 2020, 40(3):749-755.] DOI:10.5846/stxb201810152229
[2]	刘继来, 刘彦随, 李裕瑞. 中国“三生空间”分类评价与时空格局分析[J]. 地理学报, 2017, 72(7):1290-1304. doi: 10.11821/dlxb201707013
	[Liu J L, Liu Y S, Li Y R. Classification evaluation and spatial-temporal analysis of “production-living-ecological” spaces in China[J]. Acta Geographica Sinica, 2017, 72(7):1290-1304.] DOI:10.11821/dlxb201707013
[3]	郑茜. 武汉市生态空间评价与优化研究[D]. 武汉: 华中师范大学, 2018.
	[Zheng Q. A study on optimization and spatial estimate of ecological space in Wuhan city[D]. Wuhan: Central China Normal University, 2018.]
[4]	王丽妍. 生态空间质量约束下的城镇用地增长情景模拟——以改进的SLEUTH模型为例[D]. 南京: 南京大学, 2016.
	[Wang L Y. Scenario simulation for urban land growth under the constraint of ecological space quality[D]. Nanjing: Nanjing University, 2016.]
[5]	陈新闯, 李锋, 李小倩, 等. 珠三角城市群生态空间分区方法与管控对策[J]. 生态学报, 2021, 41(13):5233-5241.
	[Chen X C, Li F, Li X Q, et al. Method and control measures of ecological space zoning in Pearl River Delta urban agglomeration[J]. Acta Ecologica Sinica, 2021, 41(13):5233-5241.] DOI:10.5846/stxb202004130871
[6]	俞孔坚, 王思思, 李迪华, 等. 北京城市扩张的生态底线——基本生态系统服务及其安全格局[J]. 城市规划, 2010, 34(2):19-24.
	[Yu K J, Wang S S, Li D H, et al. Ecological baseline for Beijing’s urban sprawl: Basic ecosystem services and their security patterns[J]. City Planning Review, 2010, 34(2):19-24.]
[7]	Shi L, Halik Ü, Mamat Z, et al. Spatiotemporal investigation of the interactive coercing relationship between urbanization and ecosystem services in arid northwestern China[J]. Land Degradation & Development, 2021, 32(14):4105-4120. DOI:10.1002/ldr.3946
[8]	Gong P, Li X C, Zhang W. 40-Year (1978-2017) human settlement changes in China reflected by impervious surfaces from satellite remote sensing[J]. Science Bulletin, 2019, 64(11):756-763. DOI:10.1016/j.scib.2019.04.024 pmid: 36659545
[9]	焦利民, 刘耀林. 可持续城市化与国土空间优化[J]. 武汉大学学报·信息科学版, 2021, 46(1):1-11.
	[Jiao L M, Liu Y L. Sustainable urbanization and territorial spatial optimization[J]. Geomatics and Information Science of Wuhan University, 2021, 46(1):1-11.] DOI:10.13203/j.whugis20200365
[10]	傅伯杰. 地理学:从知识、科学到决策[J]. 地理学报, 2017, 72(11):1923-1932. doi: 10.11821/dlxb201711001
	[Fu B J. Geography: From knowledge, science to decision making support[J]. Acta Geographica Sinica, 2017, 72(11):1923-1932.] DOI:10.11821/dlxb201711001
[11]	黄金川, 方创琳. 城市化与生态环境交互耦合机制与规律性分析[J]. 地理研究, 2003, 22(2):211-220.
	[Huang J C, Fang C L. Analysis of coupling mechanism and rules between urbanization and eco-environment[J]. Geographical Research, 2003, 22(2):211-220.] DOI:10.3321/j.issn:1000-0585.2003.02.010
[12]	李鸿奎. 基于城市梯度模型的城市化与城市生态环境耦合研究——以大连市为例[D]. 大连: 辽宁师范大学, 2014.
	[Li H K. Study on the coupling of urbanization and urban ecological environment based on urban gradient model[D]. Dalian: Liaoning Normal University, 2014.] DOI:10.7666/d.Y2613141
[13]	樊杰. 人地系统可持续过程、格局的前沿探索[J]. 地理学报, 2014, 69(8):1060-1068. doi: 10.11821/dlxb201408003
	[Fan J. Frontier approach of the sustainable process and pattern of human-environment system[J]. Acta Geographica Sinica, 2014, 69(8): 1060-1068.] DOI:10.11821/dlxb201408003
[14]	李小云, 杨宇, 刘毅. 中国人地关系演进及其资源环境基础研究进展[J]. 地理学报, 2016, 71(12):2067-2088. doi: 10.11821/dlxb201612001
	[Li X Y, Yang Y, Liu Y. Research progress in man-land relationship evolution and its resource-environment base in China[J]. Acta Geographica Sinica, 2016, 71(12):2067-2088.] DOI:10.11821/dlxb201612001
[15]	郑德凤, 臧正, 张雨, 等. 基于新型城镇化视角的区域PRED系统综合评价——以大连为例[J]. 地理科学进展, 2014, 33(3):364-374. doi: 10.11820/dlkxjz.2014.03.008
	[Zheng D F, Zang Z, Zhang Y, et al. Comprehensive assessment of regional PRED system based on new urbanization approach: A case study in Dalian[J]. Progress in Geography, 2014, 33(3):364-374.] DOI:10.11820/dlkxjz.2014.03.008
[16]	李双成, 王羊, 蔡运龙. 复杂性科学视角下的地理学研究范式转型[J]. 地理学报, 2010, 65(11):1315-1324. doi: 10.11821/xb201011001
	[Li S C, Wang Y, Cai Y L. The paradigm transformation of geography from the perspective of complexity sciences[J]. Acta Geographica Sinica, 2010, 65(11):1315-1324.] DOI:10.11821/xb201011001
[17]	方创琳. 耗散结构理论与地理系统论[J]. 干旱区地理, 1989, 12(3):53-58.
	[Fang C L. Dissipative structure theory and geography system[J]. Arid Land Geography, 1989, 12(3):53-58.] DOI:10.13826/j.cnki.cn65-1103/x.1989.03.010
[18]	Li T T, Wang Y, Zhao D T. Environmental Kuznets Curve in China: New evidence from dynamic panel analysis[J]. Energy Policy, 2016, 91:138-147. DOI:10.1016/j.enpol.2016.01.002
[19]	刘耀彬, 李仁东, 宋学锋. 中国区域城市化与生态环境耦合的关联分析[J]. 地理学报, 2005, 60(2):237-247.
	[Liu Y B, Li R D, Song X F. Grey associative analysis of regional urbanization and eco-environment coupling in China[J]. Acta Geographica Sinica, 2005, 60(2):237-247.] DOI:10.3321/j.issn:0375-5444.2005.02.007
[20]	吕有金, 孔令池, 李言. 中国城镇化与生态环境耦合协调度测度[J]. 城市问题, 2019(12):13-22.
	[Lv Y J, Kong L C, Li Y. Measurement on the coordination degree of China's urbanization and ecological environment[J]. Urban Problems, 2019(12):13-22.] DOI:10.13239/j.bjsshkxy.cswt.191202
[21]	Fang C L, Ren Y F. Analysis of emergy-based metabolic efficiency and environmental pressure on the local coupling and telecoupling between urbanization and the eco-environment in the Beijing-Tianjin-Hebei urban agglomeration[J]. Science China Earth Sciences, 2017, 60(6):1083-1097. DOI:10.1007/s11430-016-9038-6
[22]	Fang C L, Cui X G, Li G D, et al. Modeling regional sustainable development scenarios using the Urbanization and Eco-environment Coupler: Case study of Beijing-Tianjin-Hebei urban agglomeration, China[J]. Science of the Total Environment, 2019, 689:820-830. DOI:10.1016/j.scitotenv.2019.06.430
[23]	方创琳, 杨玉梅. 城市化与生态环境交互耦合系统的基本定律[J]. 干旱区地理, 2006, 29(1):1-8.
	[Fang C L, Yang Y M. Basic laws of the interactive coupling system of urbanization and ecological environment[J]. Arid Land Geography, 2006, 29(1):1-8.] DOI:10.3321/j.issn:1000-6060.2006.01.001
[24]	方创琳, 周成虎, 顾朝林, 等. 特大城市群地区城镇化与生态环境交互耦合效应解析的理论框架及技术路径[J]. 地理学报, 2016, 71(4):531-550. doi: 10.11821/dlxb201604001
	[Fang C L, Zhou C H, Gu C L, et al. Theoretical analysis of interactive coupled effects between urbanization and eco-environment in mega-urban agglomerations[J]. Acta Geographica Sinica, 2016, 71(4):531-550.] DOI:10.11821/dlxb201604001
[25]	Fang C L, Wang J. A theoretical analysis of interactive coercing effects between urbanization and eco-environment[J]. Chinese Geographical Science, 2013, 23(2):147-162. DOI:10.1007/s11769-013-0602-2
[26]	Fang C L, Liu H M, Wang S J. The coupling curve between urbanization and the eco-environment: China's urban agglomeration as a case study[J]. Ecological Indicators, 2021, 130:108107. DOI:10.1016/j.ecolind.2021.108107
[27]	Tian Y Y, Zhou D Y, Jiang G H. Conflict or Coordination? Multiscale assessment of the spatio-temporal coupling relationship between urbanization and ecosystem services: The case of the Jingjinji Region, China[J]. Ecological Indicators, 2020, 117:106543. DOI:10.1016/j.ecolind.2020.106543
[28]	乔标, 方创琳. 城市化与生态环境协调发展的动态耦合模型及其在干旱区的应用[J]. 生态学报, 2005, 25(11):3003-3009.
	[Qiao B, Fang C L. The dynamic coupling model of the harmonious development between urbanization and eco-environment and its application in arid area[J]. Acta Ecologica Sinica, 2005, 25(11):3003-3009.] DOI:10.3321/j.issn:1000-0933.2005.11.030
[29]	Zheng H, Ali Khan Y, Abbas S Z. Exploration on the coordinated development of urbanization and the eco-environmental system in central China[J]. Environmental Research, 2022, 204:112097. DOI:10.1016/j.envres.2021.112097
[30]	Liu N N, Liu C Z, Xia Y F, et al. Examining the coordination between urbanization and eco-environment using coupling and spatial analyses: A case study in China[J]. Ecological Indicators, 2018, 93:1163-1175. DOI:10.1016/j.ecolind.2018.06.013
[31]	Sun C G, Zhang S Y, Song C C, et al. Investigation of dynamic coupling coordination between urbanization and the eco-environment: A case study in the Pearl River Delta area[J]. Land, 2021, 10(2):190. DOI:10.3390/land10020190
[32]	He J Q, Wang S J, Liu Y Y, et al. Examining the relationship between urbanization and the eco-environment using a coupling analysis: Case study of Shanghai, China[J]. Ecological Indicators, 2017, 77:185-193. DOI:10.1016/j.ecolind.2017.01.017
[33]	郭玉坤, 白云升, 洪舒蔓. 城市化与生态环境耦合协调时空分异特征及动力因素——以四川省为例[J]. 城市问题, 2021(12):48-57.
	[Guo Y K, Bai Y S, Hong S M. Spatiotemporal differentiation characteristics and dynamic factors of coupled and coordinated development of urbanization and ecological environment: A case study of Sichuan Province[J]. Urban Problems, 2021(12):48-57.] DOI:10.13239/j.bjsshkxy.cswt.211206
[34]	Tang F, Wang L, Guo Y Q, et al. Spatio-temporal variation and coupling coordination relationship between urbanisation and habitat quality in the Grand Canal, China[J]. Land Use Policy, 2022, 117:106119. DOI:10.1016/j.landusepol.2022.106119
[35]	Liu H M, Xing L, Wang C X, et al. Sustainability assessment of coupled human and natural systems from the perspective of the supply and demand of ecosystem services[J]. Frontiers in Earth Science, 2022, 10:1025787. DOI:10.3389/feart.2022.1025787
[36]	Zhou T Y, Liu H M, Gou P, et al. Conflict or Coordination? measuring the relationships between urbanization and vegetation cover in China[J]. Ecological Indicators, 2023, 147:109993. DOI:10.1016/j.ecolind.2023.109993
[37]	张丹华, 王洋, 么宁. 辽中南城市群城市化及生态效应[J]. 应用生态学报, 2022, 33(9):2521-2529. doi: 10.13287/j.1001-9332.202209.025
	[Zhang D H, Wang Y, Yao N. Urbanization and ecological effect in mid-southern Liaoning urban agglomeration, China[J]. Chinese Journal of Applied Ecology, 2022, 33(9):2521-2529.] DOI:10.13287/j.1001-9332.202209.025
[38]	乔旭宁, 石漪澜, 郭静, 等. 郑州都市圈不同等级城镇扩张对生态系统服务的影响研究[J]. 地理研究, 2022, 41(7):1913-1931. doi: 10.11821/dlyj020210783
	[Qiao X N, Shi Y L, Guo J, et al. Impacts of urban expansion on ecosystem services in different size cities of Zhengzhou metropolitan area[J]. Geographical Research, 2022, 41(7):1913-1931.] DOI:10.11821/dlyj020210783
[39]	Xiao R, Lin M, Fei X F, et al. Exploring the interactive coercing relationship between urbanization and ecosystem service value in the Shanghai-Hangzhou Bay Metropolitan Region[J]. Journal of Cleaner Production, 2020, 253:119803. DOI:10.1016/j.jclepro.2019.119803
[40]	刘耀彬, 宋学锋. 城市化与生态环境耦合模式及判别[J]. 地理科学, 2005, 25(4):408-414.
	[Liu Y B, Song X F. Model and criterion of urbanization and ecological environment coupling[J]. Scientia Geographica Sinica, 2005, 25(4):408-414.] DOI:10.3969/j.issn.1000-0690.2005.04.004
[41]	Liu J G, Mooney H, Hull V, et al. Systems integration for global sustainability[J]. Science, 2015, 347:1258832. DOI:10.1126/science.1258832
[42]	吴玉鸣, 柏玲. 广西城市化与环境系统的耦合协调测度与互动分析[J]. 地理科学, 2011, 31(12):1474-1479.
	[Wu Y M, Bai L. Coupling and coordination measurement and interactive analysis of urbanization and environment system in Guangxi Province, China[J]. Scientia Geographica Sinica, 2011, 31(12):1474-1479.] DOI:10.13249/j.cnki.sgs.2011.12.009
[43]	方创琳, 崔学刚, 梁龙武. 城镇化与生态环境耦合圈理论及耦合器调控[J]. 地理学报, 2019, 74(12):2529-2546. doi: 10.11821/dlxb201912008
	[Fang C L, Cui X G, Liang L W. Theoretical analysis of urbanization and eco-environment coupling coil and coupler control[J]. Acta Geographica Sinica, 2019, 74(12):2529-2546.] DOI:10.11821/dlxb201912008
[44]	崔学刚, 方创琳, 刘海猛, 等. 城镇化与生态环境耦合动态模拟理论及方法的研究进展[J]. 地理学报, 2019, 74(6):1079-1096. doi: 10.11821/dlxb201906002
	[Cui X G, Fang C L, Liu H M, et al. Dynamic simulation of urbanization and eco-environment coupling: A review on theory, methods and applications[J]. Acta Geographica Sinica, 2019, 74(6):1079-1096.] DOI:10.11821/dlxb201906002
[45]	李双成. 自然地理学研究范式[M]. 北京: 科学出版社, 2013.
	[Li S C. Paradigm of natural geography research[M]. Beijing: Science Press, 2013.]
[46]	童陆亿. 国内外城市扩张内涵及度量研究进展[J]. 世界地理研究, 2020, 29(4):762-772. doi: 10.3969/j.issn.1004-9479.2020.04.2019134
	[Tong L Y. A review on definitions and measurements for urban expansion[J]. World Regional Studies, 2020, 29(4):762-772.] DOI:10.3969/j.issn.1004-9479.2020.04.2019134
[47]	宋艳华, 焦利民, 刘稼丰, 等. 城市扩张程度的影响因素分析——以武汉市为例[J]. 武汉大学学报·信息科学版, 2021, 46(3):417-426.
	[Song Y H, Jiao L M, Liu J F, et al. Analysis of the factors affecting the degree of urban expansion: Taking Wuhan city as an example[J]. Geomatics and Information Science of Wuhan University, 2021, 46(3):417-426.] DOI:10.13203/j.whugis20190106
[48]	罗毅, 赵艺淞, 杨昆, 等. 城镇化过程中滇池流域不透水表面扩张特征及其水环境效应[J]. 农业工程学报, 2018, 34(6):224-232.
	[Luo Y, Zhao Y S, Yang K, et al. Characteristics of Dianchi Lake watershed impervious surface expansion and its effect of water environment during urbanization[J]. Transactions of the Chinese Society of Agricultural Engineering, 2018, 34(6):224-232.] DOI:10.11975/j.issn.1002-6819.2018.06.029
[49]	Jiao L M, Liu J F, Xu G, et al. Proximity Expansion Index: An improved approach to characterize evolution process of urban expansion[J]. Computers, Environment and Urban Systems, 2018, 70:102-112. DOI:10.1016/j.compenvurbsys.2018.02.005
[50]	邬建国. 景观生态学:格局、过程、尺度与等级[M]. 北京: 高等教育出版社, 2007.
	[Wu J G. Landscape Ecology: Pattern, Process, Scale and Grade[M]. Beijing: Higher Education Press, 2007.]
[51]	李莹莹. 城镇绿色空间时空演变及其生态环境效应研究——以上海为例[D]. 上海: 复旦大学, 2012.
	[Li Y Y. The change of urban green space and its impact on eco-environmental effects[D]. Shanghai: Fudan University, 2012.]
[52]	岑晓腾. 土地利用景观格局与生态系统服务价值的关联分析及优化研究——以杭州湾南岸区域为例[D]. 杭州: 浙江大学, 2016.
	[Cen X T. Correlation analysis and optimization between land use landscape patterns and ecosystem service values[D]. Hangzhou: Zhejiang University, 2016.]
[53]	梁长秀. 基于RS和GIS的北京市土地利用/覆被变化研究[D]. 北京: 北京林业大学, 2009.
	[Liang C X. Study on LUCC of Beijing based on RS and GIS[D]. Beijing: Beijing Forestry University, 2009.]
[54]	李崇明, 丁烈云. 小城镇资源环境与社会经济协调发展评价模型及应用研究[J]. 系统工程理论与实践, 2004, 24(11):134-139,144. doi: 10.12011/1000-6788(2004)11-134
	[Li C M, Ding L Y. Study of coordinated development model and its application between the economy and resources environment in small town[J]. Systems Engineering-Theory & Practice, 2004, 24(11):134-139,144.] DOI:10.3321/j.issn:1000-6788.2004.11.023
[55]	Wang S J, Ma H T, Zhao Y B. Exploring the relationship between urbanization and the eco-environment:A case study of Beijing-Tianjin-Hebei region[J]. Ecological Indicators, 2014, 45:171-183. DOI:10.1016/j.ecolind.2014.04.006
[56]	环境保护部. 关于印发《中国生物多样性保护战略与行动计划》(2011-2030年)的通知[EB/OL].(2010)[2022-12-04]. https://www.mee.gov.cn/gkml/hbb/bwj/201009/t20100921_194841.htm.
	[Ministry of Ecology and Environment of the People's Republic of China. Notice on the Issuance of China's Biodiversity Conservation Strategy and Action Plan (2011-2030)[EB/OL].(2010)[2022-12-04]. https://www.mee.gov.cn/gkml/hbb/bwj/201009/t20100921_194841.htm.]
[57]	武汉市发展和改革委员会. 武汉市国民经济和社会发展第十四个五年规划和2035年远景目标纲要[EB/OL].(2021)[2022-12-04]. http://fgw.wuhan.gov.cn/zfxxgk/zf xxgk_1/qtzdgkwj/202105/t20210506_1680735.html.
	[Wu han Municipal Development and Reform Commission. Wuhan City National Economic and Social Development Fourteenth Five-Year Plan and Outline of the Vision 2035[EB/OL].(2021)[2022-12-04]. http://fgw.wuhan.gov.cn/zfxxgk/zfxxgk_1/qtzdgkwj/202105/t20210506_1680735.html.]
[58]	徐志威. 城市环线交通适应性分析[D]. 成都: 西南交通大学, 2013.
	[Xu Z W. Analysis of urban loop traffic adaptability[D]. Chengdu: Southwest Jiaotong University, 2013.]
[59]	Yang J, Huang X. The 30 m annual land cover dataset and its dynamics in China from 1990 to 2019[J]. Earth System Science Data, 2021, 13:3907-3925. DOI:10.5194/essd-13-3907-2021
[60]	谢高地, 张彪, 鲁春霞, 等. 北京城市扩张的资源环境效应[J]. 资源科学, 2015, 37(6):1108-1114.
	[Xie G D, Zhang B, Lu C X, et al. Rapid expansion of the metropolitan areas and impacts of resources and the environment. Resources Science, 2015, 37(6):1108-1114.]
[61]	童陆亿, 胡守庚. 中国主要城市建设用地扩张特征[J]. 资源科学, 2016, 38(1):50-61. doi: 10.18402/resci.2016.01.06
	[Tong L Y, Hu S G. Characterizations of urban sprawl in major Chinese cities[J]. Resources Science, 2016, 38(1):50-61.] DOI:10.18402/resci.2016.01.06
[62]	樊勇, 何宗宜, 张梦琪, 等. 基于夜间灯光数据的武汉市建设用地扩张规律研究[J]. 信阳师范学院学报(自然科学版), 2016, 29(4):546-550.
	[Fan Y, He Z Y, Zhang M Q, et al. Study on Wuhan construction land expansion using night-time light data[J]. Journal of Xinyang Normal University (Natural Science Edition), 2016, 29(4):546-550.] DOI:10.3969/j.issn.1003-0972.2016.04.014
[63]	刘海猛, 方创琳, 李咏红. 城镇化与生态环境“耦合魔方”的基本概念及框架[J]. 地理学报, 2019, 74(8):1489-1507. doi: 10.11821/dlxb201908001
	[Liu H M, Fang C L, Li Y H. The Coupled Human and Natural Cube: A conceptual framework for analyzing urbanization and eco-environment interactions[J]. Acta Geographica Sinica, 2019, 74(8):1489-1507.] DOI:10.11821/dlxb201908001
[64]	胡珊珊. 武汉城市建设用地扩张模式研究[D]. 武汉: 武汉理工大学, 2017.
	[Hu S S. Study on expansion model of construction land in Wuhan city[D]. Wuhan: Wuhan University of Technology, 2017.]
[65]	刘涛, 曹广忠. 城市用地扩张及驱动力研究进展[J]. 地理科学进展, 2010, 29(8):927-934. doi: 10.11820/dlkxjz.2010.08.005
	[Liu T, Cao G Z. Progress in urban land expansion and its driving forces[J]. Progress in Geography, 2010, 29(8):927-934.] DOI:10.11 820/dlkxjz.2010.08.005
[66]	刘艳芳, 汤硕华, 谭荣辉, 等. 武汉市1999—2012年城市扩张的时空分异[J]. 安徽师范大学学报(自然科学版), 2015, 38(3):272-277.
	[Liu Y F, Tang S H, Tan R H, et al. Spatial-temporal variation of urban expansion in Wuhan city from 1999 to 2012[J]. Journal of Anhui Normal University (Natural Science), 2015, 38(3):272-277.] DOI:10.14182/J.cnki.1001-2443.2015.03.012
[67]	秦尊文. 新中国城市发展,湖北卷[M]. 北京: 社会科学文献出版社, 2021.
	[Qin Z W. Urban Development in the People's Republic of China: Hubei[M]. Beijing: Social Sciences Academic Press(China), 2021.]
[68]	周艳. 区域土地市场对城市建设用地扩张的影响研究——以长江经济带核心城市上海、武汉、重庆为例[D]. 南京: 南京大学, 2018.
	[Zhou Y. The impact of land market development on the expansion of urban construction land[D]. Nanjing: Nanjing University, 2018.]
[69]	Luo T, Tan R H, Kong X S, et al. Analysis of the driving forces of urban expansion based on a modified logistic regression model: A case study of Wuhan city, central China[J]. Sustainability, 2019, 11(8): 2207. DOI:10.3390/su11082207
[70]	汪云, 刘菁. 特大城市生态空间规划管控模式与实施路径[J]. 规划师, 2016, 32(3):89-93.
	[Wang Y, Liu J. Metropolitan ecological space planning governance model and implementation[J]. Planners, 2016, 32(3):89-93.] DOI:10.3969/j.issn.1006-0022.2016.03.014

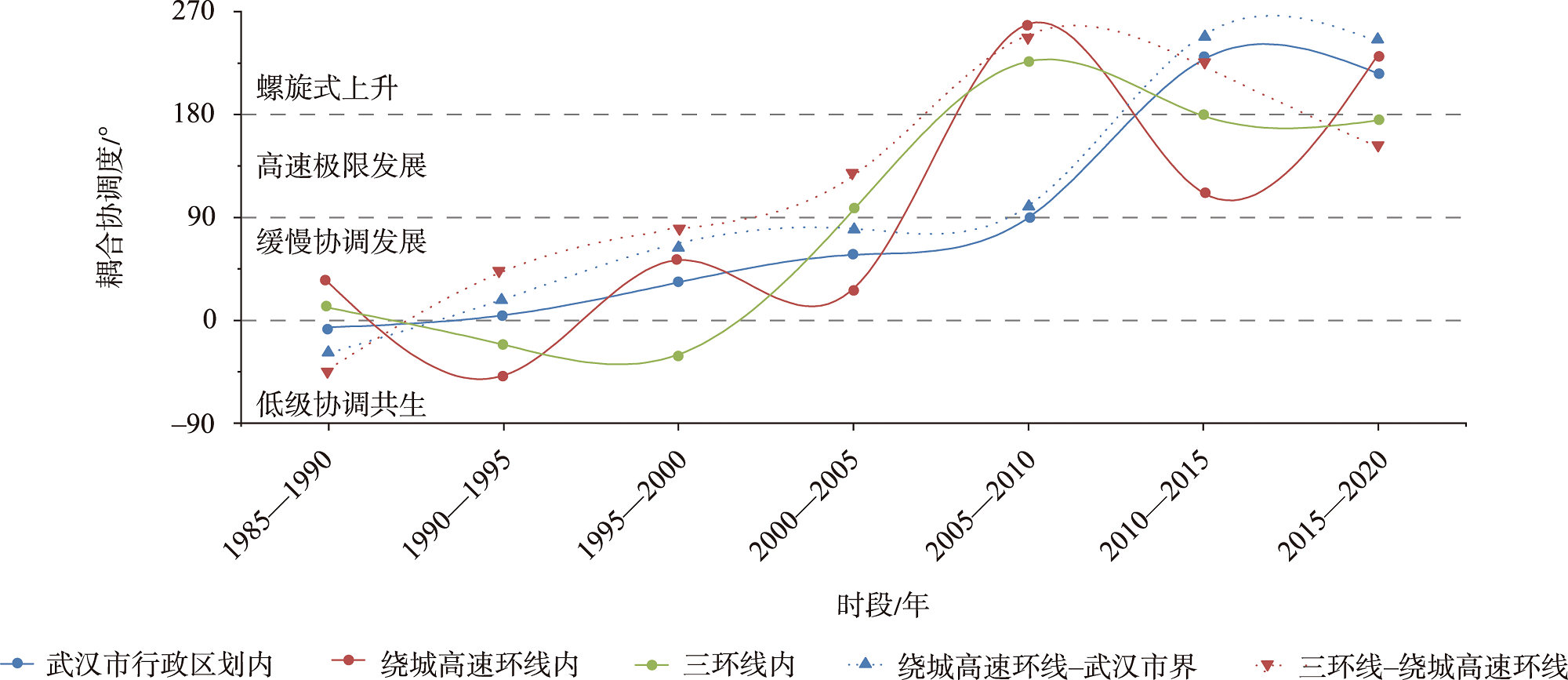

时段/年	武汉市行政区划内	绕城高速环线内	三环线内	绕城高速环线-武汉市界	三环线-绕城高速环线
1985—1990	I	II	II	I	I
1990—1995	II	I	I	II	II
1995—2000	II	II	I	II	II
2000—2005	II	II	III	II	III
2005—2010	II	IV	IV	III	IV
2010—2015	IV	III	III	IV	IV
2015—2020	IV	IV	III	IV	III
