Geological Hazard Risk Assessment Based on Information Quantity Model in Fuling District, Chongqing City, China

  • TAN Yumin , 1, * ,
  • GUO Dong 1 ,
  • BAI Bingxin 1 ,
  • XU Bo 2
Expand
  • 1. Department of Civil Engineering, Beihang University, Beijing 100191, China
  • 2. Department of Geography & Environmental Studies, California State University San Bernardino, CA 92407, USA
*Corresponding author: TAN Yumin, E-mail:

Received date: 2015-03-24

  Request revised date: 2015-06-10

  Online published: 2015-12-20

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

Using geospatial technologies to assess geological hazard risk has been proved feasible, effective and important in the southwest of China, which is featured by mountainous landscape and the population density is very large. The main objective of this study is to make the risk assessment of the geological hazards in Fuling district using information quantity model, and eight triggering factors are used, including slope, aspect, cumulative catchment area, formation lithology, distances to water, precipitation, vegetation, and land use/land cover type respectively. GaoFen-1 image of December 24, 2013 is used to extract two dynamic triggering factors, vegetation and land use, and precipitation is also taken as a dynamic triggering factor. All triggering factors were then used to construct an information model to assess and predict the geological hazards in the study area in December 2013, producing a geological hazard risk distribution map. Finally, ROC curve was used to validate the information model. The statistical results indicate that the areas with high risk zone is about 9.73% of the entire area and that the percentage of the geological hazards sites is about 52.7% of the entire geological hazards sites. And it shows a satisfactory consistency between the susceptibility map and the geological hazard locations. The AUC of success-rate ROC of 0.796 and the AUC of prediction-rate ROC of 0.748 demonstrate the robustness and relatively good reliability of the information quantity model. Above all, the model can be applied to interpret and predict the geological hazard occurrences in the study area.

Key words： Geological hazard; risk assessment; information quantity; dynamic triggering factors

Cite this article

TAN Yumin , GUO Dong , BAI Bingxin , XU Bo . Geological Hazard Risk Assessment Based on Information Quantity Model in Fuling District, Chongqing City, China[J]. Journal of Geo-information Science, 2015 , 17(12) : 1554 -1562 . DOI: 10.3724/SP.J.1047.2015.01554

1 引言

中国西部山区地质环境脆弱,地质灾害多发。地质灾害危及人类生命财产安全、破坏生态环境,特别是在人口密集的地区危害更大[1]。三峡大坝自修建以来,由于受到地形地貌,地质气象等因素影响,地质灾害频发,其主要的地质灾害有滑坡、泥石流、崩塌、高切坡失稳及库岸坍塌等。因此,对该区域进行地质灾害易发性评价具有重要意义。近年来,计算机技术和以遥感与GIS为代表的空间信息技术,已广泛应用于地质灾害易发性的评价,地质灾害定量评价方法主要有人工神经网络法[2-6]、信息量法[7-11]、多元回归分析[12]、逻辑回归分析[13-15]等方法[16]。在地质灾害评价中,人工神经网络法能取得精确度较高的效果,但该方法建模过程与评价过程均比较复杂,系统实现困难,因而实际应用较少;回归分析法与信息量法能取得相对一致效果,但后者原理简单,容易建模,实现方便快捷,因此该法常用于地质灾害评价。殷坤龙和柳源[17]把传统的滑坡单体稳定性分析延伸到以Monte-Carlo方法的概率模拟分析,信息论原理,建立了灾害信息分析系统,以及多因素分析的灾害预测分区方法;阮沈勇和黄润秋[18]将GIS与信息量模型结合应用于地质灾害危险性区划。
本文以重庆市涪陵区特殊的地质环境为研究区,采取改进的信息量模型[19],将滑坡危险评价方法扩大到整个区域地质灾害易发性的评价。首先,结合该地区地质灾害空间分布提取出地质灾害影响因子;其次,应用改进后的信息量模型,实时动态的对地质灾害易发性进行预测;最后,对该地质灾害信息量模型方法进行精度评价。

2 基于信息量模型的地质灾害易发性区域评价

2.1 信息量模型

信息量模型以信息论为基础,模型采用地质灾害发生过程中熵的减少来表征地质灾害事件产生的可能性,以影响地质灾害发生的因素为影响因子,通过计算各因子的信息量,进而将信息量单因素或加权叠加,建立易发性评价模型,对易发性做出评价。信息量用概率来计算,其公式如式（1）。
I y , x 1 x 2 … x n = lo g 2 P ( y | x 1 x 2 … x n ) P ( y ) （1）
式（1）可写成：
I y , x 1 x 2 … x n = I y , x 1 + I x 1 y , x 2 + … + I x 1 x 2 … x n ( y , x n ) （2）
式中, I y , x 1 x 2 … x n 为具体因子组合 x 1 x 2 … x n 对地质灾害提供的信息量; P ( y | x 1 x 2 … x n ) 为 因子 x 1 x 2 … x n 组合条件下地质灾害发生的概率;P(y)为地质灾害发生的概率; I x 1 y , x 2 为因子x1存在的条件下,因子x2对地质灾害所提供的信息量。
通常情况下,对区域地质灾害的发生有影响的因子很多。对各因子信息量进行单因素信息量叠加,可得到研究区多因子共同作用下的综合信息量。如果用Ii表示影响因子 x i 的信息量,则有式（3）：
I y , x 1 x 2 … x n = ∑ i = 1 n I i （3）
区域灾害易发性评价以对研究区进行评价单元的划分为基础,即为影响因子划分网格。格网划分过大会引起信息混淆,过小则影响效率。对于规则的正方形格网大小可选作与栅格数据分辨率相同,也可由经验公式得到,如李军[24]等以香港大屿山滑坡风险评估为例,分析影响适宜栅格单元的因子,给出网格大小选取的经验公式（式（4））：
G s = 7.49 + 0.0006 S - 2.0 × 10 - 9 S 2 + 2.9 × 10 - 15 S 3 （4）
式中,Gs为适宜网格的大小;S为原始等高线数据精度的分母。
实际计算时可用统计频率估计条件概率来估算（式（5））。
I y , x 1 x 2 … x n = lo g 2 N 0 N S 0 S （5）
式中,S为研究区评价单元总面积;N为研究区含有地质灾害分布的地质灾害点总数;S0为研究区内含有影响因子 x 1 x 2 … x n 组合的单元总面积;N0为具有相同因子组合 x 1 x 2 … x n 的特定类别内的地质灾害点总数。则得到式（6）。
I = ∑ i = 1 n I i = ∑ i = 1 n lo g 2 N i N S i S （6）
式中, I 为某评价单元信息量预测值; N i 为影响因子 x i 占有的评价单元中的地质灾害点总数; S i 为含有影响因子 x i 的评价单元的面积。

2.2 基于信息量模型的地质灾害易发性区域评价

本文提出的地质灾害易发性区域信息量模型的评价方法流程如下：
（1）提取地质灾害影响因子;
（2）将收集到的研究区所有地质灾害点随意分为二部分：一部分用于确定评价方法和验证该方法的准确性,另一部分用于评估其可靠性;
（3）根据计算规则计算各类因子的信息量,并进行矢量叠加,生成总信息量图;
（4）依据统计学方法对信息量进行重分类,得到地质灾害易发性评价方法;
（5）利用验证的地质灾害点对评价方法进行 验证。

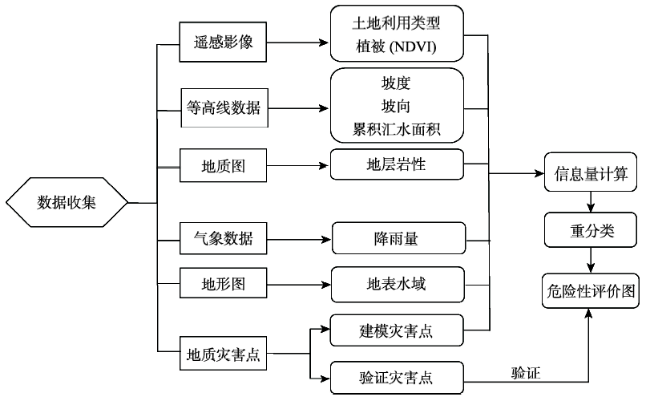

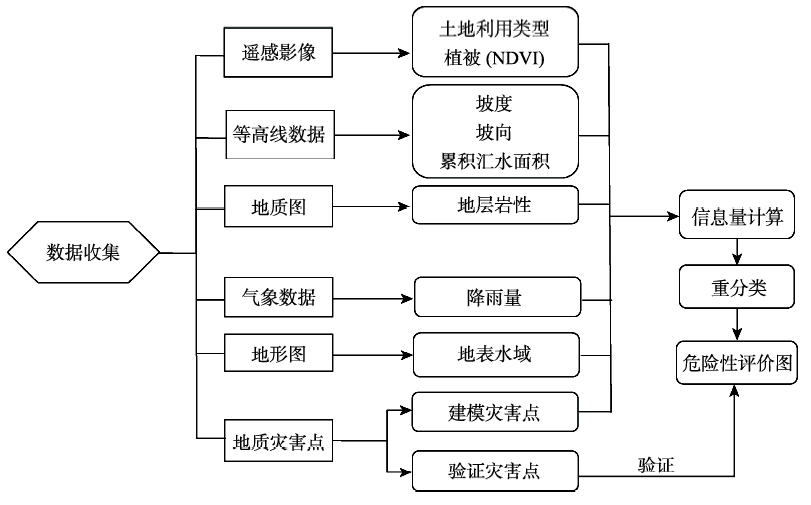

Fig. 1 Methodology flow chart

图1 地质灾害易发性评价流程

3 涪陵地质灾害易发性区域评价

研究区地处重庆市中东部,居三峡库区腹地,扼长江、乌江交汇要冲,历来有川东南门户之称。地理范围介于 106 ° 5 6 ′ ~ 107 ° 4 3 ′ E , 29 ° 2 1 ′ ~ 30 ° 0 1 ′ N 之间,东西宽74.5 km,南北长70.8 km,幅员面积2941.46 km2（图2）。该区海拔最高1977 m,最低138 m,多在200~800 m之间。地势东南高西北低,地貌以低浅山丘为主。研究区位于中亚热带季风性湿润气候区域,四季分明,热量充足,雨量充沛,主要植被类型为亚热带常绿阔叶林。

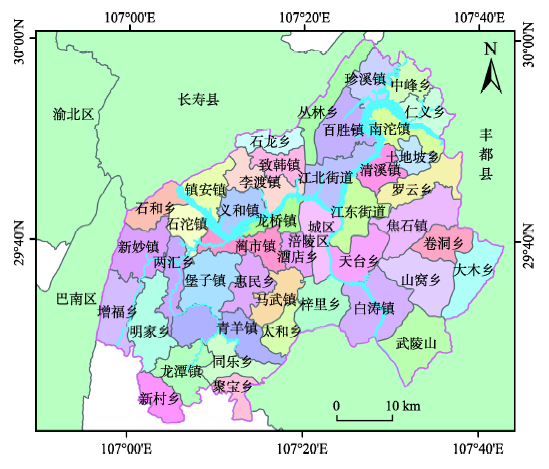

Fig. 2 Study area

图2 研究区位置

3.1 地质灾害影响因子的提取计算

根据实地调查及综合分析各影响因子与地质灾害点分布空间位置关系,本文选取坡度、坡向、累积汇水面积、地层岩性、植被（NDVI）、水域、土地利用类型和降雨量8个地质灾害影响因子作为地质灾害易发性评价指标。
地貌是区域地质灾害易发性评价的重要因素,本文选择地貌的坡度和坡向2个因子,利用ArcMap10.2的Slope和Aspect工具以1：5万等高线数据生成坡度和坡向图,用标准差尽量大和符合正态分布2个指标为准则,分别对研究区坡度、坡向进行划分,得到坡度因子图（图3）和坡向因子图（图4）。

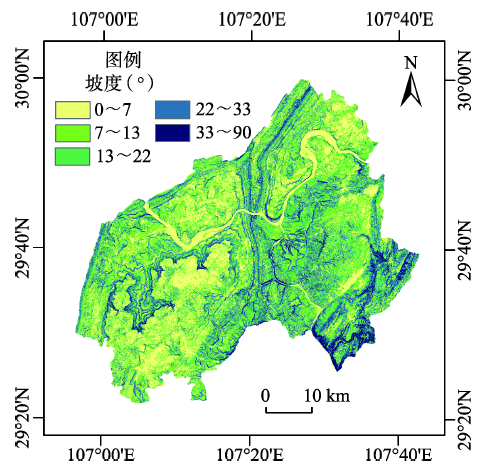

Fig. 3 Slope distribution

图3 坡度分布图

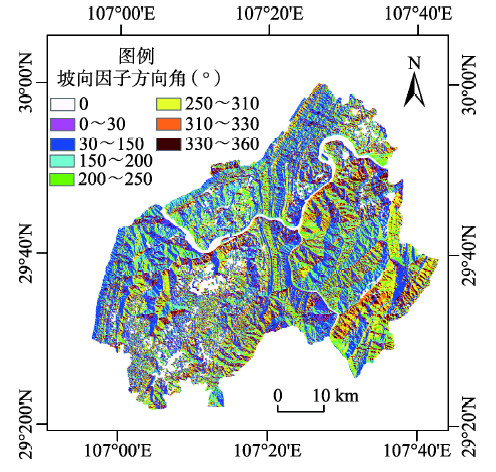

Fig. 4. Slope aspect distribution

图4 坡向分布图

累计汇水面积因子图（图5）通过Hydrology工具集,依格网数对其进行重分类得到。

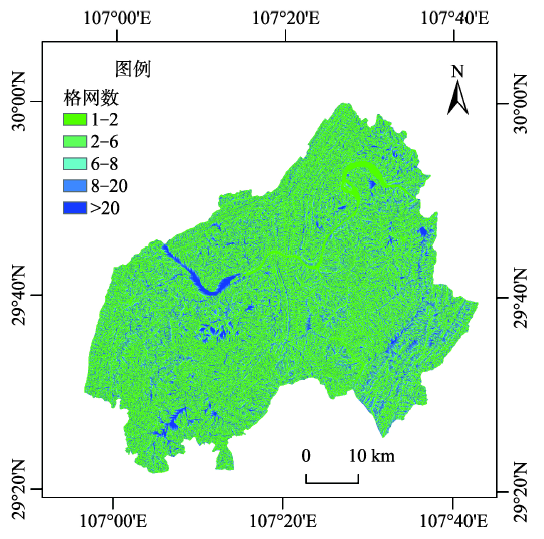

Fig. 5 Cumulative catchment area

图5 累计汇水面积分布图

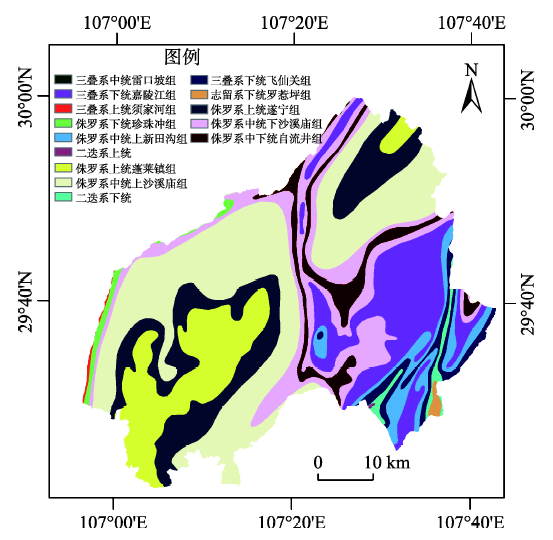

地层岩性信息从1：5万三峡库区地质图提取,依据涪陵区地质组成,将地层岩性分为14组,得到地层岩性因子图（图6）。
Fig. 6 Formation lithology

图6 地层岩性（地质因子）分布图

由1:2000地形图提取水系单线河和水系双线河,对提取出的水系单线河与水系双线河分布,通过Multiple Ring Buffer工具建立多重缓冲区,得到地表水域因子图（图7）。

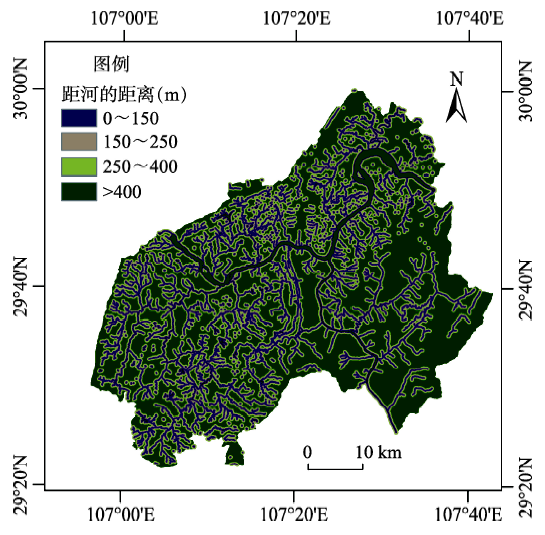

Fig. 7 Multiple buffer zones of surface stream and river network

图7 水域缓冲（地表水因子）分布图

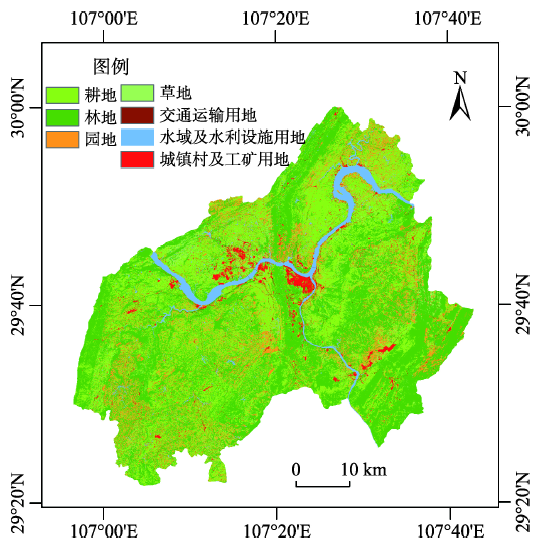

土地利用类型图（图8）由2013年12月获得高分一号2 m全色与8 m多光谱融合后分类而成,结合实地调查将研究区域土地利用类型分为7类：耕地、林地、园地、草地、交通运输用地、水域及水利设施用地和城镇村及工矿用地。
Fig. 8 Land use/Land cover map

图8 土地利用分类图

植被因子（图9）的提取基于ENVI 5.1对遥感影像进行归一化处理,用获得的归一化植被指数（Normalized Difference Vegetation Index,NDVI）作为度量植被覆盖的指标。

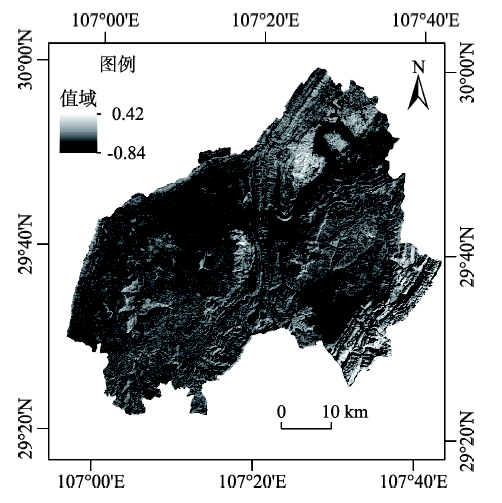

Fig. 9 Vegetation NDVI distribution map

图9 植被(NDVI)分布

降雨是地质灾害发生的强影响因素,降雨量数据由研究区各雨量站实际监测得到,本文使用的降雨量数据包括影像拍摄当日降雨量数据及拍摄前14日的过程降雨量数据,部分监测站点2013年12月的降雨量信息如表1所示。
Tab. 1 Example of precipitation in Fuling district

表1 涪陵区部分降雨量信息

站点 日降雨 rain5d rain4d rain3d rain2d rain1d
白涛 0 0 0.5 0 0 0
百胜 0 0 0.8 0 0.1 0.1
从林 0 0 1.7 0 0.1 0.5
大木 0.1 0 2.5 0.1 0 0.1
大溪 0 0 1.7 0 0 0.2
对比站 0 0 0 0 0 0
涪陵本站 0 0 1.7 0 0.5 0.4
明家 0.1 0 0.8 0.1 0.5 0.1

注：rain1d,…,rain5d分别表示相对0天前第1-5天日降雨量

3.2 各因子信息量计算及危险性分区

截止2013年底,研究区共有各类潜在地质灾害点和已发生地质灾害点280个,这些地质灾害点中有危岩体9个,变形体49个,塌岸33个,滑坡189个。当地质灾害信息量评价方法确定时,通常将已知地质灾害点分成2个数据集,一个数据集用于确定易发性评价方法,另一个用于验证易发性评价结果。目前,对地质灾害点数据集的分离还没有统一的分离标准,本文将地质灾害点随机分为2个数据集,70%（即约196个地灾点）用于确定评价方法,剩余30%（84个地灾点）用于验证和评估其可靠性。
根据基于信息量模型的地质灾害易发性评价方法,利用ArcMap 10.2分别计算各影响因子的信息量值,影响因子信息量计算如表2,并生成信息量图,对各因子信息量图叠加,得到研究区的综合信息量图。利用统计学自然断点法将综合信息量图,利用ArcMap 10.2的reclassify工具,重新划分为低易发区、较低易发区、易发区、较高易发区和高易发区5个易发性等级,得到地质灾害易发性评价分区图（图10）。
Tab. 2 Example information values for individual triggering factors

表2 影响因子信息量计算表

地质灾害因子 分段 地灾个数（个） 信息量 信息量主要排序
坡度（°） 0~5 18 -1.514609 -
5~10 31 -0.352688 -
10~15 87 0.530870 11
15~20 56 0.667521 8
20~25 4 -1.244959 -
坡向(°) 平坦 5 -2.08588 -
0~30 10 -0.326033 -
30~150 66 0.189856 19
150~200 21 -0.005354 -
200~250 30 0.372565 16
250~310 32 -0.020237 -
310~330 13 0.04228 -
330~360 19 0.357179 17
累积汇水面积
（格网）		 1~2 114 0.100335 21
2~4 31 0.437477 15
4~8 15 -0.550313 -
8~20 21 0.162117 20
>20 15 -0.793704 -
土地利用类型 耕地 76 0.503849 12
林地 61 -7.919041 -
园地 19 1.316537 2
草地 5 -0.589446 -
交通运输用地 2 0.743452 7
水域及水利设施用地 11 0.478293 13
城镇村及工矿用地 22 2.009376 1
离地表水距离
（m）		 0~150 97 1.218703 3
150~250 60 1.187452 4
250~400 21 -0.728606 -
>400 18 -2.39345 -
地层岩性 三叠系中统雷口坡组 0 0 -
三叠系下统嘉陵江组 12 -1.138709 -
三叠系上统须家河组 0 0 -
侏罗系下统珍珠冲组 0 0 -
侏罗系中统新田沟组 0 0 -
二迭系上统 0 0 -
侏罗系上统蓬莱镇组 2 -3.63999 -
侏罗系中统上沙溪庙组 106 0.783518 6
二迭系下统 0 0 -
三叠系下统飞仙关组 0 0 -
志留系下统罗惹坪组 0 0 -
侏罗系上统遂宁组 49 0.797644 5
侏罗系中统下沙溪庙组 22 -0.309074 -
侏罗系中下统自流井组 5 -0.961061 -
植被（NDVI） -1~0 176 0.132877 21
0~0.2 11 -1.164542 -
0.2~0.4 9 0.353476 18
0.4~1.0 0 0 -
降雨量（mm） 0.0~1.0 65 0.568849 10
1.0~2.0 43 0.453245 14
2.0~3.0 80 0.572047 9
>3.0 8 -0.003276 -

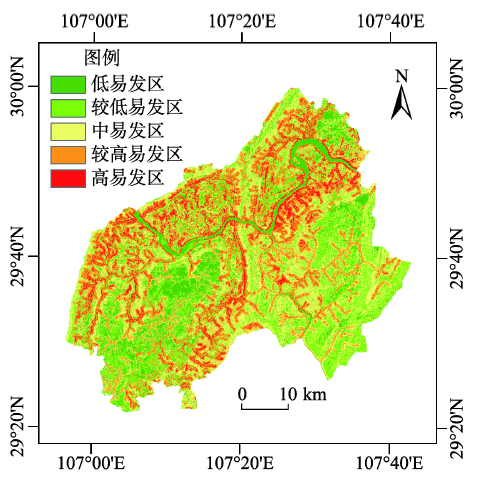

Fig. 10 Geological hazard risk distribution map

图10 地质灾害易发性评价分区图

4 区域地质灾害易发性评价结果分析

4.1 结果分析

由影响因子信息量计算表、易发性分区图及各影响因子分布图可知,地质灾害危险性较强的区域有如下特点：
(1)地质灾害主要发生在坡度为5~20o、坡向朝东北和西及地层为侏罗系中统上沙溪庙组和侏罗系中下统自流井组的地区范围内。
(2)大多数地质灾害发生在距离水域150 m范围内,并且越靠近地表水域,地质灾害发生的可能性越高。
(3)土地利用类型为园地、交通运输用地和城镇村及工矿用地的区域较易发生地质灾害,并且这些区域的NDVI主要在0.2-0.4,说明人为活动对地质灾害的影响较大。人类不合理的生产活动造成生态环境破坏,地质环境恶化,导致了地质灾害的发生。
通过对地质灾害易发性分区进行统计,得出易发性等级与地质灾害分布对比表（表3）。高易发区和较高易发区的总面积为934.833 km2,占研究区总面积的31.70%,高易发区和较高易发区地质灾害点个数分别为104和56,占据所有地质灾害点的81.4%。地质灾害点很少分布在中易发区及以下区域,可见,地质灾害点的分布与易发性区划具有很好的区分关系。
Tab. 3 Comparison of risk zones and geological hazards sites

表3 危险性等级分布表

易发性等级 该级别面积(km2) 占研究区面积比(%)(a) 灾害点个数 占灾害点总数比(%)(b) 灾积比（b/a）
低 449.617 15.27 3 1.5 0.09
较低 666.110 22.62 12 6.3 0.27
中 895.299 30.41 21 10.8 0.36
较高 648.251 21.97 56 28.7 1.31
高 286.582 9.73 104 52.7 5.42

4.2 精度评价

地质灾害易发区域评价精度验证有Kappa值和ROC曲线2种方法。由于ROC曲线简单、直观,可准确地反映所用分析方法特异性和敏感性的关系,具有很好的试验准确性,因而广泛应用于地质灾害易发性区域评价[20-22]。
ROC曲线指受试者工作特征曲线/接收器操作特性曲线（receiver operating characteristic curve）,是反映敏感性和特异性连续变量的综合指标。通过将连续变量设定出多个不同的临界值,计算出一系列敏感性和特异性,再以敏感性为纵坐标、1-特异性为横坐标绘制曲线。曲线下面积（AUC）越大,诊断准确性越高。在ROC曲线上,最靠近坐标图左上方的点为敏感性和特异性均较高的临界值。
使用成功率和预测率方法[23],通过将易发性区划分布图与已知地灾点比较,以验证地质灾害易发性预测结果。本文使用SPSS V21软件,将地质灾害样本值和模型模拟值输入进行ROC曲线分析,得到信息量模型的ROC曲线和AUC值。成功率可表明地质灾害分析结果与建模地灾点相符的程度。利用信息量模型获得的成功率曲线如图11(a)所示,其AUC值为0.796,结果表明,所用已知地灾点建立的易发性评价模型具有较高的准确性。预测率可解释地质灾害模型和影响因子预测地质灾害的可靠性。将预测灾害点（84个）与危险性预测图作对比,利用信息量模型得到预测率曲线如图11(b)所示,计算AUC为0.748。结果说明,该地质灾害区域易发性评价模型预测的结果是可靠的,可将其应用于涪陵区的地质灾害易发性评价。

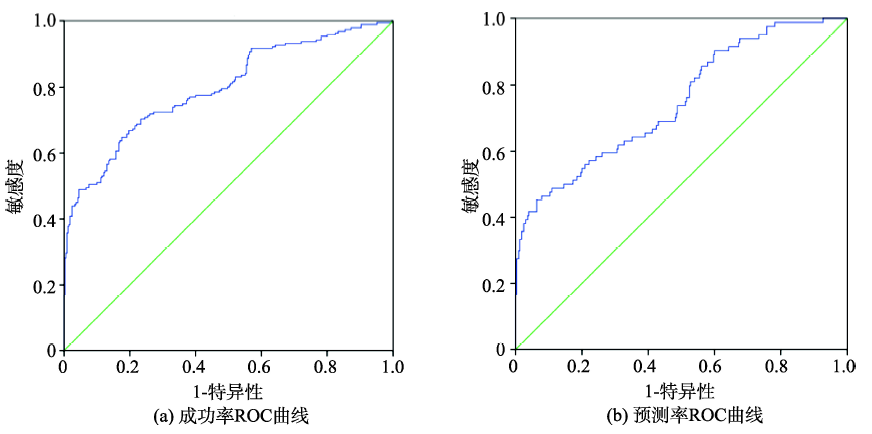

Fig.11 Success-rate ROC curve and prediction-rate ROC curve

图11 成功率ROC曲线和预测率ROC曲线

5 结语

针对涪陵区地形地貌和地质气候特点,选取8个地质灾害影响因子,利用国产遥感数据提取动态影响因子,基于信息量模型,确立地质灾害易发性评价方法,开展了区域地质灾害易发性评价。通过ROC曲线对该评价方法验证,结果表明,该方法可靠,评价结果与实际基本相符,同时说明这种评价方法适合于涪陵区地质灾害易发性的评价。
