Shoulder Line Extraction in the Loess Plateau Based on Region Growing Algorithm

  • LIU Wei ,
  • LI Fayuan , * ,
  • XIONG Liyang ,
  • LIU Shuanglin ,
  • WANG Ke
Expand
  • 1. Key Laboratory of Virtual Geographic Environment of Ministry of Education, Nanjing Normal University, Nanjing 210023, China
  • 2. Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Nanjing 210023, China
*Corresponding author: LI fayuan, E-mail:

Received date: 2013-11-15

  Request revised date: 2014-03-26

  Online published: 2016-02-04

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

Shoulder line is one of the most effective terrain structure line used to describe the loess landform. It plays an important role in the study of the spatial distribution and landform evolution of the loess landform. Shoulder line lies on the boundary of the positive and negative terrain, where the elevation and slope of the loess surface reveal obvious changes. Many efforts have been done for the extraction of shoulder line, but these methods have disadvantages, of which the experimental process requires human intervention or the shoulder line is discontinuous. P-N terrain method can effectively extract the shoulder line, but while using this method to segment the positive and negative terrains, it tends to produce large amounts of broken polygons and classification errors, which affect the accuracy of shoulder line. This paper investigates a region growing algorithm to improve the P-N terrain method. Using the highest elevation of the local area as a growing point for positive terrain and the outlet as a growing point for negative terrain, four-neighborhood growth were carried out until they reached the boundary of the positive and negative terrains or a slope threshold. Then the edge detection method was used to extract the critical boundary. Finally, the morphological image processing method was used to eliminate burrs to get the final shoulder line. In order to verify the result, this paper used the 0.6 m resolution remote sensing image to get the relatively accurate shoulder line by visual interpretation. And then different results were compared using overlay analysis. It is revealed that the shoulder line extracted using the improved method is closer to the visual interpretation results. This method is an automatic way to extract shoulder line, which solves the inaccurate location problem of P-N terrain method. Meanwhile, this method keeps the integrity and continuity of shoulder line and avoids the emergence of broken shoulder line and closure shoulder line. The use of morphological image processing method in burrs removal also ensures the accuracy.

Key words： shoulder line; region growing; morphological image processing; P-N terrain method; DEM

Cite this article

LIU Wei , LI Fayuan , XIONG Liyang , LIU Shuanglin , WANG Ke . Shoulder Line Extraction in the Loess Plateau Based on Region Growing Algorithm[J]. Journal of Geo-information Science, 2016 , 18(2) : 220 -226 . DOI: 10.3724/SP.J.1047.2016. 00220

1 引言

黄土地貌及其空间分异研究是黄土高原研究的重点之一[1-8]。沟沿线是一条最能体现黄土地貌特征的地形结构线,对其正确提取与有效分析是探究黄土高原地形、土壤侵蚀方式和土地利用格局的基础[9],对研究黄土高原空间分异规律和地貌演化机制具有重要意义。
DEM提取沟沿线的研究已有许多学者进行了诸多探索。闾国年[10]提出基于地貌形态和递归思想的沟沿线提取算法;朱红春[11]利用坡度变率和剖面曲率来定位沟沿线;刘鹏举等[12]提出利用水流路径进行分布式水流计算来提取沟沿线的方法;肖晨超[13]根据黄土地貌坡面坡度转折特征提出了基于坡面朝向的沟沿线提取方法;李小曼[14]以沟沿线和坡脚线形态为基础,使用窗口分析方法来定义规则得到沟沿线和坡脚线;周毅[15]通过上下游栅格点坡度对比,利用汇水模型提取沟沿线点约束的上游汇水区域来分割正负地形,提取沟沿线;晏实江[16]使用图像二值化和多种边缘检测算子提取沟沿线;陈永刚[17]提出了基于多方位DEM地形晕渲的黄土地貌正负地形提取;晏实江[18]提出了一种整合D8算法和Snake模型来提取沟沿线的方法;王珂[19]借助地形正负开度及其差值图像阈值分割原理相结合,并使用数学形态学原理来提取沟沿线。但是,上述方法都存在实验过程需要人工干预或沟沿线不连续的缺陷。周毅[20-21]提出的坡面畸变邻域法,充分考虑了黄土地貌起伏特征,适用性较强,但由于黄土地貌的复杂性,在正负地形分类过程中存在错误分类的情况,这些错误会造成沟沿线定位的不准确。现有纠错方法主要通过人工编辑或根据坡度、斑块面积等进行修正,这些方法操作繁琐,需要人工干预,降低了提取效率。区域生长方法是一种依据像元之间的相似性进行区域合并的方法,区域内像元的相似性度量可包括平均灰度值、纹理、颜色等信息,该方法已广泛地应用于遥感图像处理、图形分割、目标检测等方面[22-26]。区域生长法在栅格图像分割和边界提取方面的优势,为提高沟沿线提取精度提供了新的思路。本文依据区域生长的方法,实现了对传统坡面畸变邻域法提取沟沿线的改进,提高了沟沿线的识别精度,保证了沟沿线的完整性。

2 沟沿线提取的方法

2.1 区域生长算法

区域生长是根据定义的准则将像元或者子区域聚合成更大区域的过程。其基本思想是从一组生长点开始,将与该生长点性质相似或相同的相邻像元进行合并,形成新的生长点,重复此过程直至没有可合并的点为止。区域生长一般有3个步骤：（1）选择合适的生长点;（2）确定相似性准则即生长准则;（3）确定生长停止条件[27]。

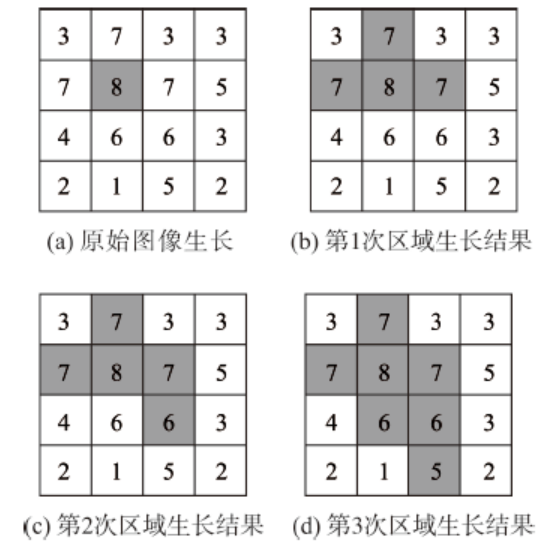

图1是区域生长的示意图,图中数字表示像元灰度,假设以灰度为8的像元为初始生长点,在4邻域内,生长准则是待测点灰度与生长点灰度值相差为1或0。如果相邻2次生长结果不发生变化,即已经不存在满足生长准则的像元点,则停止生长。
Fig. 1 Illusions of region growing

图1 区域生长示意图

2.2 正负地形的识别

沟沿线是正负地形的分界线,正负地形边界的确定是准确提取沟沿线的前提。正地形是相对高于邻区或构造上升的地形,坡面畸变邻域法提取沟沿线时,正地形上分类错误的区域分为2种情况：(1)洼地,由于人工改造或小范围地形起伏造成;(2)平地,当滤波窗口较小时,分析窗口在近似平坦的DEM栅格上滑动,原始高程值与平滑后的高程均值相差很小,稍有高程变化都会影响运算结果,这种现象在平坦黄土塬区表现最为明显。换言之,局部最高点一定是分类正确且位于正地形上的点,因此,将局部最高点作为正地形的生长点,生长准则是使用坡面畸变邻域法提取出的正地形,生长至到没有满足生长条件的点为止。由于本文并不需要十分精确地确定每个正地形生长点的位置和级别,只是提取局部凸出的点,所以,采用流域边界线的邻域分析方法提取山顶点[28]。邻域分析窗口的大小取决于样区地形的破碎程度,地形越破碎,使用的窗口越小,以此保证正地形提取的完整性。
负地形是相对低于邻区或新构造下沉地区的地形,由于实验样区是完整的流域,所以整个负地形区域都是连通的,只需选取一个点作为负地形的生长点即可。流域出水口处高程值最低且位于负地形上,所以选取出水口作为生长点,生长准则是使用坡面畸变邻域法提取出的负地形,生长至没有满足生长条件的点为止。

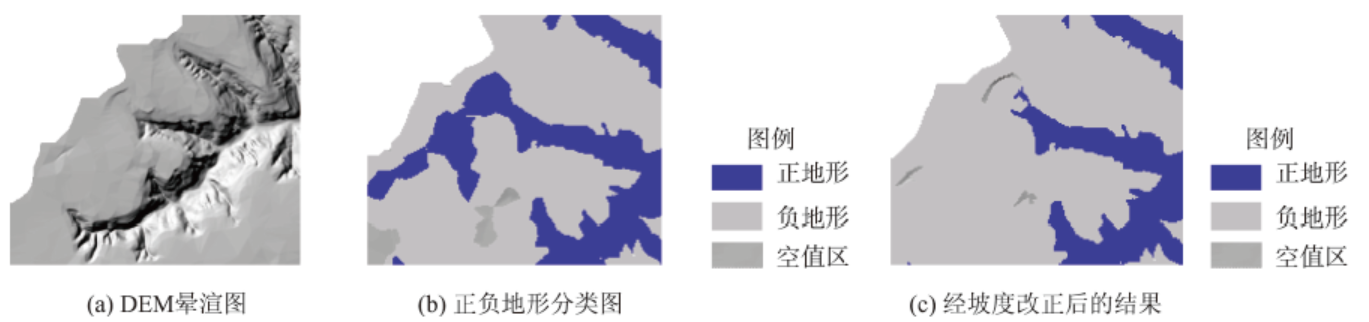

区域生长的方法可避开大部分分类错误的正负地形,但是如果分类错误的区域与正确的正负地形区域连通（图2）,会被识别为与邻接斑块相同的地貌类型,继而造成沟沿线定位错误,这种现象在黄土塬区的正地形上最为明显。为了避免这种现象,本文加入了坡度变量,定义规则为：与正地形邻接的负地形区域如果坡度小于给定的坡度值,则认为该区域为正地形区域。坡度阈值的确定与研究区黄土地貌类型有关,通过对不同坡度值进行试验并将实验结果与高分辨率遥感影像进行对比,本文选择7°作为坡度阈值,实验流程如图3所示。
Fig. 2 Influence of slope to the positive and negative terrain classification result

图2 坡度对正负地形分类结果的影响

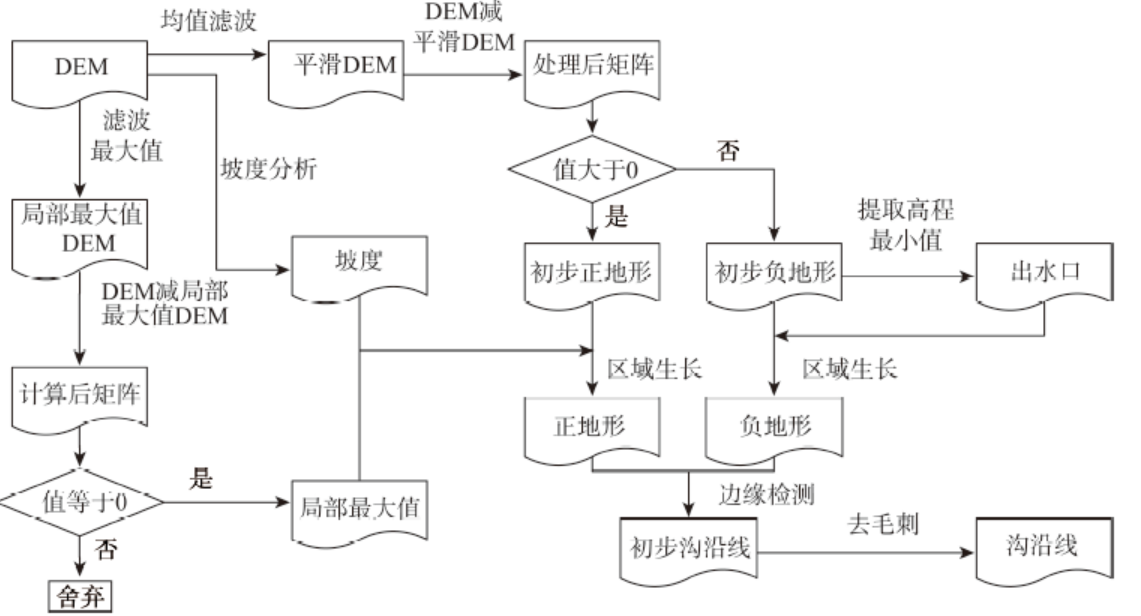

Fig. 3 Flow chart of the study

图3 流程图

2.3 沟沿线的提取

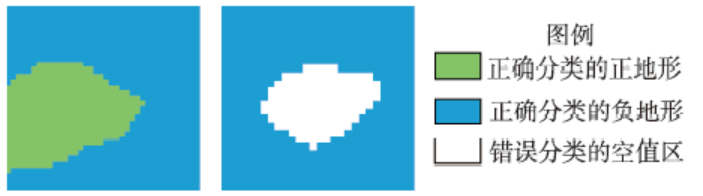

经过上述处理,错误分类的区域会形成空值区,而正确分类的区域形成正地形区（图4中蓝色区域）或负地形区（图4中绿色区域）,沟沿线位于正确分类的正负地形交界处（图4）。将绿色区域赋值为1,蓝色区域赋值为0,空值区赋值为-9999。根据图像处理中的边缘检测方法提取沟沿线,使用简单的边缘检测算子（图5）对全图进行扫描,如果窗口内同时存在0和1,即可认为此处存在沟沿线并对此处值为1的正地形点进行标记,所有标记点导出后可得到整个流域的沟沿线。
Fig. 4 The contrast between shoulder line and other features

图4 沟沿线和非沟沿线边界对比图

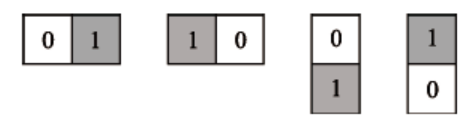

Fig. 5 Edge detection operators

图5 边缘检测算子

2.4 沟沿线上寄生分量的去除

按照上述方法提取的沟沿线,已基本符合使用要求,但是通过观察沟沿线细部特征,发现沟沿线在转角处仍然存在少量的寄生分量,即通常所说的“毛刺”现象。这种现象会造成沟沿线边界的不确定性,尤其在栅格转矢量时,该缺陷变得更为突出。
本文运用形态学图像处理方法去除“毛刺”,其基本原理是通过使用固定结构元检测端点并进行细化（式(1））,即用模板对图像进行匹配检测和处理,从而达到去除“毛刺”的效果。算法如下：（1）确定端点细化阈值。通过观察图像,发现“毛刺”长度一般不超过3个像元,为保证实验结果的可靠性,将阈值设置为5个像元。（2）确定结构元。由于上述使用的是4邻域生长,去“毛刺”时也无需考虑对角线像元,所以使用如图6的结构元。“×”表示一个不必考虑的条件,“1”表示沟沿线像元,“0”表示背景像元,将符合此结构元的中心像元设为背景像元（式(2））。结构元全图扫描一次只能去除每个端点处的一个“毛刺”像元,为了保证连续像元在5个以下“毛刺”全部去除,需对全图进行5次扫描,处理前后如图7所示。（3）复原正确端点。由于处理过程是对所有端点进行处理,所以正确的端点处也进行了“去毛刺”处理。对原本正确的端点进行复原需再次对全图进行“去毛刺”处理,由于“毛刺”已经在前5次细化后全部去除,所以,本次将要去的是正确端点处的像元,对这些像元进行4邻域膨胀并与原始沟沿线取交集（式(3））,膨胀次数与细化次数相同,这样就实现了端点的复原。
X 1 = A ⊚ { B } （1）
式中： X 1 为细化结果;A表示原始沟沿线;B为结构元; ⊚ 表示细化操作。
X 2 = ⋃ k = 1 8 ( X 1 ⊙ B k ) （2）
式中： X 2 为端点集合; B k (k=1,2,3,4)为结构元; ⊙ 为击中击不中变换。
X 3 = ( X 2 ⊕ H ) ∩ A （3）
式中： X 3 为沟沿线结果;H为4邻域结构元;A为原始沟沿线; ⊕ 为膨胀操作。

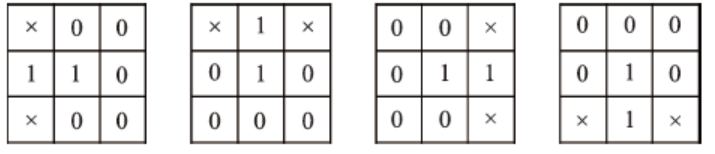

Fig. 6 Structure element

图6 结构元

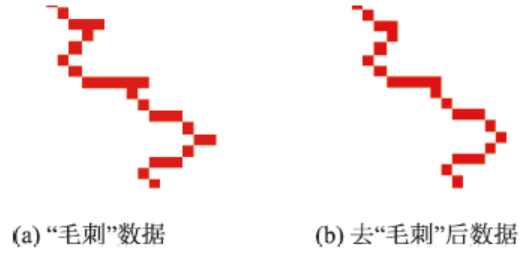

Fig. 7 The contrast of data before and after burr removal

图7 去“毛刺”前后对比图

3 黄土地貌沟沿线提取实例分析

3.1 实验数据

本文实验样区位于陕西省宜君县城东北部洛河中下游地区（图8）,地貌类型属于黄土长墚残塬沟壑区,该地区沟谷溯源侵蚀强烈,重力侵蚀活跃,相对切割深度70~200 m,海拔777~1112 m。实验数据为国家测绘局生产的1:1万比例尺5 m分辨率DEM和与DEM配准的0.6 m分辨率全色波段遥感影像。DEM数据及其派生的坡度数据用于沟沿线的提取。影像数据用于沟沿线的目视解译,对比分析本文提取方法的精度。在进行黄土地貌分析时,通常以流域为研究单元,通过计算沟沿线相关指标来探究黄土高原的沟蚀程度,故此,本文以流域为单位对沟沿线提取方法进行探讨。
Fig. 8 Test area and data

图8 实验样区及数据

3.2 参数设置

首先,采用坡面畸变邻域法实现沟沿线的初步提取,通过对不同分析窗口的多次试验,采用17×17[29]窗口大小作为沟沿线提取的分析单元。其次,以区域生长方法改进由于正负地形分类错误造成的沟沿线定位不准确的问题;正负地形生长点分别设置为山顶点和出水口点,其中这些地形特征点采用流域边界线的方法进行提取[28],生长准则是合并灰度值相同的像元,生长至没有满足条件的点为止。

3.3 结果分析

由图9(a)可知,使用坡面畸变邻域法提取的正负地形,存在许多分类错误的情况,正地形内部存在许多独立的负地形斑块,负地形内也有正地形斑块出现。如果使用该处理结果直接提取沟沿线,将严重影响沟沿线的提取精度和正确率（图9(b)）。改进的沟沿线提取方法,其本质就是提取正负地形的交界线,绕过分类错误的小斑块。通过观察提取结果,发现塬面和沟谷内部细碎的线已经全部清除,沟沿线连续且完整,沟沿线上的“毛刺”也被全部去除（图9(c)）。
Fig. 9 Positive and negative terrains and shoulder line

图9 正负地形及沟沿线

3.4 精度评价

为了验证实验结果,本文使用0.6 m分辨率遥感影像进行人工解译,获得相对精确的沟沿线（图9(d)）。将区域生长法提取的沟沿线与人工解译结果相比较,二者形状和位置都非常相近。由于人工解译结果是在0.6 m分辨率的影像上进行的,而自动提取沟沿线的DEM分辨率为5 m,所以与DEM自动提取的沟沿线相比,人工解译结果更加精细。为了进一步对比沟沿线提取精度,本文统计了在人工解译沟沿线的不同偏移栅格内,坡面畸变邻域法和区域生长法提取的沟沿线栅格落在其中的数目和比例,得到如下结果（表1）：使用坡面畸变邻域法提取的沟沿线栅格总数为51 655,沟沿线栅格落在3个偏移栅格以内的概率为64.02%,5个偏移栅格以内的概率为74.61%,7个偏移栅格以内的概率为78.17%;使用区域生长方法得到的沟沿线栅格总数为30 093,沟沿线栅格落在3个偏移栅格以内的概率为78.07%,5个偏移栅格以内的概率为90.49%,7个偏移栅格以内的概率为94.60%。结果表明,本文改进的沟沿线提取方法大大地提高了沟沿线定位的准确率和识别的正确性。
Tab. 1 The percentage of grid numbers of shoulder line to the total grid numbers within a certain displacement

表1 位移栅格内沟沿线栅格数目占总栅格数目的百分比

人工解译沟沿线的位移栅格数目/个 位移栅格内,坡面畸变法提取沟沿线栅格数目/个 占坡面畸变法提取沟沿线总栅格数的百分比/(%) 位移栅格内,区域生长法提取沟沿线栅格数目/个 占区域生长法提取沟沿线总栅格数的百分比/(%)
3 33 072 64.02 23 494 78.07
5 38 539 74.61 27 231 90.49
7 40 381 78.17 28 469 94.60

4 结论

以区域生长法和形态学图像处理理论,对坡面畸变邻域法提取沟沿线进行改进,在很大程度上提高沟沿线的识别精度。区域生长法避免了坡面畸变邻域法进行正负地形分类时,小斑块分类错误的现象;“去毛刺”处理减少了数据从栅格转到矢量过程中发生的错误。本文改进的沟沿线提取方法,能保证沟沿线提取的连续性和完整性,避免了破碎沟沿线和小范围闭合沟沿线的出现。该方法不需要人工干预,操作简单,具有普遍的适应性,在黄土塬、黄土墚、黄土峁地貌地区均能使用,其中在黄土塬区表现最为明显;并且该方法具有明确的地理学含义,山顶点和出水口点位置明确且一定分别位于正地形和负地形上。
