Time Series of Raster-oriented Method for Marine Abnormal Events Extraction

  • LI Xiaohong , 1, 2 ,
  • YAN Jinfeng 1 ,
  • LI Yilong 2 ,
  • XUE Cunjin , 2, 3, *
Expand
  • 1. Shandong University of Science and Technology, Qingdao 266590, China
  • 2. Key Laboratory of Digital Earth Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100094, China
  • 3. Key Laboratory of Earth Observation, Sanya 572029, China
*Corresponding author: XUE Cunjin, E-mail:

Received date: 2015-10-13

  Request revised date: 2015-12-04

  Online published: 2016-04-19

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

Marine Abnormal Event (MAE) is an abnormal decrease or increase of marine environmental parameters, which covers a specified spatial domain and lasts for a specified temporal duration. Marine abnormal event can provide the temporal and spatial characteristics of regional sea-air interactions and global climate change, which has an important scientific significance. Based on the above information, we propose a novel algorithm to extract the MAE from the long-term raster datasets, named as MAESTEM (Marine Abnormal Event Spatio-Temporal Extraction Method). The MAESTEM has three key steps: the extraction of MAE at a temporal dimension, the extraction of MAE at a spatial dimension, and the tracking of MAE. At the temporal dimension, each grid pixel within an image is taken to be the one-dimensional time series, and its mean and standard deviation are taken as the criteria to define its abnormal snapshot status. If and only if the abnormal snapshot and its subsequent ones are not smaller than the specified threshold, i.e. T, the abnormal snapshots are defined as a temporal MAE, denoted by TMAE. We utilize the spatial neighborhood statistics method to count the number of spatial neighborhoods of a raster pixel which belongs to TMAE and to obtain the marine abnormal events at the spatial dimension, denoted as SAME, by using the spatial dimension abnormal extracting method. In the final step, we use the spatial topological relationship of SMAE to identify whether the SAMEs at the previous and post snapshots belongs to the same event. If they overlap, they are considered being in the same event. If the temporal duration of the event exceeds the temporal threshold, save the event, otherwise, delete it. Finally, the Pacific Ocean is taken as a research area, and its monthly averaged sea level anomaly (SLA), which is obtained from the remote sensing imagery during a period from January 1993 to December 2012, is used to test the feasibility and efficiency of MAESTEM.

Key words： Marine Abnormal Event (MAE); extraction methods; raster datasets; Pacific Ocean

Cite this article

LI Xiaohong , YAN Jinfeng , LI Yilong , XUE Cunjin . Time Series of Raster-oriented Method for Marine Abnormal Events Extraction[J]. Journal of Geo-information Science, 2016 , 18(4) : 453 -460 . DOI: 10.3724/SP.J.1047.2016.00453

1 引言

海洋异常事件（Marine Abnormal Event,MAE）是指在特定的海洋区域内,海洋环境要素（如海洋表面温度、叶绿素-a浓度）相对于平均状态下的异常升高或异常降低。海洋异常事件通常持续一定的时间范围,覆盖特定的空间区域,其时空特性对海洋时空分析方法、区域海气相互作用、全球气候变化研究和人类社会都有重大的影响[1-2]。随着对地观测技术的发展,长时间序列的卫星遥感数据为获取宏观尺度的地理现象或特征提供了重要数据源[3],如何从长时间序列的卫星遥感数据中提取地理异常事件已成为研究热点。
不同领域的专家针对不同的应用目的,提出了不同的异常事件提取算法。例如,在异常探测领域,时空异常探测主要致力于寻找在时间上和空间上的异常属性值。Cheng等利用时空邻域的理论在栅格图像中发现时空异常值[4];Lu等利用图像分割技术分析气象图像序列中的时空异常值[5],并设计了相应的方法;Birant等利用基于密度聚类的方法寻找时间和空间上的异常值[6];Das等利用基于距离和基于邻域的异常探测查找全球气候数据的时空异常[7]; Benezeth等针对行为模拟和异常检测提出了一个基于位置的方法,用马尔科夫区域随机模型计算同时发生的可能性,检测视频中异常事件的发生,如异常交通事件中汽车的非法转弯等[8]。
在地理科学领域,传统的异常事件描述方法有区块极值模拟,利用广义极值分布（Generalized Extreme Value,GEV）模拟一组连续观测块的最大值[9];Yu等提出了一个统计模型-时空图形化模型,采用广义极值分布（GEV）模拟时空异常事件,模型可以用来估计异常事件的时间格局,根据当前数据的趋势,预测未来异常事件的分布,如极端降雨等,这为洪涝灾害预警和策略计划提供了重要的帮助[10];Huang等利用空间序列索引以及基于时域分片的算法查找连续的时空事件,讨论了时空事件数据集的序列模式[11];Tan等将地球科学原始数据转换为市场购物篮数据的形式来辨别时空事件,并挖掘事件序列之间的关联模式[12];Wu等提出了一个基于范围搜索最近邻域（Range-based Searching Nearest Neighbors,RSNN）的空间聚类算法,首先通过原始时间序列数据聚类减少数据大小和空间自相关,然后利用extractEvents算法从聚类的时间序列数据中提取异常事件序列,最后进行关联模式挖掘[1]。
尽管上述方法在异常事件提取方面取得了一系列成果,但Cheng、Kut等只是发现时空异常值,并没有考虑异常在时间和空间上的连续性;Lu等提取异常值并追踪区域异常值,Yu等模拟预测异常事件,Huang等查找连续的时空事件,Tan等辨别时空事件,Wu等提取异常事件序列,但都没有讨论异常事件在空间上的分布以及随着时间的变化性。大量的海洋现象具有连续渐变的过程特性[13],因此,在时空连续渐变的海洋异常事件提取方面仍然存在许多挑战。鉴此,本文从时空连续变化的特性出发,设计了海洋异常事件的时空提取算法。

2 海洋异常事件时空提取算法

海洋异常事件时空提取算法（Marine Abnormal Event Spatio-Temporal Extraction Method,MAESTEM）是利用长时间序列的海洋栅格数据集,根据海洋环境要素的时空变化特性,提取海洋异常事件。MAESTEM主要包括4个步骤：（1）数据预处理,用于消除季节波动引起的变异;（2）事件的时间维度提取,实现事件在时间上的连续性;（3）在此基础上的空间维度提取,实现事件在空间上的连续性;（4）MAE追踪算法,实现事件在时空上的连续性。具体流程如图1所示。

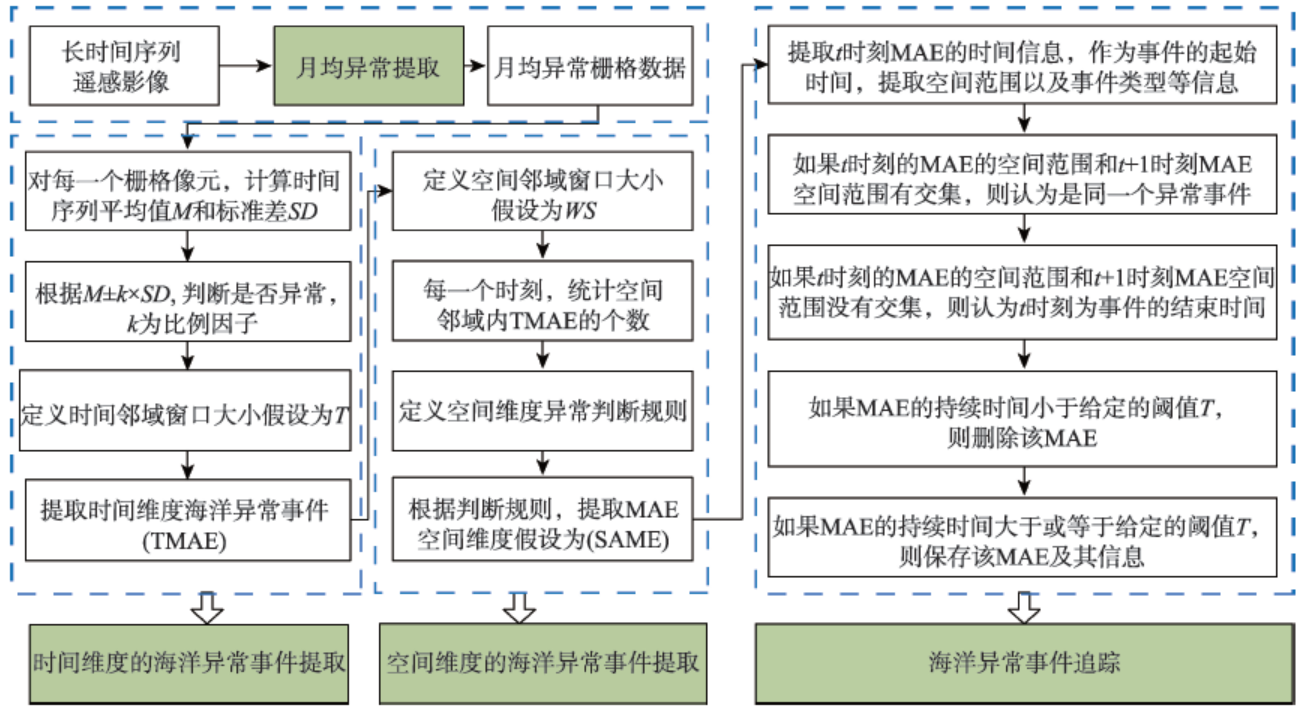

Fig. 1 An extraction flowchart of MAE

图1 海洋异常事件提取流程

2.1 数据预处理

相对于正常的季节性周期模式,地理学家更关注异常模式,如厄尔尼诺（El Niño）、拉尼娜（La Niña）等。地球科学数据具有很强的季节性成分,数据模式经常受季节性变化影响,只有去除气候时间序列的季节性成分后,异常气候事件（如干旱、洪水、热浪等）才更明显[14]。因此,在识别异常气候事件前,去除气候时间序列的季节性成分是关键。本文注重海洋异常变化,而长时间序列的海洋环境参数季节性变化主要受太阳辐射影响,因此在识别海洋异常事件前,先移除由季节性太阳辐射引起的变化。根据先前知识,标准化月均距平算法Z-score能够有效地去除季节性成分[14]。针对1-12月的任意月份,如1月,获取每年1月的值,构成时间序列,计算其平均值和标准差,并通过其均值和标准差,离散化任意年份1月的数值,如式（1）所示[15]。
X i , j ' = X i , j - X j ¯ δ j （ j = 1,2 , … , 12 ） （1）
式中：i为年; j为月; X j ¯ 和 δ j 分别为平均值和标准差; X i , j ' 和 X i , j 分别为长时间影像的原值和转换值。

2.2 时间维度的异常提取算法

经过数据预处理,长时间序列的遥感影像变为月均距平栅格数据,根据MAE的定义,MAE应该持续一定的时间段,通过时间邻域窗口大小来表达这个时间段。假设时间邻域窗口大小为WT,时间标准阈值为TCT,且 WT ≥ TCT ， 则时间维度的MAE提取步骤如下：
（1）将每一个栅格像元作为一个时间序列,获取每个时间序列的栅格像元值,假设 V ( row , col ) = ( v t 1 , v t 2 , v t 3 , … , v tn ) ,其中row和col分别为栅格数据中的行号和列号,t1、t2、…、tn为时刻状态,n为数据的时间序列长度;
（2）计算V(row,col)的平均值M(row,col)和标准差SD(row,col) ;
（3）对于每一个时间间隔t,获取栅格像元的值Vt,根据式（2）判断是否异常;
S ( V t ) = 1 V t ≥ M + kSD 0 其他 - 1 V t ≤ M - kSD （2）
式中：1代表异常升高;-1代表异常降低;0代表正常;k是比例因子。
（4）重复步骤（3）,直到所有时间序列的栅格像元都处理完毕;
（5）根据式（3）提取时间维度MAE,如果式（3）为真,则此栅格像元在持续的时间段内被定义为一个海洋异常事件;
∑ t = - WT 2 t = WT 2 T s ( v t ) ≥ TCT （3）
式中： T s ( v t ) 代表异常持续的时间长度。
（6）重复步骤（1）-（5）,直到所有的栅格像元都处理完毕。

2.3 空间维度的异常提取算法

在时间维度异常提取的结果基础上,进行空间维度的异常提取。时间维度上的海洋异常事件保证了每一个栅格像元事件在时间序列上的连续性,然而,面向栅格影像,任意时刻栅格像元之间的空间关系被割裂。空间维度的海洋异常事件旨在实现空间区域的连续性,即覆盖一定的空间区域（该区域中栅格像元的属性值是一致的）,属性值为-1表示该区域发生了海洋异常降低事件,属性值为1表示该区域发生了海洋异常升高事件。因此,空间维度的海洋异常事件应该去除空间域的噪声信息,把相邻有意义的空间区域连接起来。在地理科学中,空间邻域是空间异常探测的重要组成部分[16],一般采用空间邻域低通滤波去除空间噪声。由于海洋环境要素受外界影响较小,方形的空间邻域更具应用性,因此本文利用方形邻域去除空间噪声。假设空间邻域窗口尺寸为w,空间维度的异常事件提取算法具体步骤如下：
（1）T时刻,获取一个栅格像元的值,假设为 V ( row , col ) ;
（2）获取该栅格像元w×w邻域的值,统计空间邻域内属性值为-1、0、1的个数,分别用 Num ( - 1 ) 、 Num(0)、Num(1)表示,则MV=max(Num(-1)、Num(0)、 Num ( 1 ) ) ;
（3）根据式（4）,做去噪处理;
V ( row , col ) = - 1 MV = Num ( - 1 0 MV = Num 0 1 MV = Num 1 （4）
（4）重复步骤（1）-（3）,直到处理完所有栅格 像元。

2.4 海洋异常事件追踪算法

时间维度的海洋异常事件提取算法保证了事件在每一个栅格像元上时间序列的连续性,空间维度的海洋异常事件提取算法保证了事件在时刻状态上空间区域的连续性。海洋异常事件是一个连续渐变的时空过程[17],覆盖特定的空间区域,覆盖的空间区域会随着时间而改变,但是不同时刻的空间区域会重叠,因此可以利用拓扑关系（如拓扑相交、相并）来追踪海洋异常事件。
在一定的时间间隔内,若空间覆盖区域有叠加,且事件类型相同（升高或降低）,则认为是同一个事件。在图2中,假设灰色范围代表异常降低事件的覆盖范围,橙色范围代表异常升高事件的覆盖范围,由图2可知,t1时刻和t2时刻异常事件空间覆盖范围有重叠,且事件类型相同,则t1时刻的异常事件和t2时刻的异常事件是同一个事件相邻2个时刻的状态。海洋异常事件的生命周期包括：产生阶段、发展阶段、稳定阶段、减弱阶段、消亡阶段[18]。如图2所示,t1为产生阶段,t2为发展阶段,t3为稳定阶段,t4为减弱阶段,t5为消亡阶段,且每个时刻不同区域可能会发生不同的异常事件。例如,t5时刻发生2个异常事件,即降低事件和升高事件。本文提出的异常提取算法是针对一个海洋异常事件,使用拓扑关系（拓扑相交,相并）来追踪海洋异常事件的整个发生过程。

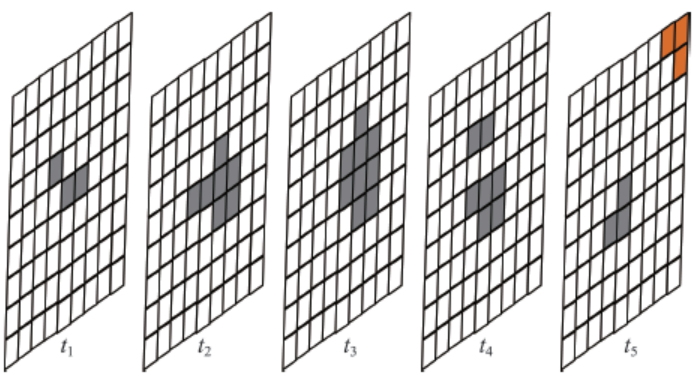

Fig. 2 Spatial and temporal information of MAE

图2 海洋异常事件的空间和时间信息

通过海洋异常事件的生命周期过程（产生-发展-稳定-减弱-消亡）可知,海洋异常事件至少持续一定的时间段,假设为MAET,具体算法如下：
（1）提取T时刻的海洋异常事件preMAE假设为MAE_1,以及异常事件的空间范围、时间信息、事件类型等信息,存到相应的数据库,则MAE_1的空间范围就是PreMAE的空间范围;
（2）提取T-1时刻的所有海洋异常事件,以及异常事件的空间范围等信息;
（3）判断PreMAE空间范围和T时刻的海洋异常事件空间范围是否有交集：如果没有交集,说明是另一个事件的起始,执行步骤(4);如果有交集,并且T时刻的所有异常事件都已经遍历,T=T+1,执行步骤(1),否则直接执行步骤(1);
（4）提取T+1时刻的海洋异常事件,以及异常事件的空间范围、时间信息、事件类型等信息;
（5）判断T+1时刻的异常事件postMAE和T时刻的异常事件preMAE是否是同一个事件：
① 如果postMAE的空间范围和preMAE空间范围有交集,则认为postMAE和preMAE是一个事件,postMAE和preMAE空间范围的并集为异常事件MAE_1的空间范围,则事件持续时间N=N+1,更新数据库,执行步骤(4);
② 如果preMAE空间范围和任何的postMAE的空间范围都没有交集,且如果事件持续时间N小于给定的阈值MAET,那么认为PreMAE不是合格的异常事件,将PreMAE及其信息从数据库中删除,更新数据库。如果事件持续时间N大于阈值MAET,则是合格的异常事件,保存数据库。如果T时刻的所有异常事件已经遍历,T=T+1,执行步 骤(1);
（6）重复步骤（1）-（5）,直到遍历所有时刻,追踪所有异常事件。

3 实例验证

太平洋海域是海洋环境要素和ENSO（El Niño Southern Oscillation）的多互动区域,在全球气候变化和区域海气相互作用中扮演重要的角色[19],因此,本文选择太平洋海域作为研究区域（100° E~60° W,50° S~50° N）,1993年1月至2012年12月的月均海表面高度异常（Sea Level Anomaly,SLA）作为实验数据。SLA数据来源于AVISO分发中心（http://www.aviso.oceanobs.com/duacs）,空间分辨率为0.25º,时间分辨率为月,空间覆盖为全球。根据ENSO的定义,海洋尼诺指数持续5个月以上高于0.5º（或低于-0.5º）定义为一次El Niño（或La Niña）事件,所以时间阈值设定为5个月,即TCT=5 和MAET=5。根据经验统计和正态分布理论,k=1,提取的海洋异常事件空间覆盖范围过大,区域差异性很难体现,k=3,提取的海洋异常事件较少,时间上的连续性很难保证,所以比例因子k设定为2,即k=2;空间邻域采用3×3邻域,即w=3,栅格数据集的空间分辨率为0.25 º,所以空间邻域窗口大小设定为0.75 º。基于上述阈值,1993年1月至2012年12月的月均SLA共有37个海洋异常降低事件,29个海洋异常升高事件。
ENSO是全球气候变化的典型信号之一,和SLA之间存在相互“响应”和“驱动”关系,且1997-1999年的ENSO事件是130年来最强的一次气候异常事件[20],因此选择该期间的SLA海洋异常事件作为分析实例。图3显示了1997-1999年的一次El Niño事件和一次La Niña事件,MEI大于0.5的区间定义为El Niño事件,MEI小于-0.5的区间定义为La Niña事件[21]。图4为1997年3月至1999年8月的SLA海洋异常事件,其中蓝色代表异常降低事件,红色代表异常升高事件。从图4中可以看出,1997-1999年发生2个异常降低事件和一个海洋异常升高事件。在西太平洋发生的海洋异常降低事件定义为WPOMAE（Western Pacific Ocean Marine Abnormal Event）,1997年4月产生,1999年8月消失。在北太平洋的海洋异常降低事件定义为NPCMAE（North Pacific Ocean Marine Abnormal Event）,1997年11月产生,1999年1月消失。东太平洋发生的海洋异常升高事件定义为EPCMAE（Eastern Pacific Ocean Marine Abnormal Event）,1997年3月产生,1998年11月消失。
结合图3、图4分析可知,El Niño事件1997年3月开始发生,WPOMAE在El Niño之后的4月产生,随着El Niño的增强,WPOMAE覆盖范围不断扩大,位置不断由西太平洋向中太平洋移动;1998年6月El Niño事件消失,1998年8月La Niña事件产生,WPOMAE覆盖范围不断衰减分裂,1999年8月在中太平洋消失。

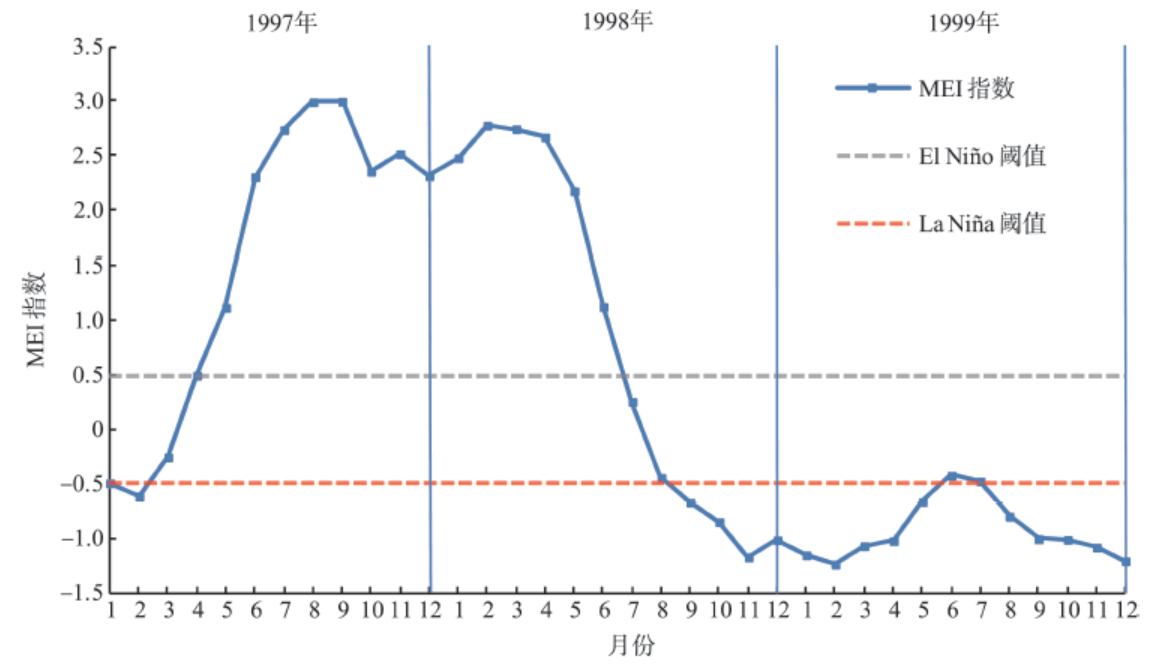

Fig. 3 ENSO index from 1997 to 1999

图3 1997-1999年ENSO指数图

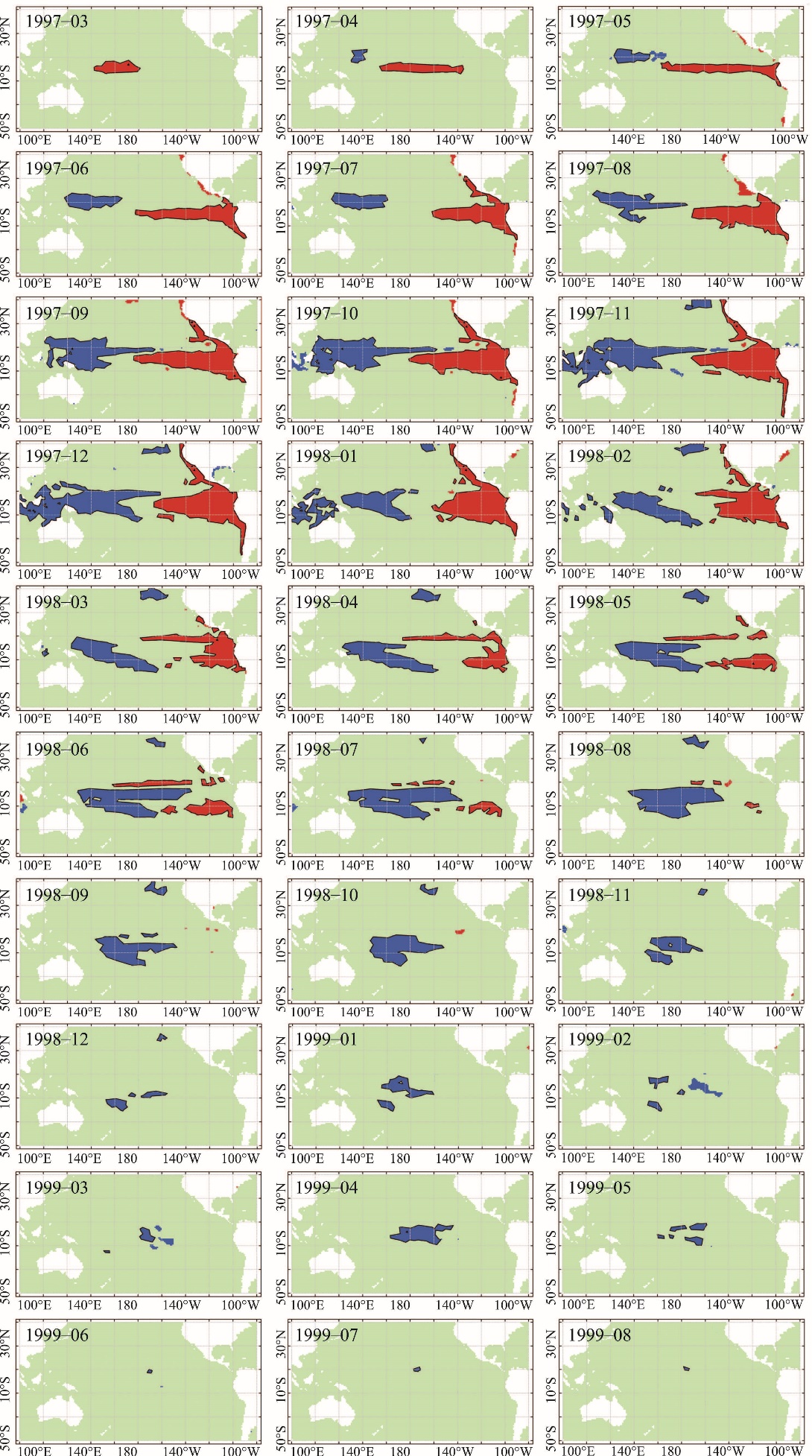

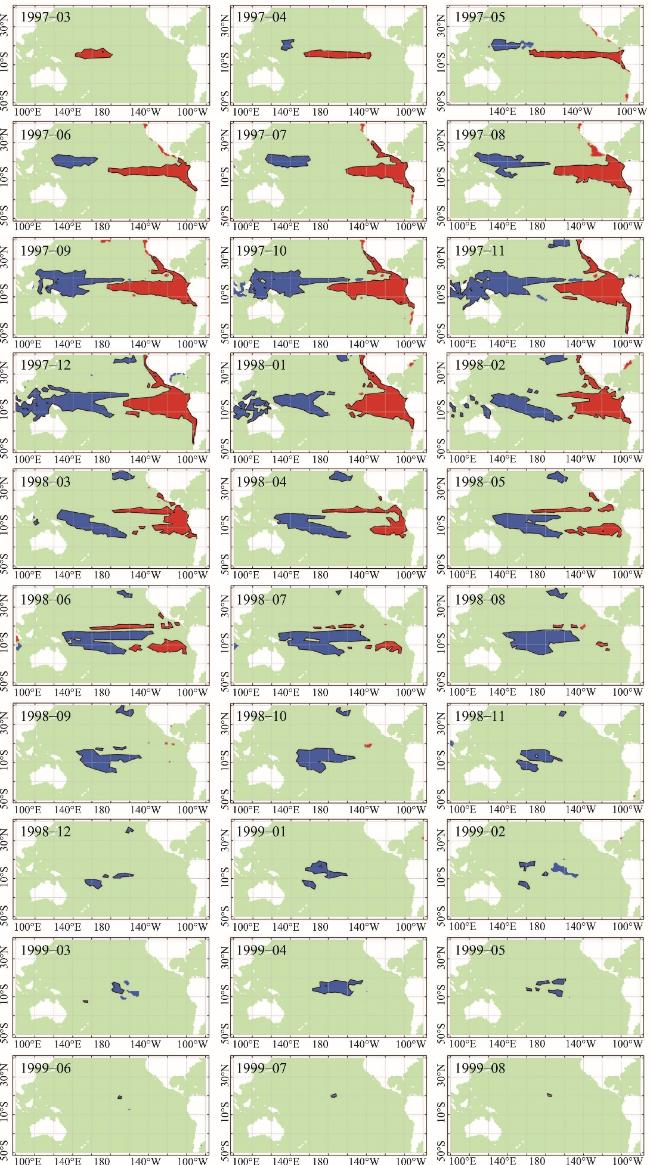

Fig. 4 Tracking MAE from 1997 to 1999

图4 1997-1999年海洋异常事件追踪过程

由图3、图4可知,El Niño事件在1997年3月产生的同时EPCMAE在中太平洋突然产生,并随着El Niño事件的增强,EPCMAE覆盖范围不断扩大,位置不断向东太平洋移动;1998年2月随着El Niño事件强度的减弱,EPCMAE覆盖范围不断衰减分裂;1998年8月开始产生La Niña事件,EPCMAE基本消失;1998年11月EPCMAE在东太平洋完全消失。
众所周知,ENSO事件与太平洋海域SLA存在相互“响应”与“驱动”的关系。Casey和Adamec对1993-1999年的SLA数据进行EOF分析和SVD分析,结果显示El Niño发生期间（1997-1998年）,赤道西太平洋海面高度降低,赤道东太平洋海面高度升高[22],这与EPCMAE和WPOMAE期间的SLA变化相吻合。此外,通过分析WPOMAE和EPCMAE的时空变化,还可获得SLA在西太平洋和东太平洋的空间分布及在时间上的动态变化。

4 结论

面向长时间序列的卫星遥感影像,本文从时间维度、空间维度和事件追踪3个层次设计了一种全新的海洋异常事件提取算法（MAESTEM）,并利用1993年1月至2012年12月的月均SLA数据,验证了算法的有效性和实用性。本文集成空间维度和时间维度算法来提取海洋异常事件,并利用空间拓扑关系追踪海洋异常事件。海洋异常事件的提取结果能够充分地体现海洋异常事件在发生过程中的空间区域分布,及其随时间的动态变化,这对科学研究人员更好地了解海洋区域特征具有重要意义。例如,海洋异常事件的持续周期及空间覆盖范围的演变,可为区域海气相互作用提供事实特征。本算法也存在不足：当事件在前后时刻空间覆盖范围变化比较大时（即前后时刻的空间覆盖范围没有重叠）,则不能有效地进行海洋异常事件的追踪。这有待进一步完善与修改,是今后工作的重要内容之一。
