Optimal Scales Based Segmentation of High Spatial Resolution Remote Sensing Data

  • YANG Haiping , 1, 2, * ,
  • MING Dongping 3
Expand
  • 1. College of Computer Science & Technology, Zhejiang University of Technology, Hangzhou 310023, China
  • 2. Key Laboratory of Oceanographic Big Data Mining & Application of Zhejiang Province, Zhoushan 316022, China
  • 3. School of Information Engineering, China University of Geosciences (Beijing), Beijing 100083, China;
*Corresponding author: YANG Haiping, E-mail:

Received date: 2016-02-15

  Request revised date: 2016-04-18

  Online published: 2016-05-10

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

The quality of image segmentation has a great impact on the results of information extraction from high spatial resolution remote sensing imagery when the object-based method is employed. During the segmentation of high spatial resolution remote sensing images, the scale parameter directly affects the construction of segmented image objects. A small scale is likely to produce broken image objects, while a large scale probably results in the mixed image objects. To solve this problem, an image segmentation framework based on a set of optimal scales is proposed in this paper. First of all, the high spatial resolution remote sensing image is processed using multi-scale segmentation methods with respect to a group of regularly distributed scales. Then the relationship between the global standard deviation of a single segmented layer and its corresponding scale is determined, from which a group of optimal scales are selected. Since the object in a layer that is segmented by a big scale parameter contains the corresponding object in a layer that is segmented by a small scale parameter, a hierarchical tree with nodes of multi-scale image objects can be created. Within this hierarchical tree, the image object of the layer that is segmented by the maximum scale is set as the root. In this manner, each image object of the layer that is segmented by the maximum scale can generate a hierarchical tree, which all together forms the image forest. Two types of features are considered when the optimal image object is selected from each hierarchical tree, which are the comprehensive evaluation index and the spectral features. The comprehensive evaluation index keeps a balance between the homogeneity and heterogeneity of the image objects. And the spectral features of the children nodes should be consistent with the parent nodes in order to dismiss the mixed image objects. Finally, the segmented result is created after the optimal image objects from all hierarchical trees are selected. In the experiment presented in this paper, the Geoeye and ZY3 images are adopted. Results show that the proposed method can effectively improve the percentage of properly segmented image objects.

Key words： high spatial resolution remote sensing imagery; segmentation; multiple scales; a hierarchical tree with nodes of multi-scale image objects; comprehensive evaluation index

Cite this article

YANG Haiping , MING Dongping . Optimal Scales Based Segmentation of High Spatial Resolution Remote Sensing Data[J]. Journal of Geo-information Science, 2016 , 18(5) : 632 -638 . DOI: 10.3724/SP.J.1047.2016.00632

1 引言

从20世纪末开始至今,能够获取米级甚至亚米级空间分辨率影像的卫星不断发射升空,如国外的Geoeye系列、Worldview系列、Pleiades系列,以及国内的高分（GF）系列、资源（ZY）卫星系列等。这些高分辨率遥感影像在减灾、国土、生态等领域发挥越来越重要的作用。因此,如何有效地从高分辨率影像中提取行业应用所需的信息是高分辨率影像能否在应用中发挥作用的关键问题。针对高分辨率影像而言,与传统的中低分辨率影像采用的基于像元的处理方法相比,面向对象的处理方法能够有效地避免处理过程中出现的椒盐噪声等问题[1-4]。而影像分割是面向对象处理方法中最基本的步骤。
近十几年来,随着影像空间分辨率的提高,遥感影像分割算法有了快速的发展,如神经网络模型、分水岭算法、均值漂移分割算法等都被应用到遥感影像的分割中[5-10]。已有的研究表明,涉及到实际分割操作实验时,被集成到商业软件eCognition中的Multi-resolution模型出现的频率较高,它作为实验的一个分割步骤或在对比实验中出现[11-14]。这些分割算法中,涉及到的一个重要问题是尺度选择。不同的地物（如耕地、湖泊、农村房屋、城市公寓等）需要不同的分割尺度,无法采用一个统一的尺度进行描述。如果采用小尺度分割,那么势必产生过分割现象;如果采用一个大尺度分割,那么可能产生欠分割的问题,从而出现混合对象,如道路和行道树组成一个对象,房屋和道路组成一个对象等。可见,分割尺度的不同将对分割结果产生很大的影响。对此,研究人员提出了多尺度分割方法,包括“自底向上”和“自顶向下”2种策略。在不同尺度的合并过程中,都需要有一个阈值来判断是否进行合并。例如,eCognition软件中的Multi-resolution分割算法采用了“自底向上”合并的策略,用户可以通过控制尺度参数来调整合并阈值,尺度越大,分割得到的影像对象就越大[15]。
从目前已有的多尺度分割方法来看,大多数方法在每次分割时主要采用一种尺度。本文针对高分辨率影像分割中地物多尺度的问题,将在一次分割中同时综合多个尺度的分割结果。实验结果表明,本文的算法能够有效地提高正常分割影像对象的比例。

2 基于多层优选尺度的分割方法

首先给出多层次对象树和影像森林的定义。多层次对象树是由同一地物的不同尺度分割对象构成的树,尺度最大的分割对象为多层次对象树的根节点,尺度最小的分割对象为多层次对象树的叶节点。由所有多层次对象树组成的图定义为影像森林。
基于多层优选尺度的高分辨率影像分割流程如图1所示。首先,对高分辨率影像进行多尺度分割,同时计算分割对象的特征。在此基础上,分别计算各尺度的影像整体特征,通过影像特征变化率与尺度的关系选择一系列最优分割结果。以尺度最大的优选分割对象为根节点,自上而下,形成一系列多层次对象树,由此来构建影像森林。然后,计算影像对象的局部综合评价参数。最后,分别遍历影像森林中的多层次对象树,逐个输出局部最佳影像对象,合并成为由多个尺度综合形成的分割结果。

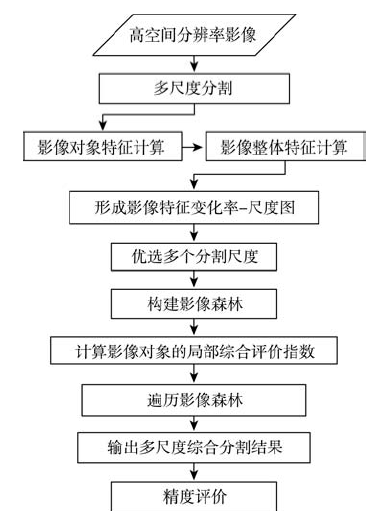

Fig.1 Process of image segmentation based on a series of optimal scales

图1 基于多层优选尺度的高分影像分割方法

2.1 最优分割尺度的选择

按照最优尺度选择的数目,最优尺度选择方法可以分为单尺度和多尺度2种。单尺度的方法是在一景影像中选择一个最优尺度[16],在实际应用中,这种单尺度选择方法无法满足各类地物的不同尺度要求。多尺度选择的方法中,按照研究对象的不同,可以分为针对地物类别的最优尺度选择和针对影像的最优尺度选择。按照不同地物类别选择尺度的方法可参见文献[17]、[18],这类方法适合用于专门提取某一类地物信息的情况。影像选择最优尺度的方法包括将影像分区选择最优尺度[19]以及直接在整景影像上选择最优尺度[20-21]2种类型。通过影像分区选择不同区域的最优尺度时需要充分考虑分区的大小及分区内的地物类别,否则会产生单尺度选择法中遇到的问题,而对于影像全局范围内直接选择多个分割尺度的方法则无需考虑这些问题。因此,本文将采用在全局范围内综合选择多个尺度的策略。
从影像全局而言,当混合对象增多时,相邻对象之间的光谱异质降低,影像中所有对象的均值方差变小;反之,当混合对象减少时,则相邻对象之间的光谱差异增大,所有对象的均值方差增大[20]。研究表明,最优分割的参考值发生在均值方差峰值且方差变化率开始呈现下降趋势的分割值处[20-21]。本文采用了影像分割层全局标准差的变化与尺度的关系来确定一组最优分割尺度[20-21],如式（1）所示。
Δ = WS D L - WS D L - 1 WS D L - 1 , L > 0 （1）
式中： L 表示分割层; WSD 表示影像全局的加权标准差,公式如式（2）所示。
WSD = ∑ i = 1 m w i S D i w i = are a i A S D i = MAX ( S D ij ) , j = 1,2 , ... , n （2）
式中： S D i 表示第i个影像对象的波段标准差; w i 表示第i个影像对象的面积权重;m表示在当前分割层的影像对象总数;n表示影像波段数目。从加权标准差变化率-尺度关系图中可以选出多个最优尺度,即局部对应的峰值为相应的最优分割尺度。

2.2 多层次对象树的构建

本文以三层对象树为例对多层次对象树的构建进行说明。假设现有影像I通过自底向上的分割方法获得了一组从小到大排列为S1、S2、S3的分割结果（图2）。尺度S1、S2、S3中相应位置的影像对象 O S 1 、 O S 2 、 O S 3 满足式（3）的父子包含关系。
O S 1 ⊆ O S 2 O S 2 ⊆ O S 3 （3）

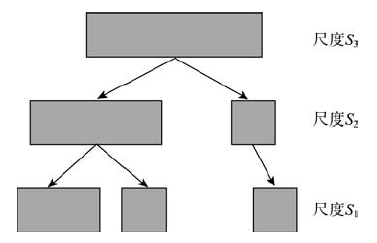

Fig.2 Diagram of a hierarchical tree with nodes of multiscale image objects

图2 多层次对象树示意图

本文以尺度最大( S 3 )的分割层中的对象 { O i | O i ∈ O S 3 , i = 1,2 , ⋯ , N S 3 } 为根节点, N S 3 为 S 3 分割层中影像对象的数目,寻找尺度S2的分割层中和对象 { O i | O i ∈ O S 3 , i = 1,2 , ⋯ , N S 3 } 具有相等或被包含关系的对象 { O i | O i ∈ O S 2 , i = 1,2 , ⋯ , N S 2 } ,选中该对象并将其作为对象 { O i | O i ∈ O S 3 , i = 1,2 , ⋯ , N S 3 } 的子节点。依次类推,在尺度S1的分割层中寻找和对象 { O i | O i ∈ O S 2 , i = 1,2 , ⋯ , N S 2 } 具有相等或被包含关系的对象 { O i | O i ∈ O S 1 , i = 1,2 , ⋯ , N S 1 } ,并作为对象 { O i | O i ∈ O S 2 , i = 1 , 2 , ⋯ , N S 2 } 的子节点。通过以上方法构建的树就是多层次对象树。以S3中的分割对象为根节点,分别构建相应的多层次对象树。所有这些多层次对象树形成了影像森林。

2.3 多层次对象树的合并

本文从局部对多层次对象树进行合并,且合并时综合考虑了图像本身的特性及地物的光谱特征。图像本身的特性包括影像对象的同质性及异质性,理想状况下,希望分割对象的同质性越大同时异质性越小。本文提出了一个融合了同质性及异质性的综合评价指数 ε ,如式（4）所示。
ε = h m 2 + 1 / h t 2 + 1 2 （4）
式中： h m 表示同质性的归一化量度; h t 表示异质性的归一化量度,具体计算如式（5）、（6）所示。
h m = MAX ( h mo ) - h mo MAX ( h mo ) - MIN ( h mo ) + 1 （5）
h t = MAX ( h te ) - h te MAX ( h te ) - MIN ( h te ) + 1 （6）
式中： MAX ( ∙ ) 表示取最大值函数; MIN ( ∙ ) 取最小值函数; h mo 表示同质性量度; h te 表示异质性量度。本文采用像元标准差作为同质性量度,其值越小说明该对象内部像元波动越小,即同质性越好;光谱均值之差作为异质性量度,其值越大说明对象之间异质性越大。结合式（4）,当影像对象的同质性越大（即标准差越小）、异质性越大时, ε 越小,因此本文选择 ε 最小的对象作为候选最佳对象。
在算法自底向上搜索的过程中,以最底层优选尺度中分割对象的光谱特征为基准,给上层最优尺度中分割对象的光谱特征加上限制条件,即在通过综合评价指数 ε 选择了最佳对象之后,要求上层分割对象的地物光谱特征必须和最底层对应分割对象的光谱特征保持一致,从而避免出现混合对象。本文中地物光谱特征主要考虑了植被和水体2类特征明显的地物。

3 实验与分析

3.1 Geoeye多光谱影像分割实验

本实验中采用了Geoeye多光谱影像,实验数据的空间分辨率为2 m,影像大小1000像元×1000像元,有蓝（450~510 nm）、绿（510~580 nm）、红（655~690 nm）和近红外（780~920 nm）共4个波段。该研究区域（图3）的地物类型以耕地、水体、林地为主体,同时还分布有一些村庄。
Fig.3 Geoeye multispectral image

图3 Geoeye多光谱影像

首先,采用eCognition Developer 8.7的多分辨率算法对Geoeye影像进行分割,除了尺度以外的参数都按照算法的默认设置,分割尺度范围设为5-120,间隔设为1。根据2.1节中的方法,由标准差变化率-尺度曲线得到一组Geoeye影像的最优分割尺度,即24、35、49、59、69、94、116。据此,实验将以尺度116的分割对象为根节点,构建一系列深度为7的多层次对象树以形成影像森林。然后,比较多层次对象树中每个节点的综合评价指数 ε ;同时,通过采用NDVI及NDWI限制父层对象的光谱特性,来搜寻局部最优的影像对象。
本文通过过分割、欠分割及正常分割对象的比例来评价分割质量,随机抽取N个分割对象,计算过分割对象的比例（POS）、欠分割对象的比例（PUS）及正常分割对象的比例（PS）,如式（7）-（9）所示。
P OS = N OS N （7）
P US = N US N （8）
P S = N S N （9）
式中：NOS表示抽样中过分割影像对象的总数;NUS表示抽样中欠分割影像对象的总数;NS表示抽样中正常分割影像对象的总数。
从Geoeye多光谱影像分割结果中随机抽取200个影像对象评价分割算法的质量,分别计算本算法及各优选尺度分割结果的过分割、欠分割及正常分割影像对象的比例,结果如图4所示。图4中横轴表示不同的分割方法,其中C表示本文算法的评价结果,116-24表示相应尺度分割算法的评价结果。从实验结果可知,本文算法获得的正常分割结果比例最高,为56.50%,其欠分割影像对象占27.50%,过分割影像对象占16.00%。在7个优选尺度中,尺度49的正常分割结果最高,为40.00%,尺度116的正常分割结果最低,为16.00%;尺度116的分割结果中欠分割对象比例最大,为82.00%,尺度24的分割结果中欠分割对象的比例最小,为3.50%;尺度116的分割结果中过分割对象的比例最大,为63.00%;尺度24的分割结果中过分割对象的比例最低,为2.00%。

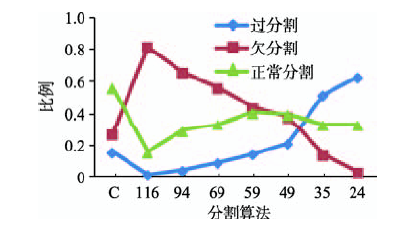

Fig.4 Comparison of the segmentation results using different methods for the Geoeye multispectral image

图4 Geoeye多光谱影像分割实验中不同尺度分割结果和本文方法分割结果的精度比较

图5所列为Geoeye多光谱影像分割实验中Geoeye多光谱影像局部的分割结果,图5（a）表示本文算法的分割结果,图5（b）-（h）分别表示尺度116-24的分割结果。从目视的角度而言,图5（a）不仅将建筑用地作为一个整体分割出来,而且能将林地和耕地分割开来,而图5（b）（尺度116）、图5（c）（尺度94）、图5（d）（尺度69）的分割结果中建筑用地、林地及耕地都合成了一个大对象,图5（e）（尺度59）、图5（f）（尺度49）、图5（g）（尺度35）的分割结果中林地及耕地合成了一个对象,图5（h）（尺度24）分割结果比较破碎。

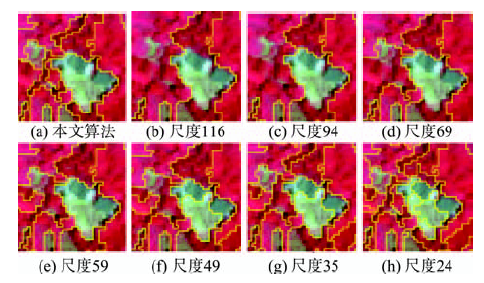

Fig.5 Details of the segmentation results for the Geoeye multispectral image

图5 Geoeye多光谱影像分割实验的局部结果图

3.2 ZY3多光谱影像分割实验

本实验采用了ZY3多光谱影像进行分割,实验数据的空间分辨率为5.8 m,影像大小为3000像元×3000像元,有蓝（450~520 nm）、绿（520~590 nm）、红（630~690 nm）和近红外（770~890 nm）共4个波段。该研究区域（图6）的地物类别包括耕地、水体、林地,还有一大一小2个城镇分布。首先,将ZY3影像输入eCognition Developer 8.7中的多分辨率分割算法,除了尺度以外的参数都按照算法的默认设置,分割尺度范围设为10-65,间隔设为1。然后计算标准差变化率-尺度曲线,并从中得到该ZY3多光谱影像的一组最优分割尺度为19、28、31、34、41、44、51、62。由此,实验将以尺度62的分割对象为根节点,构建一系列深度为8的多层次对象树以形成影像森林。其余处理方法与上述3.1节中的实验相同。
Fig.6 ZY3 multispectral image

图6 ZY3影像

从ZY3影像的分割结果中随机选择了200个影像对象来评价分割结果的质量,分别计算本文算法及各优选尺度分割结果的过分割、欠分割及正常分割影像对象的比例,结果如图7所示。图7中横轴表示不同的分割方法,其中C表示本文算法的评价结果,62-19表示相应的分割尺度所对应的评价结果。从实验结果可知,由本文算法获得的正常分割结果比例最高,为59.50%,其欠分割影像对象占27.00%,过分割影像对象占13.50%。在8个优选尺度中,尺度19的正常分割结果最高,为31.00%,尺度51的正常分割结果最低,为20.00%;尺度19的分割结果中欠分割对象的比例最低,为7.00%,尺度62的分割结果中欠分割对象的比例最高,为64.00%;尺度19的分割结果中过分割对象的比例最高,为62.00%,尺度62的分割结果中过分割对象的比例最低,为10.50%。

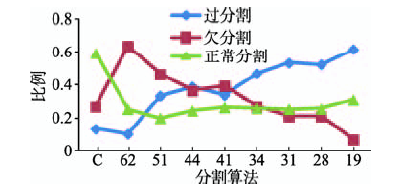

Fig.7 Comparison of the segmentation results using different methods for the ZY3 multispectral image

图7 ZY3多光谱影像分割实验中不同尺度分割结果和本文方法分割结果的精度比较

图8所列为ZY3多光谱影像分割实验中厂房及其周围道路局部的分割结果,图8（a）表示本文算法的分割结果,图8（b）-（i）分别表示尺度62-19的分割结果。从目视的角度而言,图8（a）不仅将厂房作为一个整体分割出来,而且能将厂房前的绿化带分割开来,而图8（b）（尺度62）、图8（c）（尺度51）、图8（d）（尺度44）的分割结果中厂房、绿化带及道路都合成了一个混合对象,图8（e）（尺度41）、图8（f）（尺度34）、图8（g）（尺度31）、图8（h）（尺度28）、图8（i）（尺度19）的分割结果中单个厂房被分割为多个对象。但由于在最小的尺度图8（i）（尺度19）中,小厂房和周围的道路被分割为一个混合对象,所以本文算法结果中也出现了该混合对象。

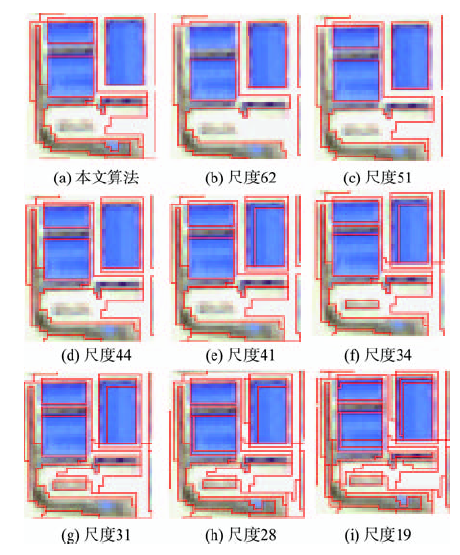

Fig.8 Details of the segmentation results of factory buildings for the ZY3 multispectral image

图8 ZY3多光谱影像分割实验的局部结果图

4 结语

本文针对高分辨率影像分割中地物多尺度的问题,提出了一种基于多层优选尺度的高分辨率影像分割算法。由Geoeye多光谱影像分割实验和ZY3多光谱影像分割实验的结果可知,本文算法得到的分割结果中正常影像对象的比例高于任一单一优选分割尺度的分割结果。本文算法通过构建多层次对象树,将单尺度分割结果作为树的一层节点参与计算,并采用了一个融合了同质性及异质性的综合评价指数 ε 在局部选择最优的分割影像对象。与大的单尺度分割相比,其能够避免大量的欠分割影像对象;与小的单尺度分割相比,其能够避免大量的过分割影像对象。
从算法效率角度而言,虽然算法中已经采用了空间索引等方法进行加速,但是本文算法的效率还有待进一步提高。在今后的工作中,将引入并行计算方法以进一步提高算法效率。
