Suitability Assessment and Validation of Giant Panda Habitat Based on Geographical Detector
Received date: 2015-09-08
Request revised date: 2015-12-09
Online published: 2016-06-10
Copyright
The suitability assessment of wildlife habitat is very important for wildlife management and protection. Niche model is the most commonly used presence-only based habitat suitability model, which cannot explicitly express the quantitative relationship between the suitability of wildlife habitat and the environmental factors, and would be insufficient to express the ecological effects of environmental factors on wildlife habitat use. In this study, a new giant panda (Ailuropoda melanoleuca) habitat assessment method based on geographical detector (Geogdetector) is proposed. A total of 8 environmental factors were selected for the suitability assessment of giant panda habitat, including the elevation, slope, aspect, topographic position index, distance from drainage system, vegetation type, staple food sources of bamboo, and distance from human settlements. Based on the initial habitat suitability index (HSI) input data calculated by Analytic Hierarchy Process (AHP) and MAXENT model respectively, we used four geographical detectors (the risk detector, factor detector, ecological detector, and interaction detector) to assess the relationship between the suitability of giant panda habitat and their environmental risk factors. Results show that the suitability assessment of giant panda habitat based on the geographical detector has relatively favorable precision and feasibility. (1) The MAXENT-Geogdetector model has higher level of performance on accuracy than the other three methods. The overall accuracy of the prediction results based on AHP, AHP-Geogdetector, MAXENT and MAXENT-Geogdetector are 85.6%、86.5%、91.3% and 94.2% respectively. The kappa coefficients are 0.699, 0.718, 0.821 and 0.882 respectively. The AUC values are 0.902, 0.928, 0.949 and 0.966 respectively. And the overlap ratios of the predicted distribution area to the actual distribution area are 63.66%, 61.30%, 76.70% and 90.10% respectively. (2) The proposed Geogdetector-based method well captures the ecological effects of environmental factors on the wildlife habitat use by indicating the quantitative relationship between the suitability of wildlife habitat and the environmental factors.
LIAO Ying , WANG Xinyuan , ZHOU Junming . Suitability Assessment and Validation of Giant Panda Habitat Based on Geographical Detector[J]. Journal of Geo-information Science, 2016 , 18(6) : 767 -778 . DOI: 10.3724/SP.J.1047.2016.00767

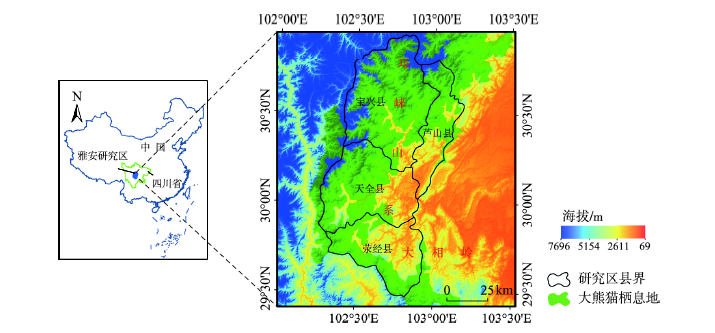

Fig.1 Location of Ya′an prefecture图1 雅安研究区地理位置示意图 |
Tab.1 Redefined interaction relationships in a coordinate system表1 因子交互关系的坐标轴表达 |
图示 | 表达式 | 交互关系 |
---|---|---|
PD(x∩ y)<Min(PD(x),PD(y)) | 非线性减弱 | |
Min(PD(x), PD(y))<PD(x∩ y)< Max(PD(x),PD(y)) | 单方减弱 | |
PD(x∩ y)>Max(PD(x),PD(y)) | 相互增强 | |
PD(x∩ y)=PD(x)+PD(y) | 相互独立 | |
PD(x∩ y)>PD(x)+PD(y) | 非线性增强 |

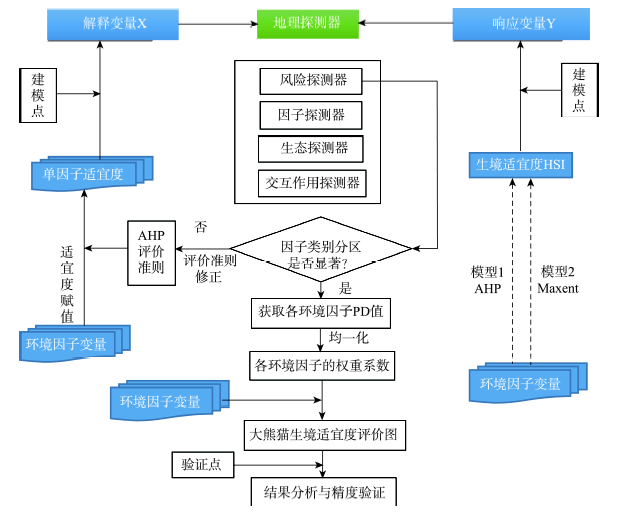

Fig.3 The flowchart of assessing the habitat suitability for giant panda based on the geographical detector图3 基于地理探测器的大熊猫生境适宜度评价流程图 |
Tab.2 Assessment criteria for the affecting factors on giant panda's habitat in Ya'an prefecture表2 雅安地区大熊猫生境适宜度影响因子评价准则 |
目标层 | 因素层 | 指标层 | 适宜 | 较适宜 | 不适宜 |
---|---|---|---|---|---|
雅安地区大熊猫生境适宜性评A | 地形因素B1 | 海拔C1/m | 1800~3200 | 1200~1800,3200~3800 | <1200,>3800 |
坡度C2/° | 0~30 | 30~40 | >40 | ||
坡向C3 | 南、东南、西南 | 东、东北、西 | 北、西北 | ||
地形指数C4 | -5~5 | -15~ -5,5~15 | >15,<-15 | ||
距水源距离C5/m | <2000 | 2000~4000 | >4000 | ||
生物因素B2 | 植被类型C6 | 针叶林、针阔混交林 | 阔叶林、灌丛及草甸 | 其他 | |
主食竹C7 | 冷箭竹、短锥玉山竹、拐棍竹 | 其他竹类 | 无竹区 | ||
干扰因素B3 | 距公路距离C8/m | >1000 | 500~1000 | <500 | |
适宜度赋值 | 5 | 3 | 1 |
3.2.2 样本值与采样点 |
Tab.3 Statistically significant difference of the average habitat suitability index between three primary bamboo zones表3 大熊猫主食竹不同类别分区生境适宜度的统计显著性差异 |
主食竹显著差异 | 不适宜 | 较适宜 | 适宜 |
---|---|---|---|
不适宜 | |||
较适宜 | Y | ||
适宜 | Y | Y |
注:Y表示2个主食竹类别分区对大熊猫生境的影响具有显著性差异(置信度为95%) |
Tab.4 Statistically significant difference of the impacts for different risk factors on habitat suitability index表4 不同环境因子对生境适宜度影响的统计显著性差异 |
显著差异 | 海拔 | 坡度 | 坡向 | 地形指数 | 距水源距离 | 植被类型 | 主食竹 | 距道路距离 |
---|---|---|---|---|---|---|---|---|
海拔 | ||||||||
坡度 | N | |||||||
坡向 | Y | Y | ||||||
地形指数 | Y | Y | N | |||||
距水源距离 | Y | Y | N | N | ||||
植被类型 | N | N | Y | Y | Y | |||
主食竹 | N | N | Y | Y | Y | N | ||
距道路距离 | Y | Y | N | N | N | Y | Y |
Tab.5 Interactive impact of each paired factors on the habitat of giant panda表5 2种环境因子(PD值)对大熊猫生境影响的交互作用 |
0.2745 | 0.1887 | 0.0026 | 0.0582 | 0.0126 | 0.2705 | 0.6936 | 0.0315 | ||
---|---|---|---|---|---|---|---|---|---|
海拔 | 坡度 | 坡向 | 地形指数 | 距水源距离 | 植被类型 | 主食竹 | 距道路距离 | ||
0.2745 | 海拔 | ||||||||
0.1887 | 坡度 | 0.362 | |||||||
0.0026 | 坡向 | 0.292 | 0.191 | ||||||
0.0582 | 地形指数 | 0.291 | 0.238 | 0.067 | |||||
0.0126 | 距水源距离 | 0.279 | 0.200 | 0.013 | 0.068 | ||||
0.2705 | 植被类型 | 0.432 | 0.380 | 0.281 | 0.323 | 0.275 | |||
0.6936 | 主食竹 | 0.719 | 0.721 | 0.695 | 0.707 | 0.694 | 0.757 | ||
0.0315 | 距道路距离 | 0.365 | 0.228 | 0.037 | 0.096 | 0.048 | 0.320 | 0.709 |
Fig.4 Distribution of giant pandas' habitats in Ya′an prefecture图4 雅安地区大熊猫生境分布 |
Tab.6 Classification accuracy of the four models表6 模型分类精度 |
AHP | AHP-Geogdetector | |||||||
---|---|---|---|---|---|---|---|---|
实际类别 | 预测类别 | 实际类别 | 预测类别 | |||||
活动栅格 | 非活动栅格 | 精度/(%) | 活动栅格 | 非活动栅格 | 精度/(%) | |||
活动栅格 | 32 | 14 | 69.6 | 活动栅格 | 32 | 14 | 69.6 | |
非活动栅格 | 1 | 57 | 98.3 | 非活动栅格 | 0 | 58 | 100 | |
85.6 | 86.5 | |||||||
MAXENT | MAXENT-Geogdetector | |||||||
实际类别 | 预测类别 | 实际类别 | 预测类别 | |||||
活动栅格 | 非活动栅格 | 精度/(%) | 活动栅格 | 非活动栅格 | 精度/(%) | |||
活动栅格 | 37 | 9 | 80.4 | 活动栅格 | 41 | 5 | 89.1 | |
非活动栅格 | 0 | 58 | 100 | 非活动栅格 | 1 | 57 | 98.3 | |
91.3 | 94.2 |
