A Comparative Study of Water Use Efficiency of Different Crops in the Middle Reaches of Heihe River and Its Implications for Planting Structure Adjustment

  • ZHENG Luqian , 1, 2, 3 ,
  • TAN Minghong , 1, 2, *
Expand
  • 1. Institute of Geographical Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
  • 2. Key Laboratory of Land Surface Pattern and Simulation, Beijing 100101, China
  • 3. University of Chinese Academy of Sciences, Beijing 100049, China
*Corresponding author: TAN Minghong, E-mail:

Received date: 2015-07-09

  Request revised date: 2015-10-01

  Online published: 2016-07-15

Copyright

《地球信息科学学报》编辑部 所有
Fold

Abstract

The Heihe River Basin is located in the northwest arid region of China. Water shortage is the primary restrictive factor for oasis agriculture development and ecological environment protection in this region. Since the water consumed by the oasis agriculture in the middle reaches occupies about 80% of the total water resources in this basin, how to efficiently use the agricultural water resources is the key factor affecting the regional development. In the exploration of agricultural water saving measures in the arid region, most scholars advocate to improve the water use efficiency (WUE) through water-saving techniques. However, there are few quantitative studies focusing on the water saving effect of planting structure adjustment. This study takes the adjustment of agricultural planting structure as a breakthrough point to achieve the goal of agricultural water saving, considering that different crops have different water demands. We aim to explore the characteristics of the water demands of the main crops in the middle reaches of Heihe River and examine the different levels of WUE for those crops. In this paper, with the help of ArcGIS technique and based on the evapotranspiration (ET) data of Heihe River Basin and crop spatial distribution data, we extracted the ET information of the main crops during their growing seasons in 2012, which was represented as the water requirement of crop. Then, the crop ET data and crop yield data were used to calculate the WUE of four main crops. The results show that: (1) maize has the largest ET during its growing seasons, followed by wheat, rapeseed and barley; (2) considering the case of precipitation recharge, the water demands of barley and rapeseed may largely depend on rainfall, while maize and wheat require irrigation instead, and maize needs more water than wheat; (3) the WUE of crops ranking from high to low is barley, rapeseed, wheat and maize. This study argues that the appropriate increase in the size of wheat planting is helpful to improve the efficiency of agricultural water in the middle reaches of Heihe River.

Key words： Heihe River Basin; agricultural structure; evapotranspiration; water use efficiency

Cite this article

ZHENG Luqian , TAN Minghong . A Comparative Study of Water Use Efficiency of Different Crops in the Middle Reaches of Heihe River and Its Implications for Planting Structure Adjustment[J]. Journal of Geo-information Science, 2016 , 18(7) : 977 -986 . DOI: 10.3724/SP.J.1047.2016.00977

1 引言

黑河流域是中国第二大内陆河流域,流域上、中、下游年均降水量分别为350、140和47 mm。降水量是黑河流域生态环境演变的关键控制因子[1],对流域生态安全与经济发展影响巨大。近年来,随着全球变暖,黑河出山口天然来水保持相对稳定并略有增加的趋势[2],但是黑河下游依然出现河流断流、湖泊干涸和水质恶化等现象[3],其主要原因是中游流域大量抽调水资源。研究显示,中游用水占全流域用水的83%[3],其中,中游张掖市农业用水占中游总用水的88%~95%[4-5]。因此,绿洲农业节水是黑河流域水资源合理利用研究的重要切入点。
当前,干旱区农业节水研究主要集中在2方面：（1）利用节水技术提高农业用水效率。目前已有众多学者对干旱区农业关键节水技术（包括覆膜、沟灌、喷灌、滴灌、保护性耕作技术等[6-8]）的节水效率进行了研究。吴丽丽等指出节水技术在黑河流域前期农业节水中取得较大成效,但2007年后节水技术水平停滞不前[9],实地考察发现黑河中游农业中铺设地膜、修建水泥渠等节水措施得到较好实行,但滴灌等先进节水技术则有待推广。（2）种植结构调整对农业用水效率的影响。这方面的研究多以定性研究为主[10-12],定量化研究相对缺乏。根据统计数据,黑河绿洲农业结构中高耗水作物（如玉米、小麦等）种植比例较大,鉴于不同作物生长需水不同,种植结构调整可有利于农业节水,提高农业用水效率[13-15]。
作物用水效率计算关键在于确定作物的需水量,国内外研究中通用作物生长期蒸散量表征作物需水量,表示作物生长实际利用的水量[16]。目前,针对作物蒸散量的估算方法有经验公式实测法、土壤水量平衡法、参考作物蒸散量-作物系数法等[17-18],现阶段对作物蒸散量的研究广泛采用参考作物蒸散量-作物系数法。一般计算方法是利用气象数据代入彭曼(P-M)公式计算参考作物蒸散量,再乘以作物系数得到实际作物蒸散量,此方法得到的作物蒸散量往往是站点尺度上的,很难推广到区域尺度,空间局限性大。本文充分利用遥感反演的蒸散发数据,结合作物分类数据,通过实地调查选取面积较大的均一作物地块作为样本,以获得不同种植区域的作物蒸散量,从而相对准确地表征区域范围内该作物实际蒸散量的平均水平。通过对黑河中游主要作物生长期需水特征及用水效率差异的比较分析,从作物种植结构调整角度为黑河绿洲农业节水提供依据和相关建议,为实现黑河流域水资源均衡利用、改善整体生态环境提供参考。

2 研究区概况

黑河发源于祁连山中段,流域范围介于96°42′~102°00′ E、37°50′~42°40′ N之间,总面积为14.29 万km2,东邻石羊河流域,西接疏勒河流域,北至内蒙古自治区额济纳旗境内的居延海。流域以莺落峡、正义峡为界分为上、中、下游：上游属祁连山区,为产流区;中游地势平坦,人工绿洲面积较大,是径流利用区;下游大部分为沙漠戈壁,为径流消失区。
黑河绿洲农业集中在中游流域,包括甘肃省张掖市的甘州、山丹、民乐、临泽、高台、肃南等区县和甘肃省酒泉市的肃州区。鉴于中游绿洲农业面积有82.6%分布在张掖市,而张掖市肃南县为典型牧业县,2012年作物播种面积不到全市作物总播种面积的3%[19];同时,为保证数据、资料的可获取性和标准化,采用研究区范围尽量与行政边界相一致的原则,将研究区域确定为张掖市下辖农业区县,即甘州区、山丹县、民乐县、临泽县和高台县（图1）。

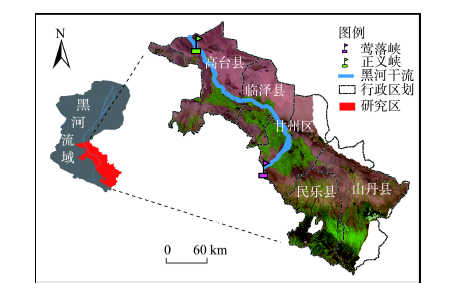

Fig. 1 The location of the study area

图1 研究区示意图

研究区地处祁连山冲积平原,属大陆性气候,其近10年的年平均气温为7.57 ℃,年日照时数为2969.1 h,年降水量为195.43 mm,年蒸发量为1710.23 mm（数据来源于2005-2013年《张掖市统计年鉴》。）。干旱区水热条件特性决定了研究区农业多为单季种植,以夏收和秋收2种类型作物为主,夏收作物主要为小麦和大麦,秋收作物主要有玉米、油菜等,作物生长期在4-9月间。2012年研究区内大麦、小麦、玉米和油菜播种面积占农作物总播种面积的63%,年产量达99万t[19],为黑河中游主要作物。由于研究区降水少、蒸发量大,故该区域内农业多为灌溉农业,且灌溉可分为渠灌和井灌2种。2012年研究区渠道总长度达1.9万km,拥有机井6530眼,有效灌溉面积达172千hm2,其中,节水灌溉面积所占比例不到20%[20],大水漫灌现象普遍存在。

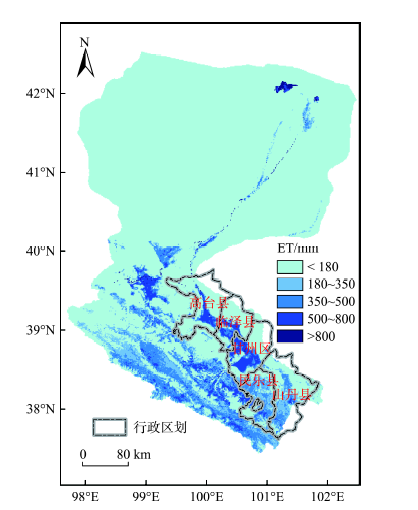

Fig. 2 Evapotranspiration data of 2012

图2 2012年蒸散量图

3 数据与方法

3.1 数据

3.1.1 蒸散发数据
蒸散发数据来源于黑河流域2000-2012年 1 km分辨率月尺度地表蒸散发数据集,该数据集由吴炳方课题组基于ETWatch系统生产而成。ETWatch运用P-M公式和余项单层蒸散模型,采用多尺度、多源遥感数据,结合黑河典型区野外观测数据,对该区域的蒸散发(ET)进行估算[21-23],所得黑河全流域ET估算值与实测ET间的平均相对误差为-11.8%( Wu B F, Zhu W W, Yan N N, et al. Integration of parameterization based on multi-source remote sensing data for estimation evapotranspiration: A case study on Heihe River Basin[J]. Manuscript under preparation.)。该数据以像元为基础,可结合作物空间分布数据提供不同作物的ET信息。
受作物精分类数据缺乏的限制,本文选择2012年作物生长期间的月蒸散发数据进行研究。图2为黑河流域2012年蒸散发示意图。利用ArcGIS进行区域统计可知：研究区2012年农田平均蒸散量约为467 mm,这与周剑基于遥感和SEBS模型估算的黑河中游绿洲蒸散量449.9 mm[24]、杨永民基于遥感测算的黑河中游农田绿洲区蒸散量500 mm[25]等研究结果相近;农田区年降水量为220 mm左右,约为农田蒸散量的1/2;根据张掖市2012年水利管理年报,研究区单位面积灌溉水量约为583 mm[20],表明作物生长很大程度上依赖于灌溉。
3.1.2 作物数据
作物空间分布数据主要来源于2012年黑河流域土地利用数据集,该数据集由仲波课题组利用HJ/CCD数据解译完成[26-27]。该数据中除了传统土地利用类别信息,还结合实地调查数据对耕地范围增加了作物精细分类,数据分类总体精度达到92.2%,作物分类精度为84.1%[28]。该土地利用数据中包括大麦、小麦、玉米、油菜、苜蓿和棉花等作物信息,本文选取大面积种植的大麦、小麦、玉米和油菜4种作物做进一步分析。
结合2012年黑河流域作物空间分布数据,本文于2014年8月对研究区进行实地考察采点工作,根据农户调查,确定面积较大且近年来作物种植类型不变的地块,为更好地选取单一作物样本提供参考。采点数据见图3,样地实况见图4。

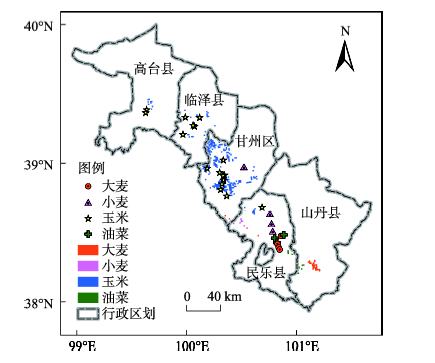

Fig. 3 The distribution of crop samples

图3 作物采点及样本分布图

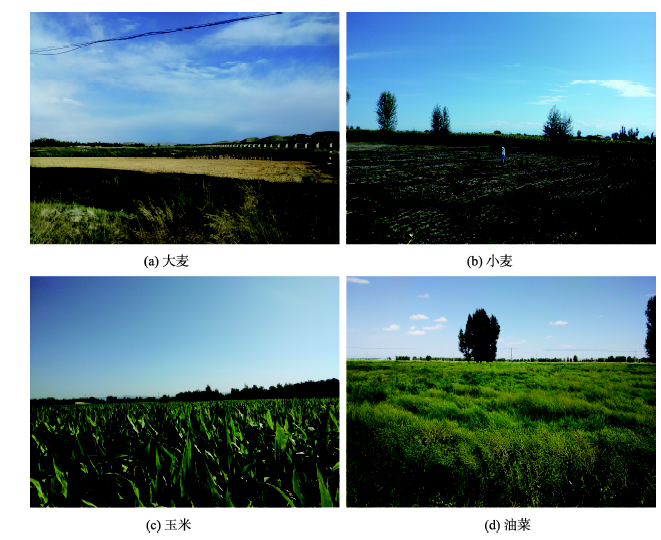

Fig. 4 Some field samples of crops

图4 实地样本

3.1.3 降水数据
降水数据来源于中国气象科学数据共享服务网的中国地面降水月值0.5°×0.5°格点数据集。为保证研究单元一致性,利用专业气象数据空间插值软件ANUSPLIN对原始降水数据进行插值处理,生成1 km分辨率的2012年逐月降水数据集。
ANUSPLIN软件由澳大利亚科学家Hutchinson基于薄盘光滑样条函数原理编写完成[29],目前已得到广泛应用。该软件允许引入多个影响因子作为协变量,与IDW法、Kriging法相比具有更高的插值精度[30],且能同时进行多个表面的插值。软件提供18个薄盘光滑样条函数模型,研究表明以高程作为协变量,样条次数为3的TVPTPS3模型能使降水要素插值精度最高[31]。本文采用该模型对2012年全国降水量进行插值,并运用交叉验证法[32-33]分析插值结果精度,结果显示：模型模拟降水量与站点实际降水量的平均绝对误差（MAE）为6.45 mm,平均相对误差（MRE)为12%,均方根误差（RMSE）为13.32 mm,其中MAE、RMSE均小于刘正佳全国降水插值的验证结果（MAE=48.19 mm,MRE=6%,RMSE=76.38 mm）[34]。
3.1.4 作物经济数据
各作物产量数据来源于2012年《张掖统计年鉴》[19];作物价格数据来源于联合国粮农组织统计数据库,为2012年中国市场统一价格(表1)。
Tab. 1 Yields and prices of different crops

表1 不同作物产量及价格

指标 作物
大麦 小麦 玉米 油菜
产量/(kg/hm2) 6349.50 6189.75 7656.75 3051.60
价格/(元/kg) 2.30 2.04 2.42 5.00

3.2 研究方法

本文首先选取大麦、小麦、玉米和油菜4种主要作物,基于2012年黑河流域作物空间分布数据,结合实地调查,确定面积较大、种植结构单一的作物样本区域;然后,利用ET时空分布数据,分别提取4种作物各月蒸散量,计算出各作物生长期需水量;最后,结合作物产量和价格数据,进行不同作物用水效率的计算和比较。
3.2.1 用水效率的定义及计算
国内外对农业用水效率、效益的研究较多,命名不一,定义也因不同观点、不同学科而存在差异。20世纪70年代以后,从作物生理学角度,学术界对农业用水效率的定义多采用水分利用效率（Water Use Efficiency）这一概念[16],也称用水效率,即单位水量产生的作物产量。考虑农业生产实际应用,作物产量应指经济产量。作物用水量则主要分为作物需水量和灌溉用水量[16,35]。本研究着眼于作物自身耗水特性差异,故基于作物需水量定义作物用水效率,这也是目前国际上普遍所指的水分利用效率。国内外研究中普遍用作物产量和作物生长期蒸散量的关系描述作物用水效率[36],通用计算方法[37-40]如式（1）所示。
WUE = Y ET (1)
式中：WUE为用水效率;Y为作物产量;ET为作物生长期蒸散量。
本文旨在比较不同种类作物的用水效率差异,而式(1)中基于作物产量的用水效率并不能表征作物之间的绝对差异。广义上,农业用水效率可指农业水资源利用的效率和效益[41-42],因此有研究用作物经济收益代替作物产量来评价作物用水效率[43]。本文借鉴该方法,将作物经济产量统一按其市场价值进行换算,从而统一作物产量的衡量标准,以单位用水量的经济收益来表征作物用水效率的高低[35],计算方法如式（2）所示。
WU E e = ( Y × P ) ET (2)
式中：P为作物的市场价格。
3.2.2 作物蒸散量提取
由于蒸散发数据分辨率为1 km,而土地利用数据分辨率为30 m,故提取作物蒸散量关键在于选取适宜的作物样本。图5给出了作物蒸散量提取技术流程：以小麦为例,为获得单一小麦样本,将小麦分布数据按蒸散发数据分辨率重新划分成1 km×1 km的像元,选择像元内小麦面积占比超过75%的像元作为小麦样本;同时,结合实地采点数据,尽量选取大面积且种植结构不变的地块,生成最终小麦样本。将小麦样本数据与黑河流域蒸散发数据进行空间关联,得到各小麦样本的蒸散量值,进一步平均,得到小麦蒸散量值。经处理得到各作物样本数为：大麦36个、小麦7个、玉米301个、油菜19个（图3）。

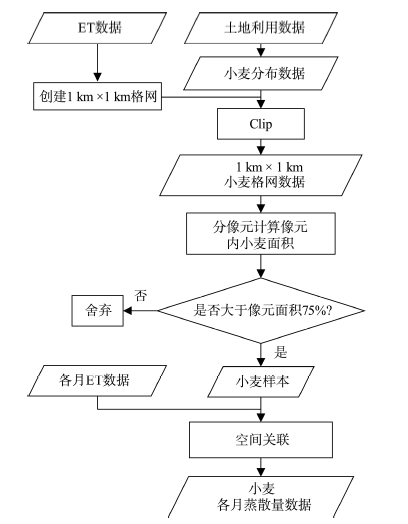

Fig. 5 The technical flowchart of crop evapotranspiration extraction

图5 作物蒸散量提取技术流程（以小麦为例）

4 结果与分析

4.1 作物分布情况

利用2012年黑河流域土地利用数据提取作物信息,对中游绿洲农业中主要作物(大麦、小麦、玉米和油菜)的分布进行分析（图6）。由图6可见,大麦主要分布于民乐县、山丹县及甘州区的南部;小麦主要分布在民乐县的北部、山丹县城周边这些海拔相对低的地区;玉米是黑河中游主要作物,在民乐县北部、甘州区、临泽县、高台县均有成片种植,尤以甘州区最为密集;油菜则主要分布在民乐县东南部和山丹县西南部,这些地区海拔高、气温低,相对干旱,作物产量不高,但大面积种植油菜可以发展特色旅游业。

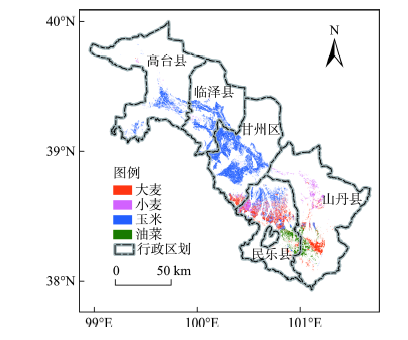

Fig. 6 The distribution of main crops in the study area

图6 研究区主要作物分布图

4.2 作物生长期需水量特征

由于地区不同作物生长期会略有差异,根据实地调研来确定各作物生长期：大麦和小麦生长期相近,均为4-7月;玉米生长期为4-9月;油菜生长期为5-9月。由各作物生长期蒸散量过程曲线（图7(a)）可知,玉米生长期需水峰值出现在6月,而小麦、大麦和油菜生长期需水峰值为7月。

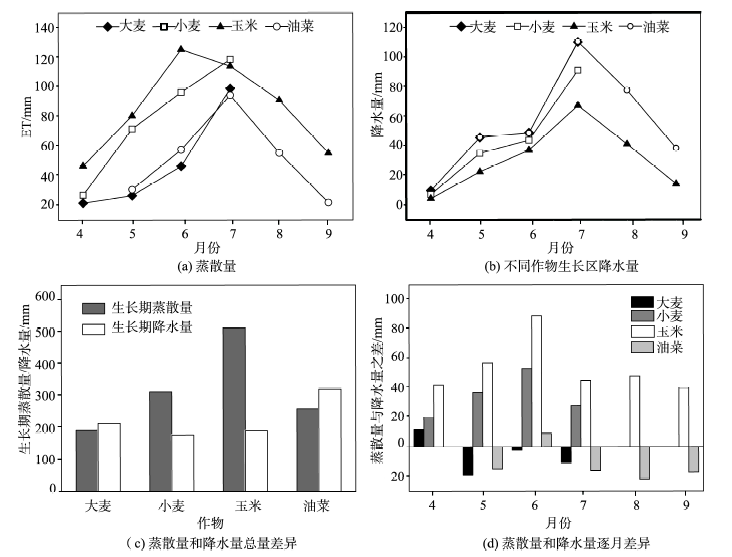

Fig. 7 Evapotranspiration, precipitation and their relationship of crops during the growing seasons

图7 作物生长期蒸散量、降水量及其关系

统计各作物生长期蒸散量发现,玉米是需水量最高的作物,生长期蒸散量达514 mm;其次,依次是小麦和油菜,分别为314 mm和260 mm;大麦需水量最少,生长期蒸散量为193 mm。
已有大量研究对小麦和玉米生长需水量进行估算,连彩云等采用田间试验法,利用水量平衡方程计算非充分灌溉条件下张掖小麦和玉米的生长期实际蒸散量,分别为507.5 mm和570.3 mm[44];王瑶等基于参考作物蒸散量-作物系数法,利用14个气象站点数据计算黑河中游30年小麦年均生长期蒸散量为573~781 mm,其中民乐小麦生长期蒸散量为598.2 mm[45];尹海霞等用该方法,选取黑河中游7个气象站点数据计算了该区域43年来小麦和玉米生长期蒸散量均值,分别为453 mm和602 mm,其中民乐小麦生长期蒸散量为390 mm[46]。本文所得小麦生长需水量与连彩云、王瑶和尹海霞的研究结果相比均偏小;玉米生长需水量与连彩云研究结果相近,与尹海霞估算结果则存在差异。这些差异可能和研究区域的选择不同有关。本研究中小麦和玉米样本分别集中在民乐县和甘州区,而连彩云测算蒸散量的试验田位于甘州区,民乐县相比甘州区较为干旱且作物灌溉用水少,故小麦蒸散量可能低于甘州区。另外,王瑶、尹海霞利用参考作物蒸散量-作物系数法估算作物蒸散量,实际得到的是气象站点附近区域的作物生长需水量;而本文采用遥感反演的蒸散发数据,结合作物空间样本,提取作物蒸散量,一定程度上能代表区域范围内作物生长需水量的平均水平。王海波等利用遥感和P-M公式法测算的黑河中游玉米生长期平均蒸散量为552.2 mm[47],与本文所得玉米生长期蒸散量结果基本接近。针对大麦和油菜的作物生长需水量测算研究目前则较为匮乏。

4.3 降水补给下作物生长期水分需求分析

由于研究区地处干旱区且地势平坦,故不考虑降水形成径流和深层渗漏的损失。研究区降水补给的作物用水需求可用作物生长期蒸散量与降水量之差来衡量。各作物生长期月降水量峰值都出现在7月（图7(b)）,与大麦、小麦、油菜的生长期需水量趋势相契合;研究区不同作物生长期蒸散量和降水量差异如图7(c)所示;图7(d)则进一步表征不同作物各生长阶段蒸散量与降水量之差。
由图7(c)可见,4种作物中,大麦和油菜生长期的降水量总和大于蒸散量,分别超出22 mm和 62 mm,说明降水补给可基本满足大麦和油菜生长期总需水要求;而小麦和玉米生长期内降水量均低于蒸散量,说明降水不能满足这2种作物的生长需水,仍需要灌溉。其中,玉米由于生长期需水量大且生长期长,除降水补给外,其灌溉用水需求仍远大于小麦,达322 mm。
由图7(d)进一步分析不同作物生长期内各月蒸散量与降水量差异,大麦生长初期（4月）蒸散量高于同期降水量12 mm,需要其他途径的水分补给;生长期内其余各月降水量均大于同期蒸散量。油菜生长期（6月）的蒸散量略高于降水量,其余生长阶段降水量均高于同期蒸散量,说明油菜生长可基本依赖于降水补给,这也与油菜旱地种植的实际情况相符。小麦和玉米生长期各月降水量均小于其蒸散量,二者降水补给下的用水需求呈现“倒U型”规律,在6月达到最高。6月为作物灌溉需水高峰期,一定程度上可为作物灌溉水配置提供参考。

4.4 作物用水效率分析

根据各作物单位面积产量、作物需水量及作物价格数据,由式(2)计算得到各作物用水效率(表2)。由表2可见,大麦用水效率最高,达7.57元/m3;油菜次之,单位水产生经济收益为5.86元;小麦次之,为4.02元/m3;玉米用水效率最低,为3.60元/m3。
Tab. 2 Water use efficiencies of different crops

表2 不同作物用水效率

作物 指标
产量（Y）/（kg/hm2） 生长期需水（ET）/mm 价格（P）/（元/kg） 用水效率（WUEe）/（元/m3）
大麦 6349.50 192.92 2.30 7.57
油菜 3051.60 260.34 5.00 5.86
小麦 6189.75 314.29 2.04 4.02
玉米 7656.75 514.03 2.42 3.60
目前针对作物用水效率的研究多集中在小麦和玉米。盖力强等研究华北平原小麦、玉米生产用水情况[48],结果表明生产相同产量的作物,小麦需水量明显高于玉米。而本研究区玉米需水量远超小麦,造成该研究结果差异的原因可能是华北平原种植的冬小麦与黑河中游种植的春小麦在生长需水量上存在较大差异。黑河中游研究结果说明,在产生相同收益时,在该区域种植小麦比种植玉米所需水量少。
综合4种作物用水效率特征和种植区位差异,考虑在水资源紧缺、灌溉用水得不到保障时,应多种植用水效率高的作物,如大麦和油菜;而玉米用水效率在4种作物中虽为最低,但由于其产量高,在灌溉用水充足的地区可适当种植。目前,研究区作物种植结构也表现出这样的规律,灌溉水资源充分的地区,作物种植种类选择以考虑经济收益为主,如甘州区、临泽县、高台县广泛种植玉米,但大面积玉米种植是以过度抽取水资源为代价,这直接导致地下水位下降和下游可用水资源减少。由于中游地区小麦种植区位与玉米相似,而小麦用水效率高于玉米,从该角度来说,在黑河中游适当扩大小麦种植能有效减少水资源的消耗,提高本区域农业用水效率。

5 结论

本文基于作物生长期蒸散量,结合同期降水量,分析黑河中游绿洲农业主要作物的生长期需水特征;结合作物产量和价格数据,分析不同作物用水效率差异,得出如下结论：
（1）由作物生长期蒸散量看,作物需水量特征为：黑河中游绿洲农业4种主要作物生长需水存在较大差异,玉米生长需水量为514 mm,显著高于其他作物,与大麦相差达321 mm;小麦、油菜生长需水量处二者之间,分别为314 mm、260 mm。
（2）大麦和油菜生长期降水量高于其蒸散量,进一步分析其生长期各月蒸散量与降水量关系发现,大麦仅在4月需要灌溉,油菜生长需水则基本可依赖于降水补给;小麦和玉米生长期蒸散量均高于同期降水量,对灌溉用水需求量较大,分别为 322 mm和137 mm。
（3）以货币价值表征各作物产值,作物用水效率从高到低依次为：大麦、油菜、小麦和玉米。考虑作物种植区位,在广泛种植玉米的黑河中游地区适当扩大小麦种植,将有利于提高农业用水效率。
本研究中基于ET数据所得的作物蒸散量相比实测蒸散量可能偏小,但鉴于作物蒸散量是基于同一数据和方法提取,得到各作物生长期蒸散量的偏差一致,故ETWatch估算误差对不同作物间需水特征和用水效率的比较研究影响不大。另外,本研究只分析了大麦、小麦、玉米和油菜4种主要作物,而实际黑河中游绿洲农业种植结构更为复杂,且近年蔬菜、马铃薯等作物种植面积均呈增加趋势。因此,后续研究中将进一步细化作物分类,同时结合农户问卷调查,考虑作物投入成本和实际灌溉水量,完善作物用水效率计算,为干旱区绿洲农业种植结构调整提供更全面的依据与建议。
